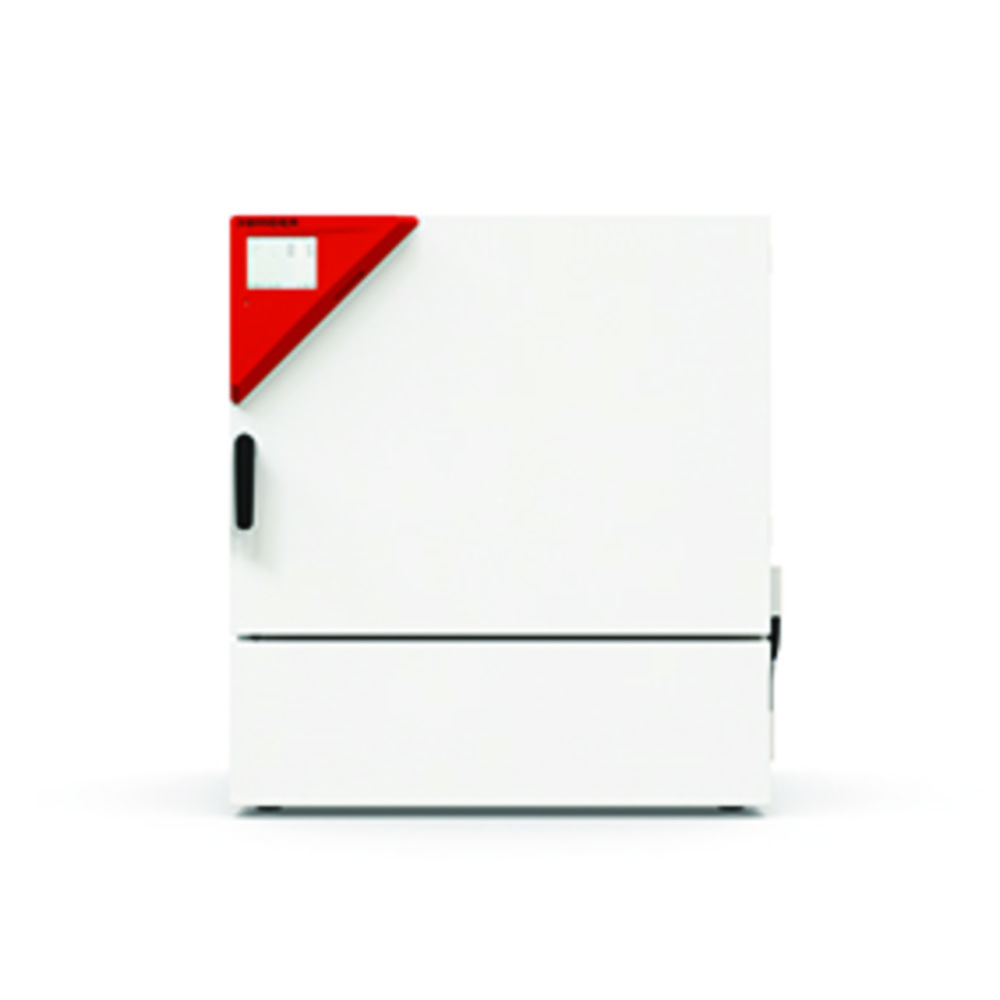

Cooling incubator KB PRO
Content:
1
Product number:
6523290
Product information "Cooling incubator KB PRO"
The cooling incubators of the KB PRO series are equipped with APT.line™ preheating chamber technology and an extended temperature range. With their comprehensive programming options, the cooling incubators cover a wide range of applications. They are equipped with proven compressor technology to ensure reliable and failsafe long-term operation. Thanks to the modern inverter cooling unit and the climate-neutral refrigerant R-290, energy-efficient and environmentally friendly cooling is guaranteed. The inner chamber and the two racks with telescopic rails are made of stainless steel, while the inner doors are made of metal oxide-coated safety glass.
Models 260, 470, and 720 can be optionally equipped with light modules for ICH photostability tests. With optional LED light modules, the KB PRO models from 260 upwards become a plant growth cabinet. Please order light modules separately.
- Adjustable fan speed
- Door heating to prevent condensation
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (for models from 470 l volume)
- Signal triangle with light-up status display (for models from 470 l volume)
- Internal data logger, measured values can be read out in open format via USB interface
- Ethernet interface
- BINDER Multi Management Software APT-COM™ Basic Edition
- Device self-test for comprehensive status analysis
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarm
- Large access port with silicone plug
- Table-top device KB PRO 130 is stackable
- Floor-standing devices with robust twin casters with brakes at the front
Models 260, 470, and 720 can be optionally equipped with light modules for ICH photostability tests. With optional LED light modules, the KB PRO models from 260 upwards become a plant growth cabinet. Please order light modules separately.
| Cooling system: | Cooling compressor |
|---|---|
| Depth int.: | 386 mm |
| Ext. depth: | 710 mm |
| Ext. height: | 1005 mm |
| Ext. width: | 900 mm |
| External dimensions (WxDxH): | 900 x 710 x 1,005 mm |
| Height int.: | 500 mm |
| Int. width: | 656 mm |
| Internal dimensions (WxDxH): | 656 x 386 x 500 mm |
| Manufacturer Article Number: | 9020-0433 |
| Material inserts: | Stainless steel |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 6 |
| Max. temperature: | 100 °C |
| Max. voltage: | 240 V |
| Min. temperature: | -20 °C |
| Min. voltage: | 208 V |
| Nominal capacity: | 127 l |
| Plug type: | EU |
| Power supply: | 208 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1 kW |
| Temperature: | -20 ... 100 °C |
| Temperature stability: | ±0,1 K (37 °C) |
| Type: | KB PRO 130 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104423 |
| Weight: | 135 kg |
