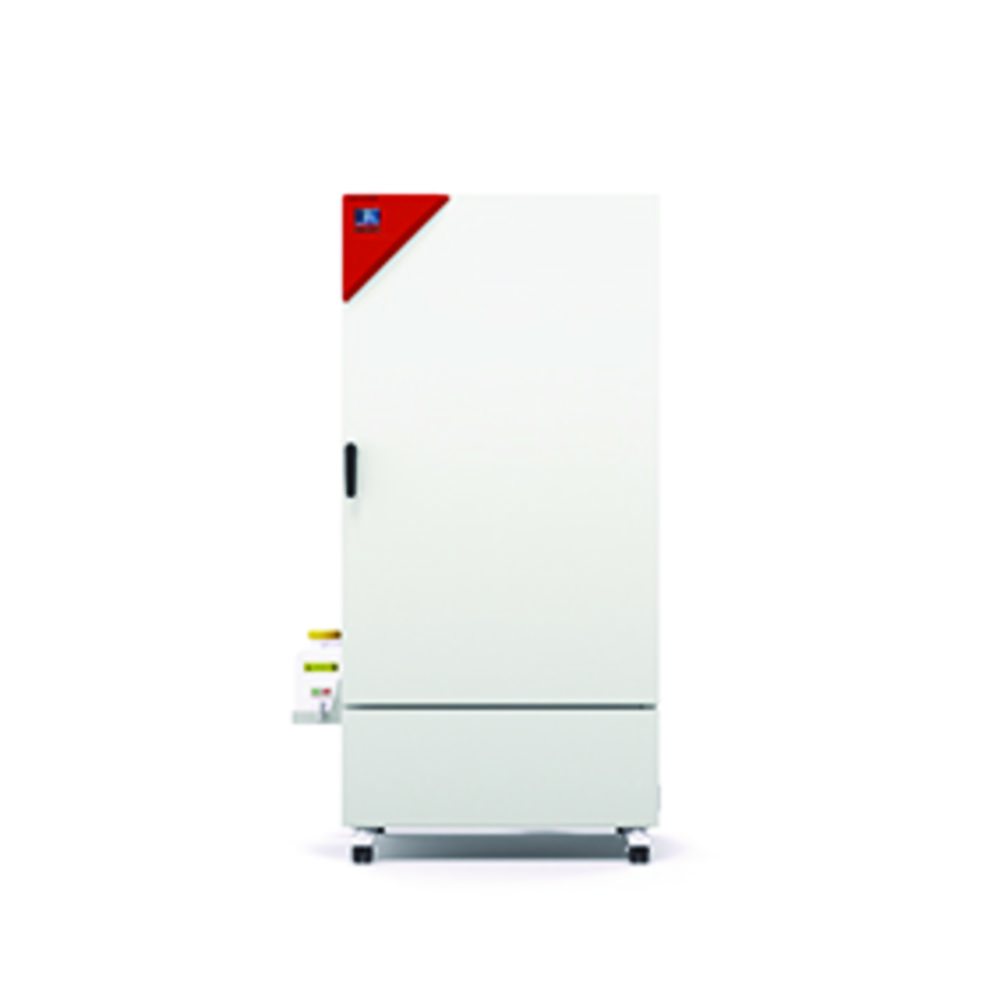

Constant climate chambers KBF-S ECO
Content:
1
Product number:
4687510
Product information "Constant climate chambers KBF-S ECO"
Constant climate chambers for long-term tests and accelerated stability tests of pharmaceutical products according to the ICH guideline Q1A. Particularly energy-efficient and low-noise thanks to Peltier technology with patented heat dissipation.
- Homogeneous climate even with full load
- Electronically controlled APT.line™ preheating chamber technology
- Temperatures up to 28 °C below ambient temperature possible
- Inner chamber made completely of stainless steel
- 2 stainless steel grids incl. shelf support
- Access port with silicone plug Ø 30 mm, left side
- Unit self-test for comprehensive status analysis
- LCD display for indication of temperature, humidity, alarms and additional information
- Internal data logger with USB interface
- Independent water supply via canisters
| Depth int.: | 485 mm |
|---|---|
| Ext. depth: | 796 mm |
| Ext. height: | 1946 mm |
| Ext. width: | 925 mm |
| External dimensions (WxDxH): | 925 x 796 x 1,946 mm |
| Height int.: | 1268 mm |
| Int. width: | 650 mm |
| Internal dimensions (WxDxH): | 650 x 485 x 1,268 mm |
| Manufacturer Article Number: | 9020-0464 |
| Material inserts: | Stainless steel |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 15 |
| Max. relative humidity: | 80 % |
| Max. temperature: | 70 °C |
| Max. voltage: | 120 V |
| Min. relative humidity: | 10 % |
| Min. temperature: | 0 °C |
| Min. voltage: | 100 V |
| Nominal capacity: | 400 l |
| Plug type: | US |
| Power supply: | 100 ... 120 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1.1 kW |
| Relative humidity: | 10 ... 80 % |
| Temperature: | 0 ... 70 °C |
| Temperature stability: | ±0,1 K (25 °C) |
| Type: | KBF-S ECO 400UL |
| Type of auxiliary energy: | Mains connection |
| Weight: | 192 kg |
| With CO₂ control: | No |
Skip product gallery
Accessories
Shelves for BINDER chambers and incubators, stainless steel
Shelves made of stainless steel, perforated.If you are ordering replacement shelves, please provide the serial number prior to ordering, since it might be necessary to order other shelves with different dimensions.
