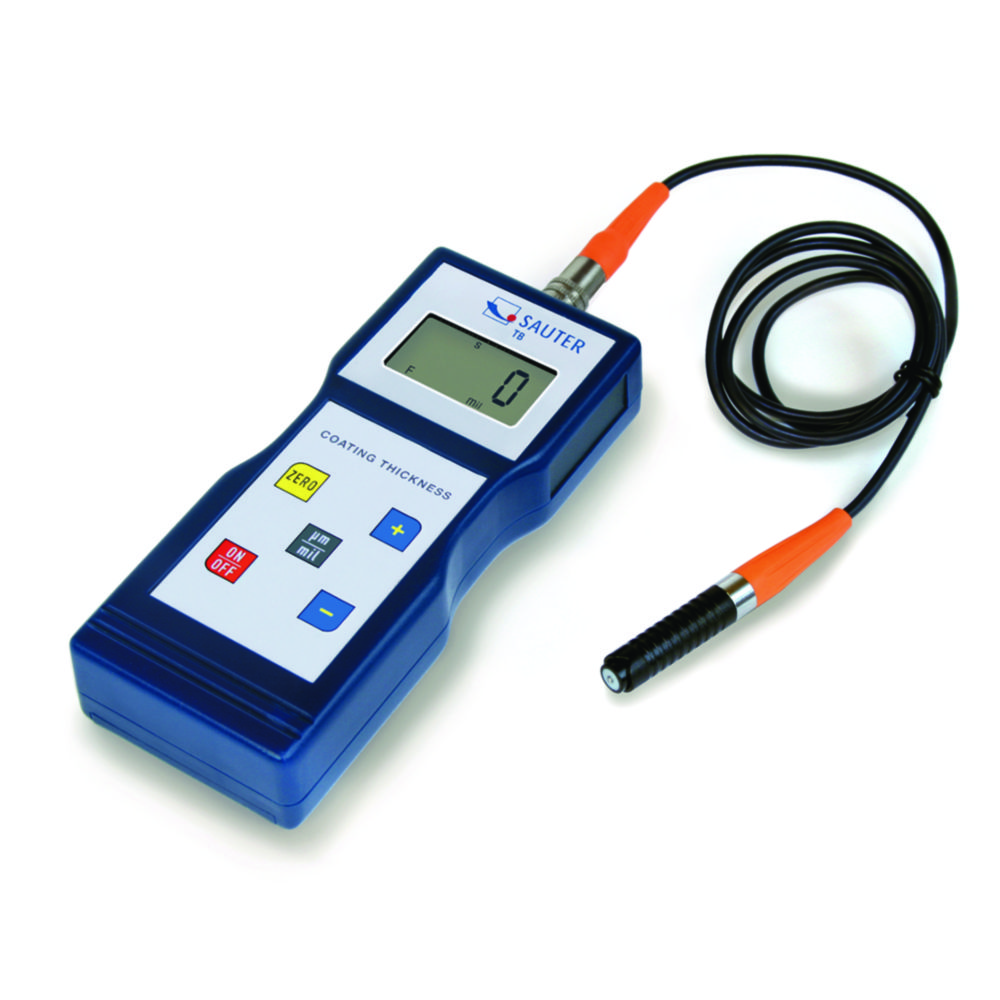

Coating thickness gauges, digital, TB-F
Content:
1
Product number:
4691199
Product information "Coating thickness gauges, digital, TB-F"
For measuring of non-magnetic coatings on iron and steel. The Offset-Accur function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a higher accuracy of approx. 1 % of the measured value.
Scope of supply: Coating thickness gauge, external sensor, base plate, calibration foils, carrying case
- Selectable measuring units: µm, inch (mil)
- Auto-Power-Off
- Battery operation
Scope of supply: Coating thickness gauge, external sensor, base plate, calibration foils, carrying case
| Battery/rechargeable battery: | 4 x 1.5 V, AA |
|---|---|
| Depth: | 69 mm |
| Designation ANSI: | AA |
| Dimensions (WxDxH): | 161 x 69 x 32 mm |
| Height: | 32 mm |
| Manufacturer Article Number: | TB 1000-0.1F |
| Max. measured value: | 1000 µm |
| Max. voltage battery/rechargeable battery: | 1.5 V |
| Measured range: | 100 ... 1,000 µm |
| Min. measured value: | 100 µm |
| No. of batteries/rechargeable batteries: | 4 |
| Tolerance: | 3 % |
| Type of auxiliary energy: | Battery |
| Weight: | 750 g |
| Width: | 161 mm |
