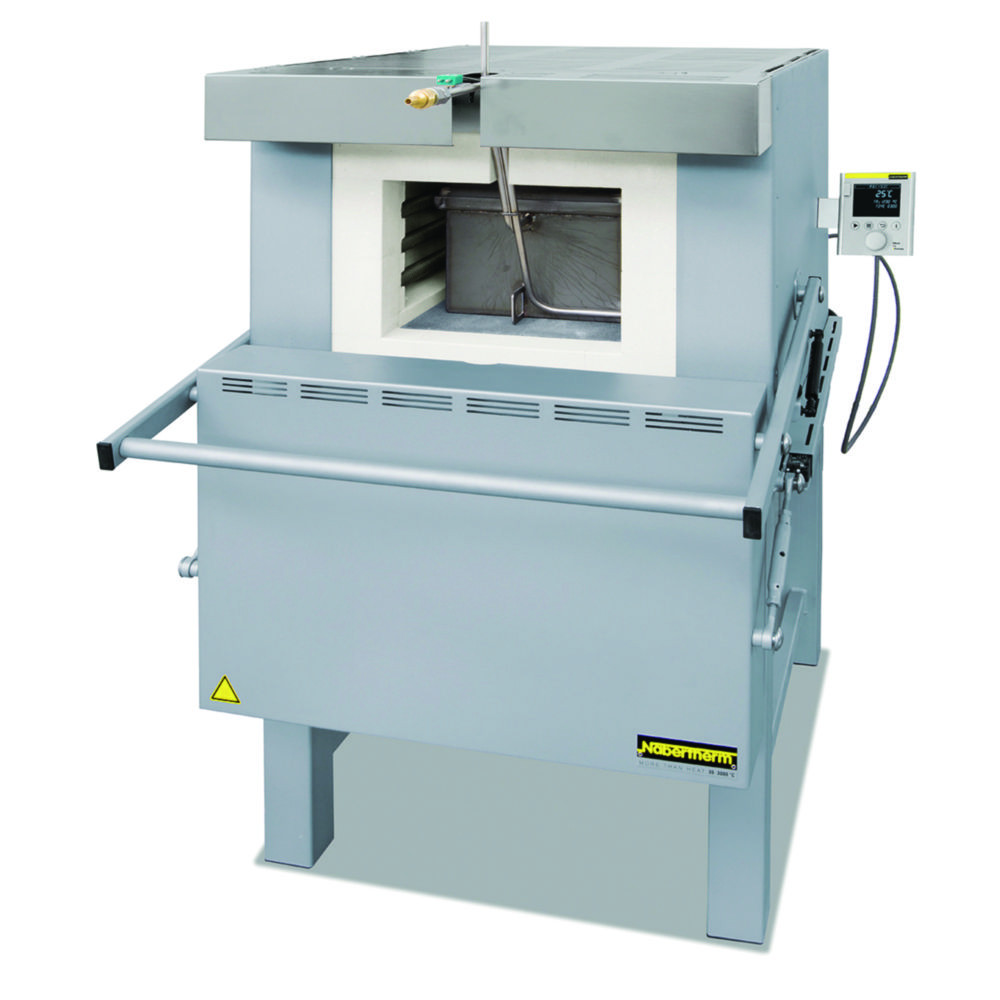

Chamber furnaces
Content:
1
Product number:
6226571
Product information "Chamber furnaces"
The chamber furnaces are suitable for Annealing, Hardening and Brazing. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium can be implemented without the use of expensive and complicated annealing systems.
- Robust insulation with light refractory bricks
- Deep furnace chamber with three-sides heating: from both side walls and bottom
- Low energy consumption due to multi-layer insulation
- Base frame included
- N 7/H - N 17/HR designed as table-top model
- Parallel guided downward swinging door (user protected from heat radiation)
- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
- Equipped with the B 500 programmable controller (with touch panel, 5 programmes with 4 segments each), optionally available with the C 540 controller
| Depth int.: | 250 mm |
|---|---|
| Door opening: | Downwards |
| Ext. depth: | 650 mm |
| Ext. height: | 600 mm |
| Ext. width: | 800 mm |
| External dimensions (WxDxH): | 800 x 650 x 600 mm |
| Height int.: | 140 mm |
| Int. width: | 250 mm |
| Internal dimensions (WxDxH): | 250 x 250 x 140 mm |
| Manufacturer Article Number: | N01H1NKNA |
| Max. temperature: | 1280 °C |
| Max. voltage: | 230 V·1/N/PE |
| Nominal capacity: | 9 l |
| Power supply: | 230 V·1/N/PE, 50 Hz |
| Power supply frequency: | 50 Hz |
| Type: | N 7/H/B500 |
| Type of auxiliary energy: | Mains connection |
| Type of door: | Parallel swinging door |
| UNSPSC: | 40101805 |
| Weight: | 60 kg |
