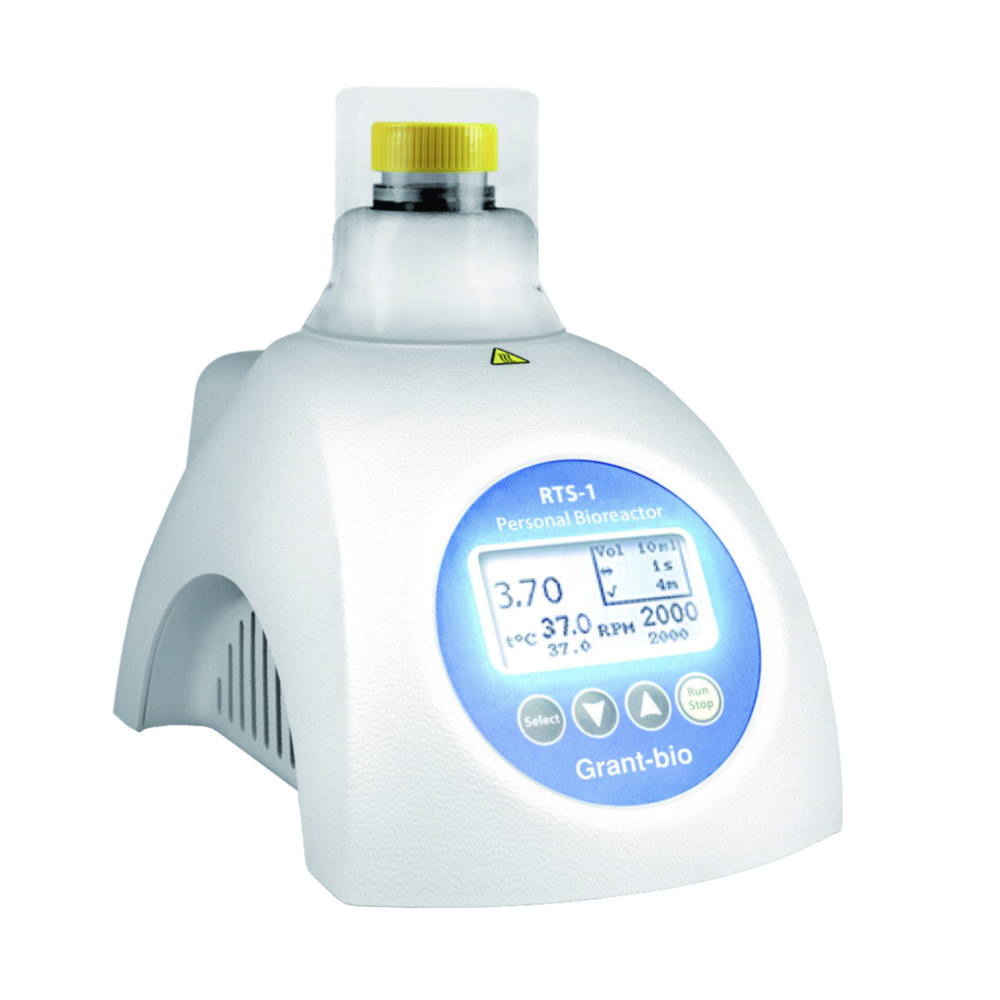

Bioreactors RTS-1 / RTS-1C
Content:
1
Product number:
4671974
Product information "Bioreactors RTS-1 / RTS-1C"

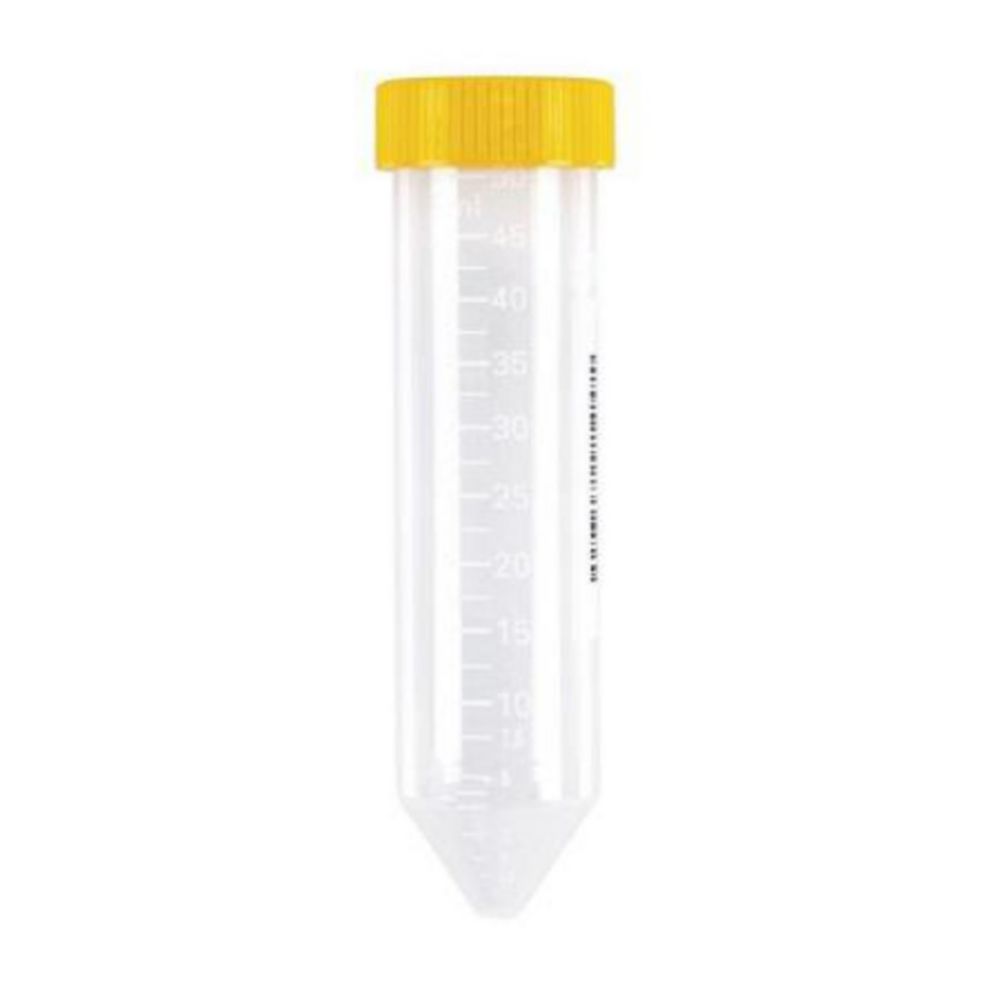

Compact and efficient bioreactors providing patented Reverse-Spin® type agitation and logging of microbial growth, in 50 ml tubes, in real time. For applications such as bacterial cultivation with real time growth kinetics, strain screening, temperature stress and fluctuation experiments media screening and optimization, synthetic and systems biology, inhibition and toxicity tests and strain quality control.
*Highest kLa (h-1) is achieved at 5 ml working volume which is optimal for aerobic cultivation
**OD850 to OD600 vary between strains and phases of growth
- 3D graphical representation of OD or growth rate over time over unit
- Easy-to-read LCD screen displaying temperature, RPM and time
- Programmable cycling/profiling of cultivation parameters such as temperature, RPM, Reverse-Spin® frequency
- Active cooling and temperature profiling via software (RTS-1C only)
- Minimum PC requirements: Intel/AMD Processor, 1 GB RAM, Windows XP (not guaranteed)/Vista/7/8/8.1/10, 2.0 USB port
| Specifications | |
| Theoretically possible measurement range in OD850, at 10 ml working volume* | |
| Rod shaped bacteria: Yeast: | 0 ... 25 (0 ... 45.6 OD600 equivalent**) 0 ... 50 (0 ... 75 OD600 equivalent) |
| E.coli BL21 Factory calibration measurement range, in OD850 | |
| at 10 ... 20 ml volume: at 20 ... 30 ml volume: | 0 ... 10 OD (0 ... 19 OD600 equivalent) 0 ... 8 OD (0 ... 15.2 OD600 equivalent) |
| Measurement wavelength (λ): | 850 ±15 nm |
| Factory calibration measurement precision: Mass transfer coefficient kLa (h-1) | ±0,3 OD850 up to 350 ± 26 h-1 at 5 ml |
| Bottom control range point RTS-1 // RTS-1C: Top control range point: | Ambient +5 // Ambient -15 70 °C |
| Temperature stability: | ±0.1 °C |
| Real time measurement: | 1 ... 60 min |
| Revers spin time: | 1 ... 60 s (increment 1 s) |
| Speed: | 50 ... 2000 rpm (increment 10 rpm) |
| Precision: | ±15 rpm |
| Dimensions (W x D x H): | 130 x 212 x 200 mm |
| Power supply: | 120 ... 230 V, 50/60 Hz |
*Highest kLa (h-1) is achieved at 5 ml working volume which is optimal for aerobic cultivation
**OD850 to OD600 vary between strains and phases of growth
| Manufacturer Article Number: | RTS-1 EU |
|---|---|
| Temp. range °C: | 25 ... 70 (increment 0.1 °C) |
| Type: | RTS-1 EU |
| Weight kg: | 1.7 |
