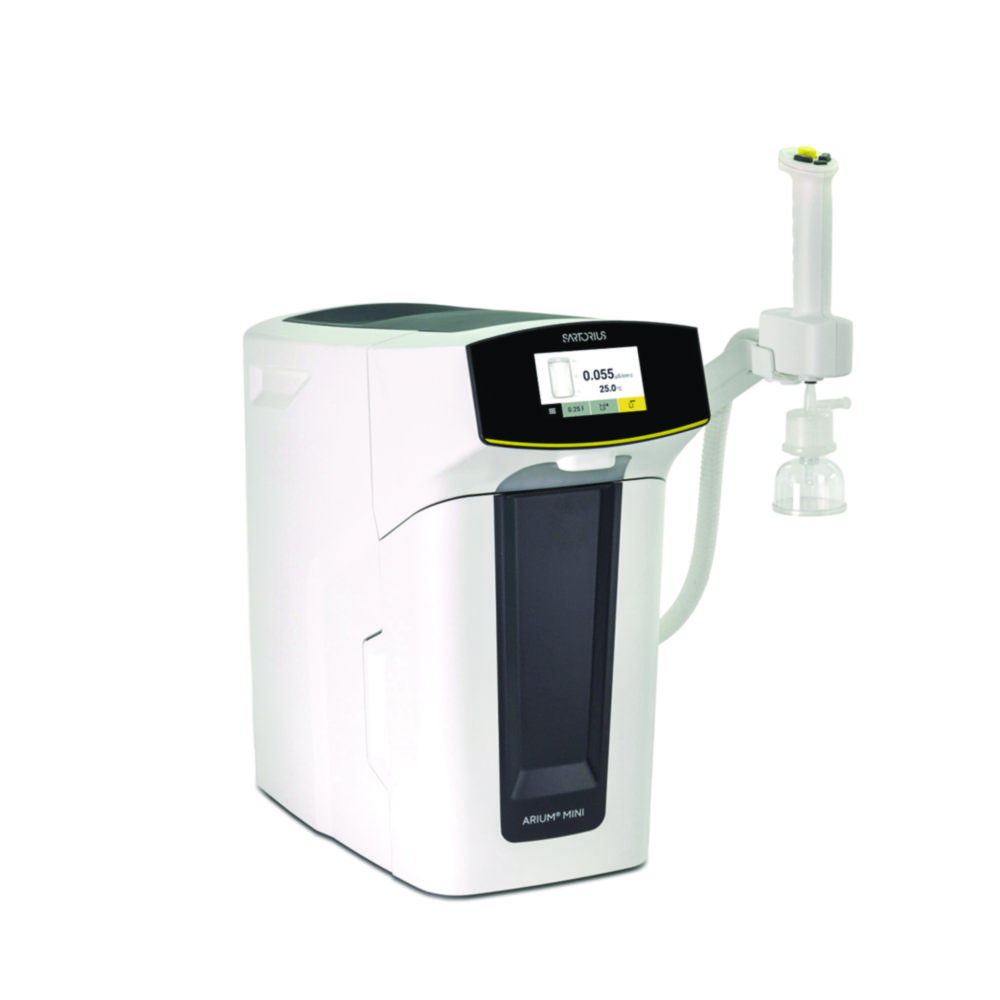

Ultrapure water system arium® mini plus extend
Contenuto:
1
Codice prodotto:
6493291
Info sui prodotti "Ultrapure water system arium® mini plus extend"
The arium® mini is a compact ultrapure water series that is specially designed for Type 1 water requirements of about 10 liters per day. With the capacity to deliver ultrapure water at a rate of 1 L/min. and a width of only 28 cm (11 in.), this space-saving unit easily integrates into nearly any lab environment.
For analytical and especially critical applications, such as HPLC/UHPLC, all arium® mini systems can also be equipped with an optional integrated UV lamp (185/254 nm). This ensures reliable production of ultrapure water that is virtually free of organic components.
Typical applications are buffer and media preparation, histology, reagent preparation, ELISA, AAS, IC, photometry, SPE, GC-MS, HPLC/UHPLC and ICP-MS.
Combined ultrapure water system developed to provide ASTM type 1 and type 3 water. arium® mini is the first ultrapure water system with integrated bag tank technology. The 5-liter bags are made of multilayer and specialized film, conforming to biocompatibility standards. The pure water can be stored in the side integrated 5-litre bag until the production of type 1 pure water.
The arium® mini extend versions have a removable dispenser with magnetic holder for ergonomic and splash-free filling. The combination of the dispenser with the ultrapure water system enables the small footprint. Manual and volume-controlled water dispensing is operated directly via the dispenser or the intuitive display. The last volume dispensed is also accessible and adjustable via both the dispensing unit and the display, making recurring volume dosing easier. Can be combined with Sterile Plus final filter or Cell Plus filter.
For analytical and especially critical applications, such as HPLC/UHPLC, all arium® mini systems can also be equipped with an optional integrated UV lamp (185/254 nm). This ensures reliable production of ultrapure water that is virtually free of organic components.
Typical applications are buffer and media preparation, histology, reagent preparation, ELISA, AAS, IC, photometry, SPE, GC-MS, HPLC/UHPLC and ICP-MS.
- Intuitive menu navigation via colour touch display
- Optimized purity, due to closed system
- No need to use cleaning products
- Delivers a flow rate of 1 litre per minute
- Volume dispense from 50 ml
- Small footprint
The arium® mini extend versions have a removable dispenser with magnetic holder for ergonomic and splash-free filling. The combination of the dispenser with the ultrapure water system enables the small footprint. Manual and volume-controlled water dispensing is operated directly via the dispenser or the intuitive display. The last volume dispensed is also accessible and adjustable via both the dispensing unit and the display, making recurring volume dosing easier. Can be combined with Sterile Plus final filter or Cell Plus filter.
| Alimentazione: | 100 ... 240 V, 50/60 Hz |
|---|---|
| Altezza: | 640 mm |
| Capacità di prelievo: | 1 l/min |
| Codice articolo del produttore: | H2O-MAR-T |
| Dimensioni (LxPxH): | 370 x 610 x 640 mm |
| Frequenza: | 50/60 Hz |
| Larghezza: | 370 mm |
| Max. pressione: | 6 bar |
| Max. tensione: | 240 V |
| Peso: | 14 kg |
| Pressione: | 0.5 ... 6 bar |
| Pressione minima: | 0.5 bar |
| Profondità: | 610 mm |
| Resistività: | 18.2 MΩ × cm |
| Tensione minima: | 100 V |
| Tipo: | arium® mini plus extend |
| Tipo di energia ausiliaria: | Collegamento alla rete elettrica |
| Valore TOC: | ﹤5 ppb |
| Volume del serbatoio: | 5 l |
| conduttività: | 0.055 μS/cm |
