Robust temperature data logger for pasteurization control during production. The data logger is characterized by its small size and can be incorporated into the product in bottles, tins, and jars to measure the temperature.Space-saving stainless steel housingVersatile useM5 threadAxial, pointed PT1000 probeMemory for up to 15000 measured valuesFactory calibration certificate: 0 °C, 60 °C, and 134 °C
With the interface and the software, two data loggers can be programmed and the recorded data can be read out.Scope of supply: Interface IF 100, software Winlog.med
Il data logger WiFi è ideale per il monitoraggio della temperatura negli ambienti. I dati di misura vengono inviati a testo Cloud (archiviazione dati online) tramite LAN wireless e possono essere consultati e valutati su tutti i dispositivi finali abilitati a Internet. Il pacchetto testo Cloud Basic è accessibile gratuitamente.Memoria dati interna fino a 10000 valori misurati per canaleValori limite regolabili tramite testo-CloudNotifica via e-mail al superamento dei valori limiteI valori di misura attuali possono essere letti sul displayInterfaccia micro USBCon sonda di temperatura NTC internaFornitura: Registratore di temperatura WiFi, accesso a testo-Cloud (funzionalità di base), cavo micro USB, staffa a muro, batterie, protocollo di calibrazione

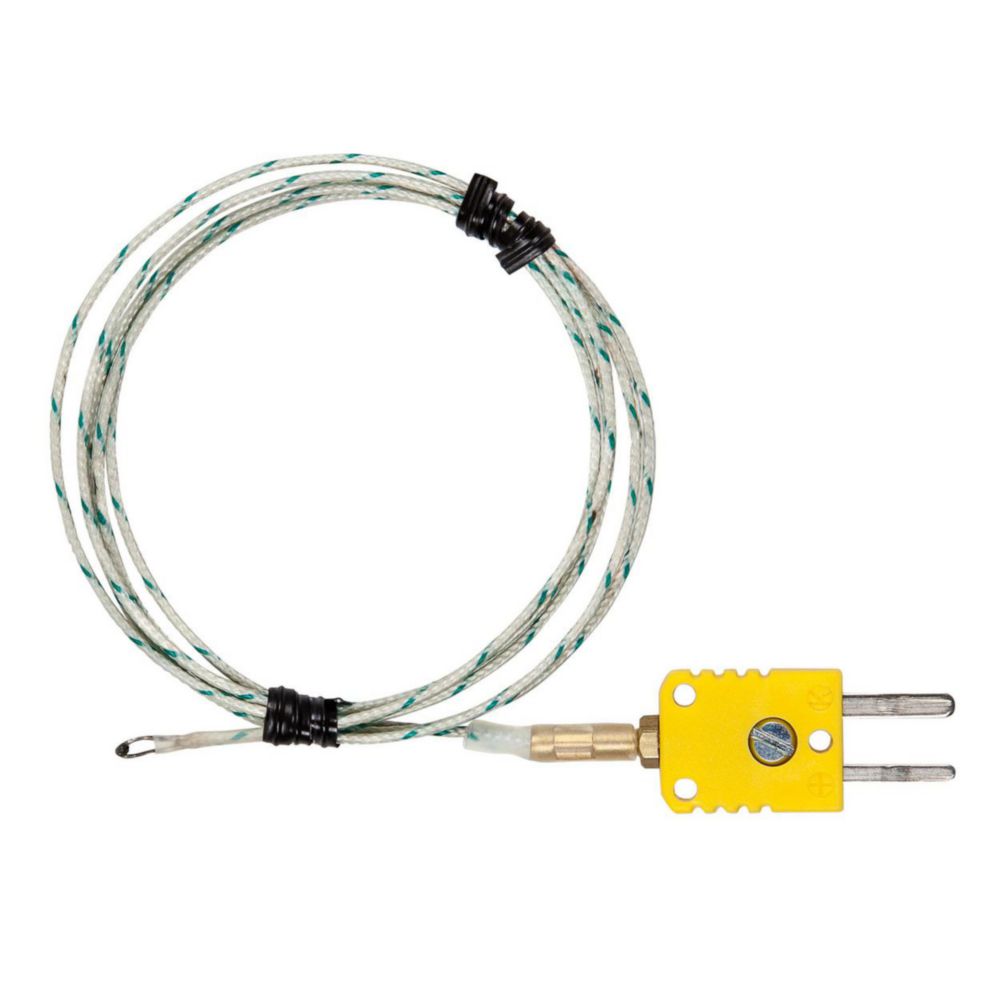

Sonda a immersione per la misurazione in mezzi liquidi, gassosi e in polvere. Flessibile, senza impugnatura e cavo del sensore. Connettore miniaturizzato. Classe di precisione 1. Secondo la norma EN 60584-1.
Ideale per il monitoraggio a basso costo della temperatura dei trasporti. Per la valutazione, il data logger viene collegato all'interfaccia USB e viene generato automaticamente un rapporto PDF. Non sono necessari hardware o software.Generazione automatica di un rapporto dati in formato PDF60 giorni di autonomia10000 misurazioni ogni 10 minutiModifica della configurazione (allarme, intervallo...) su richiestaConnettore USB integratoAvvio tramite pulsanteDisplay di allarme a LEDAdesivo con numero di serieCertificato inclusoSicuro per gli alimenti secondo HACCPConforme alla norma EN12830 S,T,C,D,1 e GDP
Data logger for temperature measurement in the steam steriliser during process validation, and for recording empty chamber profiles.4 measuring channelsData logger can be sterilised4 axially arranged external, highly flexible PT1000 temperature sensorsReal-time data transmissionFast response timeStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 25080 measured values per measurement channelStainless steel housingFactory calibration certificate: 0 °C, 60 °C, and 134 °C
Data logger per il monitoraggio della temperatura di frigoriferi e congelatori. Trasmissione dei dati registrati in formato CSV tramite connessione USB. Dopo aver scaricato i dati e gli eventi di allarme, è possibile cancellare la memoria dei dati.Visualizzazione della temperatura massima/minima e della temperatura attualeSmart-Alarm™ con allarme visivo e sonoro in caso di violazione dei limitiAmpia memoria di dati di misuraCommutabile °C / °FMemorizzazione di un massimo di 10 messaggi di allarme diversiCertificato di calibrazione con tracciabilità NIST in dotazioneData logger di temperatura con una sonda a inserzione (sensore RTD al platino) in acciaio inox. La fornitura include: Data logger di temperatura con 1 sonda di inserimento, cavo da 3 m, supporto, strisce a strappo, strisce magnetiche, supporto a parete, batterie, certificato di calibrazione tracciabile NIST.
Sensore esterno per la misurazione della temperatura. Precisione della temperatura ±0,5 °C a -10-60 °C.
Sonda combinata per la misurazione della temperatura e dell'umidità relativa.
Sonda combinata per la misurazione di temperatura, umidità relativa e pressione barometrica.
PDF data logger with different temperature sensors.For temperature monitoring related to HACCP/IFS issues or other perishable goodsTransportation of fresh, cool and deep cool productsMonitoring of fridges and deep freezersEvaluation without software, PDF are automatically generatedMinimise training, user errors and IT costs using EBI 300's simple, easy to use design and standard softwareEnsure data integrity since no data manipulation is possibleEN 12830, ATP, VO(EG) 37/2005 CompliantFactory calibration certificate includedProgrammable via the free online configurator at www.ebi300.comNo separate interface for programming and readingMemory: 40000 samplesMeasuring modes: Start/Stop, endless loop, start with buttonAlarms: 2 values, high and low limitsPDF data logger with external temperature sensor, internal temperature sensor can be used additionally.Scope of supply: 16 x PDF data logger EBI 300 TE in carrying case SYSTAINER
PDF data logger with different temperature sensors.For temperature monitoring related to HACCP/IFS issues or other perishable goodsTransportation of fresh, cool and deep cool productsMonitoring of fridges and deep freezersEvaluation without software, PDF are automatically generatedMinimise training, user errors and IT costs using EBI 300's simple, easy to use design and standard softwareEnsure data integrity since no data manipulation is possibleEN 12830, ATP, VO(EG) 37/2005 CompliantFactory calibration certificate includedProgrammable via the free online configurator at www.ebi300.comNo separate interface for programming and readingMemory: 40000 samplesMeasuring modes: Start/Stop, endless loop, start with buttonAlarms: 2 values, high and low limitsPDF data logger with external temperature sensor, internal temperature sensor can be used additionally.Scope of supply: 16 x PDF data logger EBI 300 TE in carrying case SYSTAINER, software Winlog.pro
Set for temperature monitoring and A0 value calculation in bedpan washers.Scope of supply: Temperature data logger EBI 12-T101, interface IF 150, software Winlog.med, pH tester PHX 800, conductivity tester TDS 3, carrying case SYSTAINER
With the interface and the software, four data loggers can be programmed and the recorded data can be read out.Scope of supply: Interface IF 300, software Winlog.pro
With the interface and the software, four data loggers can be programmed and the recorded data can be read out.Scope of supply: Interface IF 300, software Winlog.validation
The data logger is characterised by its small size and was developed specifically for the validation of reprocessing of medical devices in the tertiary sector. Space-saving stainless steel housingM5 threadAxial, blunt PT1000 probeMemory for up to 15000 measured valuesFactory calibration certificate: 0 °C, 60 °C, and 134 °C
Robust temperature data logger for regular independent routine checks in the care sector.Wireless temperature measurementWith internal PT1000 temperature sensorStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 27840 measured valuesStainless steel housingFactory calibration certificate: -20 °C, 0 °C, and 60 °CWith a eyelet ring fitted for attachment
Data logger for temperature measurement in steam sterilisers, washer-disinfectors, and endoscope washers during process validation.1 measuring channelWireless temperature measurementRadial design with external, bendable PT1000 temperature sensorReal-time data transmissionFast response timeStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 100320 measured valuesStainless steel housingFactory calibration certificate: -20 °C, 0 °C, 60 °C, and 134 °CThe logger is suitable for use in explosive gas atmospheres in zones 0/1/2 in accordance with Directive 2014/24 EU (ATEX Directive). ATEX-Type: II1G Ex ia IIC T4 Ga. Permissible ambient conditions in hazardous area: -40 to 85 °C, 100 Pa to 400 kPa.
Data logger for temperature measurement in a hot-air steriliser during process validation.1 measuring channelWireless temperature measurementRadial design with bendable PT1000 temperature sensorReal-time data transmissionFast response timeStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 100320 measured valuesStainless steel housingFactory calibration certificate: -20 °C, 0 °C, 60 °C, 134 °C, and 250 °CFor temperature measurements above 150 °C, the data logger requires additional thermal protection. Please order the temperature protection box TIB 2 separately.
Data logger for temperature measurement in steam sterilisers, washer-disinfectors, and endoscope washers during validation, as well as for process and routine monitoring.1 measuring channelWireless temperature measurementRadial design with rigid PT1000 temperature sensorFast response timeStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 27840 measured valuesStainless steel housingFactory calibration certificate: -20 °C, 0 °C, 60 °C, and 134 °C
Data logger for temperature measurement in steam sterilisers, washer-disinfectors, and endoscope washers during process validation.1 measuring channelWireless temperature measurementAxial design with bendable PT1000 temperature sensorReal-time data transmissionStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 100320 measured valuesStainless steel housingFactory calibration certificate: -20 °C, 0 °C, 60 °C, and 134 °C
Data logger for temperature measurement in beverage cans and bottles during pasteurisation.1 measuring channelWireless temperature measurementAxial design with rigid, blunt PT1000 temperature sensorM10 thread for attachment to the probeStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 27840 measured valuesStainless steel housingFactory calibration certificate: -20 °C, 0 °C, 60 °C, and 121 °C
Data logger for temperature measurement inside and outside beverage cans and bottles during pasteurisation. The central, axial probe measures the temperature inside the beverage can or bottle. The lateral probe measures the temperature outside the beverage container. The data collected can be used to determine the temperature exposure time.2 measuring channelsWireless temperature measurementAxial design with rigid, blunt PT1000 temperature sensorM10 thread for attachment to the probeStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 13920 measured values per measurement channelStainless steel housingFactory calibration certificate: -20 °C, 0 °C, 60 °C, and 121 °C
Data logger for temperature measurement in hot-air sterilisers, as well as in steam sterilisers, washer-disinfectors, and endoscope washers during process validation.2 measuring channelsWireless temperature measurement2 radially arranged external, bendable PT1000 temperature sensorsReal-time data transmissionStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 50160 measured values per measurement channelStainless steel housingFactory calibration certificate: -20 °C, 0 °C, 60 °C, 134 °C, and 250 °CFor temperature measurements above 150 °C, the data logger requires additional thermal protection. Please order the temperature protection box TIB 2 separately.
Data logger for temperature measurement in dry production processes for process control and quality assurance. The sensor connection by means of chandelier clamp allows a quick change of the PT1000 temperature probe.2 measuring channelsFast response timeReal-time data transmissionStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 50160 measured values per measurement channelStainless steel housingFactory calibration certificate: -200 °C, -50 °C, 0 °C, 60 °C, 134 °C, 250 °C, and 400 °C
Data logger for temperature measurement during process validation in the steam sterilizer and for recording of empty chamber profiles.2 measuring channelsData logger can be sterilised2 radially arranged external, highly flexible PT1000 temperature sensorsReal-time data transmissionFast response timeStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 50160 measured values per measurement channelStainless steel housingFactory calibration certificate: 0 °C, 60 °C, and 134 °C
Data logger for temperature measurement in the steam steriliser during process validation.2 measuring channelsData logger can be sterilised2 axially arranged external, highly flexible PT1000 temperature sensorsReal-time data transmissionFast response timeStorage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurementMemory for up to 50160 measured values per measurement channelStainless steel housingFactory calibration certificate: 0 °C, 60 °C, and 134 °C
