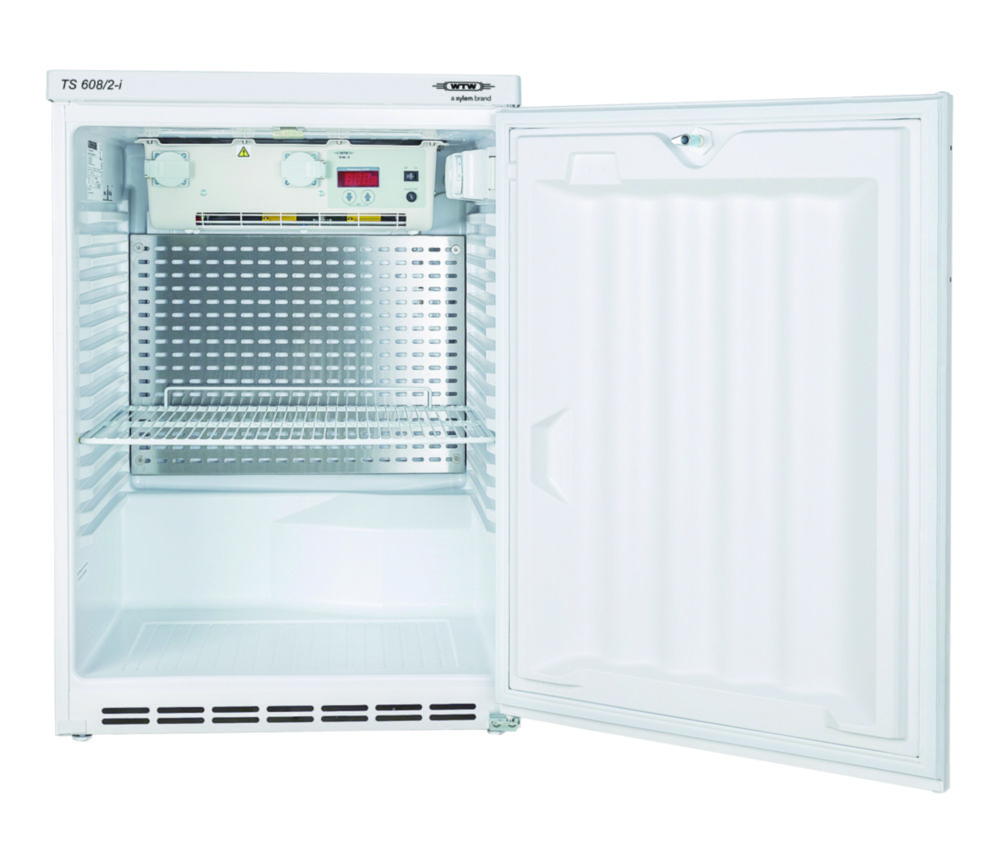

Controlled Temperature Cabinet TS 608/2-i for standard applications, 2 internal sockets
Compact temperature cabinets with internal sockets for the use of OxiTop® IS 12 stirring platforms.Incubation conforming to standardsSuited for BOD, OECD 301F, soil respiration, anaerobic degradationTemperature adjustable in steps of 1 K between 10 and 40 °CEco-friendly refrigerant R600aNote: The necessary temperature constancy will only achieved in combination with the samples.Compact temperature cabinets with internal sockets for the use of OxiTop® IS 12 stirring platforms.Incubation conforming to standardsSuited for BOD, OECD 301F, soil respiration, anaerobic degradationTemperature adjustable in steps of 1 K between 10 and 40 °CEco-friendly refrigerant R600aNote: The necessary temperature constancy will only achieved in combination with the samples.

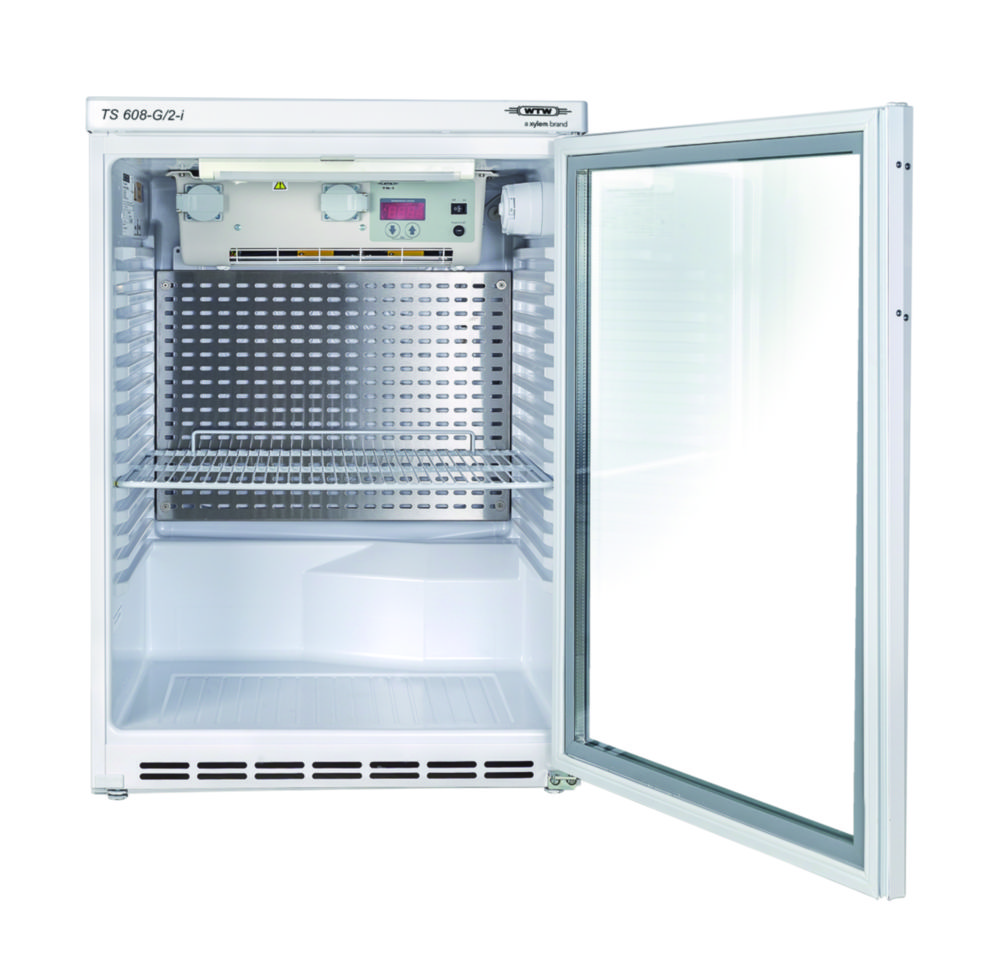

Controlled Temperature Cabinet TS 608-G/2-i for standard applications, 2 internal sockets, glass door
Compact temperature cabinets with internal sockets for the use of OxiTop® IS 12 stirring platforms.Incubation conforming to standardsSuited for BOD, OECD 301F, soil respiration, anaerobic degradationTemperature adjustable in steps of 1 K between 10 and 40 °CEco-friendly refrigerant R600aNote: The necessary temperature constancy will only achieved in combination with the samples.Model with insulation glass door allows visual control of the OxiTop® heads without opening the door.

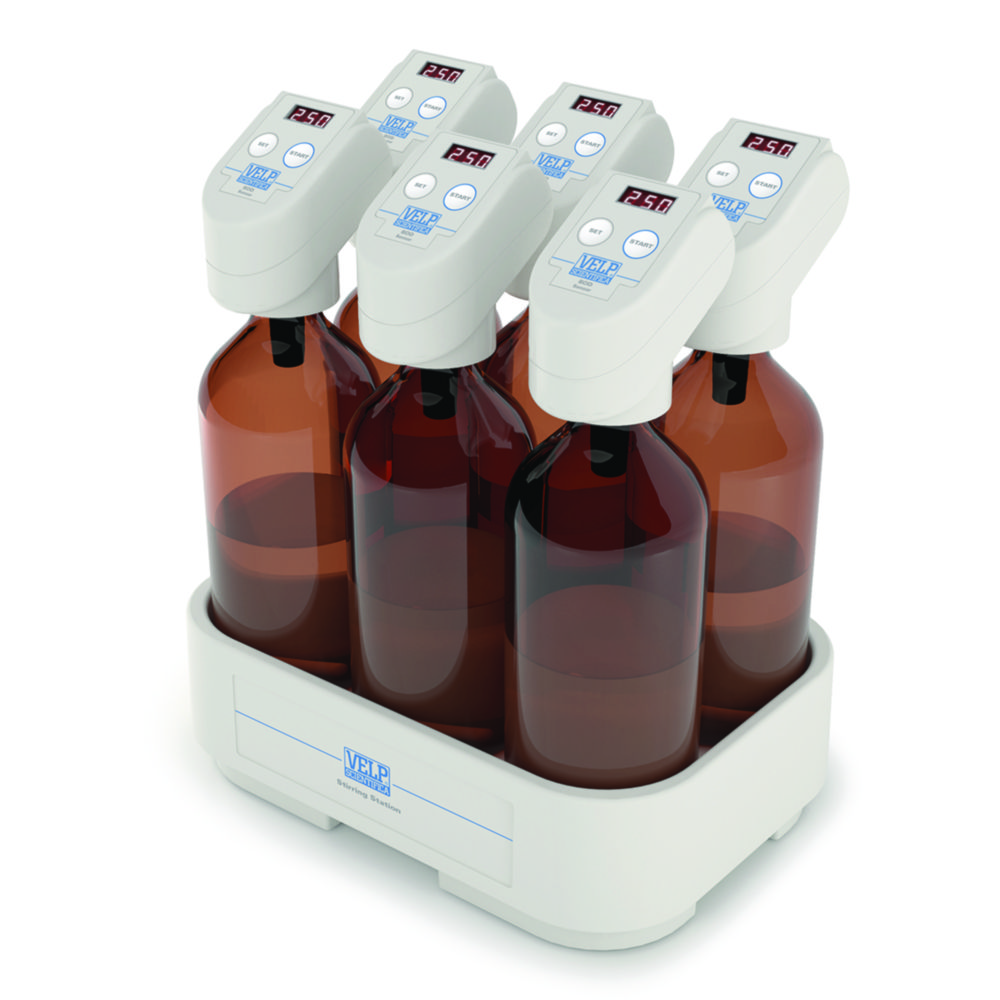

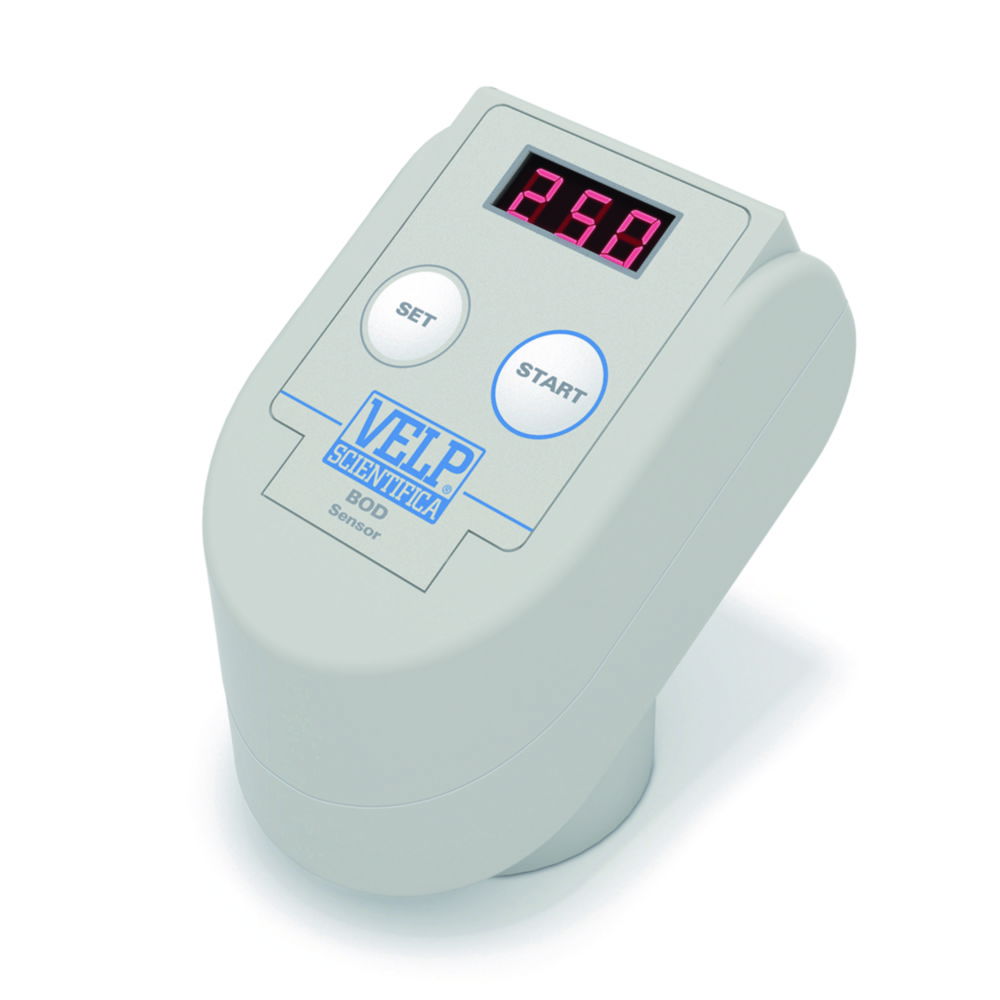

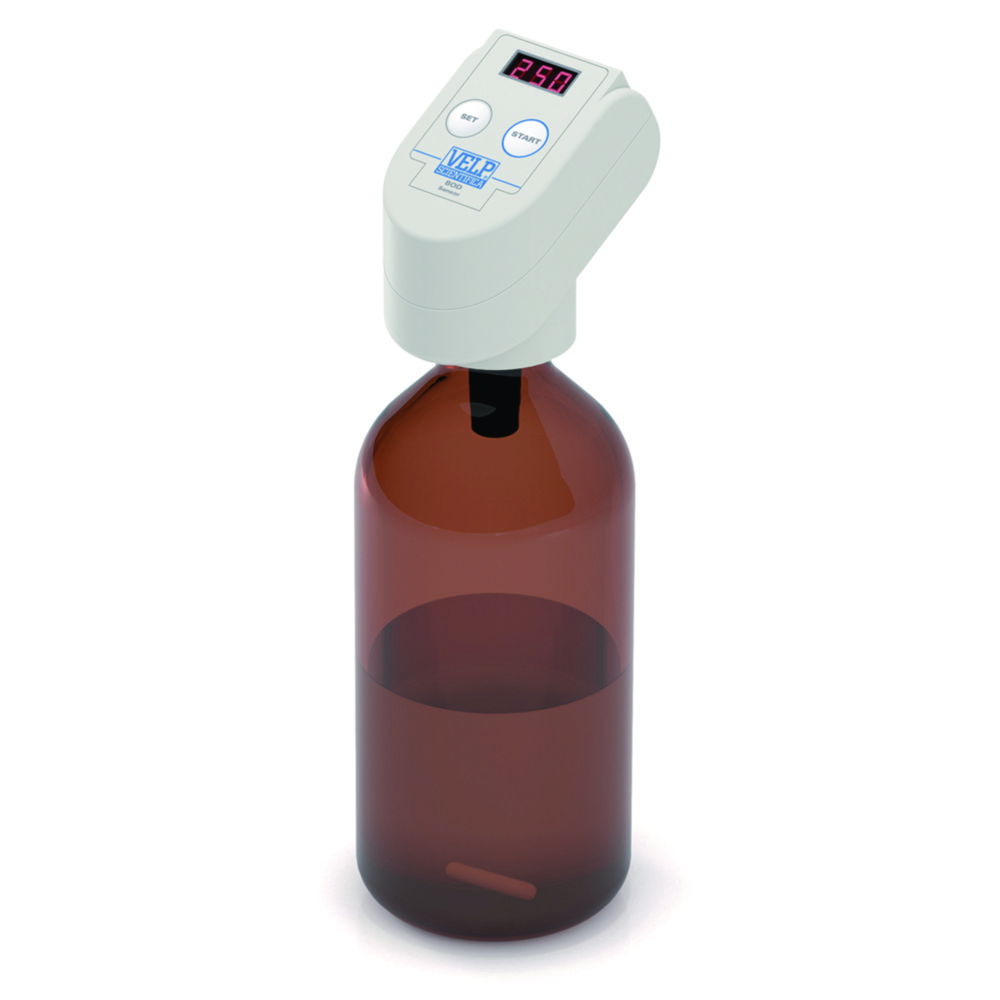

BOD sensor system
Measuring systems for the reliable determination of 90 to 999 ppm BOD. Complete with sensor heads and multi-position magnetic stirrer.The sensor heads are screwed directly onto the BOD bottlesAutomatic storage of 5 results in 24-hour intervalsMeasured readings in mg/l (ppm) can be read directly on the sensor at any timeProtected against splashing water (IP 54)Scope of supply BOD sensor system 6: 6-position magnetic stirrer, each 6 BOD sensors incl. batteries, 500 ml brown glass bottles, KOH reservoirs and magnetic stirring rodsScope of supply BOD sensor system 10: 10-position magnetic stirrer, each 10 BOD sensors incl. batteries, 500 ml brown glass bottles, KOH reservoirs and magnetic stirring rodsSpecificationsBOD range:90 ... 999 ppmDisplay:LED (3 digits)IP code:IP 54

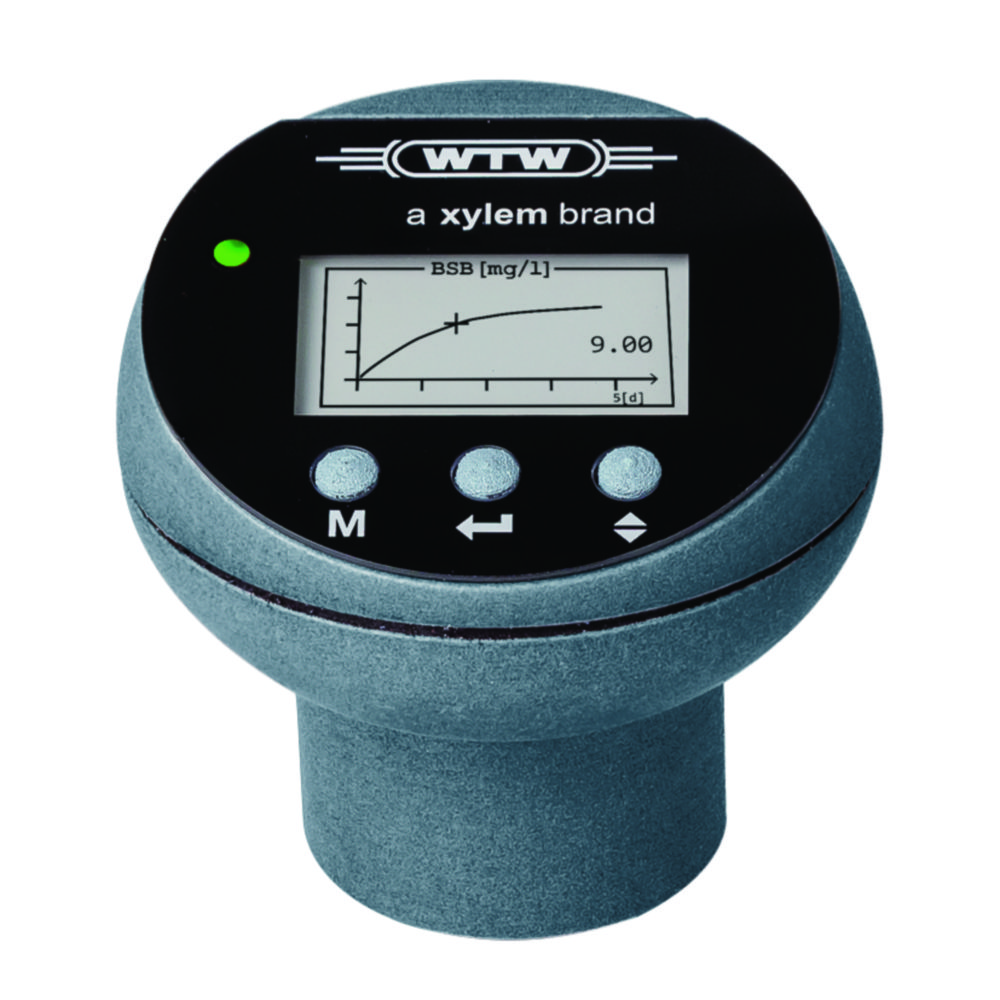

Measuring heads OxiTop®-i, 1 measuring head
Menu-operated measuring heads. Output of the BOD measurement values directly on the display.3 operating buttonsBacklit graphic LCDControl LEDVolume pre-selectionMeasurement duration selectable (1 to 7 days)Display of measuring curveDisplay of current readingsMenu-operated measuring heads. Output of the BOD measurement values directly on the display.3 operating buttonsBacklit graphic LCDControl LEDVolume pre-selectionMeasurement duration selectable (1 to 7 days)Display of measuring curveDisplay of current readings

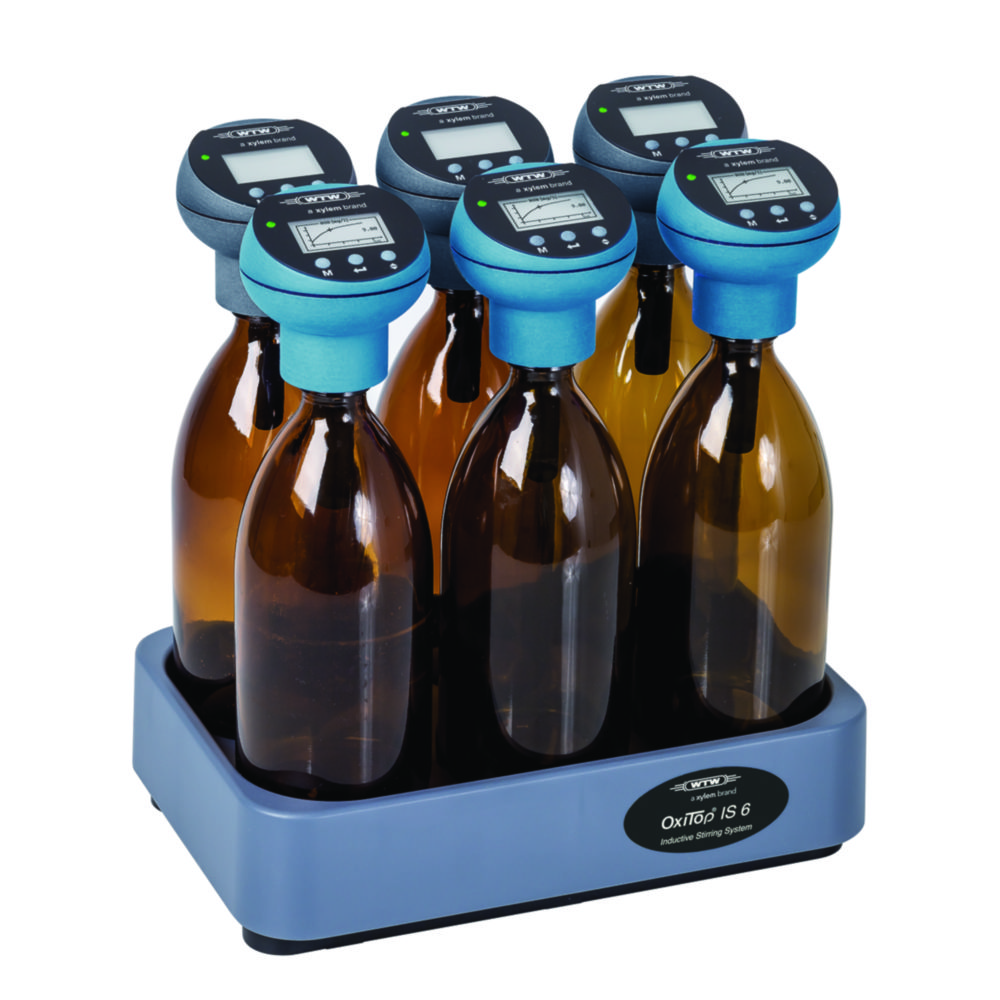

BOD measurement system OxiTop®-i IS 6 / 12
Easy-to-use, respirometric measuring system for determining the biological oxygen demand (BOD). The method is based on changes of pressure in a closed system using measuring heads attached to the sample bottles. The BOD can be determined simultaneously in up to 6 or 12 samples.No dilution of the sample requiredDirect reading of the BOD, the time course and the intermediate values on the graphical display of the measuring headsInput of the used sample volume directly at the measuring headMonitoring time between 1 and 7 daysPermanent display of the current status at each measuring headColoured measuring heads with adjustable, numerical sample identificationScope of supply: OxiTop®-i IS 6: 6 x measuring heads (3 x blue, 3 x grey), 6 x sample bottles PF600, 6 x rubber quivers, overflow measurement flasks, 6 x stirring rods, stirring rod remover, stirring platform SI 6OxiTop®-i IS 12: 12 x measuring heads (6 x blue, 6 x grey), 12 x sample bottles PF600, 12 x rubber quivers, overflow measurement flasks, 12 x stirring rods, stirring rod remover, stirring platform SI 12An incubator is required to operate the OxiTop®-i IS. Please order separately.

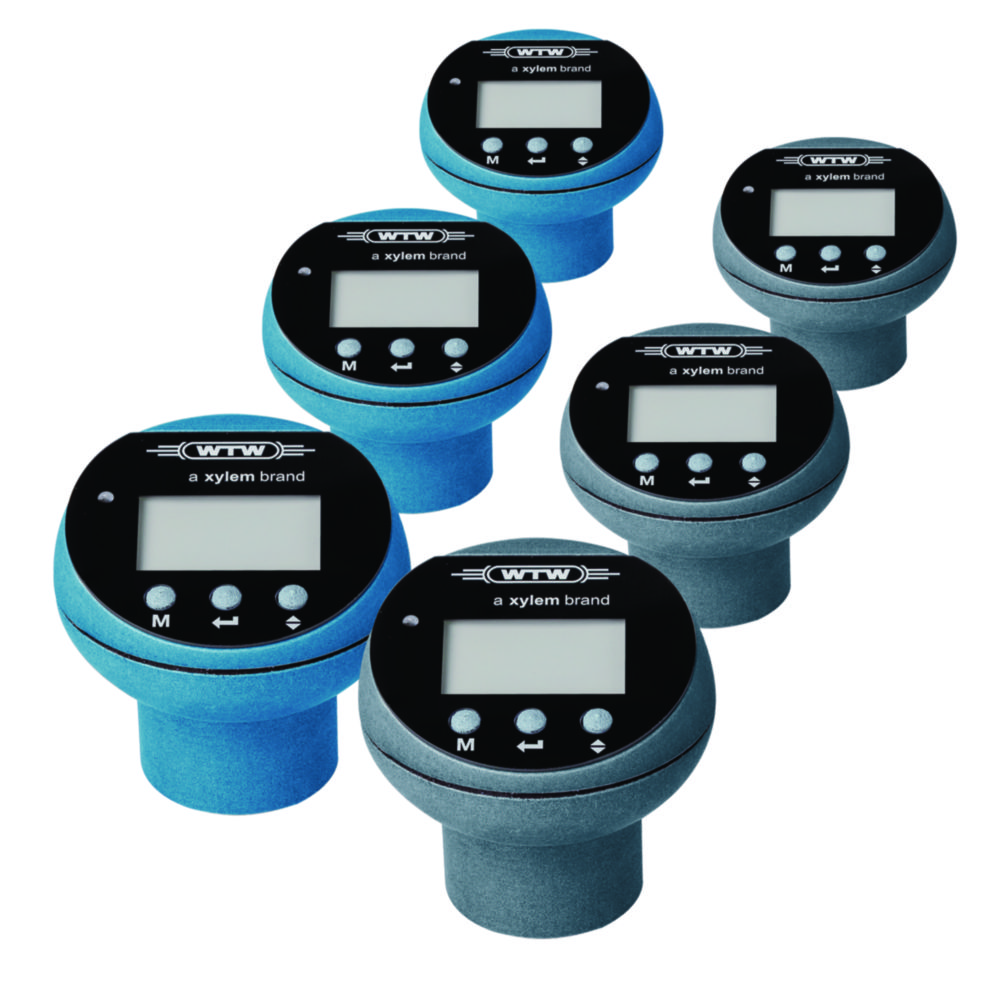

Measuring heads OxiTop®-i, 6 measuring heads Set 6
Menu-operated measuring heads. Output of the BOD measurement values directly on the display.3 operating buttonsBacklit graphic LCDControl LEDVolume pre-selectionMeasurement duration selectable (1 to 7 days)Display of measuring curveDisplay of current readingsScope of supply: 3 x measuring head grey, 3 x measuring head blue, 6 sample bottles, 6 rubber quivers, 6 magnetic stirring rods

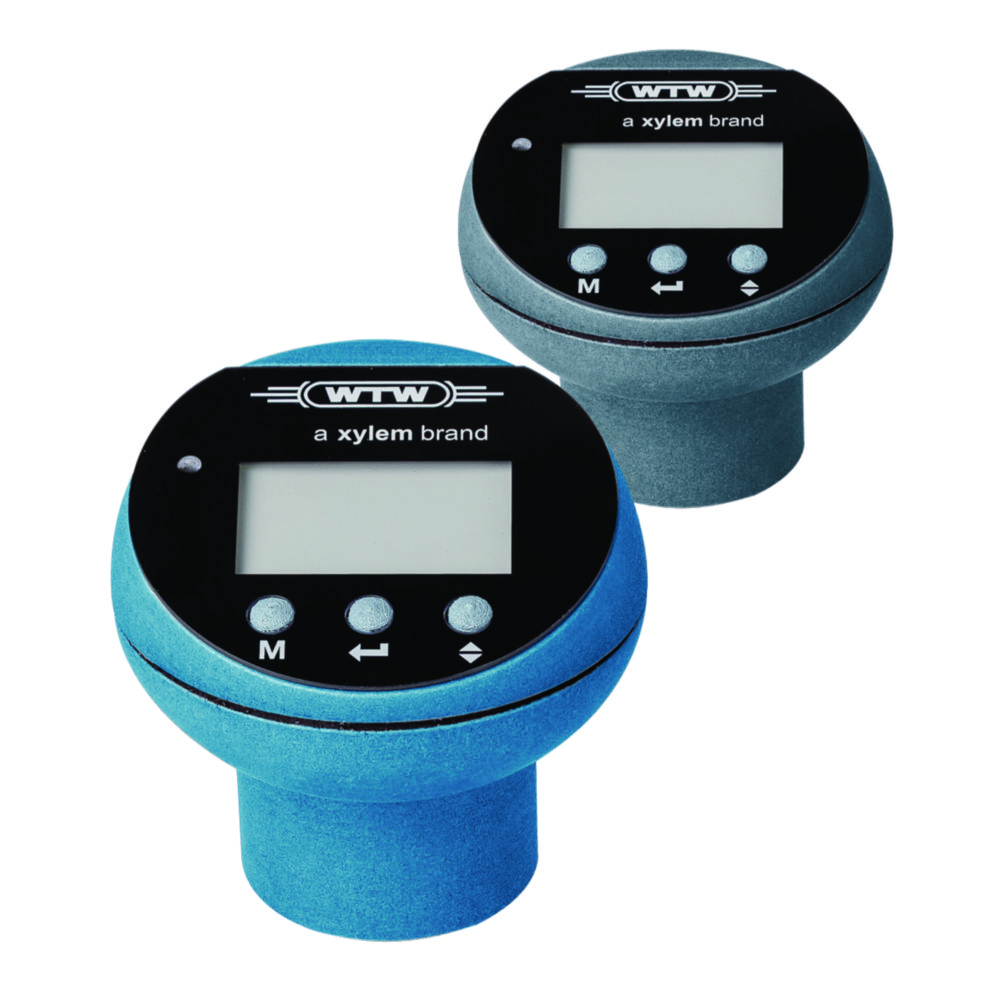

Measuring heads OxiTop®-i, 2 measuring heads Set 2
Menu-operated measuring heads. Output of the BOD measurement values directly on the display.3 operating buttonsBacklit graphic LCDControl LEDVolume pre-selectionMeasurement duration selectable (1 to 7 days)Display of measuring curveDisplay of current readingsScope of supply: 1 x measuring head grey, 1 x measuring head blue, 2 sample bottles, 2 rubber quivers, 2 magnetic stirring rods

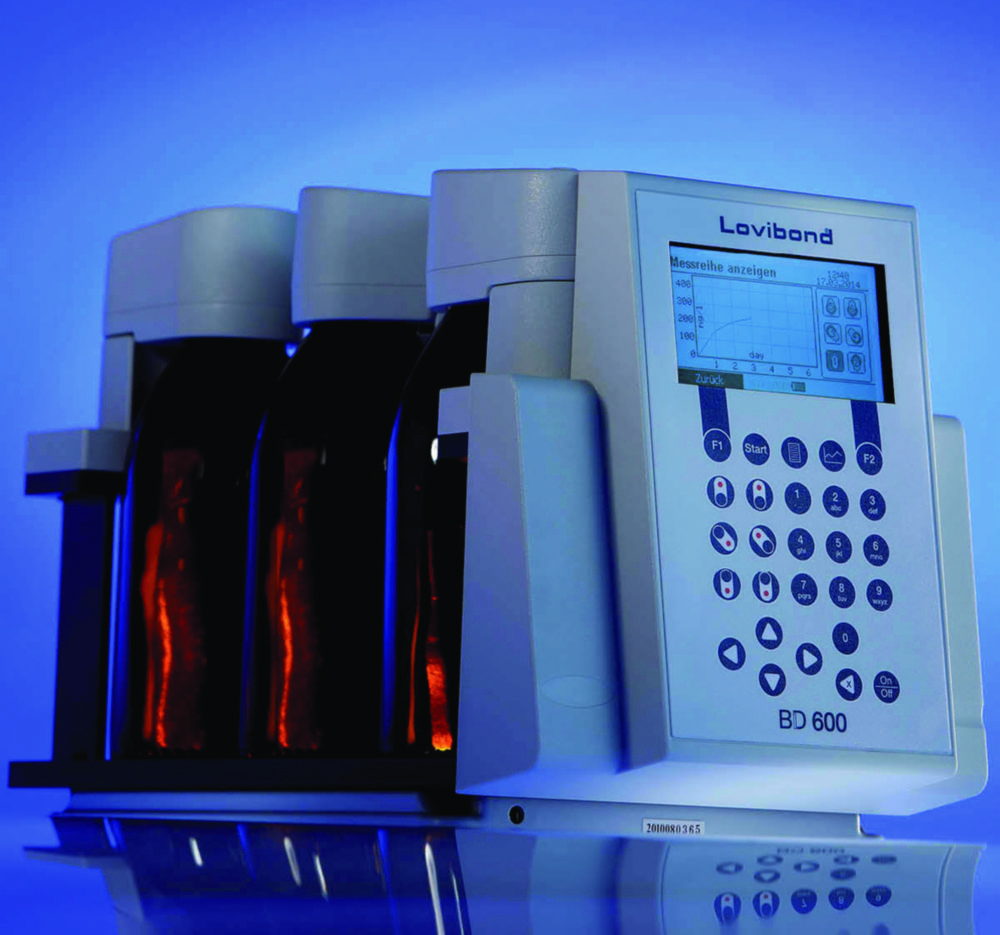

BOD-Measurement-System BD 600
BOD measurement is an important measurement of the effects of domestic and industrial waste water on sewage plants and outflow points. The sensor system BD 600 is a 6 sample system that allows precise measurements of BOD based on the manometric principle. Manometric respirometers relate oxygen uptake to the change in pressure caused by oxygen consumption while maintaining a constant volume. Due to the modern integral pressure sensors, it is not necessary to use mercury for the measurements. The BOD values are stored automatically in the sensor memory at regular intervals and can be called up on the large-format display at any time without the need for time-consuming conversion using factors. This means that test series that end on a Sunday can be evaluated during the following week without any problem. Measurement series can be stored on USB stick/ SD card or transferred via USB cable to evaluate the data on a computer. The measurement period is user-selectable between 1 and 28 days to suit the application. While short measurement periods are useful for scientific applications, standard BOD measurements typically extend over a period of 5 days - and manometric determination of OECD, for example, generally takes place over a period of 28 days.Scope of supply:BD 600, complete unit with 6 or 12* sensor heads and control unit with batteriesPower supply unit incl. Y-cable for common power supply of BD 600 and stirring unitInductive stirring unit6 or 12* sample bottles6 or 12* rubber gaskets6 or 12* magnetic stirring rods1 overflow flask, 157 ml1 overflow flask, 428 ml1 bottle, 50 ml potassium hydroxide solution1 bottle, 50 ml nitrification inhibitor solution1 instruction manualremote controlSpecificationsMeasuring principle:respirometric, electronic pressure sensorRanges:0 - 40, 0 - 80, 0 - 200, 0 - 400, 0 - 800, 0 - 2000, 0 - 4000 mg/l O2Measurement period:User-selectable, between 1 and 28 daysPower supply:100-240 V, battery buffered or via power supply using Y-cableProtection class:IP 54 (sensor head)Interface:USB host port (USB stick), USB device port (computer), SD cardClock:Real timeApplication:BOD5 / BODF / OECD301F* 6 or 12 depending on BOD-System (BD600 or BD606)

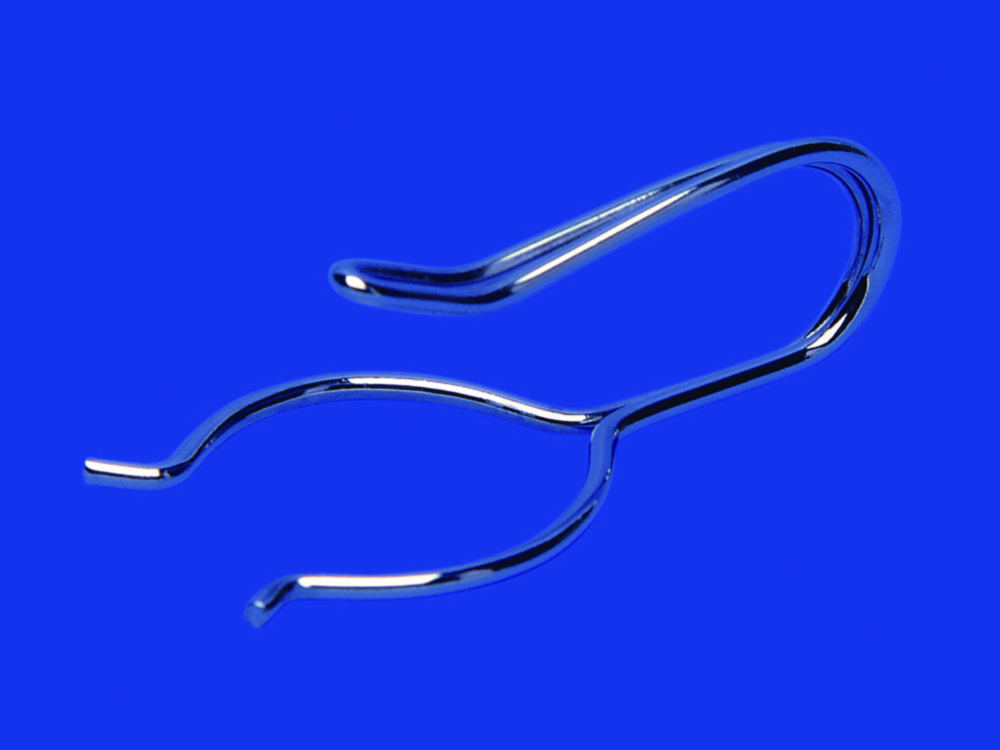

Clamps for oxygen determination bottles acc. to Winkler
Stainless steel, nickel-plated. For securing the NS stopper.

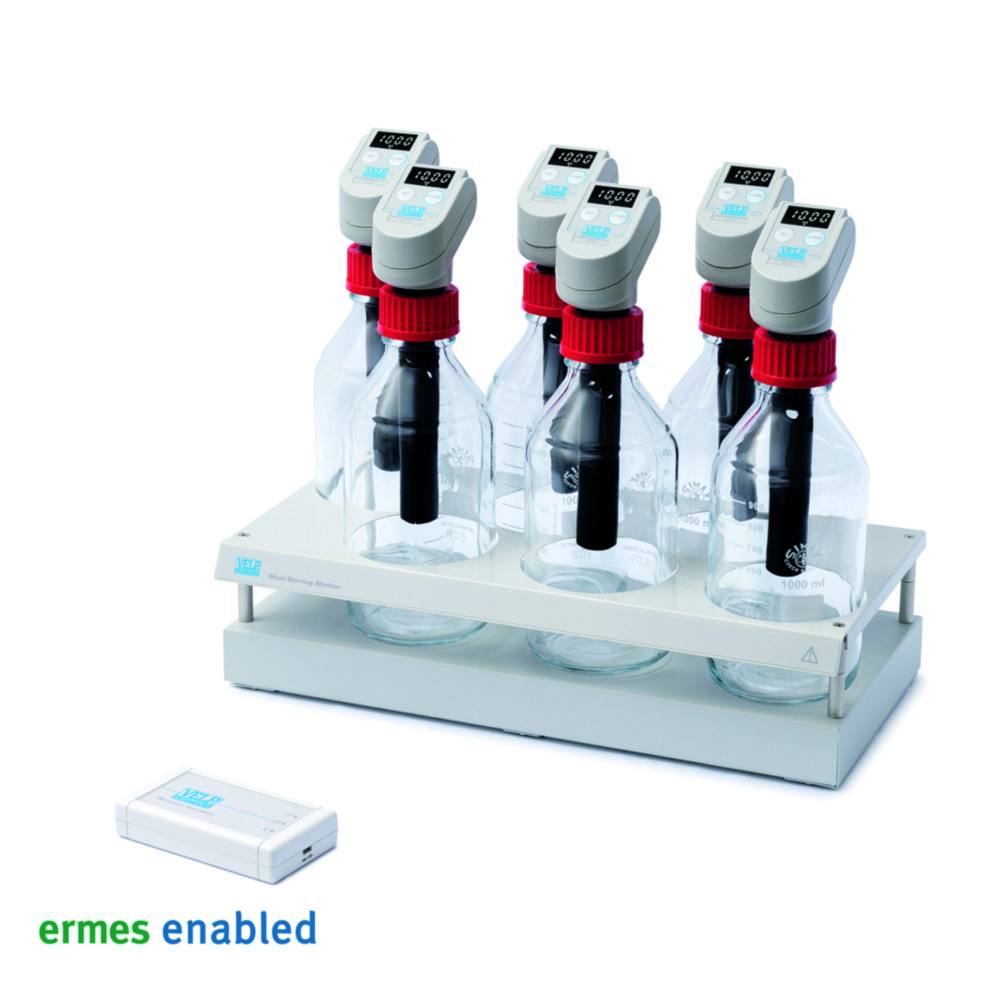

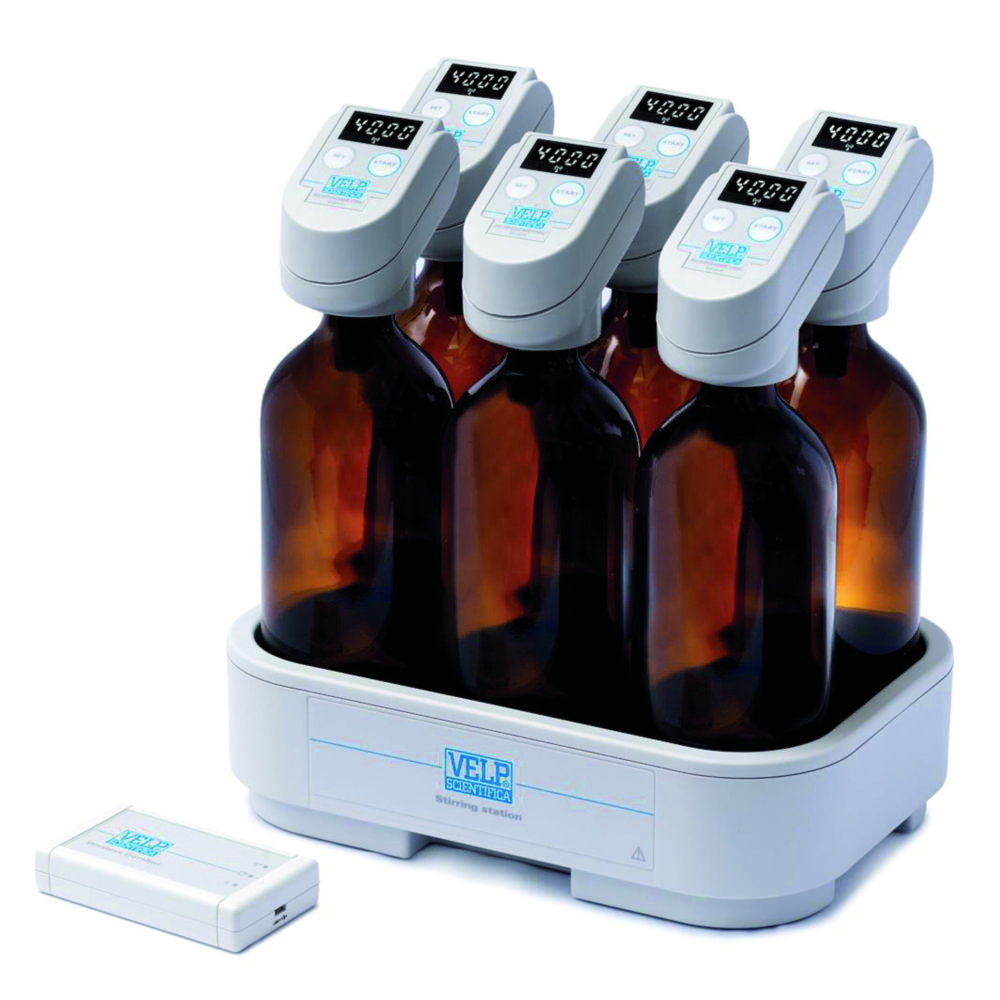

RESPIROMETRIC Sensor System 6 BOD
Measuring systems for the reliable determination of 90 to 4000 ppm BOD, BOD5 and BOD7 for the control of water and wastewater quality.Complete with sensor heads and multi-position magnetic stirring station for performing aerobic and anaerobic respiration tests. Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.4-digit LED display2-button user interfaceResults available in BOD (mg/l) and pressure (mbar)Automatic conversion of pressure results into BODWireless transmission of data to the PC (Wlan)Scope of supply: 6-position magnetic stirring station, 6 x sensor heads incl. batteries, 6 x 500 ml amber bottles, 6 x KOH containers, 6 x magnetic stirring barsBOD range:90 ... 4000 ppmPressure range:500 ... 2000 mbarMeasuring period:5 ... 30 daysDimensions sensor (W x D x H):50 x 70 x 70 mmDimensions stirring station (W x D x H):270 x 185 x 300 mmWeight sensor:80 gWeight stirring station:1 kgPower supply sensor:2 x CR 2430Power supply stirring station:230 V, 50 ... 60 HzIP code:IP54

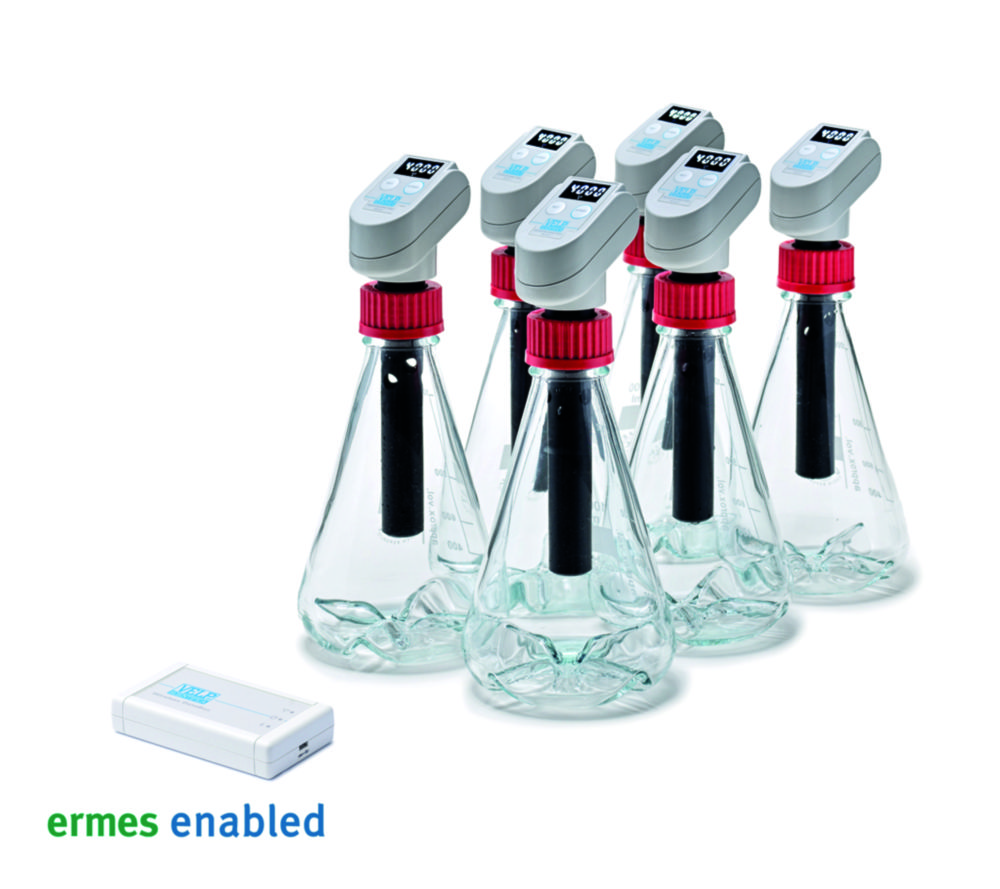

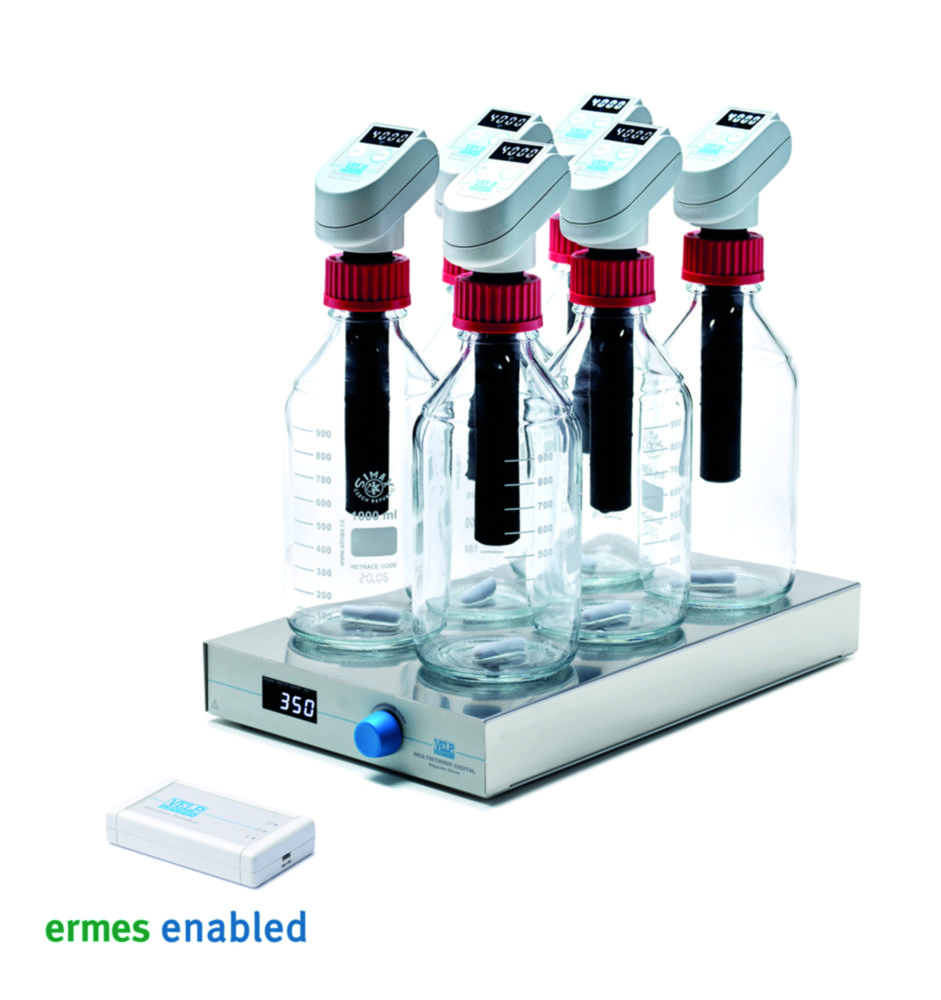

RESPIROMETRIC Sensor System 6 Maxi
Measuring system for the reliable determination of the anaerobic respiration of the biochemical methane potential (BMP) of biomass. The BMP analysis examines biogas production from organic waste for waste and wastewater treatment, as well as renewable energy production.Complete with sensor heads and multi-position magnetic stirring station. Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.4-digit LED display2-button user interfaceResults available in pressure (mbar) and BMP (NmLCH4/gSV)Automatic conversion of pressure results into BMPWireless transmission of data to the PC (Wlan)Also suitable for other anaerobic studiesScope of supply: 6-position magnetic stirring station Maxi, 6 x sensor heads incl. batteries, 6 x 1000 ml bottles, 6 x KOH containers, 6 x magnetic stirring barsPressure range:500 ... 2000 mbarMeasuring period:1 ... 180 days (pressure) / 10 ... 60 days (BMP)Dimensions sensor (W x D x H):50 x 70 x 70 mmDimensions stirring station (W x D x H):432 x 165 x 300 mmWeight sensor:80 gWeight stirring station:3 kgPower supply sensor:2 x CR2430Power supply stirring station:230 V, 50 ... 60 HzIP code:IP54

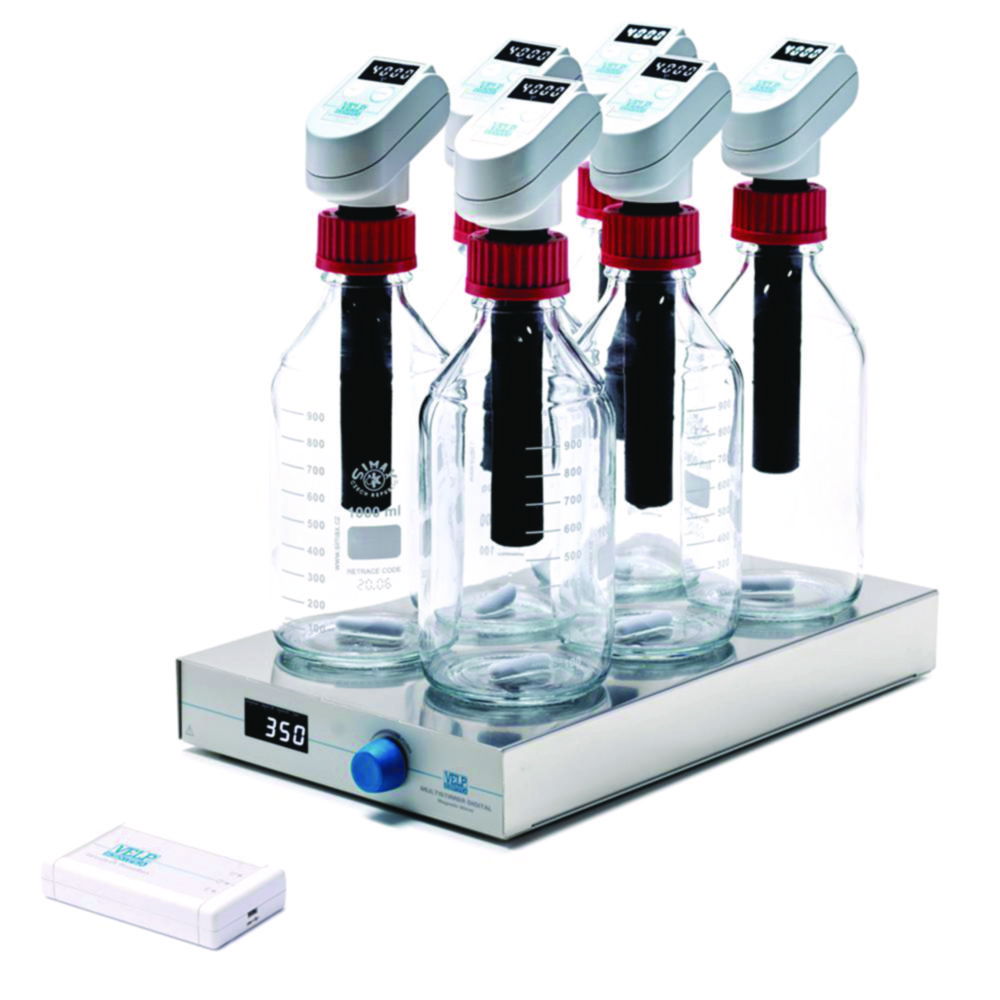

RESPIROMETRIC Sensor System 6, plastic biodegradability
Measuring systems for the reliable determination of the degree of biodegradability of plastic materials in an aqueous medium.Complete with sensor heads and multi-position magnetic stirrer for performing aerobic respiration tests. Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.4-digit LED display2-button user interfaceResults available in pressure (mbar)Magnetic stirrer with timer and electronic speed controlWireless transmission of data to the PC (Wlan)Scope of supply: 6-position magnetic stirrer MULTISTIRRER Digital, 6 x sensor heads incl. batteries, 6 x 1000 ml bottles, 6 x kits for plastic biodegradability analysis, 6 x magnetic stirring barsPressure range:500 ... 2000 mbarMeasuring period:1 ... 180 daysDimensions sensor (W x D x H):50 x 70 x 70 mmDimensions magnetic stirrer (W x D x H):230 x 370 x 51.5 mmWeight sensor:80 gWeight magnetic stirrer:1.75 kgPower supply sensor:2 x CR2430Power supply magnetic stirrer:100 ... 240 V, 50 ... 60 HzIP code:IP54Speed range magnetic stirrer:80 ... 1500 rpmStirring position distance magentic stirrer:100 mm

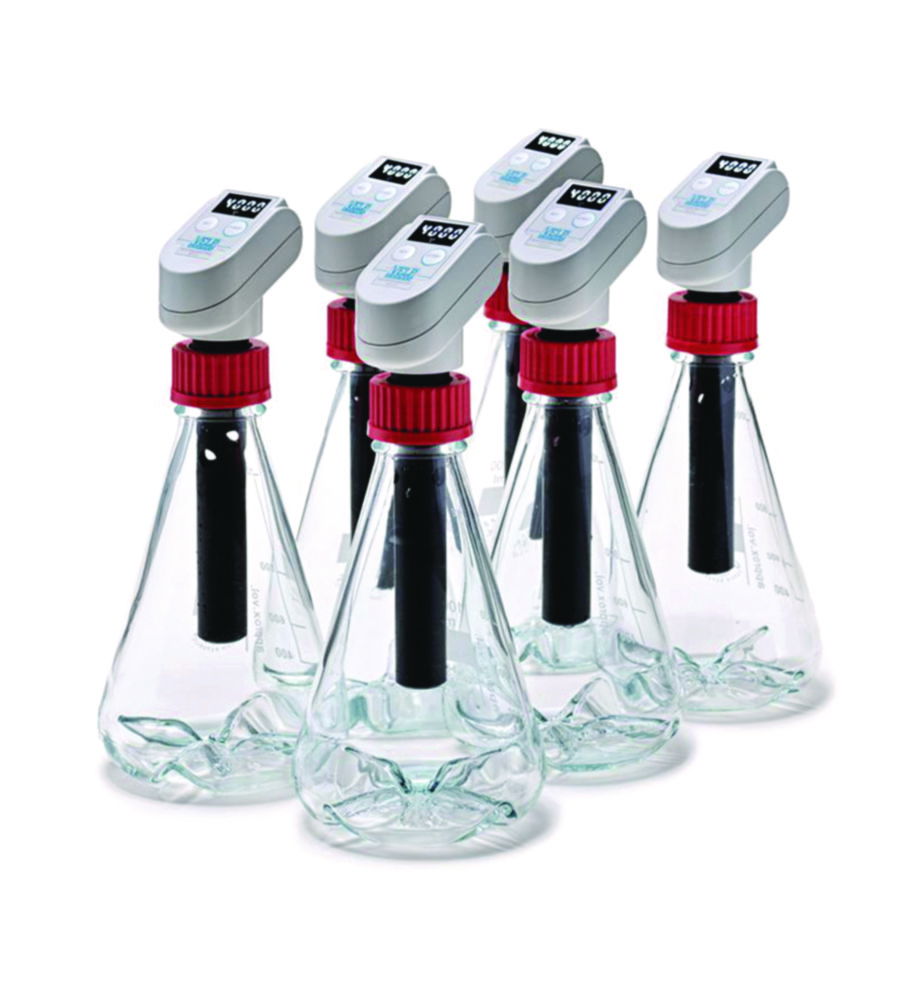

RESPIROMETRIC Sensor System 6, soil analysis
Measuring systems for the soil analysis to support aerobic degradation tests on soil and compost. The analysis provides microbial soil respiration results from the mineralisation of organic substances.Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.4-digit LED display2-button user interfaceResults available in pressure (mbar)Measurements directly in a 1000 ml Erlenmeyer flaskWireless transmission of data to the PC (Wlan)Scope of supply: 6 x sensor heads incl. batteries, 6 x 1000 ml Erlenmeyer flask, 6 x kits for soil analysisPressure range:500 ... 2000 mbarMeasuring period:1 ... 180 daysDimensions sensor (W x D x H):50 x 70 x 70 mmWeight sensor:80 gPower supply sensor:2 x CR2430IP code:IP54
Overflow Measuring Flask for OxiTop®
Glass measuring flask with fixed volume doses for the easy and accurate measurement of the required sample volume for respirometric BSB measurements.
Adapter AD/SK for BOD measuring system OxiTop®
For OxiTop® measuring heads, for all sample and measuring bottles series PF45/.. and MF45/.., autoclavable (121 °C). Incl. OxiTop® AD adapter, OxiTop® SK screwable adapter, DI45 gasket for adapter VS45.
Measuring vessels for BOD measuring system OxiTop®
Incl. 1 x DV/MG lid adapter with rack, gasket, 2 x GK 600 rubber sleeves, 4 x DV/MG/KL clamps, 1 x MB 50 measuring beaker (50 ml)
Measuring bottles for BOD measurement system OxiTop®
Iincl. 2 x nozzles, 2 x VS25 screwing sets for nozzle, 1 x GK 600 rubber sleeve, 2 x SEP25 septum for nozzle, 2 x STH25 support for nozzle

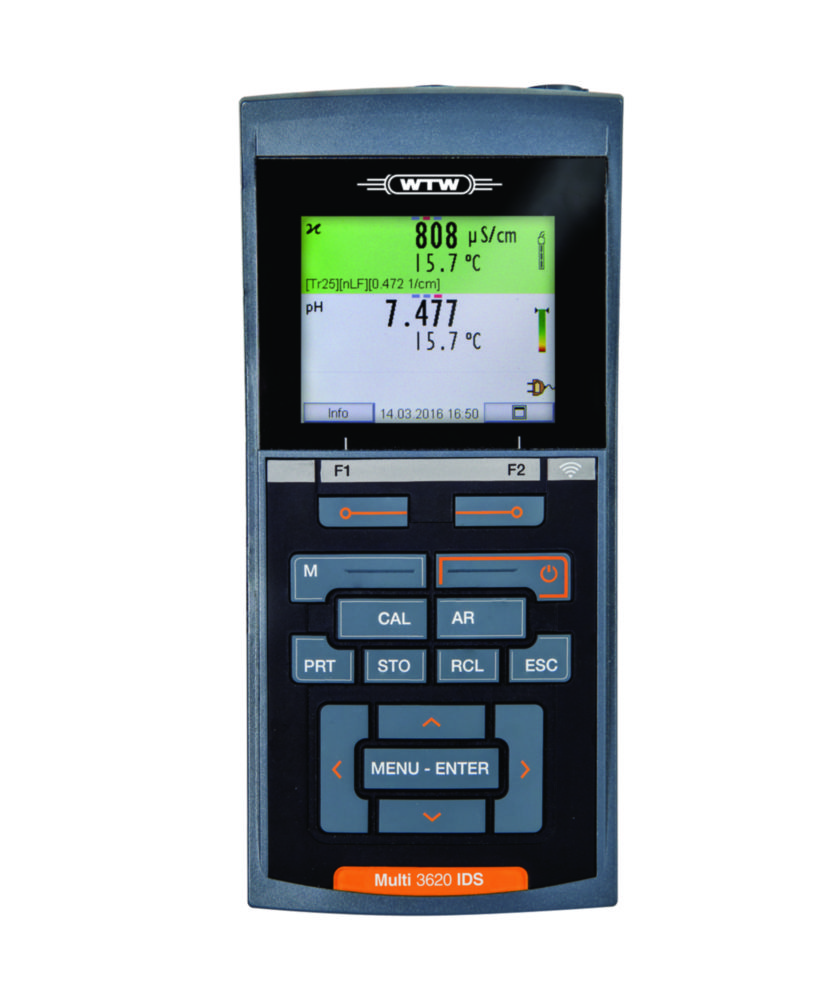

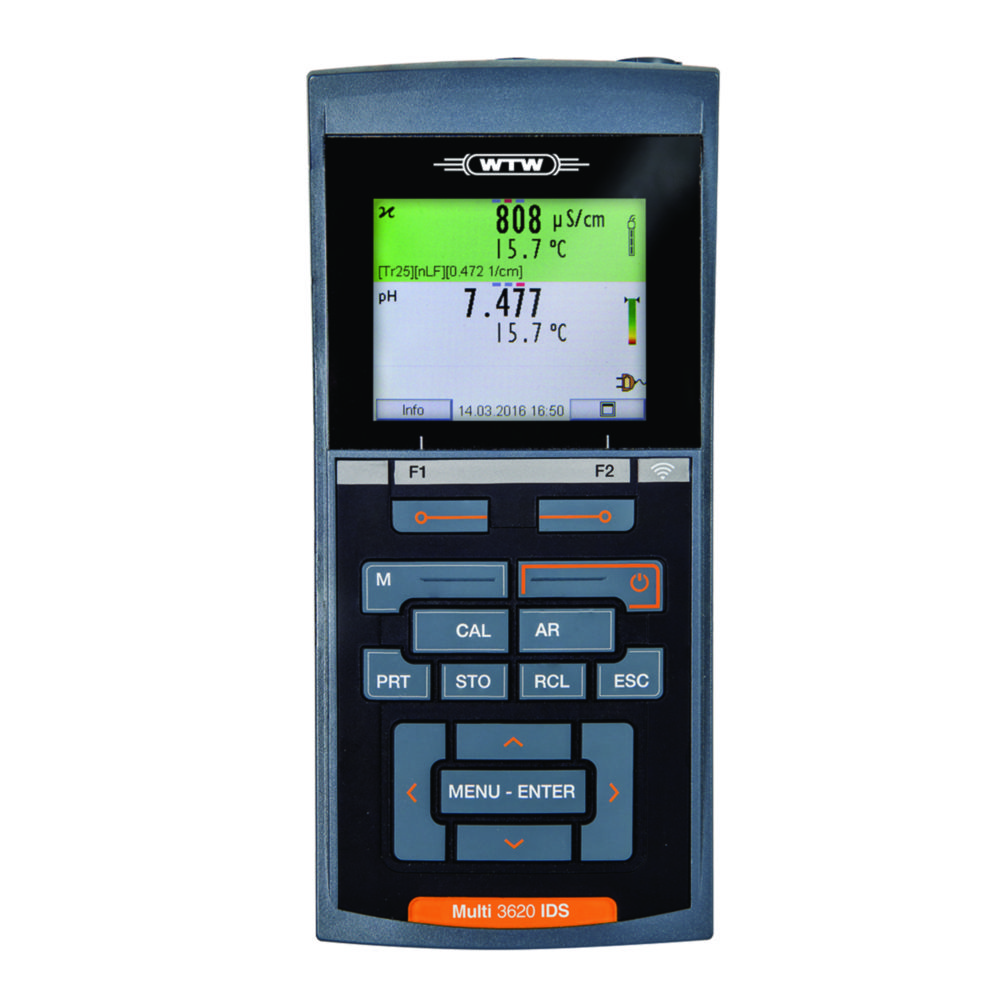

Multiparameter meter MultiLine® 3620 IDS Set C
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3620 IDS with two universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Scope of supply: Meter in a carrying case with IDS sensors (digital pH sensor SenTix® 940, digital conductivity cell TetraCon® 925), QSC Kit, buffer 4 and 7, conductivity standard, stand, beaker, CD-ROM, batteries, cables, power supply, arming SM Pro
Multiparameter meter MultiLine® 3620 IDS
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3620 IDS with two universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Scope of supply: Single meter in a carrying case with Quick Start Guide, CD-ROM and batteries, driver software for USB, cable, power supply

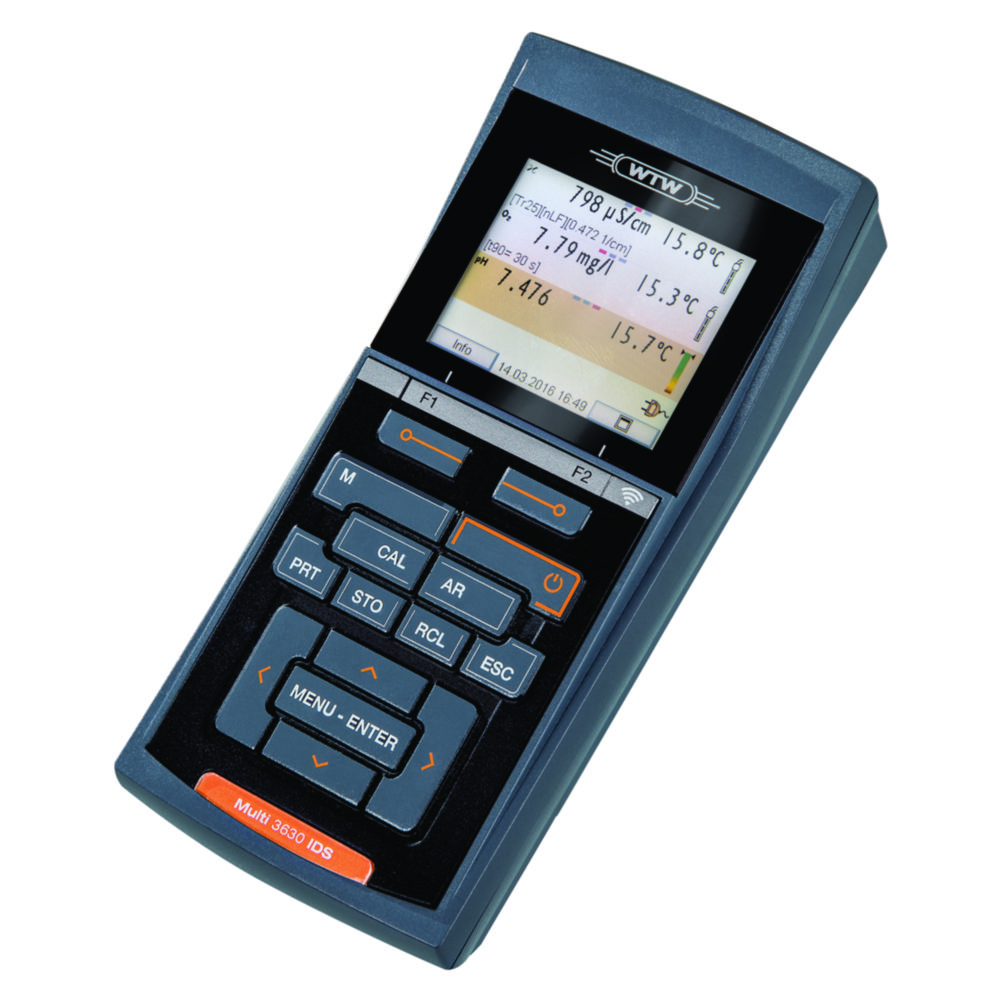

Multiparameter meter MultiLine® 3630 IDS Set F
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3630 IDS with three universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Scope of supply: Single meter in a field case with IDS sensors (digital pH sensor SenTix® 940, digital conductivity cell TetraCon® 925, optical sensor FDO® 925), QSC Kit, stand, beaker, buffers 4 and 7, conductivity standard, batteries, cables, power supply, arming SM Pro
Multiparameter meter MultiLine® 3630 IDS
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3630 IDS with three universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Scope of supply: Single meter in a carrying case, buffers 4 and 7, 3 mol/l KCl, conductivity standard, batteries, cables, power supply, arming SM Pro
Multiparameter meter MultiLine® 3630 IDS Set KS2
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3630 IDS with three universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Scope of supply: Single meter in a carrying case, with QSC Kit, buffers 4 and 7, conductivity standard, stand, beaker, CD-ROM, batteries, cables, power supply, arming SM Pro
Multiparameter meter MultiLine® 3620 IDS Set G
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3620 IDS with two universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Scope of supply: Meter in a large carrying case with IDS sensors (digital pH sensor SenTix® 940-3, optical sensor FDO® 925-3, digital conductivity cell TetraCon® 925-3), QSC Kit, stand, beaker buffer 4 and 7, conductivity standard, CD-ROM, batteries, cable, power supply, arming SM Pro
Multiparameter meter MultiLine® 3630 IDS Set G
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3630 IDS with three universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Scope of supply: Meter in a large carrying case with IDS sensors (digital pH sensor SenTix® 940-3, optical sensor FDO® 925-3, digital conductivity cell TetraCon® 925-3), QSC Kit, buffers 4 and 7, conductivity standard, stand, beaker, CD-ROM, batteries, cables, power supply, arming SM Pro
Measuring heads OxiTop®-i, 2 measuring heads
Menu-operated measuring heads. Output of the BOD measurement values directly on the display.3 operating buttonsBacklit graphic LCDControl LEDVolume pre-selectionMeasurement duration selectable (1 to 7 days)Display of measuring curveDisplay of current readingsScope of supply: 1 x measuring head grey, 1 x measuring head blue
BOD measuring system OxiTop®-IDS IS for determination of aerobic degradation, Extension set for OxiTop®-IDS Set 6/12
These tests quantify the biological degradability of chemicals.With the proven Bluetooth® connectivity and the convenient operation via MultiLine® multi parameter instrument Multi 3620 IDS or Multi 3630 IDS. Using a Multi 3620 IDS or Multi 3630 IDS in BOD special mode the BOD measuring range extends to 400000 mg/l. For an already existing Multi 3620 or 3630 IDS, a firmware update is sufficient. Herewith beneath the OxiTop® applications also measurement of pH, conductivity, solved oxygen and turbidity are available. All heads can be used independently for routine BOD measurements from 1 to 7 days.Respirometric degradability tests according to OECD 301F/DIN EN ISO 9408Versatile measurement by using the BOD special modeMeasurement duration selectable (0.5 hours to 180 days)Bluetooth® connectivityDirect calculation of all results in the meterRepresentation of curves for monitoringParallel measurement of different examinations and methodsExport to data acquisition programsPlease order CO2 absorber NHP 600 (9.303 403) separately.The IDS multi parameter measuring instruments Multi 3620 IDS Set WL or Multi 3630 IDS Set WL are required. Please order separately.Scope of supply: 6 resp.12 OxiTop®-IDS measuring heads, 6 resp.12 bottles, universal power adapter, 6 resp.12 rubber sleeves, 6 resp.12 magnetic stirring bars, stirring platform IS 6 resp. IS 12

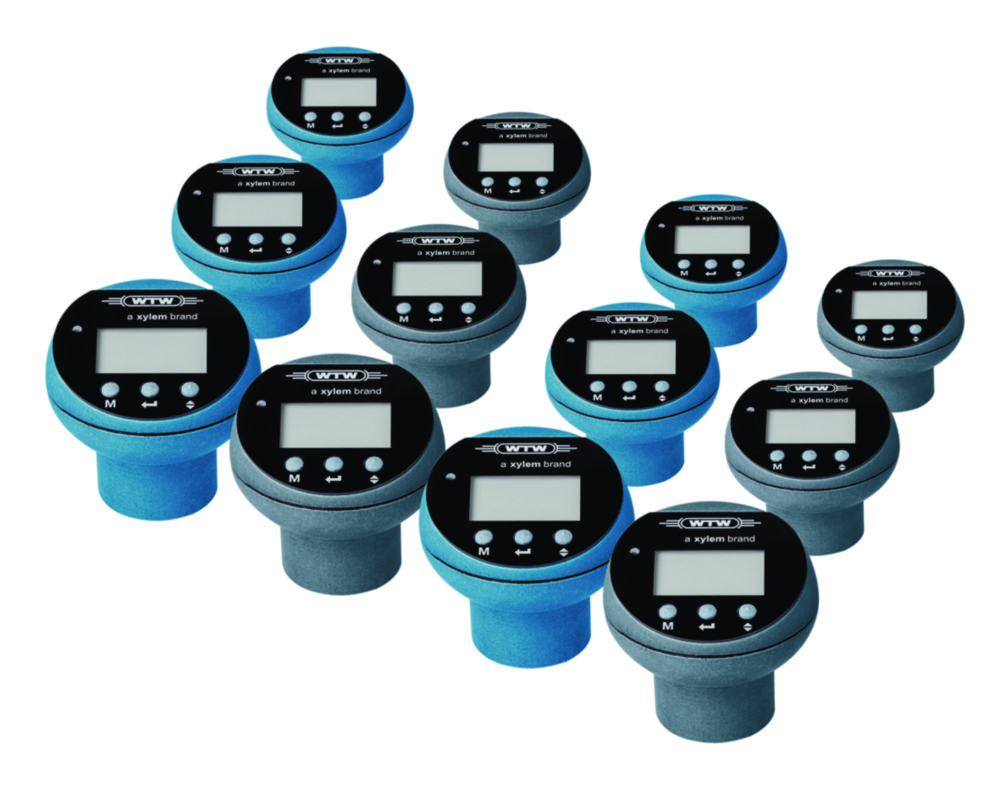

Measuring heads OxiTop®-i, 12 measuring heads
Menu-operated measuring heads. Output of the BOD measurement values directly on the display.3 operating buttonsBacklit graphic LCDControl LEDVolume pre-selectionMeasurement duration selectable (1 to 7 days)Display of measuring curveDisplay of current readingsScope of supply: 6 x measuring head grey, 6 x measuring head blue

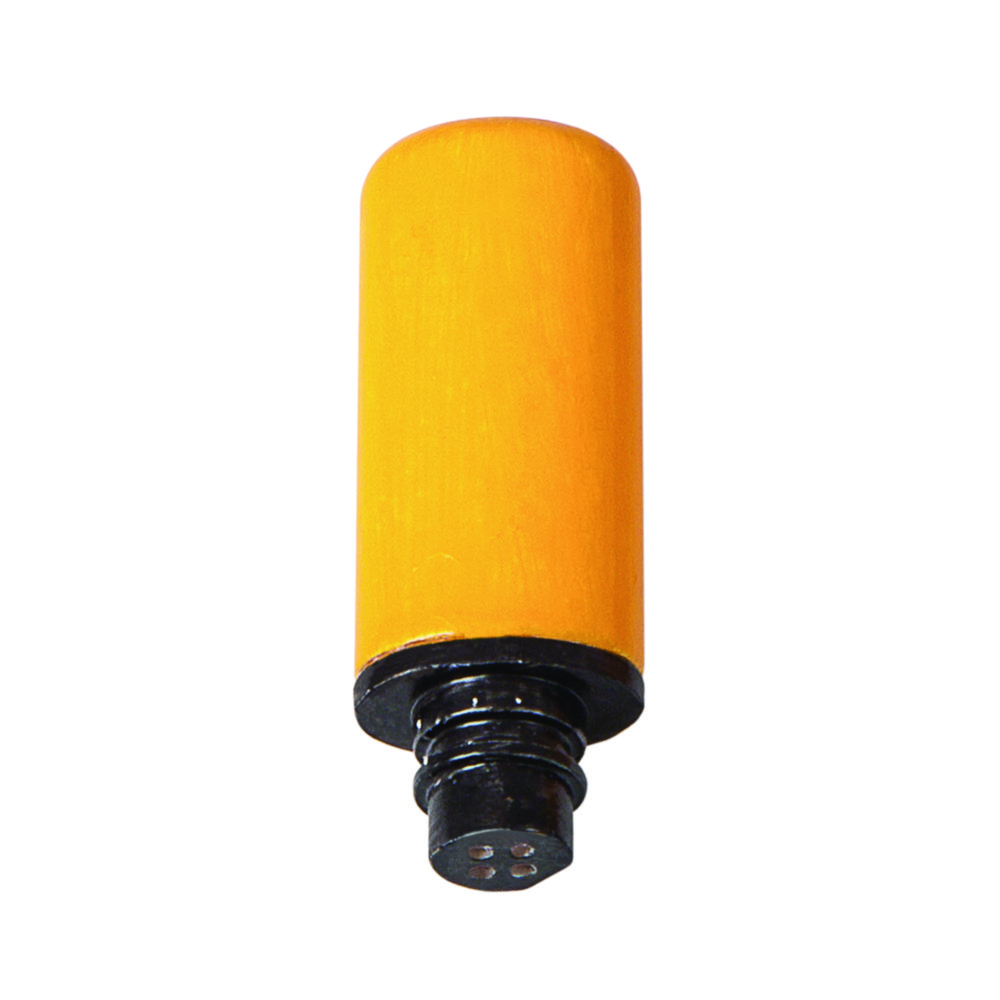

Wireless module IDS WLM-M for WTW® measuring instruments
Wireless module for connecting to MultiLine® 3310/3510/36x0 IDS, inoLab® Multi IDS and MonoLine. Connects up to three sensors at the same time (depends on meter capabilities). Also for operation of OxiTop®-IDS.

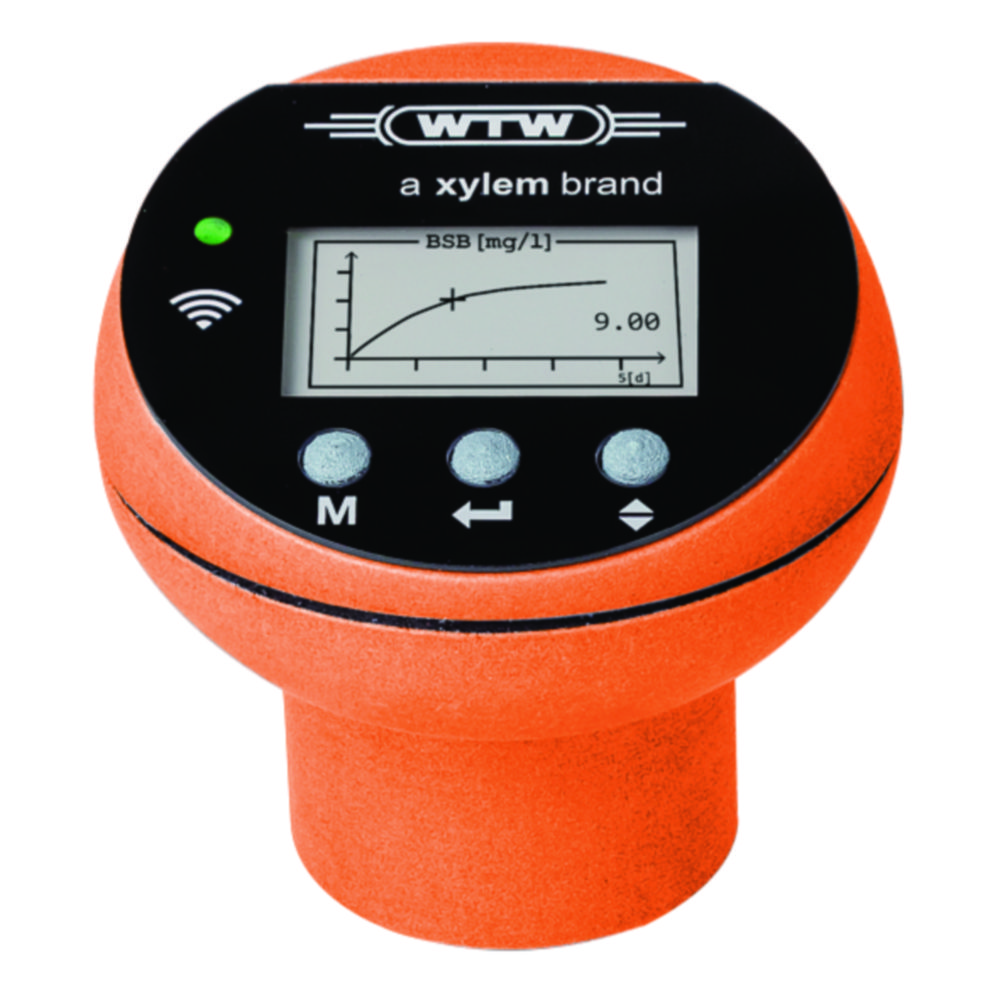

Wireless measuring heads OxiTop® IDS
OxiTop®-IDS wireless measuring head with Bluetooth® LE technology for operation with Multi 3620 IDS or Multi 3630 IDS. For routine BOD readings also operable without IDS multiparameter instrument. OxiTop®-IDS/B with enhanced pressure range up to 1500 hPa and H2S resistant pressure sensor for biogas measurement.Memory for 360 measuring points3 operating buttonsBacklit graphic LCDControl LEDVolume pre-selectionFor routine BOD readings measurement duration selectable (1 to 7 days)Display of measuring curveDisplay of current readingsIntermediate values available
Multiparameter meter MultiLine® 3620 IDS Set WL
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3620 IDS with two universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Also for controlling OxiTop® IDS.Scope of supply: Instrument, short manual, CD-ROM, rechargeable batteries, driver software for USB, cable, power supply, protection SM Pro, IDS WLM-M module
Multiparameter meter MultiLine® 3630 IDS Set WL
Professional digital multiparameter meters for mobile measurement, wireless preparation, data logger manually or automatically (timed). Easy to clean with a soft brush under water jet. The Multi 3630 IDS with three universal measurement channels is suitable for all WTW IDS pH, ORP, dissolved oxygen sensors, conductivity cells and turbidity sensors, whether connected to cable or wireless. Documentation of meter and sensor data. User control over MultiLab® users. With USB-A and Mini USB-B interface and colour display.Also for controlling OxiTop® IDS.Scope of supply: Instrument, short manual, CD-ROM, rechargeable batteries, driver software for USB, cable, power supply, protection SM Pro, IDS WLM-M module

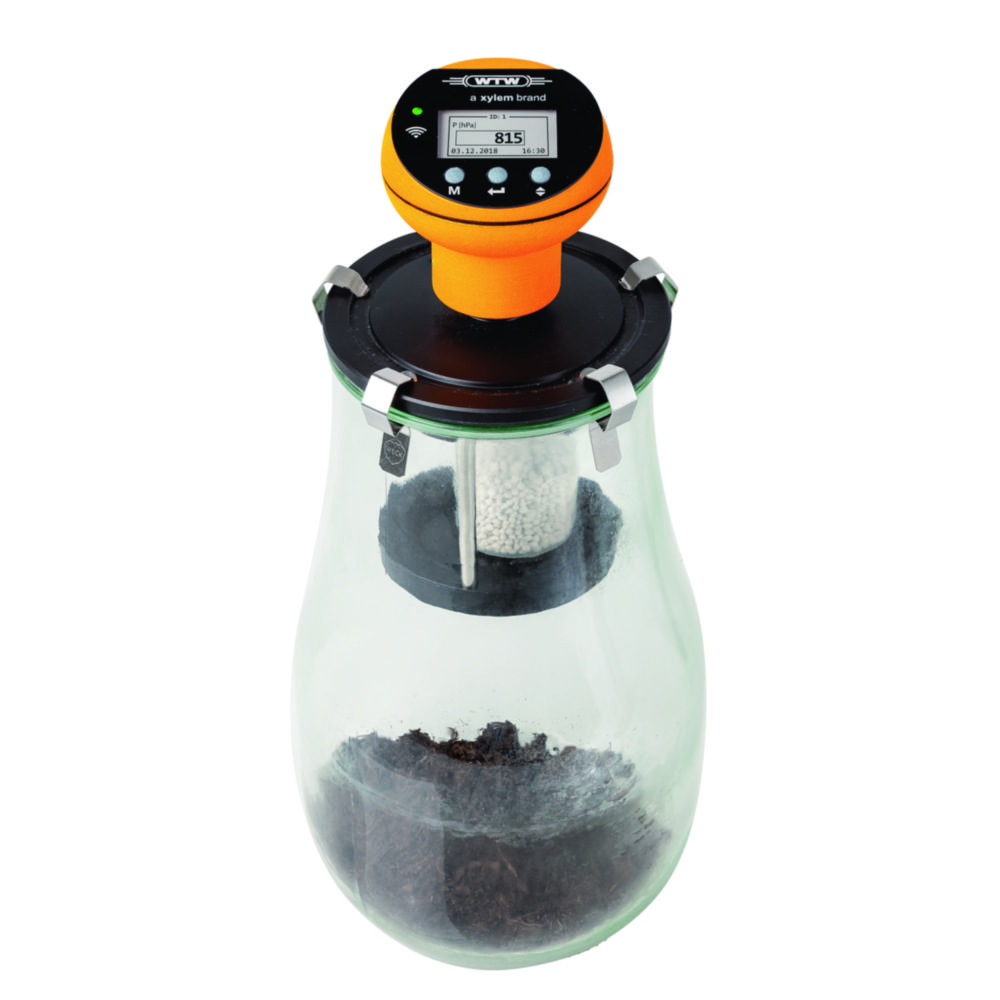

BOD Measuring system OxiTop®-IDS B6M-2.5 for determination of soil respiration
Respirometric measuring system for 6 measuring heads for determination of aerobic soil respiration, OxiTop®-IDS B6M-2.5 acc. to AT4 guideline. These sets are suitable for forecast, survey and monitoring of clean-up operations as well as measurement of bio-degradation of pesticides, fungicides, insecticides and fertilizers for example.With the proven Bluetooth® connectivity and the convenient operation via MultiLine® multi parameter instrument Multi 3620 IDS or Multi 3630 IDS. Using a Multi 3620 IDS or Multi 3630 IDS in BOD special mode the BOD measuring range extends to 400000 mg/l. For an already existing Multi 3620 or 3630 IDS, a firmware update is sufficient. Herewith beneath the OxiTop® applications also measurement of pH, conductivity, solved oxygen and turbidity are available. All heads can be used independently for routine BOD measurements from 1 to 7 days.Bluetooth® connectivityDirect calculation of all results in the meterRepresentation of curves for monitoringParallel measurement of different examinations and methodsExport to data acquisition programsMeasurement duration selectable (0.5 hours to 180 days)Please order CO2 absorber NHP 600 (9.303 403) separately.The IDS multi parameter measuring instruments Multi 3620 IDS Set WL or Multi 3630 IDS Set WL are required. Please order separately.Scope of supply: 6 measuring heads, 6 vessels MG 2,5 (2500 ml), 6 adapters OxiTop® AD/SK, Soda-Lime CO2 absorbent
Measuring heads OxiTop®-i, 6 measuring heads
Menu-operated measuring heads. Output of the BOD measurement values directly on the display.3 operating buttonsBacklit graphic LCDControl LEDVolume pre-selectionMeasurement duration selectable (1 to 7 days)Display of measuring curveDisplay of current readingsScope of supply: 3 x measuring head grey, 3 x measuring head blue
