Test sieve sets for Sieve Shakers AS series
Each set with one collecting pan.Other accessories, such as sieve lids and intermediate receivers, are available on request.
Air jet sieve machine e200 LS eControl LITE
Air jet sieve machine for separating, fractionating, and determining the particle size of fine to very fine powders. The device delivers precise measurement results and ensures high reproducibility. It is also characterised by its user-friendly and simple operation via the touch display.Stainless steel cast housingReduced noise level thanks to new intake silencerDiagnostic tool with self-monitoring of all electronic componentsSuitable for sieve diameter 76 mm, 200 mm, and 203 mmMeasuring size 20 µm to 4 mm (sieve Ø 200/203 mm), 10 µm to 2.5 mm (sieve Ø 76 mm)Simple one-touch operationExternal vacuum cleaner can be integratedDisplay of underpressure (in Pa), sieving time, date, and timeManual underpressure controlScope of supply: Air jet sieve machine, software version LITE, sieve adapter, slottet nozzle, acrylic glass lid, suction silencer, hammer and brush, connection piece, power connection cable, operating manualPlease order vacuum cleaner separately.
Air jet sieve machine e200 LS eControl BASIC
Air jet sieve machine for separating, fractionating, and determining the particle size of fine to very fine powders. The device delivers precise measurement results and ensures high reproducibility. It is also characterised by its user-friendly and simple operation via the touch display.Stainless steel cast housingReduced noise level thanks to new intake silencerDiagnostic tool with self-monitoring of all electronic componentsSuitable for sieve diameter 76 mm, 200 mm, and 203 mmMeasuring size 20 µm to 4 mm (sieve Ø 200/203 mm), 10 µm to 2.5 mm (sieve Ø 76 mm)Automatic sieve detection (RFID)Automatic underpressure controlFast, simple evaluation of the results (in tabular form)Balance communication via RS-232 interfaceCentral parameter management of all sievesScope of supply: Air jet sieve machine, software version BASIC, sieve adapter, slottet nozzle, acrylic glass lid, suction silencer, hammer and brush, connection piece, power connection cable, operating manualPlease order vacuum cleaner separately.
Air jet sieve machine e200 LS eControl ULTIMATE
Air jet sieve machine for separating, fractionating, and determining the particle size of fine to very fine powders. The device delivers precise measurement results and ensures high reproducibility. It is also characterised by its user-friendly and simple operation via the touch display.Stainless steel cast housingReduced noise level thanks to new intake silencerDiagnostic tool with self-monitoring of all electronic componentsSuitable for sieve diameter 76 mm, 200 mm, and 203 mmMeasuring size 20 µm to 4 mm (sieve Ø 200/203 mm), 10 µm to 2.5 mm (sieve Ø 76 mm)Automatic sieve detection (RFID)Automatic underpressure controlFast, simple evaluation of the results (in tabular form)Balance communication via RS-232 interfaceCentral parameter management of all sievesAutomatic saving and printingSieve set management (SOP)Automatic backupScope of supply: Air jet sieve machine, software version ULTIMATE, sieve adapter, slottet nozzle, acrylic glass lid, suction silencer, hammer and brush, connection piece, power connection cable, operating manualPlease order vacuum cleaner separately.
Air jet sieve machine e200 LS eControl SECURITY
Air jet sieve machine for separating, fractionating, and determining the particle size of fine to very fine powders. The device delivers precise measurement results and ensures high reproducibility. It is also characterised by its user-friendly and simple operation via the touch display.Stainless steel cast housingReduced noise level thanks to new intake silencerDiagnostic tool with self-monitoring of all electronic componentsSuitable for sieve diameter 76 mm, 200 mm, and 203 mmMeasuring size 20 µm to 4 mm (sieve Ø 200/203 mm), 10 µm to 2.5 mm (sieve Ø 76 mm)Automatic sieve detection (RFID)Automatic underpressure controlFast, simple evaluation of the results (in tabular form)Balance communication via RS-232 interfaceCentral parameter management of all sievesAutomatic saving and printingSieve set management (SOP)Automatic backupRequirements for software validation as classified in ISPE GAMP 5, FDA 21 Part 11, compliant with EC GMP Annex 11Scope of supply: Air jet sieve machine, software version SECURITY, sieve adapter, slottet nozzle, acrylic glass lid, suction silencer, hammer and brush, connection piece, power connection cable, operating manualPlease order vacuum cleaner separately.
High-performance industrial vacuum cleaner Type L
Vacuum cleaner with automatic filter cleaning system Tact. Targeted, powerful blasts of air automatically clean the filter itself, the suction power remains constantly high.Dust class L (max. permeability 1 % acc. to EN 60335-2-69)Removable filter housingAir flow rate 150 m3/hVacuum 230 mbarThis vacuum cleaner is not designed for continuous operation.
EVO industrial vacuum cleaner FEX 1000
Vacuum cleaner for use with the air jet sieve machine e200 LS eControl.Air flow rate 350 m3/hVacuum 100 mbar
Power contactor for air jet sieve machine e200 LS eControl LITE
Electrical regulation unit for connecting vacuum cleaners of different brands.
High-performance cyclone GAZ 120
For the safe and clean recovery of sieve material without contamination by e.g. filter fluff. Suitable for material quantities up to 1 litre. Dismantlable and washable stainless steel design.
Pre-separator D360 for air jet sieve machine e200 LS eControl, dust class M
For active dedusting of the process air. Pre-separator system with robust steel housing. With removable 13 l collection bin and half-automatic Dust-Stop filter cleaning.Dust class type M acc. to EN 60335-2-69, for separating dust with an exposure limit value of higher than 0.1 mg/m3Polyester filter cartridge with a filter surface of 1.2 m2
Pre-separator D360 for air jet sieve machine e200 LS eControl, dust class M + ATEX
For active dedusting of the process air. Pre-separator system with robust steel housing. With removable 13 l collection bin and half-automatic Dust-Stop filter cleaning.Dust class type M acc. to EN 60335-2-69, for separating dust with an exposure limit value of higher than 0.1 mg/m3Polyester filter cartridge with a filter surface of 1.2 m2Antistatic, ATEX Zone 22 marking II 3 D
Pre-separator D360 for air jet sieve machine e200 LS eControl, dust class M + H
For active dedusting of the process air. Pre-separator system with robust steel housing. With removable 13 l collection bin and half-automatic Dust-Stop filter cleaning.Dust class type H acc. to EN 60335-2-69, separation of different dust types with all exposure limits, including carcinogenic and pathogenic dustsHEPA filter, filter class (EN 1822) H14 with a filter surface of 2.05 m2
Pre-separator D360 for air jet sieve machine e200 LS eControl, dust class M + H + ATEX
For active dedusting of the process air. Pre-separator system with robust steel housing. With removable 13 l collection bin and half-automatic Dust-Stop filter cleaning.Dust class type H acc. to EN 60335-2-69, separation of different dust types with all exposure limits, including carcinogenic and pathogenic dustsHEPA filter, filter class (EN 1822) H14 with a filter surface of 2.05 m2Antistatic, ATEX Zone 22 marking II 3 D
Clamping device for Sieve Shakers AS series
Other accessories, such as sieve lids and intermediate receivers, are available on request.
Analytical sieve shakers AS jet
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.For sieve cuts of powdered materials which require efficient dispersion and deagglomeration. Digital adjustment of all process parameters (time, vacuum, speed)Sieving with air jet technology for dispersion and desagglomeration of fine powdersAir jet produced by a powerful industrial vacuum cleanerVariable nozzle speedOpen mesh function to reduce the number of near-mesh particlesFree manual (standard) or automatic (accessory) pressure regulationQuick Start modeSilent operation due to integrated silencerMaintenance-freeMemory for up to 9 SOPsOptional software EasySieve for control through RS232 serial interfacePlease order test sieve and vacuum cleaner separately.
Analytical sieve shakers AS 200 tap, with sound protection cabinet
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.For sieve analysis of certain products such as activated carbon, abrasives, metal powdee, spices and diamonds, as specified in the corresponding standards.Digital time settingSuitable for dry sievingShort sieving timesHorizontal circular sieving motion with vertical tapsMaintenance-freeMax. number of fractions 7/13Incl. software EasySieve for control through RS232 serial interfacePlease order test sieves and collecting pan separately.

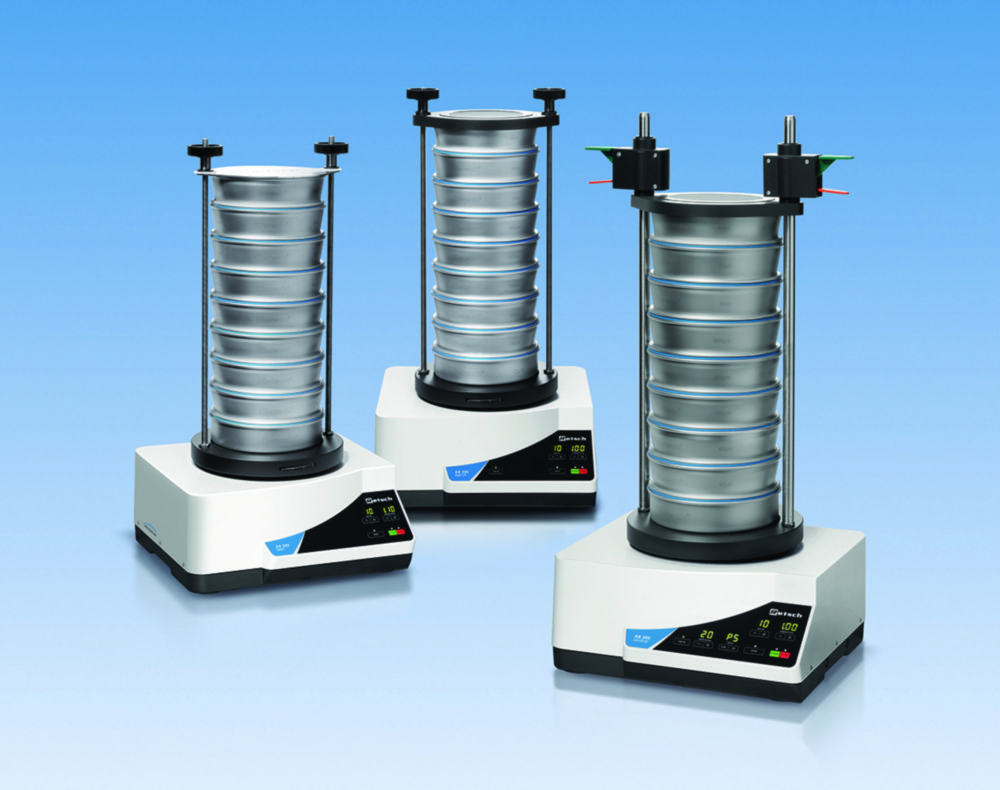

Analytical sieve shakers AS 450 basic
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.Digital adjustment of all process parameters (time, amplitude, interval)For dry and wet sievingShort sieving timesEfficient electromagnetic driveThrowing motion with angular momentumMaintenance-freeUp to 12 fractions in one sieving operationMobile operation panel for comfortable, intuitive handlingRobust steel housingPlease order clamping device, test sieves and collecting pan separately.
Analytical sieve shakers AS 200 basic
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.Digital display of performance and timeFor dry and wet sievingShort sieving timesEfficient electromagnetic driveThrowing motion with angular momentumMaintenance-freeMax. number of fractions 9/17Please order clamping device, test sieves and collecting pan separately.
Analytical sieve shakers AS 200 digit cA
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.Digital display of vibration height and timeControlled amplitudeFor dry and wet sievingShort sieving timesEfficient electromagnetic driveThrowing motion with angular momentumMaintenance-freeInterval operation, fix 10 sMax. number of fractions 9/17Please order clamping device, test sieves and collecting pan separately.
Analytical sieve shakers AS 200 control
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.Through the integrated interface the instrument can be connected to a PC and controlled with the evaluation software EasySieve®. This program enables the user to control the whole sieving process and the subsequent documentation with convenience and accuracy.Digital adjustment of all process parameters (time, amplitude or sieve acceleration, interval)Controlled amplitudeFor dry and wet sievingShort sieving timesEfficient electromagnetic driveThrowing motion with angular momentumMaintenance-freeInterval operation, 1 ... 99 sMax. number of fractions 11/22Please order clamping device, test sieves and collecting pan separately.

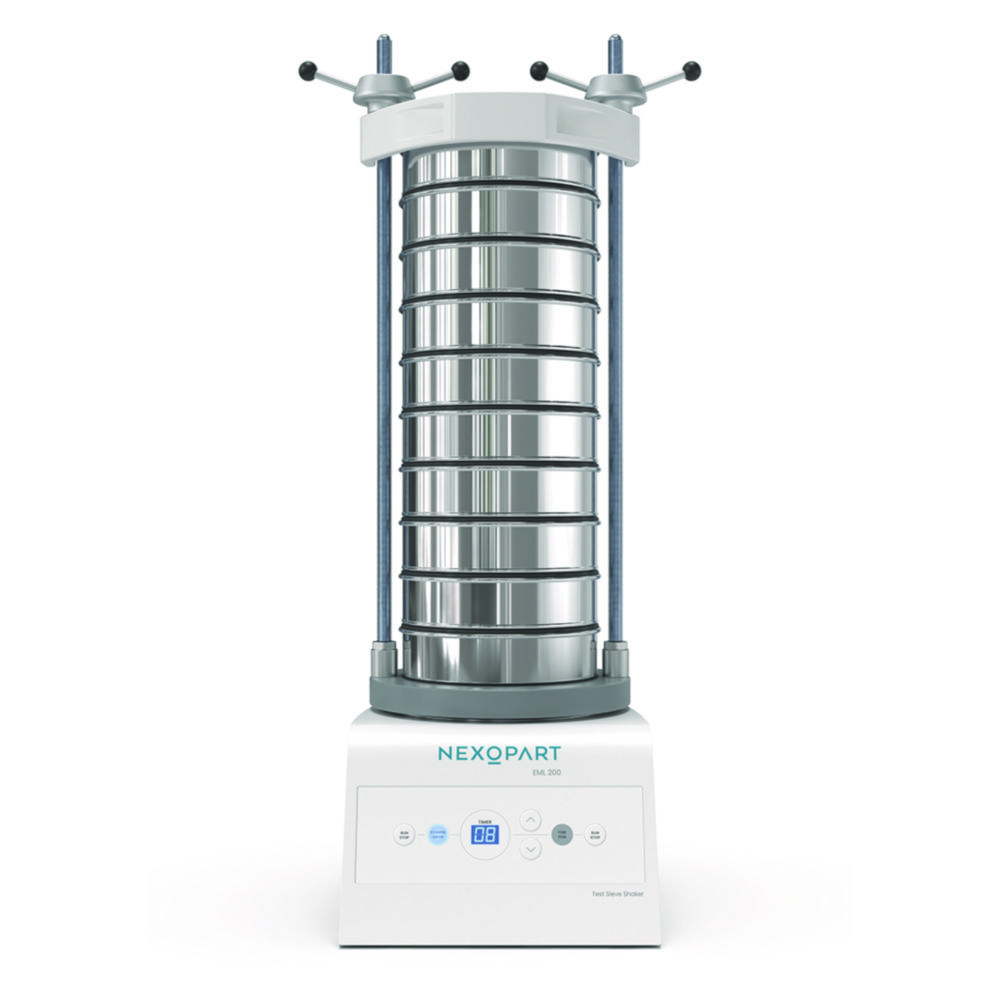

Test Sieve Shaker EML 200 Pure, with clamping system Classic "eco"
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mm2 amplitude options: fine (0.9 mm) and coarse (2.2 mm)Fixed interval (every 10 seconds)Scope of supply: Test Sieve Shaker, cover with inspection glass, clamping system (2 guide rods M16 x 660 mm, 2 clamping nuts), Basic licence of the evaluation software CSA
Analytical sieve shakers AS 300 control
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.Digital adjustment of all process parameters (time, amplitude or sieve acceleration, interval)For dry and wet sievingShort sieving timesEfficient electromagnetic driveThrowing motion with angular momentumLow noise, maintenance-freeInterval operation, 1 ... 99 sMax. number of fractions 11/17USB connection for use of EasySieve softwareOptional sieve software EasySieve for control of the shaker, easy evaluation and documentation of resultsPlease order clamping device, test sieves and collecting pan separately.

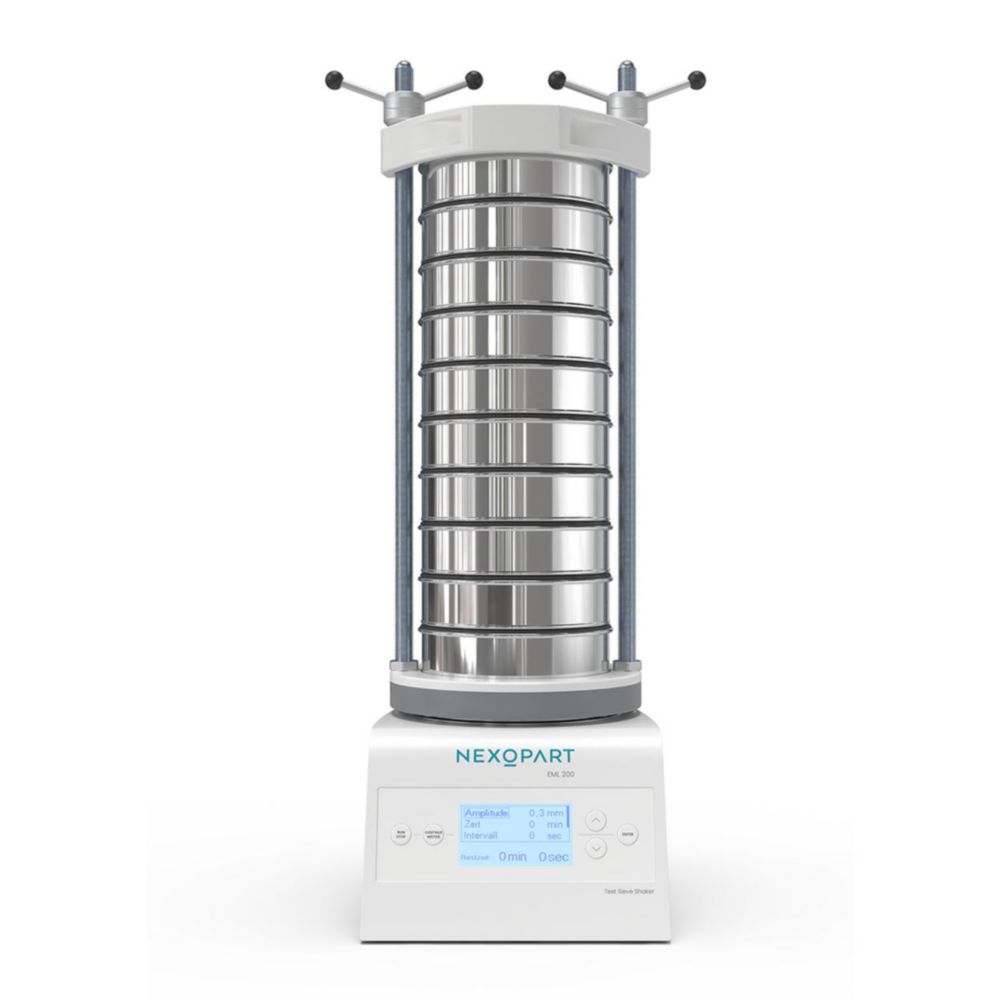

Test Sieve Shaker EML 200 Premium, with quick-release clamping system TwinNut
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mmExtra-large displayWith Ethernet interfaceFree amplitude selection up to 3 mm in 0.1 mm stepsInterval adjustable (1 to 99 seconds)Up to 49 programme memory locationsScope of supply: Test Sieve Shaker, cover with inspection glass, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), Basic licence of the evaluation software CSA
Test Sieve Shaker EML 200 Premium Remote, with clamping system Classic
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mmSuitable for dry and wet sievingSeparate control unitCover with integrated full cone nozzleWith Ethernet interfaceFree amplitude selection up to 3 mm in 0.1 mm stepsInterval adjustable (1 to 99 seconds)Up to 49 programme memory locationsScope of supply: Test Sieve Shaker, cover with inspection glass and full cone nozzle, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), 1 water plug with socket and 2 hose clips, 1 PVC water hose (length 3 m), Basic licence of the evaluation software CSA
Test Sieve Shaker EML 200 Premium, with clamping system Classic
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mmExtra-large displayWith Ethernet interfaceFree amplitude selection up to 3 mm in 0.1 mm stepsInterval adjustable (1 to 99 seconds)Up to 49 programme memory locationsScope of supply: Test Sieve Shaker, cover with inspection glass, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), Basic licence of the evaluation software CSA

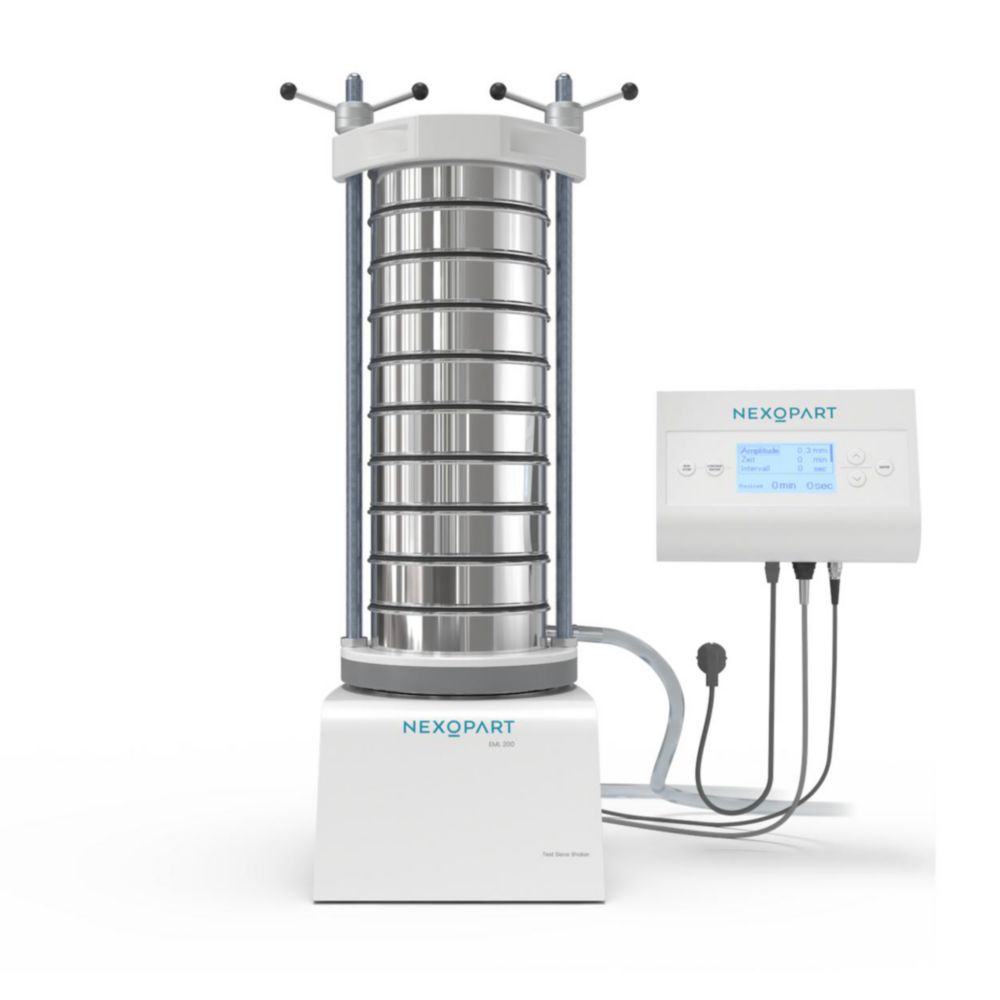

Test Sieve Shaker EML 200 Premium Remote, with quick-release clamping system TwinNut
The test sieve shakers generate a three-dimensional sieving motion for fast and reproducible sieving results. Thanks to G-Control, a constant amplitude is made possible.Timer: 0 to 99 minutes or continuous operationWith inspection glass coverFor test sieves with a sieve diameter of 50 mm to 203 mmSuitable for dry and wet sievingSeparate control unitCover with integrated full cone nozzleWith Ethernet interfaceFree amplitude selection up to 3 mm in 0.1 mm stepsInterval adjustable (1 to 99 seconds)Up to 49 programme memory locationsScope of supply: Test Sieve Shaker, cover with inspection glass and full cone nozzle, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), 1 water plug with socket and 2 hose clips, 1 PVC water hose (length 3 m), Basic licence of the evaluation software CSA

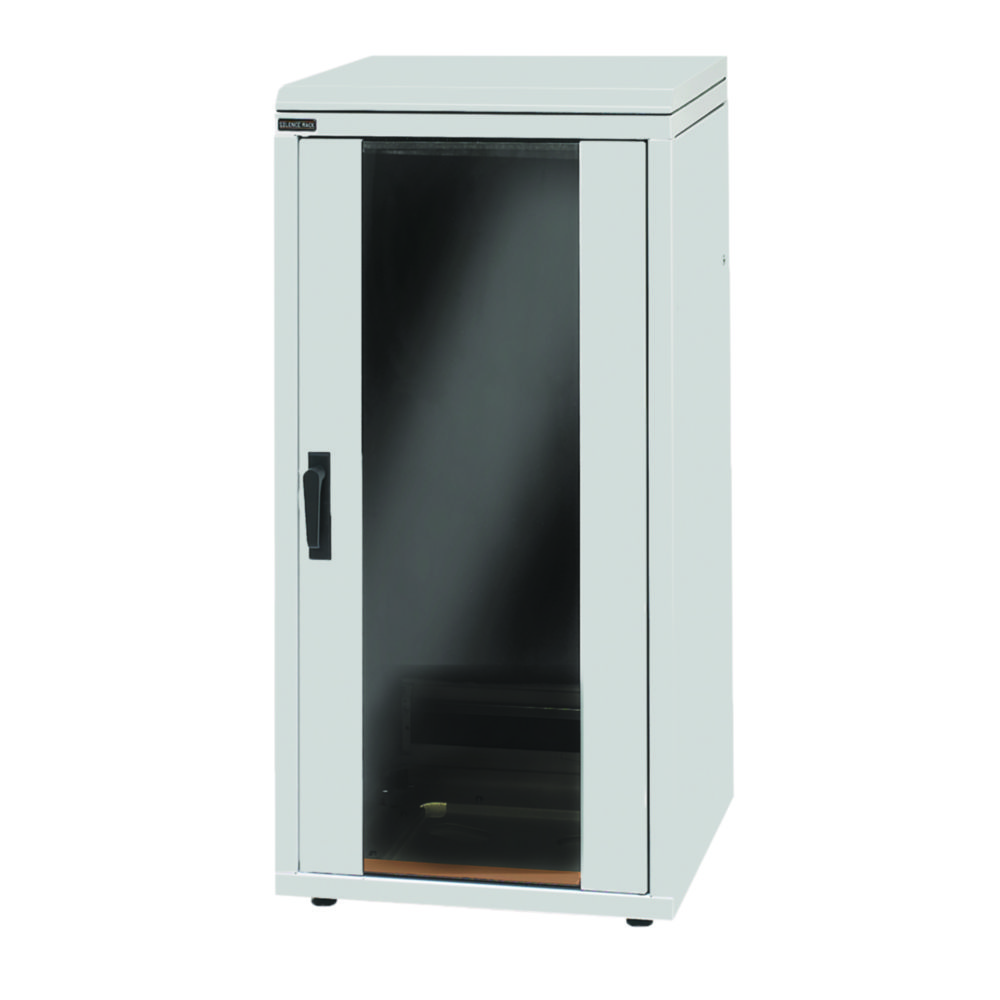

Sound absorbing cabinets for test sieve shakers EML/UWL
Sound absorbing cabinets can reduce the noise level by up to 28 dB (A). They also have a recess for power cables, connection cables and hoses.

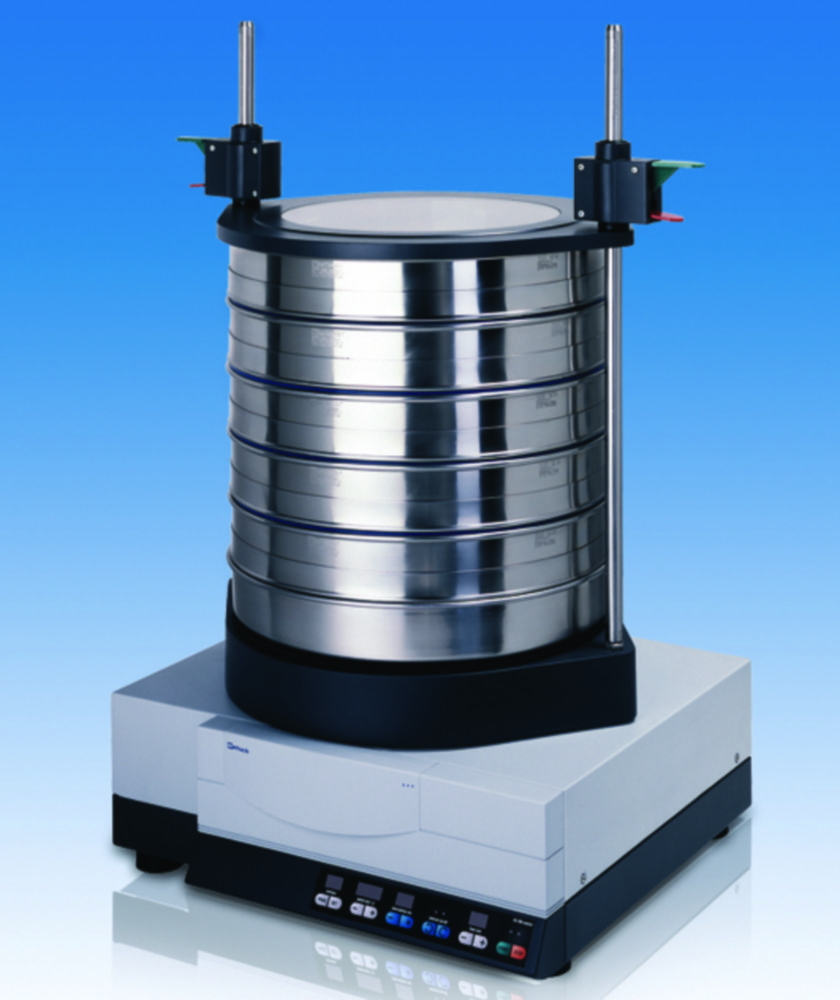

Analytical sieve shakers AS 400 control
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.The AS 400 control is used for the sieving of dry goods with test sieves of a diameter up to 400 mm. The uniform, horizontal circular motion ensures exact separation of the product to be sieved.Digital adjustment of all process parameters (time, speed, interval)Short sieving timesSieving with circular sieving motion according to DIN 53477Maintenance-freeInterval operation, 1 ... 10 minMax. number of fractions 7/9/17Memory for up to 9 SOPsIntegrated interface for evaluation software EasySieve®Please order clamping device, test sieves and collecting pan separately.

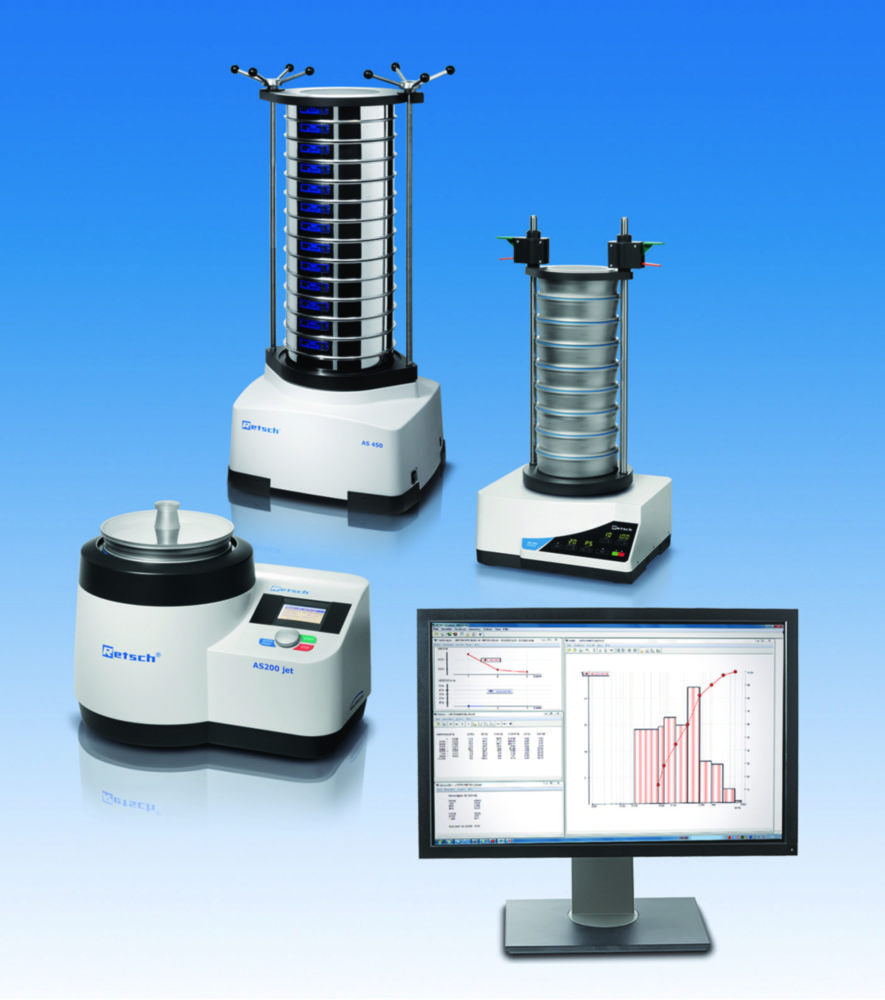

Software EasySieve® for Sieve Shakers AS control / AS 200 tap / AS jet
Software for particle size analyses.Features:Automatic registration, evaluation and administration of measurement dataLogical design, self-explanatoryMeasurement protocol in accordance with standardsEasy selection and configuration of common analytical scalesEnglish and GermanFor automatic control of sieve shakers AS 200 control, AS 300 control, AS 450 control, AS 400 control, AS 200 tap, AS 200 jetFor Windows® 2000 / XP / Vista / 7 / 8

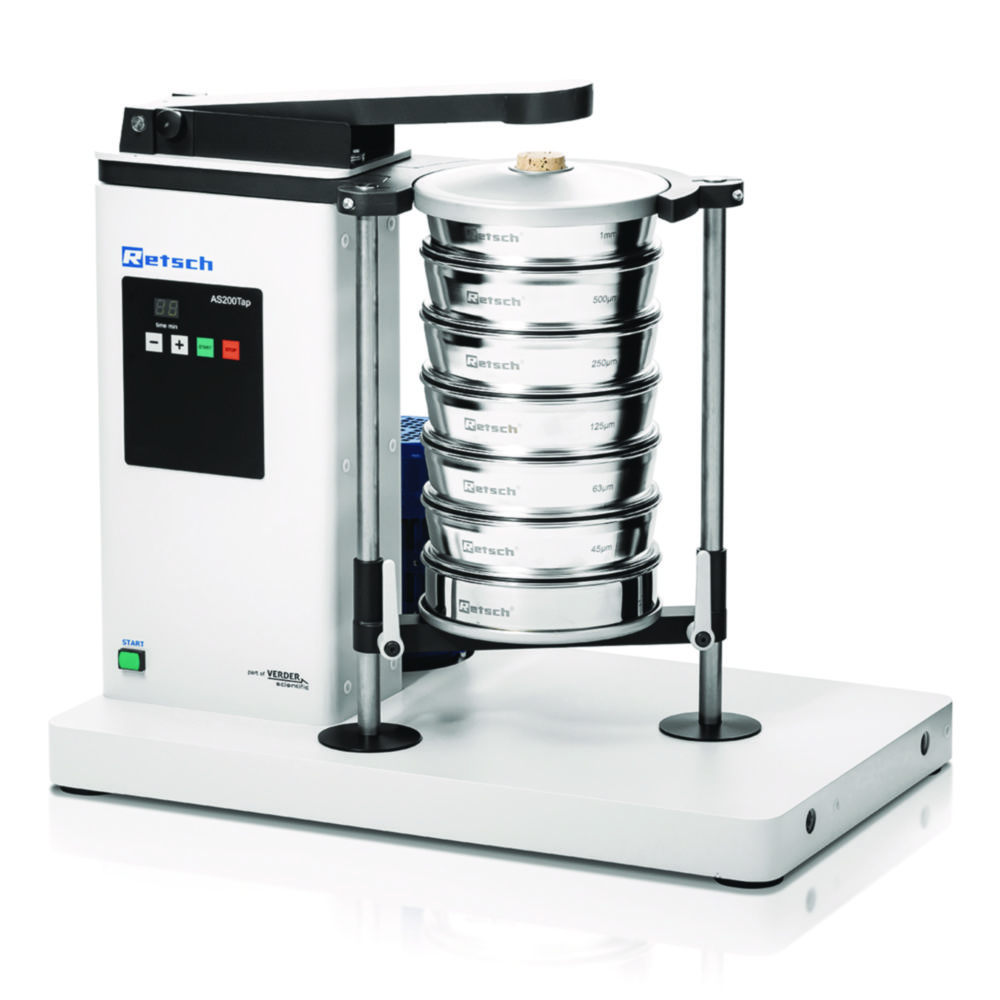

Analytical sieve shakers AS 200 tap
Sieve shakers are used in research and development, quality control of raw materials, interim and finished products as well as in production monitoring.For sieve analysis of certain products such as activated carbon, abrasives, metal powdee, spices and diamonds, as specified in the corresponding standards.Digital time settingSuitable for dry sievingShort sieving timesHorizontal circular sieving motion with vertical tapsMaintenance-freeMax. number of fractions 7/13Incl. software EasySieve for control through RS232 serial interfacePlease order test sieves and collecting pan separately.
