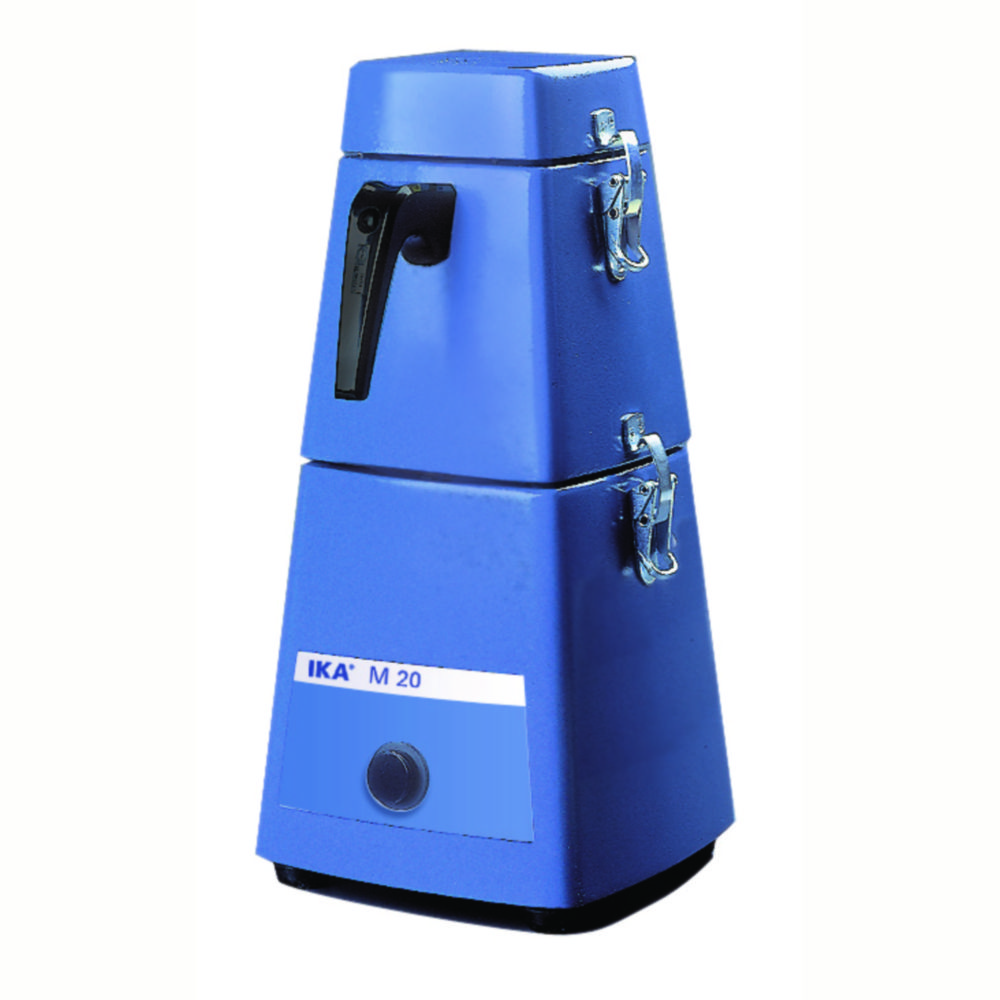

Universal mill M20
Batch mill suitable for dry grinding of hard and brittle substances.Double-walled grinding chamber can be cooled with water through two hose adaptersRemovable grinding chamber, easy to cleanTwo grinding chambers can be alternately operated using one driveM 21 blade incl. with deliveryMax. feed hardness: 5 Mohs

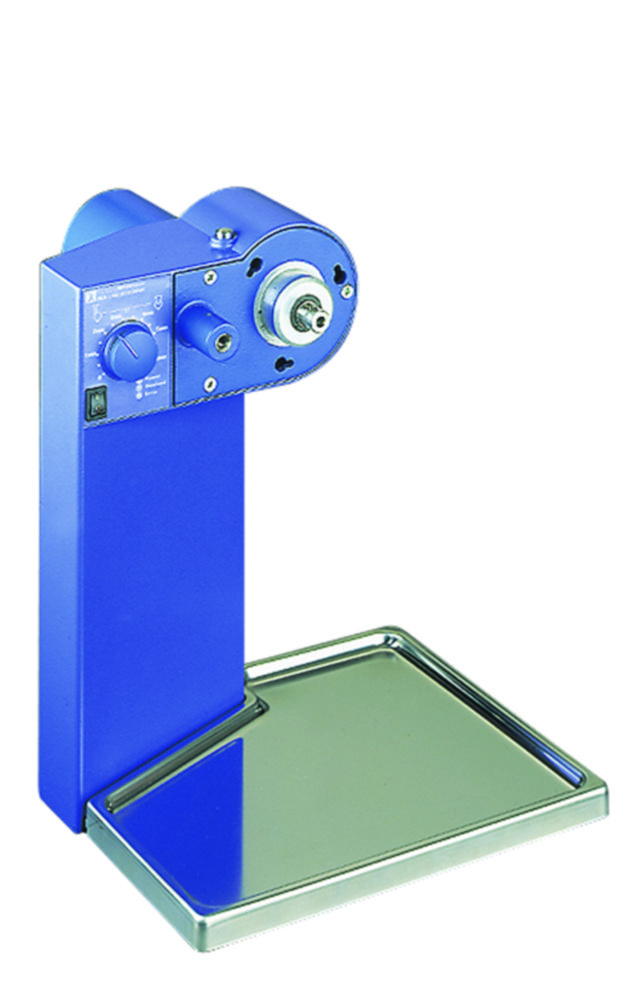

Microfine grinder drive MF 10 basic
Universal laboratory grinder, comprising powerful drive unit for use with a choice of accessory grinding heads. The user can choose between the impact grinding head for milling hard, brittle materials (see fig.) and the cutting head for processing fibrous material. The maximum granule size output can be set by using various insert sieves (with apertures between 0.25 mm and 4 mm) placed above the outlet. There is an NS29 standard ground joint at the outlet for attachment of receiving flasks.Grinding/cutting heads not included.

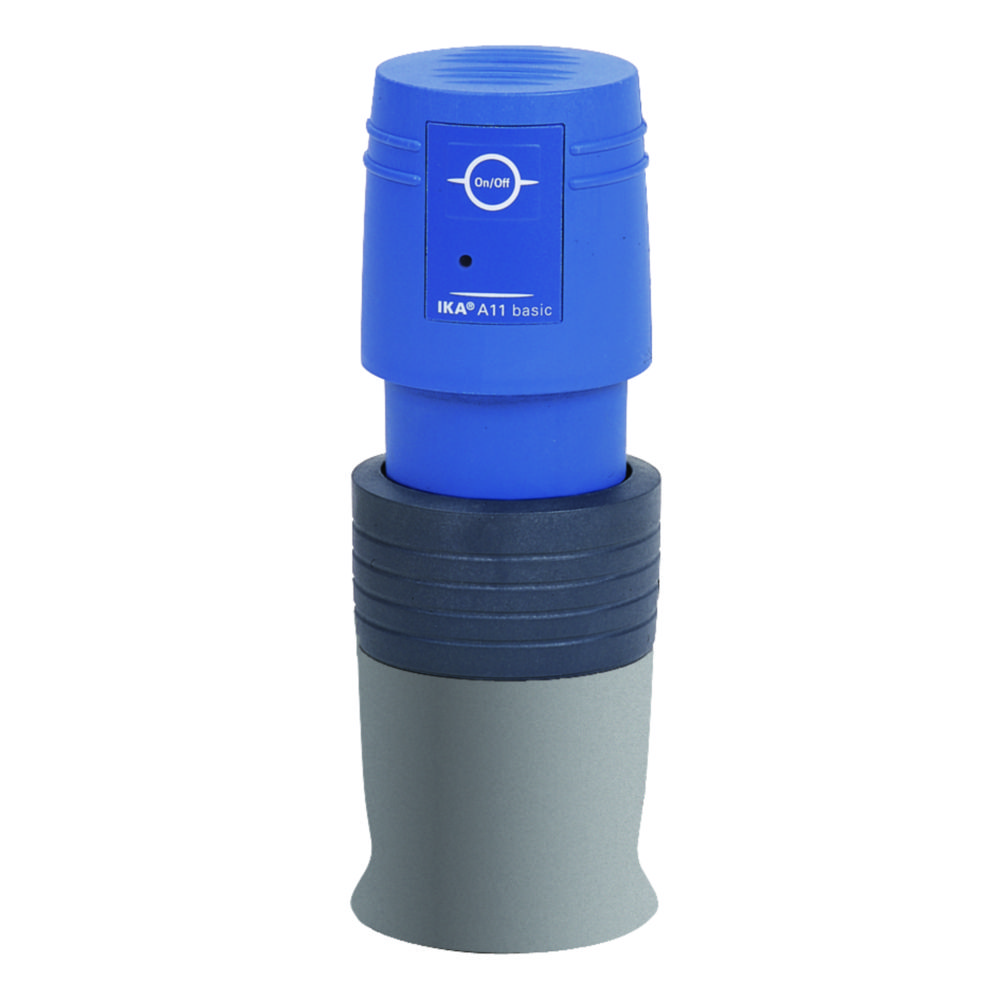

Grinding mill, A11 basic
Batch mill for 2 different grinding procedures:Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery). Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery).Moist and gluey materials can be pulverized by adding waterGrinding chamber made of Tefcel (PTFE, glass fibre-reinforced) with stainless steel inlet (1.4571), useful volume 80ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamberOptionally, a 250ml grinding chamber is availableAccessories please order separately.
Disposable grinding chambers with stainless steel beater for batch mill Tube Mill control/Tube Mill 100 control
Disposable grinding chambers with stainless steel beaters allow grinding up to Mohs hardness 5.

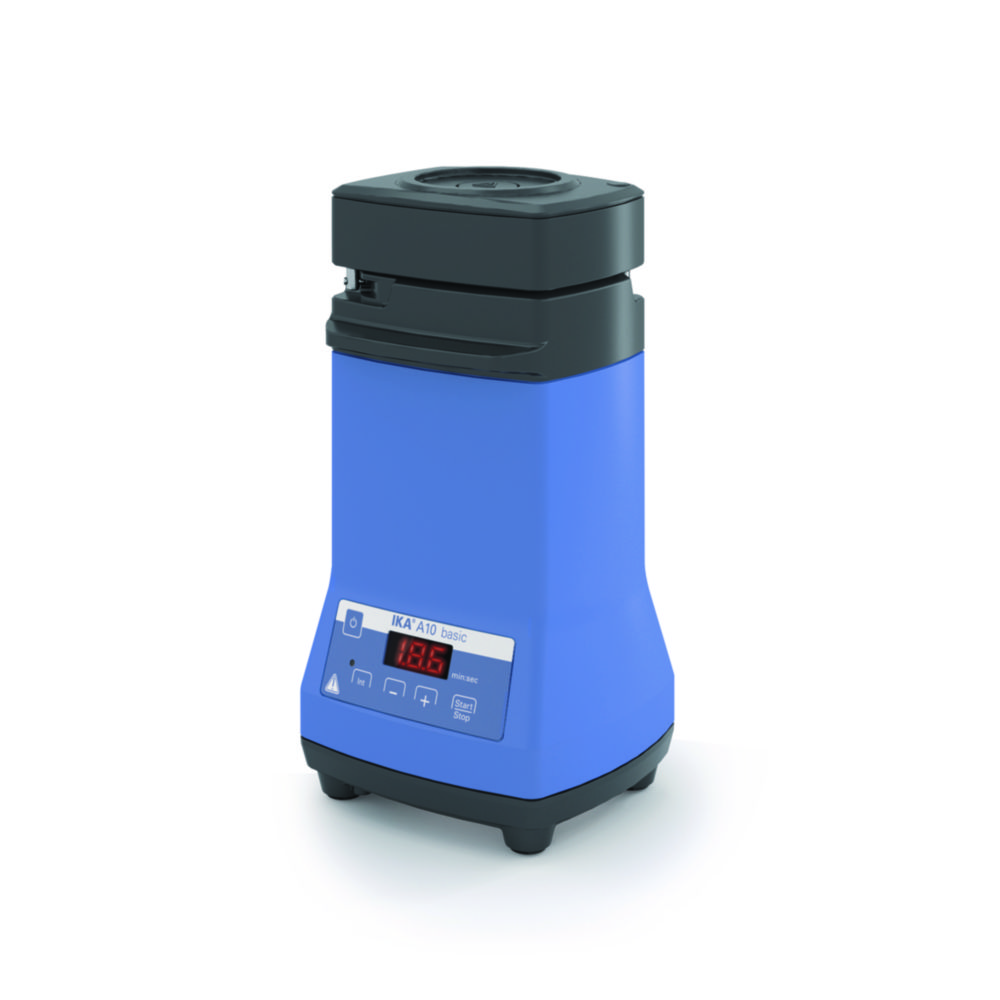

Grinding mill, A 10 basic
Newly designed batch mill for grinding of hard, brittle, soft and fibrous materials for volumes up to 50 ml. Because samples may be embrittled directly in the grinding chamber; tough, oily and aqueous samples can also be grinded. During development of the mill, particular emphasis was placed on safety. The mill will only start when the lid is closed and it can only be opened at standstill. A quick stop feature further increases the safety of user.Digital timerCounter: Display of grinding timeInterval operationBrushless motor for long life and low noiseIntegrated cooling connectionsError Code DisplayEasy handling with keypadsEasy exchangeable beater/cutter for a variety of applicationsGrinding chamber reduction for small sample amounts ( included with delivery)Easy opening and closing of the lid with a bayonet lock
Spare parts set for reusable grinding chambers
Scope of supply: 100 x sealing, 10 x beater, 10 x coupling

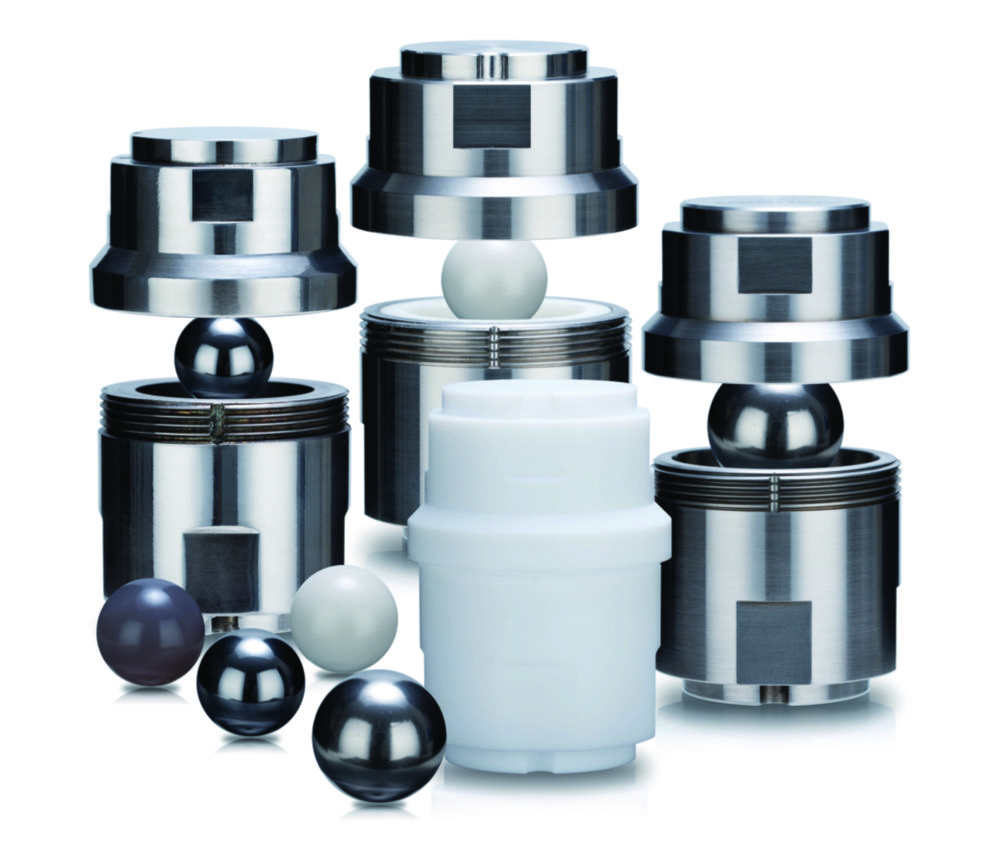

Grinding Jars for Mixer Mill MM 400
With screw cap.Simple and safe handlingDust and air-tightSuitable for wet and cryogenic grinding

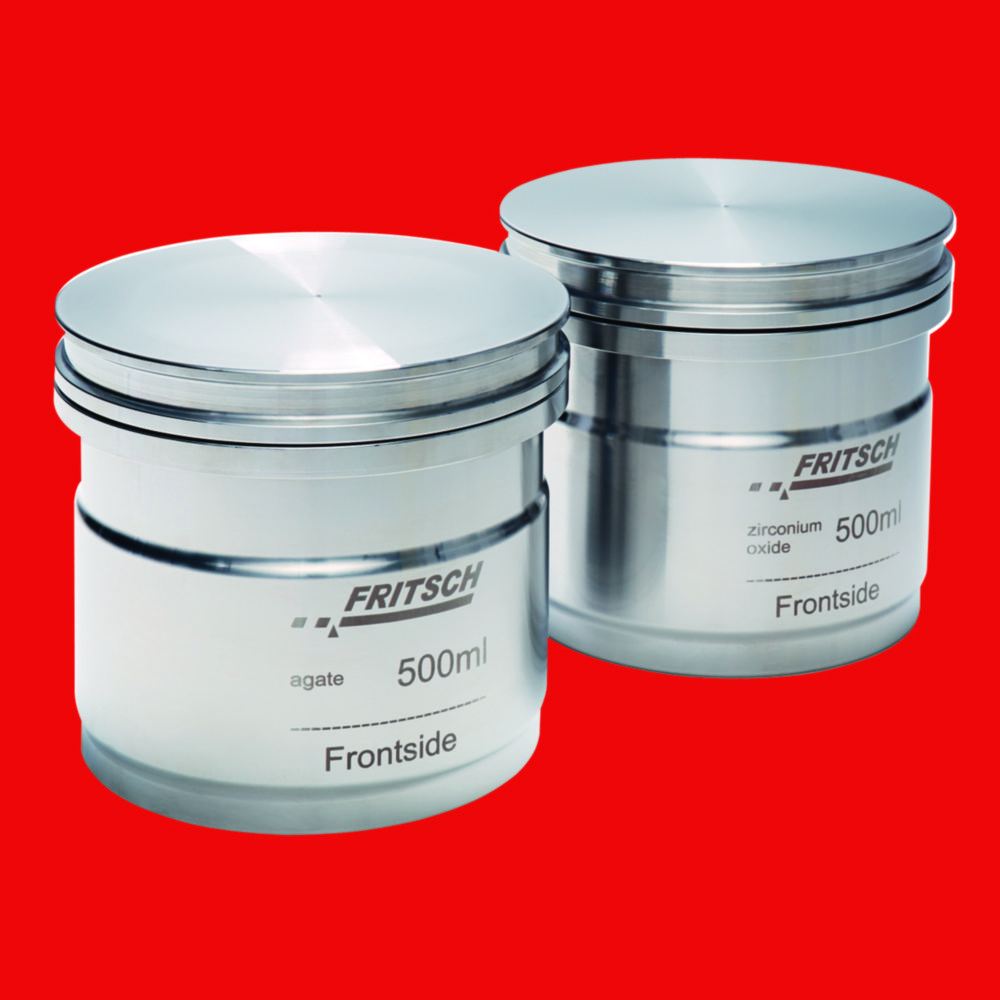

Grinding bowls for planetary mill PULVERISETTE 5 premium line
Grinding bowl in steel casing.One grinding bowl holder can hold either 2 x 125-150 ml bowls together with a stacking ring or 1 x 125-150 ml bowl with a grinding bowl adapter mounted one on top of the other.Special gassing lids and screw-on grinding bowl lids for grinding in an inert atmosphere and for mechanical alloying as well as the EASY GTM Gas pressure for controlling the grinding process due to continuous measurement of gas pressure and temperature and for grinding in inert gas are available.

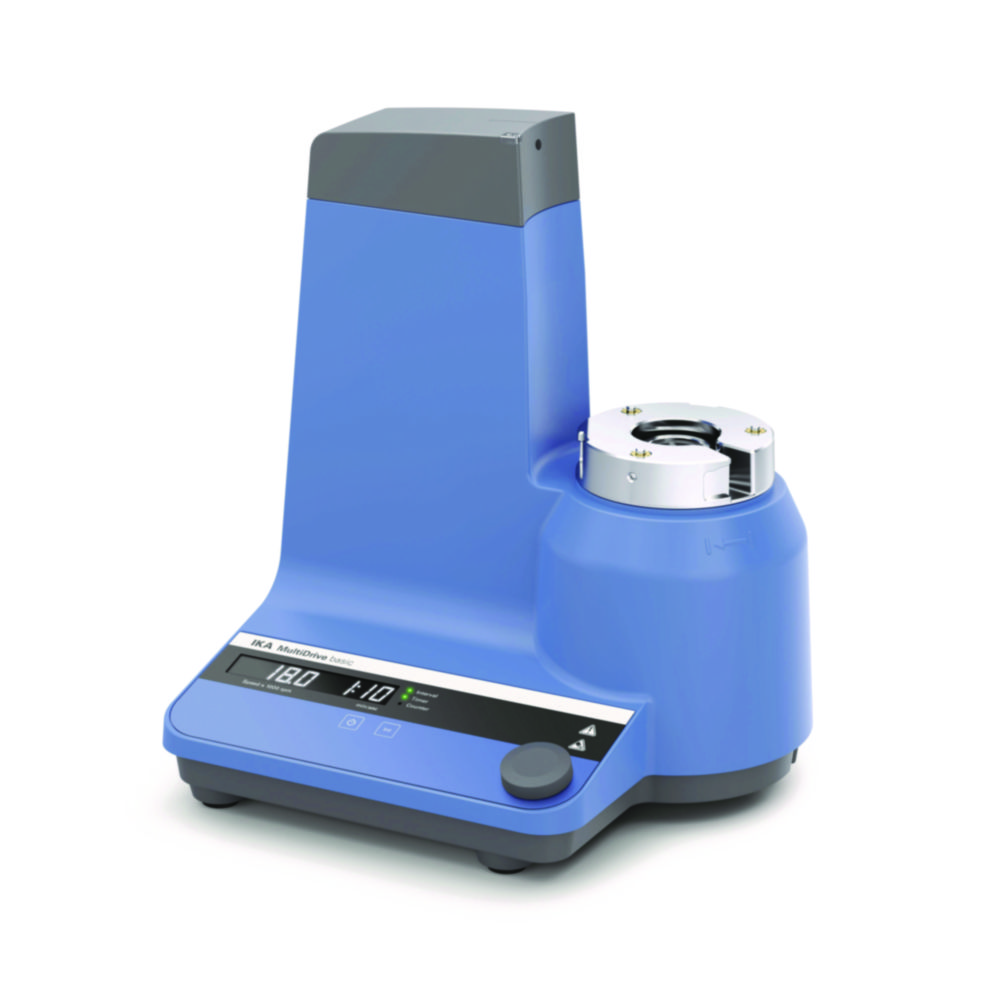

Universal mill MultiDrive basic
Universal mill for the pre- and fine comminution of hard, soft or fibrous samples.Adjustable interval operationIntegrated cooling in the grinding bowlGround product and coolant remain disconnectedUSB interfacePlease order vessels separately.

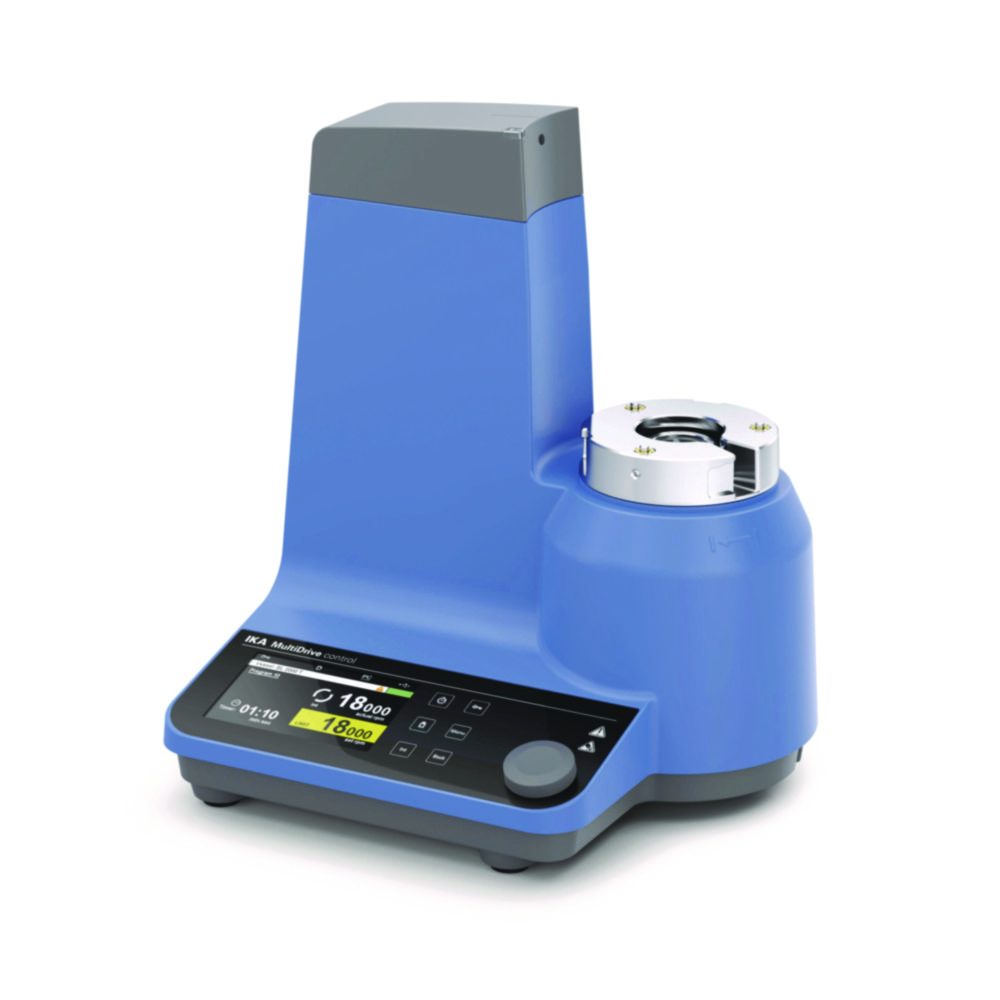

Universal mill MultiDrive control
Universal mill for the pre- and fine comminution of hard, soft or fibrous samples.Adjustable interval operationIntegrated cooling in the grinding bowlGround product and coolant remain disconnectedUSB interfaceTemperature measurement and vessel recognition using RFIDTemperature limit can be set for temperature-sensitive materials, or for specific planned reactionsIntegrated weighing function for weighing without transferring the materialDispersion vessel and a disposable tube are available as accessoriesPlease order vessels separately.

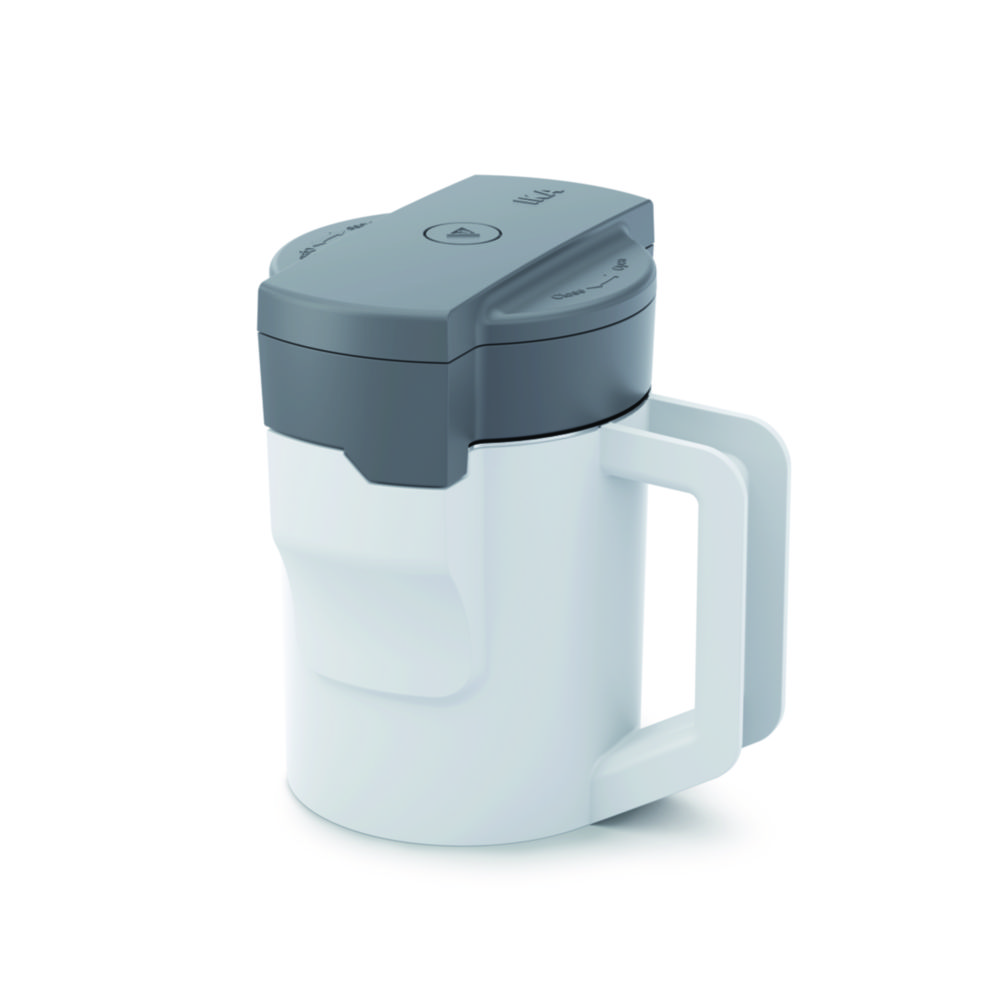

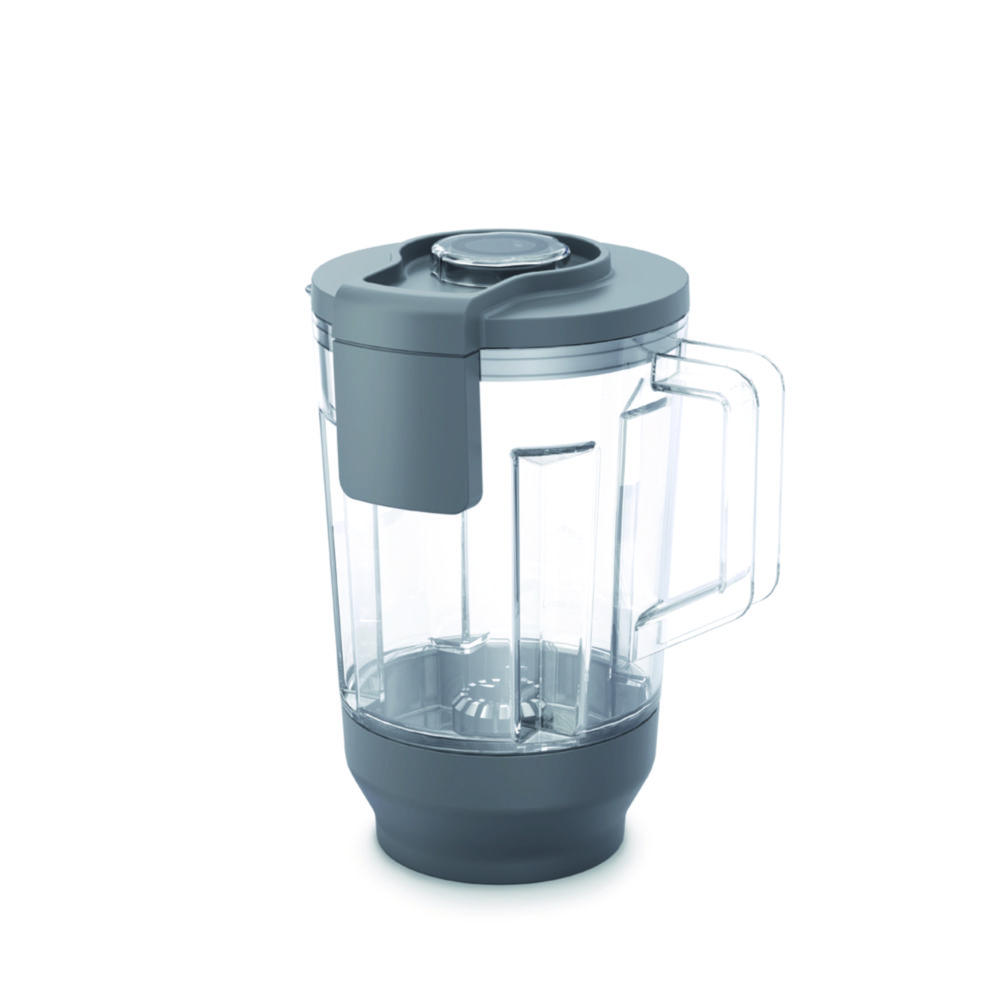

Blender vessel with knife for Universal mill MultiDrive basic/control
Vessel with mixing knife for wet grinding a variety of samples.
Blender vessel with knife and temperature sensor for Universal mill MultiDrive control
Vessel with mixing knife for wet grinding a variety of samples. A temperature limit (-50 to 80 °C) can be set and monitored using the integrated temperature sensor. Particularly suitable for temperature-sensitive materials.
Milling chamber for Universal mill MultiDrive basic/control
Milling chamber with stainless steel beater for dry grinding of a variety of samples. The special vessel seal allows the pressure to be released via the lid during the grinding process of very fine powders.
Dispersing vessel with temperature sensor for Universal mill MultiDrive control
Dispersing vessel with rotor-stator system and temperature sensor for dispersing a variety of samples. A temperature limit (-50 to 80 °C) can be set and monitored using the integrated temperature sensor. Particularly suitable for temperature-sensitive materials.

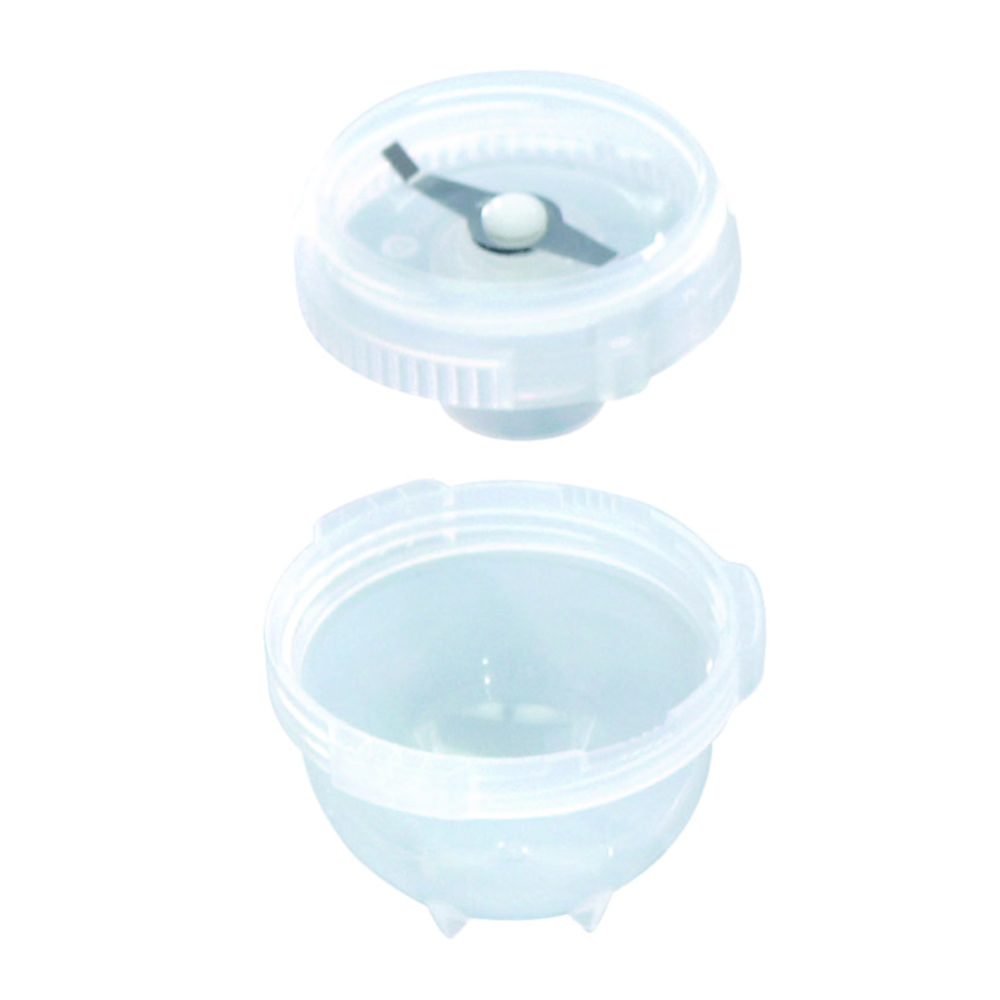

Disposable grinding chambers with bended beater for batch mill Tube Mill control/Tube Mill 100 control
Disposable grinding chambers with stainless steel beater. The beater is bent with a 45° angle to create an optimal flow in the chamber. Especially for mixing fine powders.
Grinding Jars for Mixer Mill MM 500
With screw capScrew-Lock jars in sizes up to 125 ml, pressure-tight up to 5 bar

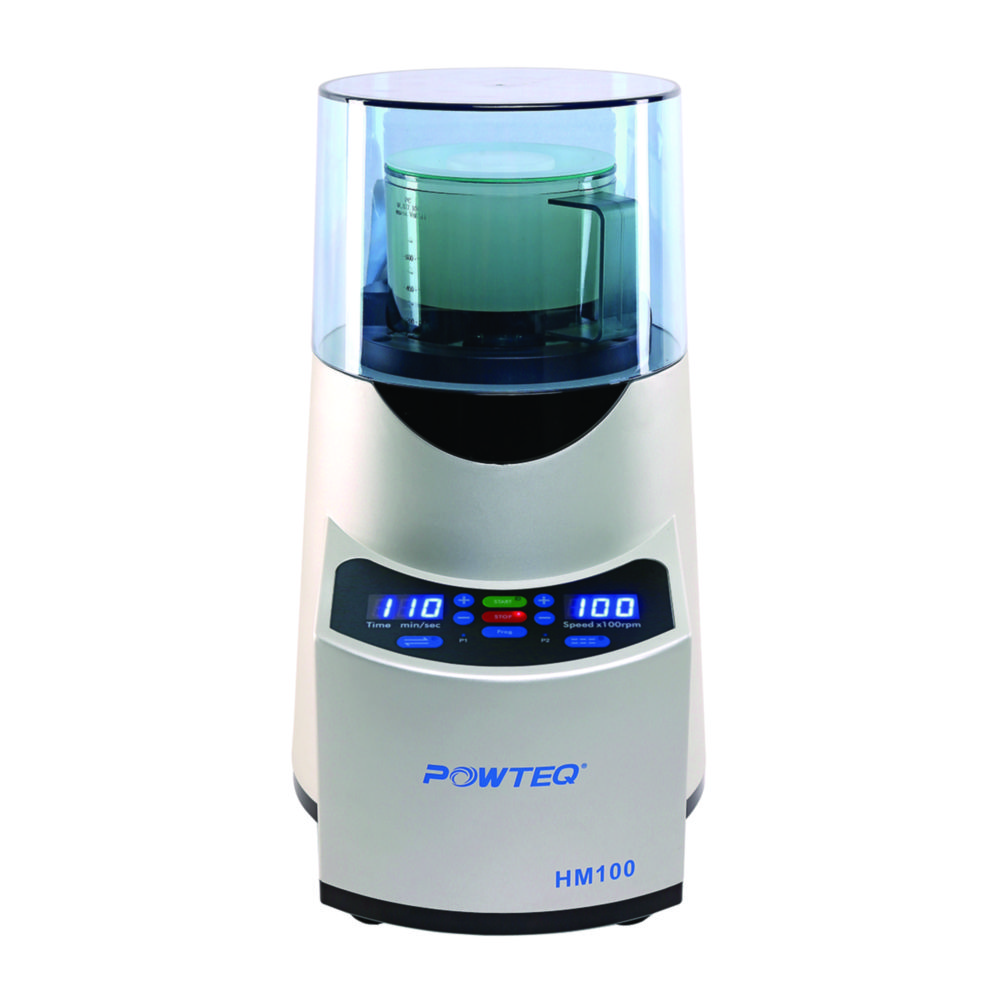

Knife mill HM100

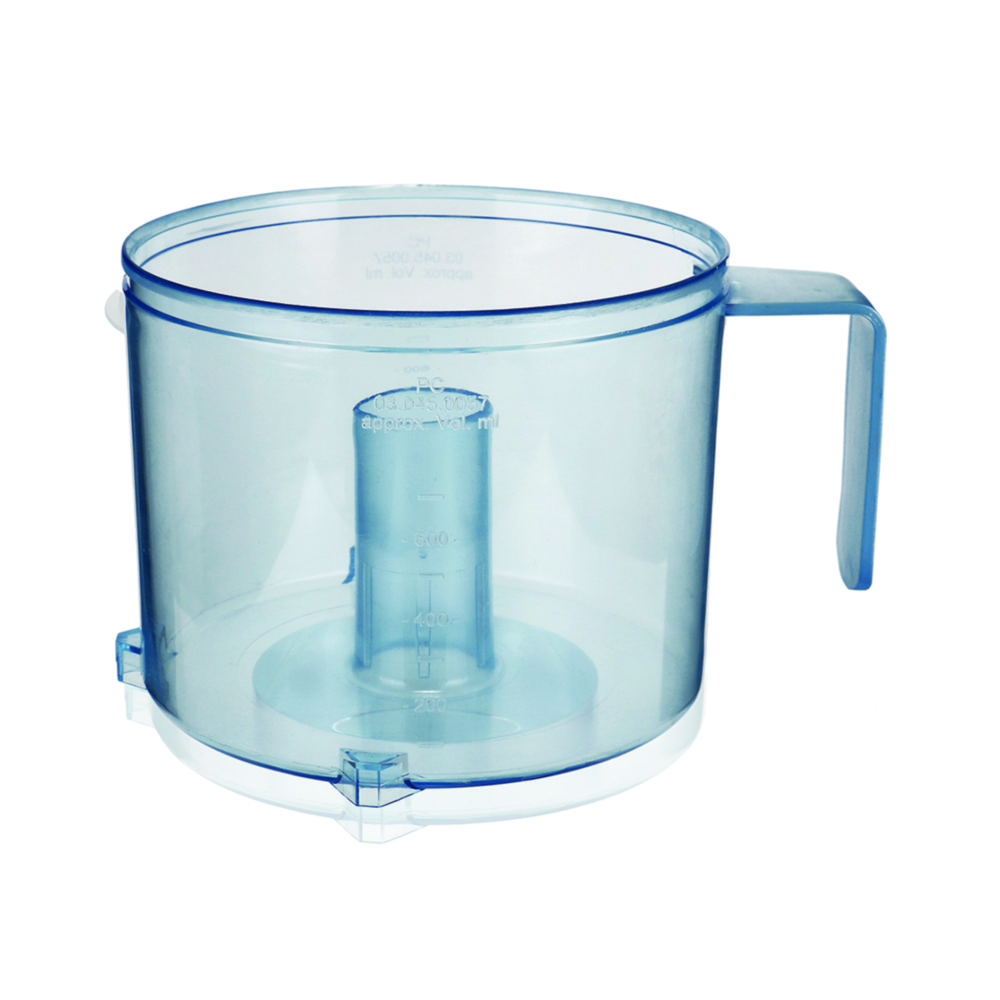

The HM100 knife mill is used for grinding soft, medium-hard, brittle and fibrous materials. Especially suitable for samples with a high water, oil or fat content. The 2 knives are driven by a 900 W motor to achieve a reliable grinding result. Suitable for applications in agriculture, biology, medicine and food technology.For soft, elastic, fibrous, aqueous, oily or fatty samplesElectronically controlled speedSamples are grinded in only 10 to 30 secondsUp to 700 ml sample volumeAutoclavable grinding vesselsGrinding vessels available in various materialsCutting knives with 2 stainless steel and titanium blades availableEasy operationQuick startCoarse and fine grinding in one stepInterval, reverse and manual mode availableScope of supply: Knife mill, 1 l grinding vessel made of plastic (autoclavable), lid, stainless steel knife

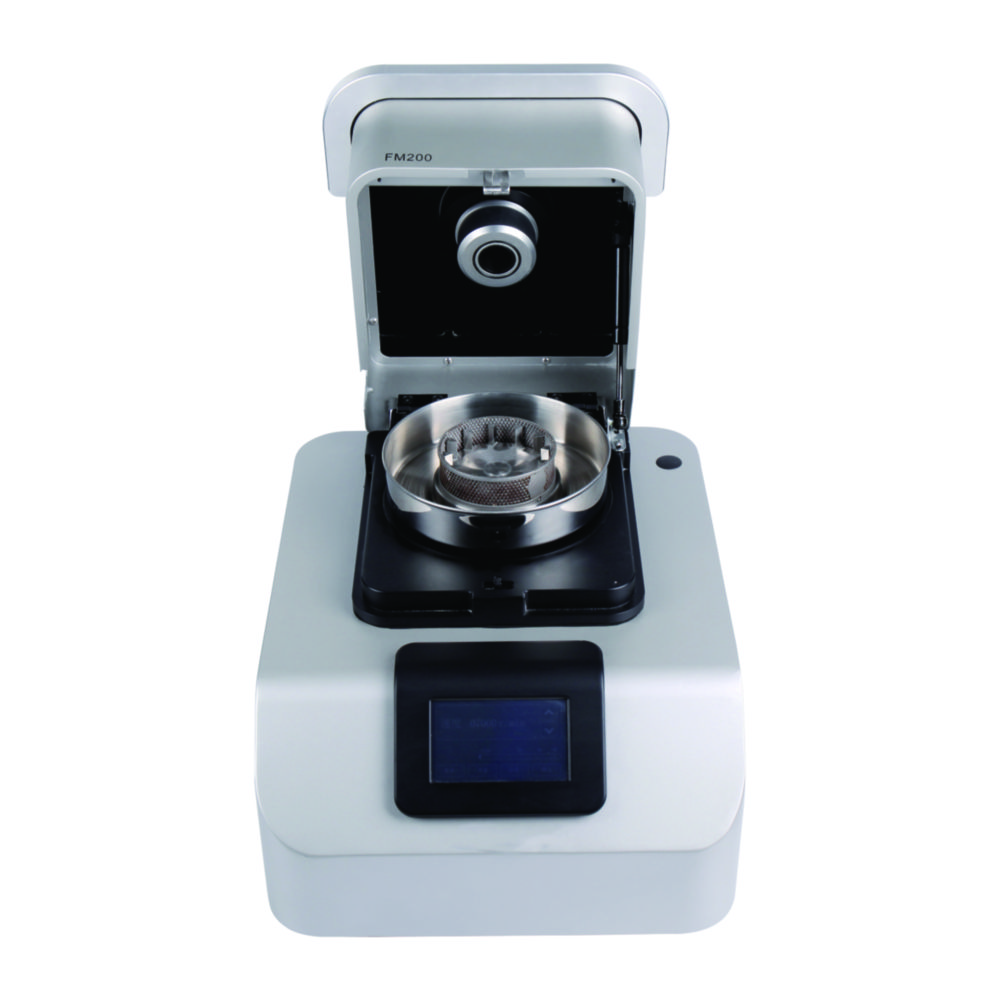

Centrifugal Mill FM200

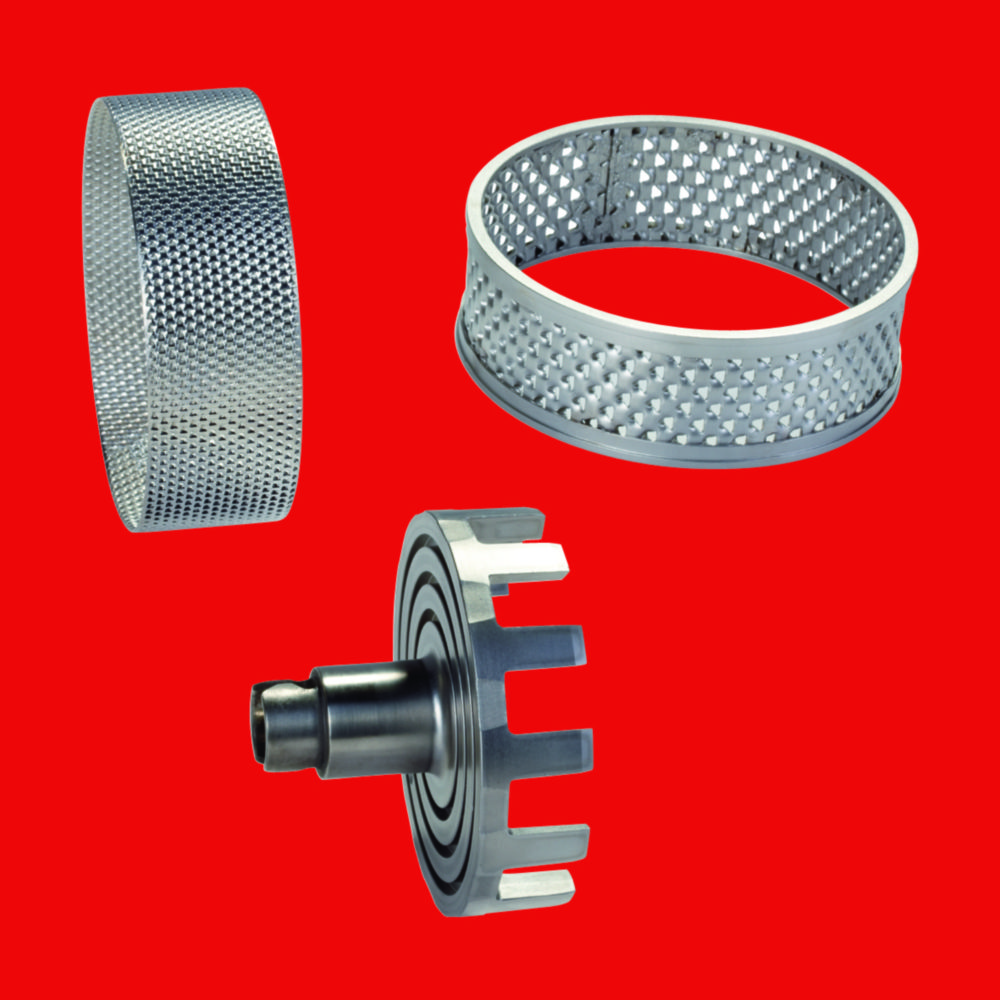

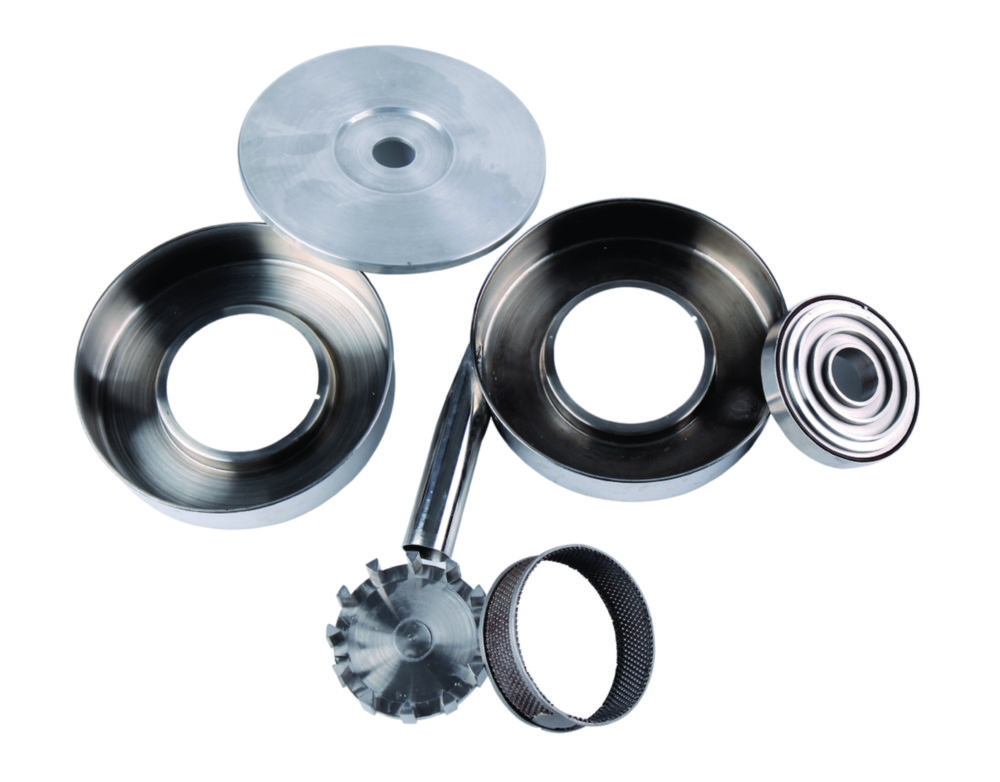

For fine grinding, homogenising and mixing of soft, brittle, fibrous and hard samples in the laboratory and pilot plant. The high grinding efficiency is ensured by the high speed rotor and the ring sieve used. A final fineness of less than 100 µm can be achieved. The mill guarantees a high sample throughput and low-noise operation.Exchangeable ring sievesSimple operation via touch control panelEfficient sample coolingGround samples are collected in a panFeed hopper with anti-blocking deviceMotor with overload protectionEasy cleaningNo tools required to dismantle the parts in contact with the sampleElectronic and mechanical safety interlocksComprehensive range of ring sieves and rotors availableRing sieves and rotors are not included in the scope of supply and must be ordered separately.

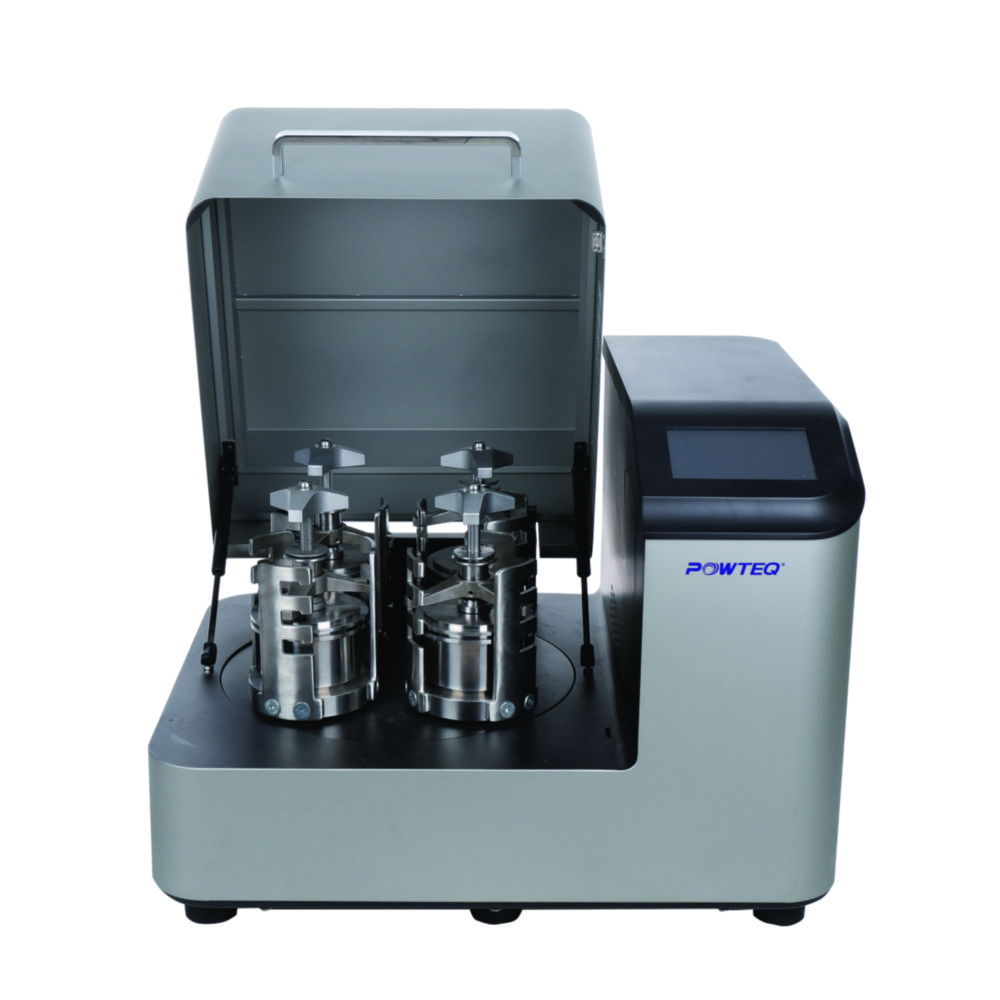

Planetary Ball Mill BM40
For rapid grinding of soft, hard, brittle and fibrous materials down to a final fineness of less than 1 µm in laboratories and pilot plants. Also suitable for colloid grinding. Suitable for use in geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying, pharmacy, chemistry, biology and analysis preparation.Grinding platform with 4 stations for up to 8 grinding bowlsSuitable for continuous operationGrinding time digitally adjustable from 0 to 999 minutesVariable speed of the sun wheel from 30 to 400 min-1For dry and wet grindingProgrammable grinding parametersAutomatic reversal of direction to avoid agglomerationsVentilated grinding chamber for cooling the grinding bowlControl via 7" LCD display with one-button operationSafety interlockGrinding bowls made of different materials and with different capacities available as accessoriesGrinding bowls and balls are not included in the scope of supply and must be ordered separately.

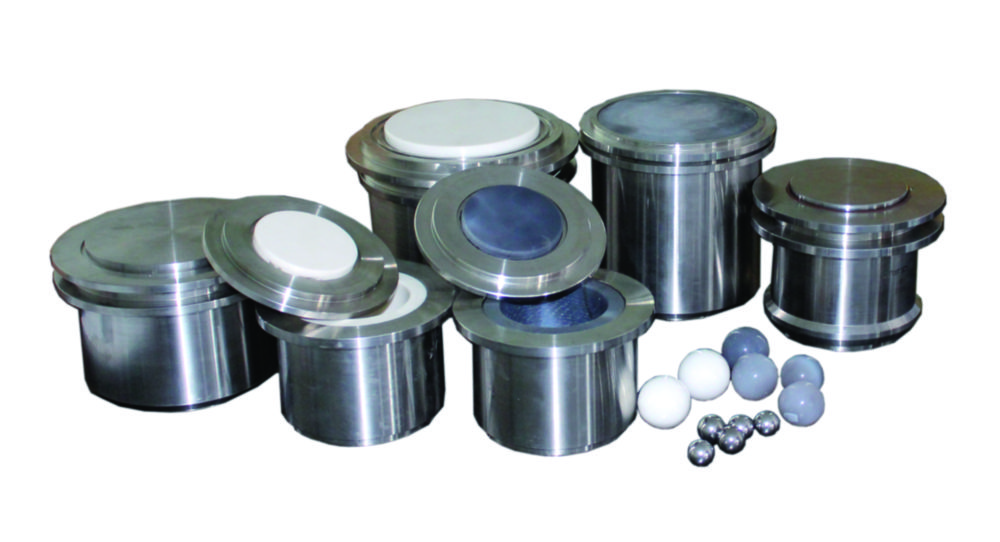

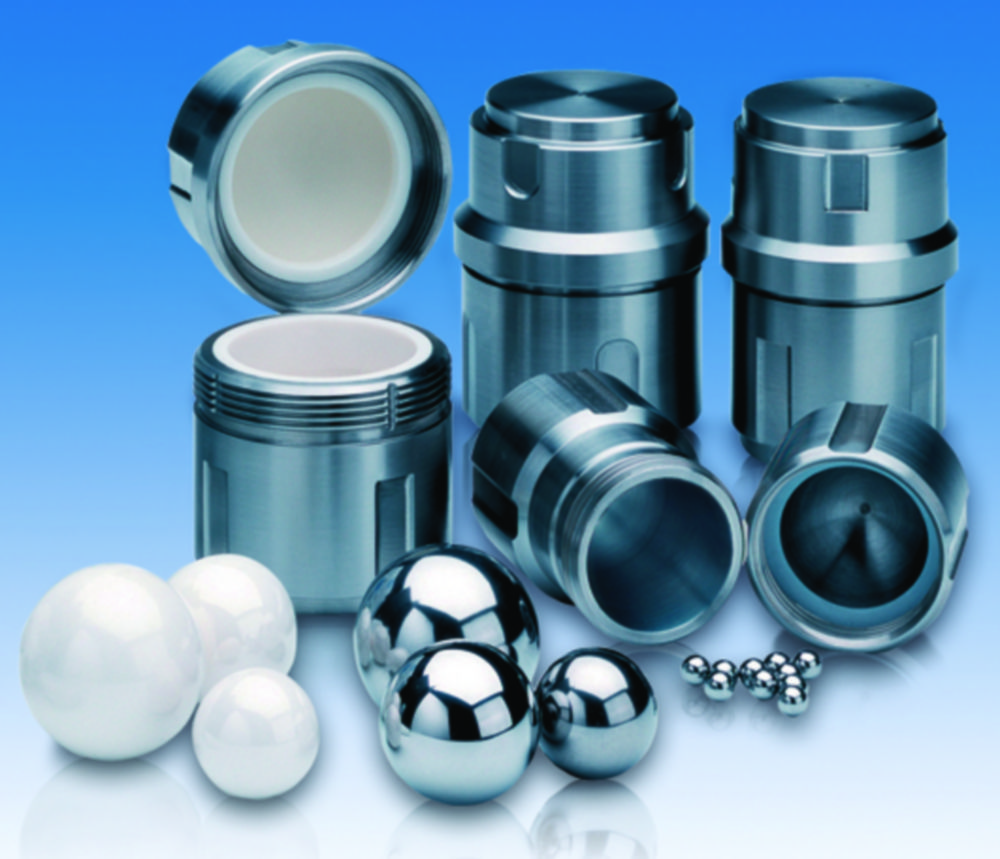

Grinding jars for planetary ball mill BM40
Grinding jars made of stainless steel, agate, sintered aluminium oxide, zirconium oxide and tungsten carbide have a stainless steel casing for safety reasons.
Micro Ball Mill GT300
For grinding and mixing of hard, medium-hard, soft, elastic and fibrous samples. Also suitable for cell disruption and DNA/RNA extraction. The mill is designed for very short processing times and high sample throughput. The grinding containers carry out horizontal, circular-arc-shaped oscillations and the grinding balls ensure effective grinding and mixing of the sample.Only 30 seconds average processing time2 grinding stations for bowls with a volume of 5 to 50 mlMultifunctional clamping device, which also holds adapters for reaction vesselsGrinding time digitally adjustable from 1 second to 100 minutesVariable speed from 180 to 1800 min-1Control via LCD displayProgrammable grinding parameters, up to 10 programs can be storedTransparent coverSafety interlockGrinding chamber, clamping system and swivel arm made of stainless steelMaintenance-free direct driveGrinding bowls made of different materials with volumes up to 50 ml available as accessoriesGrinding bowls and balls are not included in the scope of supply and must be ordered separately.

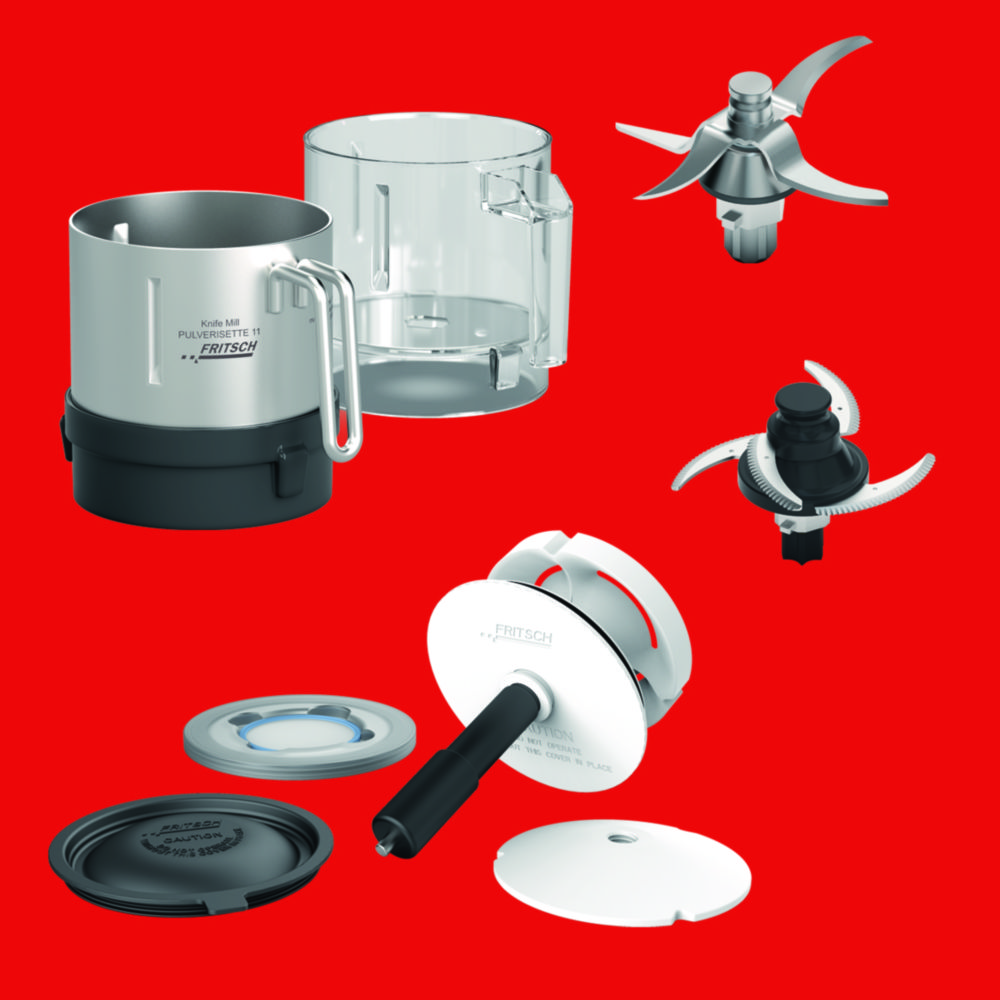

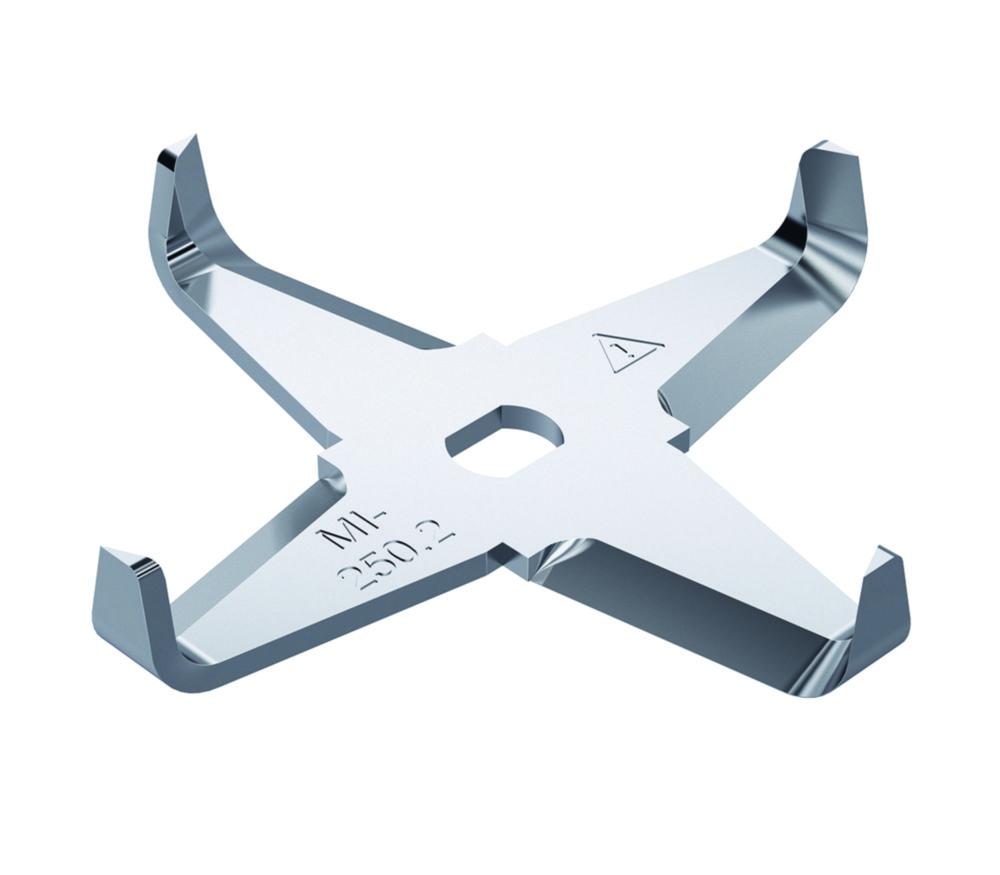

Accessories for knife mill PULVERISETTE 11
Grinding vessels in further materials, sickle knives with different cutting edges and various materials, single-use grinding vessel as well as further accessories are available.

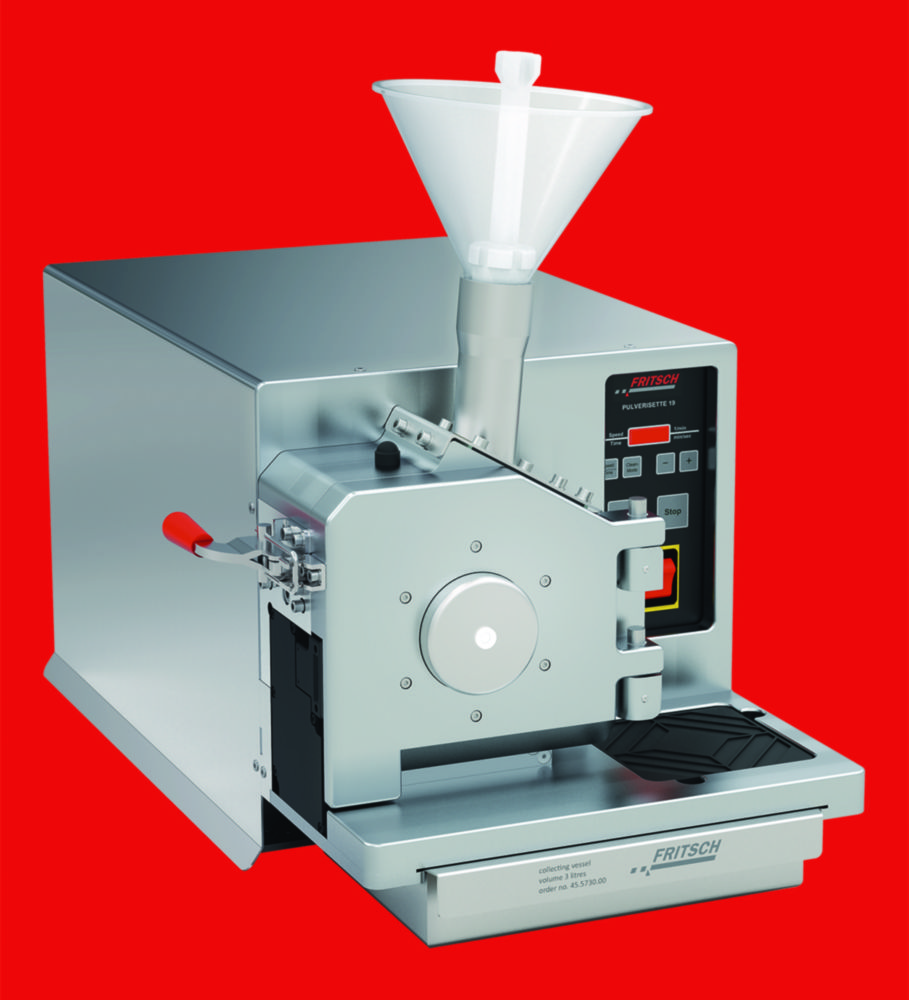

Universal cutting mills PULVERISETTE 19
The variable speed setting in steps of one hundred allows the comminution process to be optimised for each sample. Long materials such as straw, film and similar materials can also be fed in without pre-comminution. A special air flow ensures fast comminution and anti-clogging operation. Thanks to its clean design, the PULVERISETTE 19 can be cleaned quickly and easily and offers a safe protection against cross-contamination.Funnels, rotors, sieve inserts/sieve cassettes and collecting vessels must be ordered separately.
