Compatible Control Refrigeration Circulators K6
Content:
1
Product number:
9859225
Product information "Compatible Control Refrigeration Circulators K6"
The K6 models are compact refrigeration bath circulators for temperatures from -25 to 200°C. These units are a combination of a refrigerated bath and immersion circulator, in combination with an integrated pump they are suitable for external open (with level control) and closed applications. The CC-E immersion circulator with its suction / pressure pump is suitable to externally open and closed applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the KISS models.
All units use natural refrigerant as standard.
| Safety class: | FL, III |
| Heating capacity : | 2 kW |
| Pressure pump | |
| CC-K6 / CC-K6s: | 27L/min / 0.7 bar |
| KISS-K6 / KISS-K6s: | 14 L/min / 0,25 bar |
All units use natural refrigerant as standard.
| Bath capacity L: | 4.5 |
|---|---|
| Bath opening mm: | 140 x 120 |
| Cooling capacity kW at 0/-10/-20°C: | 0.21/0.15/0.05 |
| Dimensions (W x D x H) mm: | 210 x 400 x 546 |
| Manufacturer Article Number: | 2008.0052.01 |
| Temp. range max. °C: | -25 ... 200 |
| Type: | CC-K6s |
Skip product gallery
Other customers also bought
Cooling circulators
Combinations of immersion circulators and insulated refrigeration baths are low-cost solutions for direct thermoregulation within the temperature range -20/-30°C to +200°C. The refrigeration baths operate with natural refrigerants. A pump adapter (optional) can be fitted for thermoregulation of externally closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore suitable for external open thermoregulation applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the KISS models.

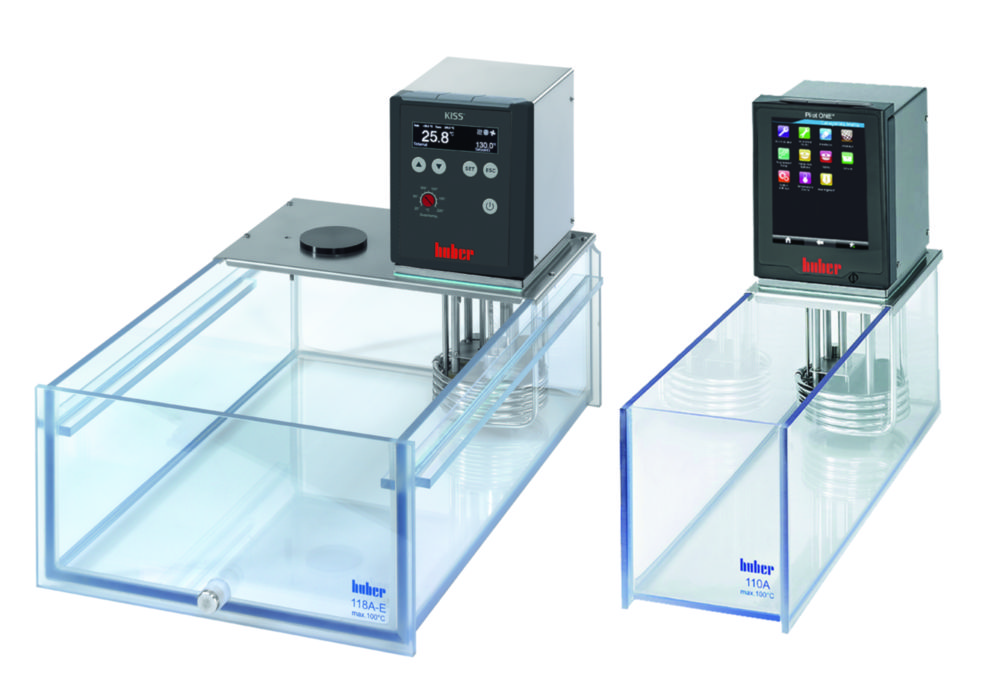

Thermostatic baths with polycarbonate tanks
