Thermostatic baths with polycarbonate tanks
Content:
1
Product number:
9859206
Product information "Thermostatic baths with polycarbonate tanks"
The transparent polycarbonate baths are suitable for use up to 100°C. An immersion thermostat is mounted on the bath bridge for all models. With a pump adapter, this combination can also be used with external, closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore also suitable for external open applications.
| Temperature max.: | 100 °C |
| Temp. Stability at 70 °C to DIN12876 | |
| KISS E: CC-E: | 0.05K 0.02K |
| Safety class: | FL, III |
| Bath depth: | 150mm |
| Bath capacity L: | 12 |
|---|---|
| Bath opening mm: | 275 x 161 |
| Dimensions (W x D x H) mm: | 333 x 360 x 335 |
| Manufacturer Article Number: | 2052.0001.01 |
| Pressure pump max. L/min bar: | 27 / 0.7 |
| Type: | CC-112A |
Skip product gallery
Accessories
Function upgrade for Huber circulators
E-grade - innovative activation keys for the functionality to suit your budget and process requirementsEvery application requires particular functions. If the circulator is to be used in a range of applications it will generally require greater functionality. The required functionality grows with the complexity of the application. The innovative "E-grade" has the answer. Models with the Pilot ONE Controller have a comprehensive range of functions suited to the classical temperature control applications. The E-grade allows the functionality to be extended at any time to suit new process requirements and budget. E-grade stands for electronic upgrade and it is simple to do: To extend the functionality a unit specific code is entered via the controller. This code is specific to the serial number of the unit and is either already entered at the factory for new units or it can be activated at a later date. The code is sent by email. There is no requirement for a hardware or software update.The E-grade "Explore" for Unistats is more than just another functions package. It makes important information available to users of Unistat temperature control systems. Temperature values and temperature differentials as well as for the actual heating power, cooling power and pump power within the system are displayed on the touch-panel. E-grade "Explore" is an evolution of the existing Unistat technology. Existing sensors are utilised to make important process temperature and power data visible. In addition to making the data visible on the display of the device, it can also be accessed via the digital interfaces for further processing. Application examples for E-grade® "Explore": Process and product development and optimisation Use-Tests of raw materials, quality control Enhanced data collection for scale-up trials

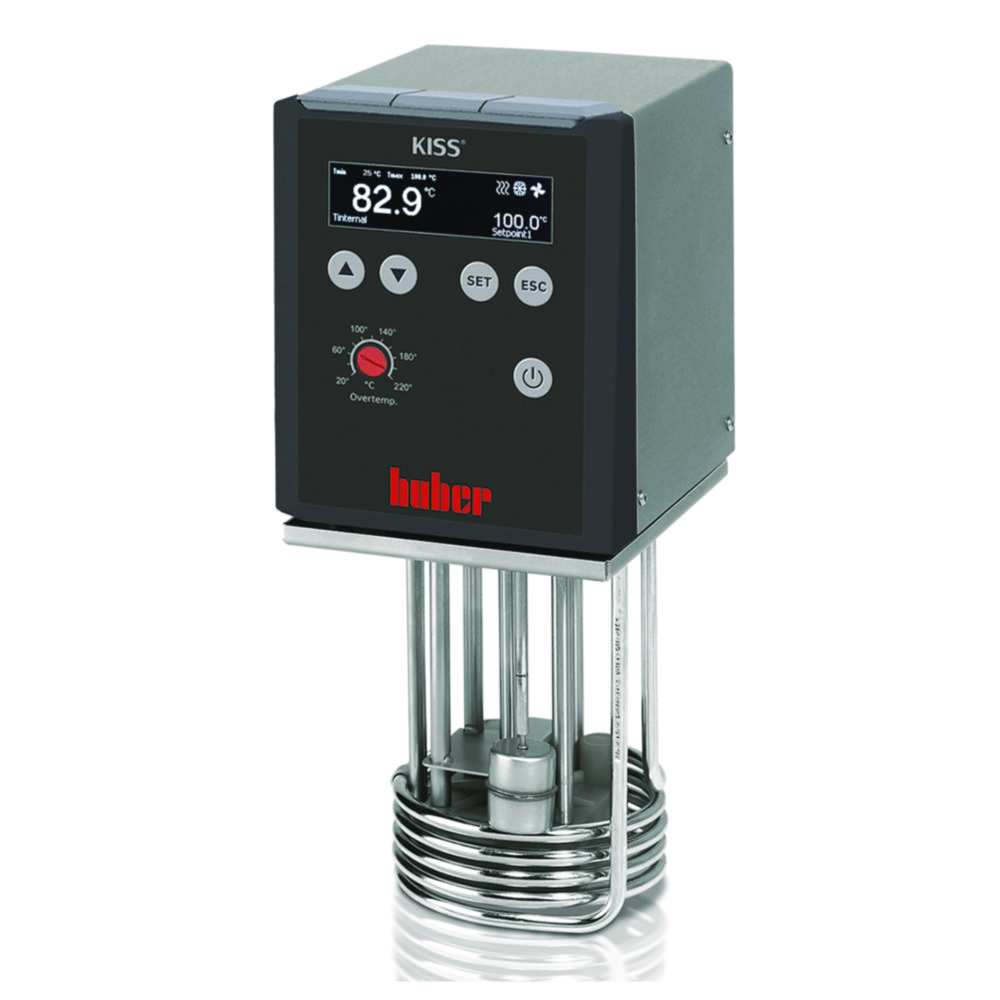

Immersion circulator KISS E
Immersion circulator with powerful pressure/suction pump and KISS controller. Ideally suited for a variety of typical laboratory applications, such as sample temperature control, analytics, material testing, as well as for external temperature control of measuring devices or test set-ups. The device is equipped with overtemperature and low level protection. The scope of supply includes a screw clamp, which allows the thermostats to be mounted very easily on any type of vessel.Large, bright OLED displaySimple operation with menu navigationSimultaneous display of setpoint, actual temperature, Tmin, TmaxStatus displays for pump, cooling and heatingRS232 and USB interfaceAutostart function for power failureSafety class III (FL) acc. to DIN 12876
