Diagonal blade stirring rotors, 4-blade, stainless steel 1.4404
The 4-blade diagonal blade stirring rotor provides axial flow and creates increasing shear forces at higher stirring speeds. Recommended for medium to high speed operations.Other sizes available on request.
Crescent-shaped stirring rotors, PTFE
The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.Operating temperature: -200°C to +250°CAdditional sizes and accessories are available on request.Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.The semi-circular shape of the paddle is ideal for mixing in round-bottom flasks. The pivoting blade allows insertion into vessels with narrow necks and/or ground joints.
Propeller, 3 blades, PTFE
The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.Operating temperature: -200°C to +250°CAdditional sizes and accessories are available on request.Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.The blades are inclined at 45 °. Recommended for medium to high speed operations.
Anchor stirrer, PTFE
The stirrer shafts consist of a PTFE-jacketed, stainless steel shaft and a stirrer paddle made of solid PTFE. The stainless steel core assures stability of the stirrer shaft and allows safe attachment of the stirrer chuck. Thanks to the thick PTFE coat and the paddle made of solid PTFE, the medium will only come into contact with PTFE. High chemical resistance makes it almost universally suitable. PTFE is extremely nonstick so that residues are repelled from shaft and paddle. The stirrer shafts are similar in size to (KPG) glass stirring rods and are therefore interchangeable easily.Operating temperature: -200°C to +250°CAdditional sizes and accessories are available on request.Information on the mixing effects of the different stirring geometries can be found in the descriptions of the stainless steel stirring rotors.Recommended for low speed operations.Additional wings available on request
Stands
Floor stand BS 1 with angled foot, plastic-coated, stand rod Ø 34 x 1000 mmFloor stand BS 2 with angled foot, plastic-coated, stand rod Ø 34 x 1500 mmFloor stand BS 3 with angled foot 600 mm, completely made of stainless steel, stand rod Ø 34 x 1000 mmWall bracket WSRod diam. 34 x 1000 mm, clearance from wall: 200 mm.
Additional Stirrer Blades for Bola Stirrer Shafts, PTFE
Useful extension to the existing range of Bola stirrer shafts. The additional blades can optionally be fixed in your preferred position on every stirrer shaft with diameter 8,10 or 16 mm (a flat spanner is included). The stirrer blades are entirely made of PTFE, the mounting devices are made of a special PTFE-compound. A high chemical and thermical (-200 to +250 °C) resistance is assured. This "building block system" allows the user to define a stirrer of their own special requirements.
Rods for stirrer rotor shafts, M6, M8 and M10 screwthread end
Stainless steel 1.4301. With screwthread fitting as outlined below.
Stirrer Shafts with One Paddle, PTFE
PTFE-jacketed stainless steel shaft, paddle completely made of PTFE with two 45° angled blades. Universal chemical resistance since the product is only exposed to PTFE. Temperature resistance: from -200 to +250 °C. The product is sucked bottom-up, very good axial flow with low shear force.

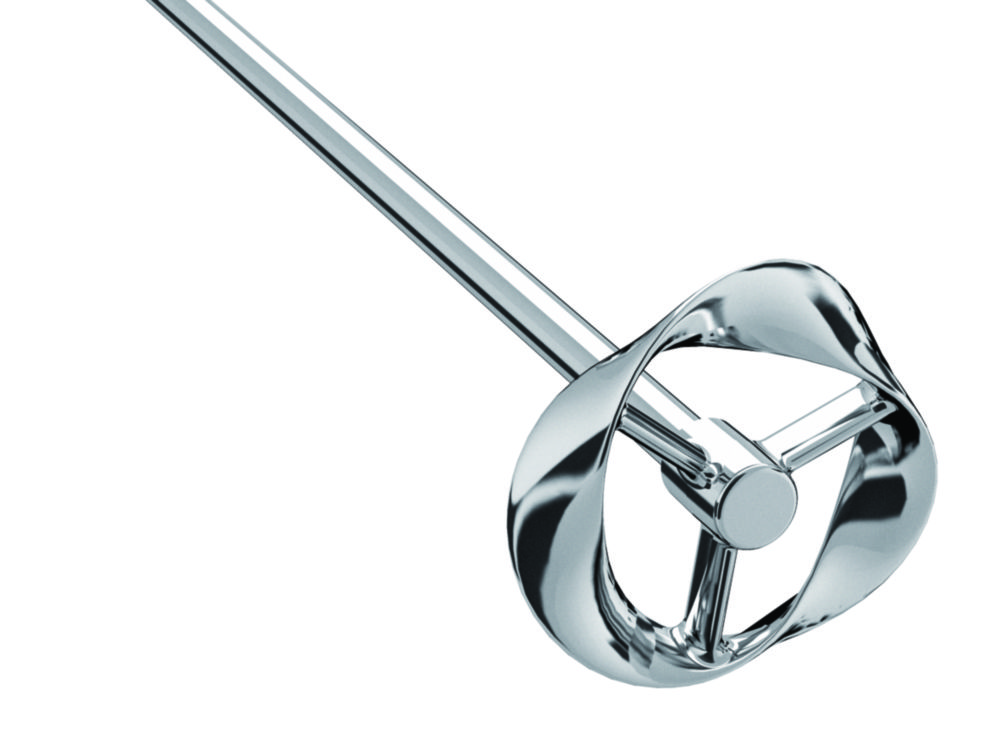

Moebius stirrer, stainless steel 1.4571
Generates axial flow. For drawing the material to be mixed from above. For circulating and handling low to medium viscous liquids. Recommended for medium speed operations.

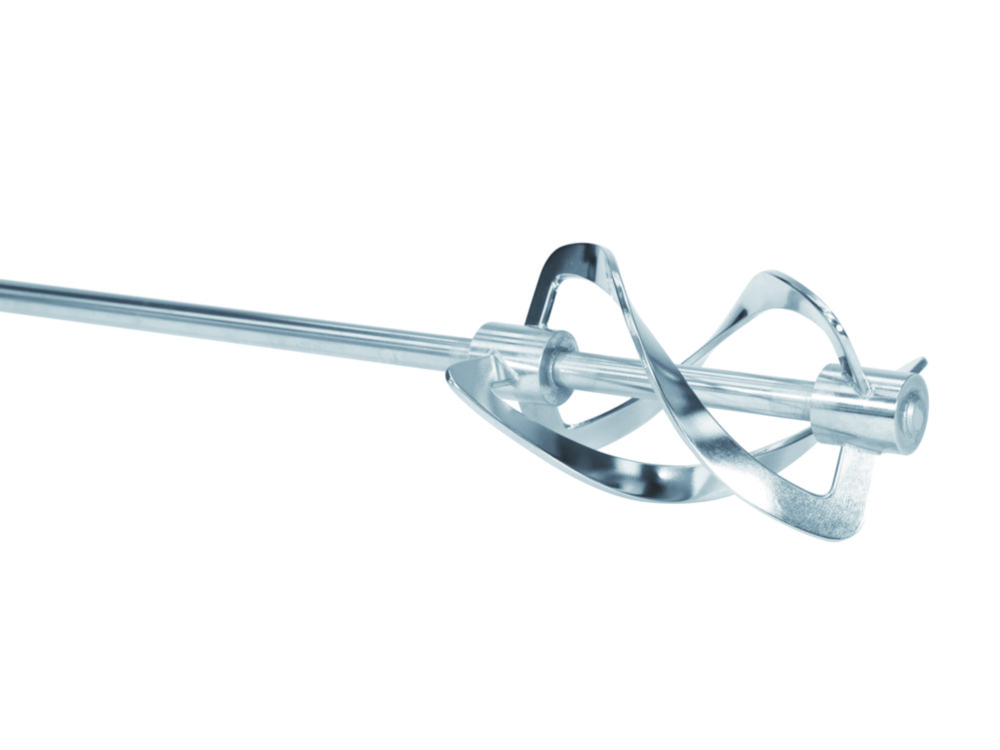

Spiral stirrer, stainless steel 1.4571
Generates axial flow. Medium is conveyed from the bottom upwards. For homogeneous mixing and heat exchange of medium to high viscosity media. Recommended for medium speed operations.

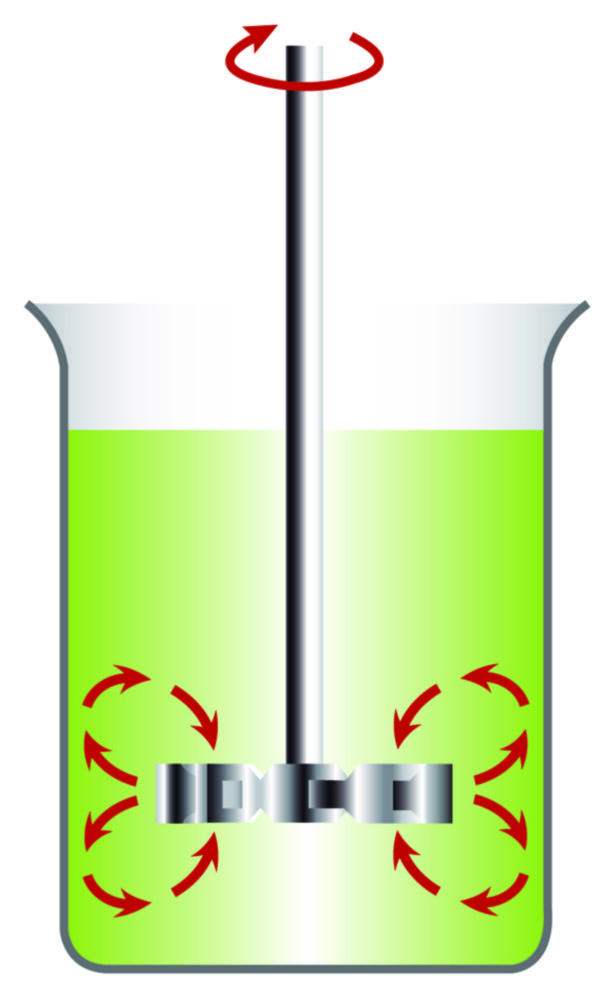

Blade stirrer, stainless steel 1.4571
Generates a radial flow. For drawing the material to be mixed from the top and bottom. For aerating of low viscosity media and for homogenizing solids in liquids. Used at medium to high speeds.

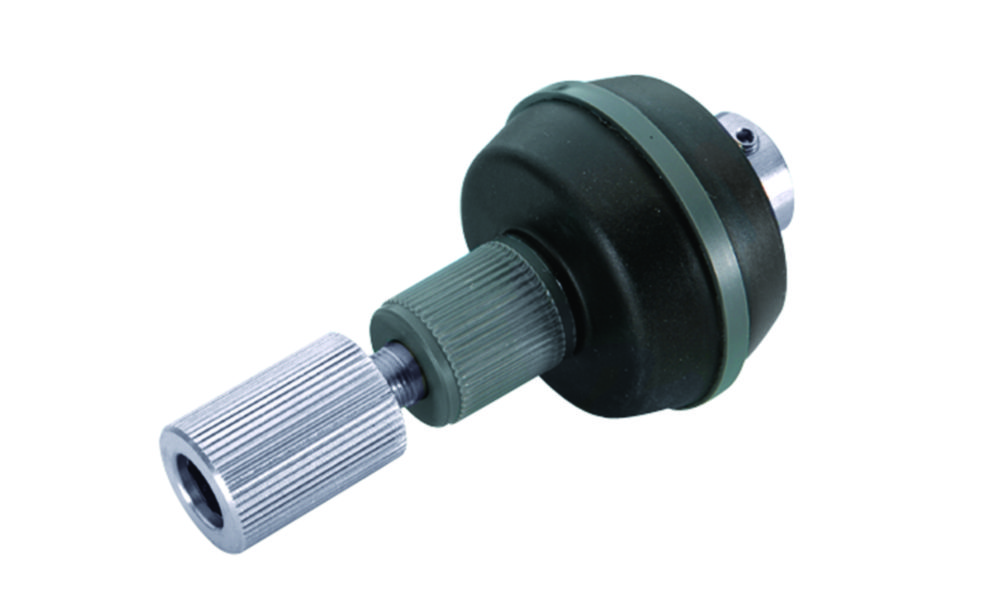

Compressed air powered stirrers, PLR, accessories
Connection couplings VK:Fixed-diameter connection for motor/magnetic coupling drive shaft and stirring rod. Suitable for use in potentially explosive atmospheres. Material No. 1.4404.Flexible glass stirring shaft couplings PK:For stirring tasks using glass stirring rods. Elastic connector between motor and stirring shaft. Provides exact alignment of motor and shaft, and evens out axial and height differences. Accepts 6mm to 10mm diameter shafts.Flexible glass stirring shaft couplings K:For stirring tasks using glass stirring rods. Elastic connector between motor and stirring shaft. Provides exact alignment of motor and shaft, and evens out axial and height differences. Accepts 6mm to 10mm diameter shaftsDouble-Cardan-Coupling DCK I:With 8mm dia. hexagonal input drive receiver and 6mm square socket drive output.

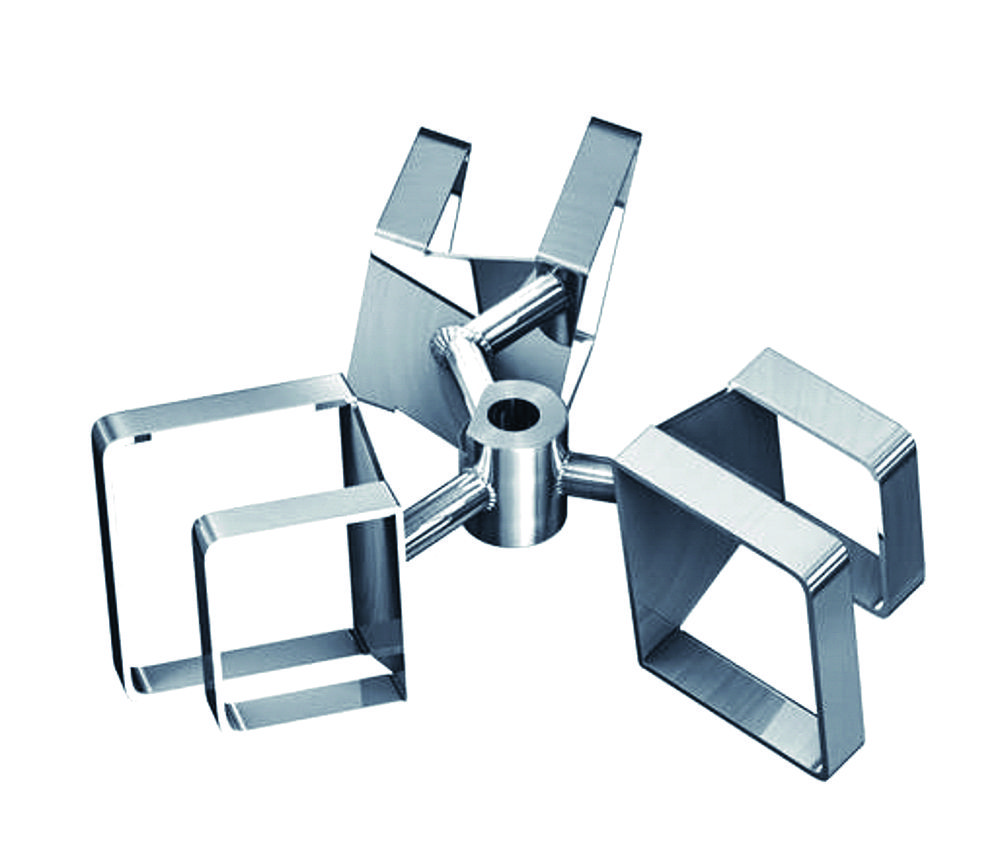

Impellers VISCO JET®
The worldwide patented VISCO JET® Mixing System is the result of the so-called cone-principle. Turbulent flows are created at the taper end by acceleration, displacement and retardation. These flows advance through the stirred medium and result in the new dynamic mixing motion.One system for literally all mixing tasks for low to high viscosity mediaPatented cone-principle creates even at low speeds a turbulent flow which is unique to the VISCO JET®Even with high-viscosity media and gels which naturally do not mix by using common impellers you will observe an immediate flow through the entire beakerThis technology allows for de-gassing of gels while preventing air intake and foamingReduce process times significantly while performing the best mixing result everThe stirring systems are made of stainless steel (V4A or AISI 316 Ti) or polyoxymethylene (POM).Other versions available.

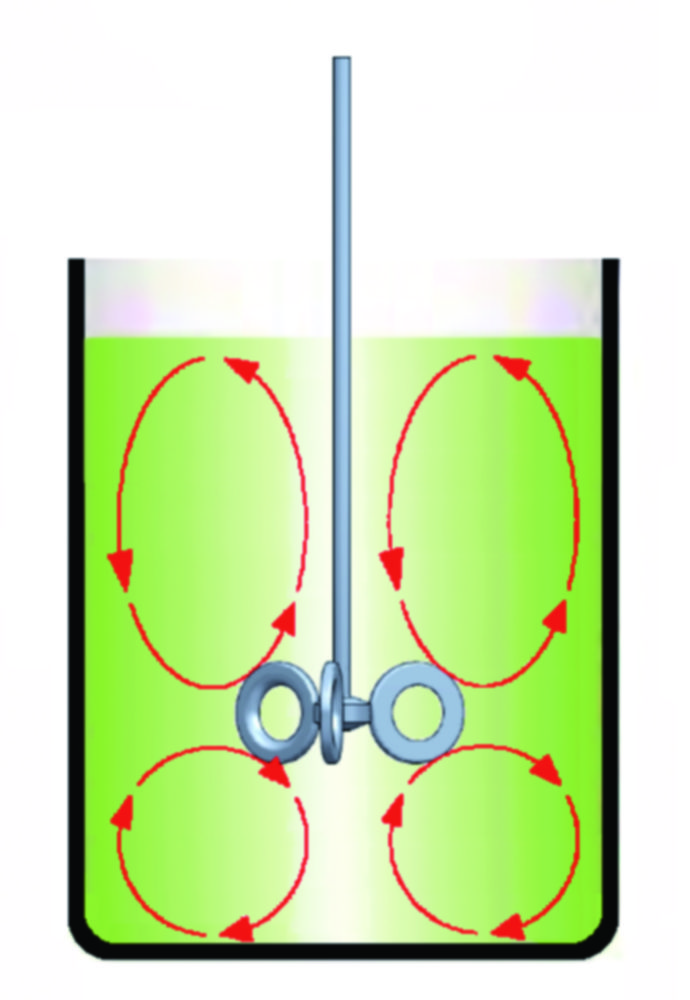

BuddeMix Stirring System 1 - 4
This novel stirring system has been conceived to mix low viscosity fluids as well as highly viscous media at slow speeds. Its special design creates inherent dynamic currents to produce perfectly homogeneous mixing results in very little time. Additional components like baffles, bottom bearings, etc. are not needed.Advantages at a glance:suitable for low to highly viscous fluidsstirs media containing solids and fibres without any difficultygentle, low-shear stirring, due to slow stirring speedconstant product temperature, with no heating effectshort mixing times as the entire contents of the container are agitatedno air addition, no foamingno baffles requiredlow gear wear due to balanced forcesminimal power consumption thanks to low speeds and short operation timeseasy cleaningmaterial no. 1.4404Particularly for potentially explosive atmospheres:a single stirring zone, near to the container base, ensures easy mixing of settled residues, e.g. in flow-through mixing containersno baffles required, thus no additional sources of ignitionCustomised shaft length possible. Fine polishing Ra 0.6 to 0.8 µm and/or material certificate available on request.

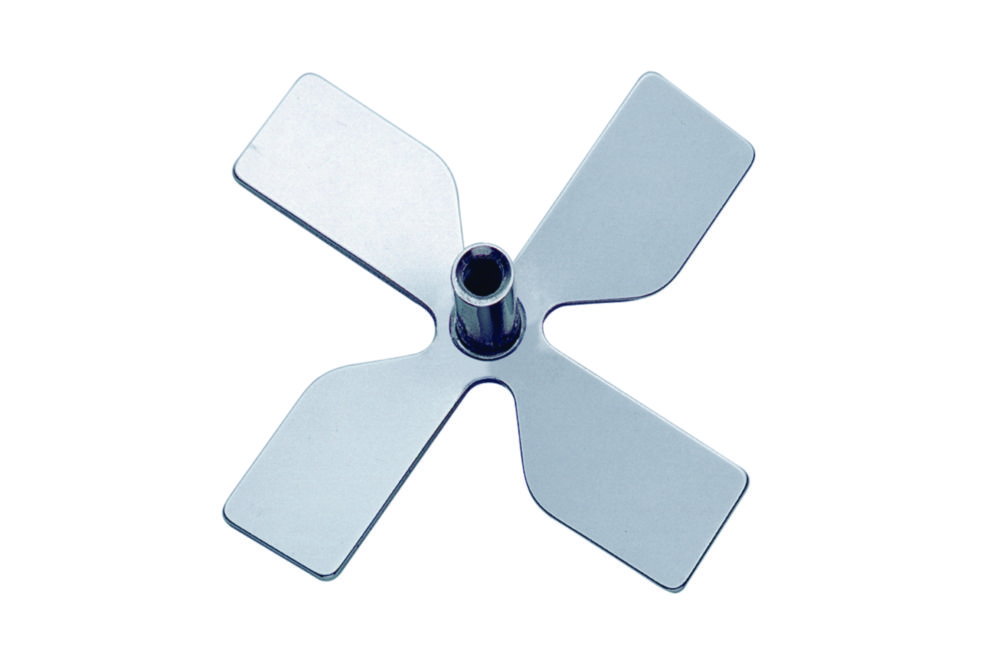

Paddles, 4 blade propeller
Stainless steel 1.4301. With screwthread shaft connection as outlined below.

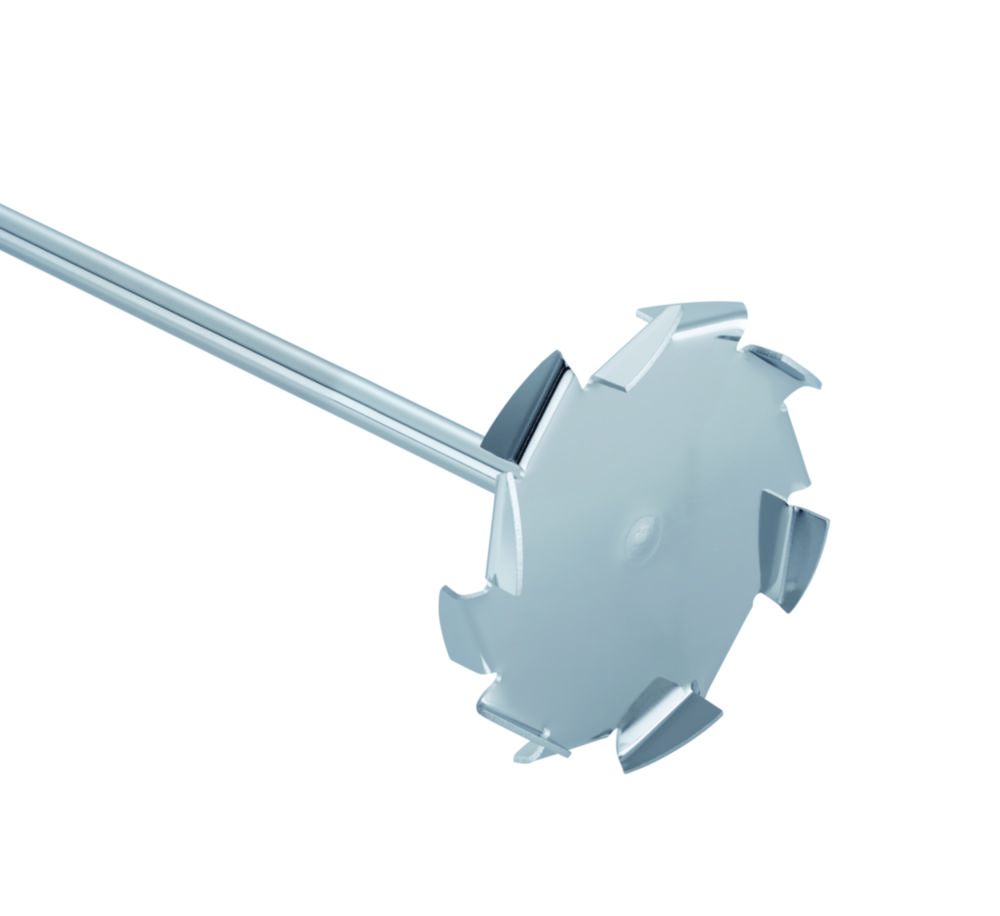

Dissolver stirrers, stainless steel 1.4571
The dissolver stirrers create a radial flow with high turbulence. The mixture is drawn from top to bottom. High shear forces are created at the dissolver disk, which provides effective particle reduction. Recommended for medium to high speed operations.

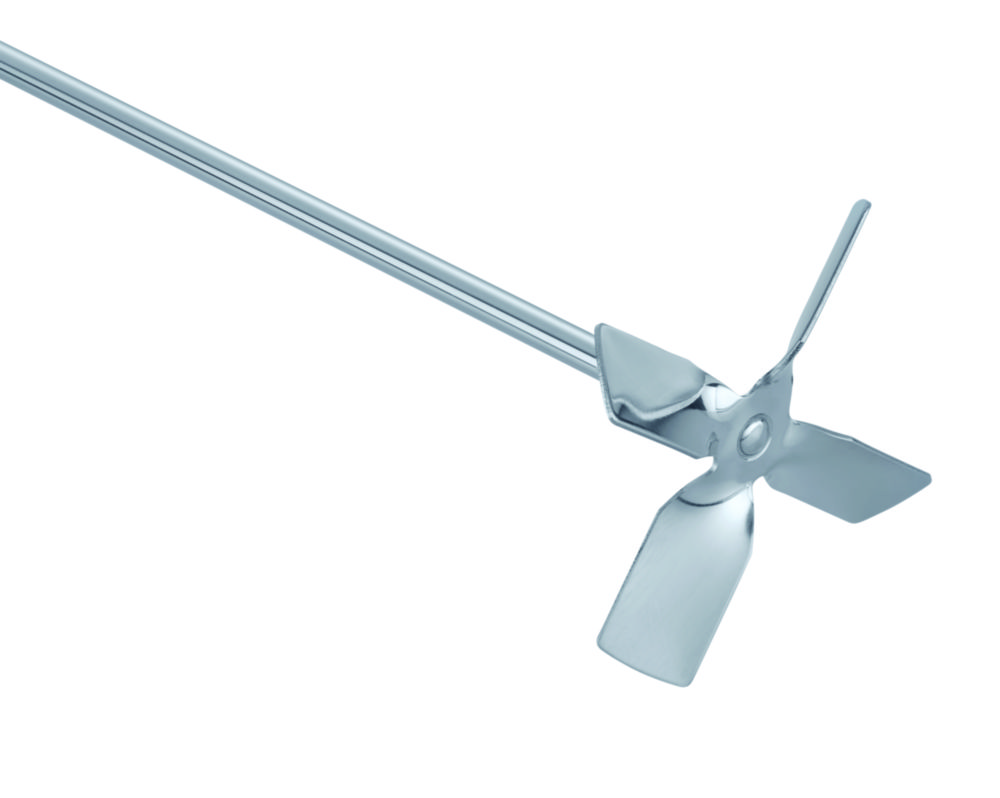

Propeller stirrers, 4-blade, stainless steel 1.4571
The 4-blade propeller stirrers provide axial flow and create increasing shear forces at higher stirring speeds. Recommended for medium to high speed operations.

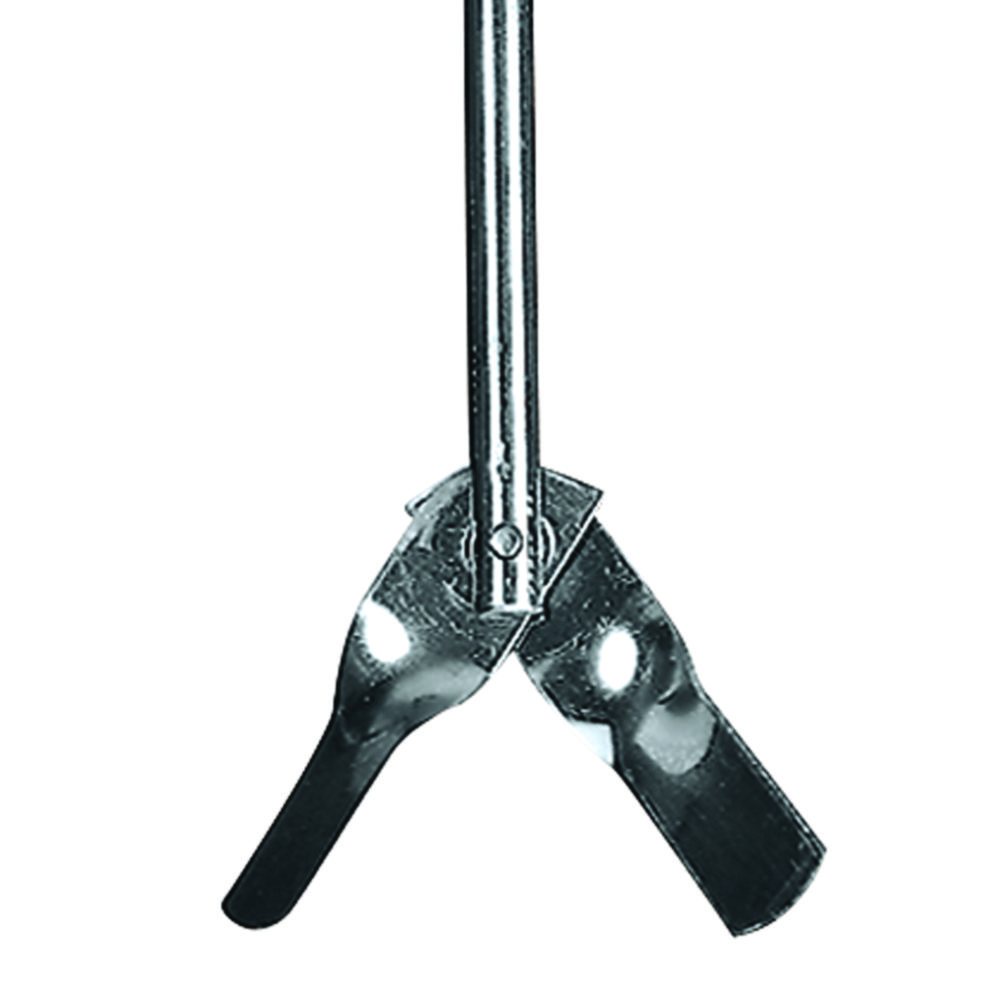

Centrifugal stirring rotors, 2-blade, stainless steel 1.4305
The folding blades of this 2-blade centrifugal stirring rotor open with increasing speed, allowing use with narrow-neck vessels. The stirring effect it provides is similar to a standard diagonal blade stirring rotor. Recommended for medium to high speed operations.

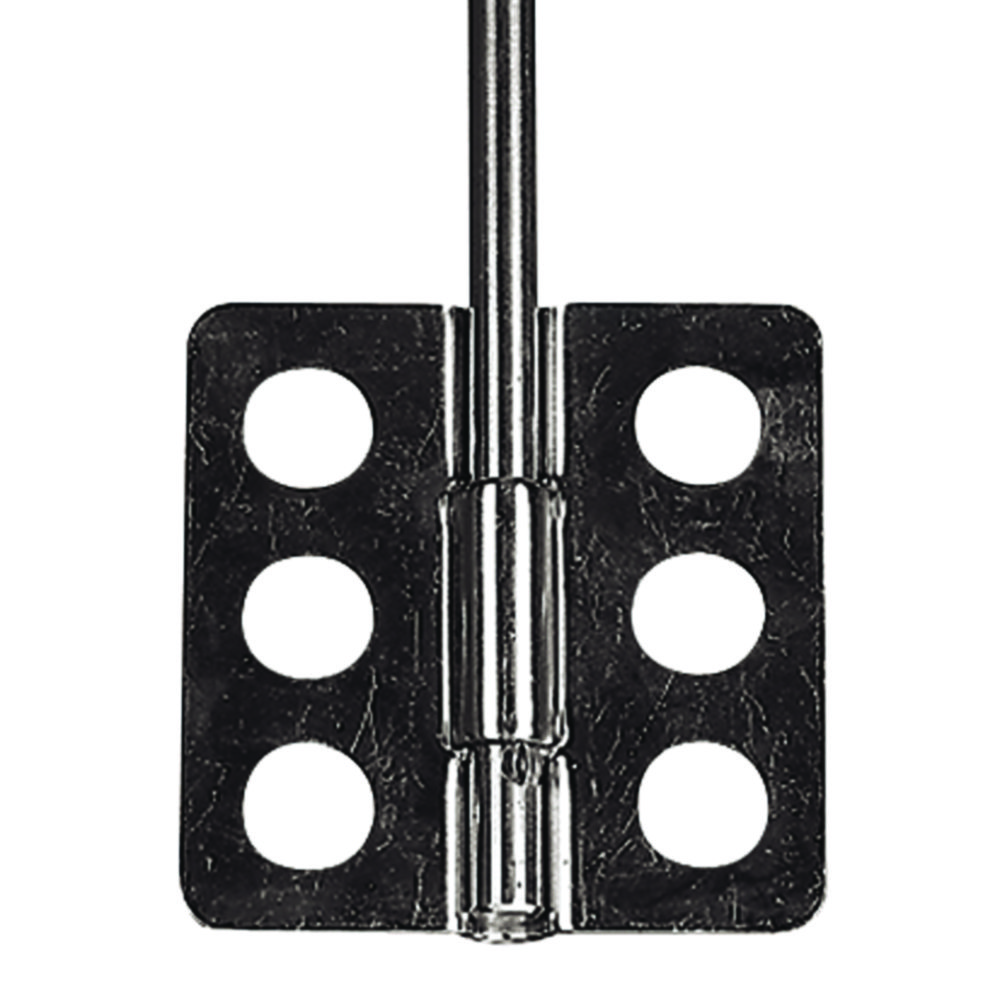

Paddle stirring rotors, stainless steel
The paddle stirring rotor creates a tangential flow with minimum turbulence. Its design ensures a gentle action on sensitive products and good heat exchange. Recommended for low to medium speed operations.Other sizes available on request.

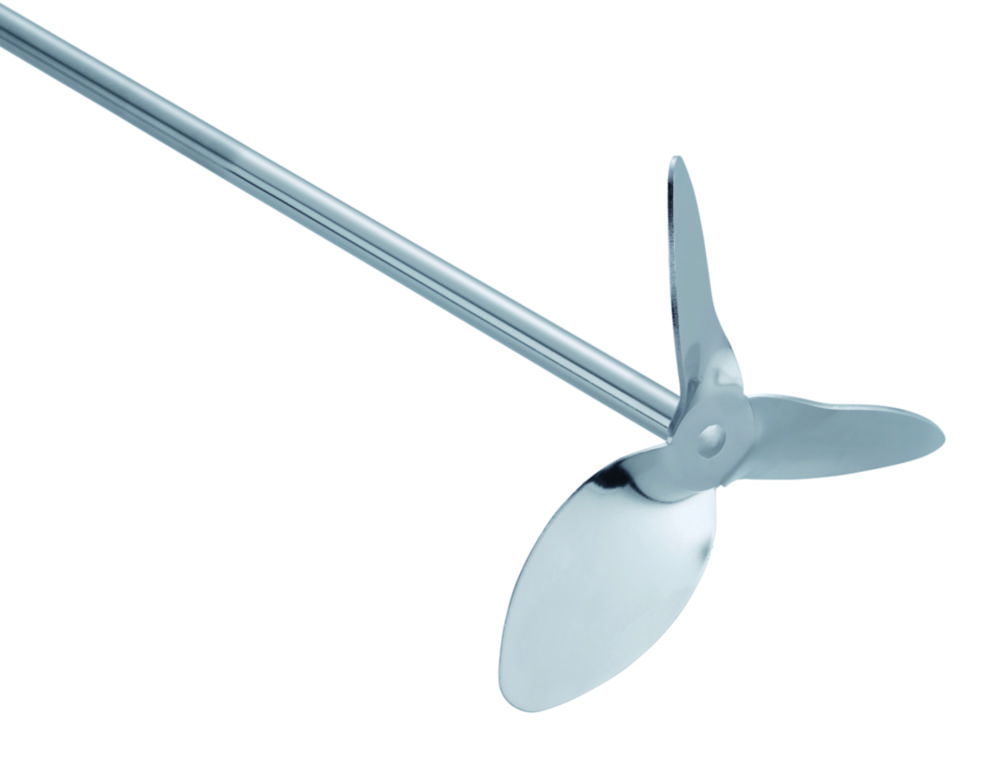

Propeller stirring rotors, 3-blade, stainless steel 1.4305
The 3-blade propellers produce axial flow, and reduce shear forces to a minimum, even at high stirring speeds, thanks to their optimised blade design. Recommended for medium to high speed operations.Other sizes available on request.

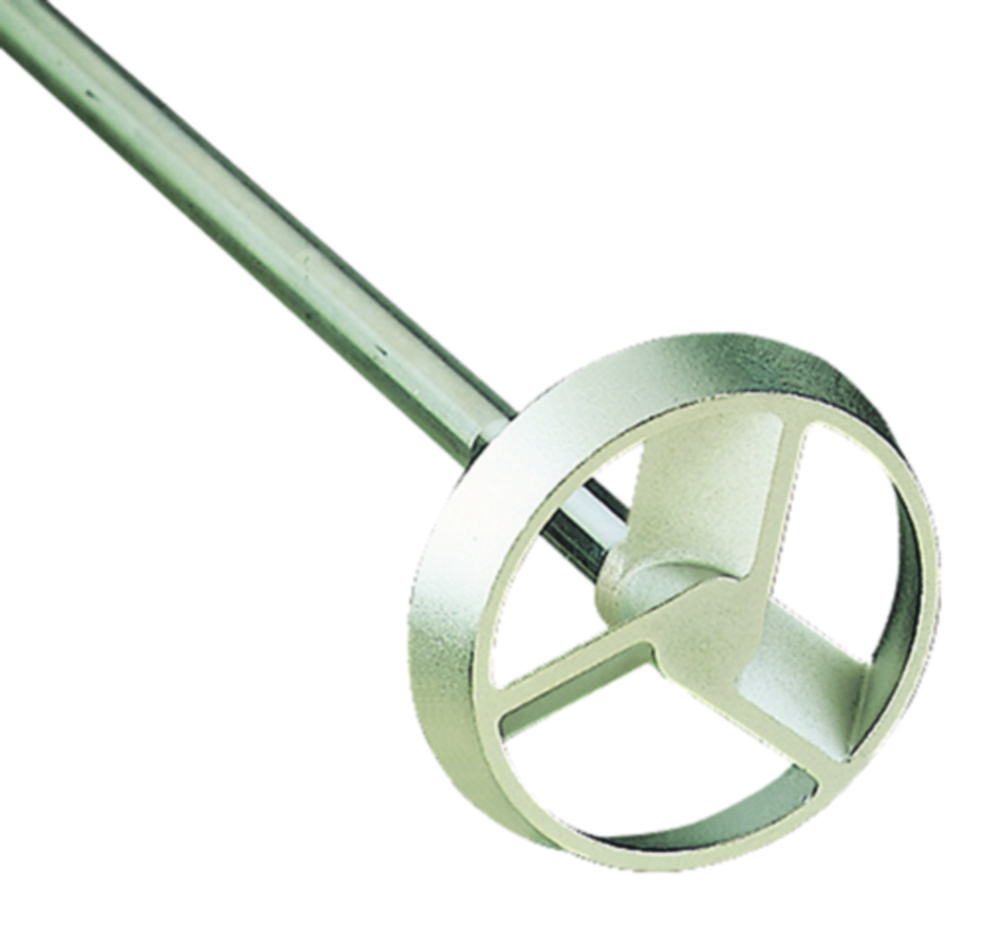

Turbine stirring rotors, 3-blade with guide ring, stainless steel 1.4305
The 3-blade turbine stirring rotor produces axial flow; the guide ring surrounding the blades reduces shear forces, and offers protection when contacting the wall or bottom of the vessel. Recommended for medium to high speed operations.

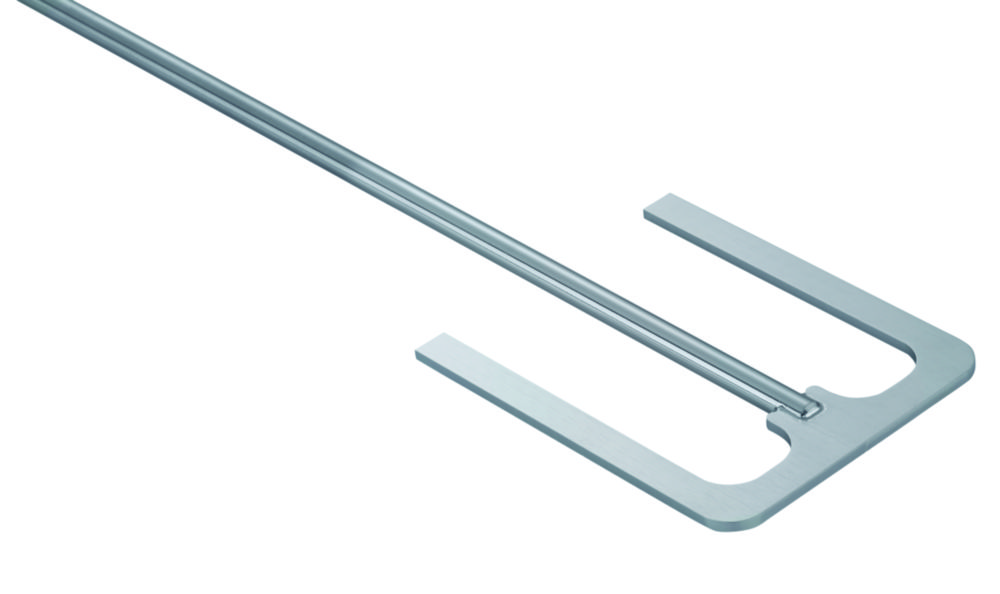

Anchor stirrers, stainless steel 1.4571
The anchor stirrers create a tangential flow and high shear forces between the vessel wall and stirring blades. Especially suitable for medium to high viscosity fluids. Recommended for low speed operations.

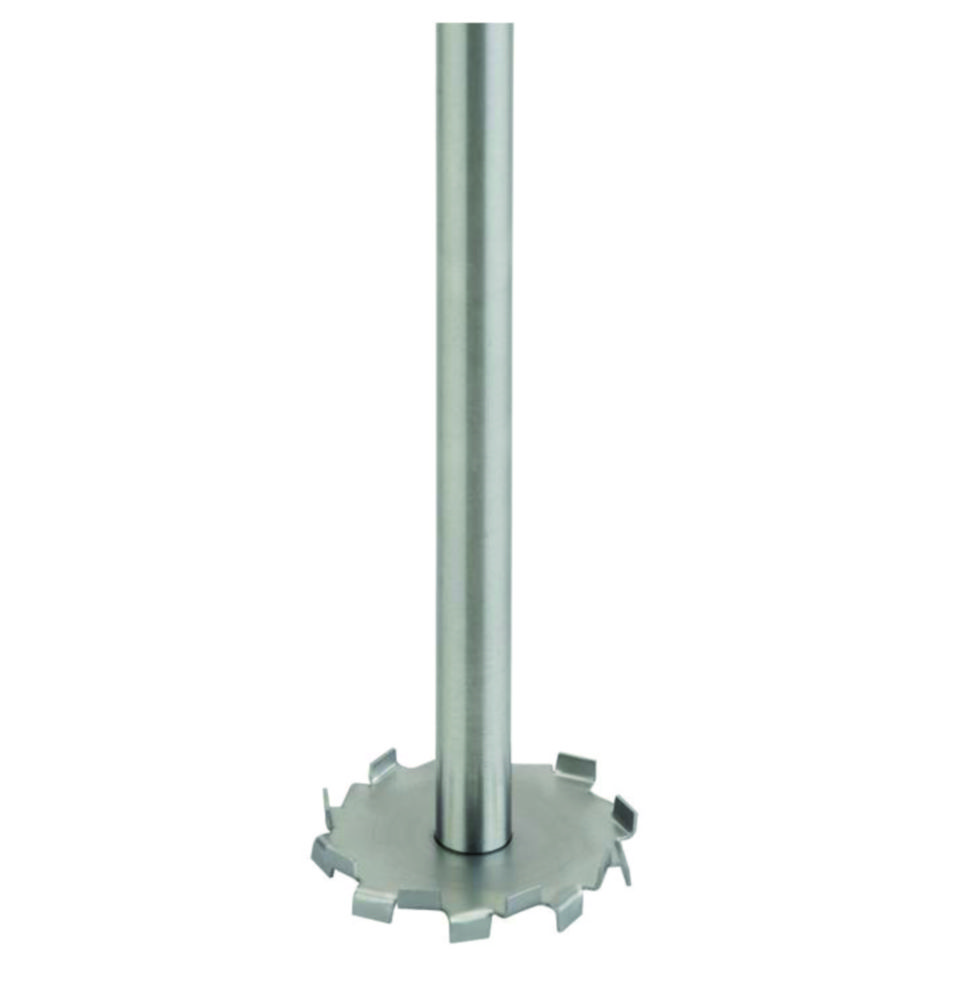

Dissolver stirring rotors, stainless steel 1.4404
The dissolver stirring rotor creates a radial flow with high turbulence. The mixture is drawn from top to bottom. High shear forces are created at the dissolver disk, which provides effective particle reduction. Recommended for medium to high speed operations.

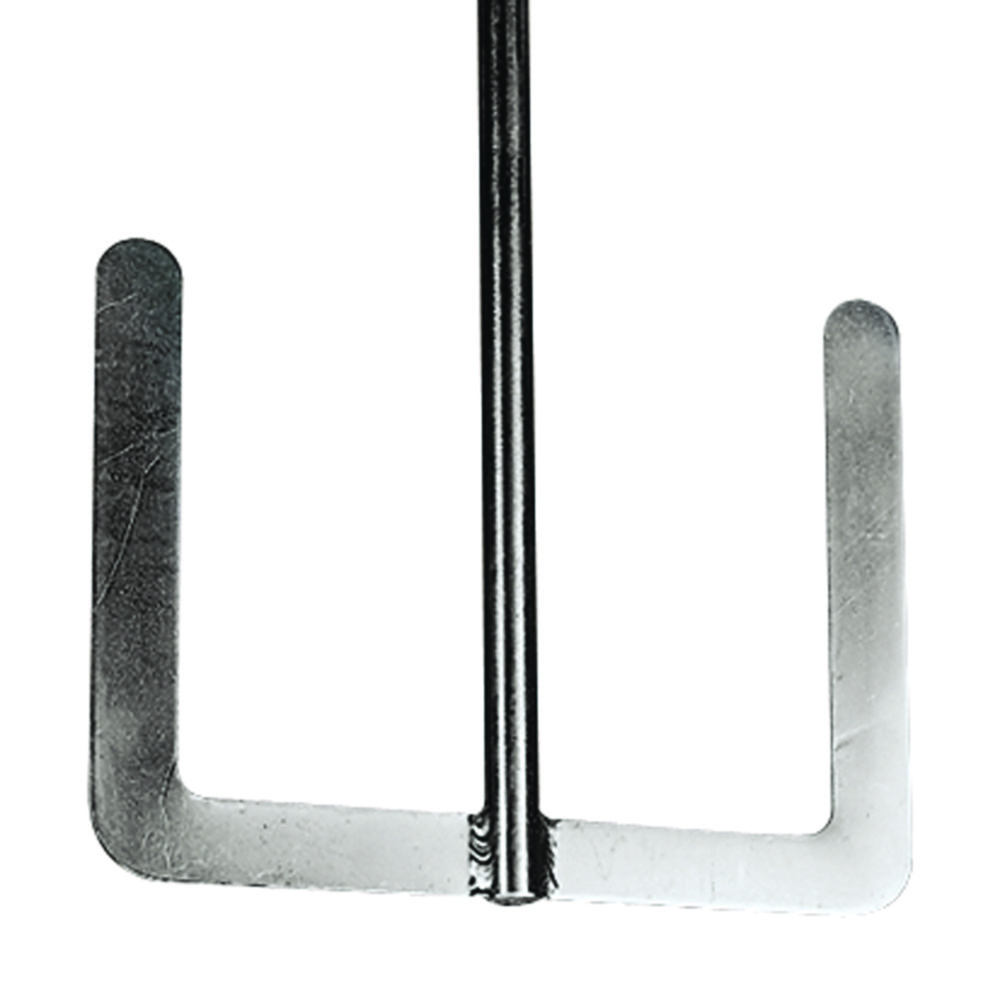

Anchor stirring rotors, stainless steel
The anchor-shape rotor creates a tangential flow and high shear forces between the vessel wall and stirring blades. This stirrer is especially suitable for medium to high viscosity fluids. Recommended for low speed operations.

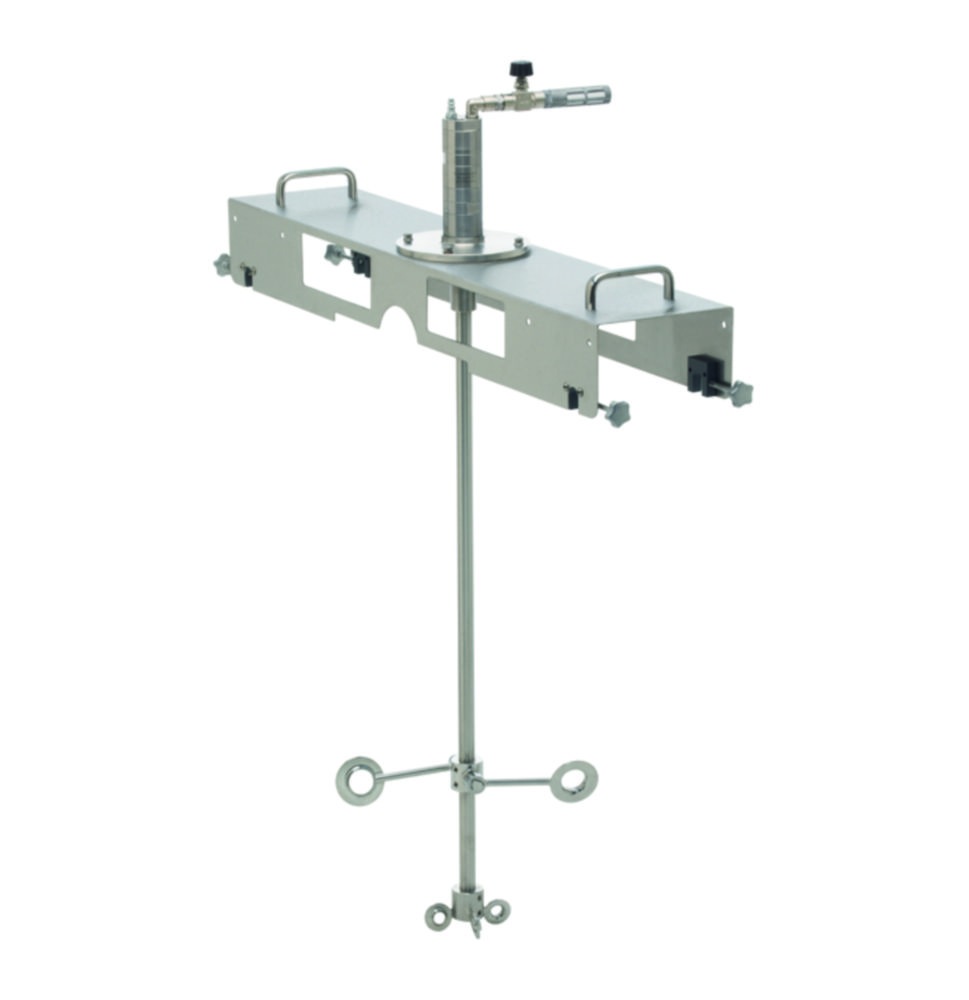

PMC 120 compressed air container stirrers for Intermediate Bulk Containers (IBCs) up to 1500 L
Powerful and highly flexible container stirrers designed to be used across industries; compact and lightweight construction, easily detachable.General specifications:operating pressure max. 6 barair consumption 23 L/sec. at 6 barclockwise rotationATEX certificationBasic models include:motor drive PM 120 made of stainless steelcontinuously adjustable speed control valvetraverse support made of stainless steelstirring system type SW 2 diam. 400 mm with residue paddleconnection couplingsilencerclip plugExplosion-proofPMC container stirrers include certification to ATEX regulations for use in zones 0 and 1, potentially explosive atmospheres.ATEX certification Ex II 1/2G Ex h IIB T4 Ga/GbTraverse support for IBCs, stainless steelThanks to its light weight and compact design, no trolleys or other hoisting devices are required to detach the motor.Foldable stirrer with swing-out systemThe BuddeMix SW folding system allows access through the smallest container openings whilst ensuring maximum stirring effect.Suitable for low to high viscosity media.Easy to cleanThe stirrer can easily be dismantled without tools which eases cleaning.

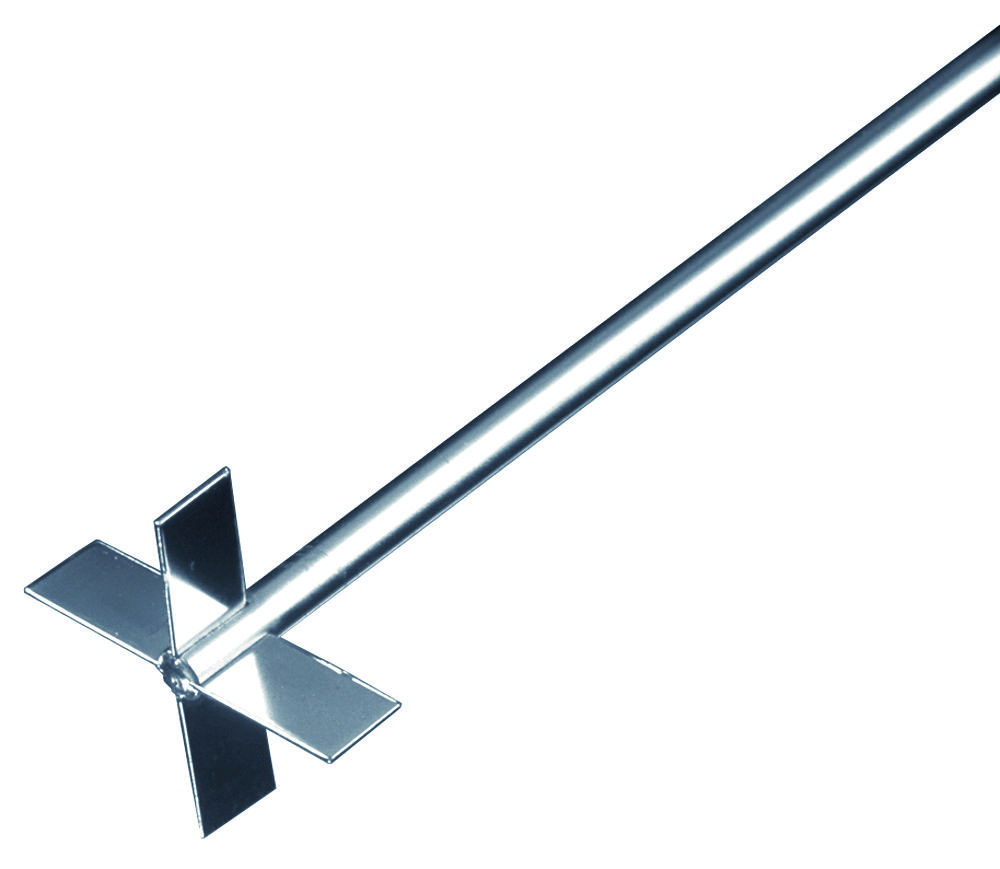

Impellers for Overhead Stirrers
Powerful StirringShaft diameter: 8mmBlade and Half-Moon ImpellerThese impellers are recommended for applications which require an average speedFor mixing products with average viscosityModels BR 12, BR 14 and HR 18 come with collapsible blade for narrow neck vesselsPropeller-Type ImpellerThese impellers are recommended for applications which require an average or high speedFor mixing products with medium or high viscosityExcellent mixing properties for homogenisation and suspensionsThese models create an axial flowRadial Flow ImpellerThese impellers are recommended for applications which require an average speedFor mixing products with average viscosity up to <500mPasIdeal for gassing of liquidsThese impellers create a radial flowAnchor-Type ImpellerThese impellers are recommended for applications which require a low speedFor mixing products with medium or high viscosity* with guide ring.

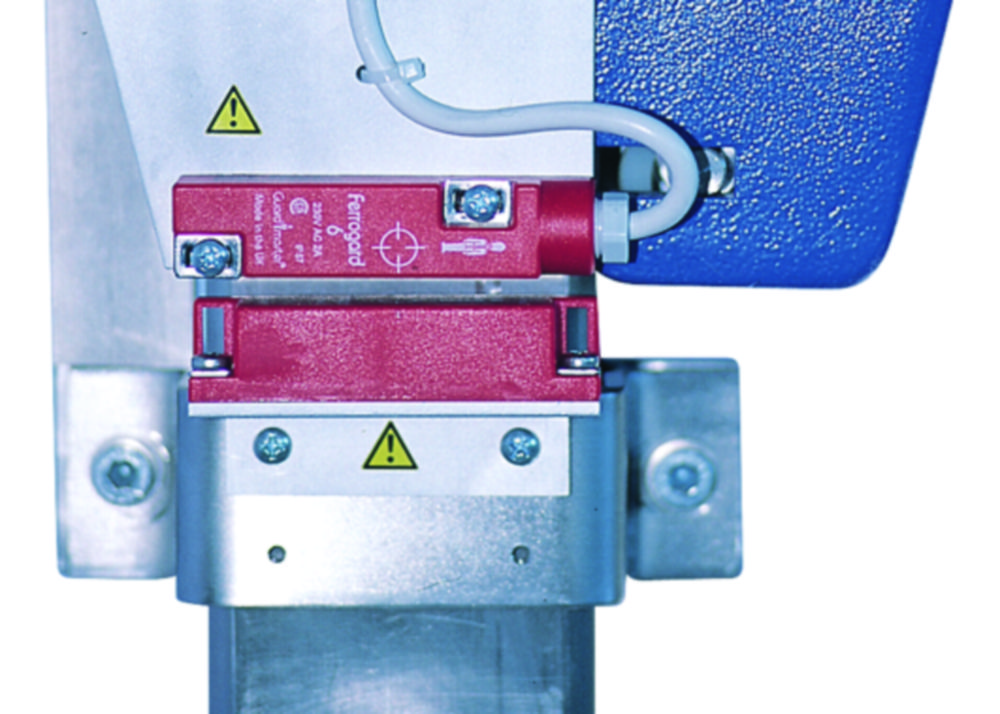

Safety limit switch SI 400
The SI400 consists of an end switch (normally closed contact / switch) and a magnetic switch contact (actuator) which is mounted either on the floor stand R472 with the fixing device SI472 or alternatively on the telescopic stand R474 with the fixing device SI474.The stirring unit RW47 can only be switched on through the SI400, when the agitator is adjusted to the user-selected height within the mixing vessel.The power supply to the RW47 automatically shuts off if the stirring unit is lifted above the selected height.

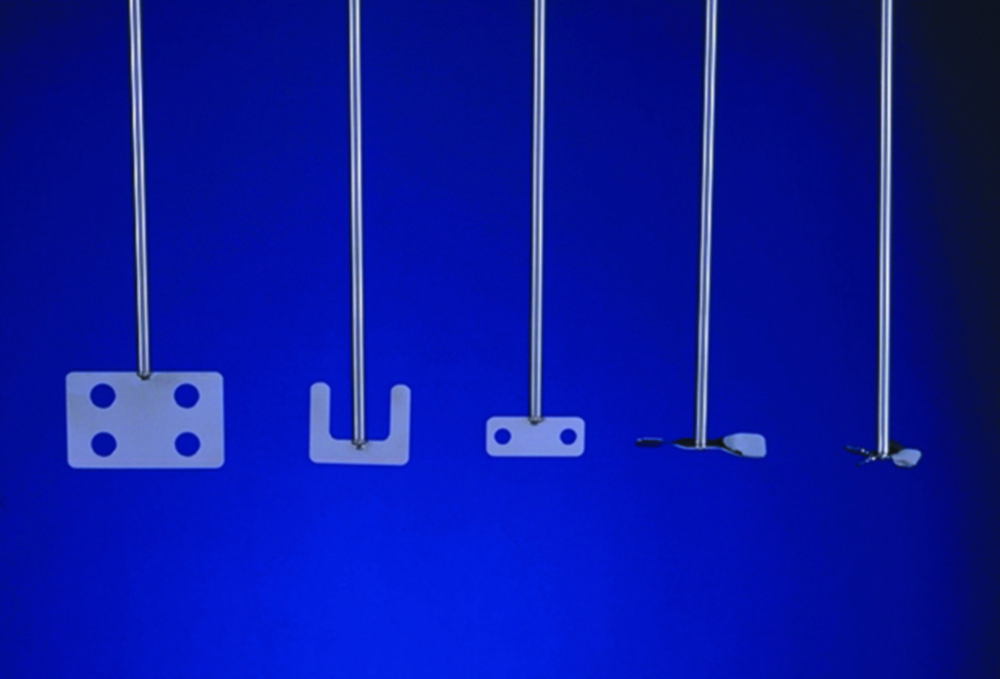

Overhead Stirrer shafts
Stainless steel. Supplied as separate 8mm diameter shaft with tapped screwthread end onto which can be attached a choice of paddle types. Lengths as indicated.
