Feeding kits for vibratory feeder DR 100
Scope of supply: push-fit feed chute, holder, funnel, fixture
Rotary sample divider RSD200
With the optional dividing heads, the filled sample material can be divided into 6, 8 or 10 equal subsamples. The composition of each subsample corresponds exactly to the total sample. In addition, the bulk material is added and divided automatically and without loss of material.High division accuracyModular designDigital time settingSpeed monitoring and constant speed controlMaintenance-freeEasy collection and cleaningScope of supply: Rotary sample divider RSD200, vibration feeder VF200, 10 sample bottles of 250 mlPlease order rotary dividing heads separately.Number of divisions:6/8/10 (depending on dividing head)Sample bottle capacities:10/25/50/100/250/500 mlTimer:1 min ... 99 h 59 minDimensions (W x D x H):460 x 456 x 850 mmWeight:30 kgPower supply:220 V, 50/60 HzSpeed range:80 ... 120 rpm

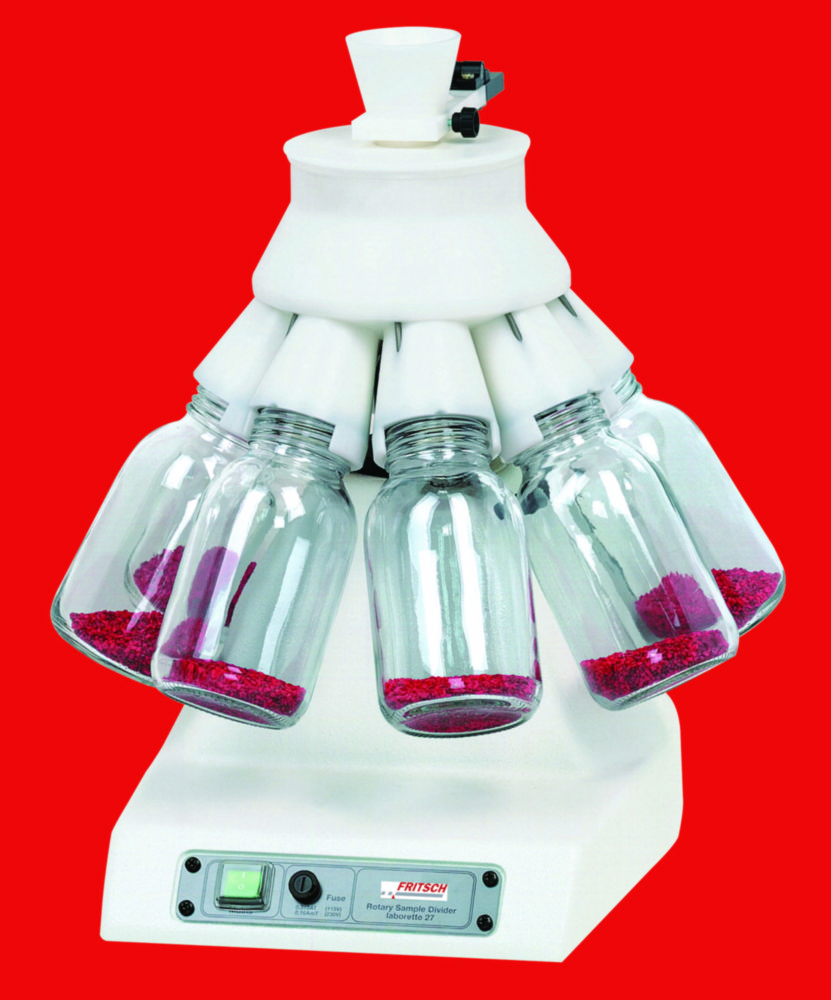

Rotary cone sample divider LABORETTE 27
For reliable, representative sample division of solids and suspensions without conversion. Divides the samples at up to 3000 graduations per minute into up to 30 partial streams via a rotating cone head. Dividing accuracy up to 99.9 %. Can be combined with 6 different dividing heads.Compact basic unit with robust cast aluminium housingEasy cleaning due to removable dividing headvariable partition ratiosMaintenance-free drive motor with slipping clutchQuick clamping device for sample tubes 250 and 500 mlFor optimum sample allocation, the vibratory feeder LABORETTE 24 (optional) is recommended.SpecificationsDivision ratio:1:8, 1:10, 1:30Number of subsamples:8, 10, 3Max. feed particle size:10 mm, 2.5 mmMax. sample quantity:4000 ml, 2500 ml, 300 mlSample bottle capacities:15, 20, 30, 32, 250, 500 mlPower supply:230 V/1~, 50-60 Hz, 90 WDimensions (W x D x H):270 x 450 x 460 mmNet weight:7.7 kgInstrument also available in other voltages.Dividing heads must be ordered separately.

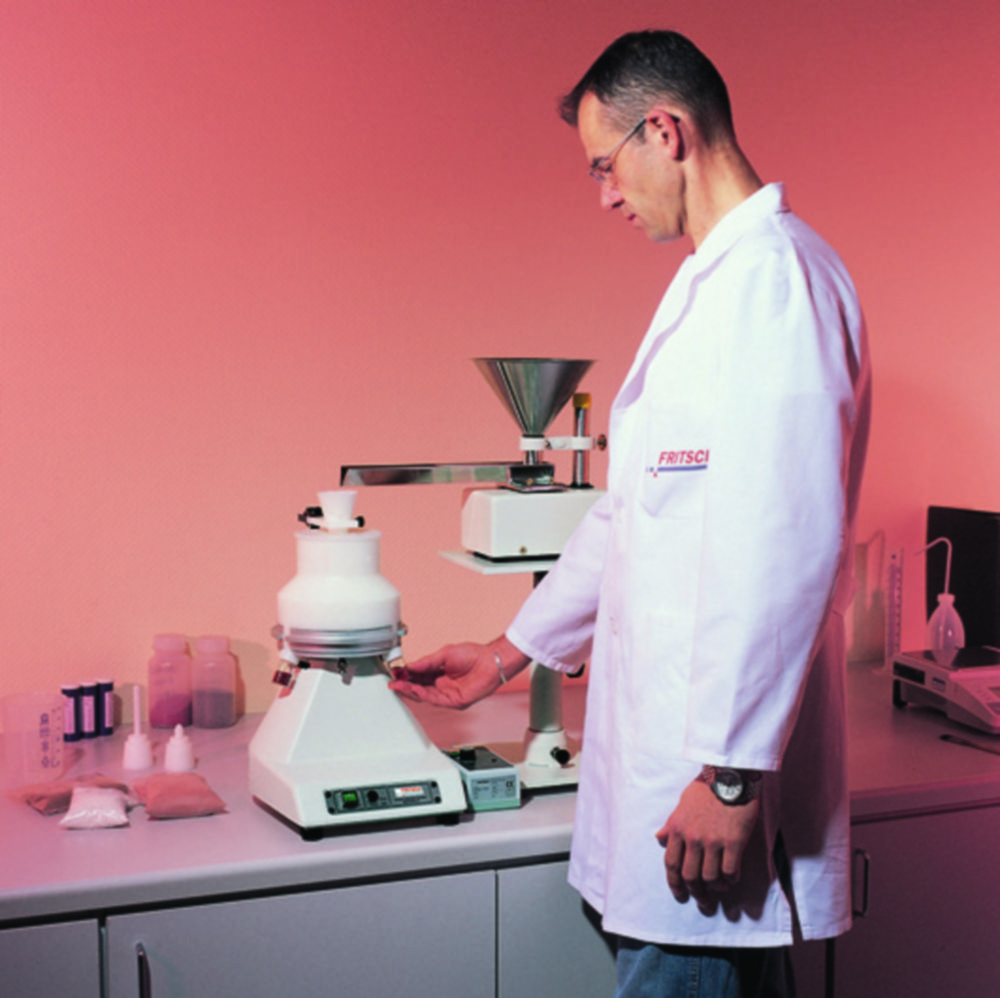

Dividing heads for rotary cone sample divider LABORETTE 27
All dividing heads are delivered inclusive of sample bottles and funnels.

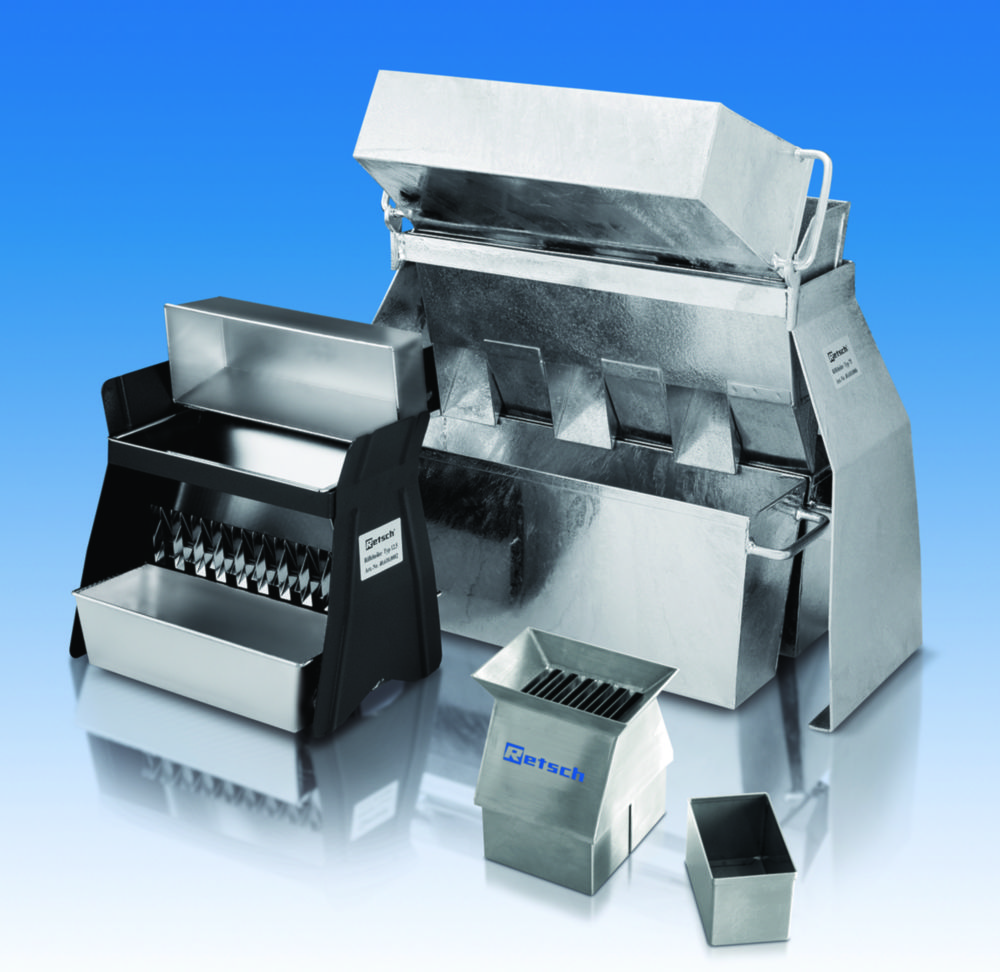

Sample Splitters, RT series
To provide separation of pourable powders and bulk materials on site and in the laboratory. Operates independently of mains supply. Available in 6 sizes. Number of samples: 2.

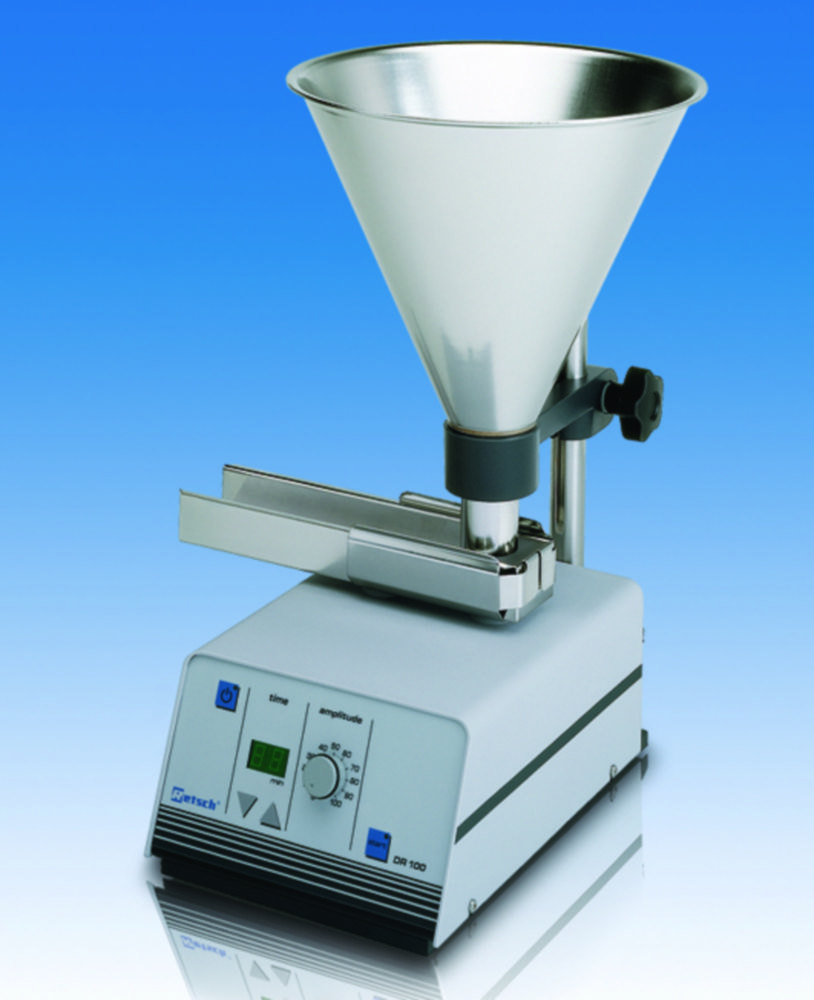

Drive unit for vibratory feeder DR 100
For the continuous feeding of bulk materials.Please order feeding kit separately.
