Well Scoop Thermometers
Well Scoop Thermometer and Tank Thermometer in brass armour, scooping vessel 70 x 32 mm, thermometer with milk glass scale, calibratable, red filling, capillary blue reflecting.
Sampling Dippers DispoDipper LaboPlast® / SteriPlast®, PP, blue transparent
Scaled sampling tube manufactured in a clean room specially designed for disposable use. Due to the blue colour, it is also perfect for use in the food, animal feed and pharmaceutical industries. After sampling, the container can be closed and is leakproof. DispoDipper is completely manufactured in one piece and can be used for sampling and subsequent transport of the sample in one device. In this way, cross-contamination or sample impurities are almost impossible. For sampling, first remove the cover at the predetermined breaking point. Then take the sample with the sample container and close it securely. After sampling, the handle at the predetermined breaking point can be detached from the sample container. This allows for easy and space-saving transport of the sample.Individually packaged and optionally sterilised by gamma rays (SteriPlast®)Production and packaging according to clean room class 7Complies with EU food requirements and FDA regulations
Immersion Cylinders
For target spot and bottom samples of mineral oil products. Made of nickel-plated brass.Screw-off topWith handleHeavy design for fast loweringWithout lowering and pull cablesTarget spot sample: 1. Immersion cylinder is lowered in the tank to be sampled by the manually operated reel. 2. The separate pull cable is used to open the valve when the target spot is reached and the sample then enters the immersion cylinder.Bottom sample: 1. Lower the immersion cylinder to the bottom. 2. The weight of the immersion cylinder opens the valve automatically when the bottom is reached and the sample then enters the immersion cylinder.
Scoops, stainless steel, extended
The scoop cup, with extended, completely closed handle, has no openings or undercuts up to an immersion depth of approx. 500 mm. The closed design makes the scoop cup suitable for sampling water from wells, sludges or waste water.Stainless steel V2A (1.4301)Steam sterilisableCompletely flammable

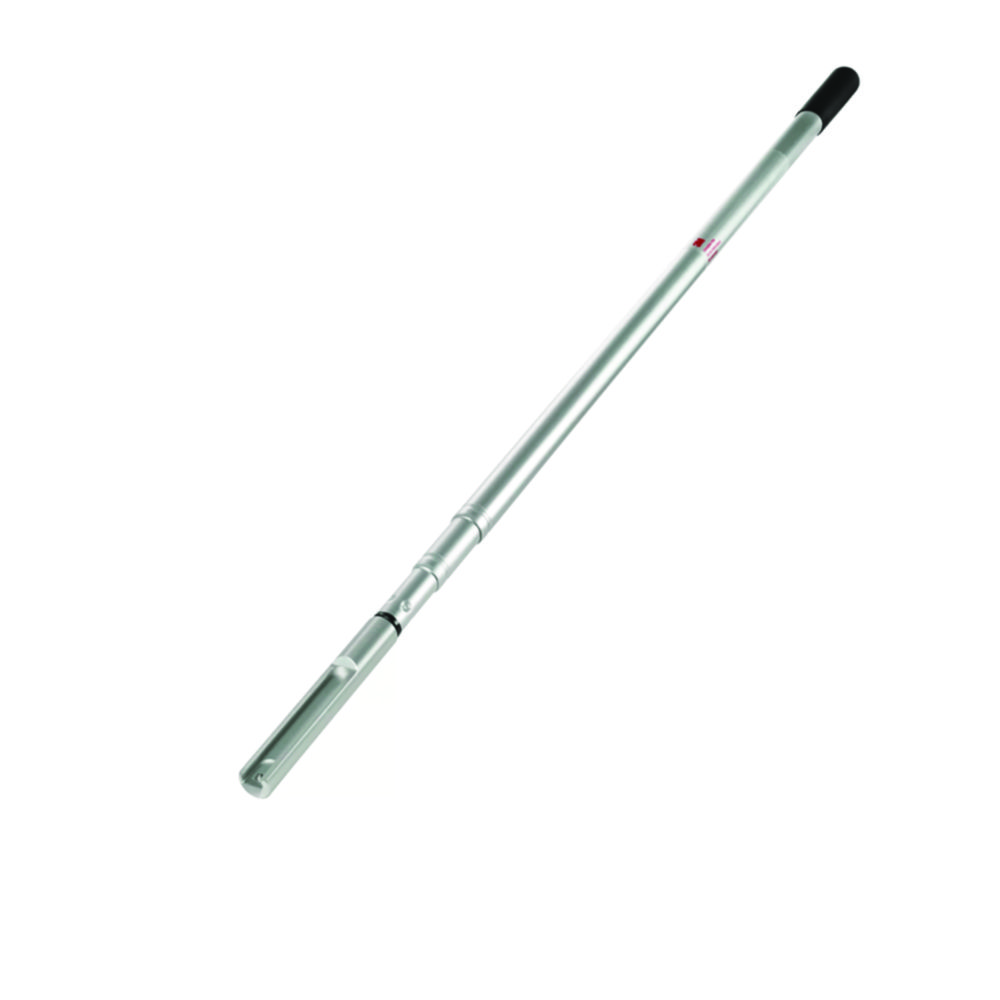

Extendable Pole
Designed for use with the Neogen® Sponge Stick for easier sampling of remote and hard-to-reach areas.Lightweight, extendable rod, robustEnables samples to be taken safely from ceilings and tanks

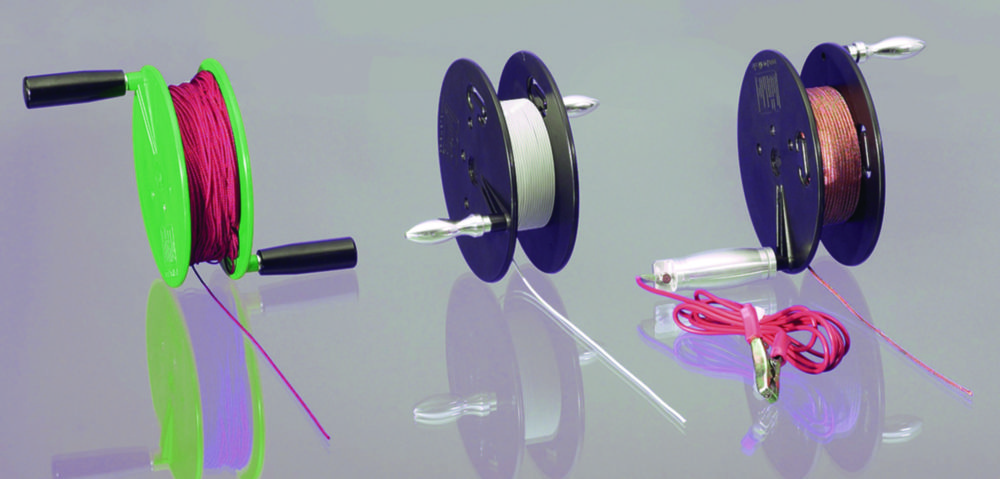

Manually-operated reels and lowering cables
Manually-operated reelsHigh winding capacity of up 150 m for cable 2 mm dia.Reel width: inner 44 mm, outer 55 mm, reel diameter: inner 100 mm, outer 180 mmPlease order the required lowering cable separatelyLowering cablesFor dipping bottles and immersion cylinders, matching manually-operated drum reels made of various materialsTensile load max. up to 10 kg

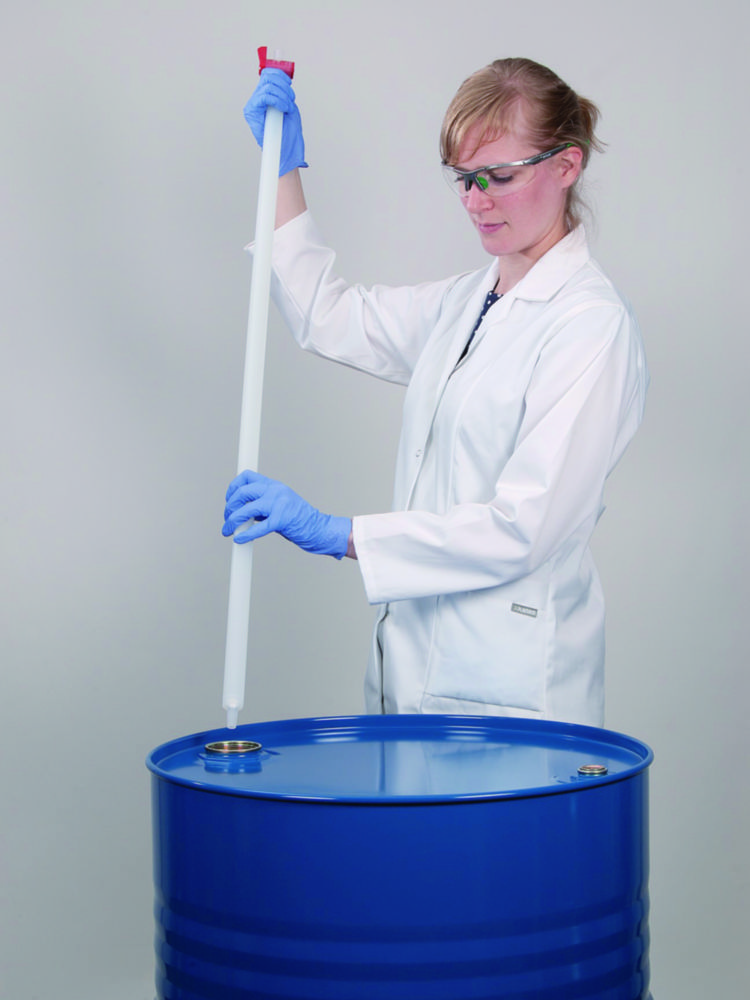

Dip samplers, PP
For simple removal of liquid samples.Good view due to transparent tubesUpper end with reflux valve, lower end with ball valveAll-layer and point sampling possible500 ml dip sampler stepless extendable from 100 to 200 cm

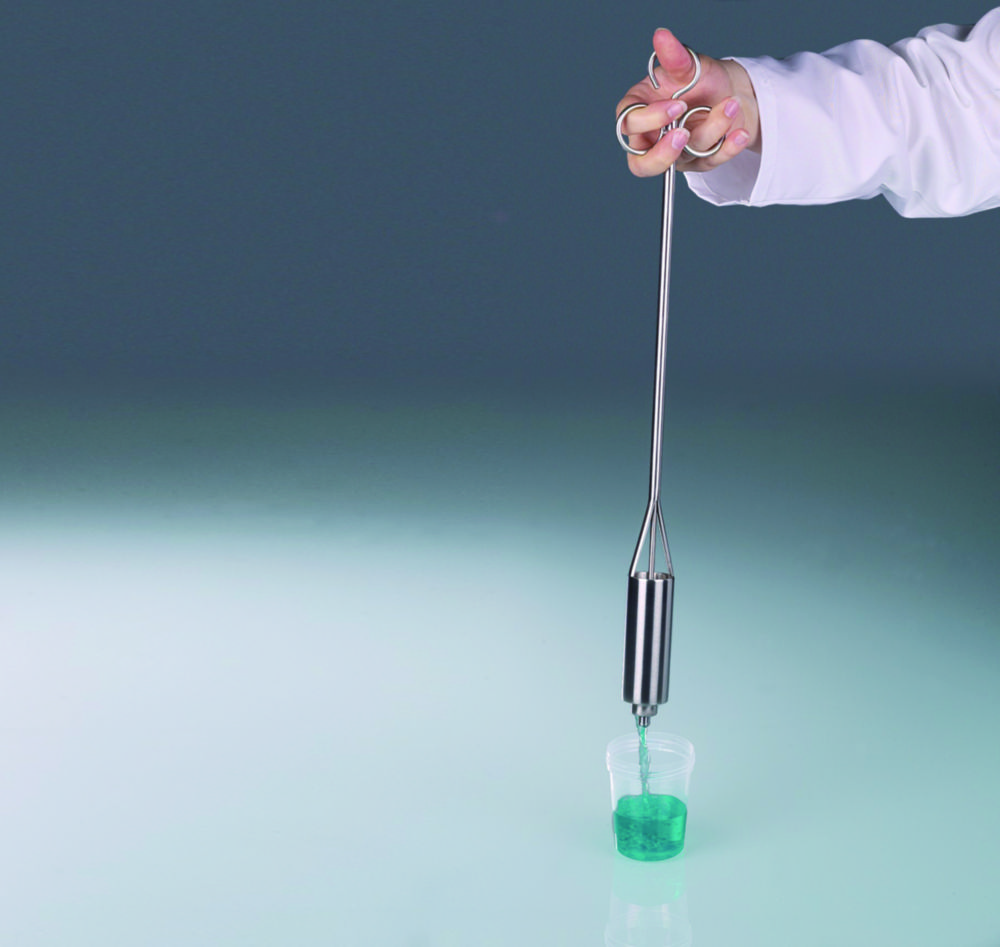

Liquid-Sampler, single hand operation, stainless steel V4A (1.4404), open with thumb
Sampler for thin to viscous liquids. Easy use with one-handed operation. With discharge funnel for safe filling of sample bottles.
Sampling Dippers, Sterilin™ Dippas™, PS, with screw cap, sterile
Facilitate sample collection to reduce risk of cross-contamination.Individually wrappedHandle neatly snaps off after sample collectionSterilized by gamma radiation

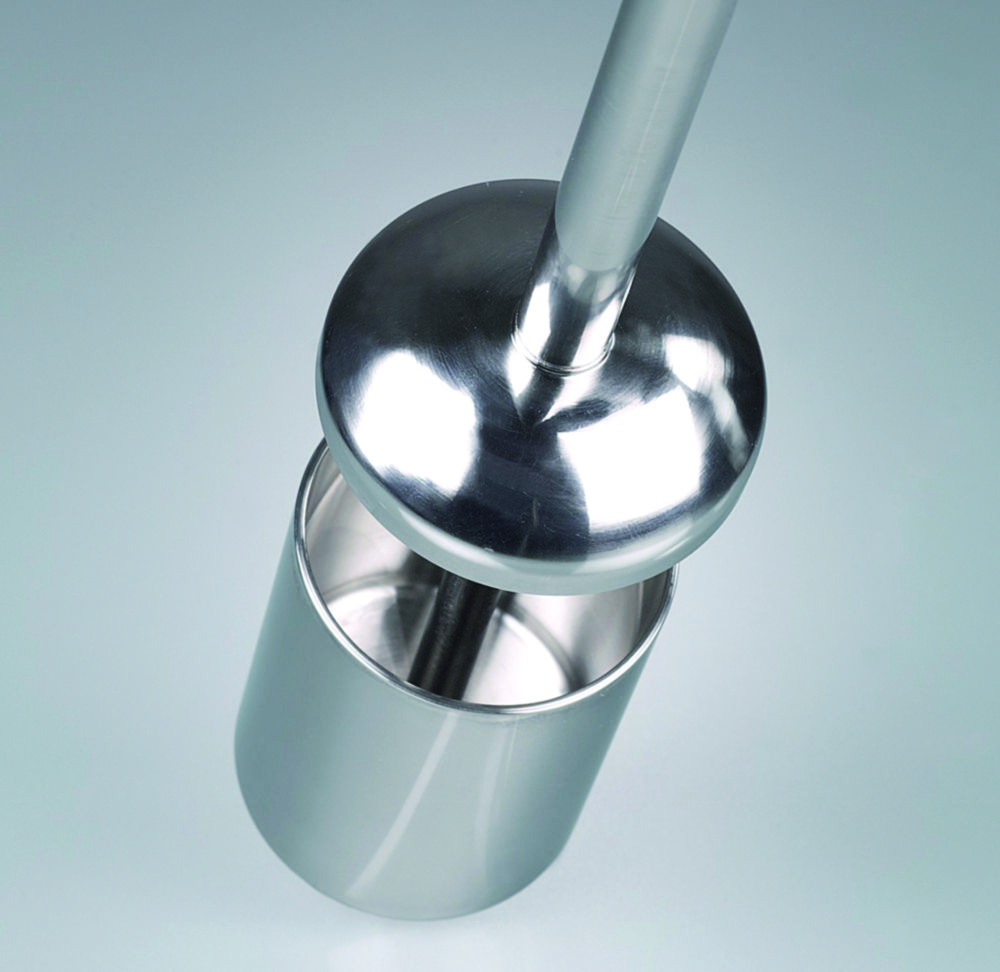

Sampler Liquid CupSampler, stainless steel V4A
For point sampling of liquids of varying viscosity. Media containing particles can also be sampled. Container diameter: 55 mm.Easy cleaning thanks to unscrewable cupFood-safeAutoclavable

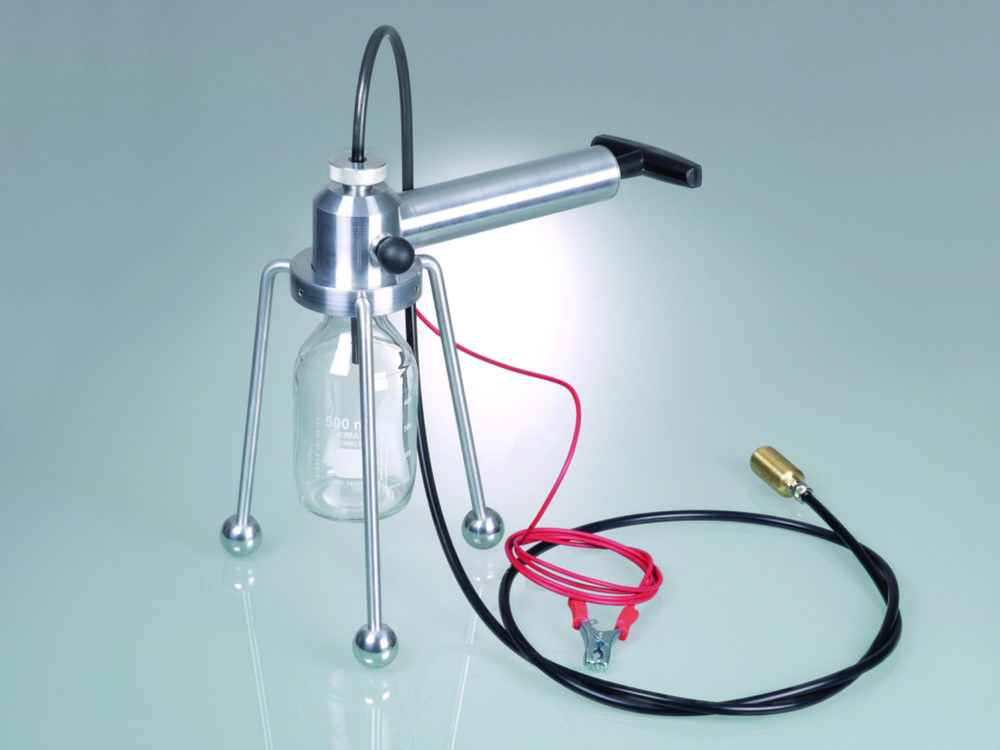

Sampler ProfiSampler, aluminium
Vacuum-operated sample collector for sampling solvents and flammable liquids (Explosion Categories IIA, IIB and IIC) out of drums, tanks, road tankers, railway wagons, ships, lakes, ground water.Filling level control, automatic return flow and overfill protection by built-in venting valveSuction volume: 200 ml, suction pressure 0.5 bar and suction depth down to 4m of waterWith bottle thread GL 45 (suitable for Schott glass bottles 100 to 1000ml)Can be supplied with optimized, straight suction tube for simpler samplingTransport case for tidy transport and disposalAlways check the chemical resistance of parts coming into contact with the sampleWhen taking samples of flammable liquids, the device must be earthedWear protective clothing!Scope of supply: aluminium vacuum pump, with feet (aluminium), venting valve and GL45 bottle thread, 1 x 500 ml glass bottle, 5 x 220 mm long, conductive, black PA suction tubes, 1 tubing cutter, 1 brass hose weight, 20 seal-it bottle seals, earthing cable

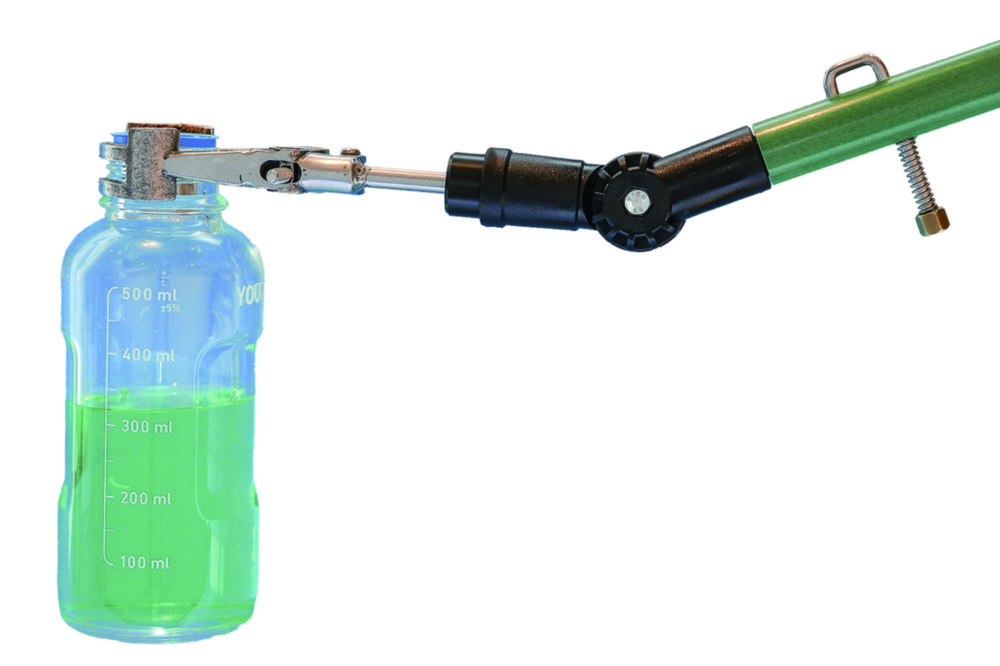

All purpose clamp for sample bottles, stainless steel
For various bottles with neck diameters from 10 to 80 mm and volumes of max. 1000 ml. With adjustable click-in angle from 0 to 180°.

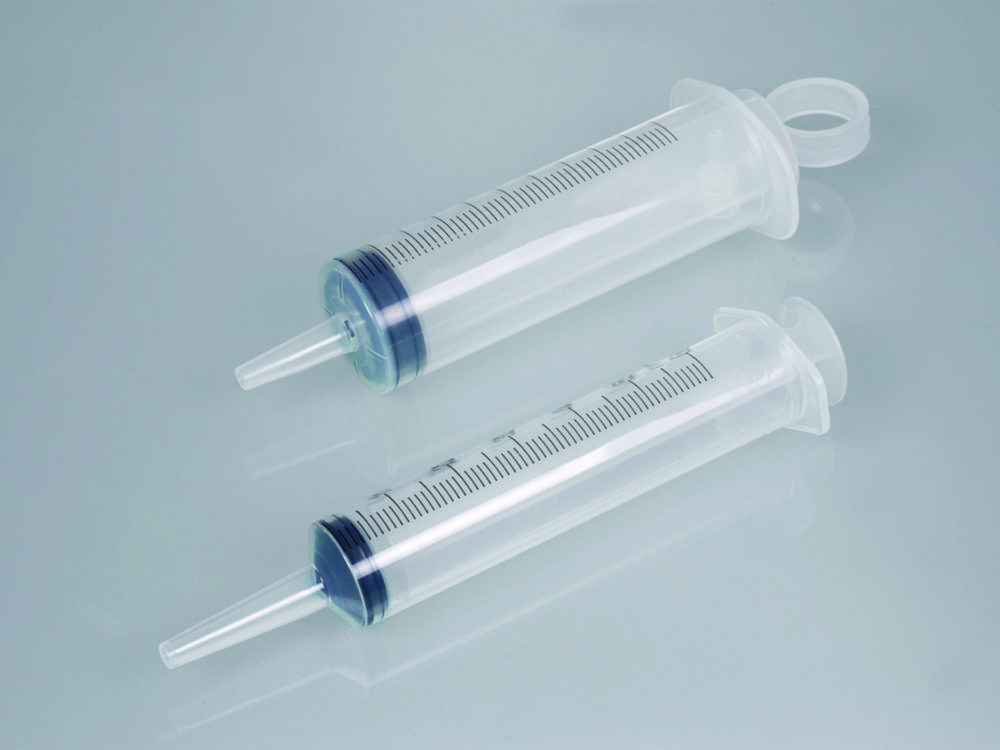

Syringe SteriPlast® , PP
Sterilised, individually packaged, transparent. A Luer adapter is supplied for the 100 ml syringe.

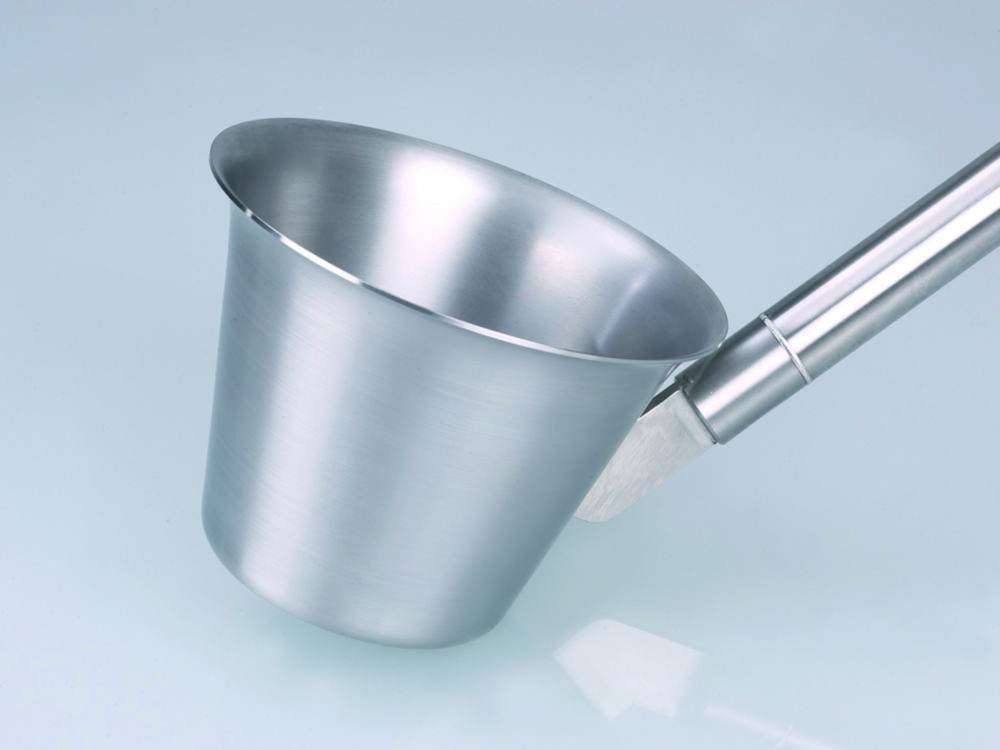

Scoop, stainless steel V2A, sterilisable
Without openings, undercuts or crevices in which residues could collect. Pore-free finishing produced by high-quality laser welding seams. The dip sampler is sterilisable by flame sterilisation or steam sterilisation and can therefore be made completely germ-free. Complete with rod.
Sampler AquaSampler, PTFE/FEP
Sample collector for groundwater samples from wells, shafts and other sources.Suitable for all common well shafts with inspection openings from Ø 2’, without jamming or snagging.Ultra-pure material guarantees maximum sample purityEasy cleaning thanks to rounded edges and threads

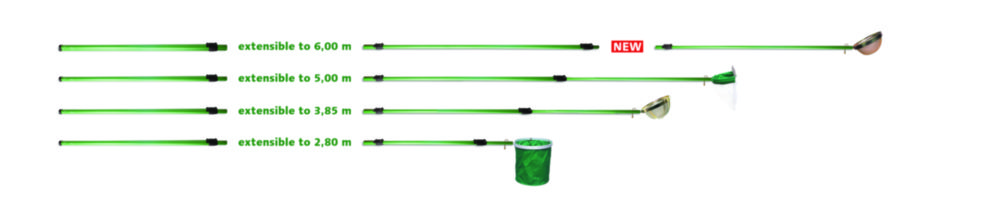

Fiber glass telescopic pole INGENIOUS
Very robust telescopic pole, ideal for sample taking. Fiber glass makes it almost indestructible and non-corrosive. Comfortable to carry even at low temperatures. Simple extension and adjustment mechanism. You can change the length easily by a quarter rotation. (Pic. 3). At telescope poles of 3,85 to 6 m the length could be easily changed by using the clamp (Pic. 2). Comfortable use of spring mechanism. This type can take all samplers and catchers with universal connecting part. Easy exchange of the sample taking equipment by pressing the spring mechanism.
Sampler ViscoSampler, PP
Ultra-pure sampler with powerful suction for viscousmedia. Specially developed for viscous substances, such as slurries, silt, wet clay and soil samples, sediments, oils, emulsions and creams. The suction flask sucks up and discharges the material. All surfaces are non-porous and crevice-free, preventing dirt accumulation. Only round-profile threads, suitable for food hygiene applications, are used. Allow easy dismantling and cleaning.

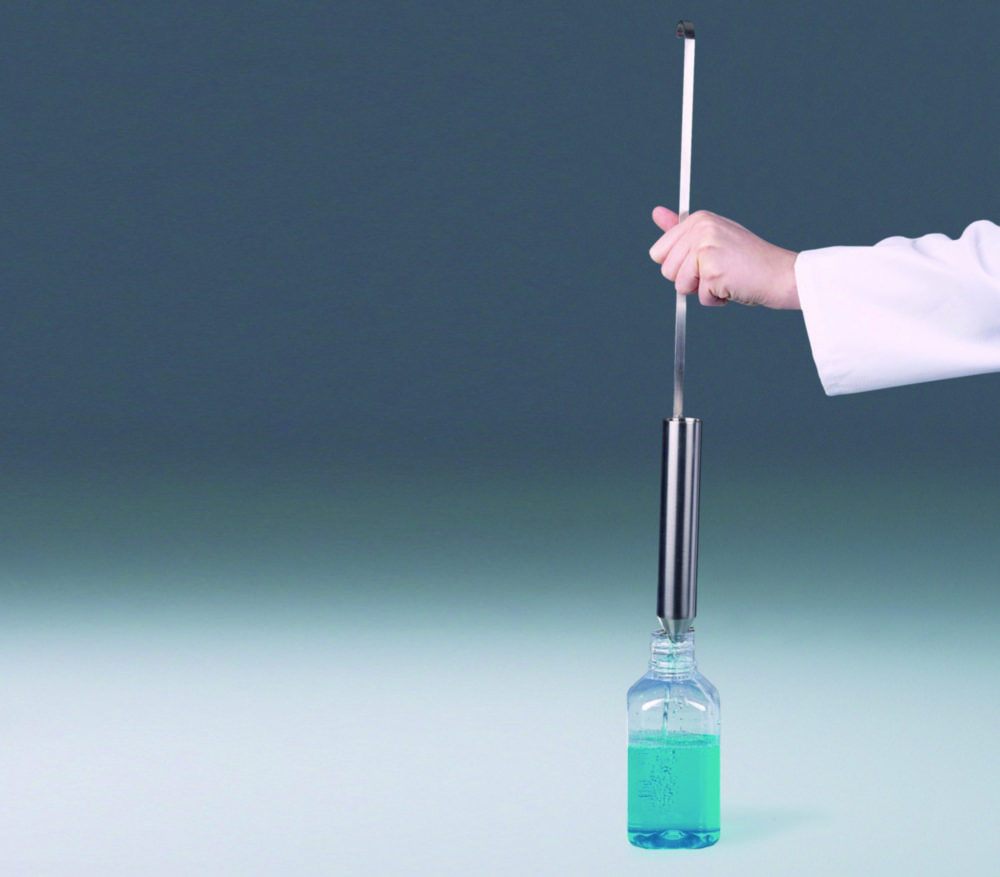

Liquid-Sampler, single hand operation, stainless steel V4A (1.4404), place onto bottle
Sampler for thin to viscous liquids. Easy use with one-handed operation. With discharge funnel for safe filling of sample bottles.
Sampler LiquiSampler, PTFE/FEP
DIN EN ISO 15528. For liquids. Made of ultra pure and chemically inert PTFE/FEP for contamination-free sampling. Practical push button, single-handed operation. Suitable for point, cross-sectional, and bottom sampling. Ideal for sampling from open and closed drums, kegs, tanks, silos, water sources (ponds, lakes, streams, rivers). Suitable for all commercial kegs and drums with openings of at least 32 mm diameter. All surfaces are non-porous and crevice-free preventing accumulation of dirt. Only round-profile screwthreads, suitable for food hygiene applications, are used. Simple to dismantle and clean.

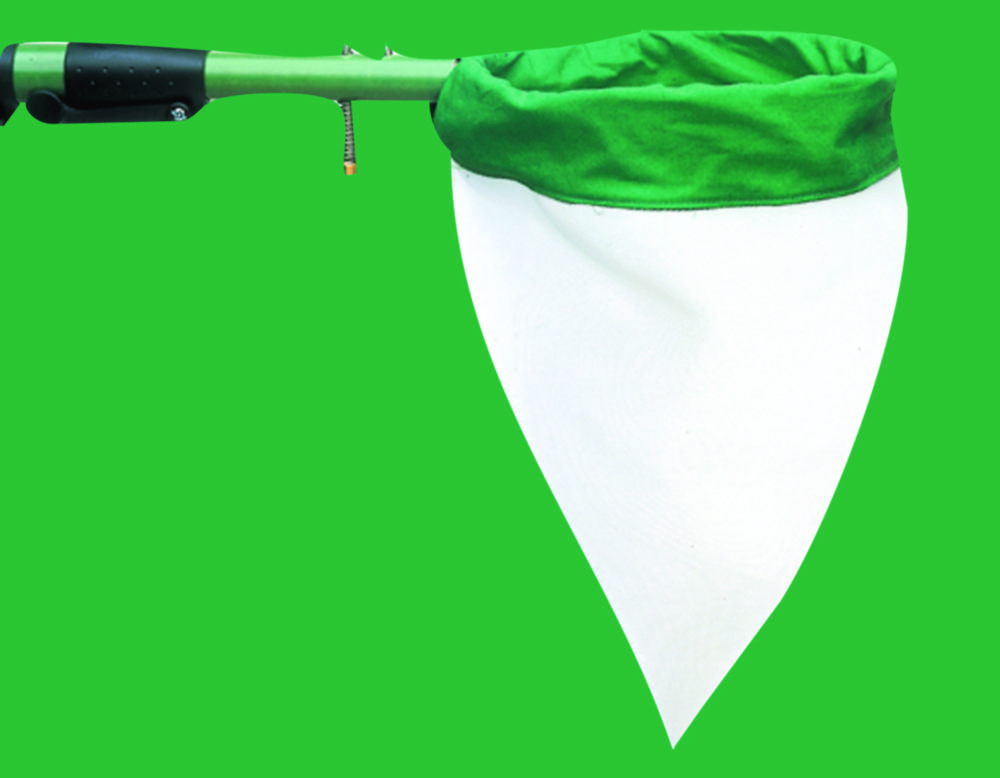

Waterlanding net
Very robust, with nylon net, for catching flees, bugs, floating particles and water insects. Mesh width 0.8 mm. With robust aluminium ring of 200 mm diameter. Double-stitched version. With universal connecting part. For use with INGENIOUS telescopic poles.

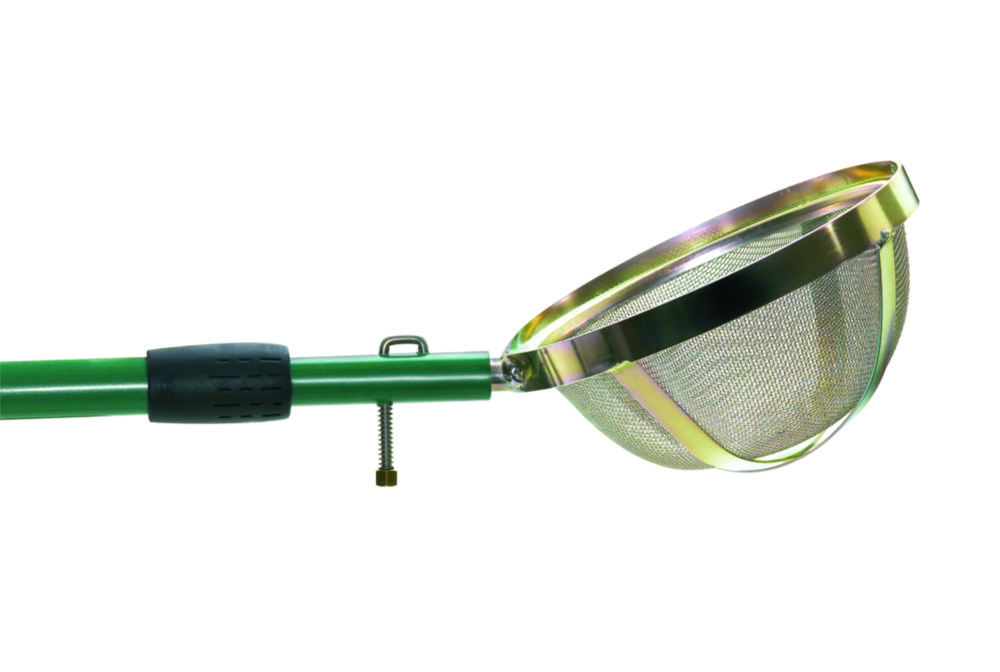

Wire sieve net
Robust wire sieve net, very robust and reinforced net version with crossed protection strings at the outside (to prevent the net from deforming). This landing net also has a reinforced net at the edges and therefore allows you to catch small animals directly off the ground. A possible bending is avoided by the strong and simple construction. Net diameter of 200 mm, mesh width 1.5 mm. With universal connecting part. For use with INGENIOUS telescopic poles.

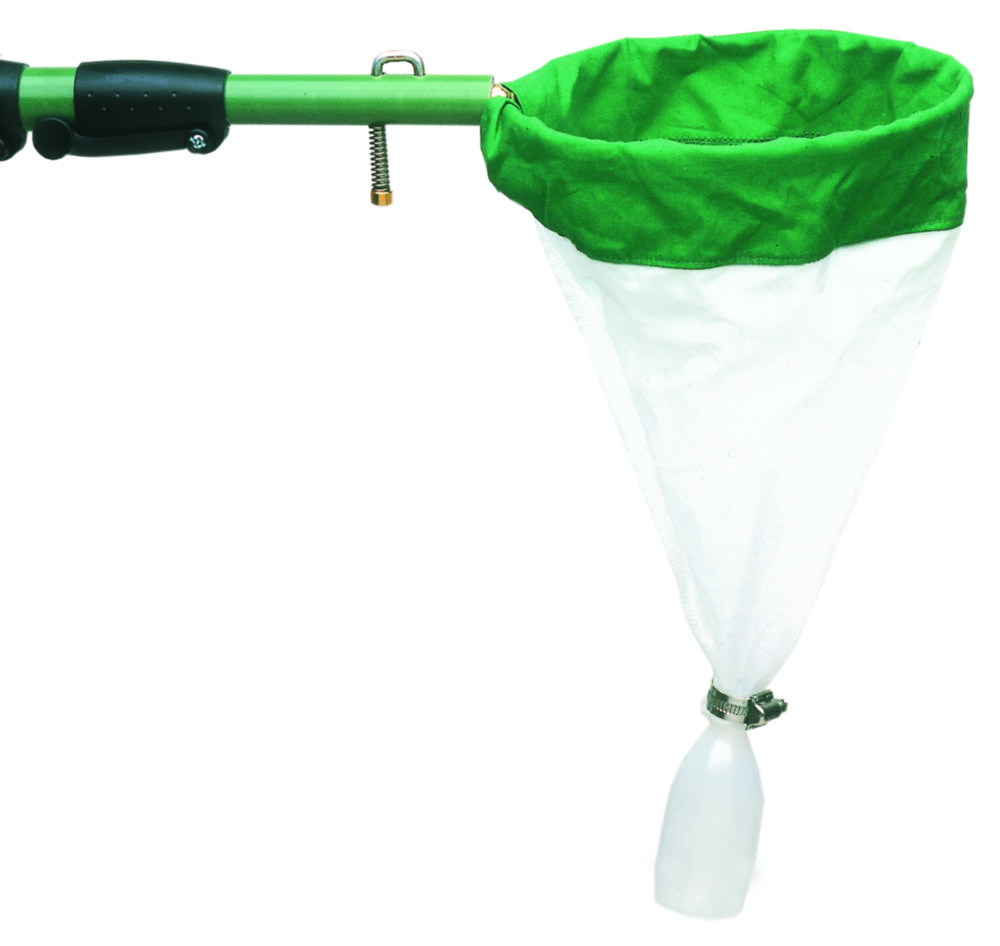

Plankton net
Mesh width 65 µm, robust version with sturdy aluminium ring of 200 mm diameter. The ring is covered with nylon fabric to protect the silk gauze from ripping up. With 100 ml collecting vessel (100 ml Kautex flask). Net could be opened at the botton for filling the bottles. With universal connecting part. For use with INGENIOUS telescopic poles.

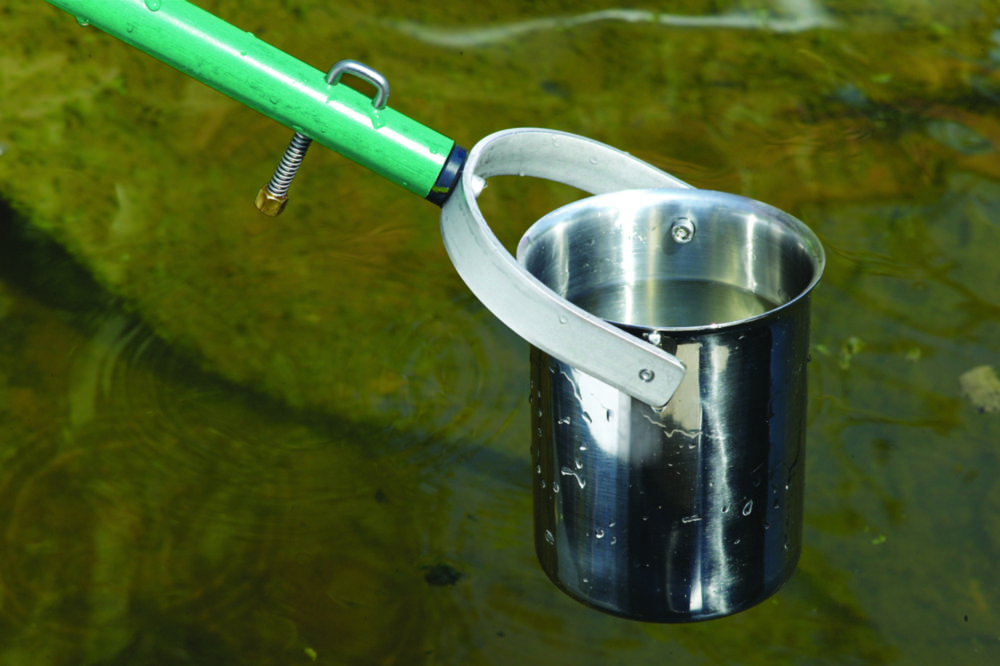

Pendulum beaker, stainless steel
Nothing can be spilt because beaker automatically swings into a vertical position. Dimension of the beaker: 100 mm diameter, 130 mm height, 1 liter volume. With universal connecting part. For use with INGENIOUS telescopic poles.

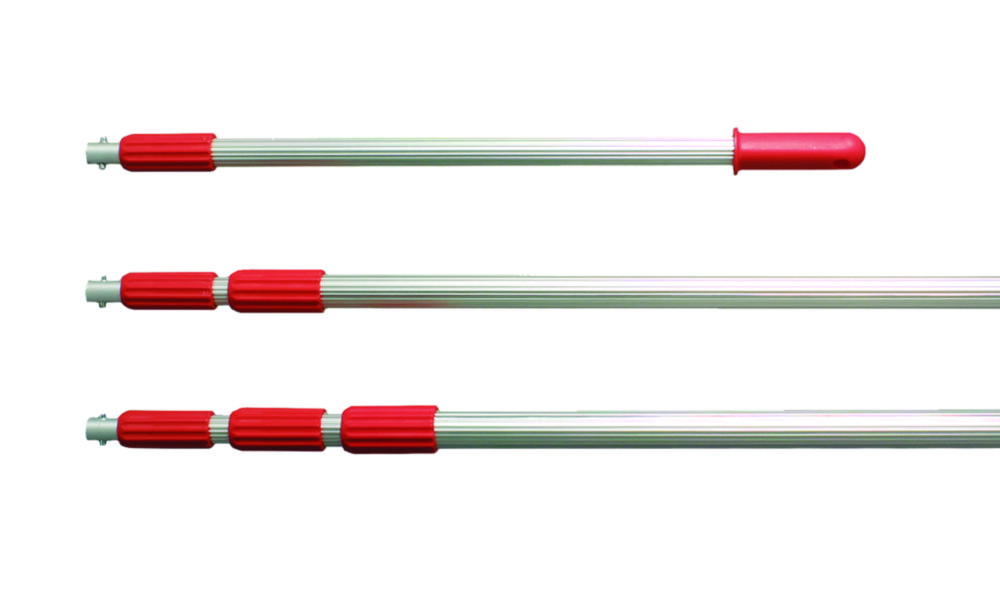

TeleScoop Telescopic Rods, aluminium
Different tools can be attached to the telescopic rod (snap-in joint). The individual rods have been provided with an end stop. This means that one rod cannot accidentally slip out of another rod. The telescopic rods cannot be rotated radially.Increased rigidity by using cold-rolled profile rodSprings made of stainless steel

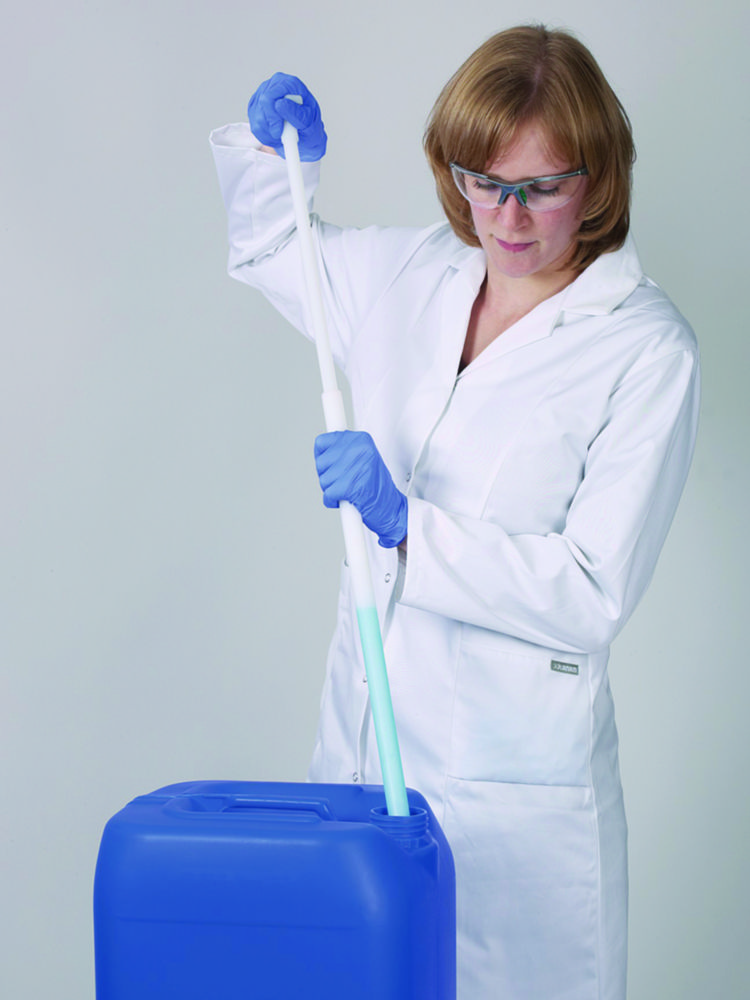

Disposable liquid samplers, DispoPipette, HDPE
In numerous situations, rapid and contamination-free samples have to be taken. DispoSamplers are perfect for this application. They are cleanroom-manufactured, individually-packed and always ready-to-use. Avoid expensive decontamination or cleaning of soiled samplers. Gamma-sterilised versions are also available.For taking all-layer and target-point samples from low viscosity-media.
Disposable liquid samplers, DispoTube, HDPE
In numerous situations, rapid and contamination-free samples have to be taken. DispoSamplers are perfect for this application. They are cleanroom-manufactured, individually-packed and always ready-to-use. Avoid expensive decontamination or cleaning of soiled samplers. Gamma-sterilised versions are also available.For taking all-layer and target-point samples from liquids.

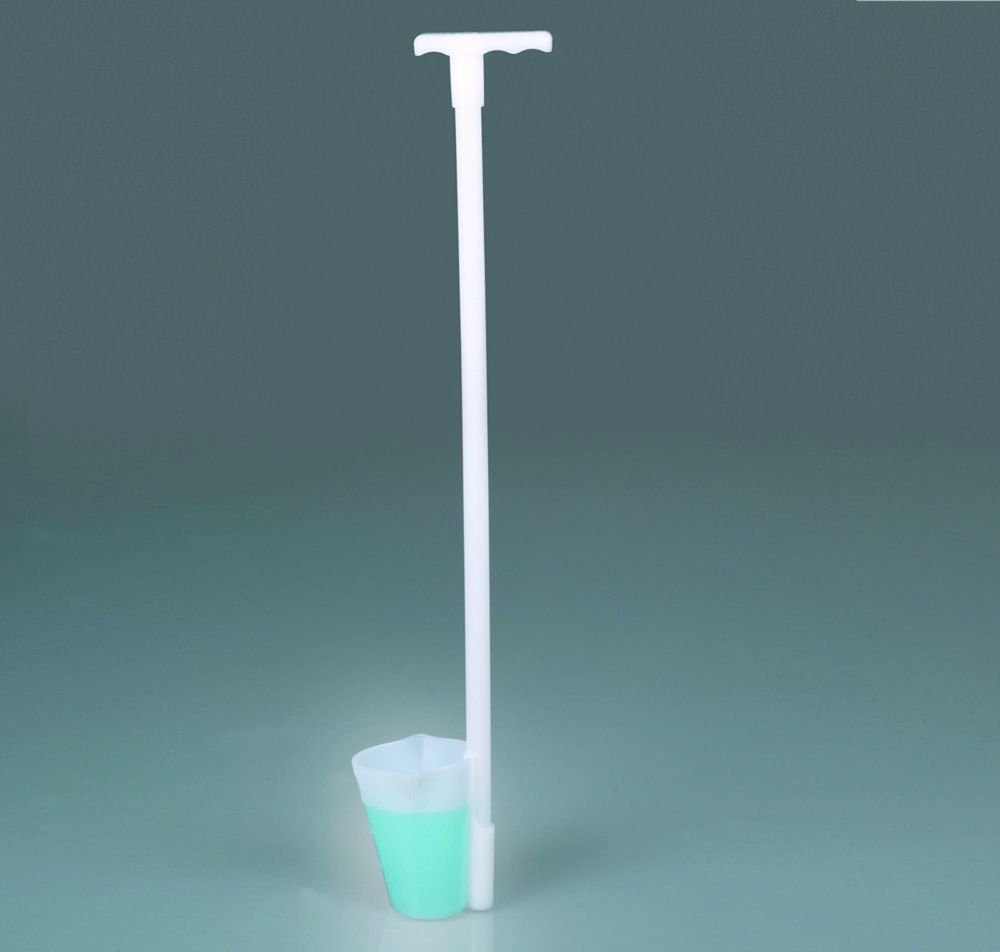

Sampling Dippers DispoLadle, HDPE
The DispoLadle is a sampling scoop specially designed for disposable use. The scaled scoop with embossing can be used for measuring. It shows contents in increments of 10 ml, up to 200 ml. An ergonomic handle and a spout on both sides for right or lefthand operation make handling simple and easy.Cleanroom manufacturedIndividually packagedOptionally sterilised by gamma rays

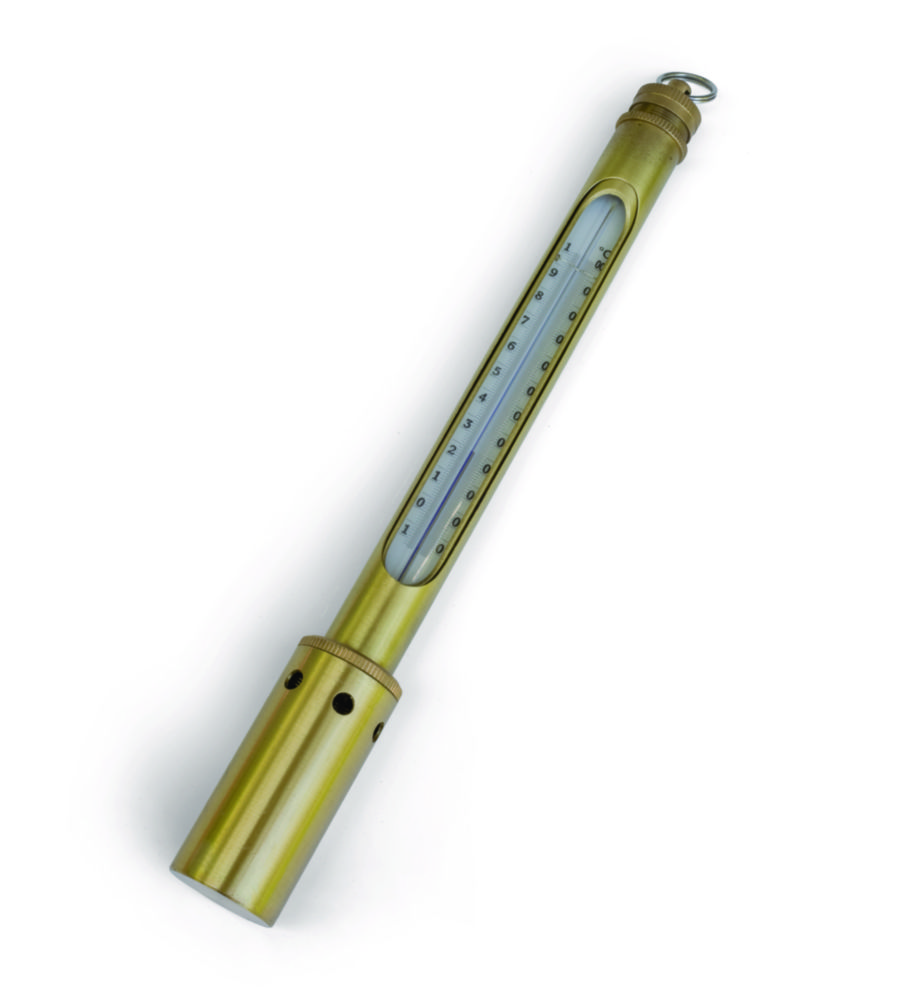

Thermometer insert for Well Scoop Thermometers
Well Scoop Thermometer and Tank Thermometer for sampling and temperature measurement at the same time.Please order thermometer insert and armour separately.Calibratable. Immersion depth - total.

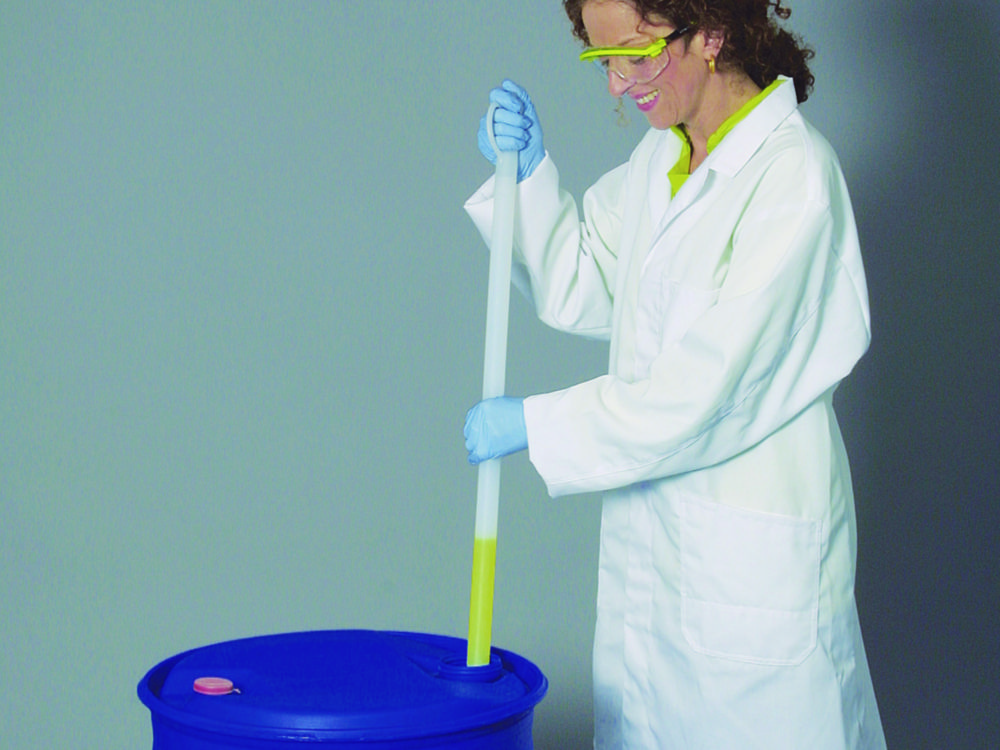

Disposable samplers
Transparent. These disposable samplers were developed especially for sampling of strongly adhesive liquids to avoid a complicated cleaning process. PE provides a surface that resists adhesion of the sample material, minimising sample retention on the dip sampler.

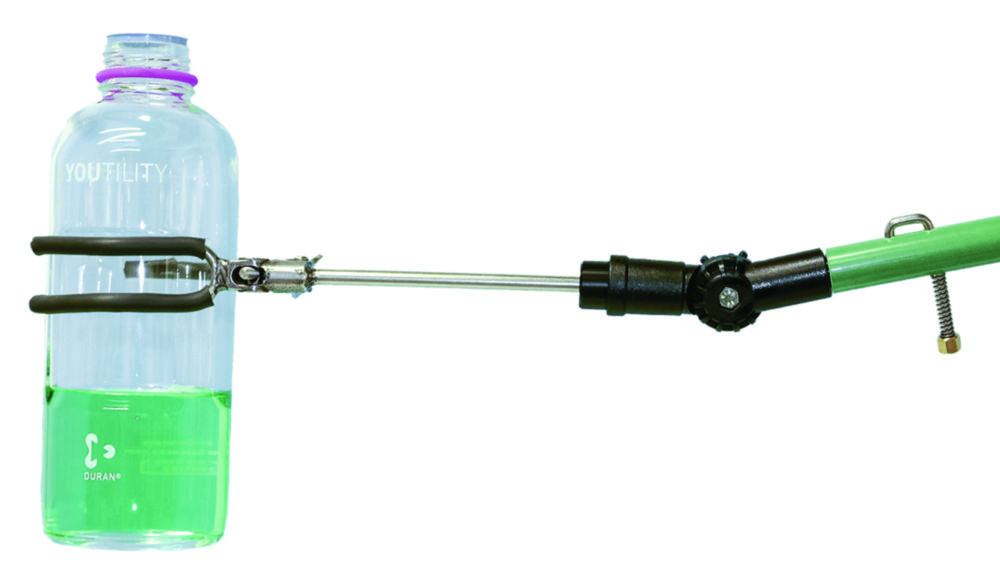

All purpose clamp, stainless steel with silicon coating
For bottles or containers with a diameter of up to 110 mm. With 3 holder elements coated with a silicone tube for a very safe grip. With adjustable click-in angle from 0 to 180°.

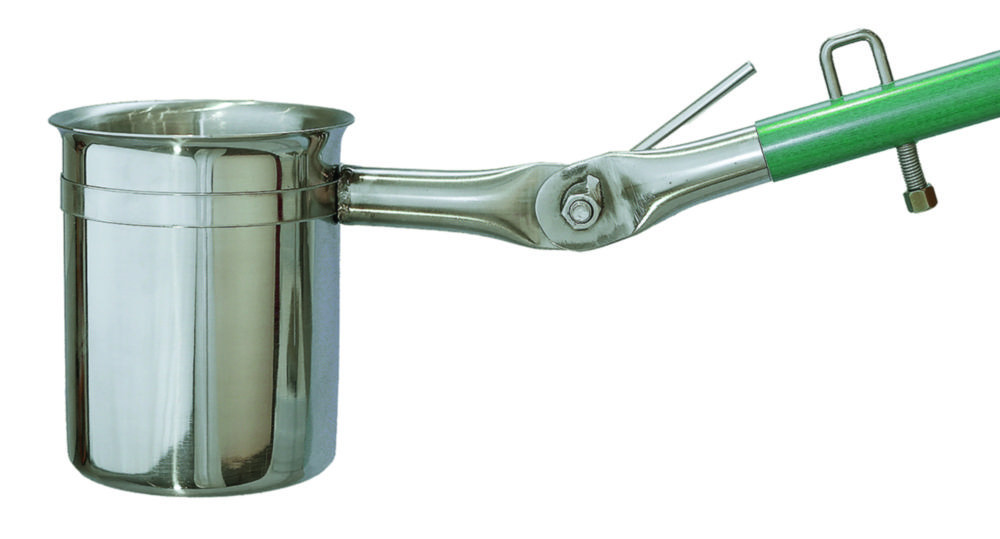

Angled sample beaker, stainless steel
Completely made of stainless steel. Holder and the beaker can be sterilised. With adjustable click-in angle from 0 to 180°. For use with INGENIOUS telescopic poles.
Sampler ViscoSampler, PTFE/FEP
Ultra-pure sampler with powerful suction for viscousmedia. Specially developed for viscous substances, such as slurries, silt, wet clay and soil samples, sediments, oils, emulsions and creams. The suction flask sucks up and discharges the material. All surfaces are non-porous and crevice-free, preventing dirt accumulation. Only round-profile threads, suitable for food hygiene applications, are used. Allow easy dismantling and cleaning.
