Accessories for Ultrasonic Processor UP50H/UP100H

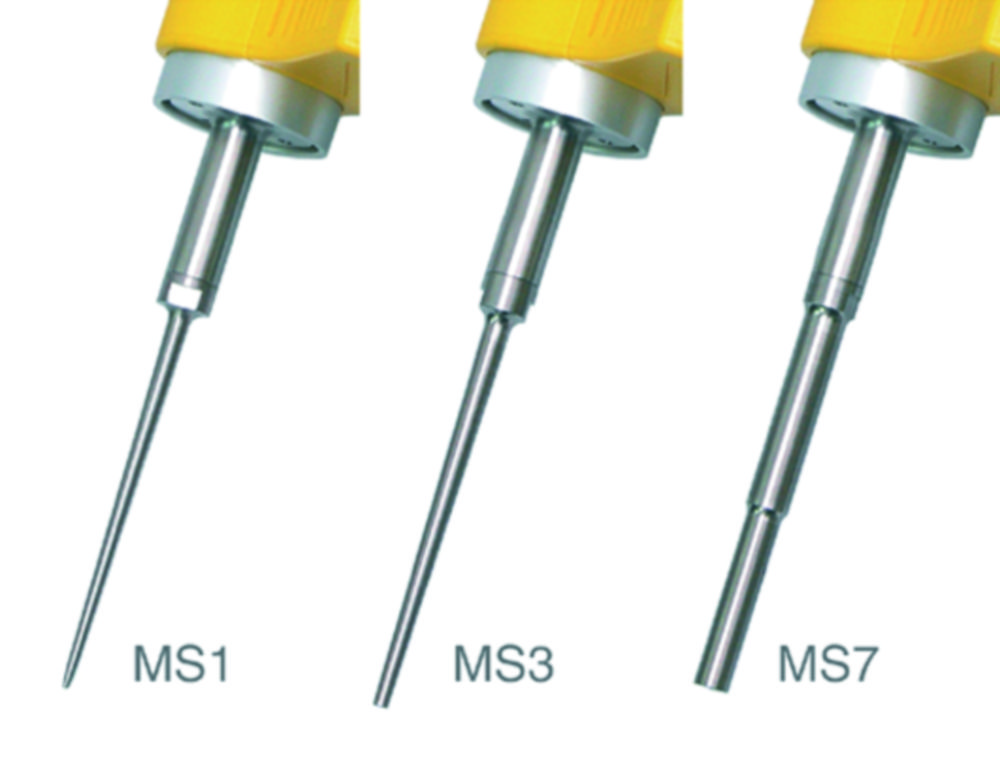

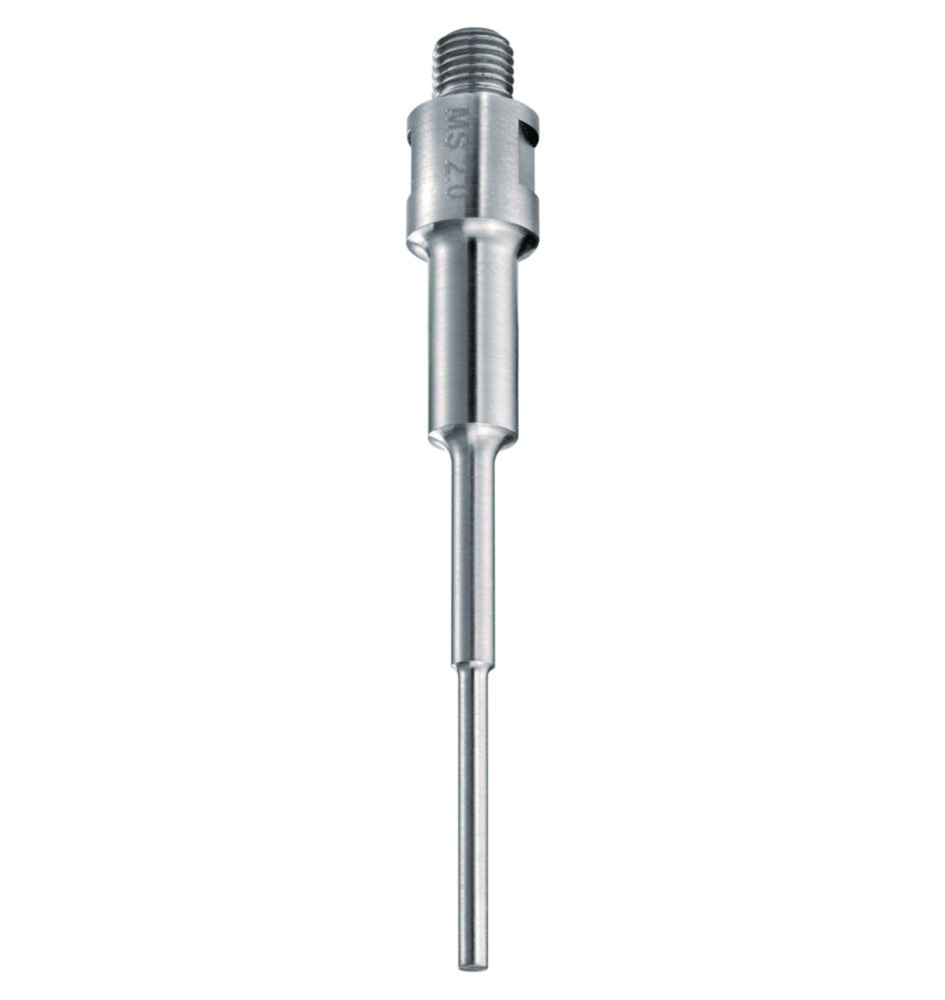

MS0.5 - MS10: Sonotrodes made of titanium, approx. length 80 mm.T1: Timer from 00:00 to 99:59 (min:sec).
Sonotrode for compact ultrasonic processor UP200S/UP200H
Titanium, approx. length 100 mm.* with glass flow vessel GD14K.

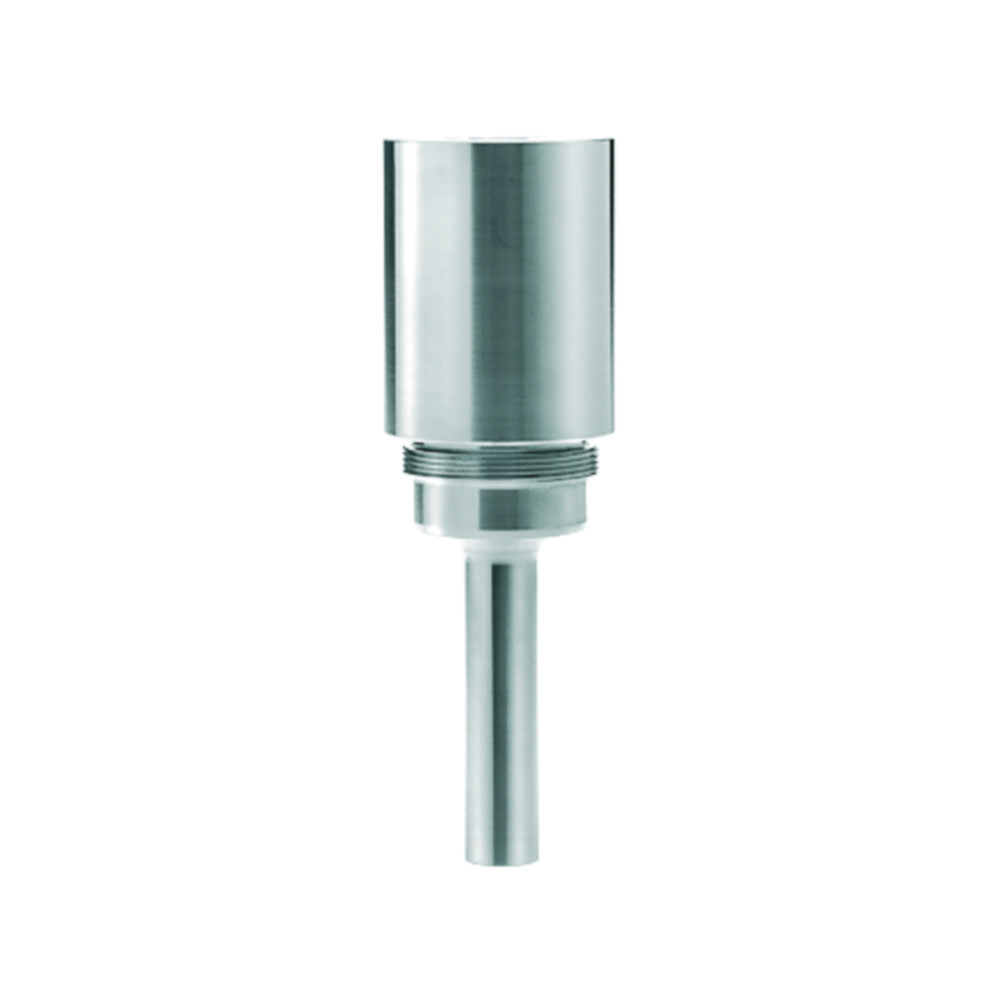

Booster horns and stepped horns for SONOPULS Ultrasonic homogenisers, TiAl6V4
Booster horns, stepped horns for connection of interchangeable sonotrodes (probes). Further booster horns are available on request.

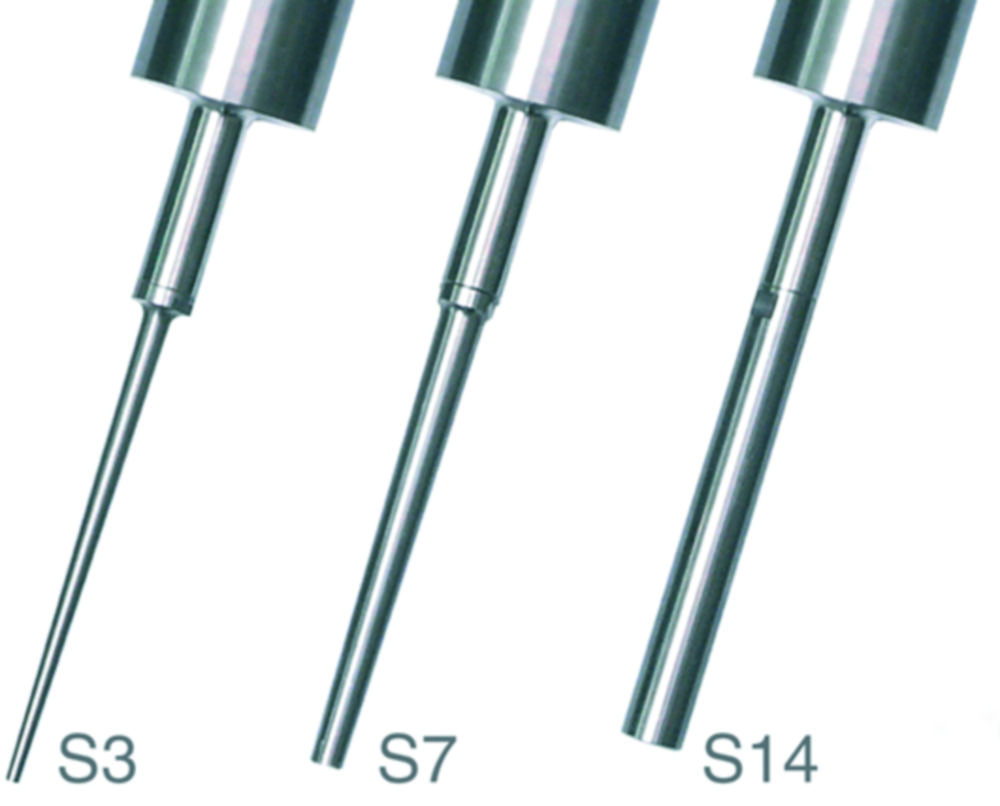

Sonotrodes for ultrasonic homogenisers SONOPULS HD 5050 / SONOPULS HD 4000 series
Titanium sonotrodes.For connection to stepped horns/booster horns.
Holding frame for Ultrasonic homogenisers SONOPULS
For correct and variable positioning of the ultrasonic transducers.Suitable for direct and indirect sound reinforcementCan be used with and without LS 40 noise protection boxCommercially available sockets can be mounted on stand rod (d=16 mm)Material base and rod: stainless steel
Sound proof box LS 40
To reduce the noise level when sonicating samples with an ultrasonic homogeniser. The lower part of the interior and the removable bottom tray are made of stainless steel and are therefore chemically resistant and easy to clean.Noise reduction of up to 30 dB-AULED interior lightingAcrylic glass windowWith effective ventilation systemWith opening (40 x 70 mm) for cooling tubing, sample circulation or the SONOPULS temperature sensor on the backRemovable bottom trayEasy retrofitting for use with sonotrodes or cup booster possibleThe stand HG 40 is required to attach the ultrasonic converter. Please order separately.

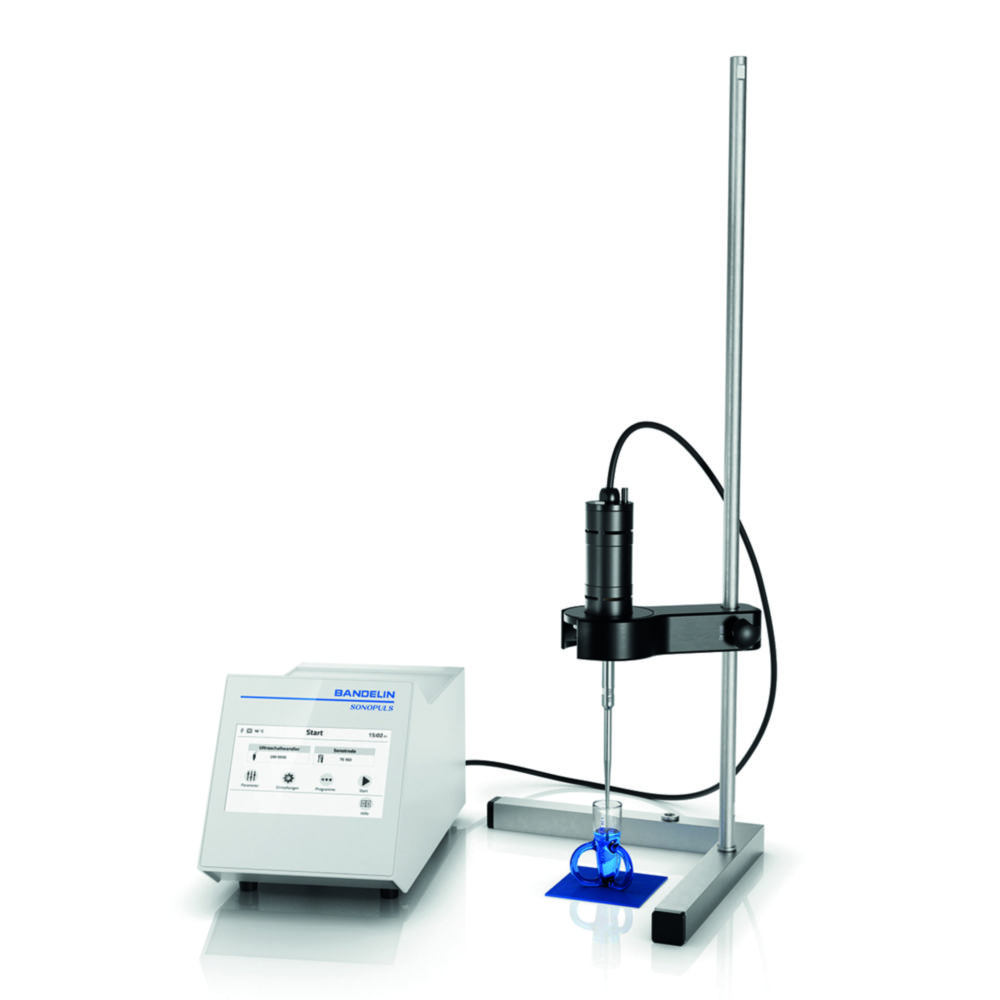

Ultrasonic homogeniser SONOPULS HD 5020, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 5000 series are characterised by optimised process times and quickly available reproductive results.7" colour touch display with intuitive, user-friendly operationDisplay and control of all set parameters of the running programmeAmplitude and pulse interval individual adjustable8 programmes can be storedTimer or continuos operationUSB and Ethernet interfaceConnection socket for optional temperature sensorFor volumes from 0.1 to 25 ml (depending on the sonotrode used).Ready-to-operate set for volumes from 0.1 to 10 ml consisting of:Ultrasound generator GM 5000Ultrasonic converter UW 5020Titanium sonotrode MS 1.5, Ø 1.5 mmOptional temperature sensor and further titanium sonotrodes with Ø 2.0 mm and 2.5 mm available separately.HF generatorGM 5000Dimensions (W x D x H):195 x 385 x 215 mmConverterUW 5020Dimensions (Ø x L):50 x 150 mmUltrasonic nominal power:max. 20 WWorking frequency:40 kHzPower supply:90 ... 250 V, 50/60 Hz
Ultrasonic homogeniser SONOPULS HD 5050, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 5000 series are characterised by optimised process times and quickly available reproductive results.7" colour touch display with intuitive, user-friendly operationDisplay and control of all set parameters of the running programmeAmplitude and pulse interval individual adjustable8 programmes can be storedTimer or continuos operationUSB and Ethernet interfaceConnection socket for optional temperature sensorFor volumes from 0.5 to 100 ml (depending on the sonotrode used).Ready-to-operate set for volumes from 0.5 to 20 ml consisting of:Ultrasound generator GM 5000Ultrasonic converter UW 5050Titanium sonotrode TS 102, Ø 2 mmOptional temperature sensor and further titanium sonotrodes with Ø 3 mm, 4.5 mm, 6 mm and 9 mm available separately.HF generatorGM 5000Dimensions (W x D x H):195 x 385 x 215 mmConverterUW 5050Dimensions (Ø x L):50 x 185 mmUltrasonic nominal power:max. 50 WWorking frequency:20 kHzPower supply:90 ... 250 V, 50/60 Hz
Ultrasound generator GM 5000
The ultrasound generator converts the low-frequency mains voltage into a high-frequency voltage. In combination with a compatible ultrasonic transducer and sonotrode, suitable for homogenisation, deagglomeration, emulsification, suspension, acceleration of chemical reactions or disruption of cells, bacteria, fungi or spores.Sturdy plastic housing7" colour touch display with intuitive, user-friendly operationDisplay and control of all set parameters of the running programmeAmplitude and pulse interval individual adjustable8 programmes can be storedTimer or continuos operationUSB and Ethernet interfaceFor all SONOPULS ultrasonic transducer of the UW 5000 seriesPlease order compatible ultrasonic transducer and sonotrodes separately.Amplitude range:10 ... 100 %Ultrasonic frequency:40 kHzUltrasonic nominal power:20 WTimer:1 s ... 99 h 59 min 59 sDimensions (W x D x H):195 x 385 x 215 mmWeight:3,1 kgPower supply:90 ... 250 V, 50/60 HzIP code:IP30
Ultrasonic transducer UW 5020
The ultrasonic transducer converts the electrical energy supplied by the ultrasound generator into mechanical vibrations.Button for switching the ultrasonic operation on/offConnection for optional temperature sensor to monitor the sample temperatureThe UW 5020 is particularly suitable for gentle sonication of the smallest sample volumes of 0.1 to 25 ml at 40 kHz and sonotrodes with a diameter of 1.5 to 2.5 mm.Please order optional temperature sensor and sonotrodes separately.
Ultrasonic transducer UW 5050
The ultrasonic transducer converts the electrical energy supplied by the ultrasound generator into mechanical vibrations.Button for switching the ultrasonic operation on/offConnection for optional temperature sensor to monitor the sample temperatureThe UW 5050 is particularly suitable for gentle sonication of smaller sample volumes of 0.5 to 100 ml at 20 kHz and sonotrodes with a diameter of 2 to 9 mm.Please order optional temperature sensor and sonotrodes separately.

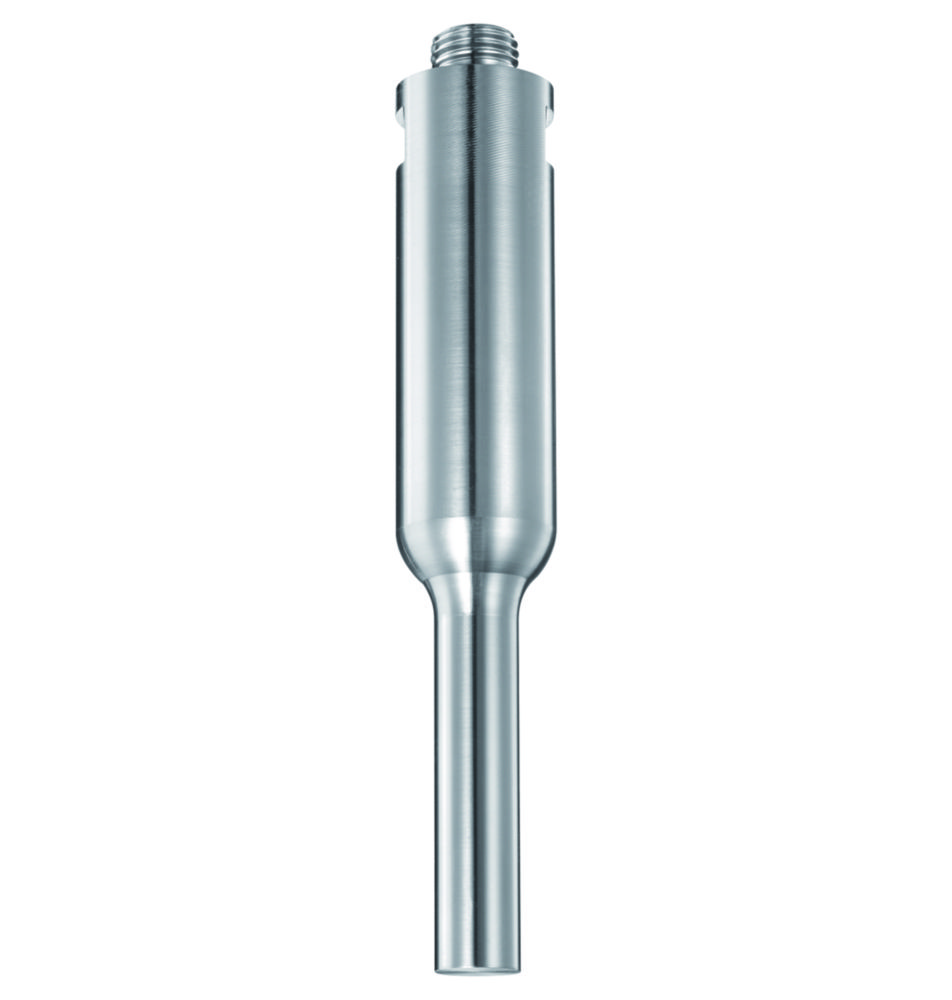

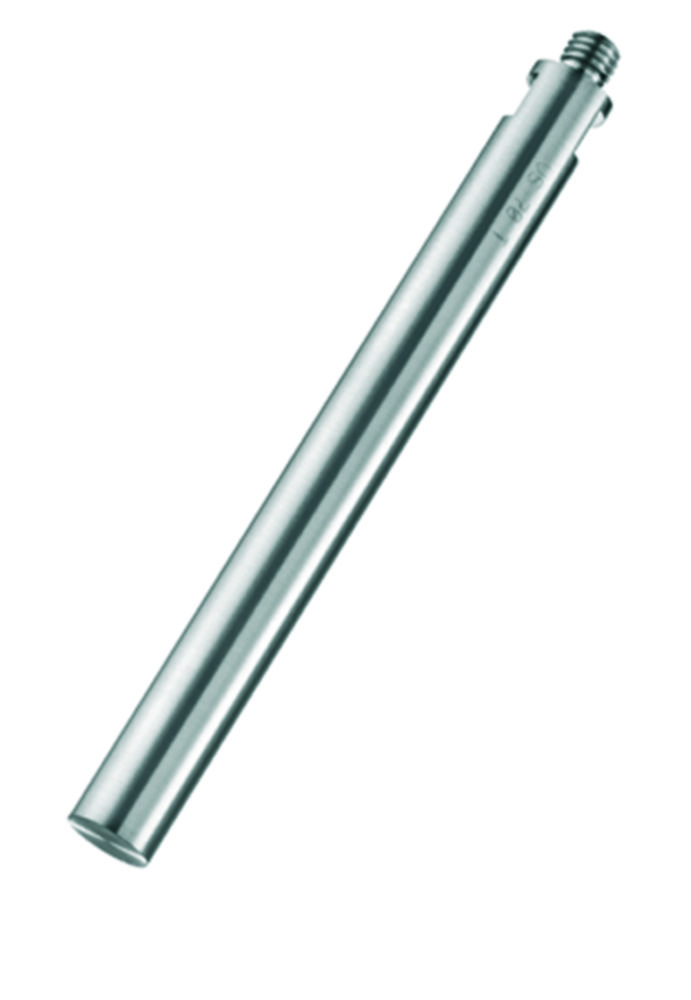

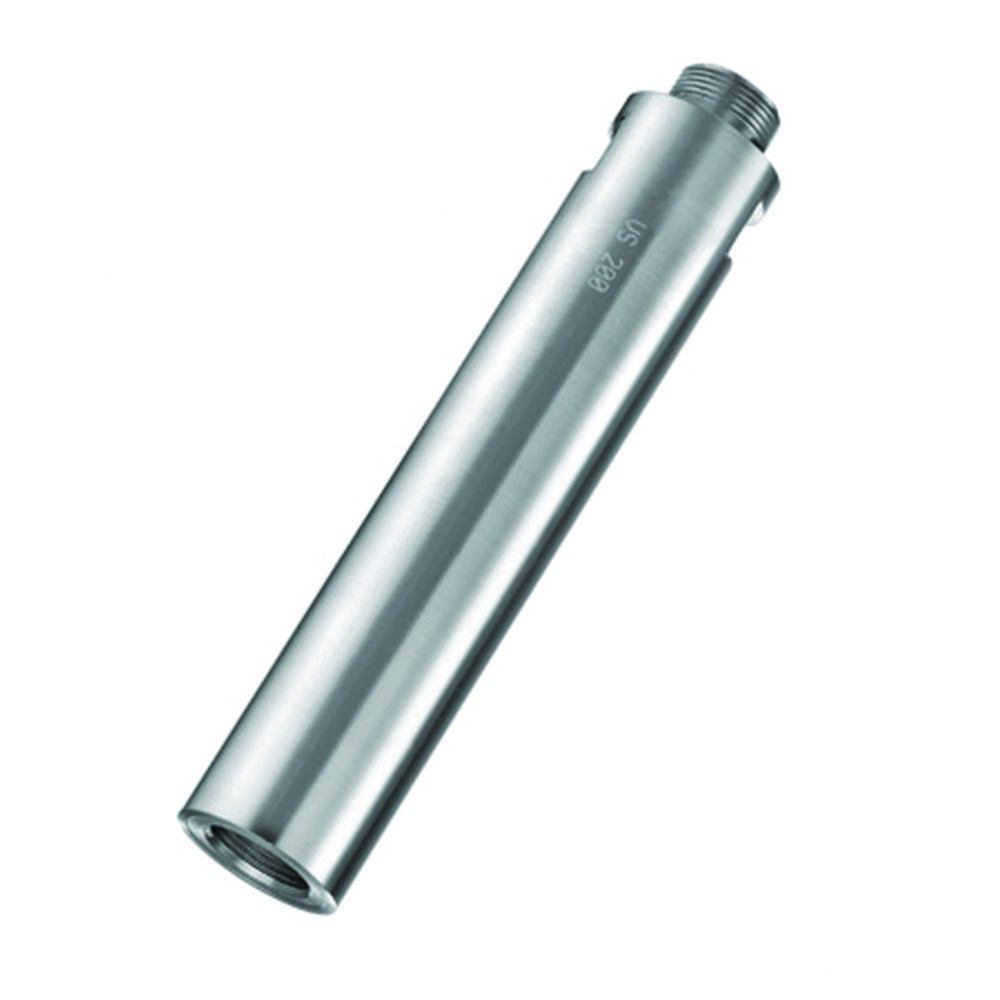

Probe extentions for Sonotrodes
For enlarging the length of the probe and to operate in deep vessels. They are mounted between standard or booster horn and titanium flat tip.
Stand for ultrasonic homogenisers, stainless steel
Stand made of stainless steel, incl. stand rod (Ø 16 x 500 mm).

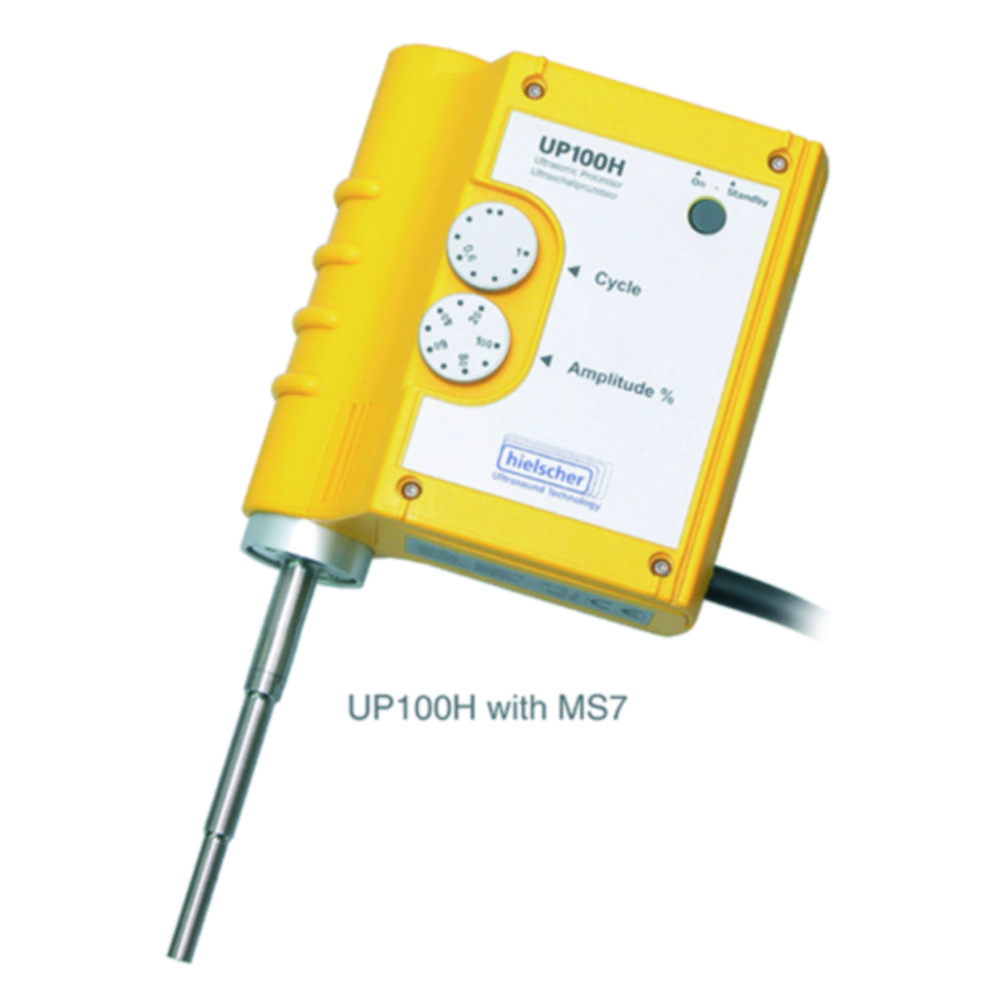

Ultrasonic Processor UP50H/UP100H
For manual operation or for stand use, frequency 30kHz, automatic frequency tuning system, amplitude adjustable 20% to 100%, pulse 0 to 100%, dry running protected, in portable case, with mounting for stand STH-16 and mounting tools, 230V a.c.
Sonotrodes for ultrasonic homogenisers SONOPULS mini20 / SONOPULS HD 5020
Titanium sonotrodes.For connection to stepped horns/booster horns.
Sonotrodes for ultrasonic homogenisers UP200Ht / UP200St, titanium
Sonotrodes made of titanium. With M6x0.75 male thread. Autoclavable.Sonotrodes S26d2D and S26d7D with seal for closed systems for use with flow cell reactor.

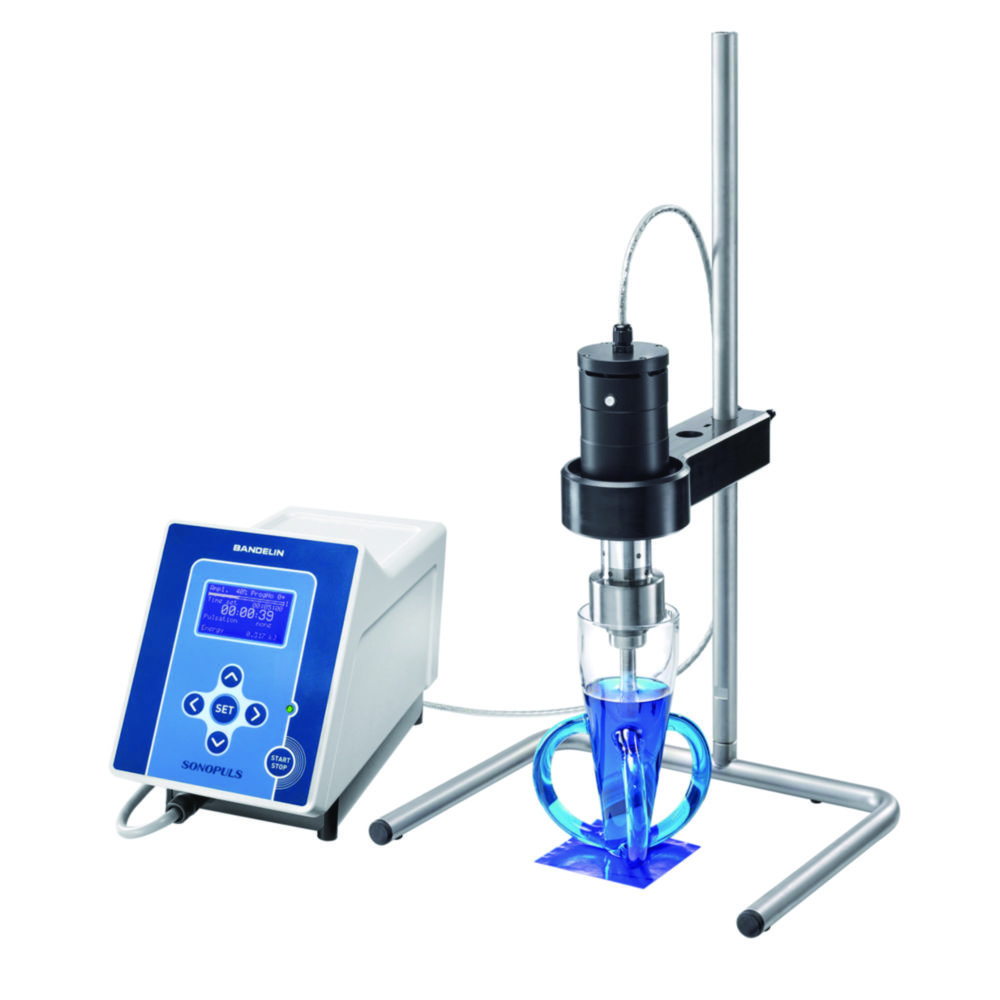

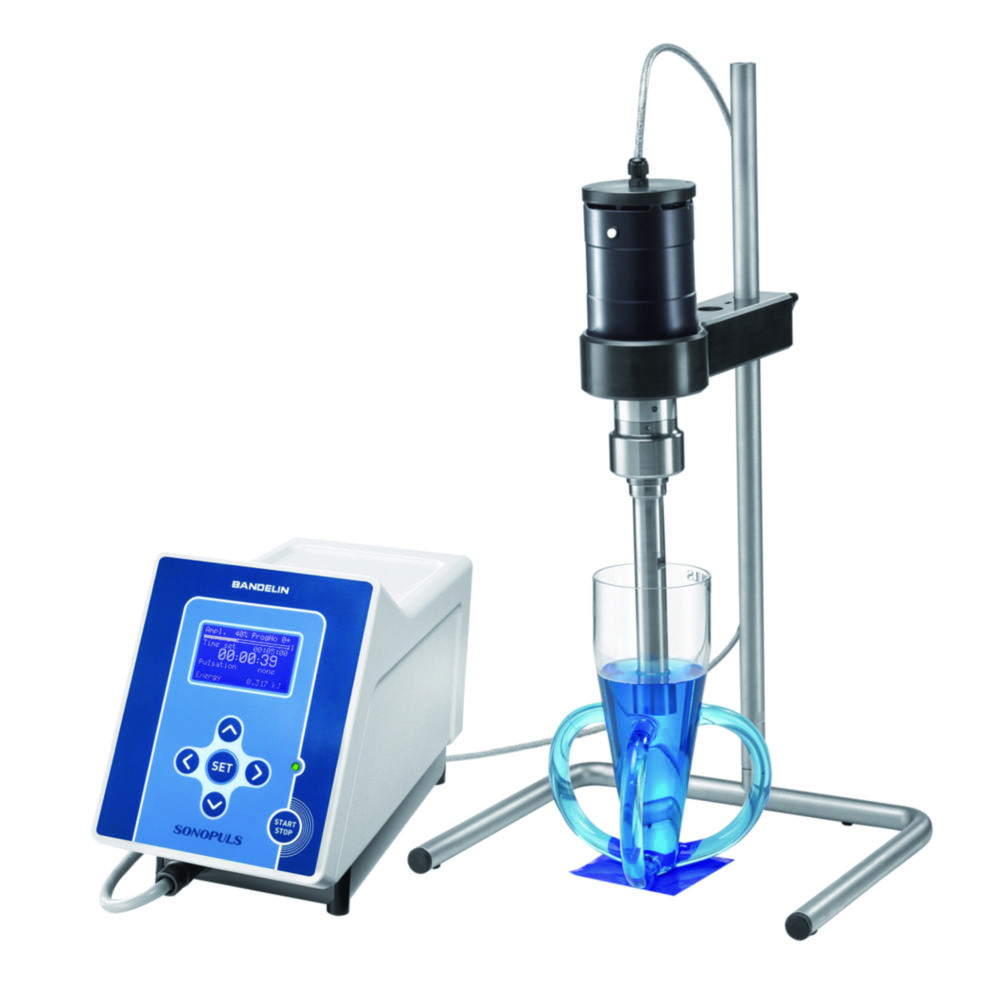

Ultrasonic homogeniser, SONOPULS HD 4400, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionAlso available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.For volumes 100 to 3000 ml. Ready-to-operate set for volumes from 500 to 2000 ml consisting of:HF generator GM 4400Ultrasonic converter UW 400Standard horn SH 400 GTitanium probe TS 425, diam. 25 mmFurther Titanium probes with diam. 13 mm, 16 mm, 19 mm, 32 mm and 38 mm available on request.HF generator
Dimensions (W x D x H):GM 4400
150 x 335 x 220 mmConverterUW 400Dimensions (diam. x L):86 x 180 mmUltrasonic nominal power:max. 400 W

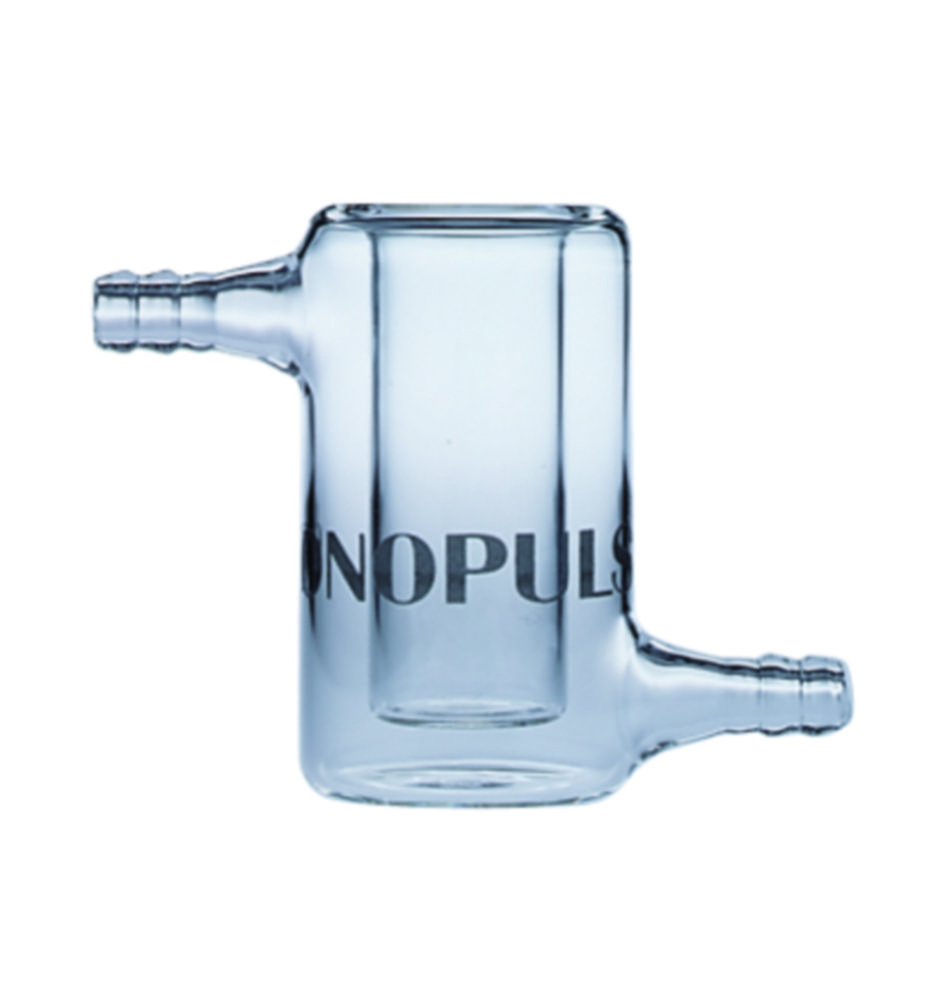

Glass sample vessels, Borosilicate glass 3.3 for Ultrasonic homogenisers SONOPULS
For direct ultrasonic irradiation.

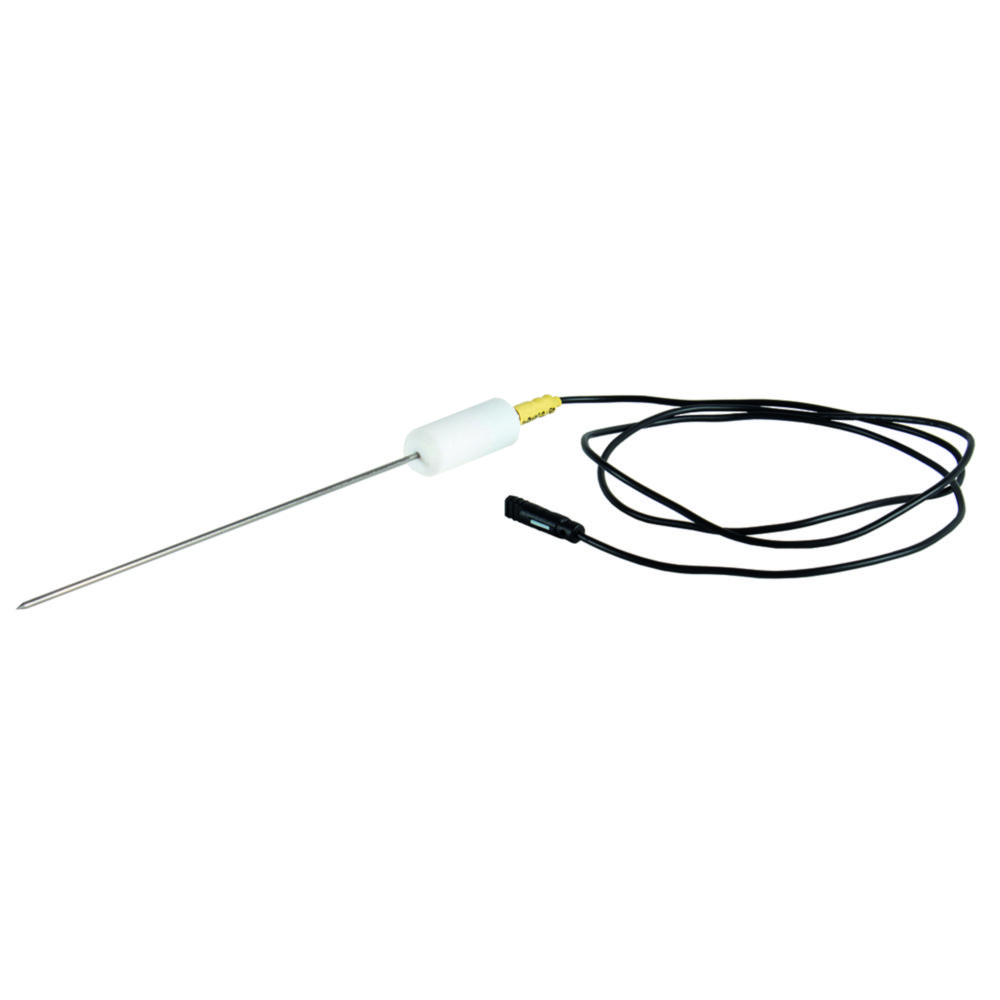

Temperature probe TM 5000
The temperature probe can be connected to the socket of the ultrasonic transducer. This activates the temperature detection and enables user-defined temperature monitoring during the sonication process. On the ultrasonic generator, either a warning signal or a shutdown of the ultrasound can be set when the limit temperature is reached.

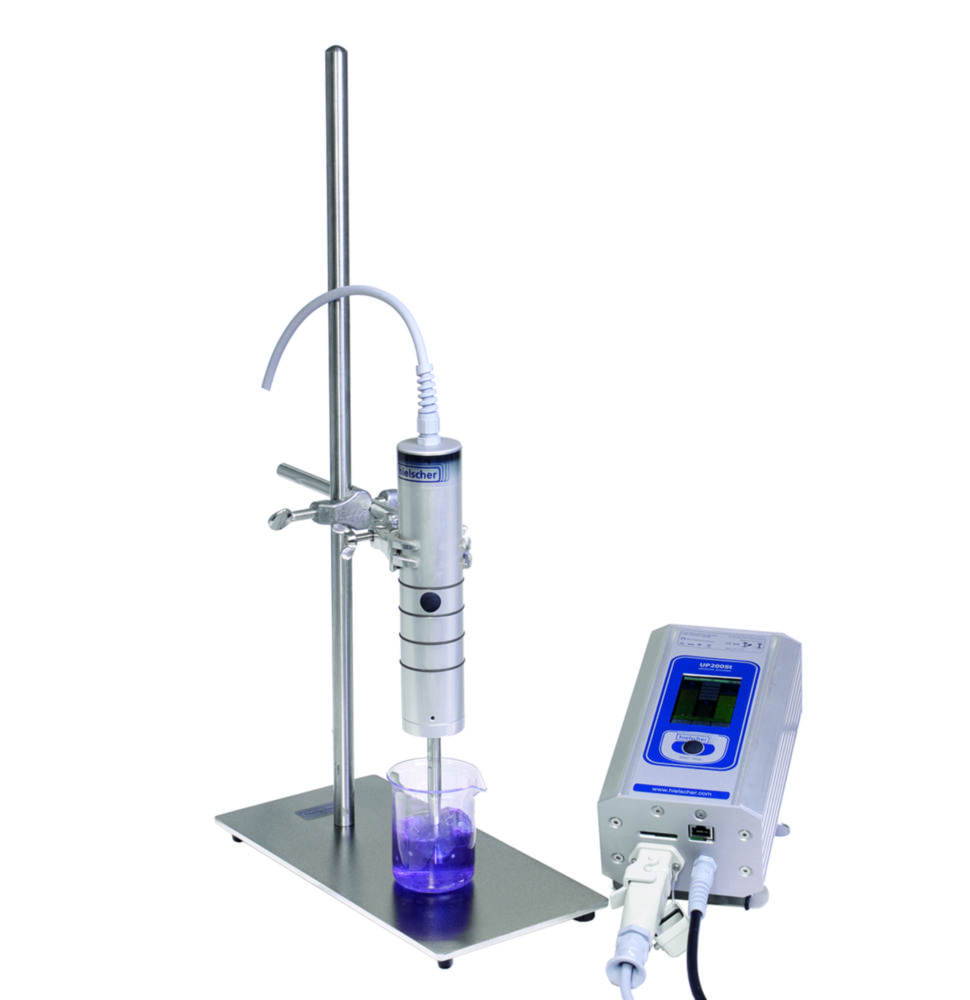

Ultrasonic homogeniser UP200St
Ultrasonic homogeniser consisting of generator and transducer for flexible use in various laboratory areas. Ideal for sample preparation for cell disruption, homogenisation, dispersion and emulsification of samples. The ultrasonic homogeniser can be used both as a hand-held device and on a stand. Colour touch displayDigital setting and control functionsAutomatic frequency tuningAmplitude and pulse adjustableCountdown timer from 0.1 s to 99 daysOperation and control via LAN for display and remote control via browser without software installation on PCEthernet interfaceTemperature display in °C and °FData recording on internal SD card (1 GB)2 LEDs for sample illuminationDry run protectionScope of supply: Generator UP200St-G, transducer UP200St-TSonotrodes and stand material are not included in the scope of supply. Please order separately.Pulse range:10 ... 100 %Frequency:26 kHzUltrasonic power:200 WTransducer dimensions (Ø x L):45 x 230 mmTitanium horn (Ø):10 mmMax. amplitude:70 µmPower supply:100 ... 240 V, 50 ... 60 HzIP class:IP 51 (generator), IP 65 (transducer)Amplitude range:20 ... 100 %
Ultrasonic homogeniser, SONOPULS HD 4200, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionAlso available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.For volumes 5 to 1000 ml. Ready-to-operate set for volumes from 20 to 900 ml consisting of:HF generator GM 4200Ultrasonic converter UW 200Standard horn SH 200 GTitanium probe TT 213, diam. 13 mmFurther Titanium probes with diam. 4.5 mm, 6 mm, 9 mm, 16 mm and 25 mm available on request.HF generator
Dimensions (W x D x H):GM 4200
150 x 335 x 220 mmConverterUW 200Dimensions (diam. x L):70 x 150 mmUltrasonic nominal power:max. 200 W

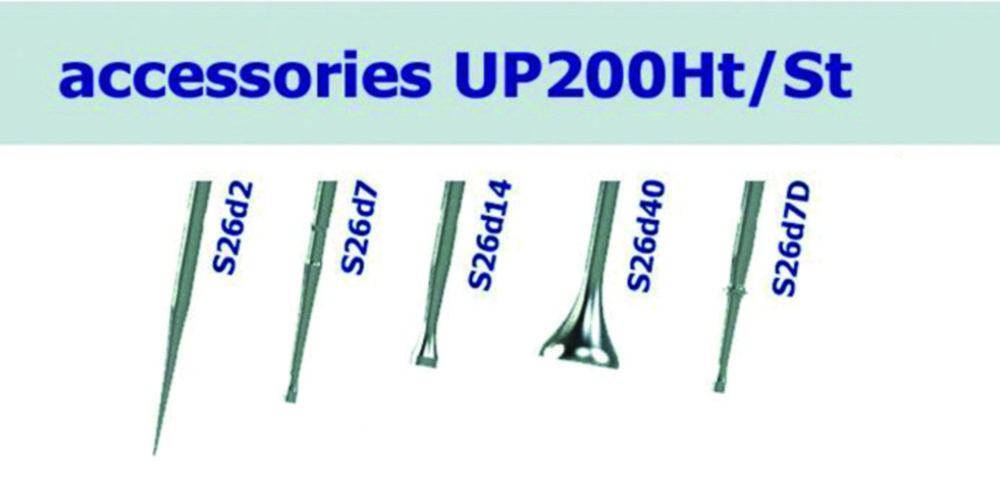

Sonotrodes for ultrasonic homogenisers UP200Ht / UP200St
Sonotrodes made of glass and titanium. With M6x0.75 male thread.
Sound insulation box for ultrasonic homogenisers
Sound insulation box made of acrylic glass with divisible rod (Ø 16 mm), height-adjustable table and anti-slip mat. Sound insulation 22 dB (A) open air measurement.

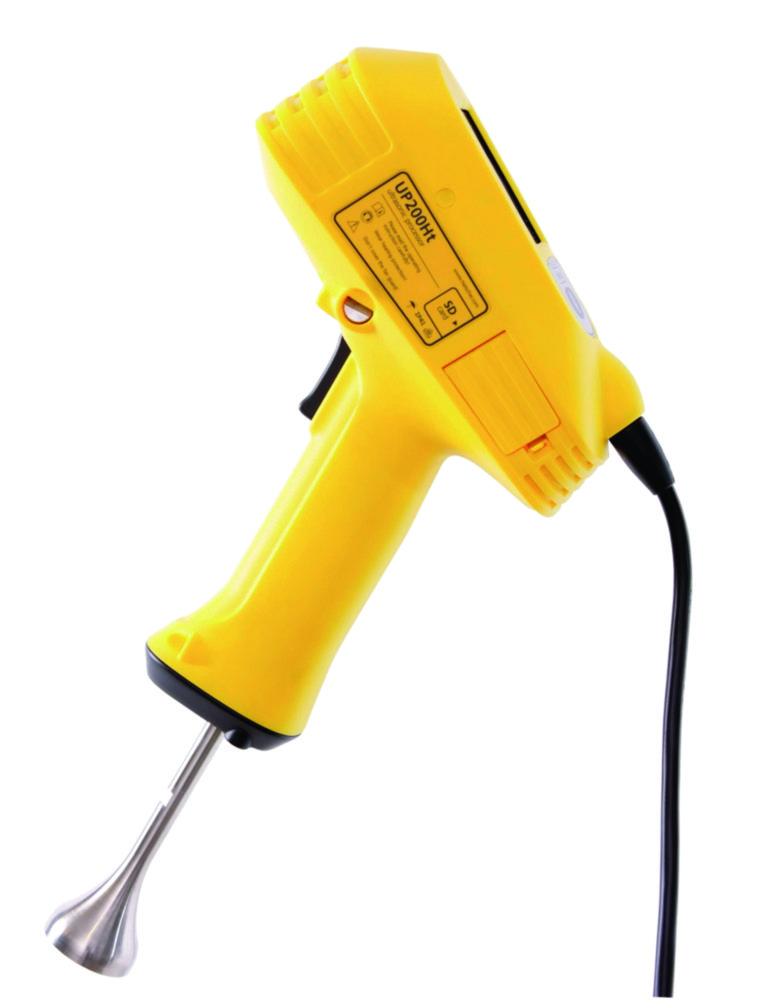

Ultrasonic Homogeniser UP200Ht
Digital ultrasonic processor, 200 watts, for handheld and stand-mounted use, frequency 26kHz (auto-scan), amplitude 20-100%, pulse 10-100%, titanium horn Ø10mm (max. amplitude at horn 70µm), colored touch-screen, amplitude or power control, countdown (timer): 0.1sec to 99 days, shutdown when final energy input reached (Ws, Wh, kWh), autom. Calibration of the amplitude-dependent idle power, data recording: amplitude, power, time, temperature on internal SD/USB ComboCard (1GB), display and remote control via browser on PC/MAC without software installation, remote control via PLC, with temperature sensor, temperature indication: °C/°F (-50°C to 200°C), temperature monitoring, dry running protected, sample illumination, anti-bacterial plastic housing, simplified exchange sonotrodes, power supply 100-240V~, 50-60Hz, IP41 grade, set weight: 1300g, Carrying case incl. fixture for stand STH-12 and 3m network cable
Ultrasound generator UP200St-G
In combination with ultrasonic transducer and sonotrode, suitable for cell disruption, homogenisation, dispersion and emulsification of samples.Colour touch displayDigital setting and control functionsAutomatic frequency tuningAmplitude and pulse adjustableCountdown timer from 0.1 s to 99 daysOperation and control via LAN for display and remote control via browser without software installation on PCEthernet interfaceTemperature display in °C and °FData recording on internal SD card (1 GB)Dry run protectionPlease order ultrasonic transducer and sonotrodes separately.Amplitude range:20 ... 100 %Ultrasonic frequency:26 kHzUltrasonic power:200 WTimer:0.1 s ... 99 daysPower supply:100 ... 240 V, 50 ... 60 HzIP code:IP51
Ultrasonic transducer UP200St-T
The UP200St-T is suitable for sonication of 2 to 1000 ml sample volumes at 26 kHz and accomodate sonotrodes with a diameter from 2 to 40 mm.Push button for switching on/off2 LEDs for sample illuminationPlease order sonotrodes separately.
Flow cell reactor FC7K for ultrasonic homogenisers UP200Ht / UP200St, stainless steel
Stainless steel flow cell with cooling jacket, NBR O-ring, hose connection, plastic clamps and 2 m long hose. Suitable for sonotrodes S26d2D or S26d7D.

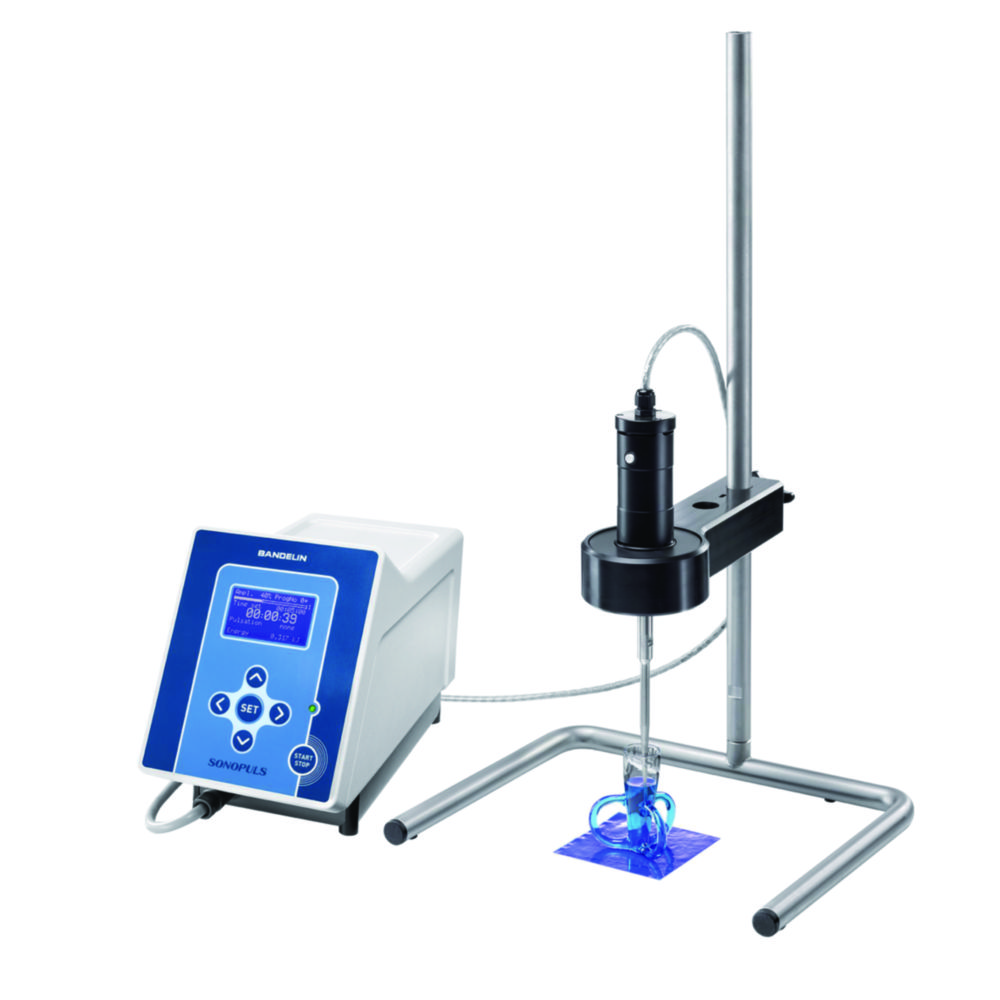

Ultrasonic homogeniser, SONOPULS HD 4050, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionAlso available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.For volumes from 0.5 to 100 ml. Ready-to-operate set for volumes from 0.5 to 20 ml consisting of:HF generator GM 4200Ultrasonic converter UW 50Titanium probe TS 102, diam. 2 mmFurther Titanium probes with diam. 3 mm, 4.5 mm and 6 mm available on request.HF generator
Dimensions (W x D x H):GM 4200
150 x 335 x 220 mmConverterUW 50Dimensions (diam. x L):45 x 175 mmUltrasonic nominal power:max. 50 W

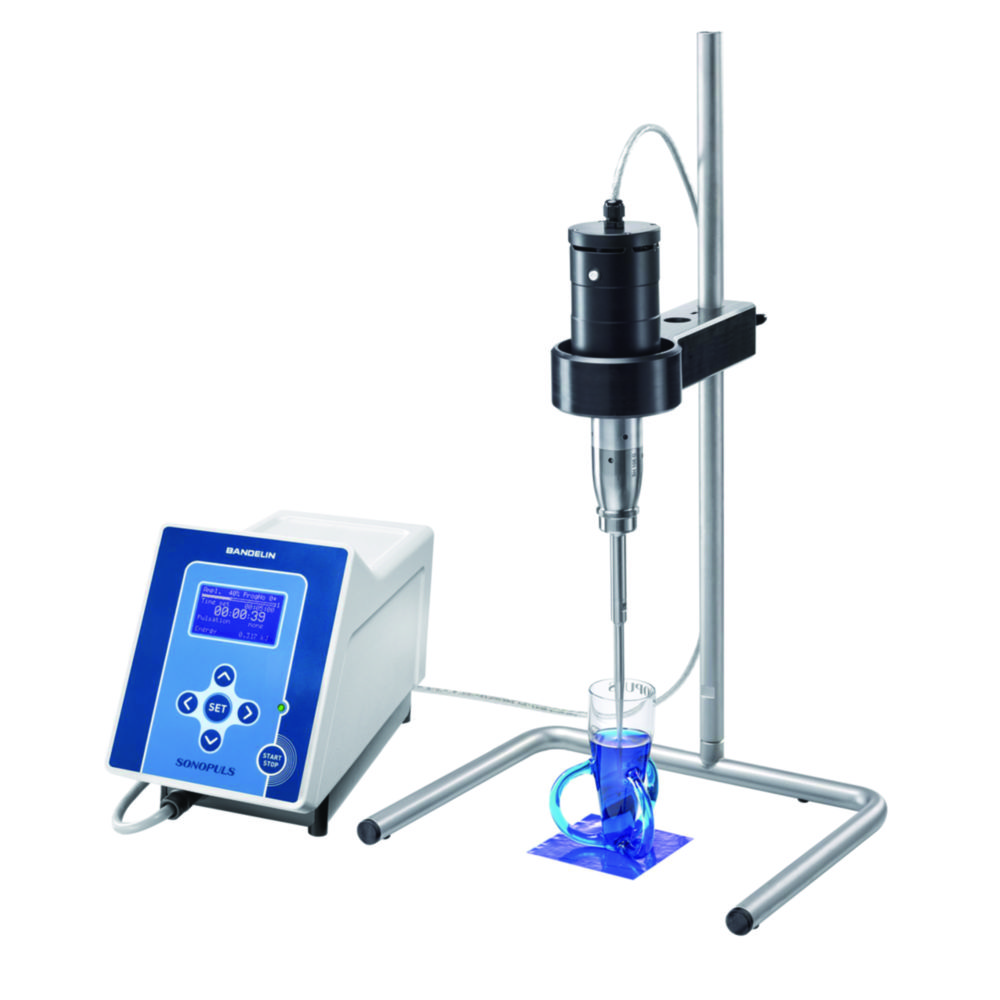

Ultrasonic homogeniser, SONOPULS HD 4100, set without stand annd vessel
Suitable for homogenising, desagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores. The devices of the SONOPLUS 4000 series are characterised by optimised process times and quickly available reproductive results.LC display for amplitude, pulse level, time and powerPulse mode, AMPLICHRON®-circuitData memoryBatch mode/sequencingTemperature display and measurementRemote control via PC RS 232Interference suppressionAlso available as medicine product according to the guideline for in-vitro-diagnostica 98/79/EG.For volumes 2 to 200 ml. Ready-to-operate set for volumes from 3 to 50 ml consisting of:HF generator GM 4200Ultrasonic converter UW 100Standard horn SH 100 GTitanium probe TS 103, diam. 3 mmFurther Titanium probes with diam. 2 mm, 4.5 mm, 6 mm, 9 mm and 13 mm available on request.HF generator
Dimensions (W x D x H):GM 4200
150 x 335 x 220 mmConverterUW 100Dimensions (diam. x L):70 x 150 mmUltrasonic nominal power:max. 100 W

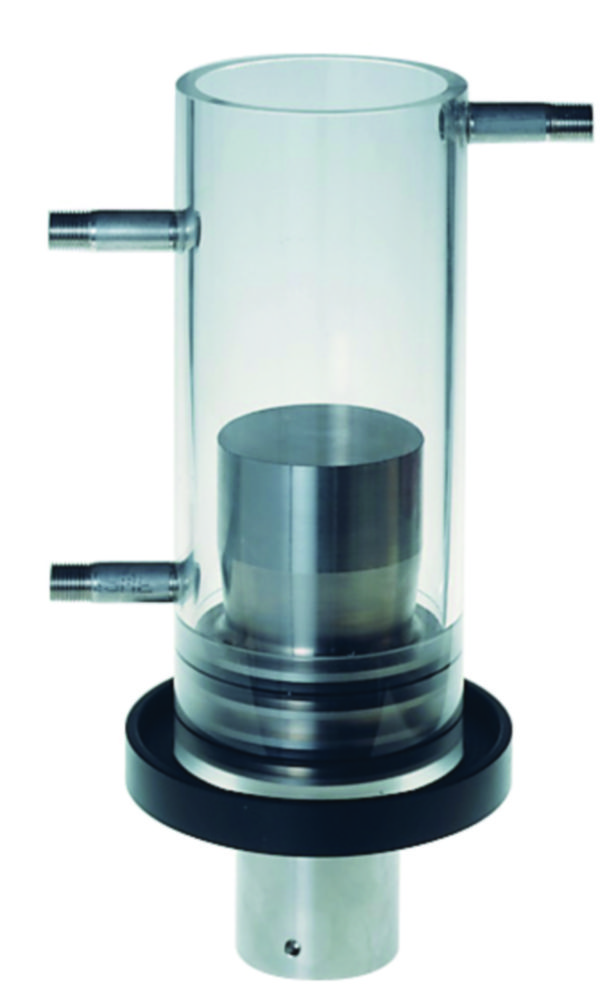

Cup booster BR 30 for Ultrasonic homogenisers SONOPULS
For SONOPULS HD 2070.2, HD 2200.2, HD 4100 and HD 4200. For indirect ultrasonic irradiation.BR 30 cup booster enables highly intensive sonication of small samples, disruption of cells or sonification of pathogenic or toxic substances.EH 3.1: Microtube holder for BR 30 for simultaneous sonification of pathogenic and toxic materials with: 1 perforated disc for 3 x 1.0 ml or 2.0 ml microtube cups each, 1 perforated disc for 3 x 0.5 ml microtube cups each, 1 perforated disc for 8 x 0.2 ml RPCR cups eachSpecificationsBeaker capacity:12mlInt. height:15mmInt. diameter:32mmMax. ultrasound intensity:3100 W/LMaterial:Titanium alloy (TiAl6V4)Converter and stand are not included.

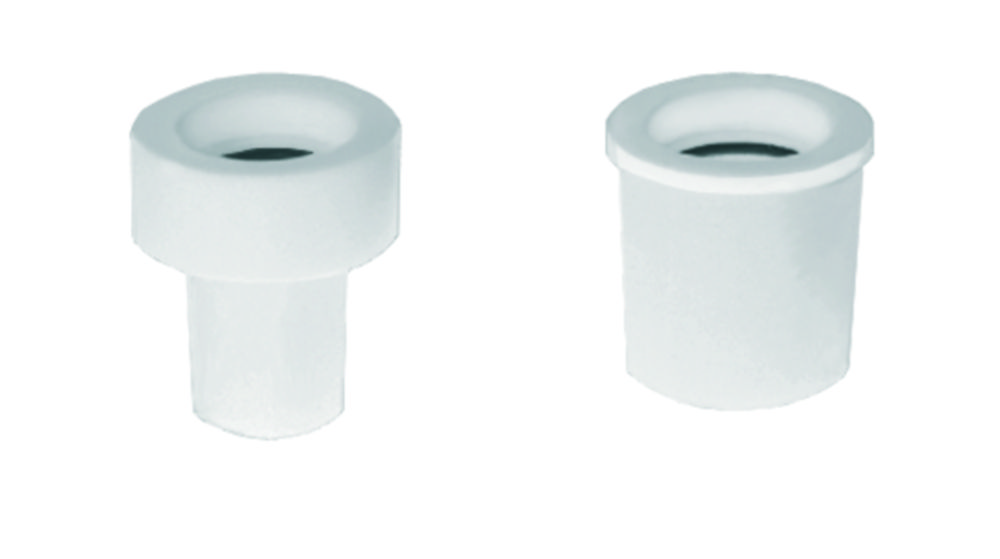

Sleeve adapters, PTFE for Ultrasonic homogenisers SONOPULS
PTFE sleeve adapters for mounting probes into standard ground joint vessels. For use with HD 2070.2 / 2200.2 / 4100 / 4200 / 4400 homogenisers.NA 29 G: for vessels with standard ground joint 29/32 and for horns SH 70 / 213 G / 100 G / 200 GNA 45 G: for vessels with standard ground joint 45/40 and for horns SH 70 / 213 / 219 / 225 G / 200 G / 400 G
Probes for Sonopuls Ultrasonic homogenisers, titanium
Titanium probes.For connection to stepped horns/booster horns.

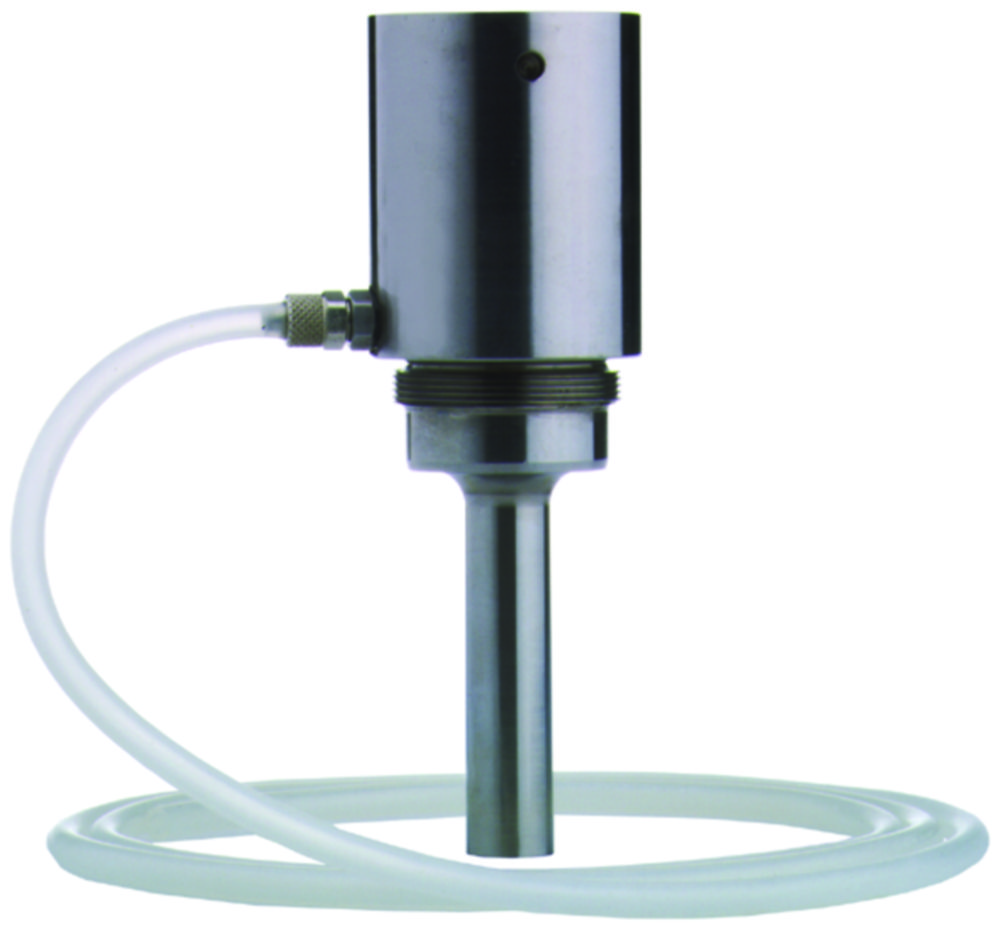

Flow-through standard horn for Sonopuls Ultrasonic homogenisers
For indirect ultrasonic irradiationFlow-through standard horn FZ 5 G with external screwthread and titanium flat tip TT 13 FZFlow-through standard horn FZ 7 G with external screwthread and titanium flat tip TT 13 FZ
Ultrasonic processing vessels for SONOPULS Ultrasonic homogenisers
Ultrasonic processing vessels. Plastic and Titanium alloy (TiAl6V4). For indirect ultrasonic irradiation. BB 6 fits directly to UW 200 / UW 2200. Microtube holder EH6. Stainless steel. For simultaneous, contact-free ultrasonic irradiation of up to 6 samples using the ultrasonic homogeniser HD 2200.2 / HD 4200 and ultrasonic processing vessel BB 6.

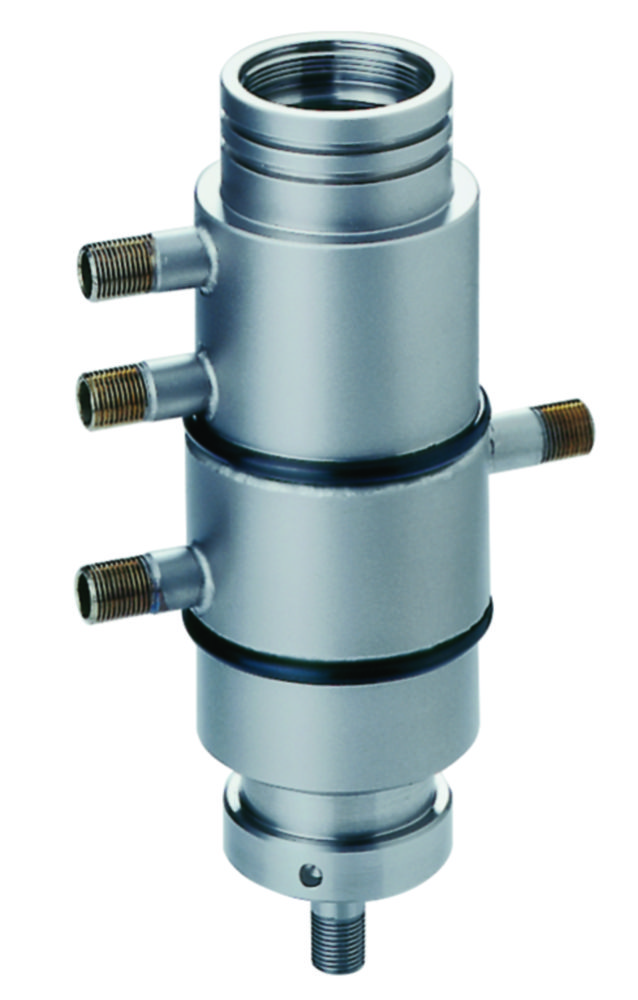

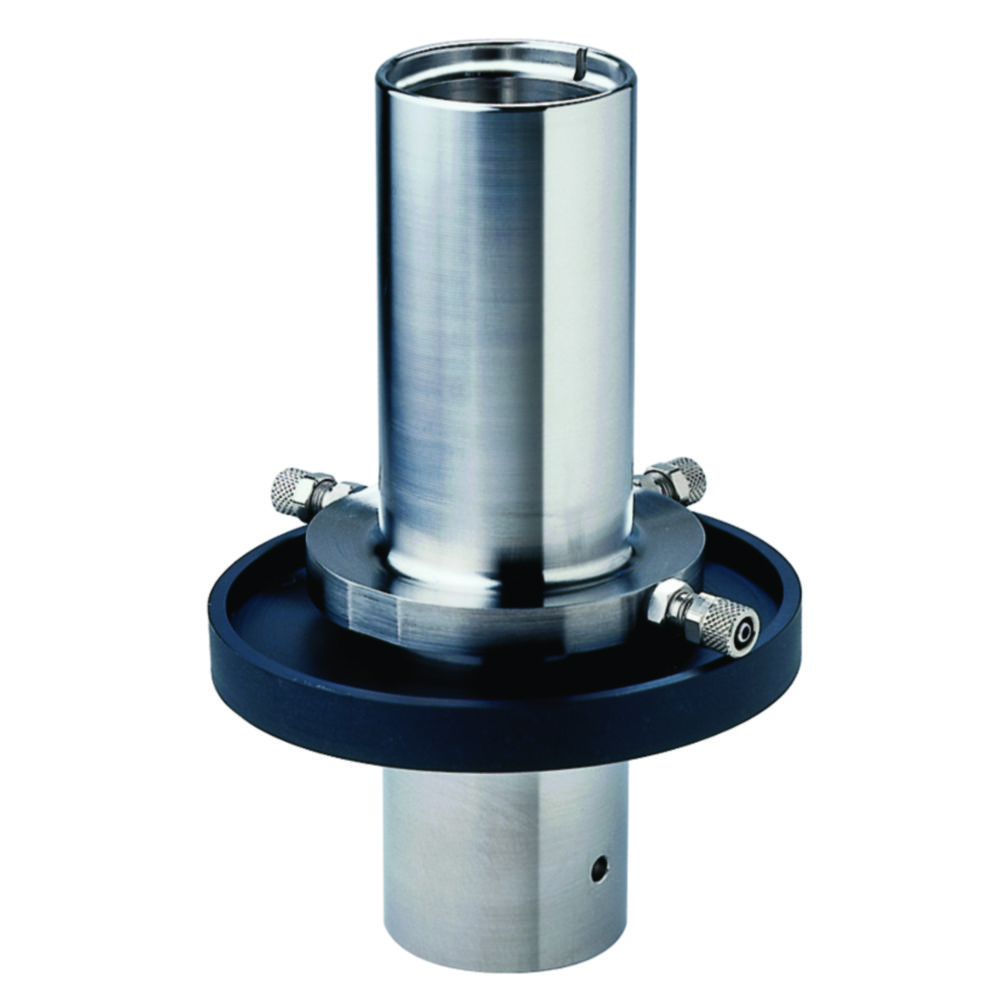

Flow-through cell for SONOPULS Ultrasonic homogenisers, stainless steel
Stainless steel, sealed, vibration-free reaction vessel with cooling jacket. For direct ultrasonic irradiation. For connection to SH 70 G or SH 213 G with TT 13. For HD 2070.2 and HD 2200.2. homogenisers. Flow rate up to 30 L/hr.
