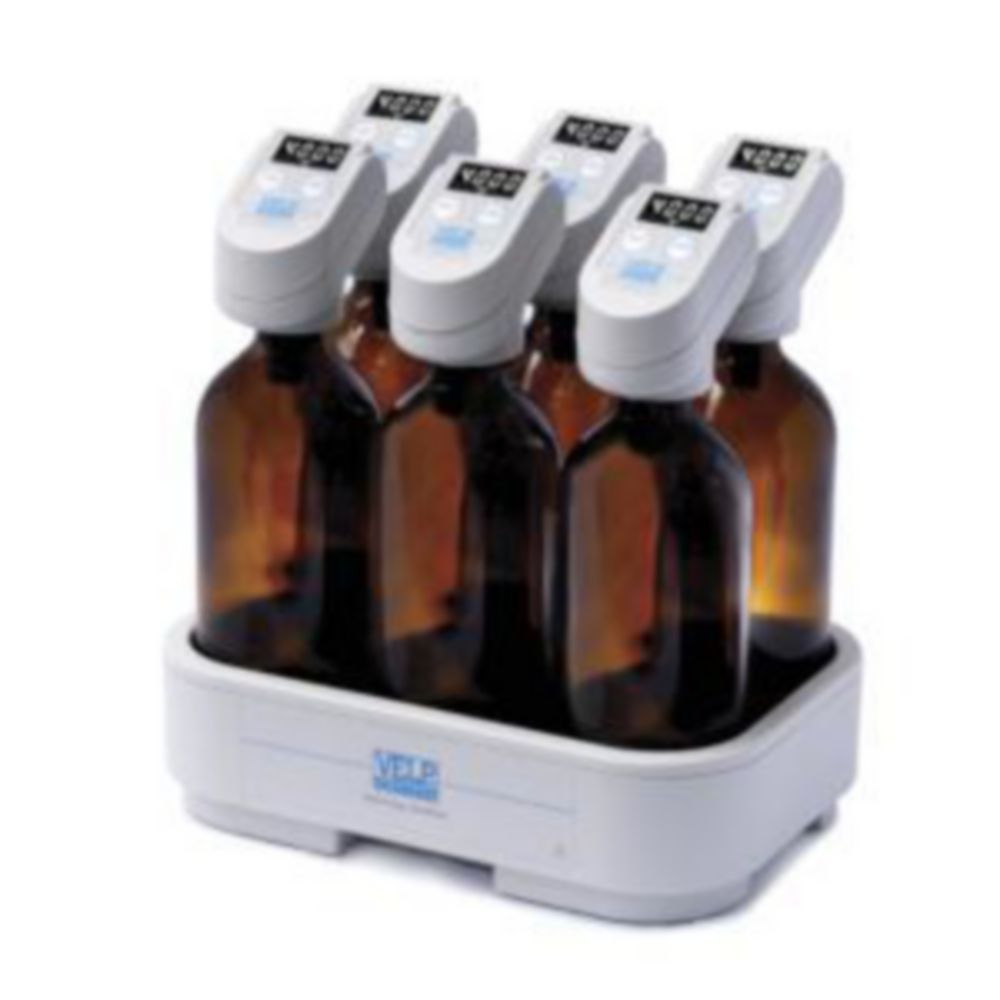

RESPIROMETRIC Sensor System 6 BOD
Content:
1
Product number:
4684067
Product information "RESPIROMETRIC Sensor System 6 BOD"
Measuring systems for the reliable determination of 90 to 4000 ppm BOD, BOD5 and BOD7 for the control of water and wastewater quality.
Complete with sensor heads and multi-position magnetic stirring station for performing aerobic and anaerobic respiration tests. Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.
Scope of supply: 6-position magnetic stirring station, 6 x sensor heads incl. batteries, 6 x 500 ml amber bottles, 6 x KOH containers, 6 x magnetic stirring bars
Complete with sensor heads and multi-position magnetic stirring station for performing aerobic and anaerobic respiration tests. Measurement data is transmitted wirelessly from the RESPIROMETRIC sensor head to a PC via the Databox™. The Databox™ can store results from up to 48 RESPIROMETRIC sensors. With the RESPIROSoft™ software, these measurement data can be evaluated and monitored on the PC. Alternatively, the Databox™ can be connected to the Velp Ermes cloud platform. After registration, measurement data can also be monitored and analysed from mobile devices.
- 4-digit LED display
- 2-button user interface
- Results available in BOD (mg/l) and pressure (mbar)
- Automatic conversion of pressure results into BOD
- Wireless transmission of data to the PC (Wlan)
Scope of supply: 6-position magnetic stirring station, 6 x sensor heads incl. batteries, 6 x 500 ml amber bottles, 6 x KOH containers, 6 x magnetic stirring bars
| BOD range: | 90 ... 4000 ppm |
| Pressure range: | 500 ... 2000 mbar |
| Measuring period: | 5 ... 30 days |
| Dimensions sensor (W x D x H): | 50 x 70 x 70 mm |
| Dimensions stirring station (W x D x H): | 270 x 185 x 300 mm |
| Weight sensor: | 80 g |
| Weight stirring station: | 1 kg |
| Power supply sensor: | 2 x CR 2430 |
| Power supply stirring station: | 230 V, 50 ... 60 Hz |
| IP code: | IP54 |
| Description: | RESPIROMETRIC Sensor System 6 BOD without Databox™ |
|---|---|
| Manufacturer Article Number: | SB10200146 |
