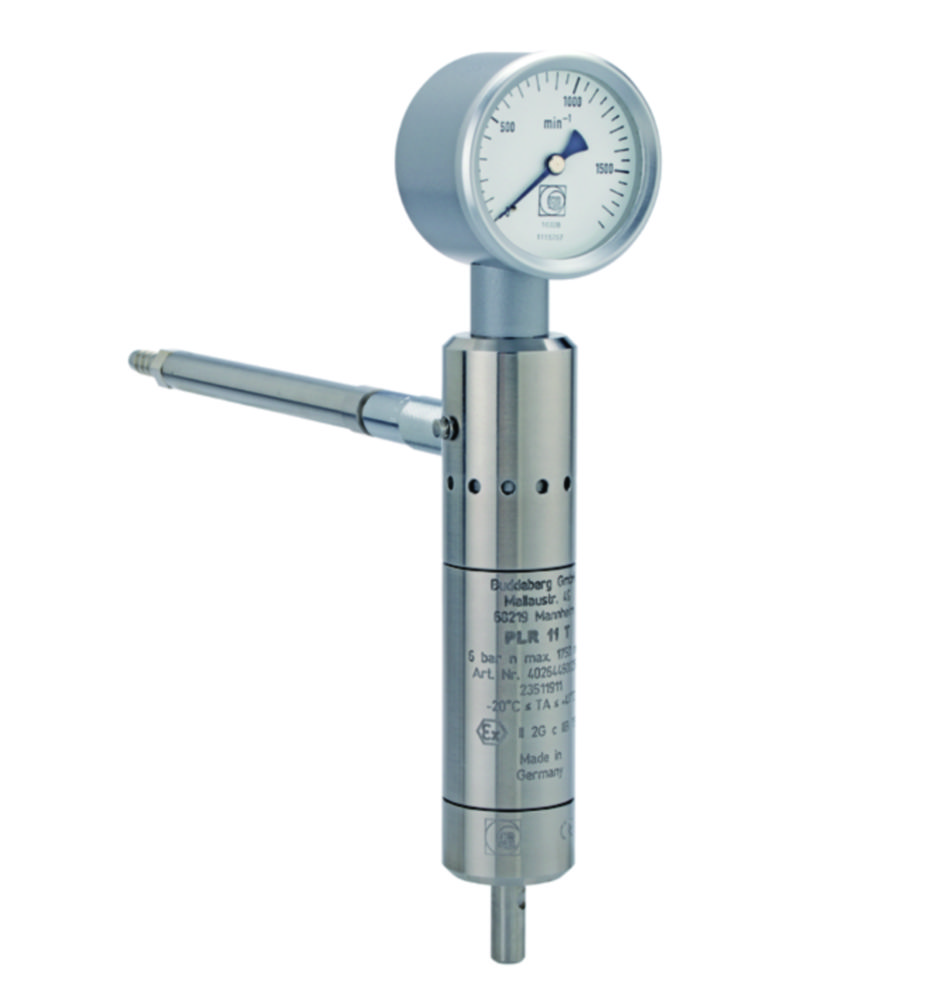

PLR compressed air laboratory stirrers up to 30 L for use in potentially explosive atmospheres, without/with tachometer
Content:
1
Product number:
9778963
Product information "PLR compressed air laboratory stirrers up to 30 L for use in potentially explosive atmospheres, without/with tachometer"
PLR compressed air laboratory stirrers are designed for all kinds of standard mixing tasks. The vane type, air-driven motor offers a high power density and is significantly lighter and smaller than an equivalent electric motor.
General specifications:
Basic models include:
* analogue tachometer
The viscosity data are intended as a guideline.
General specifications:
- operating pressure max. 6 bar
- air consumption 260 L/min. at 6 bar
- power output 200W at 6 bar
- clockwise rotation
- ATEX certification
Basic models include:
- all-stainless steel housing
- continuously adjustable speed control valve
- support arm diam. 14 mm
- snap connection for NW 5
- output shaft L x diam. 26 x 10 mm
* analogue tachometer
The viscosity data are intended as a guideline.
| ATEX certification: | Ex II 2G Ex h IIC T5 Gb |
|---|---|
| Capacity max. litres: | 30 |
| Manufacturer Article Number: | 40 26446 00269 5 |
| Off-load speed rpm.: | 80 |
| Power W: | 200 |
| Torque Nm: | 19.8 |
| Type: | PLR 13T* |
| Viscosity range mPas: | 150000 |
Skip product gallery
Accessories
Compressed air powered stirrers, PLR, accessories
Connection couplings VK:Fixed-diameter connection for motor/magnetic coupling drive shaft and stirring rod. Suitable for use in potentially explosive atmospheres. Material No. 1.4404.Flexible glass stirring shaft couplings PK:For stirring tasks using glass stirring rods. Elastic connector between motor and stirring shaft. Provides exact alignment of motor and shaft, and evens out axial and height differences. Accepts 6mm to 10mm diameter shafts.Flexible glass stirring shaft couplings K:For stirring tasks using glass stirring rods. Elastic connector between motor and stirring shaft. Provides exact alignment of motor and shaft, and evens out axial and height differences. Accepts 6mm to 10mm diameter shaftsDouble-Cardan-Coupling DCK I:With 8mm dia. hexagonal input drive receiver and 6mm square socket drive output.
