Overhead shakers DR-200
Content:
1
Product number:
9950375
Product information "Overhead shakers DR-200"
Drive for use with different mixing drums. Fitted with illuminated mains On/Off switch. Has variable speed with electronic speed control, range 6rpm to 60rpm, fitted with 10 to 60 minute timer with Off option and manual over-ride position. Fitted with panel mounted fuse. For use on 230V 50Hz single phase supplies. Overall dimensions (W x D x H) 650mm x 250mm x 250mm. Net weight 6,4kg. Requires accessory drums for operation.
With BioCote, silver-based, antimicrobial protection.
Please order mixing drums separately.
With BioCote, silver-based, antimicrobial protection.
Please order mixing drums separately.
| Depth: | 250 mm |
|---|---|
| Dimensions (WxDxH): | 650 x 250 x 250 mm |
| Display: | Analogue |
| Height: | 250 mm |
| Manufacturer Article Number: | 51600-06 |
| Max. speed: | 60 1/min |
| Max. voltage: | 230 V |
| Min. speed: | 6 1/min |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Speed: | 6 ... 60 1/min |
| Type: | DR-200 |
| Type of movement: | Rotating |
| Weight: | 6.4 kg |
| Width: | 650 mm |
| With continuous operation: | Yes |
| With timer: | Yes |
Skip product gallery
Accessories

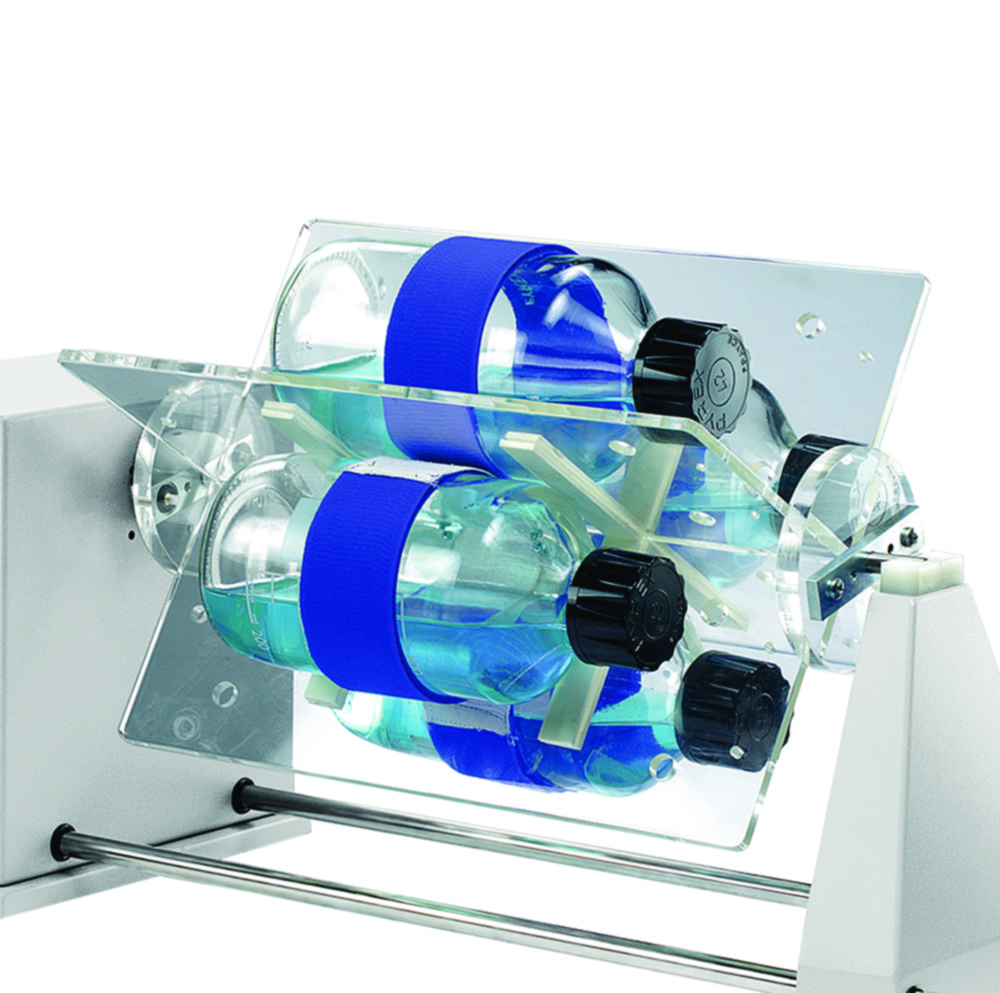

Drum for four bottles STR4/4 for overhead shakers DR-200
Perspex four segment cradle with velcro straps. Holds 2 to 4 bottles, each up to 1000 ml capacity.With BioCote, silver-based, antimicrobial protection.Please order drive DR-200 separately.
Drum for two bottles STR4/2 for overhead shakers DR-200
Drum with two platforms. Accepts two 250 ml conical flasks or reagent bottles.With BioCote, silver-based, antimicrobial protection.Please order drive DR-200 separately.

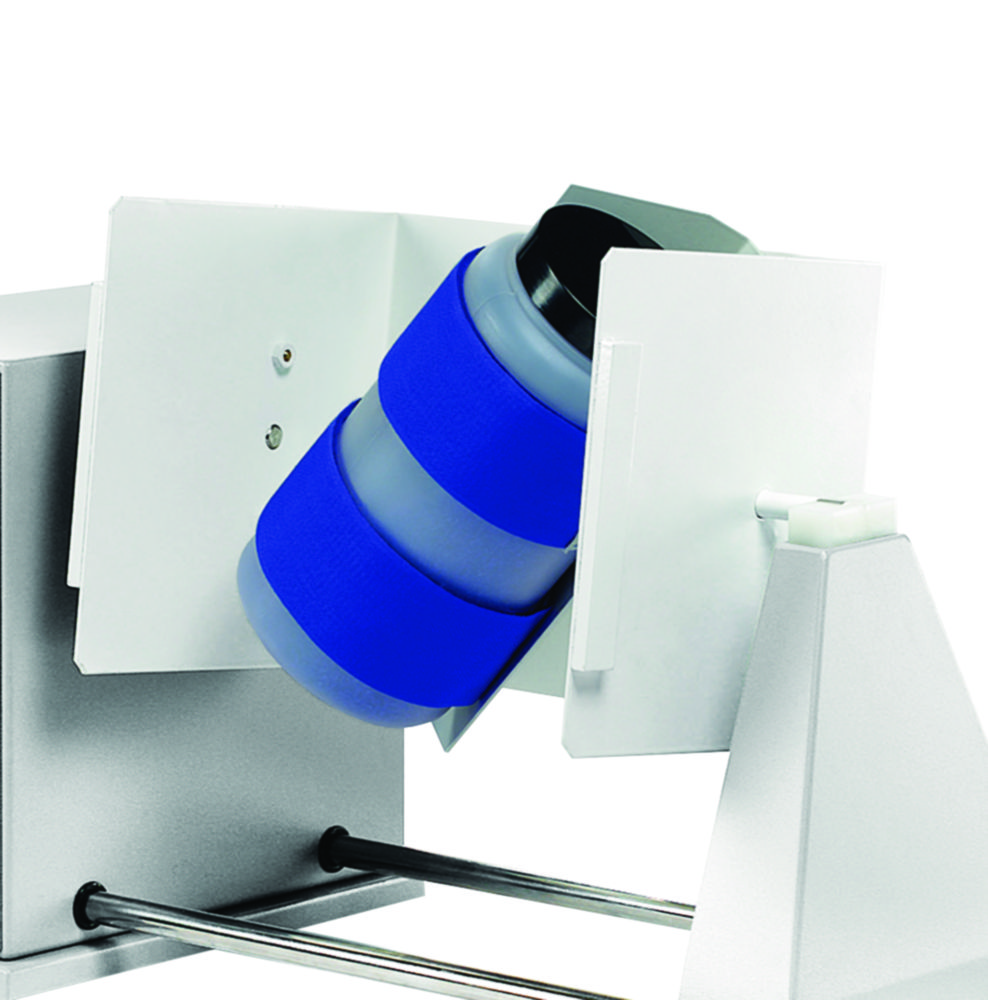

Drum for one bottle STR4/3 for overhead shakers DR-200
The drum has a platform which can be adjusted within the drum from horizontal to 45°. In this way, the sample container can be rolled and turned end over end at the same time (figure-8 motion). Suitable for extractions, paint mixing, powders and granular samples. The sample container is held by an adjustable velcro strap.With BioCote, silver-based, antimicrobial protection.Please order drive DR-200 separately.
Drum for Clip Plates STR/1 for overhead shakers DR-200
Square drum which accepts one plate of clips on each side.Please order Clip Plates for different tube sizes, tubes and drive DR-200 separately.

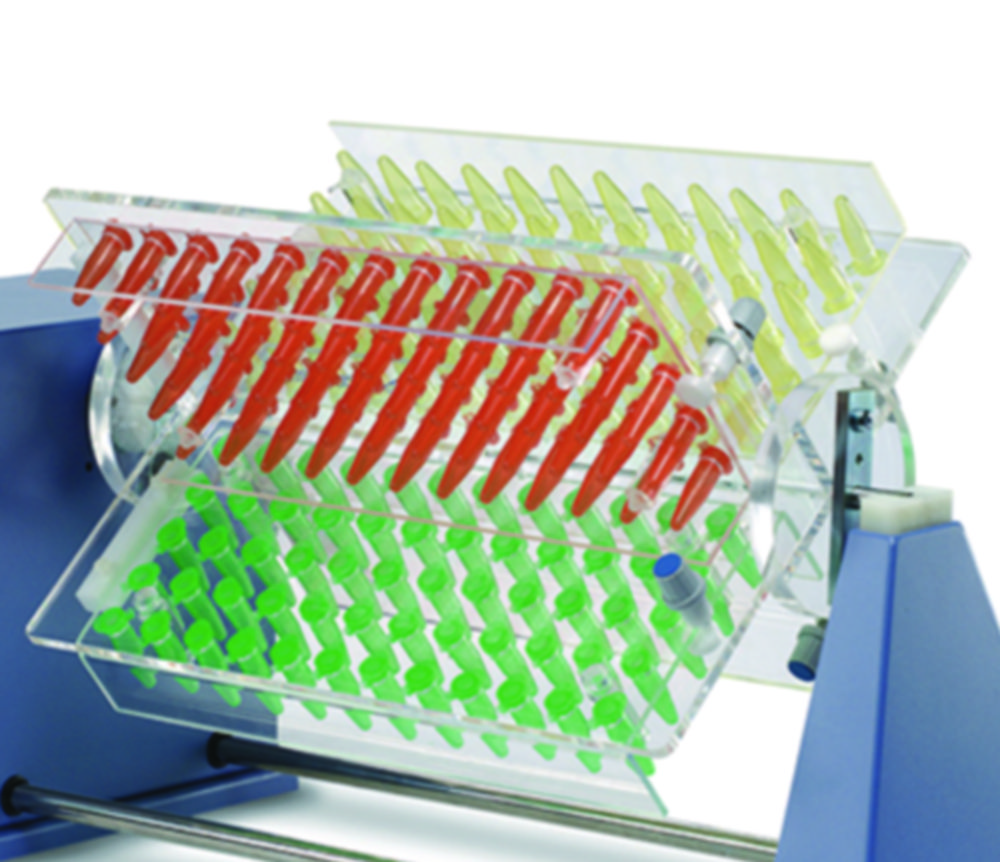

Drum for microcentrifuge tubes STR4/5 for overhead shakers DR-200
Holds four acrylic racks for end over end mixing of 1.5 ml microcentrifuge tubes. Supplied with four racks, each with a capacity of 60 tubes.With BioCote, silver-based, antimicrobial protection.Please order drive DR-200 separately.
