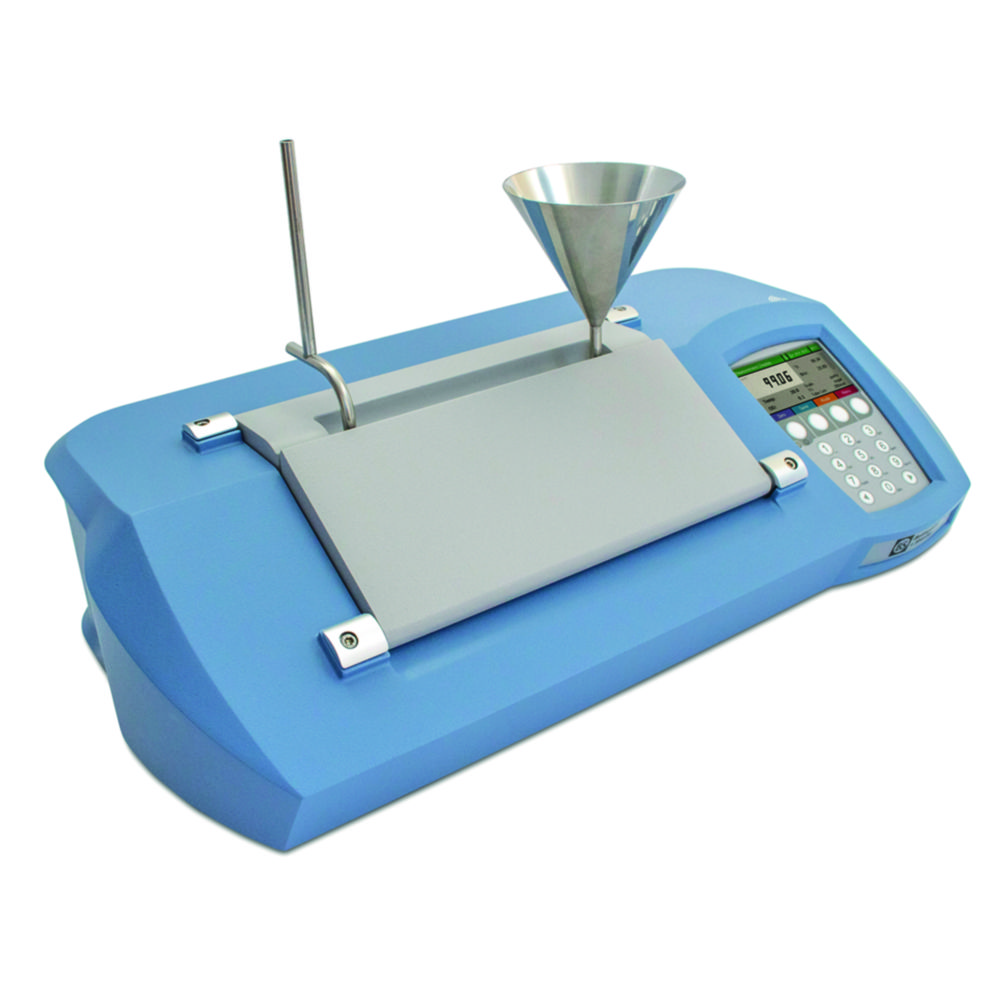

Saccharimeter ADS435/ADS438, with glass tube
The Saccharimeter is a dedicated polarimeter that displays results in °Z according to the ISS scale and is suitable for sugar laboratories, factories, and raw material receiving centres. The device is designed to operate in isolation but works best when connected to an RFM300 or RFM700 refractometer. By connecting a digital refractometer, a complete purity system can be created that enables accurate purity measurements.High resolution 4" full colour display with easy-to-use keypadContinuous measurement or single measurementsLED light sourceRFID user identificationData memory for over 8000 readingsMethod system with limit valuesUSB "Back-up & Clone"User maintenance promptssUSB (A), USB (B), and Ethernet interfaceAll packages are supplied with corresponding cell, lid, integrated purity, LIMS logger PC software, RFID tags, and declaration of conformity.The Saccharimeter is a dedicated polarimeter that displays results in °Z according to the ISS scale and is suitable for sugar laboratories, factories, and raw material receiving centres. The device is designed to operate in isolation but works best when connected to an RFM300 or RFM700 refractometer. By connecting a digital refractometer, a complete purity system can be created that enables accurate purity measurements.High resolution 4" full colour display with easy-to-use keypadContinuous measurement or single measurementsLED light sourceRFID user identificationData memory for over 8000 readingsMethod system with limit valuesUSB "Back-up & Clone"User maintenance promptssUSB (A), USB (B), and Ethernet interfaceAll packages are supplied with corresponding cell, lid, integrated purity, LIMS logger PC software, RFID tags, and declaration of conformity.
Saccharimeter ADS435-F/ADS438-F, with funnel flow tube
The Saccharimeter is a dedicated polarimeter that displays results in °Z according to the ISS scale and is suitable for sugar laboratories, factories, and raw material receiving centres. The device is designed to operate in isolation but works best when connected to an RFM300 or RFM700 refractometer. By connecting a digital refractometer, a complete purity system can be created that enables accurate purity measurements.High resolution 4" full colour display with easy-to-use keypadContinuous measurement or single measurementsLED light sourceRFID user identificationData memory for over 8000 readingsMethod system with limit valuesUSB "Back-up & Clone"User maintenance promptssUSB (A), USB (B), and Ethernet interfaceAll packages are supplied with corresponding cell, lid, integrated purity, LIMS logger PC software, RFID tags, and declaration of conformity.Funnel flow tubes are ideal for high sample throughput

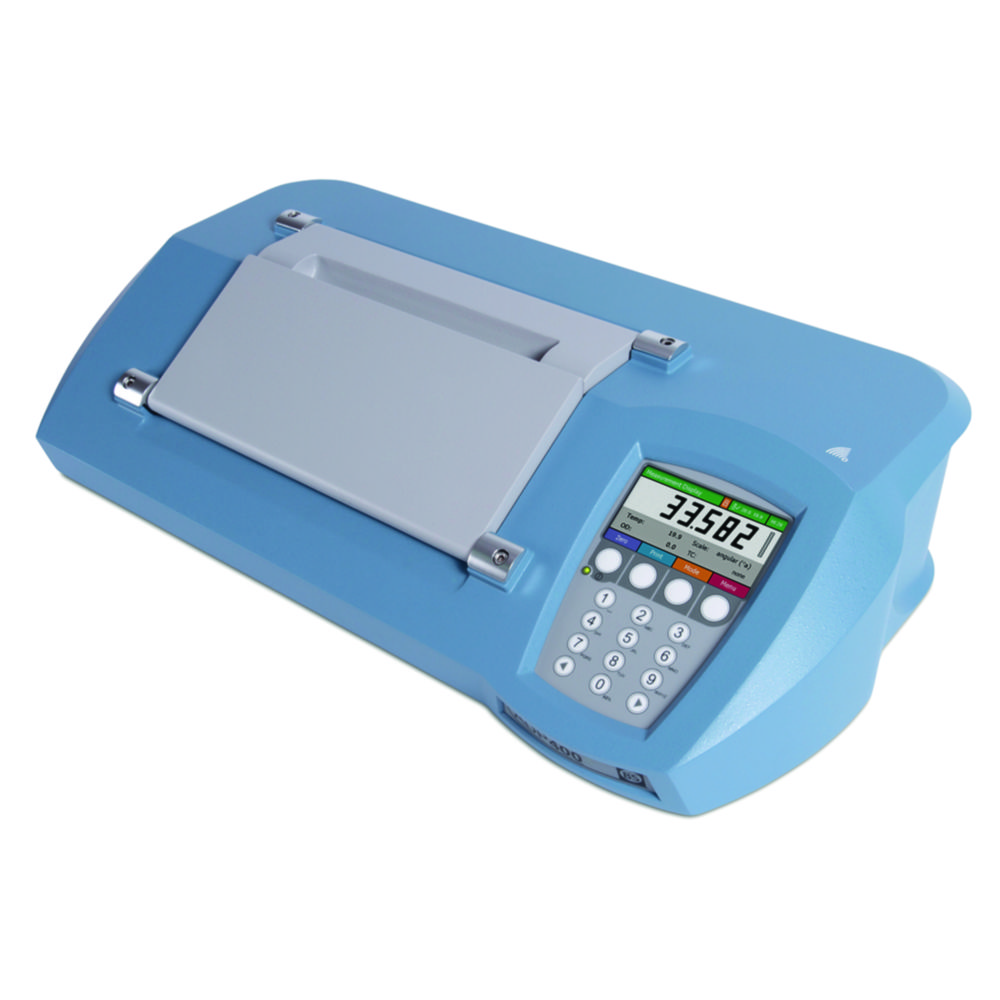

Polarimeter ADP430
General purpose single wavelength polarimeter for applications in the sugar, food, chemical, and pharmaceutical industry. Measurements can be performed in angular degrees (°A), sugar (ISS), or user-defined scales. Pre-programmed methods (e.g. PHR-MEAN method, invert sugar, inversion (A-B), and specific rotation) simplify the performance of routine analyses.High-resolution 4" HD colour displayLED light sourceInterference filter with photodiode detector technologyContinuous measurement and single measurementRFID user identificationData memory for over 8000 readingsMeasurement up to an optical density of 3.0Output as secure PDF possibleUSB (A), USB (B), and Ethernet interfaceSupports FDA Regulation 21 CFR Part 11USP/EP/BP compliantSuitable for applications where internal temperature control is not required, the use of automatic temperature compensation is used, or a water bath is preferred.
Saccharimeter ADS455/ADS458, with XPC temperature control and metal tube
The Saccharimeter is a dedicated polarimeter that displays results in °Z according to the ISS scale and is suitable for sugar laboratories, factories, and raw material receiving centres. The device is designed to operate in isolation but works best when connected to an RFM300 or RFM700 refractometer. By connecting a digital refractometer, a complete purity system can be created that enables accurate purity measurements.High resolution 4" full colour display with easy-to-use keypadContinuous measurement or single measurementsLED light sourceRFID user identificationData memory for over 8000 readingsMethod system with limit valuesUSB "Back-up & Clone"User maintenance promptssUSB (A), USB (B), and Ethernet interfaceAll packages are supplied with corresponding cell, lid, integrated purity, LIMS logger PC software, RFID tags, and declaration of conformity.Patented, integrated Peltier temperature control system
Saccharimeter ADS455-F/ADS458-F, with XPC temperature control and funnel flow tube
The Saccharimeter is a dedicated polarimeter that displays results in °Z according to the ISS scale and is suitable for sugar laboratories, factories, and raw material receiving centres. The device is designed to operate in isolation but works best when connected to an RFM300 or RFM700 refractometer. By connecting a digital refractometer, a complete purity system can be created that enables accurate purity measurements.High resolution 4" full colour display with easy-to-use keypadContinuous measurement or single measurementsLED light sourceRFID user identificationData memory for over 8000 readingsMethod system with limit valuesUSB "Back-up & Clone"User maintenance promptssUSB (A), USB (B), and Ethernet interfaceAll packages are supplied with corresponding cell, lid, integrated purity, LIMS logger PC software, RFID tags, and declaration of conformity.Patented, integrated Peltier temperature control systemFunnel flow tubes are ideal for high sample throughput
Polarimeter ADP450
General purpose single wavelength polarimeter for applications in the sugar, food, chemical, and pharmaceutical industry. Measurements can be performed in angular degrees (°A), sugar (ISS), or user-defined scales. Pre-programmed methods (e.g. PHR-MEAN method, invert sugar, inversion (A-B), and specific rotation) simplify the performance of routine analyses.High-resolution 4" HD colour displayLED light sourceInterference filter with photodiode detector technologyContinuous measurement and single measurementRFID user identificationData memory for over 8000 readingsMeasurement up to an optical density of 3.0Output as secure PDF possibleUSB (A), USB (B), and Ethernet interfaceSupports FDA Regulation 21 CFR Part 11USP/EP/BP compliantPatented, integrated Peltier temperature control systemSMART temperature stability

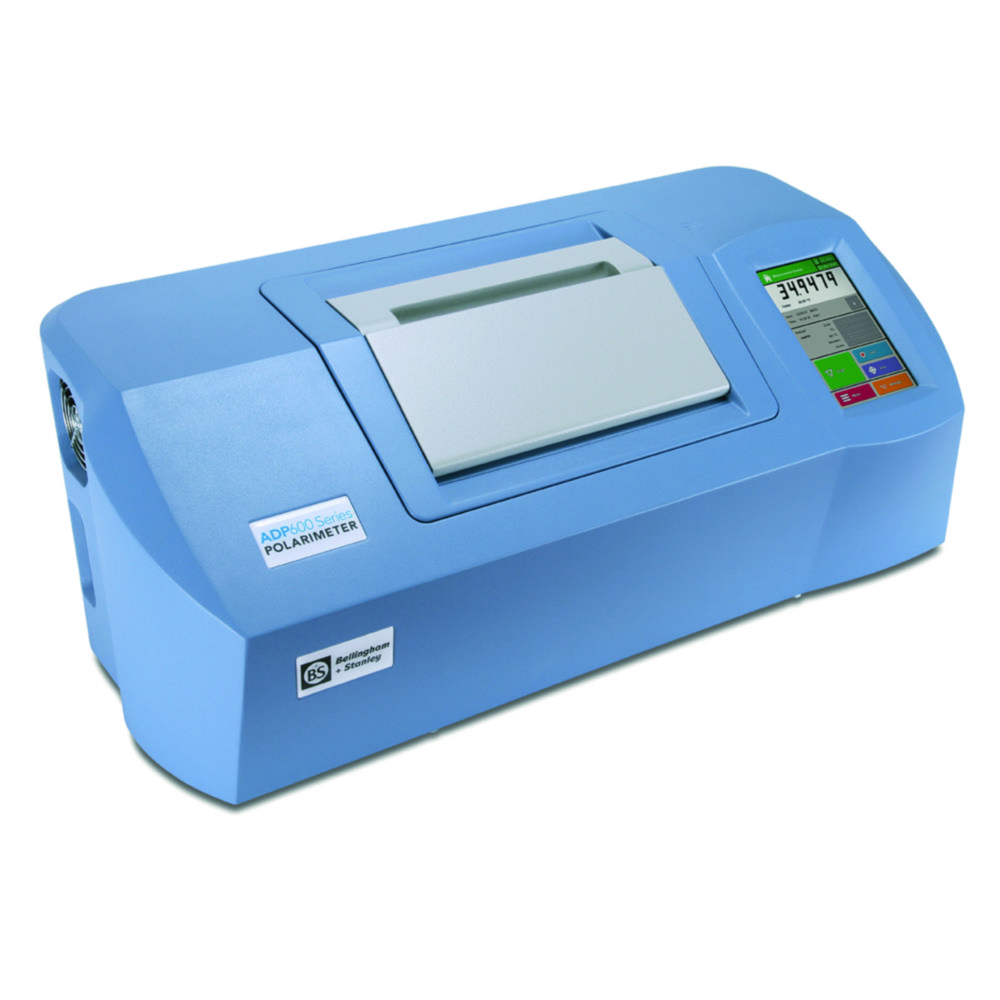

Polarimeter ADP600 series
High-precision polarimeter with Peltier temperature control for applications in pharmacy, chemistry, food industry, and research. Pre-programmed methods (e.g. concentration, invert sugar, inversion (A-B), and specific rotation) simplify the performance of routine analyses.High-resolution 7.4" LCD touchscreenSimple menu structure with a method systemRFID user identificationUV/VIS lamp with narrow band filterSuitable for standard and low volume tubesUSB (A), USB (B), RS232, and Ethernet interfaceSupports FDA Regulation 21 CFR Part 11USP/EP/BP/JP compliant
Saccharimeter ADS620P
High-precision saccharimeter with dual wavelengths Peltier temperature control for use in the sugar industry. Rapid configuration of the device from standard saccharimeter mode to a more complex sugar purity system that calculates Brix, POL, density and purity, with Brix value entered manually via the touchscreen or directly via an Ethernet connection from a connected RFM refractometer.High-resolution 7.4" colour touchscreenSimple menu structure with a method systemRFID user identificationVIS/NIR lamp with narrow band filterSuitable for standard tubesIntegral Sugar Purity softwareUSB (A), USB (B), RS232, and Ethernet interface
Polarimeter ADP450-HCl
General purpose single wavelength polarimeter for applications in the sugar, food, chemical, and pharmaceutical industry. Measurements can be performed in angular degrees (°A), sugar (ISS), or user-defined scales. Pre-programmed methods (e.g. PHR-MEAN method, invert sugar, inversion (A-B), and specific rotation) simplify the performance of routine analyses.High-resolution 4" HD colour displayLED light sourceInterference filter with photodiode detector technologyContinuous measurement and single measurementRFID user identificationData memory for over 8000 readingsMeasurement up to an optical density of 3.0Output as secure PDF possibleUSB (A), USB (B), and Ethernet interfaceSupports FDA Regulation 21 CFR Part 11USP/EP/BP compliantPatented, integrated Peltier temperature control systemSMART temperature stabilityGlass/PEEK polarimeter tubeSuitable for tests with hydrochloric acid
Printer CMB-910
Miniature 24-column dot matrix printer for the direct recording of data from digital refractometers and polarimeters. Recommended for Good Laboratory Practice applications. With serial RS232 interface.
USB thermal printer
Thermal printer for the direct recording of data from digital refractometers and polarimeters.

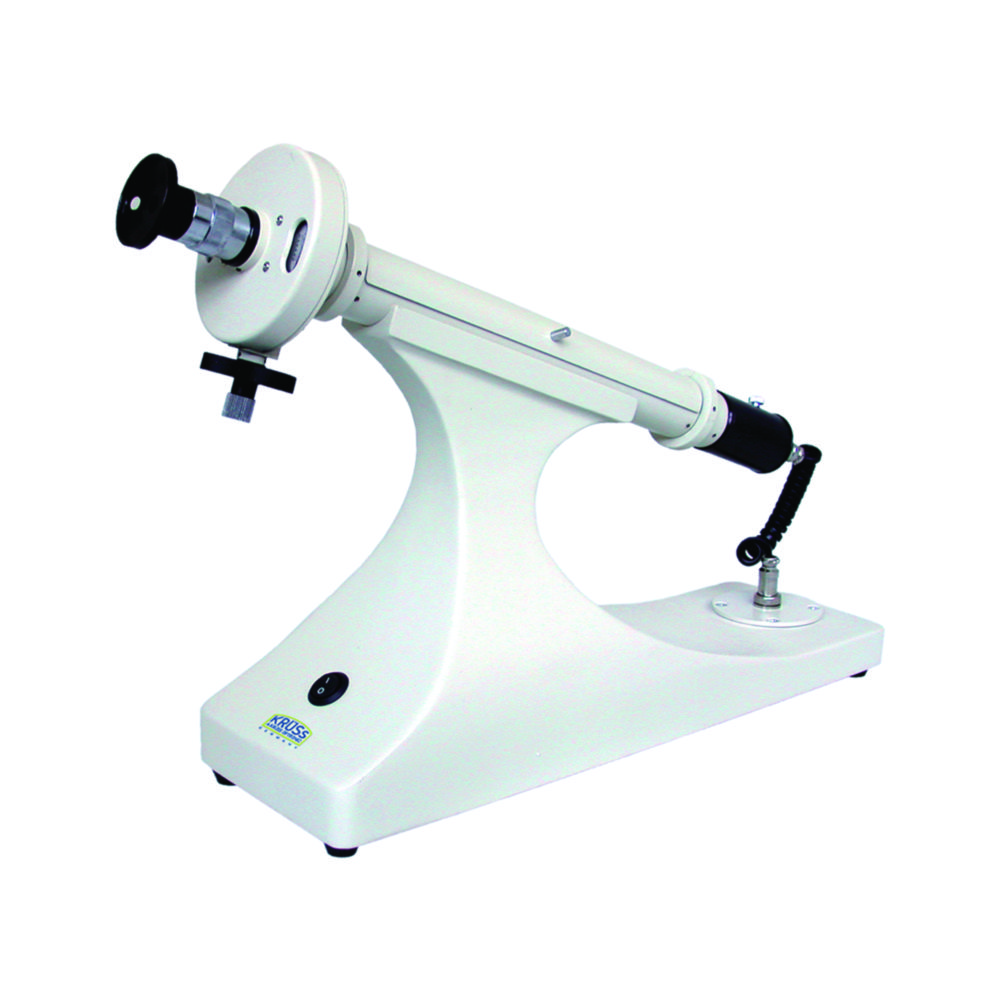

Polarimeter P1000-LED
For basic lab applications and training, for example the experiment on saccharose inversion.Measurement of optical rotation according to the half-shade principleManual adjustment on the scaleMeasurement results are read through an eyepiece and two noniusesHigh-performance LED with a service life of 100,000 hTube chamber for tubes with a length of up to 220 mmIncludes two measurement tubes with a debubblerLow-maintenance, cost-effective solutionSpecificationsScale:Optical rotation (°)Measuring range:2 graduated circels (0 ... 180°)Resolution:1°Accuracy:0.05° (with nonius)Light source:1 LED with filterWavelength:589 nmDimensions (W x D x H):140 x 430 x 330 mmWeight:4.3 kgPower supply:110 ... 250 V, 50/60 Hz

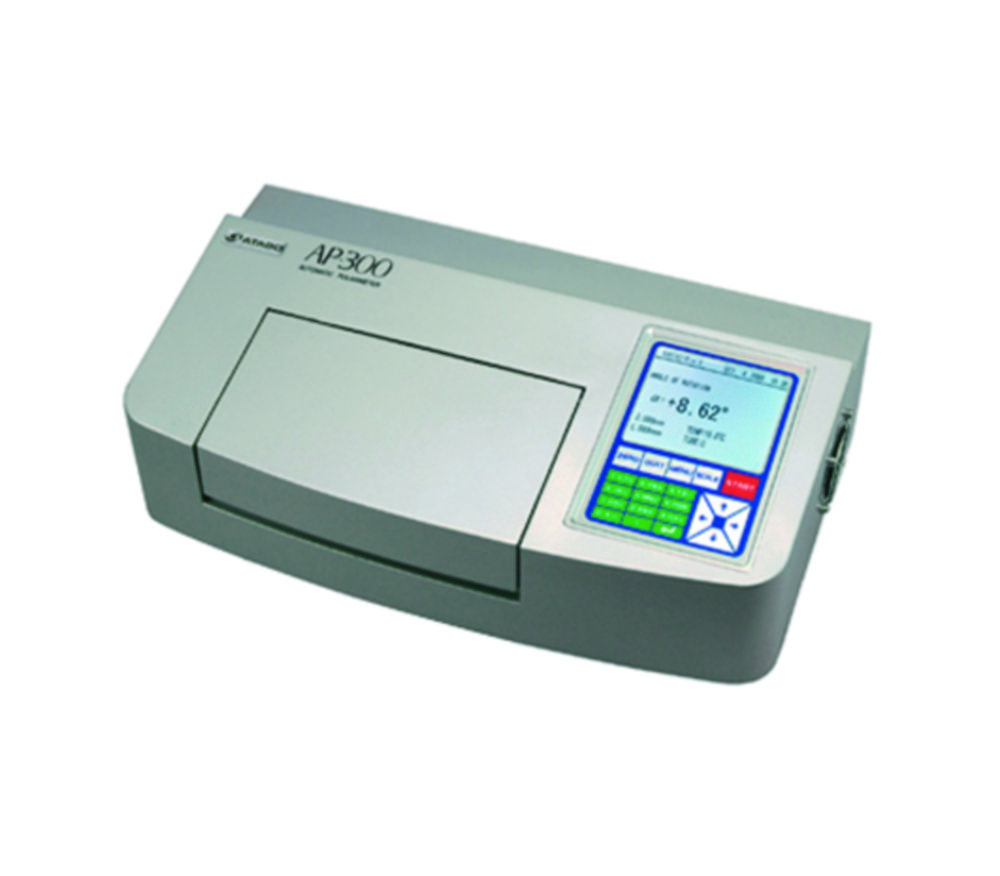

Polarimeter AP-300
Model AP-300 is generally used in pharmaceutical, perfume, cosmetic, industrial, chemical, and food factories and is the optimal unit for measuring angle of rotation. In addition, the built-in International Sugar Scale is widely used in sugar refineries.The AP-300 has a manual calibration facility which allows the user to compensate for any differences to standard liquids and measurement values by other standard instruments.Specifications:Measurement range
Angle of Rotation:
International sugar scale:
-89.99 to 89.99°
-130.00 to +130.00°ZMinimum Indication
Angle of Rotation:
International sugar scale:
0.1°
0.01°ZMeasurement accuracy
Angle of Rotation:
International sugar scale:
±0.01°
±0.03°ZObservation tubes:1 x 200mm and 1x 100mmDimensions:
Weight:48.5 x 28.5 x 17.5cm
11.5kg

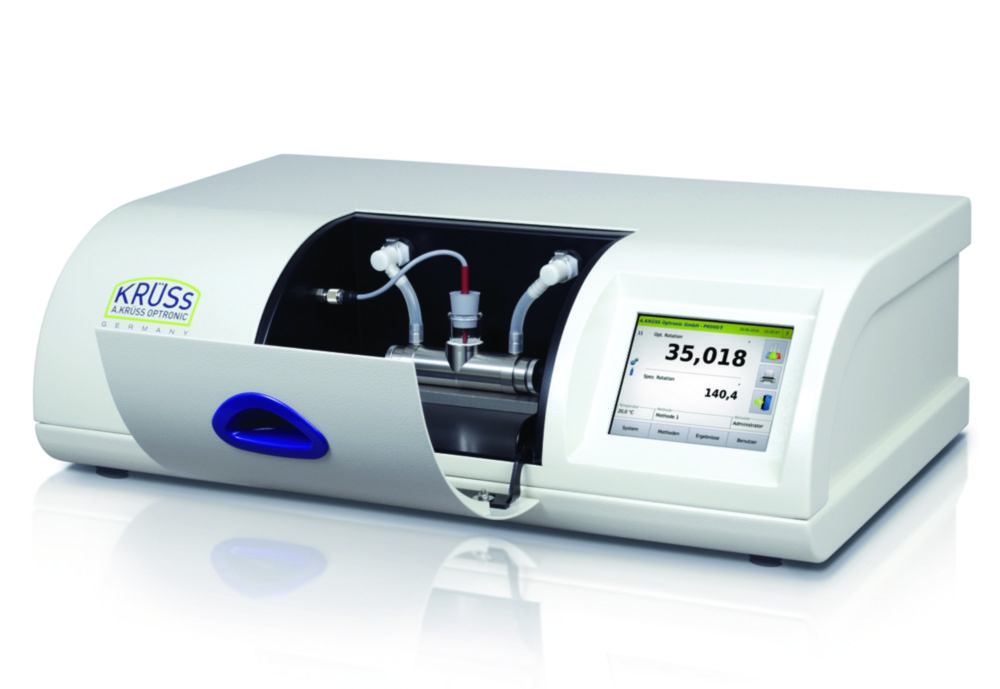

Polarimeter P8000 series
Polarimeters with patented measuring method, which reduces the measuring time to approx. 1 s regardless of the sample's angle of rotation. They are used when particularly high demands are placed on measurement accuracy and on continuous data recording and data backup. The instruments have all the functions required in FDA-regulated areas and meet all requirements of GMP/GLP and international standards.Fast reliable measurement up to an optical density of 3.0 OD, measurement time of approx. 1 sEasy, menu-driven adjustmentAny number of freely configurable methodsSuitable measurement tube for any type of sampleTemperature measurement directly inside the sampleReliable temperature compensationComplete documentation of measured valuesCompliance with global standards (GMP/GLP, 21 CFR Part 11, Pharmacopoeia (USP, BP, JP, Ph. Eur.), FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NIST)SpecificationsScale:Optical rotation [°], int. sugar scale [°Z],
concentration [g/100 ml], spec. rotation
customizedMeasuring range / Resolution:±90° / 0.001°
±259 °Z / 0,01 °Z mlMeasuring time:approx. 1 s (±90°)Light source:1 LED with filterWave length:589 nmTemperature range:0 ... 99.9 °CResolution:0.1 °CAccuracy:±0.2 °CDimensions (W x D x H):640 x 360 x 200 mmWeight:28 kgPower supply:110 ... 250 V, 50/60 Hz

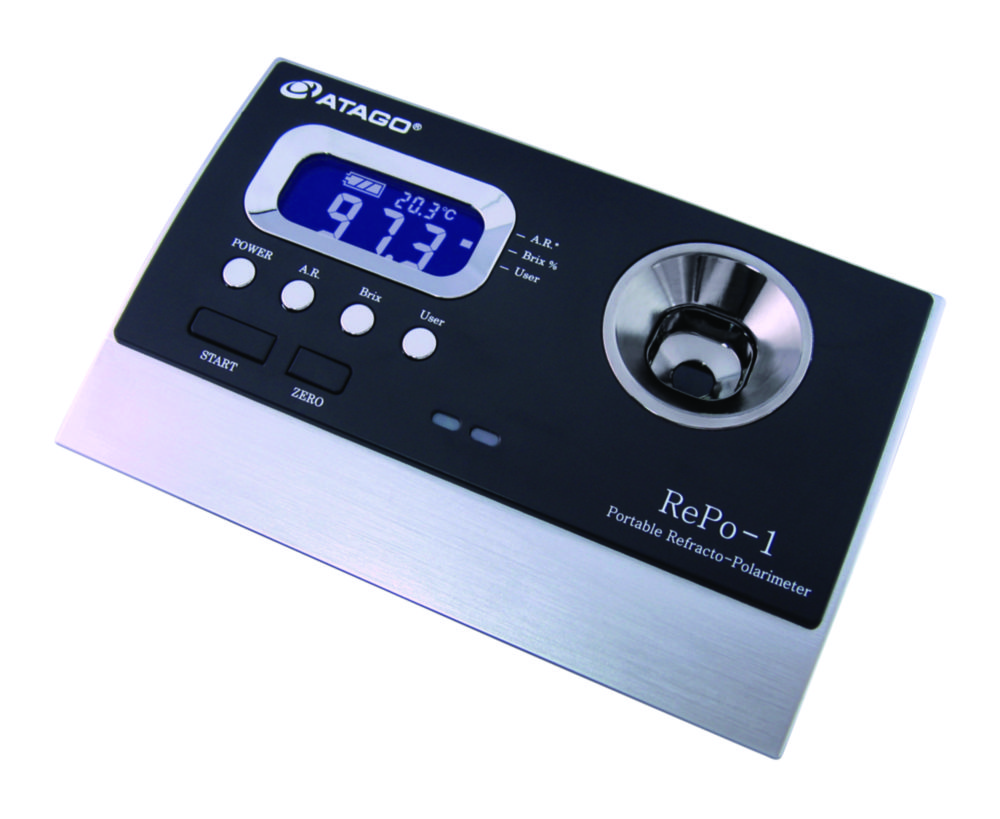

Digital Refractometer/Polarimeter RePo
All-in-One refractometer and polarimeter hybrid unit. Only 3 ml sample is needed. With the press of a button, purity, international sugar scale, specific rotation and concentration can be displayed. Users can also set an upper and lower measurement limit. An indicator light alerts the user if a measurement value is within the limits.RePo-1: can measure both brix and optical rotation of the sample.RePo-1 Package includes: Main unit, 100 ml beaker, 50 x Syringe Filters orange 45, 3 x 20 ml Syringes, 100 x Easy filter.RePo-2: As RePo-1, additionally the RePo-2 also determines and displays the amount of fructose (%) within HFCS. The RePo-2 is ideal for various industries such as food and beverage, or sugar refining.RePo-3: As RePo-1, additionally the RePo-3 also determines and displays the amount of invert sugar (%) derived from sucrose. The RePo-3 is ideal for various industries such as sugar refining.RePo-4: As RePo-1, additionally the RePo-4 also determines and displays the amount of fructose (%) and honey moisture (%). The RePo-4 is ideal for total quality control of honey.RePo-5: As RePo-1, additionally the RePo-5 can also display the refractive index (nD) of a sample. The RePo-5 is ideal for quality control in various industries such as fragrances, cosmetics, or pharmaceutical.SpecificationsMeasurement range
Angle of Rotation:
Brix (%):
Temperature:
-5 to +5°
0 to 85 %
15 to 40 °CResolution
Angle of Rotation:
Temperature:
Brix (%):
0.01°
0.1 %
0.1 °CAccuracy
Angle of Rotation:
Brix (%):
Temperature:
±0.1° (at 20 °C)
±0.2 %
±1°CWorking temperature:5 to 40 °CWavelength:589 nmPower supply:4 x Size AAA alkaline batteryDimensions:101 x 160 x 38 mmWeight:325 gIP code:IP 67

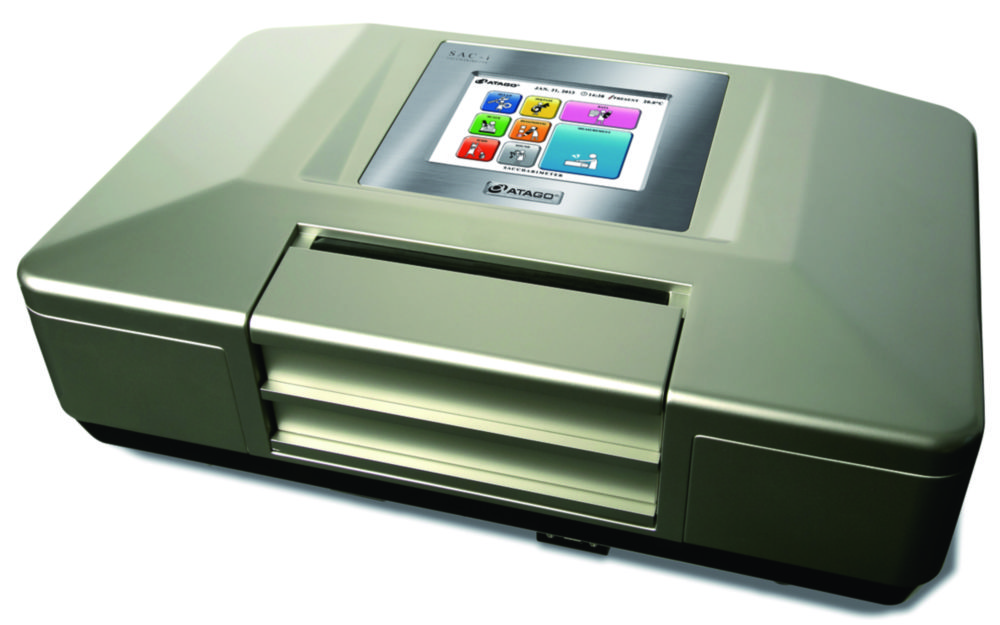

Polarimeter SAC-i 589/882
Measurement Scales: Angle of rotation, specific rotation, International Sugar Scale, concentration, purity.Wavelength measurement at 589 nm (equivalent to the sodium-D line spectrum) and 882 nm (near infra red)Measurement stability in 13 seconds (4 seconds in the high-speed and consecutive measurement mode)Resolution of up to 3 decimal placesRepeatability of ±0.003° Angle of Rotation and ±0.009°ZUp to 999 automatic consecutive measurements followed by average value displaySleep and timer feature to take measurement later at specified timeImproved usability due to touch screen technologyConnectivity to RX Digital Refractometers for automatic purity measurementSpecificationsMeasurement range
Angle of rotation:
International standard sugar scale:-89.999 to +90.000° or -360 to +360°
-259 to +259°Resolution
Angle of rotation:
International standard sugar scale:
0.001°
0.001°ZMeasurement accuracy
Angle of rotation 589 / 882 nm:
International standard sugar scale 589 / 882 nm:
±0.005° / ±0.010° (-45 to +45°)
±0.015°Z / ±0.0700°Z (-130 to +130°Z)Measurement temperature range:5 to 40°CObservation tubes:100mm (5ml), 200mm (10ml)Power supply:100-240V, 50/60Hz a.c.Dimensions:
Weight:600 x 365 x 210mm
20kg

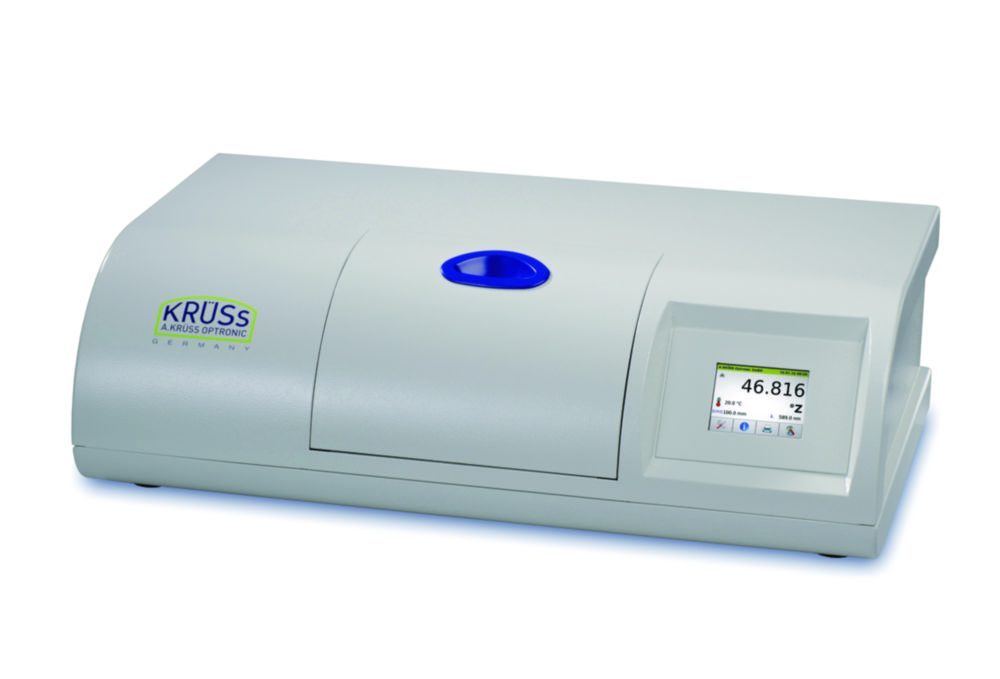

Polarimeter P3000
Technologically high-quality polarimeter for standard applications for which a measurement accuracy of ±0.01° is sufficient and a temperature control can be omitted. Typically, the P3000 is used in the quality control of food industry.Measurement of optical rotationVery short measurement time of approx. 1 sEasy, menu-driven adjustmentDisplay of measured values in optical rotation or international sugar scaleSuitable tubes for any type of sampleMeasurement up to an optical density of 3.0Temperature measurement with calibratable temperature sensorReliable temperature compensationChemical-resistant measurement tubesCompliance with GMP/GLP, pharmacopoeias [USP, BP, JP, Ph. Eur. (with tempering)], FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NISTSpecificationsScales:Optical rotation [°],
int. sugar scale [°Z]Measuring range:±90°
±259 °ZResolution:0.01°
0.01 °ZAccuracy:±0.01°
±0.01 °ZMeasuring time:approx. 1 s (±90°)Light source:1 LED with filterWavelength:589 nmTemperature range:0 ... 99.9 °CResolution:0.1 °CAccuracy:±0.2 °CDimensions (W x D x H):640 x 360 x 200 mmWeight:28 kgPower supply:100 ... 250 V, 50/60 Hz

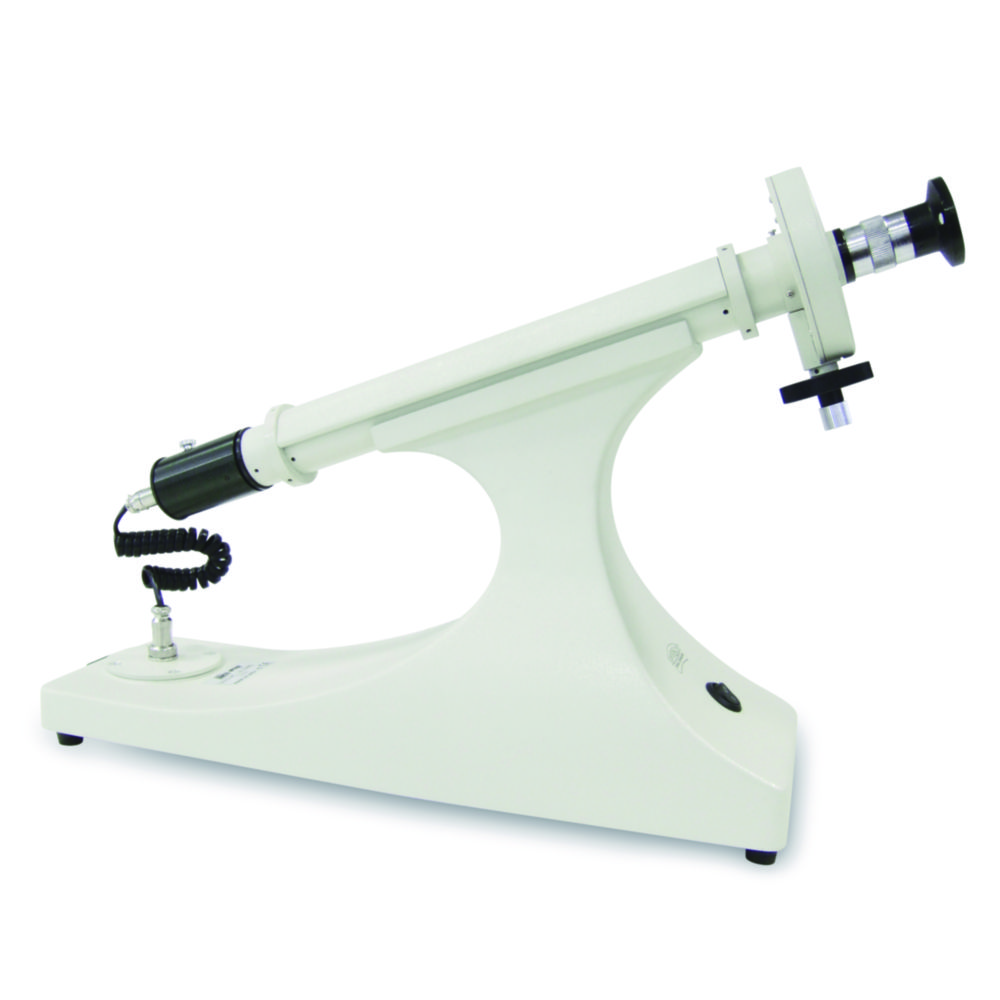

Polarimeter PL1
Simple and sturdy instrument to measure the rotation angle of optically active substances. The measure in 180° is directly readable on two mechanical dials.Light source: LED lamp (589.3 nm)Polarimetiric Tubes one 100 mm and one 200 mmDust coverOptical Glass Windows (4 pcs)Rubber sealsFuses

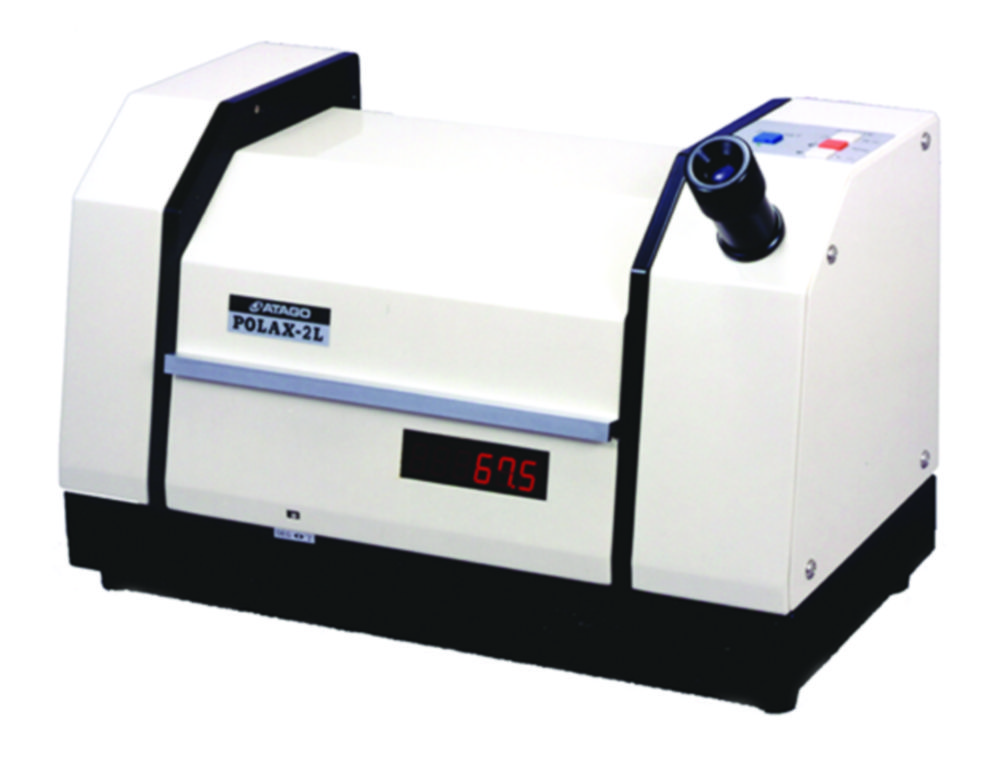

Polarimeter Polax-2L
The Polax-2L (manually-operating meter with digital indicator) is widely used in the sugar, pharmaceutical, chemical, perfume and educational industries. It can accurately measure the angle of rotation (or the value in the international standard sugar scale) with easy operation.SpecificationsMeasurement range
Angle of rotation:
International standard sugar scale:
-179.95 to +180°
-130 to +130°ZMinimum unit displayed
Angle of rotation:
International standard sugar scale:
0.05°
0.1°ZMeasurement accuracy
Angle of rotation:
±0.10°Measurement temperature range:5 to 40°CObservation tubes:1 x 200mm and 1 x 100mmPower supply:100-240V, 50/60Hz a.c.Power consumption:40 VADimensions:
Weight:43 x 22 x 30cm
11.5kg

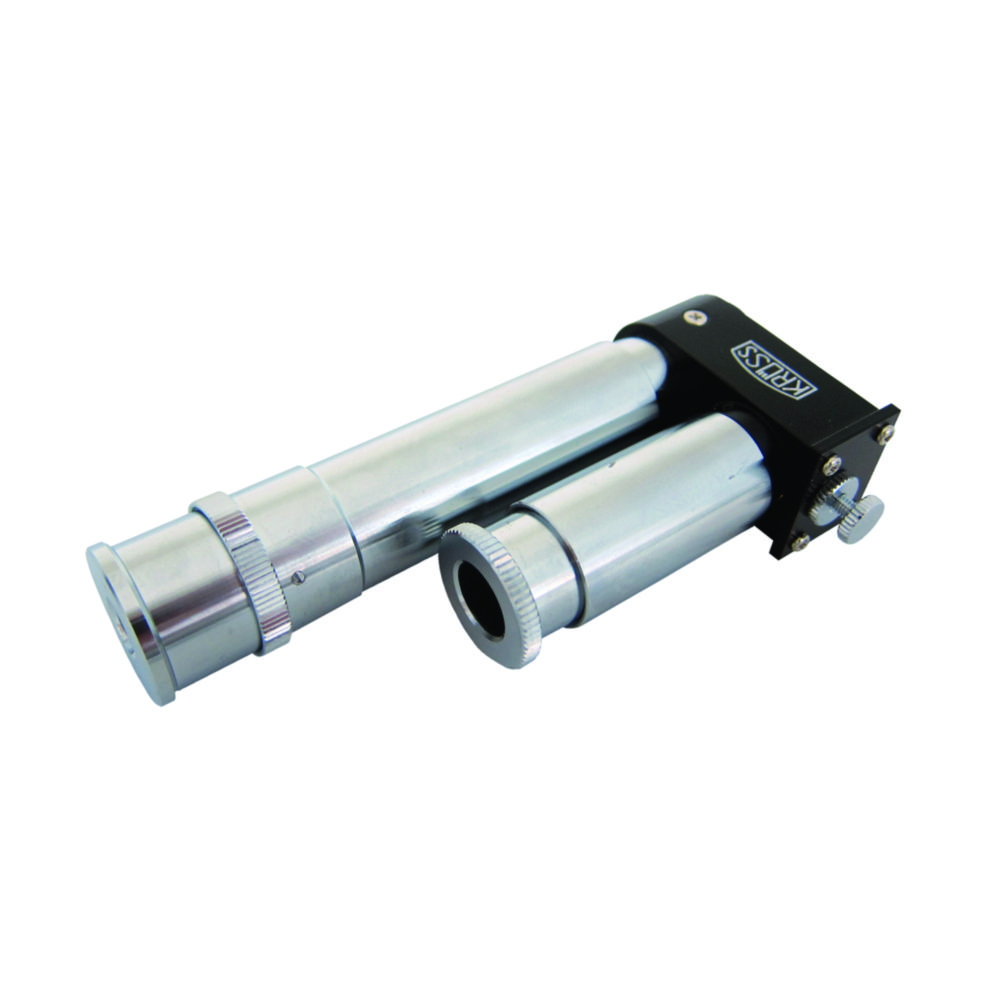

Hand spectroscopes
Handy and precise. Angle dispersion C -F: 7°. Linear dispersion: 60 mm (direct vision prism of Amici type)Ideal for demonstrations in schools and for:Viewing / observation of emission and absorption spectraControl of the wavelength spectra of gas emission lamps
