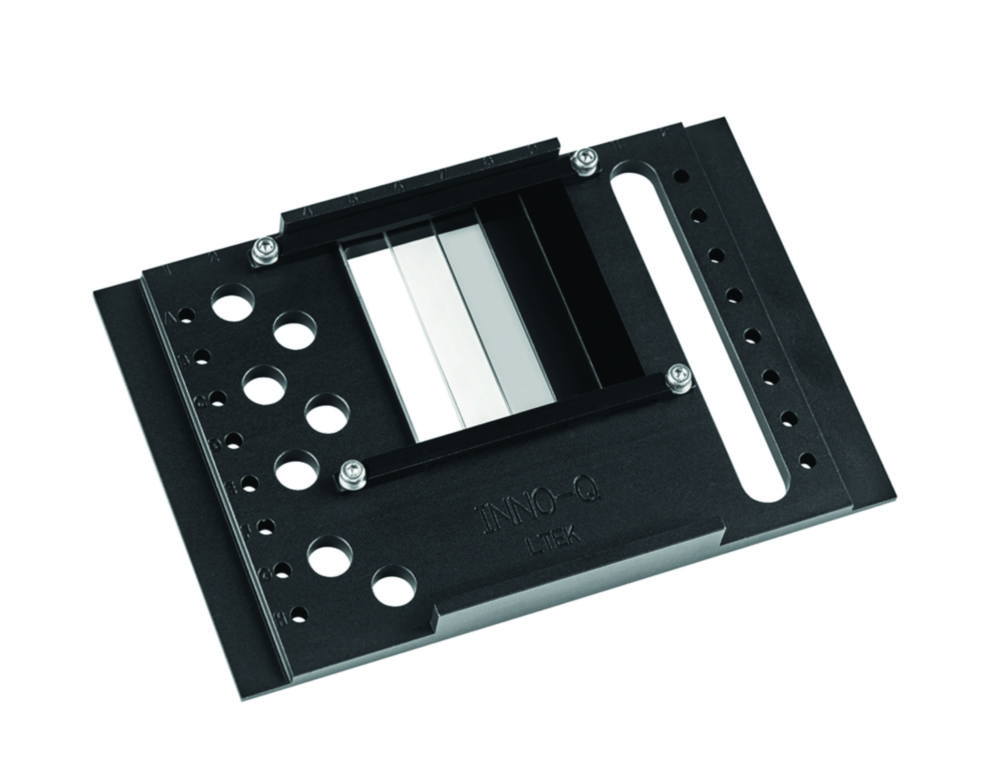

Absorbance test plate for microplate spectrophotometer INNO
The absorbance test plate is specifically designed to check the performance of the device by controlling the linearity, accuracy, and alignment of the device.

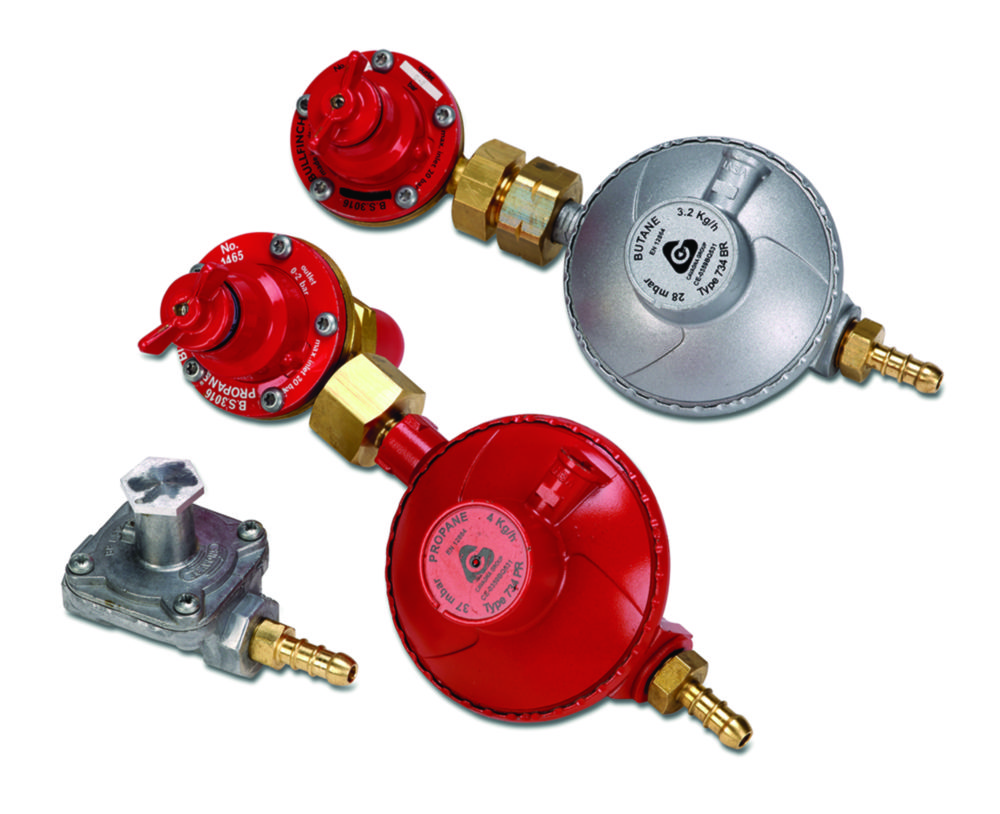

Accessories to Flame Photometer FF-200
Please Note: These products will only operate with the correct type of air compressor and gas regulator as specified below.

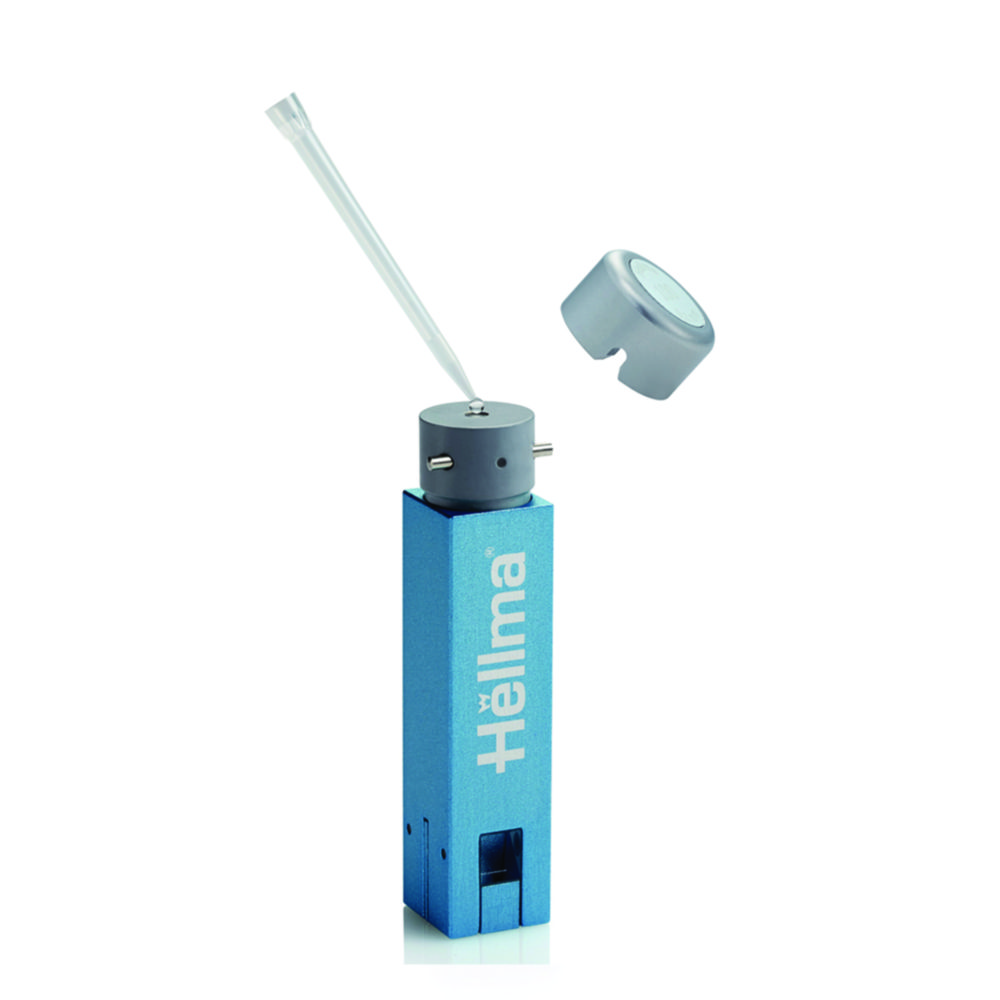

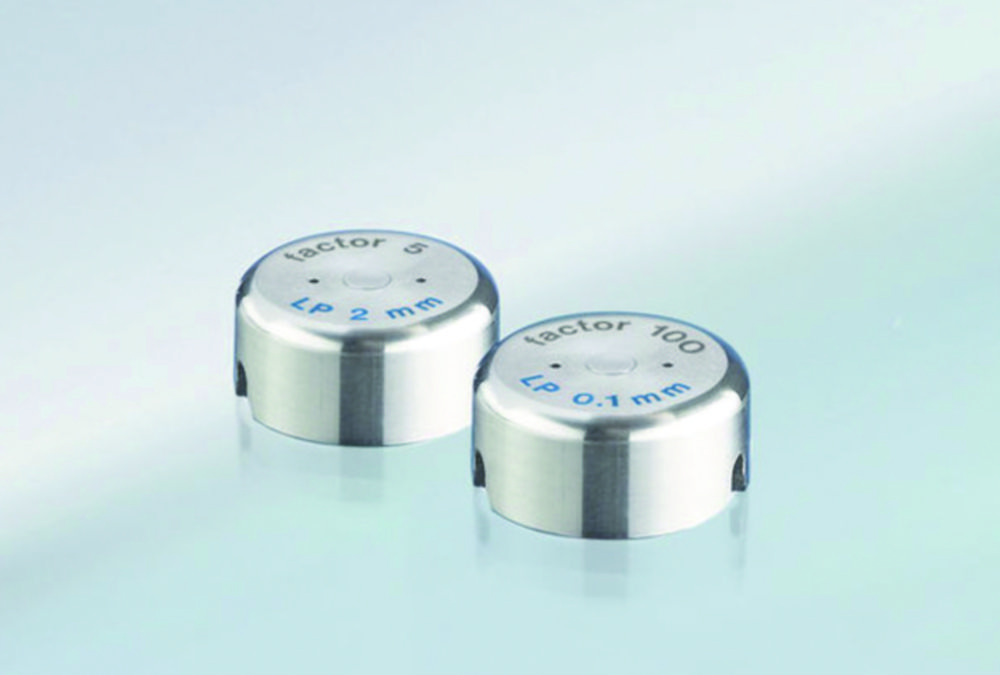

Caps for TrayCell
Traditional spectrophotometrical analysis of nucleic acids is carried out in 10mm cuvettes. Modern drop analysis uses light paths of 1mm and 0.2mm and it is thus not necessary to dilute the sample. In applications with very high or very low DNA concentrations these light paths are often no longer sufficient. When using the TrayCell from Hellma Analytics simply adjust the light path by exchanging the cap. Cap with integrated mirror to change the light path.
Cell density meter Ultrospec 30
Compact, portable device for measuring the density of cells in suspension at 600 nm. Ideally suited for microbiology applications such as plasmid amplification, antibiotic studies, and for performing growth phase analysis in bacterial and yeast suspensions. With the Ultrospec 30, standard curves can be generated using absorbance values or McFarland standards and stored for future quantification.Large, backlit 4.3" LCD colour touchscreen displayUSB ports for exporting measurement dataIntuitive menu arrangementStorage of measurement dataEasy cleaning and maintenanceScope of supply: Cell density meter, USB-C cable, 8 cuvettes, quick start guide, power supply with plug adapter EU, UK, China/AUS, USSpecificationsWavelength:600 nmSpectral bandwidth:40 nmPhotometric range:0.3 ... 2.0 APhotometric accuracy:±0.05A 1APhotometric repeatability:±0.02A at 1A

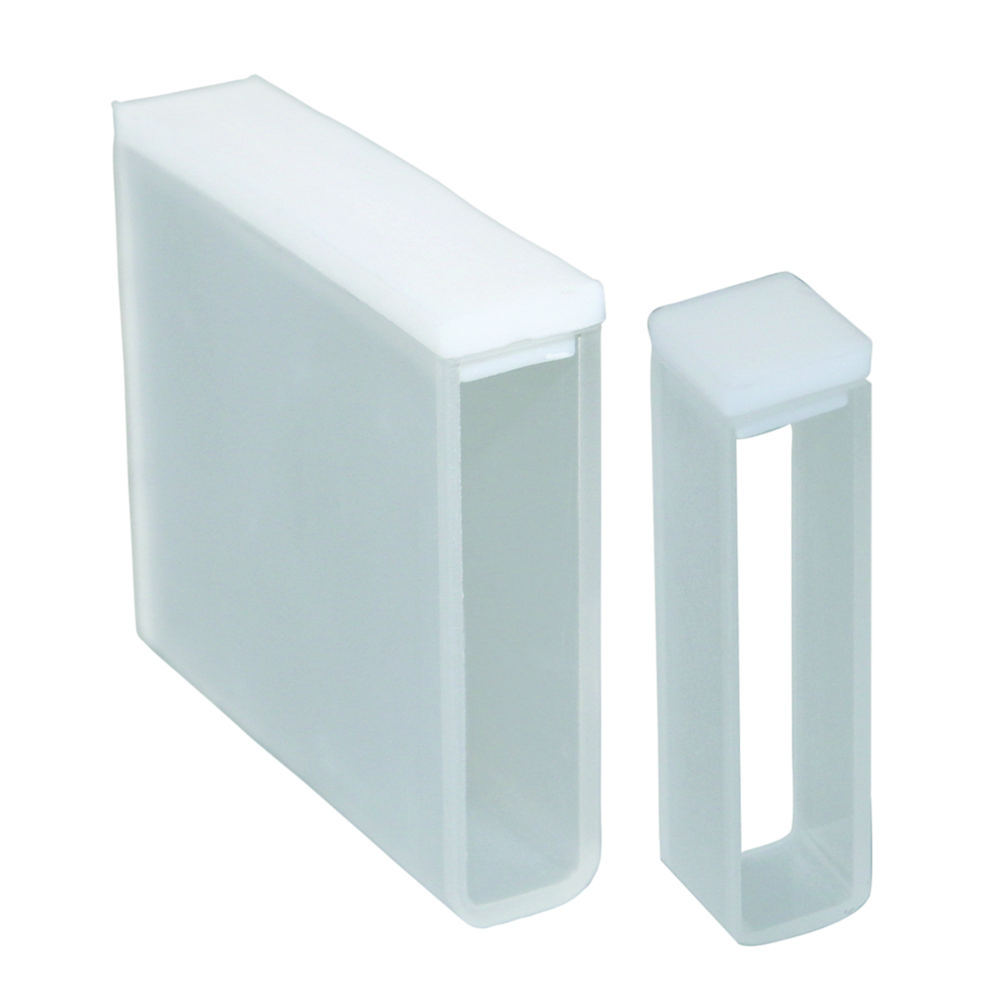

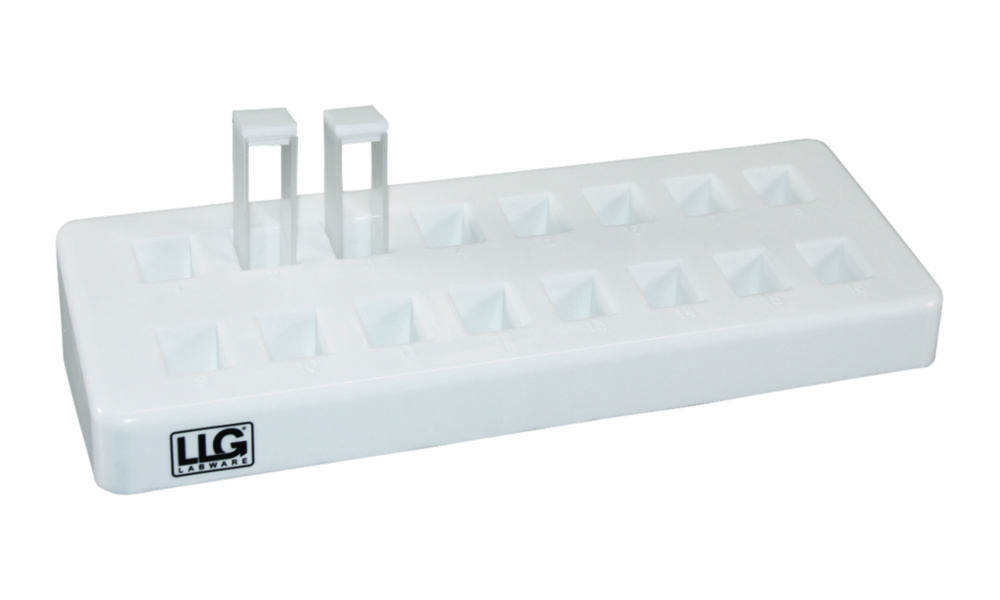

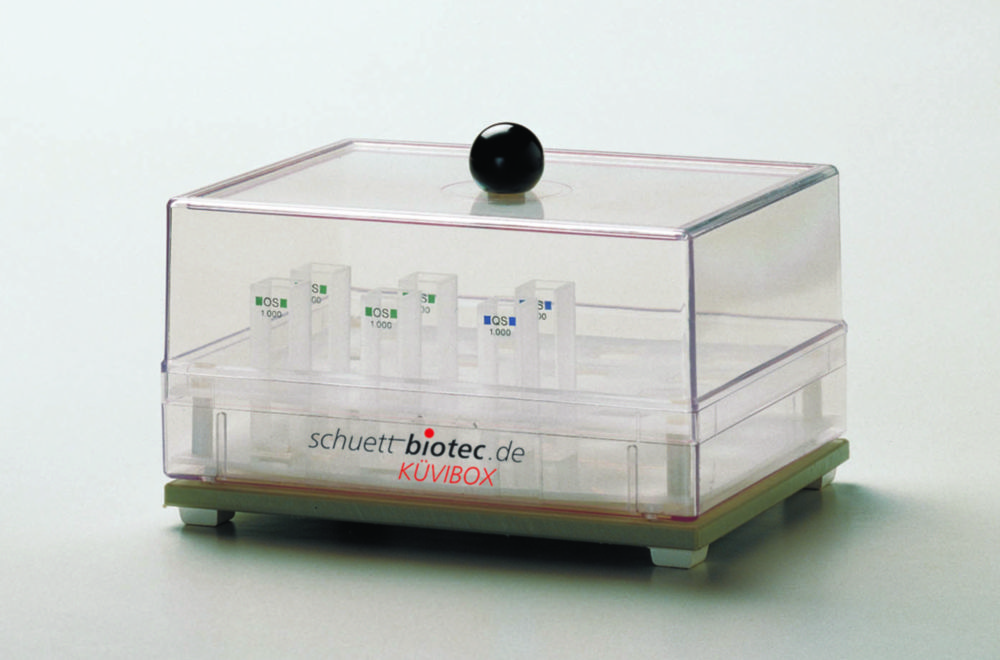

Cell storage container, Küvibox 2
Dust-proof, rigid container for storing clean cells. Accommodates cells up to 55mm in height. Cells are immediately ready for use when required.Küvibox 1 holds up to 16 x 10mm path length cellsKüvibox 2 holds up to 8 x 10mm and up to 4 x 20mm path length cells.

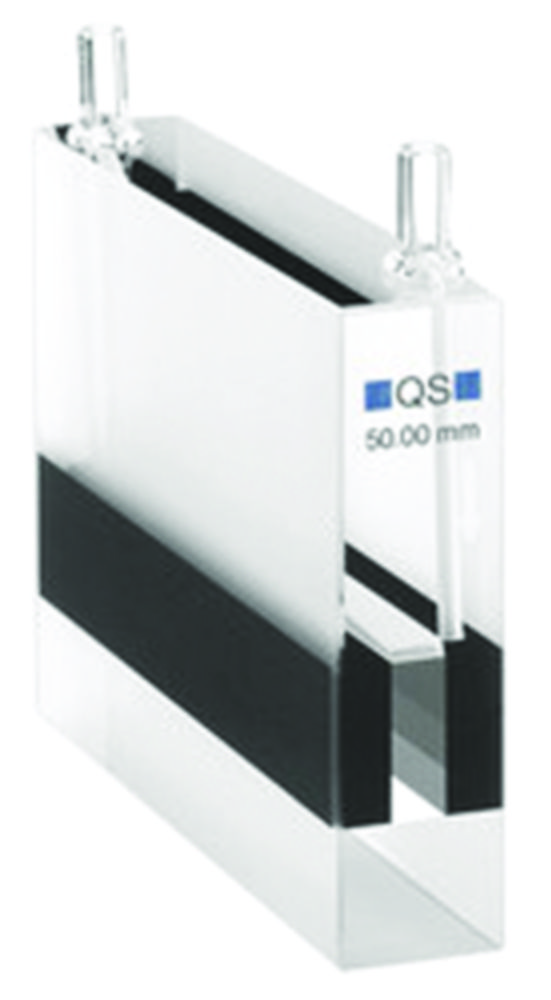

Cells for Absorption Measurement, Flow-Through Measurement, UV-range
Optical material: QS: Quartz glass High Performance, wavelength range: 200 - 2500 nm.OS: Special Optical Glass, wavelength range: 320 - 2500 nm.* M 6 x 1 and FEP tubes (outside diameter 1.9mm, inner diameter 1.1mm, length 500mm)
Cells for Absorption Measurement, NIR-range
300 Wavelength Range: 200nm - 3500nmOptical material: Quartz glass Extended Range

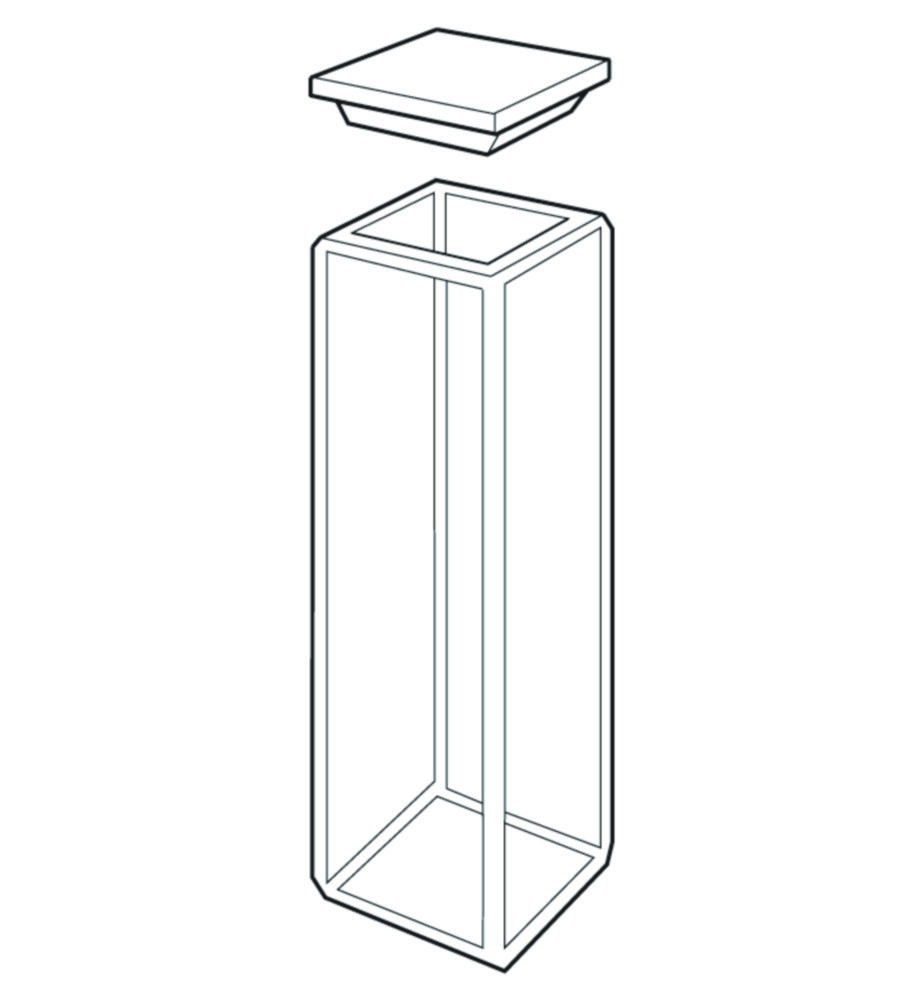

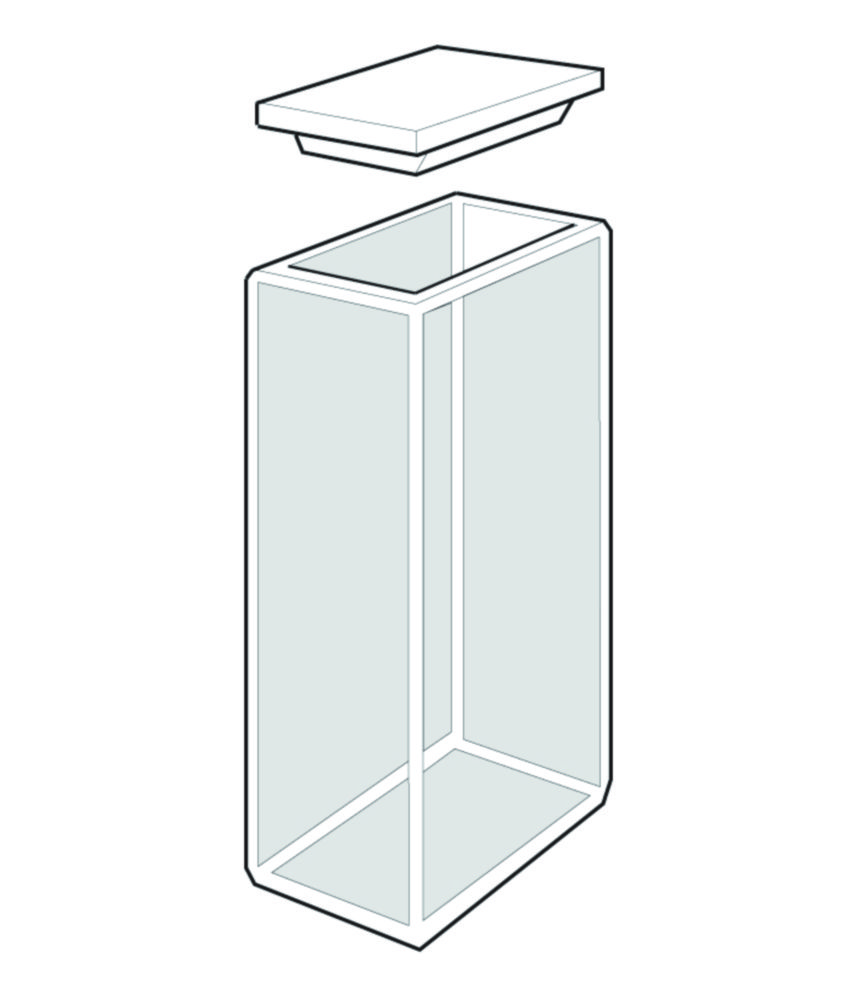

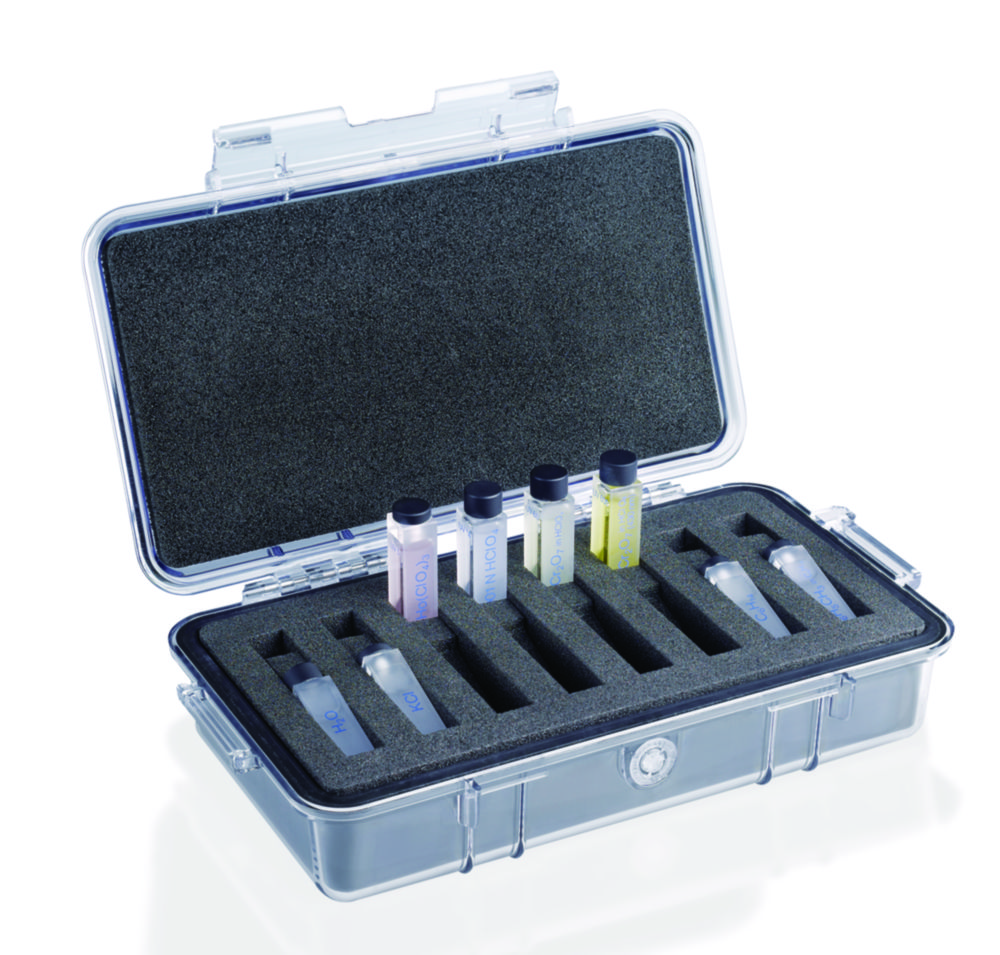

Cells for Absorption Measurement, UV-range
To maintain constant good measurement results, a regular review of the accuracy of the spectrophotometer is required. With the use of certified reference materials from Hellma Analytics, you make sure that your equipment qualifications meet the requirements of the pharmacopoeias and fulfill your internal quality requirements, at the same time you reach the international comparability of your measurement results. The certified reference materials (calibration standards) of the DIN EN ISO 17025 accredited Hellma Analytics calibration laboratory are traceable to the primary standards of NIST (National Institute of Standards and Technology) and meet the requirements of the major pharmacopoeias (e.g. EP, DAB, USP).Your benefits: High quality of the measurement resultsInternational comparability of measurement resultsMeeting the requirements of the major pharmacopoeias (EP, DAB, USP)Results traceable to NIST primary standards30 years warranty on the reference materialsScope of delivery: Certified reference materials (Calibration Standards) in quality storage boxDAkkS Calibration Certificate (DIN 17025)Handling guidelinesWavelength Range: 200nm - 2500 nm. Optical material: Quartz glass High PerformanceM= Measuring volume* black side walls and base** with silicone rubber seal and with ISO thread GL 14*** for magnetic stirring bars

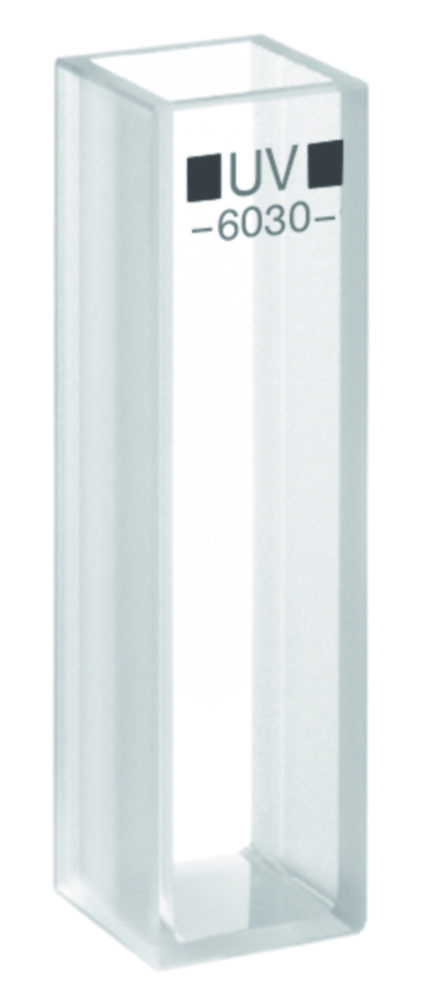

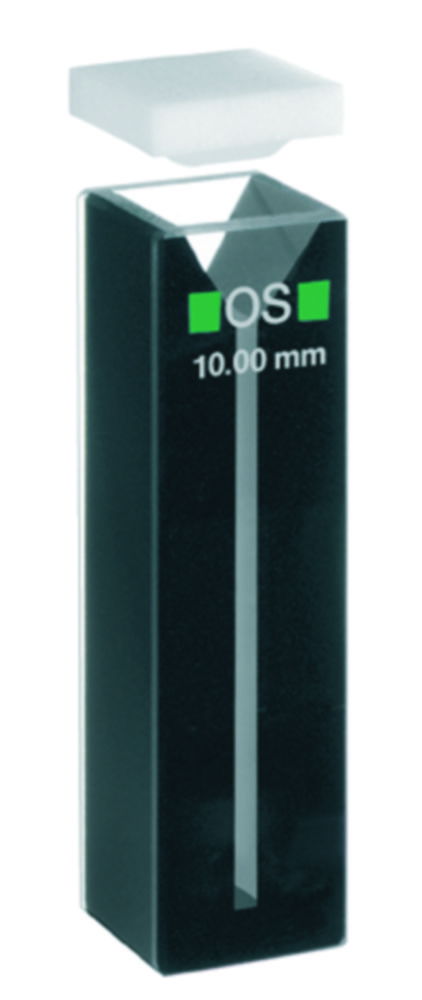

Cells for Absorption Measurement, Vis-range
Wavelength Range:Optical material:260nm - 2500nmHOQ 310H (UV)320 nm - 2500 nm Special optical glass (OS)360 nm - 2500 nm Optical glass (OG)

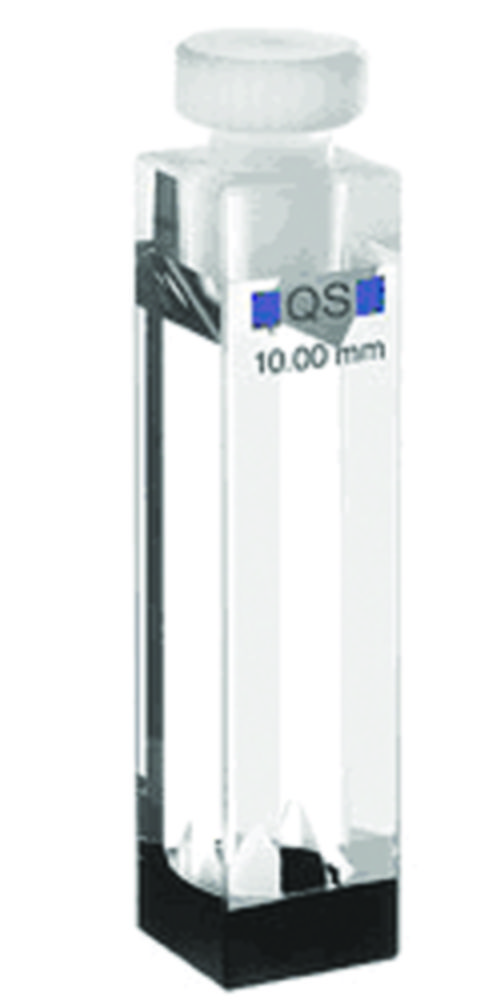

Cells for Fluorescence Measurement, UV-range
Wavelength Range: 200 nm - 2500 nmOptical material: Quartz glass High Performance

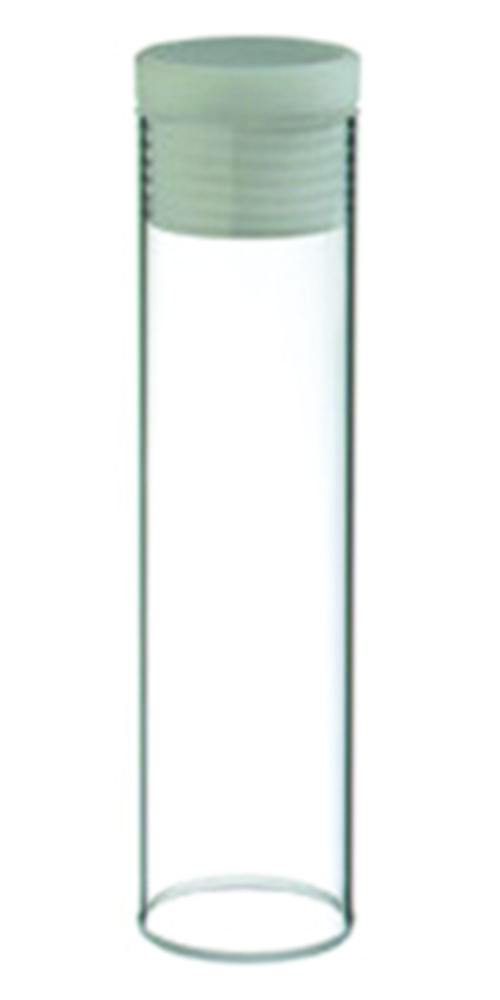

Cells for light scattering measurements, UV-range
Wavelength: 200nm - 2500nmOptical material: Quartz glass High Performance

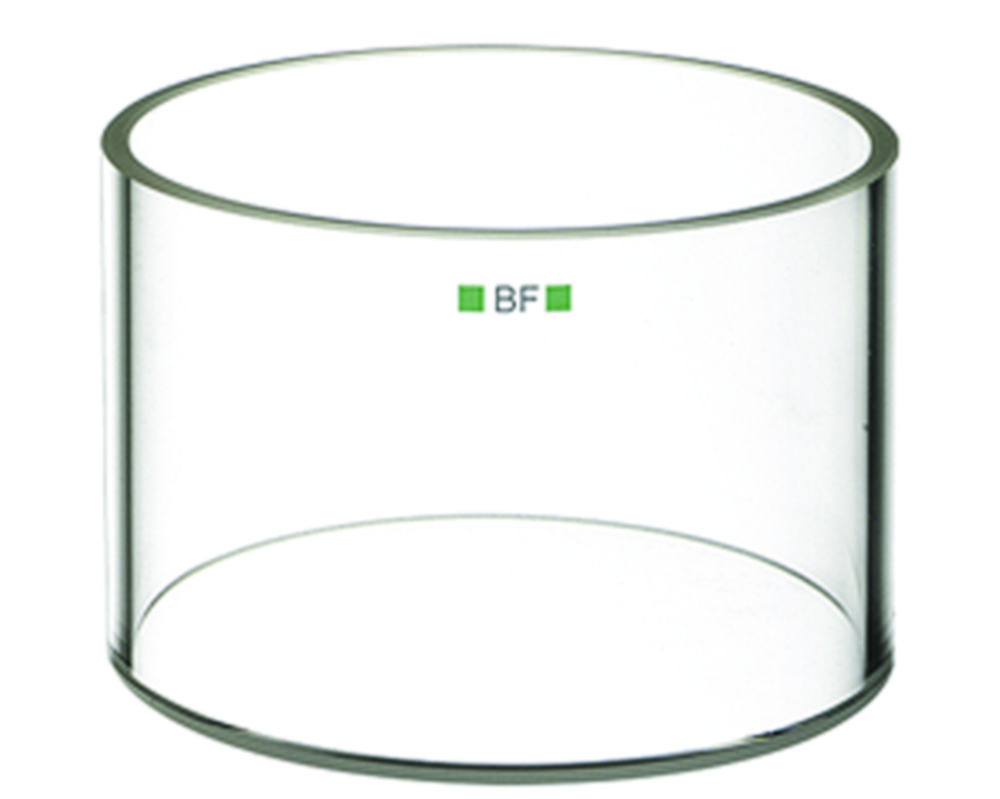

Cells for reflection measurements, Vis-range
Wavelength range:Optical material:330nm - 2500nmBorofloat® (BF)360nm - 2500nmOptical glass (OG)

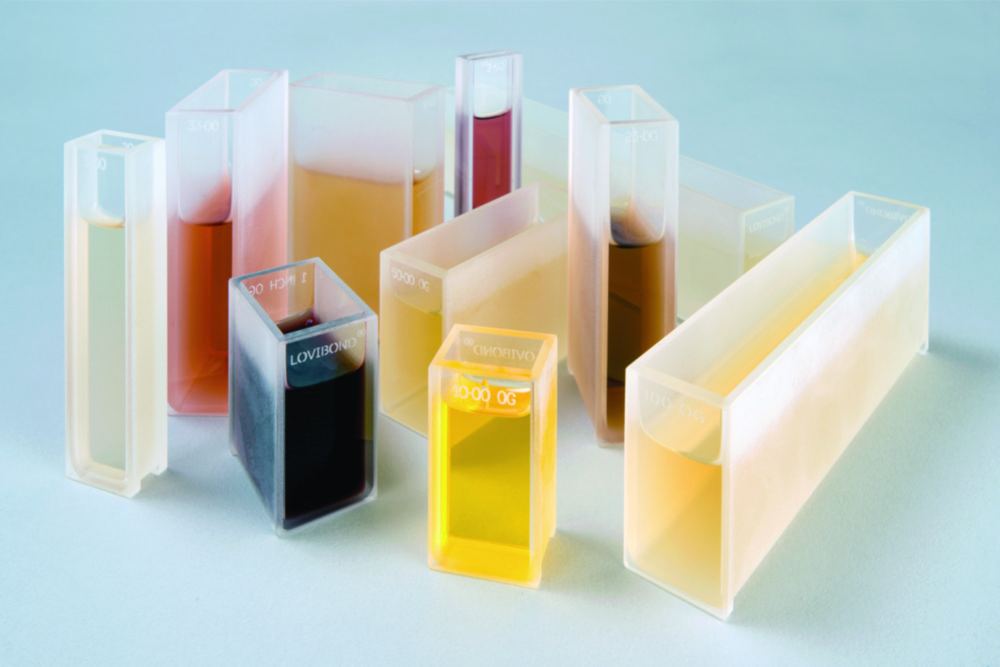

Cells W600
Cells made of optical glass or Borosilicate glass 3.3, 21 mm x 40 mm, for instument Models Fs, PFXi/PFX195, 880, 950 and 995. (Note: PFXi/PFX-195 max. path length 50 mm).W600/OG/xx for unheated samples (up to 40 °C)W600/B/xx for heated samples (up to max. 100 °C)Further versions available on request.
Cells W680
Cells made of optical glass 17 mm x 75 mm, for Comparator 2000+ and Comparator 3000 using unheated samples (up to 40 °C).Further versions available on request.

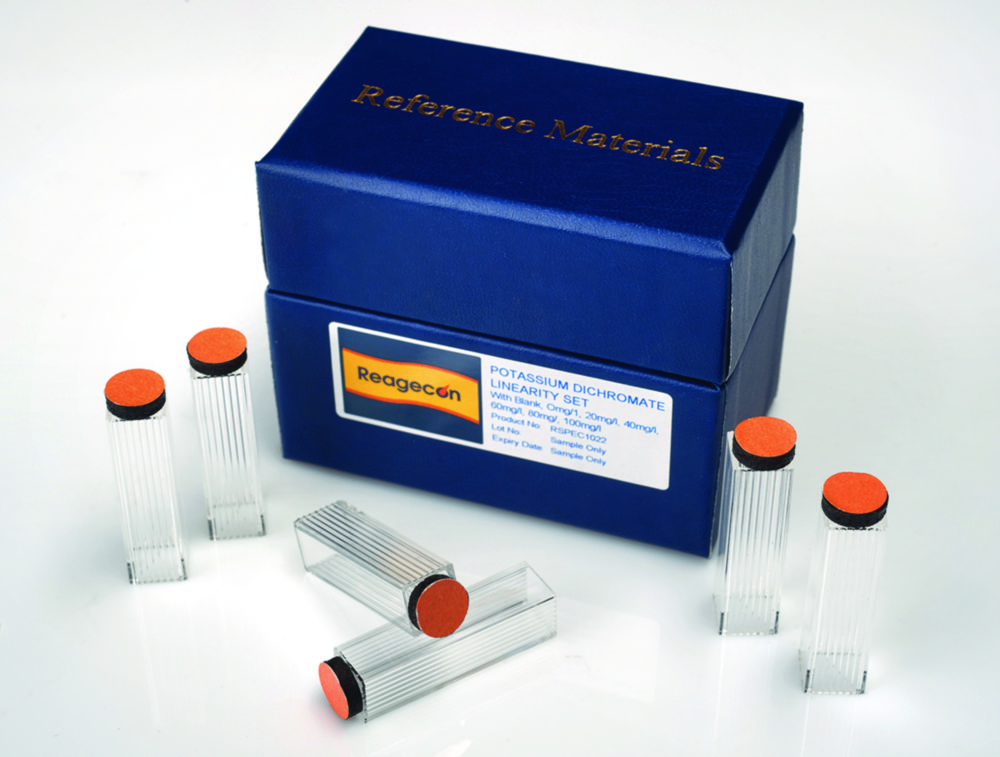

Certified reference materials for qualifying spectrophotometer as a complete set
To maintain constant good measurement results, a regular review of the accuracy of the spectrophotometer is required. With the use of certified reference materials from Hellma Analytics, you make sure that your equipment qualifications meet the requirements of the pharmacopoeias and fulfill your internal quality requirements, at the same time you reach the international comparability of your measurement results. The certified reference materials (calibration standards) of the DIN EN ISO 17025 accredited Hellma Analytics calibration laboratory are traceable to the primary standards of NIST (National Institute of Standards and Technology) and meet the requirements of the major pharmacopoeias (e.g. EP, DAB, USP).Your benefits: High quality of the measurement resultsInternational comparability of measurement resultsMeeting the requirements of the major pharmacopoeias (EP, DAB, USP)Results traceable to NIST primary standards30 years warranty on the reference materialsScope of delivery: Certified reference materials (Calibration Standards) in quality storage boxDAkkS Calibration Certificate (DIN 17025)Handling guidelinesGlass Filters 666-S000: For testing spectrophotometers. Photometric accuracy and wavelength accuracy in the visible spectral region.Liquid Filters 667.033-UV: For testing spectrophotometers according to European Pharmacopoeia, wavelength accuracy, photometric accuracy, stray light behaviour, resolution.Filters also available individually.
Colorimeter Fx
The Lovibond® Model Fx solves the problem of measuring the colour of edible oils and fats with its unique ability to not only keep the oil at a constant temperature but also to measure and report on the temperature of the sample, avoiding any misreading from crystallisation. The oils can now be measured in their natural and correct state.Avoids misreading from crystallisationMeasures Lovibond® RYBN, Lovibond RY10:1, AOCS RY, Chlorophyll & b-CaroteneAllows the Measurement of Hot Samples (Integrated Heater)Ensured Compliance to StandardsScope of supply: Colorimeter, W600/B/1" cell (borosilicate, 1" path length), W600/B/5¼" cell (borosilicate, 5¼" path length), external power supply, quick start guide (hard copy), USB memory stick (containing the manuals), certificate of conformitySpecificationsWavelength Range:380 ... 780 nmAccuracy:± 0.2 nmSpectral Scope: 15 nmPhotometric Range:0 ... 100 % TLinearity:± 0.01 % TStray light: 0.01 % TInterfaces:USB, RS 232Dimensions (W x D x H):301 x 152 x 331 mmWeight:516 g
Colorimeter Ultrospec 35c
Compact, portable colorimeter for measuring the absorbance/transmission of liquid samples in a cuvette or test tube at a specified wavelength to determine the molecular concentration. Ideal for use in the laboratory or in the field for quantification and analysis in life science, chemistry, and physics.Large, backlit 4.3" LCD colour touchscreen displayUSB ports for exporting measurement dataModes: Absorbance, % transmission, kineticsSelectable wavelengths: 450, 500, 520, 540, 600, 640 nmStorage of measurement dataEasy cleaning and maintenanceScope of supply: Colorimeter, USB-C cable, 8 cuvettes, quick start guide, power supply with plug adapter EU, UK, China/AUS, USSpecificationsWavelength range:450 ... 640 nmSpectral bandwidth:40 nmPhotometric range:0.3 ... 2.0 APhotometric accuracy:±0.05A 1APhotometric repeatability:±0.02A at 1A
Colorimeters, Lovibond® PFXi series
The PFXi series of spectrophotometric colorimeters introduces a unique concept in liquid colour control: RCMSi technology (Remote Calibration & Maintenance Service via internet). Users can benefit from the capability for remote calibration and servicing via the internet - eliminating any costs and time delays associated with servicing and guaranteeing compliance with standards. The PFXi range is supplied with a full range of colour scales for specific markets including, but not limited to, Petroleum, Edible Oils, Pharmaceuticals, Brewing and Honey. Users can upgrade scales remotely at any time. Every PFXi is supplied with colour control software for data analysis (LAN & USB cable provided). Optical glass cells, a certified glass calibration filter, a spare lamp and user instructions included. The PFXi-880 and -995 series are available with an optional integrated heater unit. (This is not available for the PFXi-195). This is a critical feature when dealing with materials such as fats and waxes where temperature needs to be maintained at a constant temperature +10°C above the "Cloud Point" of the material.Please Note: CIE values and spectral data readings are standard on all the instruments listed below.
Comparators 2000/3000 series
Two-Field and Three-Field Comparator View and nummerical results. The EComparator series offers the progress from Visual (subjective) to Electronic (objective) results.With the EComparator series, viewers can view the colour difference with on-screen colour and on-screen numerical display. Touch screen technology makes the EComparator easily programmable with instinctive menus on screen. Users can set language, date and time, view preferences and create projects with individual tolerance settings "within tolerance" (green), "outside tolerance" (red) and "on border of tolerance" (amber) to provide the user with immediate information on the sample.Instant and accurate, ready for immediate useGuaranteed agreement with international standardsResults shown on display optional as colour or numeric valueDigital, mobile technology at the press of a buttonInstant reporting from the laboratory or on siteThe EC 2000 range provides users with a Two Field View visual representation in alignment with the popular Lovibond® Comparator 2000+ system widely used today.The EC 3000 range provides users with a Three Field View visual representation in alignment with the popular Lovibond® Comparator 3000 / AF comparators. Here the sample and two consecutive readings of the colour scale are viewed simultaneously, making it easier to achieve the optimum colour match.EC 2000 PT CO: Platinum-Cobalt/Hazen/Apha Colour (ASTM D 1209)/True Colour Units (TCU). Water, clear oils, chemicals and petrochemicals. Incl. cells (3 x 50 mm W100 plastic) and (1 x 50 mm W100 OG)EC 2000 GARDNER COLOUR: ASTM D 1544, ASTM D 6166, AOCS Td 1a, MS 817 Part 10. Resins, varnishes, lacquers, drying oils, fatty acids, lecithins, sunflower oil, linseed oil. Incl. cells (3 x 10 mm W100 plastic) and (1 x 10 mm W100 OG)EC 3000 ASTM COLOR: ASTM D 1500, ASTM D 6045, ISO 2049, IP196. For mineral oils and petrochemicals. Incl. cells (2 x 33 mm W100 plastic) and (2 x 33 mm W100 OG)EC 3000 SAYBOLT COLOUR: ASTM D 156, ASTM D6045. Aviation fuels, kerosene, naphthas, white mineral oils, hydrocarbon solvents, petroleum waxes. Incl. cells (2 x 50 mm W100 plastic) and (2 x 50 mm W100 OG)Scope of supply: Liquid reference standards and 1 glass standard included for EC 2000 and 2 glass standards included for EC 3000.

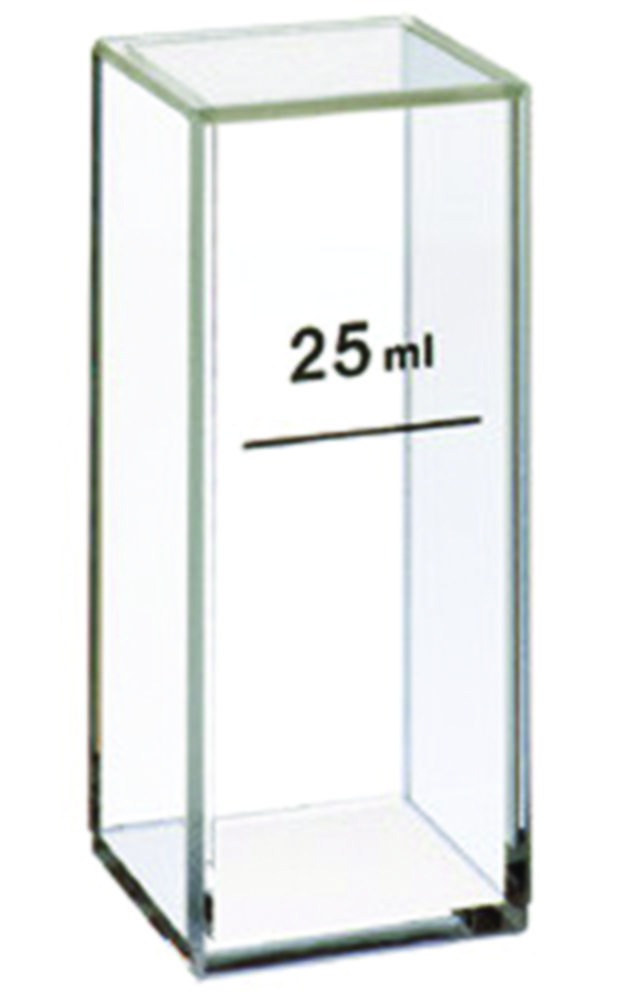

Cuvette for turbidity measurements, VIS-range
Wavelength: 360nm - 2500nmOptical Material: Optical glass
