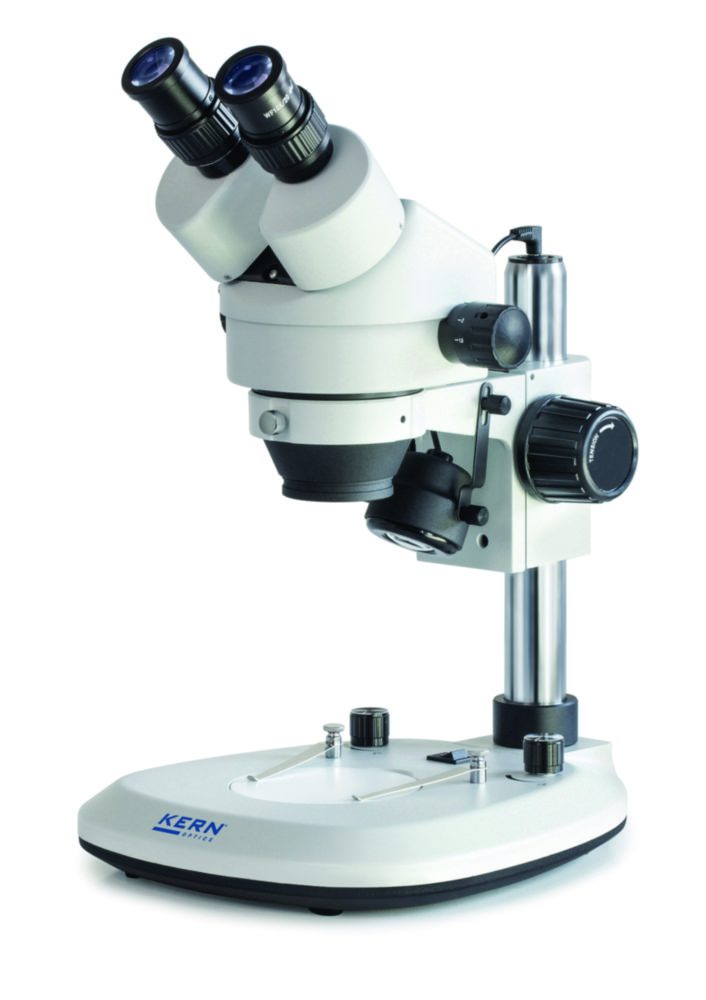

Greenough Stereo Microscopes Lab-Line OZL
The flexible all-rounder with zoom function for schools, training companies, inspection authorities and laboratories.Tube 45° inclinedWide Field HWF 10x/20 mmDiopter adjustment: Both-sidedIllumination: 3 W-LED Incident and 3 W-LED transmitted, seperately dimmableInterpupillary distance 55 to 75 mmLarge selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessoriesOZL 466 with strong, continuously dimmable, integrated LED ring illumination in the objective housingOZL 468 with integrated handle and stable, mechanical standProtective dust cover, eye piece rubber caps, as well as multi-lingual user instructions included in the scope of supply

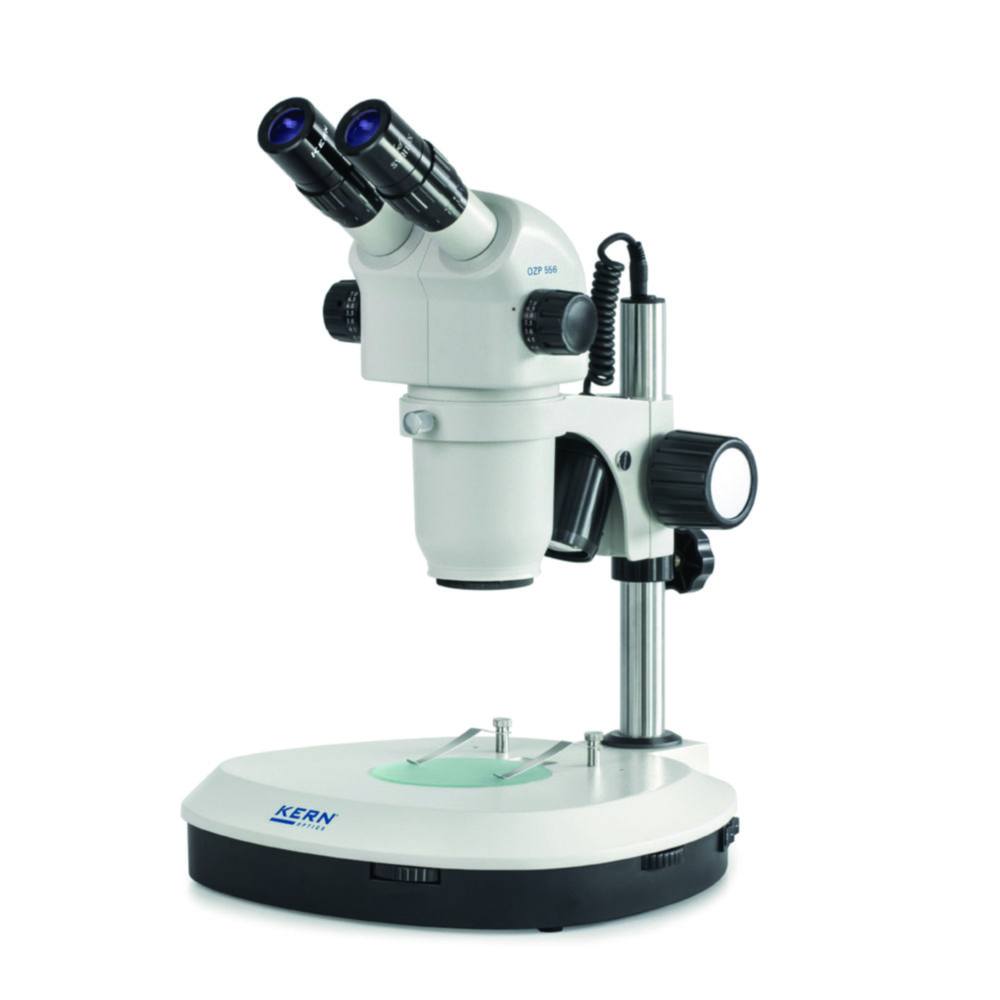

Stereo zoom microscope OZP-5
Stereo zoom microscope with above-average magnification range and robust, ergonomic shape.Optical system: Greenough opticsDiopter adjustment both-sidedLarge working distanceLarge field of viewPillar standIllumination 3 W LED (incident), 3 W LED (transmitted)Illumination separately adjustableScope of supply:Stereo zoom microscope, dust cover, eye cups, user instructions

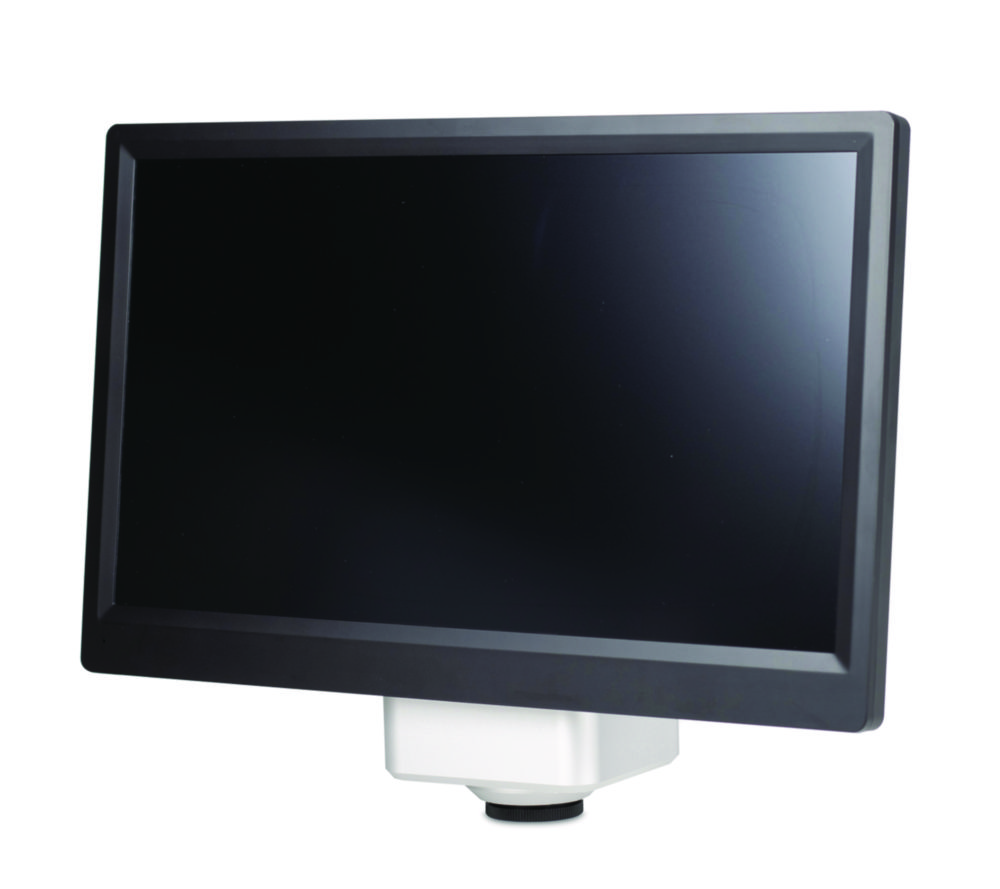

Tablet camera Moticam 1080N BMH
For simple operation and the output of live images in Full HD (1920 x 1080 pixels). Thanks to the on-board software, measurements and image adjustments can be made. The data can be processed on the PC using the Motic Image Plus 3.1 software or saved directly to an SD card without a computer.LCD screenMicro SD card slotUSB connectionHDMI connectionScope of supply: Camera, CS ring adaptor, Motic 4-dot calibration slide, universal power supply, HDMI cable, USB cable, software Motic Images Plus 3.1, transport case

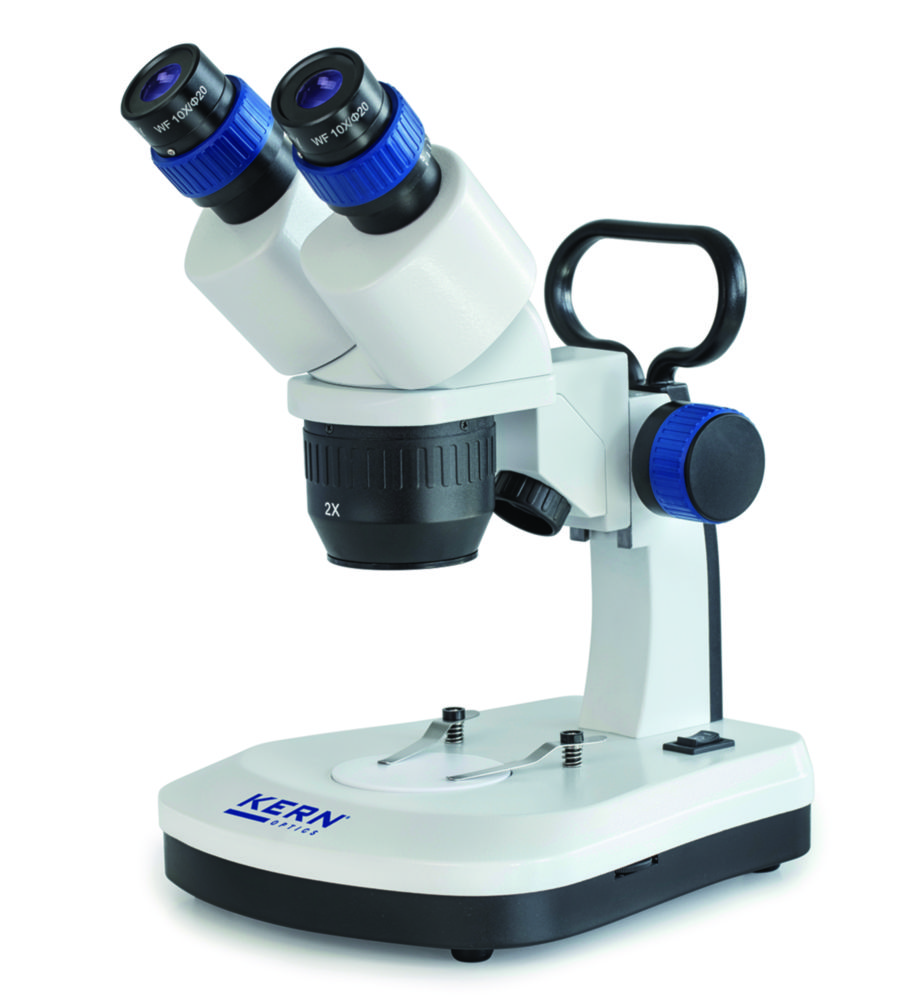

Greenough-Stereomicroscope Educational-Line OSE
Ideal for workshops, schools and training.Tube 45° inclinedWF 10×/ Ø 20 mmDiopter adjustment: Both-sidedIllumination 1 W LED incident and transmittedIntegrated handle and arm curved stand

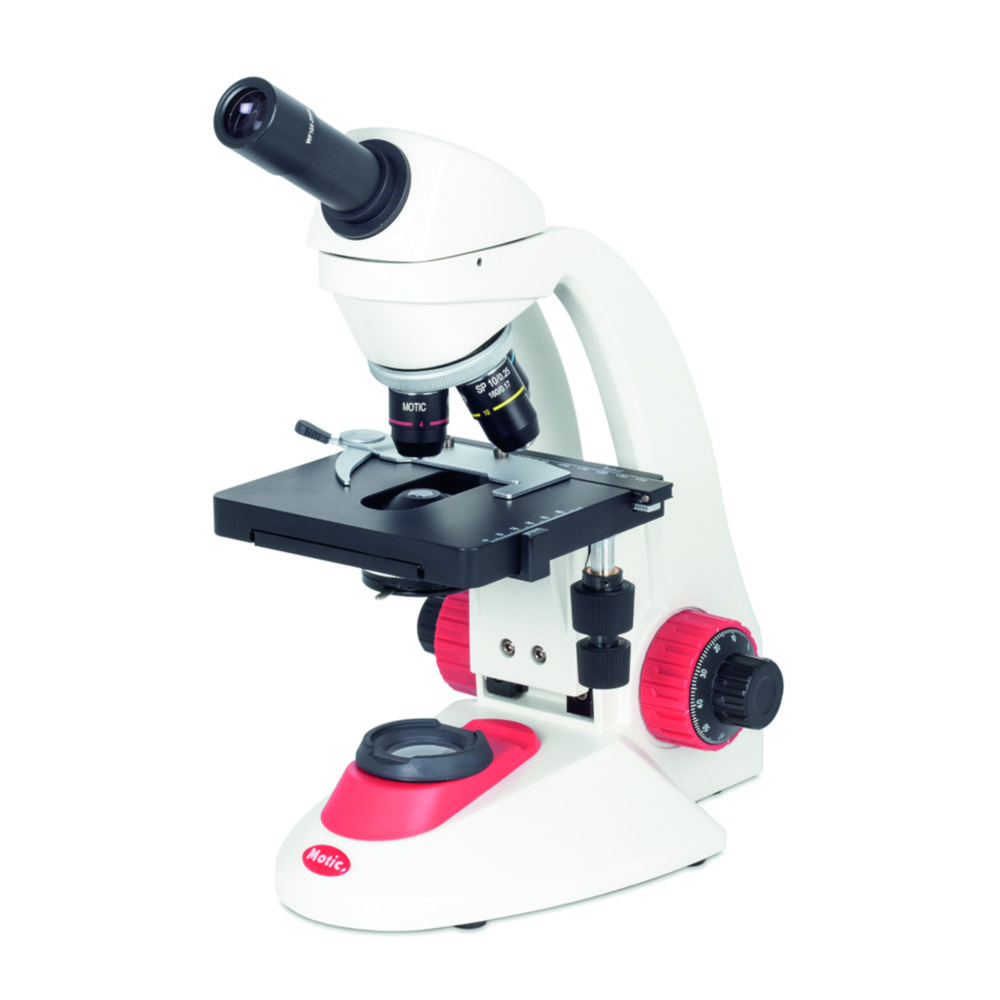

Educational microscopes RED 211
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmReversed quadruple revolving nosepieceAchromatic Semi-Plan objectives SP 4X, 10X, 40XCoaxial coarse and fine focusing systemBuilt-in low position coaxial mechanical stageMonocular head 30°, 360° rotatingAbbe condenser N.A. 1.25 with iris diaphragmLED illumination 3 W with intensity controlScope of supply:Microscope, dust cover

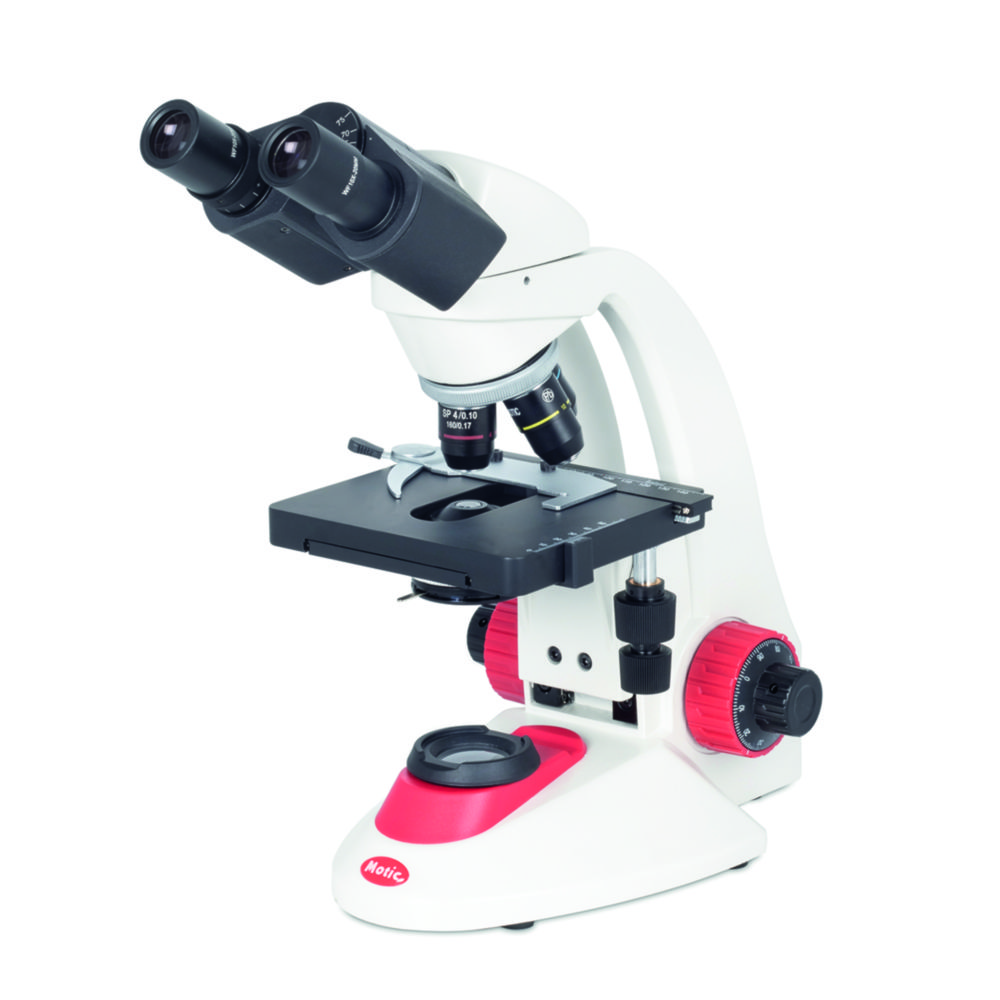

Educational microscopes RED 220
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmReversed quadruple revolving nosepieceAchromatic Semi-Plan objectives SP 4X, 10X, 40XCoaxial coarse and fine focusing systemBuilt-in low position coaxial mechanical stageBinocular head 30°, Siedentopf type, 360° rotatingAbbe condenser N.A. 1.25 with iris diaphragmDiopter adjustment on left tubeLED illumination 3 W with intensity controlScope of supply:Microscope, dust cover

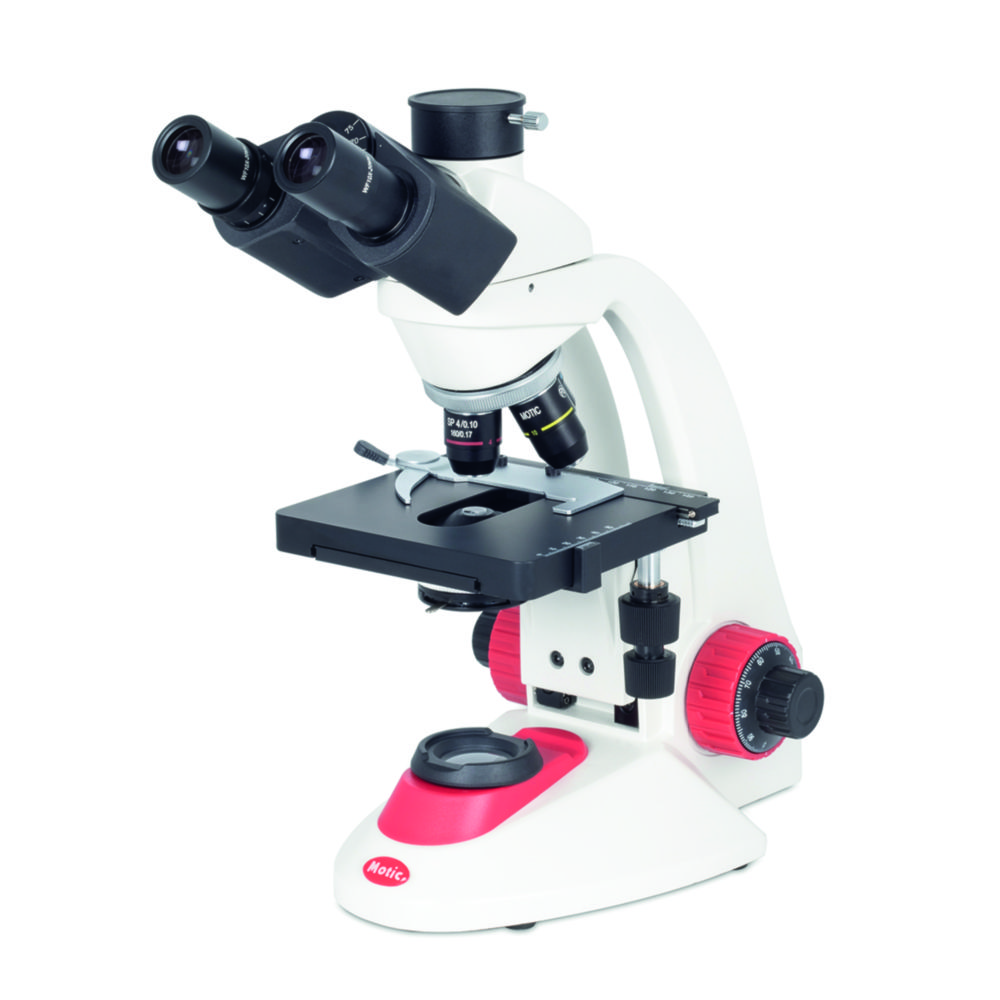

Educational microscopes RED 223
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmReversed quadruple revolving nosepieceAchromatic Semi-Plan objectives SP 4X, 10X, 40XCoaxial coarse and fine focusing systemBuilt-in low position coaxial mechanical stageTrinocular head 30°, Siedentopf type, 360° rotatingAbbe condenser N.A. 1.25 with iris diaphragmDiopter adjustment on left eyepiece socketLED illumination 3 W with intensity controlScope of supply:Microscope, dust cover, 0.5x C-mount adapter

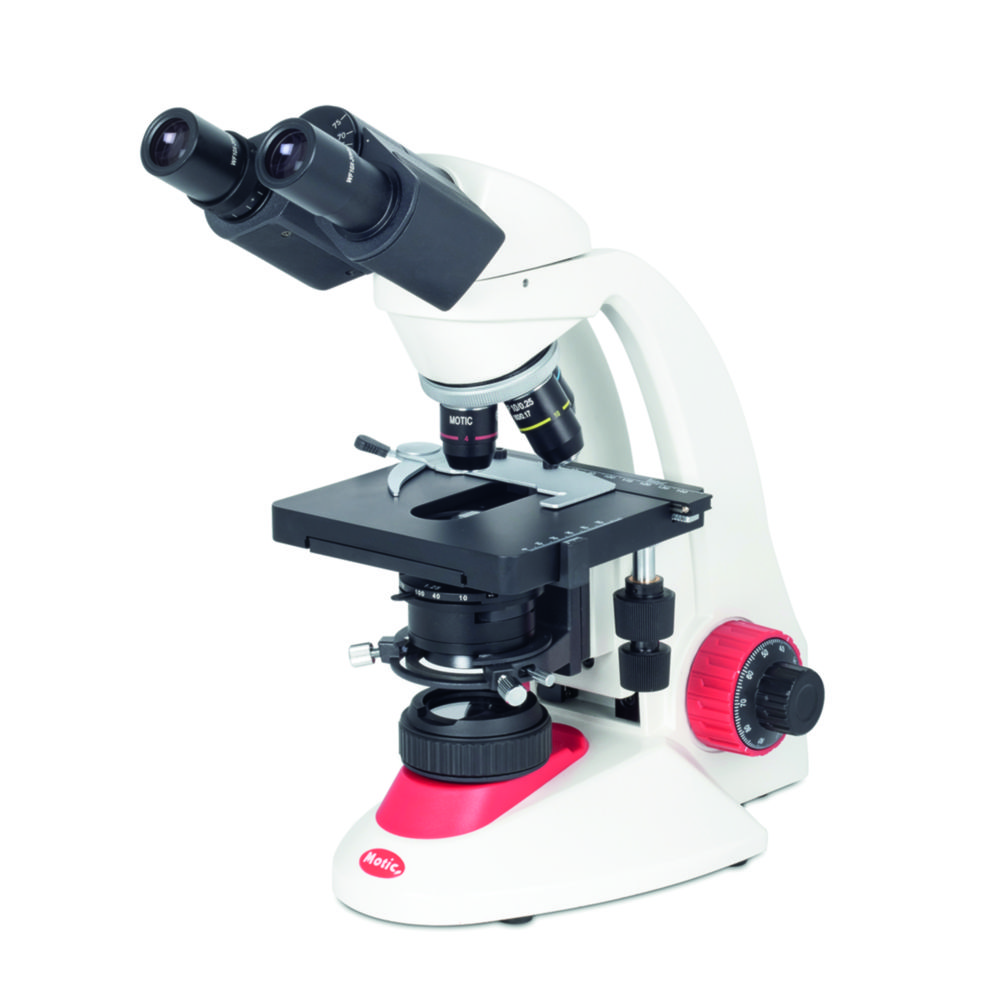

Educational microscopes RED 230
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmReversed quadruple revolving nosepieceAchromatic Semi-Plan objectives SP 4X, 10X, 40XCoaxial coarse and fine focusing systemBuilt-in low position coaxial mechanical stageBinocular head 30°, Siedentopf type, 360° rotatingFocusable and centerable Abbe condenser N.A. 1.25 with iris diaphragmDiopter adjustment on left eyepiece socketKöhler LED illumination 3 W with intensity controlScope of supply:Microscope, dust cover

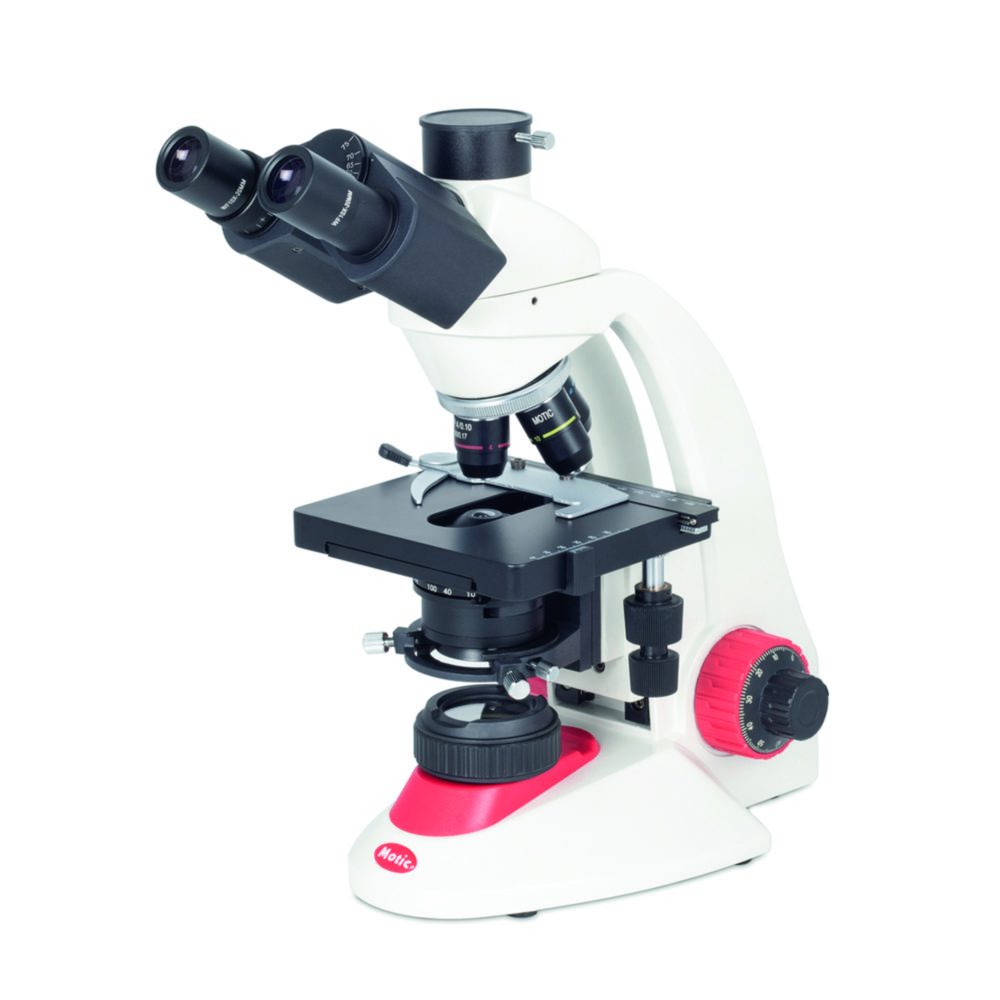

Educational microscopes RED 233
For applications in schools, universities and laboratories.Depending on the model, 1 or 2 widefield eyepieces WF10X/18 mmReversed quadruple revolving nosepieceAchromatic Semi-Plan objectives SP 4X, 10X, 40XCoaxial coarse and fine focusing systemBuilt-in low position coaxial mechanical stageTrinocular head 30°, Siedentopf type, 360° rotatingFocusable and centerable Abbe condenser N.A. 1.25 with iris diaphragmDiopter adjustment on left eyepiece socketKöhler LED illumination 3 W with intensity controlScope of supply:Microscope, dust cover, 0.5x C-mount adapter

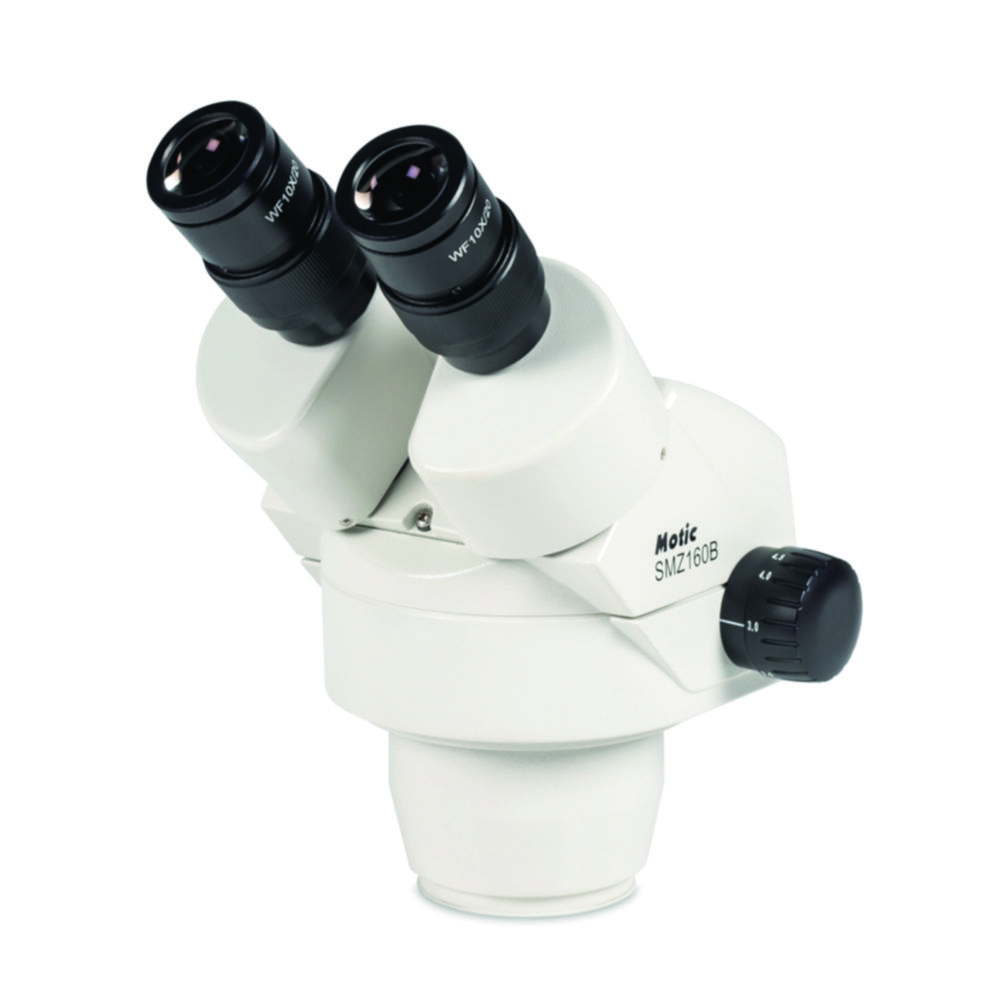

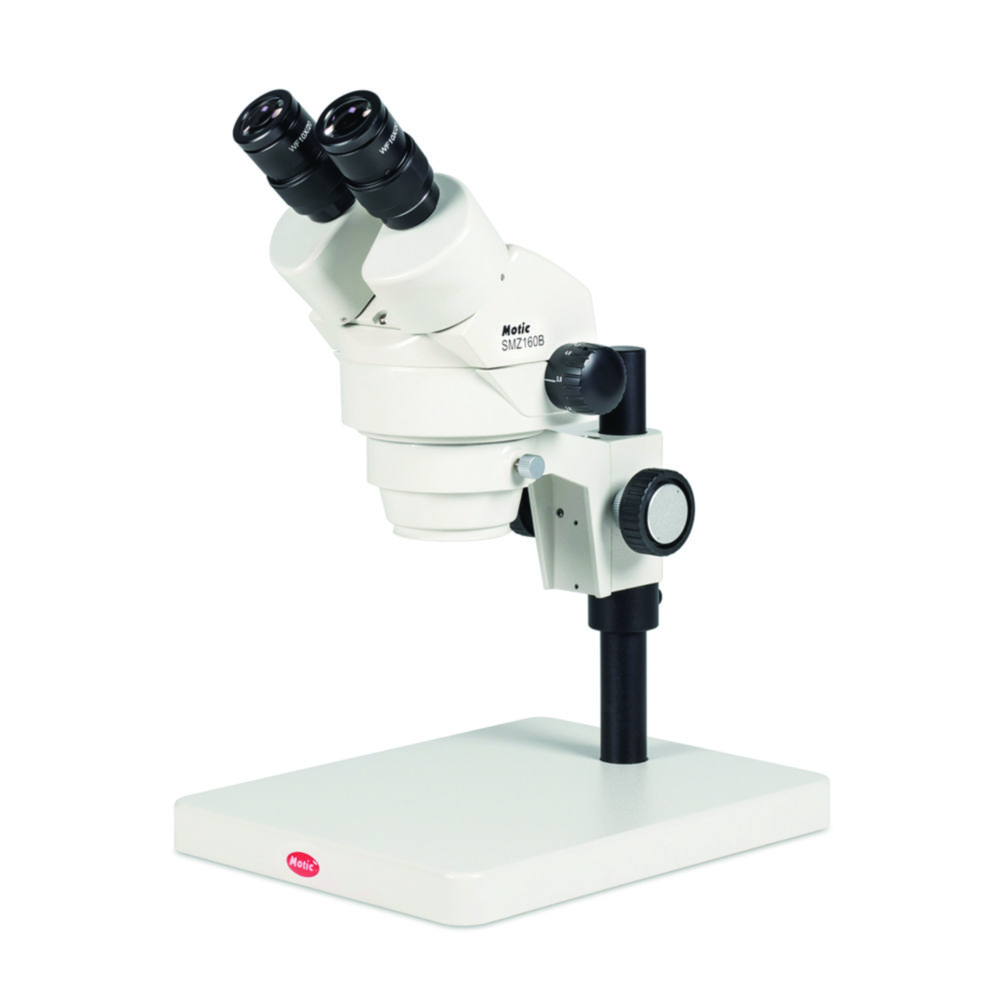

Stereo microscopes without illumination SMZ-160 series
All-purpose, durable zoom stereo microscope suitable for use in educational institutions. At the same time, it meets the precision and quality control requirements of industry, research and medicine. Versatile accessories are available.Greenough optical systemTube 360º rotatingDiopter adjustment on both eyepiecesZoom ratio 6:1Coarse focusing system with tension adjustmentWith stand for incident lightScope of supply: Stereo microscope, black/white stage plate, dust coverPlease order light source separately.

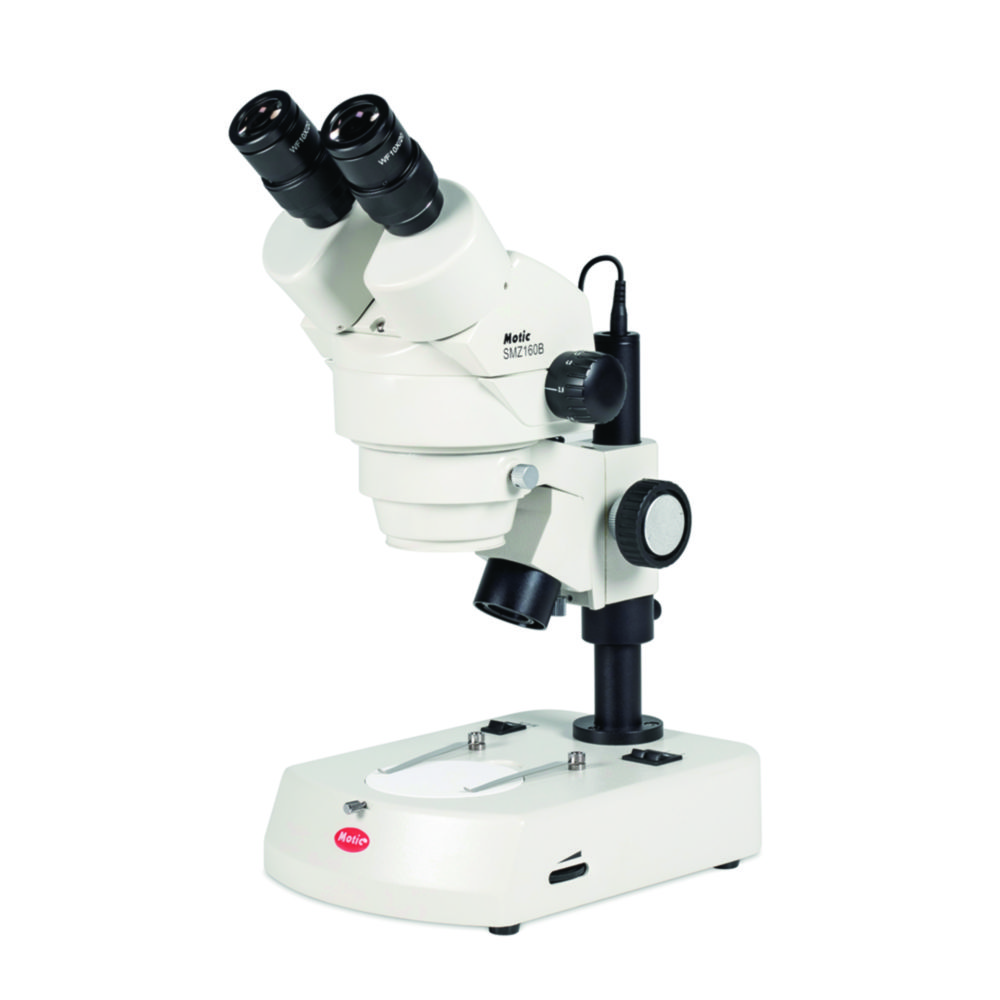

Stereo microscopes with illumination SMZ-160 series
All-purpose, durable zoom stereo microscope suitable for use in educational institutions. At the same time, it meets the precision and quality control requirements of industry, research and medicine. Versatile accessories are available.Greenough optical systemTube 360º rotatingDiopter adjustment on both eyepiecesZoom ratio 6:1Coarse focusing system with tension adjustmentStand with incident and transmitted light illuminationLED illumination (3 W) with intensity controlScope of supply: Stereo microscope, stage plates black/white and frosted glass, dust cover

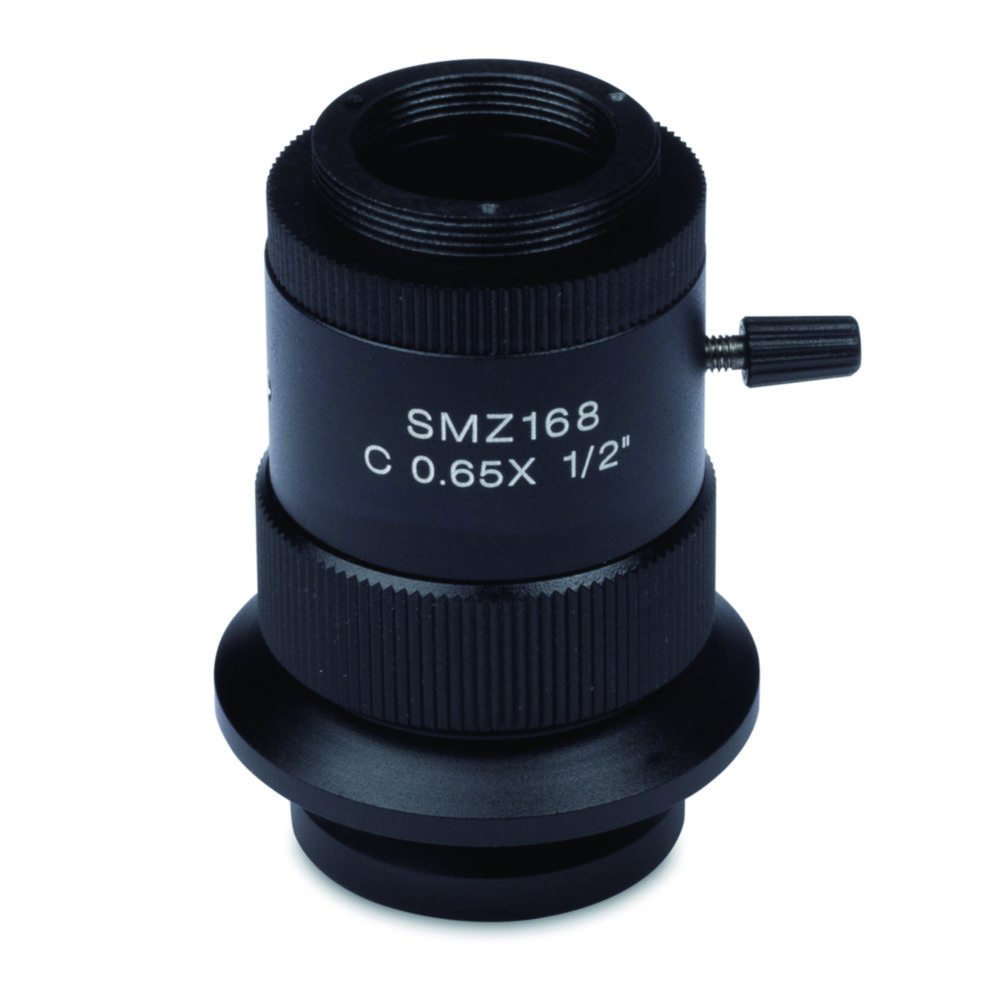

Camera adapter C-mount for stereo microscopes SMZ-160 series
Adapters for attaching a microscope camera to trinocular stereo microscopes.

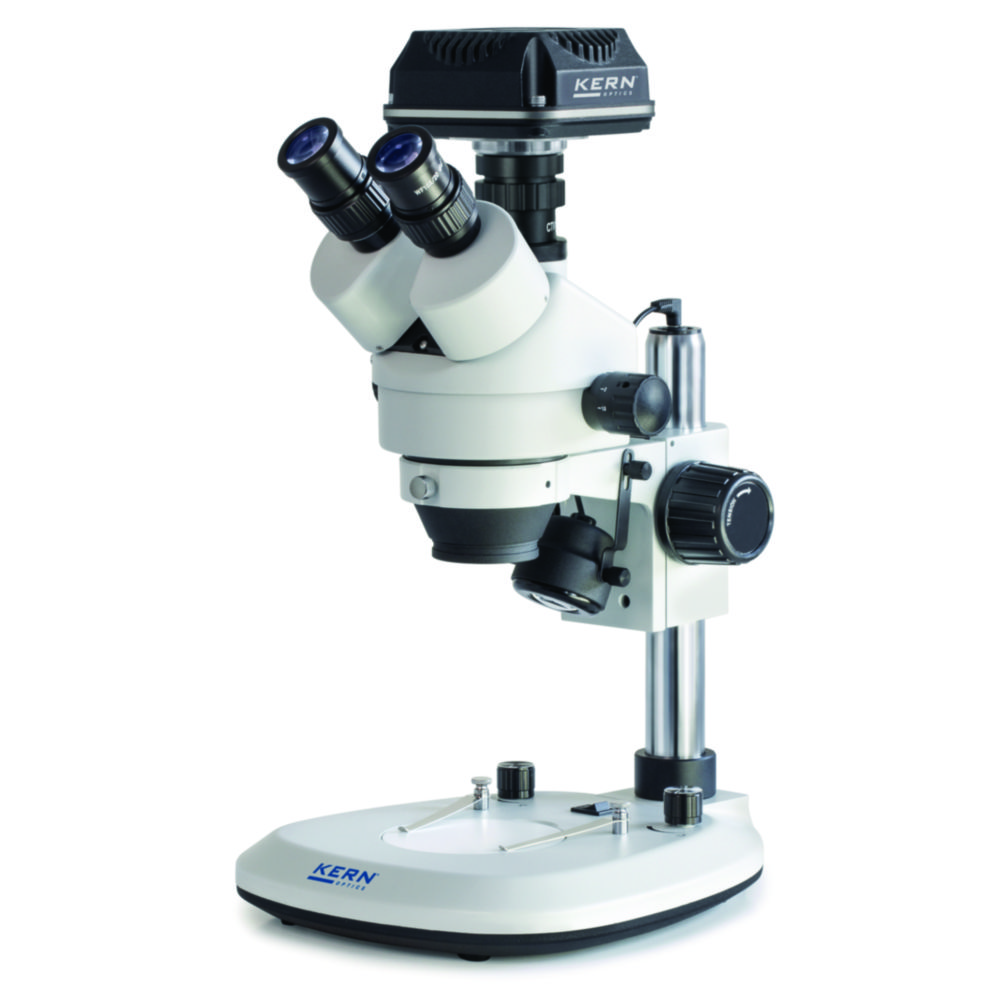

Digital microscope set OZL, with C-mount camera
The set is the digital solution, with zoom function, for schools, training companies, inspection authorities and laboratories.Optical system: Greenough opticsDiopter adjustment both-sidedStand (464, 466): pillarStand (468): mechanicIllumination: 3 W-LED incident, 3 W-LED transmittedScope of supply:Stereo zoom microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction

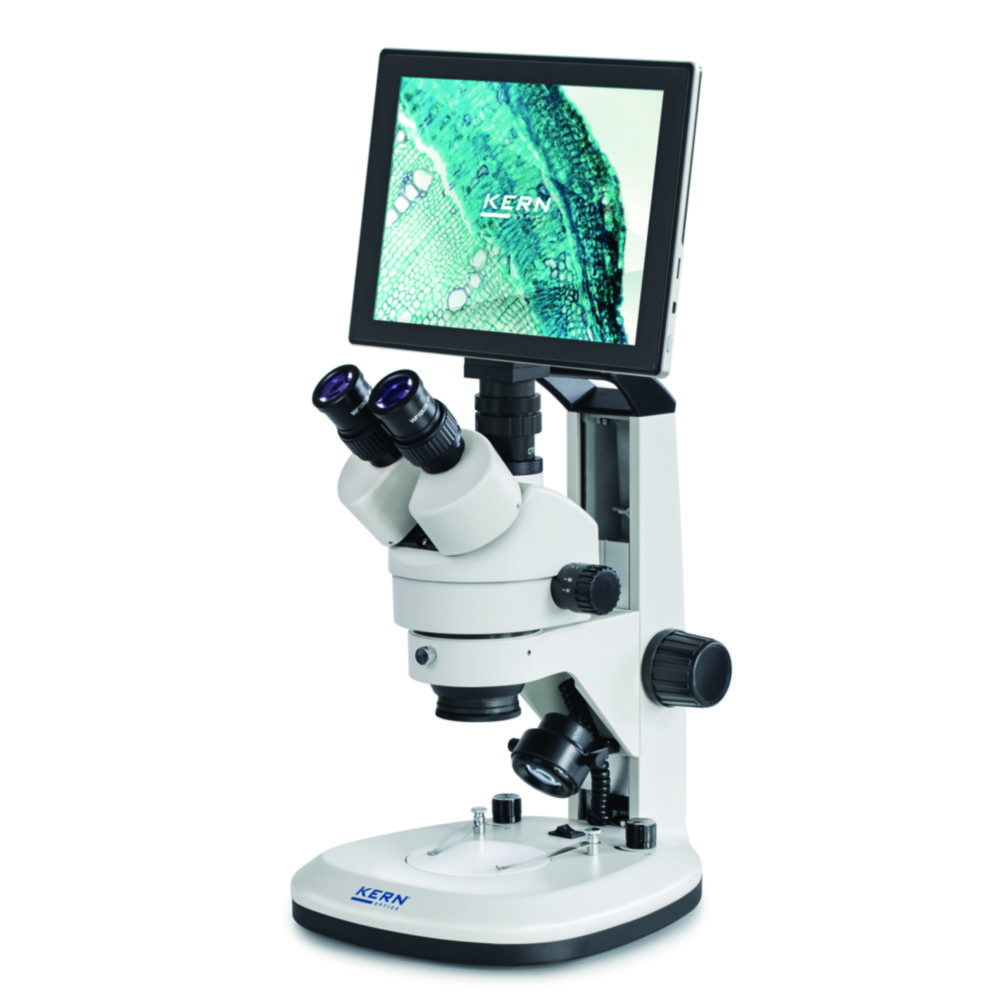

Digital microscope set OZL, with tablet camera
The set is the digital solution, with zoom function, for schools, training companies, inspection authorities and laboratories.Optical system: Greenough opticsDiopter adjustment both-sidedStand (464, 466): pillarStand (468): mechanicIllumination: 3 W-LED incident, 3 W-LED transmittedScope of supply:Stereo zoom microscope, camera, dust cover, eye cups, manual instruction

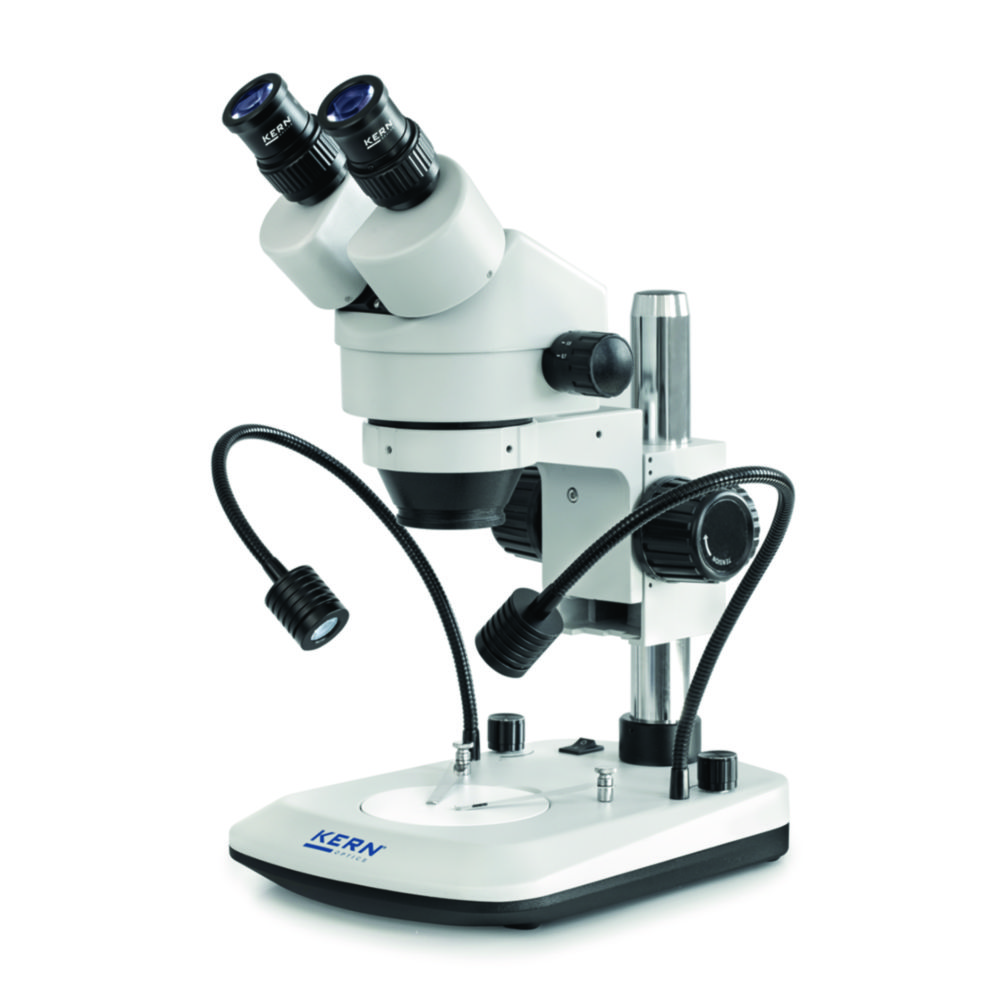

Stereo zoom microscope KERN OZL-47
The powerful and continuously dimmable LED double gooseneck illumination (incident light) ensures an individually and quickly adjustable illumination.Optical system: Greenough opticsDiopter adjustment both-sidedLarge working surfacePillar standIllumination: 3 W LED (incident)Scope of supply:Stereo zoom microscope, dust cover, eye cups, user instructions

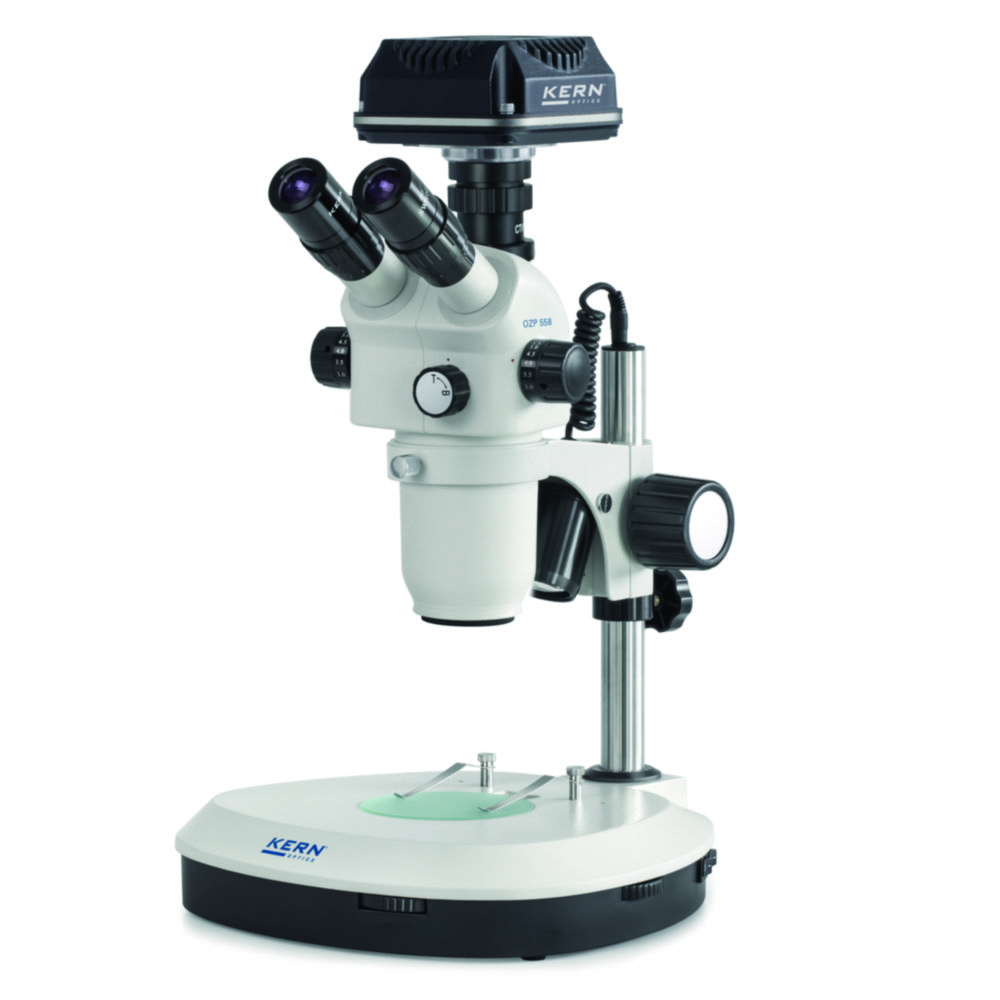

Stereo zoom microscope set OZP, with C-mount camera
Stereo zoom microscope with above-average magnification range and robust, ergonomic shape.Optical system: Greenough opticsDiopter adjustment both-sidedLarge working distanceLarge field of viewPillar standIllumination 3 W LED (incident), 3 W LED (transmitted)Illumination separately adjustableScope of supply:Stereo zoom microscope, camera, C-mount adapter, dust cover, eye cups, user instructions

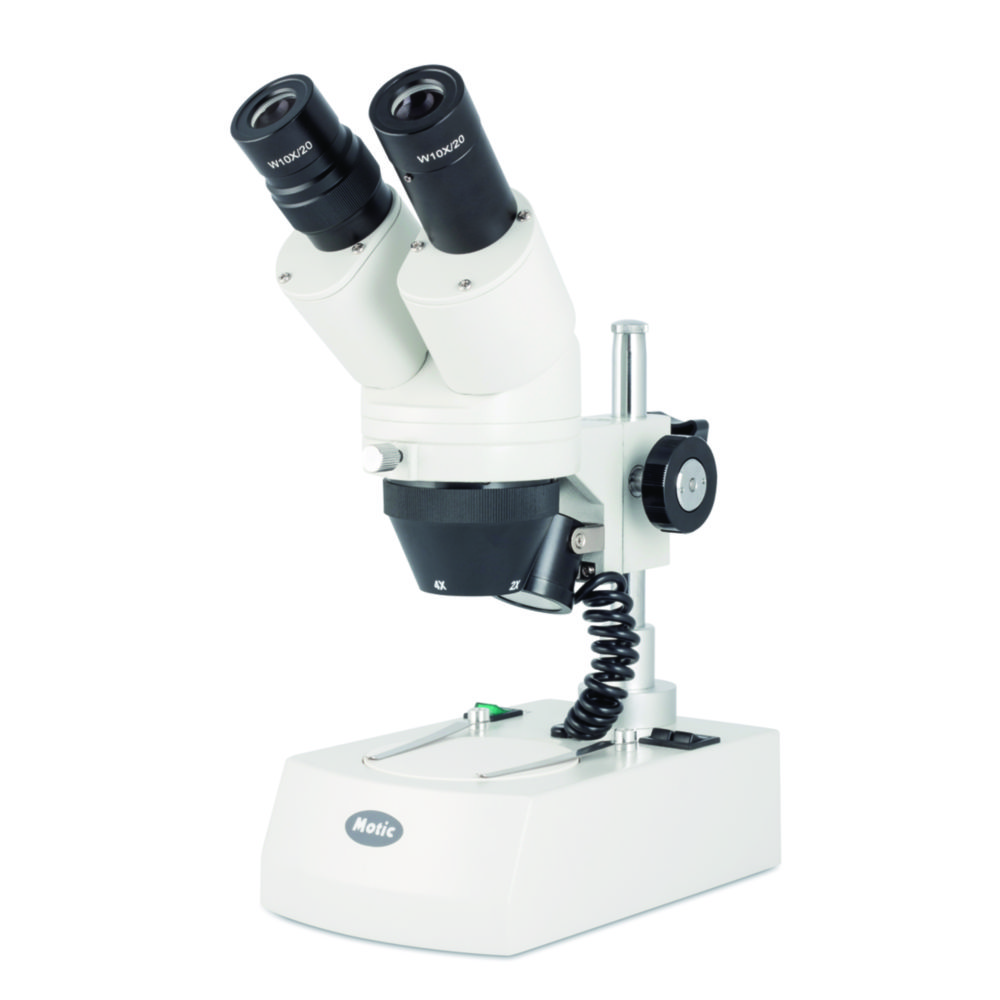

Educational Microscopes ST30C
45° Inclined rear-facing binocular headDiopter adjustment on left eyetubeWidefield eyepieces 10X/20mm2X/4X magnification changer, objectives are parfocal, parcentric and achromaticTungsten lighting (12 V/ 10 W)Led lighting (3.1 V/ 60 mW, rechargeable batteries, 50 h runtime)Focus mechanism with heavy-duty pinion focusing block with slip clutchSupplied with 2 stage plates (diam. 80 mm) made of frosted glass and plastic (black/white), with spring stage clips

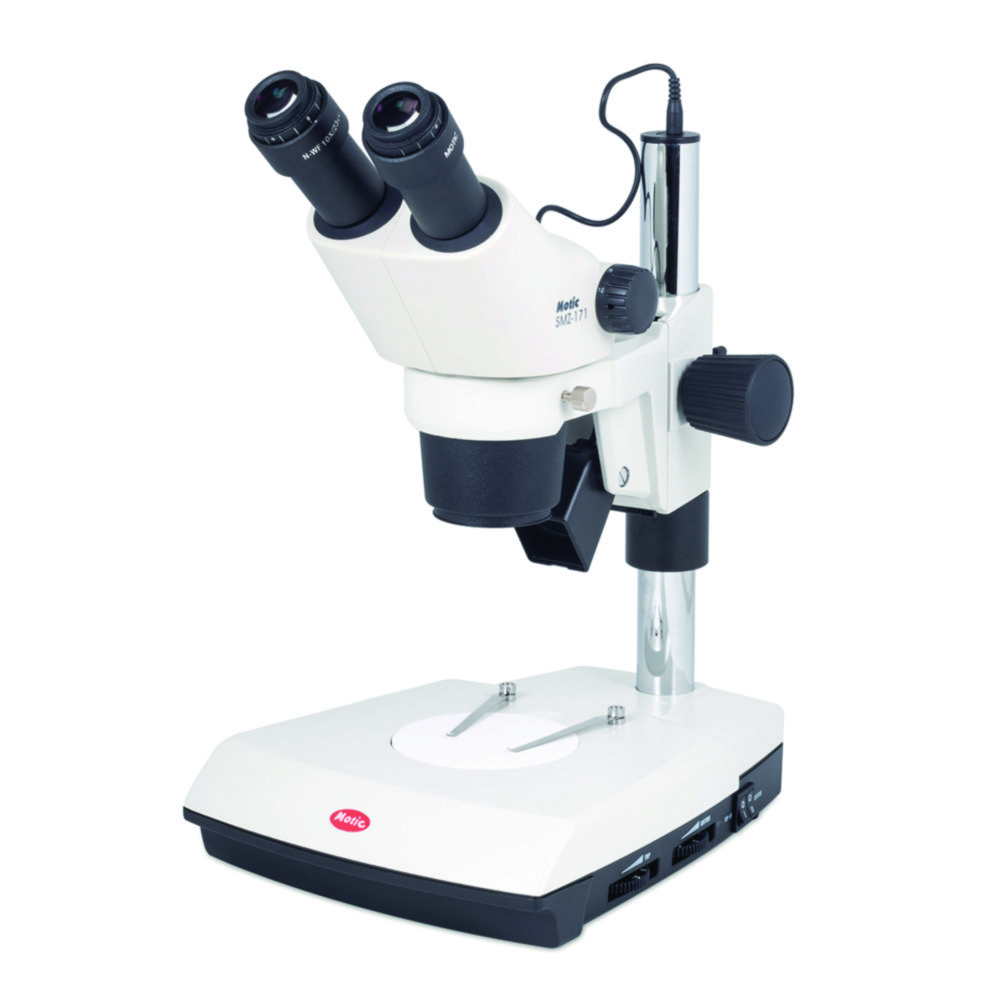

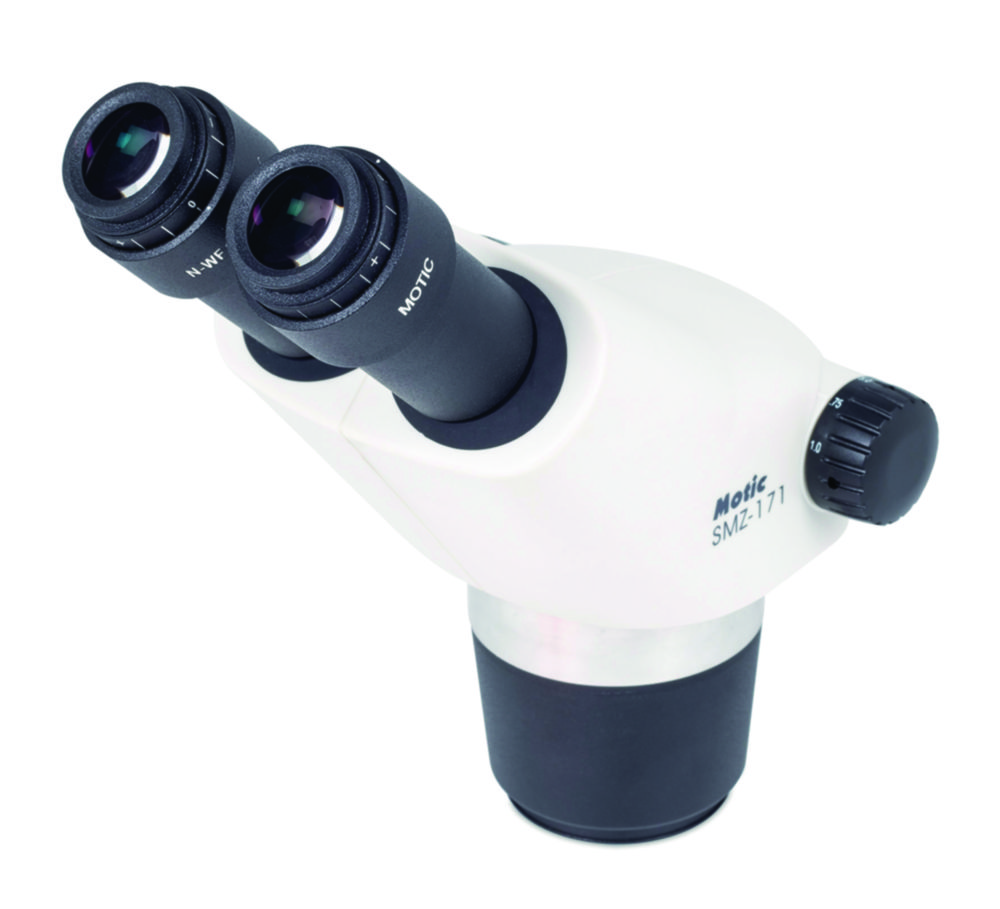

Stereo microscopes with illumination SMZ-171 series
Versatile stereo microscopes for a wide range of biological and material science applications. With convincing optical properties, compact design and robust mechanics. Various accessories are availableGreenough optical systemESD compatible set ups availableTube 360° rotatingDiopter adjustment on both eyepiecesZoom ratio 6.7:1Magnification with attachment system from 2.3X to 100X optionalCoarse focusing system with tension adjustmentStand with incident and transmitted light illuminationLED illumination (3 W) with intensity controlScope of supply: Stereo microscope, stage plates black/white and frosted glass, dust cover

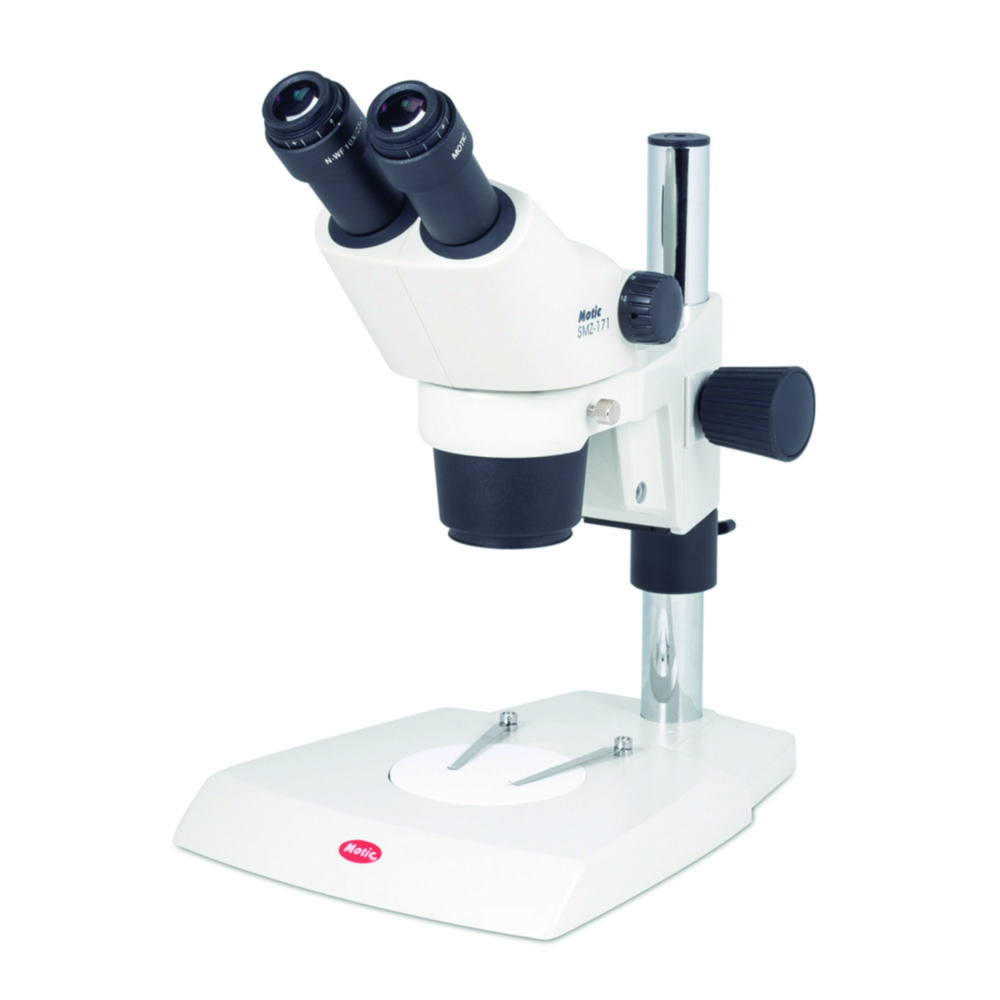

Stereo microscopes without illumination SMZ-171 series
Versatile stereo microscopes for a wide range of biological and material science applications. With convincing optical properties, compact design and robust mechanics. Various accessories are availableGreenough optical systemESD compatible set ups availableTube 360° rotatingDiopter adjustment on both eyepiecesZoom ratio 6.7:1Magnification with attachment system from 2.3X to 100X optionalCoarse focusing system with tension adjustmentWith stand for incident lightScope of supply: Stereo microscope, black/white stage plate, dust coverPlease order light source separately.

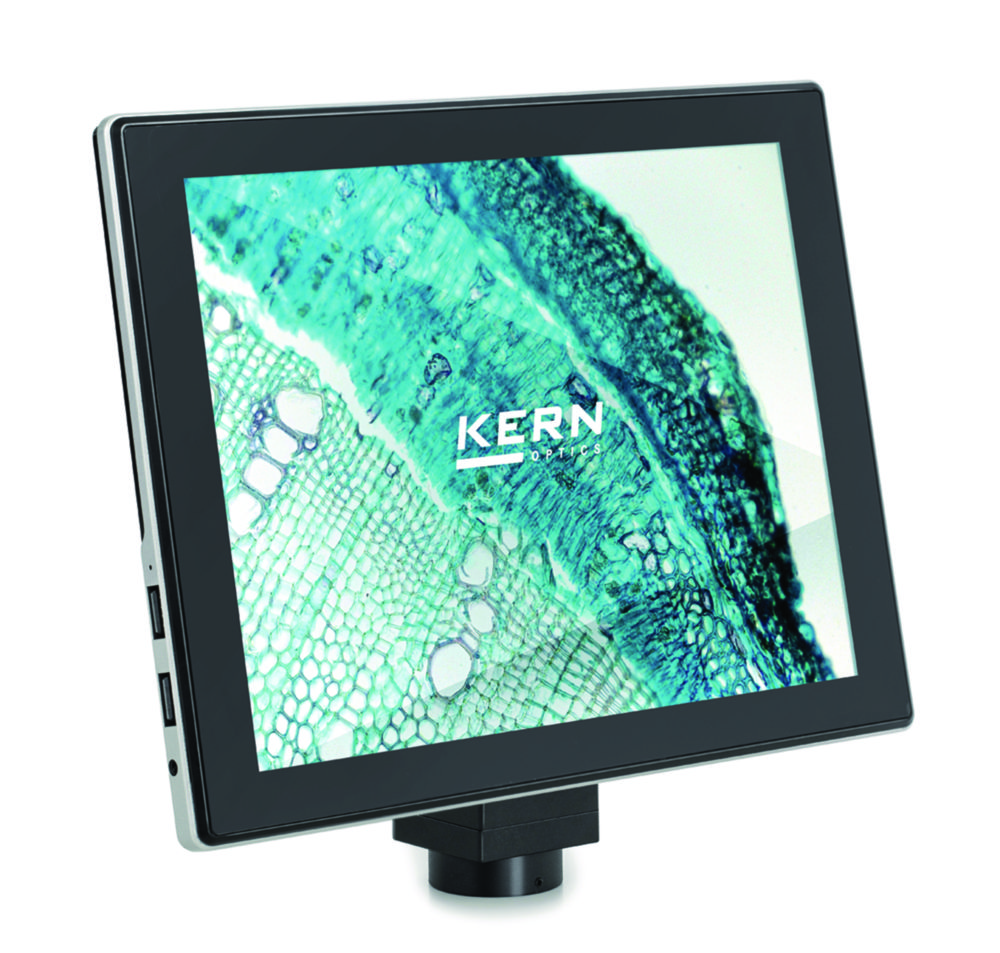

Tablet camera ODC
The Microscope-tablet-camera consists of a large Android tablet in combination with a 5-MP camera, for trinocular microscopes with C-mount adapter.9.7" LCD-TouchscreenIncl. functions for measuring distance, surfaces and angles as well as a manual counting functionAutomatic white balance and contrast adjustmentScope of supply: Tablet camera with pre-installed software, mains adapter

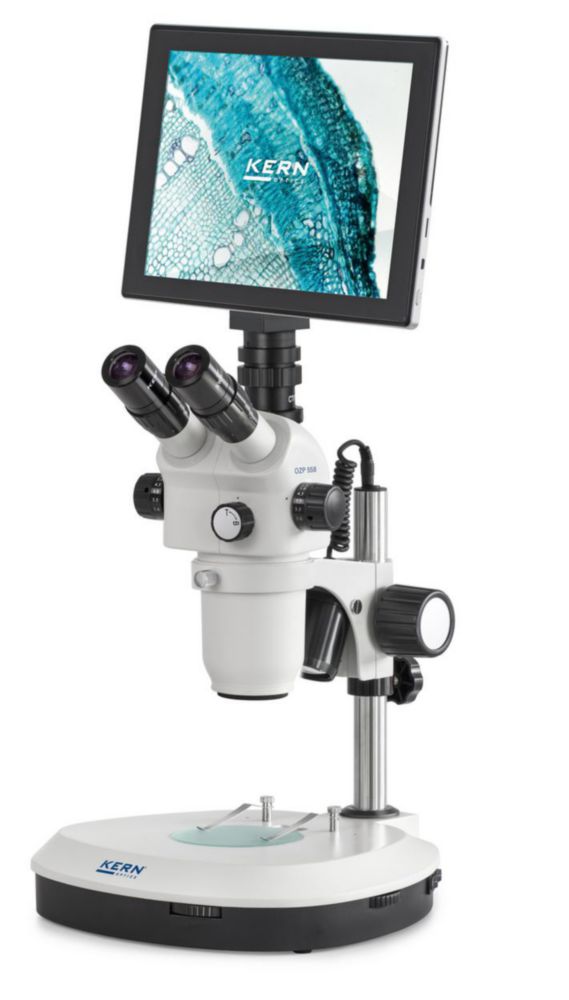

Stereo zoom microscope set OZP, with tablet camera
Stereo zoom microscope with above-average magnification range and robust, ergonomic shape.Optical system: Greenough opticsDiopter adjustment both-sidedLarge working distanceLarge field of viewPillar standIllumination 3 W LED (incident), 3 W LED (transmitted)Illumination separately adjustableScope of supply:Stereo zoom microscope, camera, dust cover, eye cups, user instructions

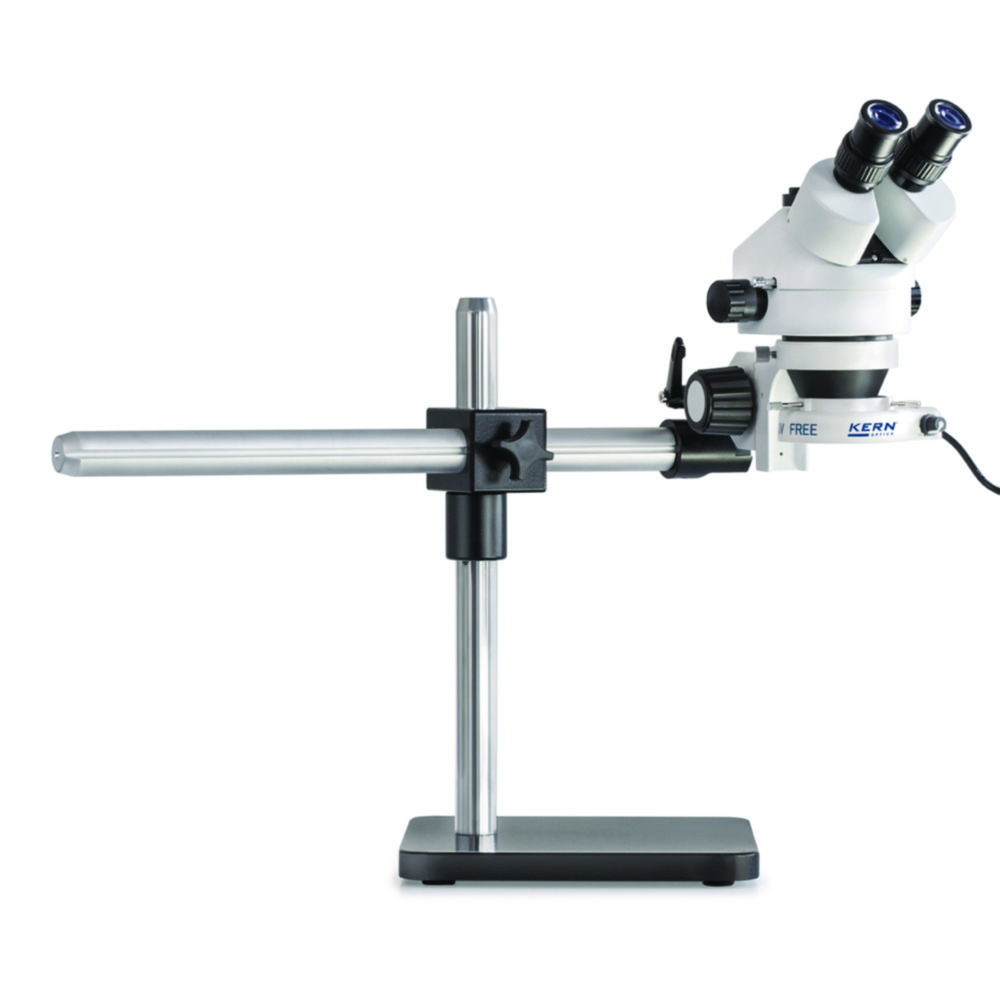

Stereo microscope set OZL 963
Stereo microscope set with simple telescopic arm and ring illumination.Optical system: Greenough opticsDiopter adjustment both-sidedIllumination 4.5 W LED (transmitted), adjustableScope of supply:Stereo microscope head, universal stand, holder, ring illumination, dust cover

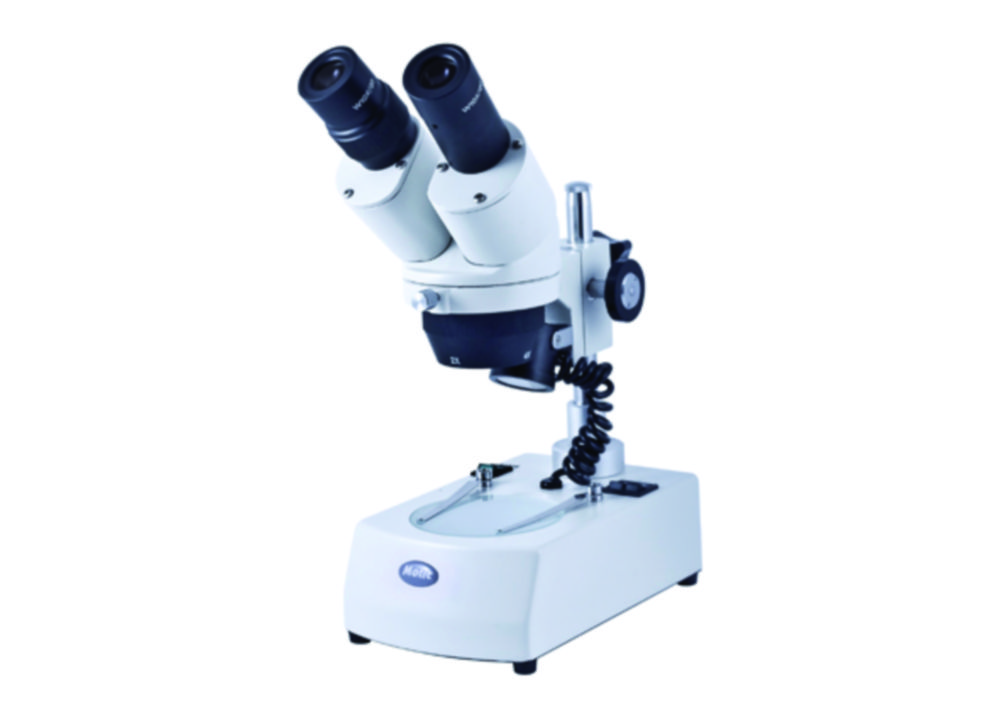

Stereomicroscope, ST-36C
Binocular head, 45º inclined, 360º rotatingWidefield eyepieces WF10X/20mmObjective turret magnification changer (2X, 4X)Coarse focusing system with tension adjustmentBase stand with poleIncident and transmitted rechargeable LED illumination (ST36C-6LED)Incident and transmitted illumination 12V/10W (ST36C-2L00)Power supply 100V-240V (CE), charger and batteries included (ST36C-6LED)Main supply 220V-240V (CE) (ST36C-2L00)Black/white and frosted glass stage plates Ø 80mm, dust cover
