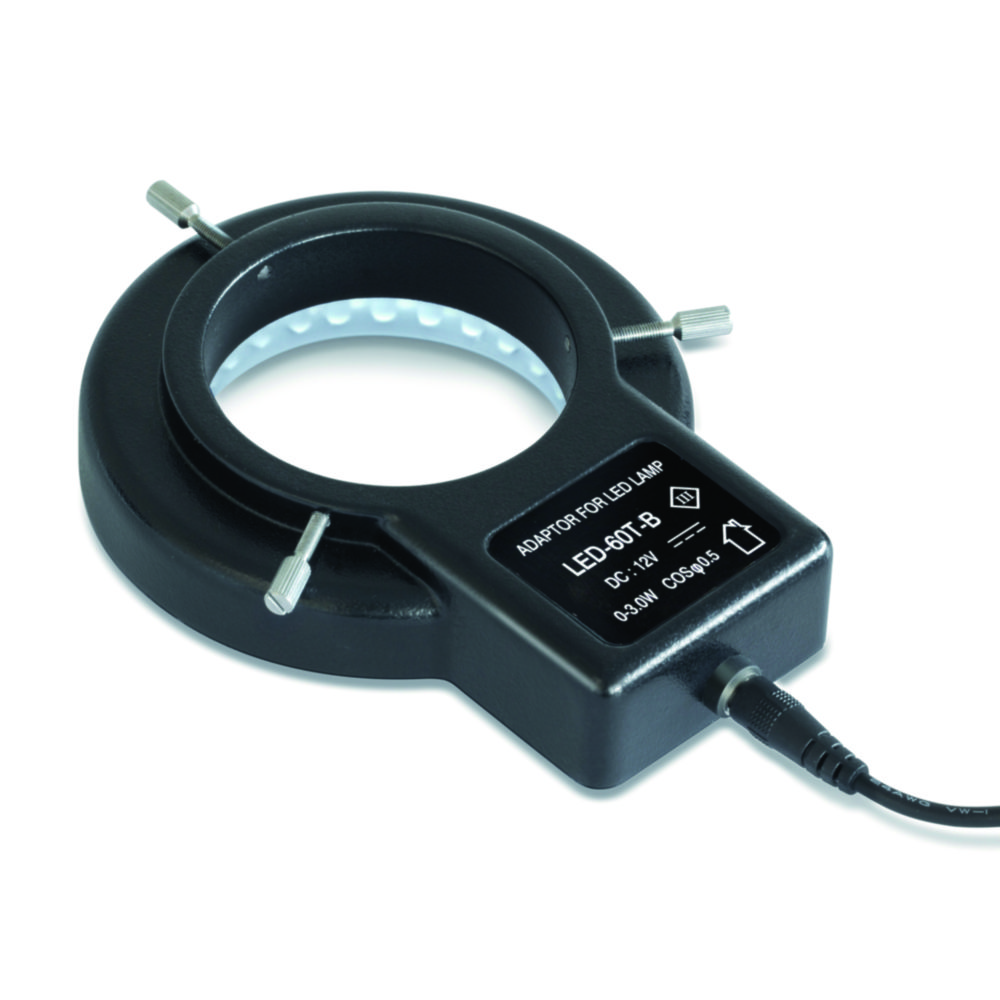

Ring illumination for microscopes
These dimmable illumination units provide good quality light with constant intensity on the object.

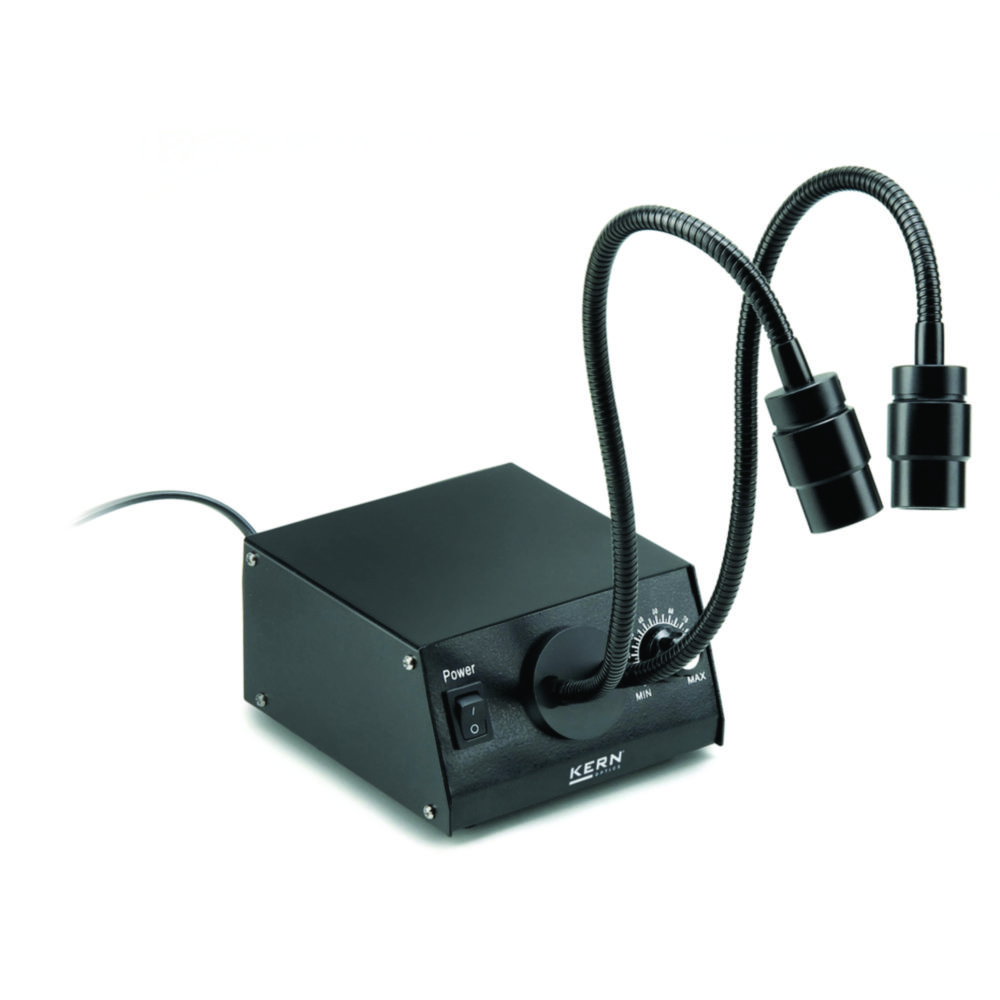

Dual fiber illuminations
These dimmable illumination units provide good quality light with constant intensity on the object.Illumination 6 W LEDColourtemperature 5600 - 6300 K

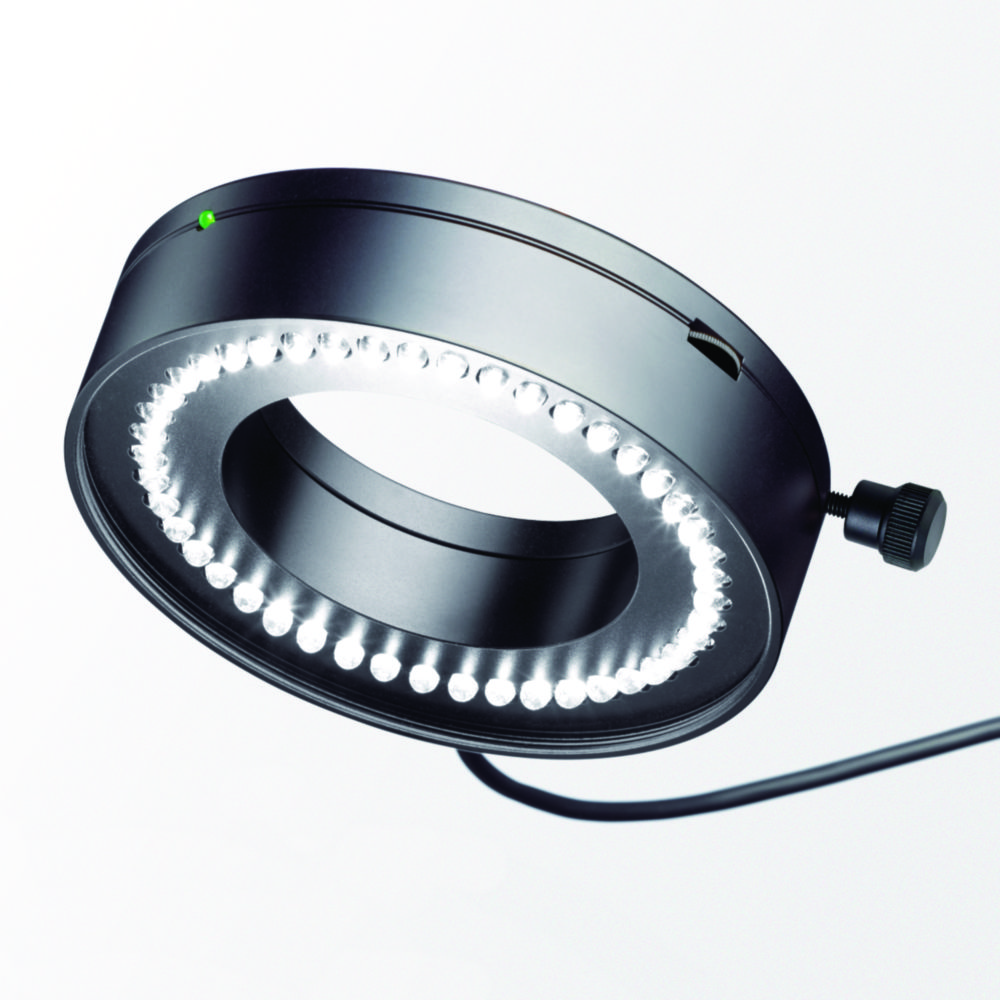

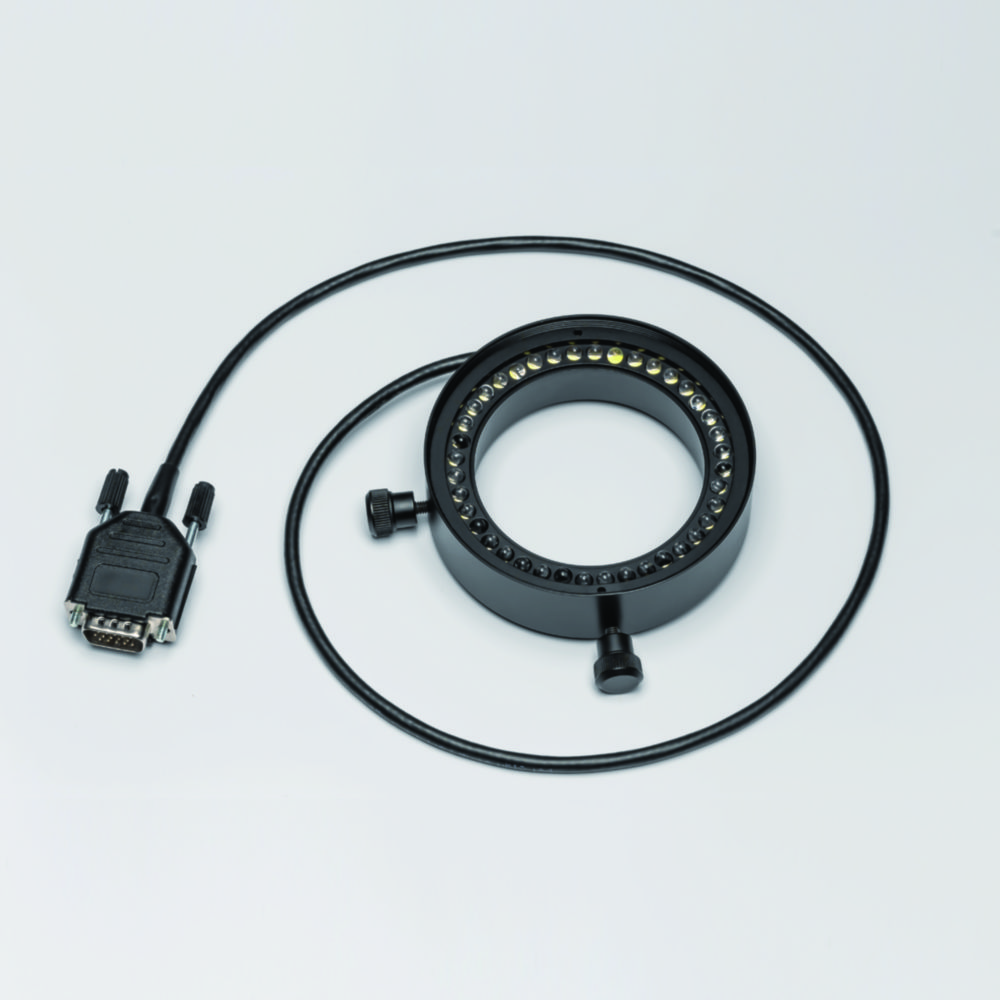

LED ringlights VisiLED
The VisiLED brightfield ringlights offer different brightness levels and working distances for various stereo microscope objectives. In combination with the available accessories like diffusers, polarizer sets and adaptor rings different illumination modes are possible.

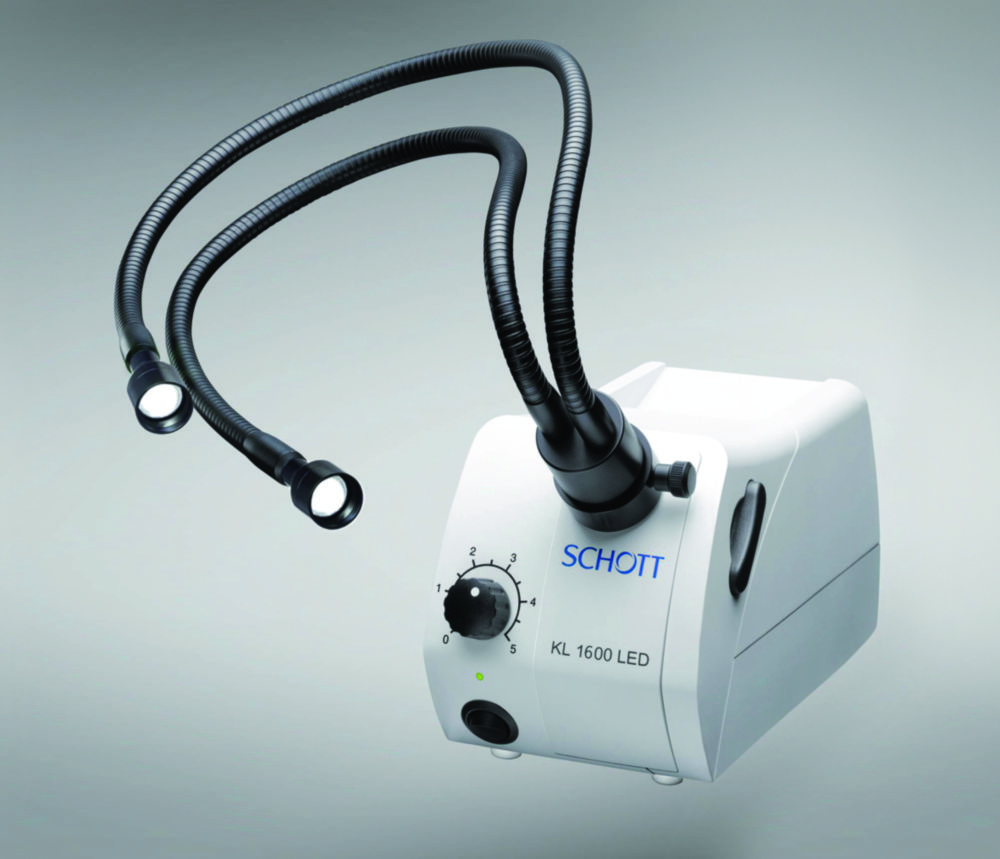

Cold Light Source KL 1600 LED Packages
The KL 1600 LED is an innovative fiber optic light source which uses cold light to illuminate all types of objects in industrial and life science applications.Powerful illumination system with a brightness of 680 lmErgonomically placed dimming controlRipple free illumination for digital imaging applicationsColour temperature of 5,600 K does not change when the light source is dimmedMaintenance free due to long lifetime LEDs of 50,000 hoursScope of supply:LED Cold light source KL 1600 LED incl. 2-armed gooseneck light guide, 2 focus lenses, according power cordSpecificationsColour temperature:5600 KLight flux:680 lmDimensions KL 1600 LED (W x D x H):
Dimensions light guide (Ø x L):114 x 231 x 137 mm
4.5 x 600 mmWeight:3.9 kgPower supply:100 ... 240 V, 50/60 Hz

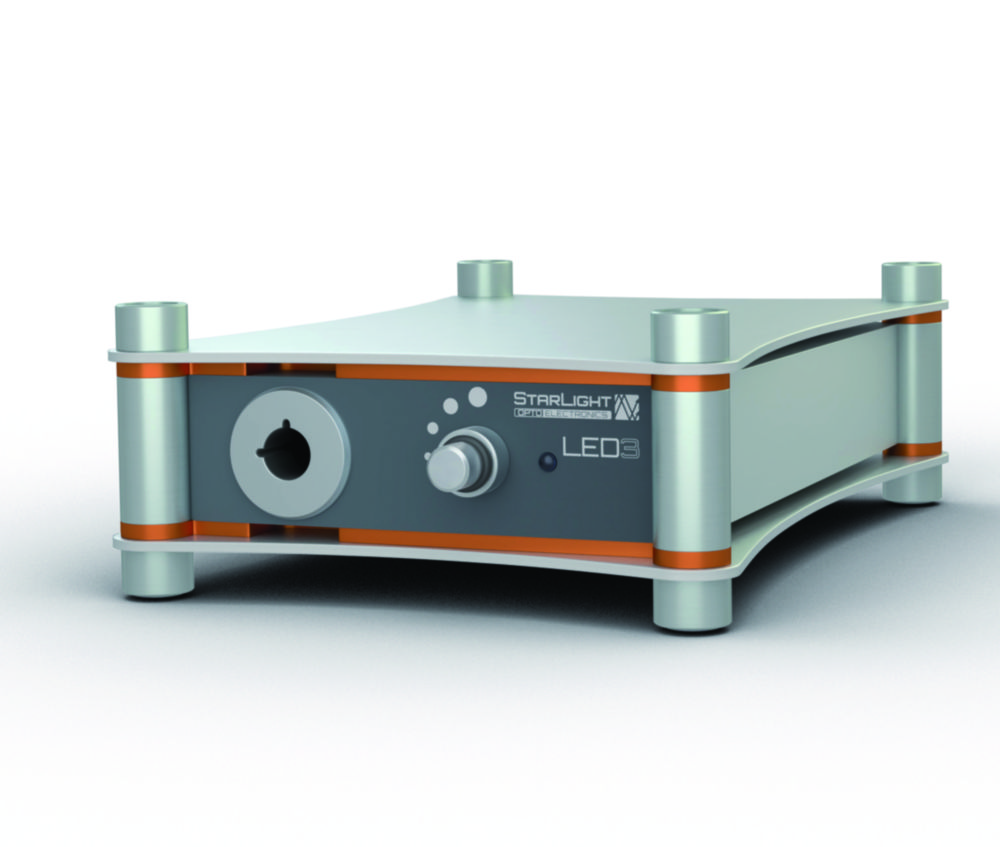

LED cold light sources LED3
Titanium-grey. The fan-less Led light sources are an energy saving replacement for conventional 150 W halogen cold light sources. The passive cooling system enables a noiseless and vibration-free operation. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter Ø 9 mm and length 1000 mm.Adaptable to various light guidesFlicker-free lightingSolid aluminium housingStackable and horizontal positionableScope of delivery: LED cold light source LED3, multi adapter power supply (EU, UK, US), user manualSpecificationsIlluminant:30 WOperation time:50000 hBrightness control:0 - 100%Light guide access:15 mmDimensions (W x D x H):174 x 259 × 81 mmWeight: 3.7 kgPower supply:100 ... 240 V AC, 50/60 Hz

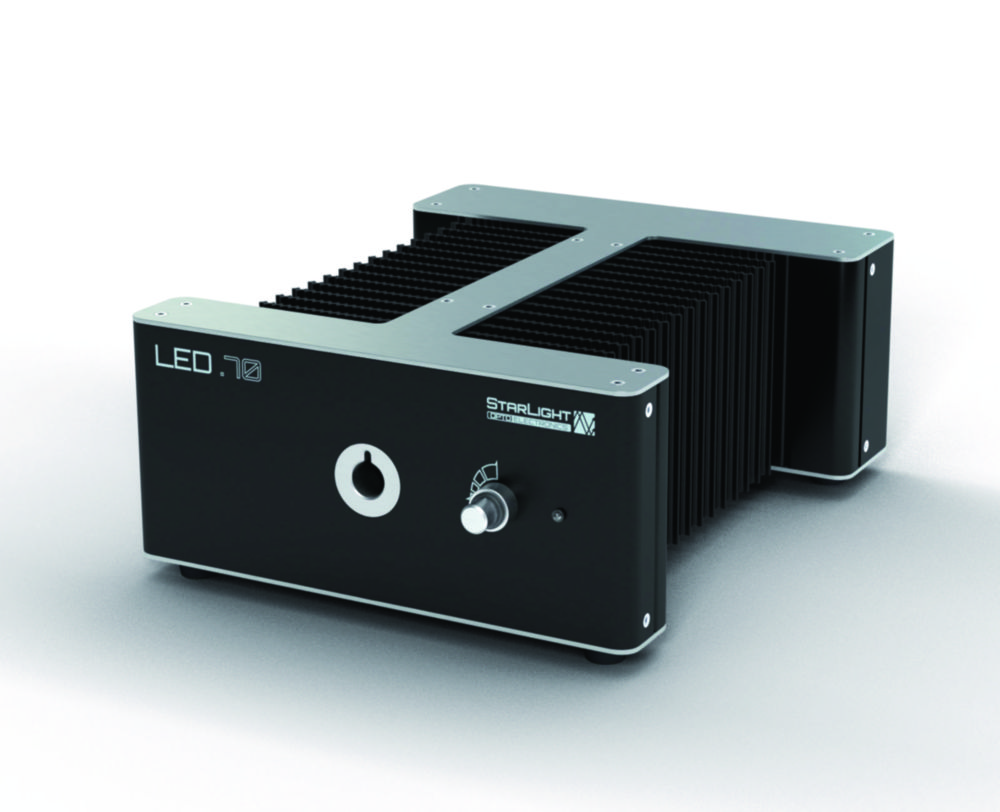

LED cold light sources LED.70
Black. These fanless high-power LED cold light sources are even suitable for high speed recordings. The passive cooling system enables a noiseless and vibration-free operation. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter Ø 9 mm and length 1000 mm.Analogue brightness control (flicker-free)Homogenous illumination of the light guideBlinding protection by light guide detectionTriple thermal fuseCompact and stable aluminium housingScope of delivery: LED cold light source LED.70, power cord, user manualSpecificationsIlluminant:
Light flux:70 W
1500 lmColour temperature:6900 KOperation time:50000 hBrightness control:0 - 100%Light guide access:15 mmDimensions (W x D x H):230 × 283 × 116 mmWeight:5.2 kgIP code:IP 20Power supply:100 ... 240 V AC, 50/60 Hz

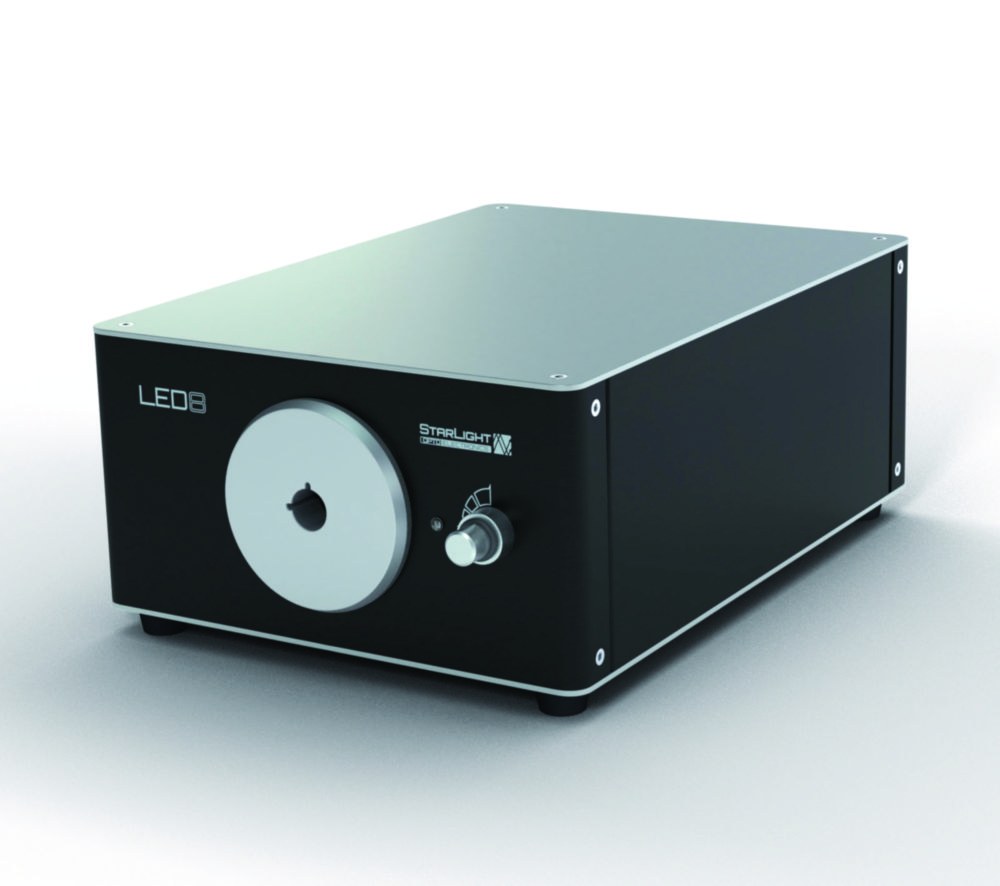

LED cold light sources LED8
Black. These high-power LED cold light sources are even suitable for high-speed recordings. Temperature fan control, for minimal noise disruption. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter Ø 9 mm and length 1000 mm.Analogue brightness control (flicker-free)Homogenous illumination of the light guideBlinding protection by light guide detectionTriple thermal fuseCompact and stable aluminium housingStackableScope of delivery: LED cold light source LED8, power cord, user manualSpecificationsIlluminant:
Light flux:70 W
1600 lmColour temperature:6900 KOperation time:50000 hBrightness control:0 - 100%Light guide access:15 mmDimensions (W x D x H):200 × 273 × 116 mmWeight:2.3 kgIP code:IP 20Power supply:100 ... 240 V AC, 50/60 Hz

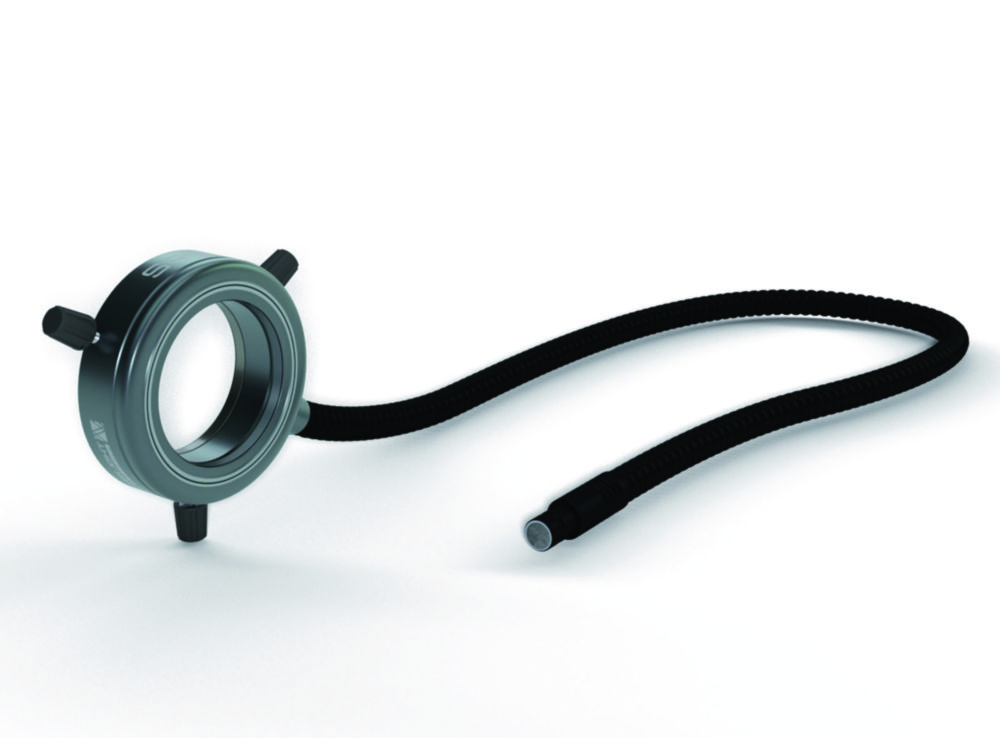

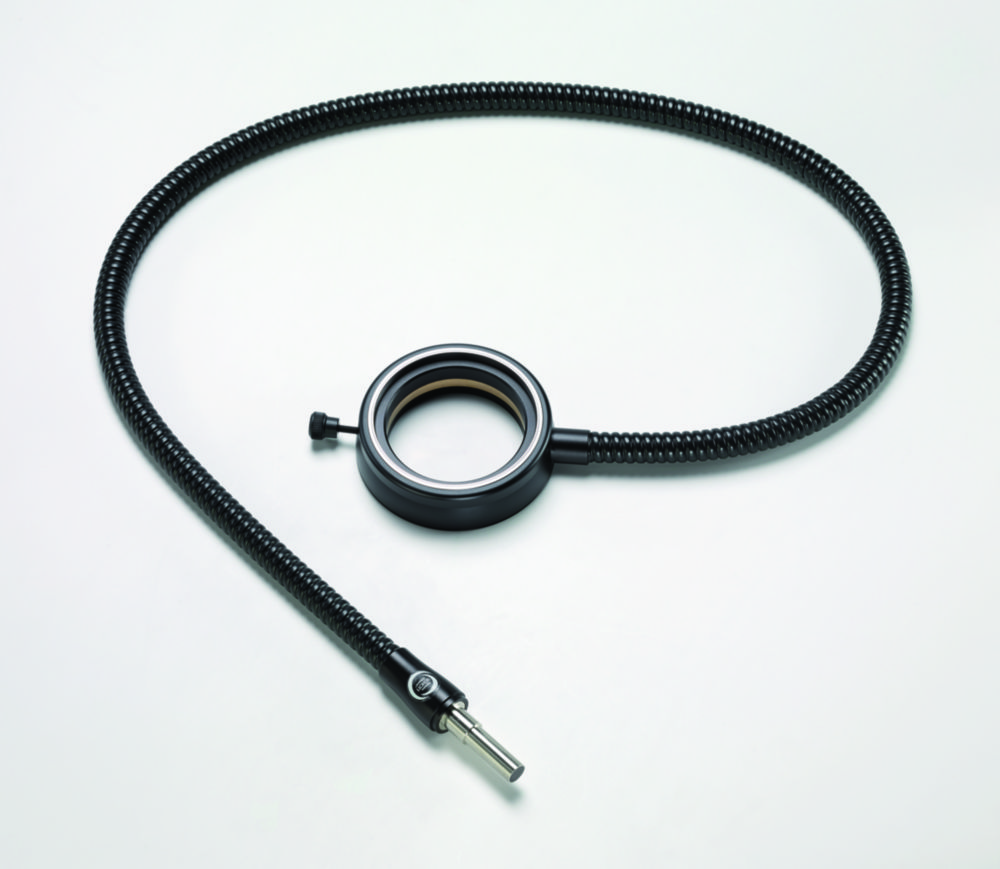

Fiber optical ring lights SRL3 / SRL6
Black. The fiber optical ring lights offer high flexibility and luminous efficiency.Very good transmissionLow heat generationFor halogen and LED cold light sourcesAdaptable to cold light sources from all manufacturersSpecificationsSRL3 // SRL6Working distance:20 ... 150 mm // 35 ... 150 mmActive diameter:6.4 mm // 9 mmHeight:26 mm // 25 mmOuter diameter:58 mm // 92 mmClamping diameter:30.5 mm // 66 mmMaterial:Anodized aluminiumMaterial tube: Steel spiral, PVC

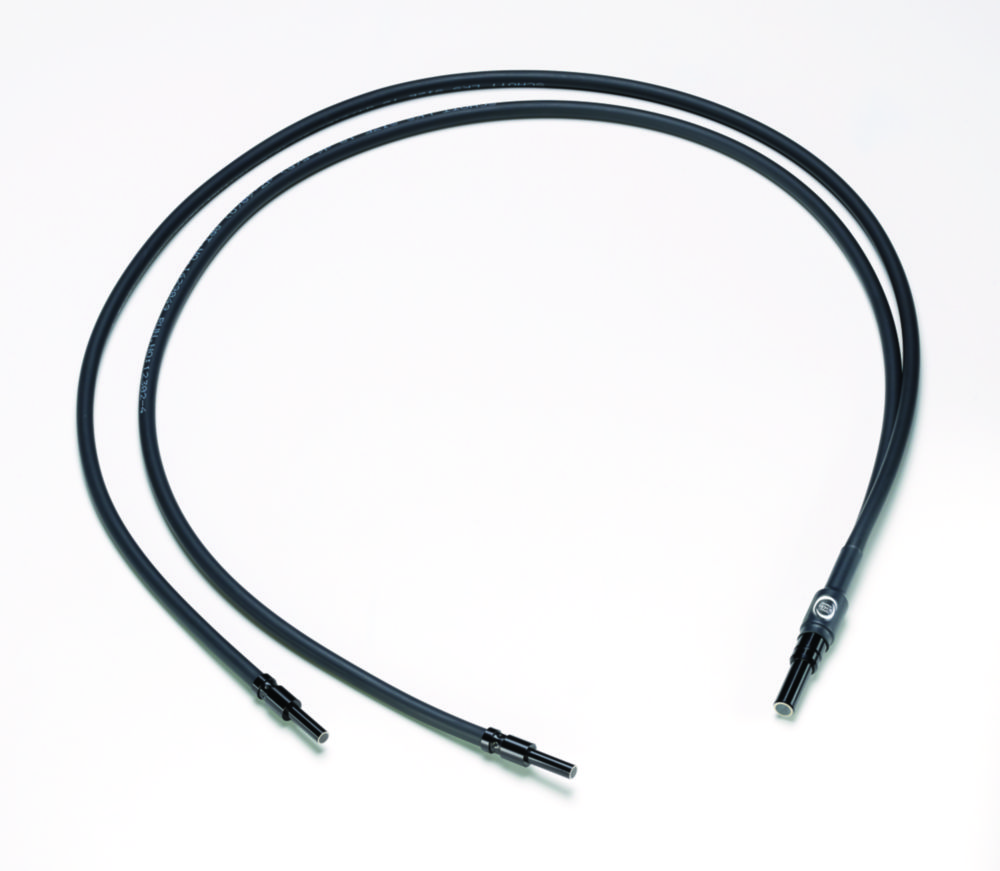

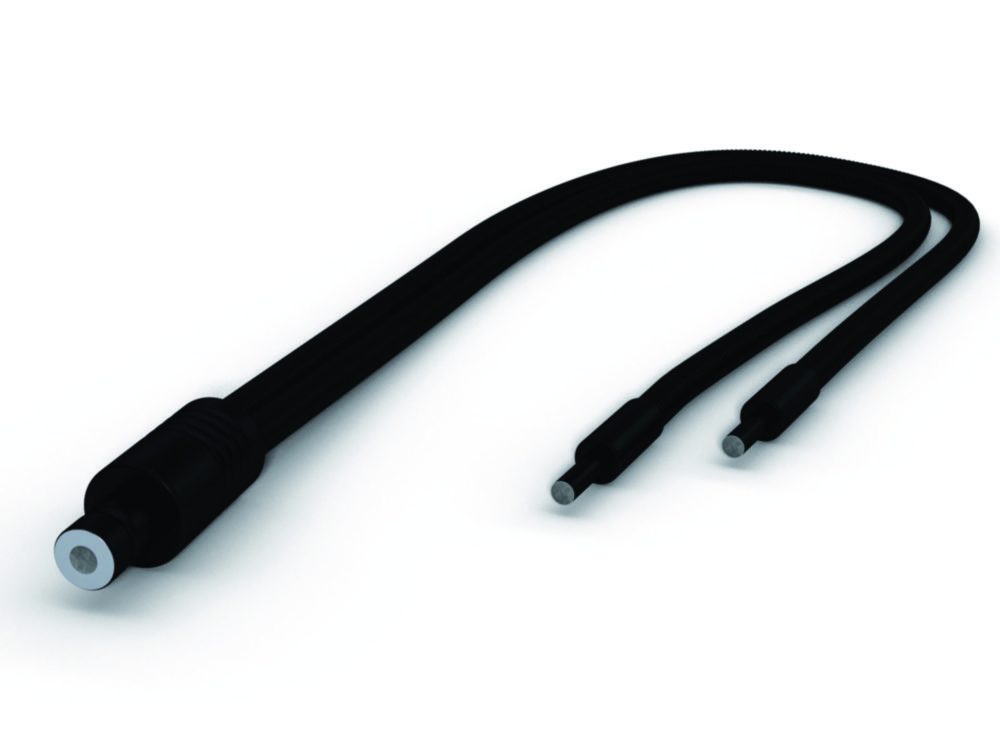

Light guides, flexible, GLF1 / GLF2 / GLF3
The flexible light guides are available in versions of 1-arm, 2-arms and 3-arms.High flexibility and luminous efficiencyVery good transmissionSpot illuminationLow heat generationFor halogen and LED cold light sourcesAdaptable to cold light sources from all manufacturers
Semi-rigid light guides, GLS1 / GLS2 / GLS3
The semi-rigid light guides are available in versions of 1-arm, 2-arms and 3-arms.High flexibility and luminous efficiencyVery good transmissionSpot illuminationLow heat generationFor halogen and LED cold light sourcesAdaptable to cold light sources from all manufacturers

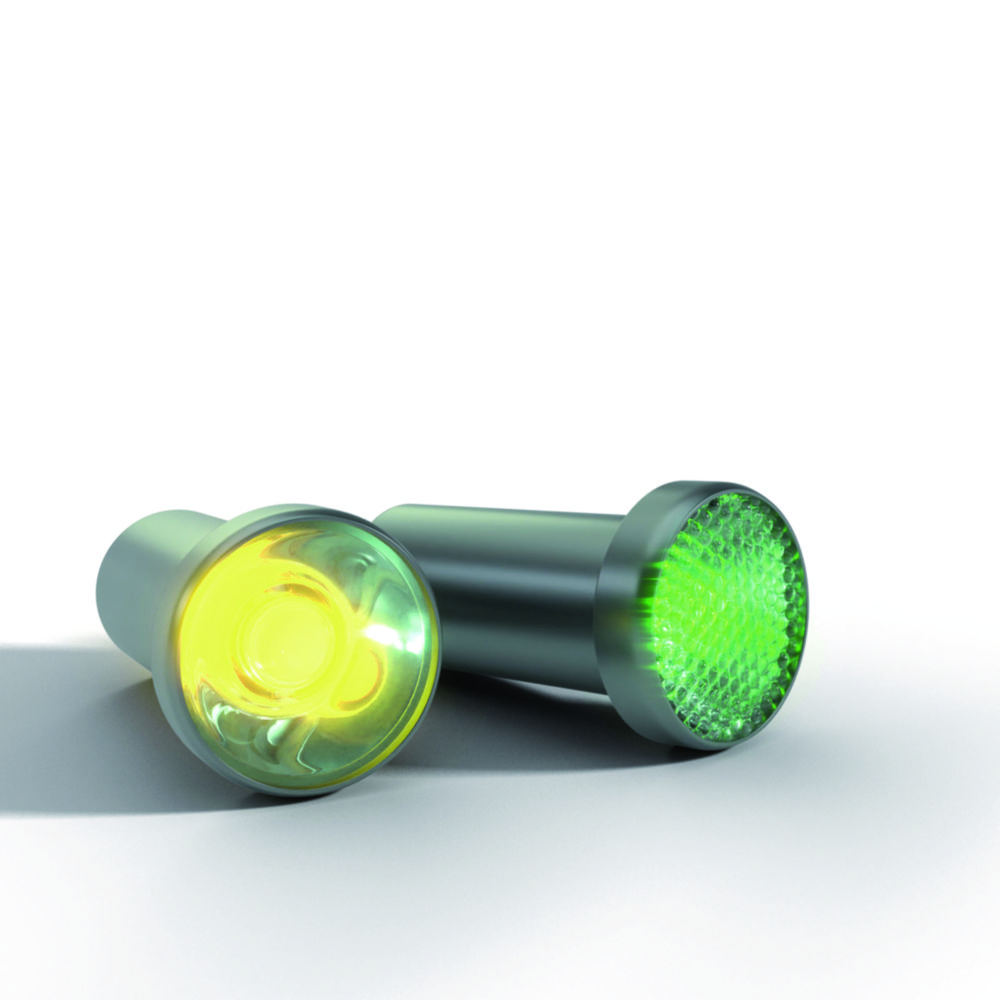

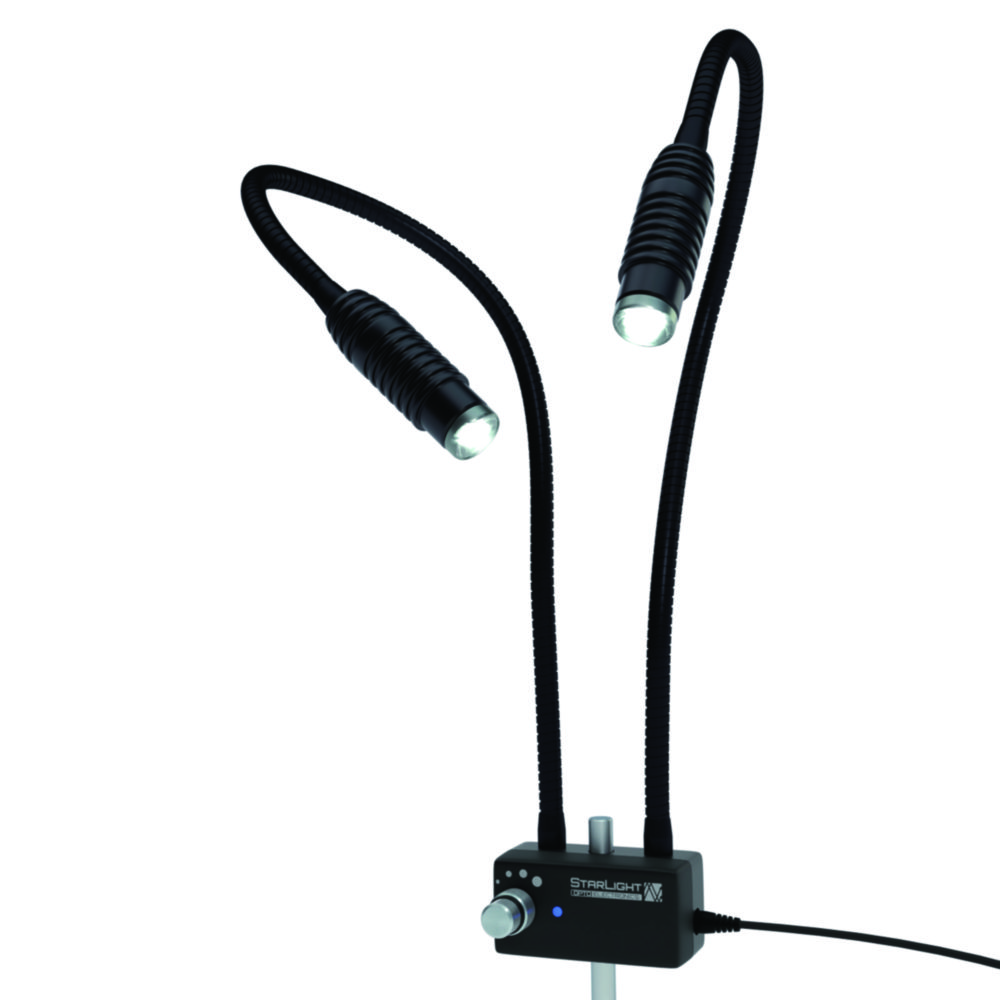

LED incident lamps IL1-Lab
Black. The modul-LED® concept allows a quick change of the light source. For use in industry and science. The LED incident lamps are available in versions of 1-arm and 2-arms. The modules must be ordered separately.Brightness control with memory functionFlexible illumination thanks to semi-rigid armsFlicker-free lighting for photographics and videoSolid aluminium housingScope of supply:LED incident lamp IL1, multi adapter power supply (EU, UK, US), user manualSpecificationsIlluminant:3 W LED Module 21 mmBrightness control:0 - 100 %Fixing rod Ø:12 mmDimensions control unit (W × D × H):40 × 80 × 37 mmPower supply:100 ... 240 V AC, 50/60 Hz
LED incident lamps IL1
Black. The modul-LED® concept allows a quick change of the light source. For use in industry and science. The LED incident lamps are available in versions of 1-arm and 2-arms. The modules must be ordered separately.With screw caps and borosilicate protective glassBrightness control with memory functionFlexible illumination thanks to semi-rigid armsFlicker-free lighting for photographics and videoSolid aluminium housingScope of supply:LED incident lamp IL1, multi adapter power supply (EU, UK, US), user manualSpecificationsIlluminant:3 W LED Module 21 mmBrightness control:0 - 100 %Fixing rod Ø:12 mmDimensions control unit (W × D × H):40 × 80 × 37 mmPower supply:100 ... 240 V AC, 50/60 Hz
LED incident lamp IL12-Lab, 2-arms
Black. The modul-LED® concept allows a quick change of the light source. For use in industry and science. The modules must be ordered separately.Brightness control with memory functionFlexible illumination thanks to semi-rigid armsFlicker-free lighting for photographics and videoSolid aluminium housingScope of supply:LED incident lamp IL12, multi adapter power supply (EU, UK, US), user manualSpecificationsIlluminant:3 W LED Module 21 mmBrightness control:0 - 100 %Power supply:100 ... 240 V AC, 50/60 Hz

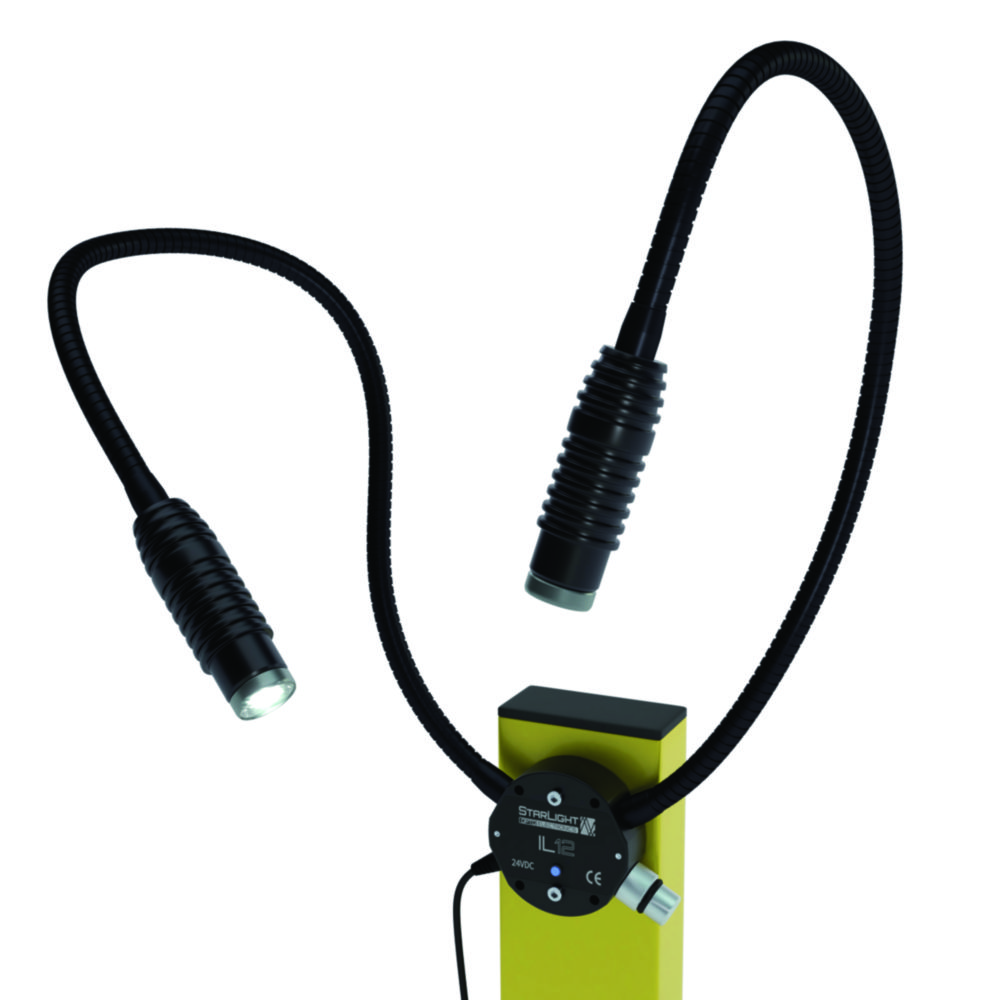

LED incident lamp IL12, 2-arms
Black. The modul-LED® concept allows a quick change of the light source. For use in industry and science. The modules must be ordered separately.With screw caps and borosilicate protective glassBrightness control with memory functionFlexible illumination thanks to semi-rigid armsFlicker-free lighting for photographics and videoSolid aluminium housingScope of supply:LED incident lamp IL12, multi adapter power supply (EU, UK, US), user manualSpecificationsIlluminant:3 W LED Module 21 mmBrightness control:0 - 100 %Power supply:100 ... 240 V AC, 50/60 Hz

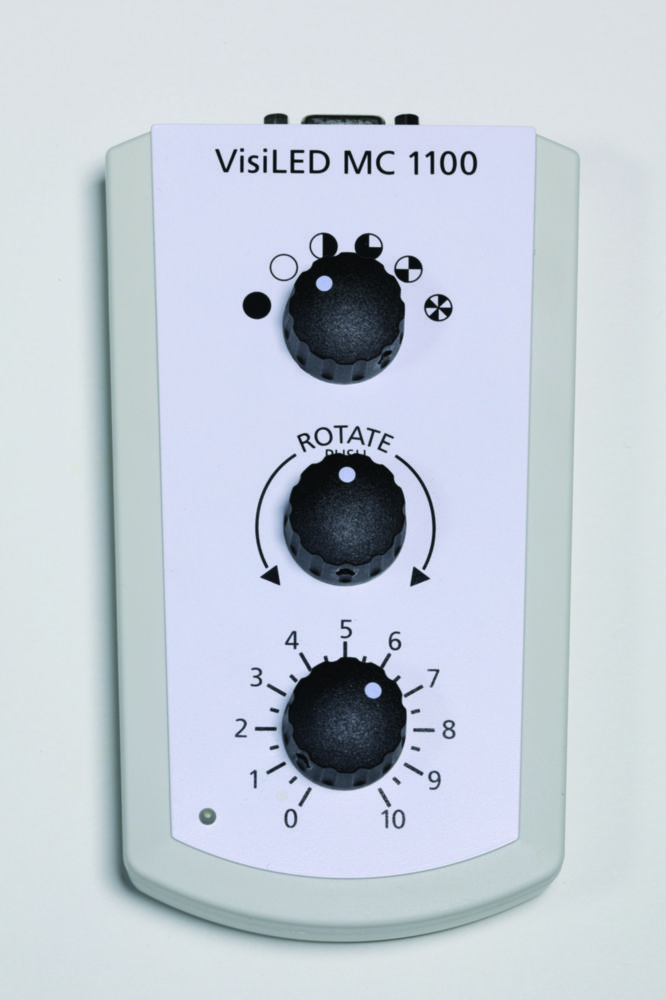

Controllers VisiLED
The control units can be dimmed continuously and have overheating protection for the connected LED light heads.Controller MC 1100: With adjustable parameters, such as light intensity, 5 different segmentation modes and changes in the direction of illumination.Controller MC 1500: All functions are available simultaneously for two light heads. Additionally with stroboscopic and flash function and 4 memory settings.Please order power adapter and country specific power cable separately.
LED Illumination, direct
EasyLED Ringlight / EasyLED Ringlight Plus: Powerful and robust LED ring light with continuous dimming. Ringlight Plus version with basic segment features and segment rotation. Easy and intuitive operation via integrated jog dial wheel. Including wide input range power supply with world wide plug (clip system). External / internal diameter 114/66 mm. If necessary, please order the necessary lens adapter separately.EasyLED Spotlight Plus (Single/ Double): Advanced high power LED gooseneck system with integrated controller and continuous dimming. With the Spotlight Plus Double, the two spots can also be activated individually. Including wide input range power supply with world wide plug (clip system). Please order mounting bracket or column adapter separately (same adapter as for KL 300 LED).

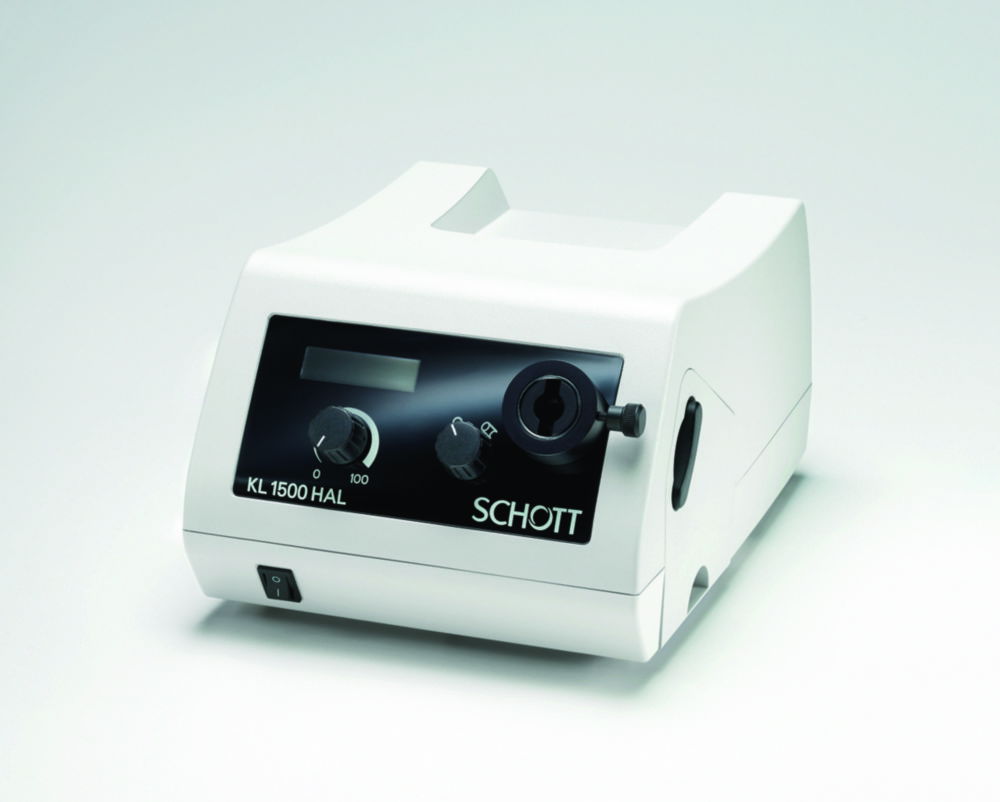

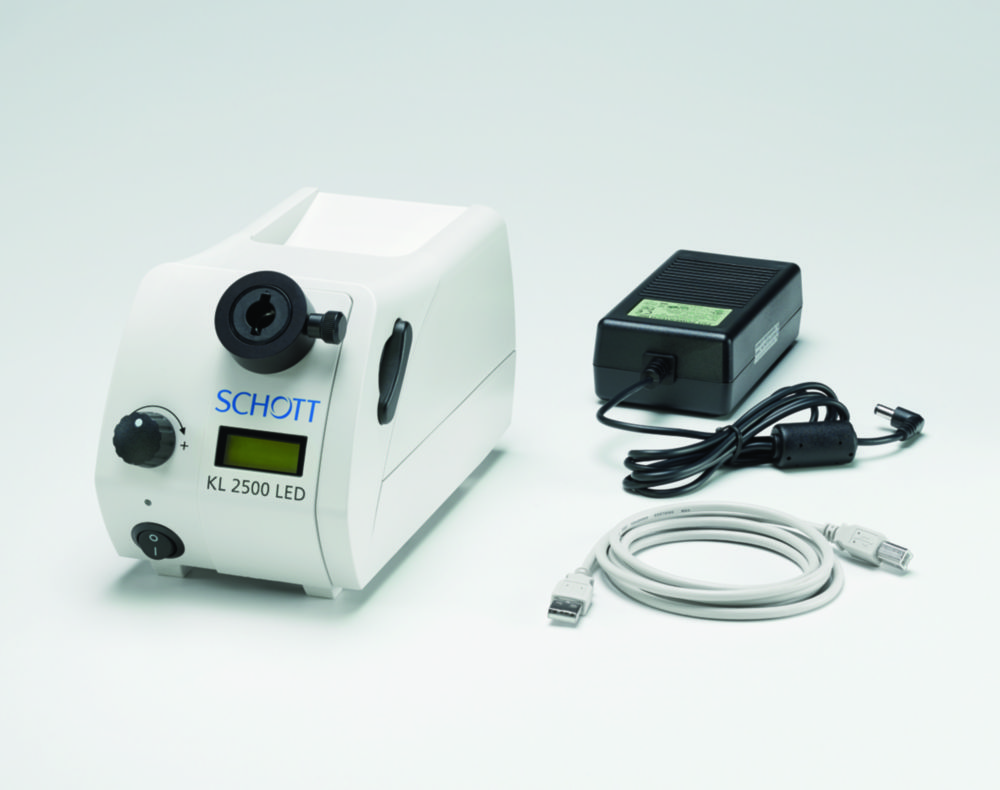

Cold Light Sources
For sample illumination in microscopy, clinical diagnostics, dental technology, photography or mineralogy. Cold light sources filter out heat-producing, infra-red radiation and offer significantly higher intensities at magnifications over 30x magnification. Compact, easy to use and maintenance-free. KL 300 LED without fan otherwise with a low-noise fan with air vented at the rear of the casing. Power supply: 100-240 V, 50/60 HzKL 300 LED - compactCost-effective LED light source with easy handling and continuous dimming. Convection cooling for silent and vibration-free operation. Max. light intensity: 80 lm. Incl. wide-range power supply with international plug system. Adapter or stand-alone stand sold separately. KL 1600 LED - economy Standard LED light source with continuous dimming, filter slider and multi-chip white light engine for a homogeneous illumination. Max. lighting intensity: 680 lm. Incl. wide-range power supply without cable.KL 2500 LED - advanced Professional LED light source, additionally, with extra-fine dimming option (0.1% steps), LCD display for reproducible settings and USB-connectivity. Max. light intensity: 1100 lm. Incl. wide-range power supply and USB connection cable, without power cable. Footswitch optional.KL 1500 HAL - natural colour150 W halogen light source with continuous dimming and full halogen spectrum (colour rendering index CRI=100) for natural colour reproduction. Colour temperature indication on integrated LCD display. Maximum lighting intensity: 600 lm. Incl. wide-range power supply without cable.Please order Fibre optic ring light or gooseneck light guide separately. Please order a country-specific power cable for KL 1600 LED, KL 2500 LED and KL 1500 HAL separately.

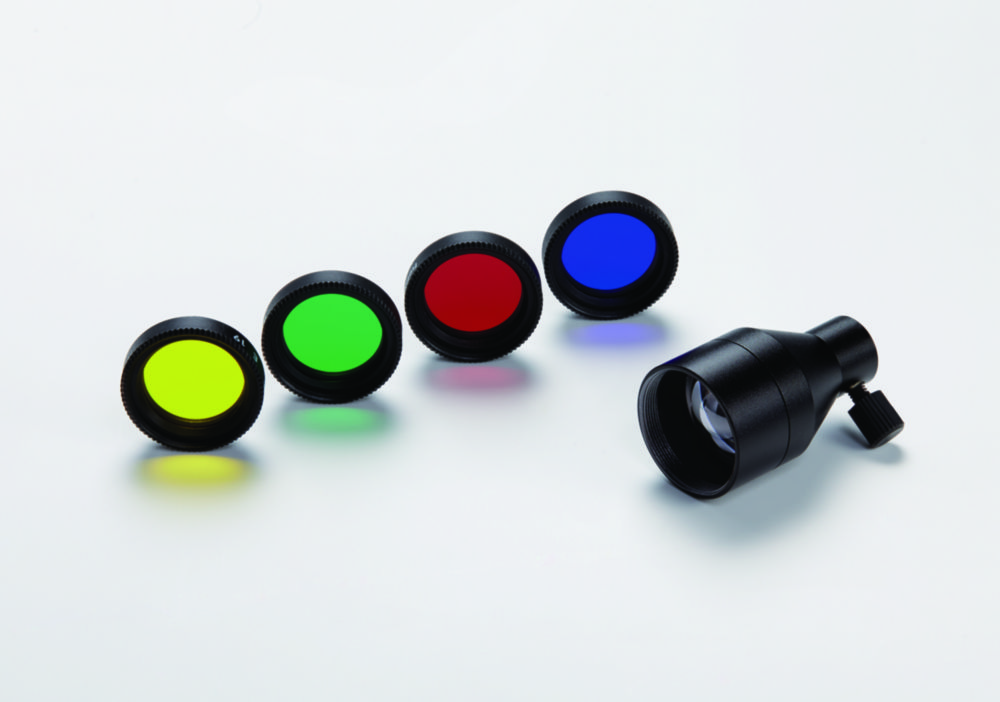

Flexible light guide for SCHOTT Cold light sources
For intensive, uniform and shadow-free illumination of samples.

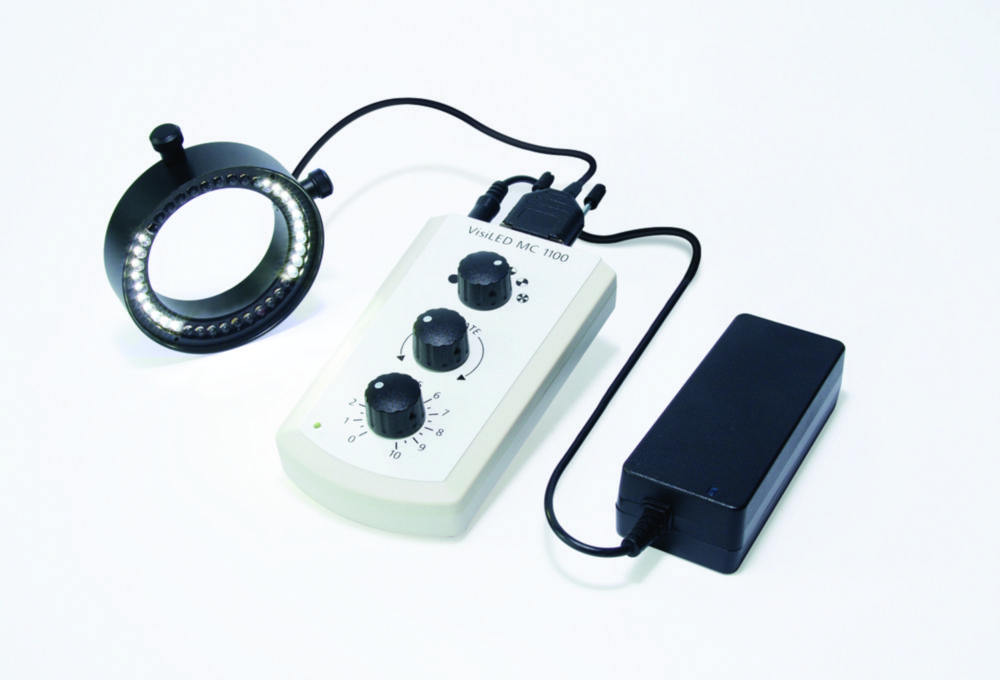

LED ringlight illumination VisiLED Packages
Answering the needs of the most specialised tasks, the modular VisiLED series is built on flexibility and quality. Molding the lighting setup to each application, a number of high performance ringlights in combination with the separate Controller MC 1100 enable high intensity illumination. Diffusors and polarizer sets, which are optional available, allow a combination of different techniques right at the point of examination.Homogeneous and shadow free illuminationSegmentable, in 1/8 steps rotatable, different segment modes availableActively controlled LED temperature for a long lifetime of 50000 hoursPackage 1 is ideal for unrestricted work on object preparations and the use of revolving nosepiece due to a slim ring light design (AD 92 mm)Optionally available adapter rings for connecting the ring lights to all common Stereomicroscope lenses with diameters up to 66 mmScope of supply:Package 1: Controller VisiLED MC 1100, power adapter, LED Ringlight S40-75Package 2: Controller VisiLED MC 1100, power adapter, LED Ringlight S80-55If applicable, order necessary lens adapter separately. Please order a country specific power cable separately.

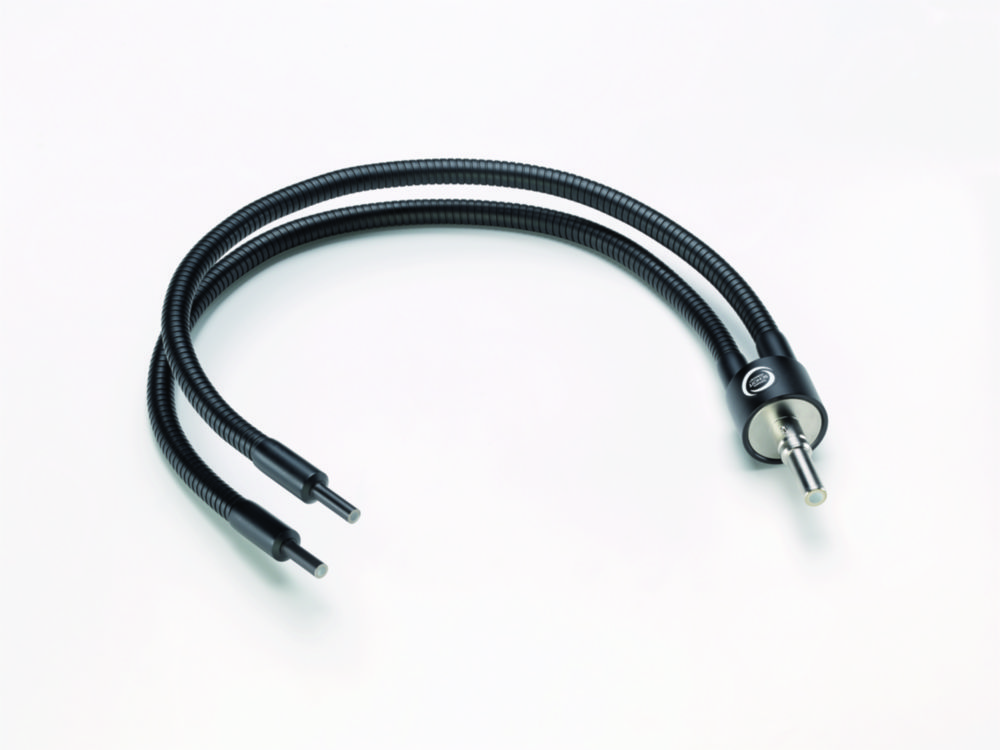

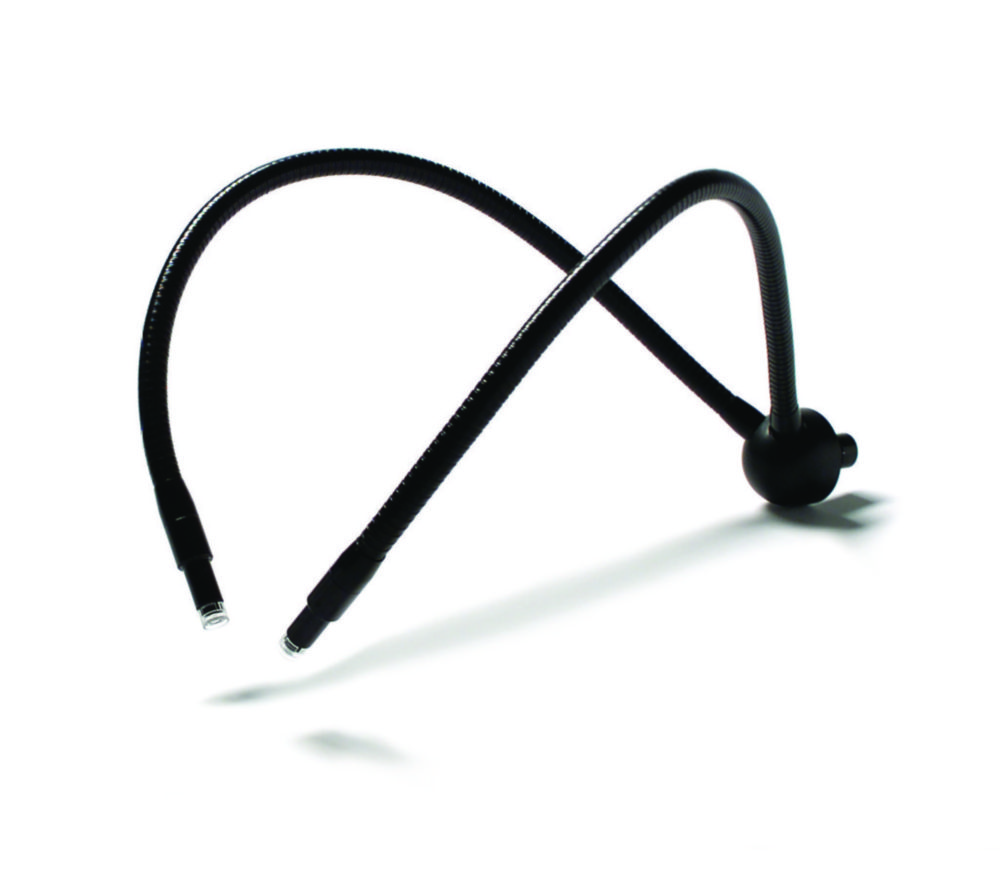

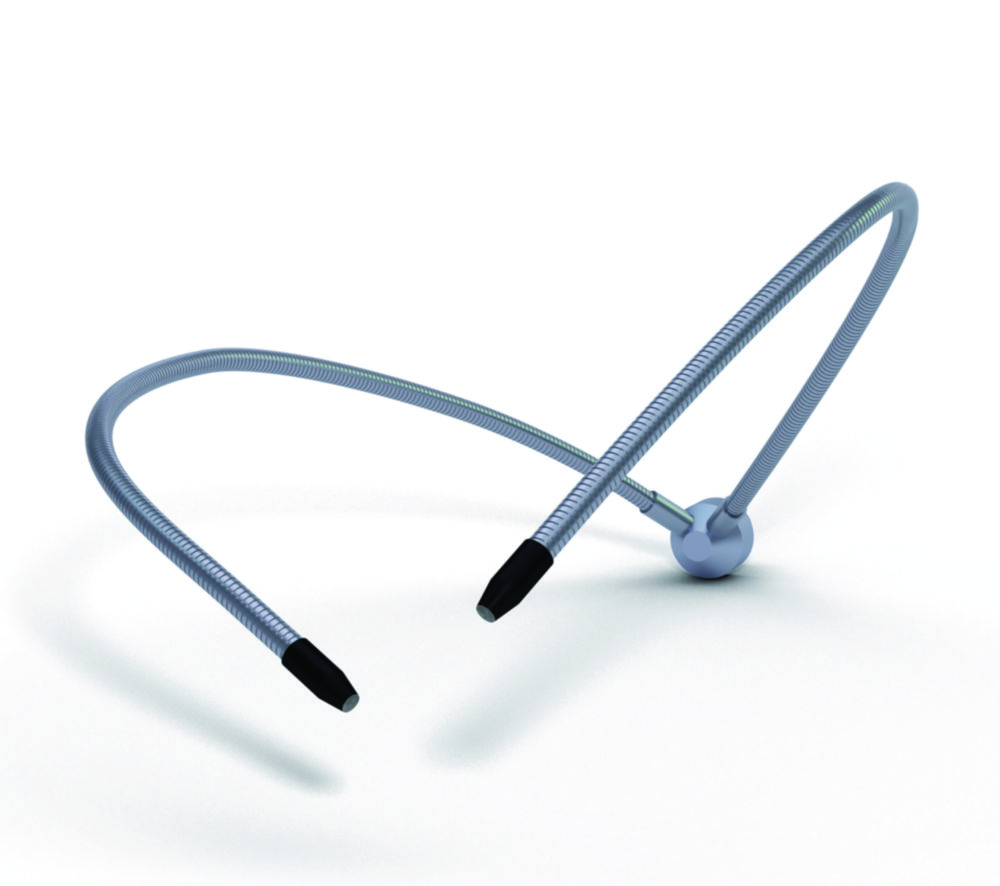

Gooseneck light guide for SCHOTT Cold light sources
Flexible light guides which will remain in place after positioning. Gooseneck branches positioned in opposite directions create near shadow-free illumination.
