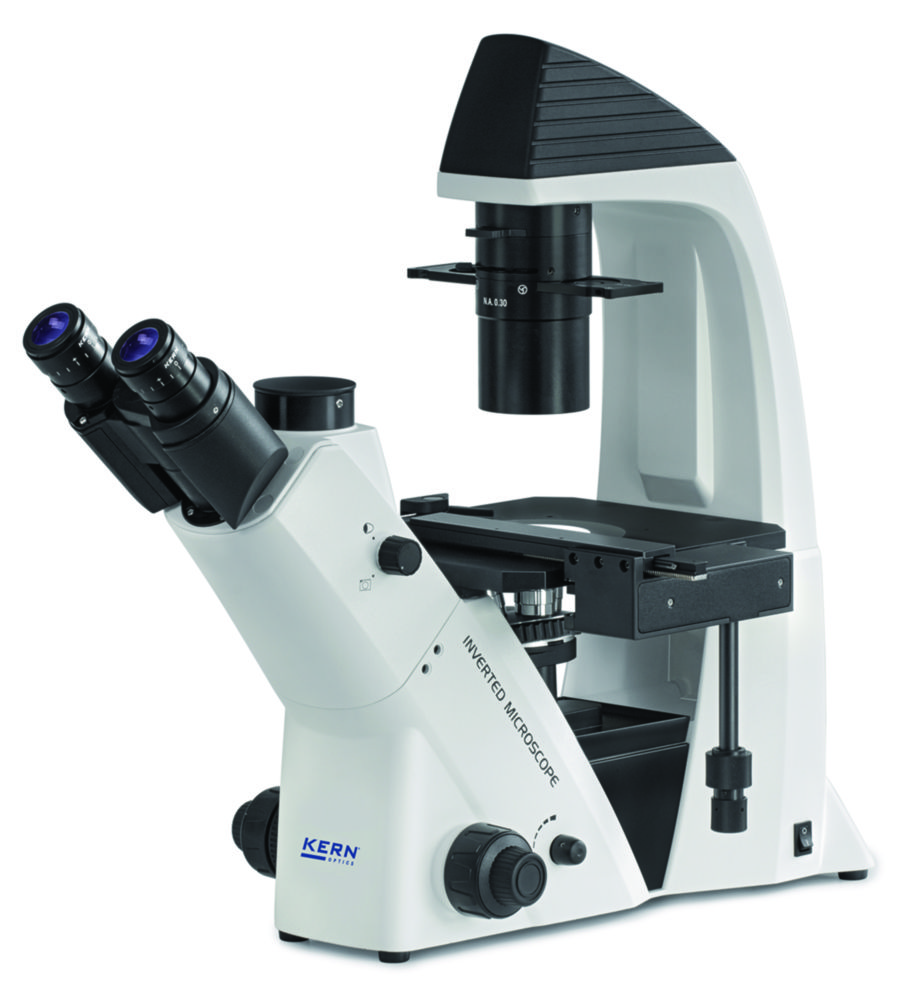

Inverted microscope Lab Line OCM
Product information "Inverted microscope Lab Line OCM"
This design, with its large working distance of 72 mm, is particularly suitable for viewing samples in culture vessels (flasks, petri dishes, microtiter plates) and for translucent, thin, low-contrast, challenging samples (immunofluorescence, FISH, DAPI staining etc.).
- Trinocular
- Tube 45° inclined
- Eyepiece: HWF 10x/22 mm
- Objectives: LWD 10x, 20x, 40x, LWD 20xPH
- Diopter adjustment: both-sided
- Quintuple nosepiece
- Objective quality: Infinity Plan
- Mechanical stage, including specimen holder (Ø 118 mm)
- Abbe N.A. 0.3 condenser with aperture diaphragm
- OCM 161: 30 W halogen illumination
- OCM 165: 30 W halogen illumination and 100 W Epi fluorescence illumination unit
- Including blue and green colour filter
- Dust Cover and manual instruction included
| Condenser: | Abbe 0,3 |
|---|---|
| Depth: | 304 mm |
| Dimensions (WxDxH): | 599 x 304 x 530 mm |
| Height: | 530 mm |
| Inclination angle tube: | 45° |
| Light type: | Halogen |
| Magnification objectives: | LWD 10x, 20x, 40x, LWD 20xPH |
| Manufacturer Article Number: | OCM 161 |
| Revolving nosepiece: | 5-fold |
| Tube: | Trinocular |
| Type: | OCM 161 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Width: | 599 mm |
