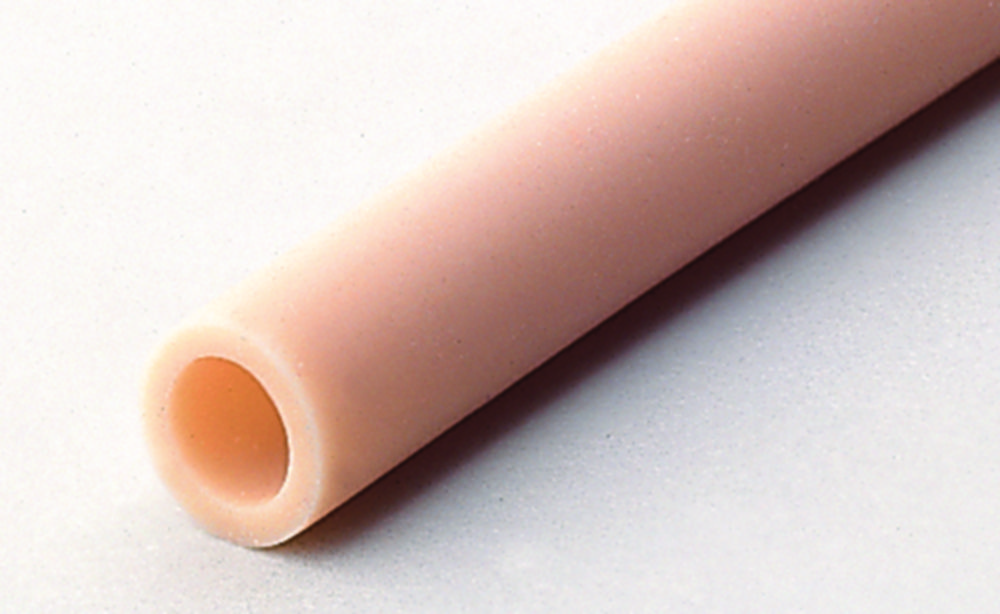

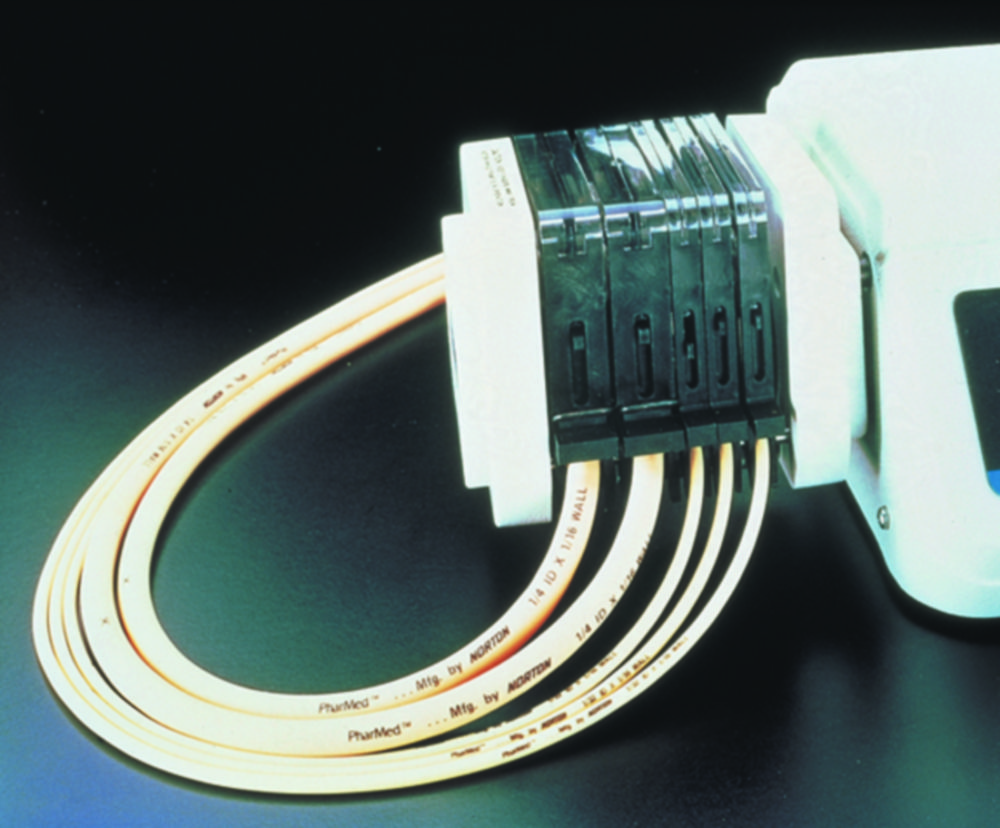

Tubing Pharmed®
Thermoplastic elastomer, beige, Shore A 64. Can be used at temperatures from -51 to 135 °C. Can be autoclaved repeatedly, and non toxic. To USP Class VI. Fulfills FDA and NSF criteria. Suitable for laboratory, medical and research work, e.g. cell culture application. Significantly less gas leakage than silicone. Long working lifespan when used in peristaltic pumps. Ozone and UV resistant. Very good chemical resistance.

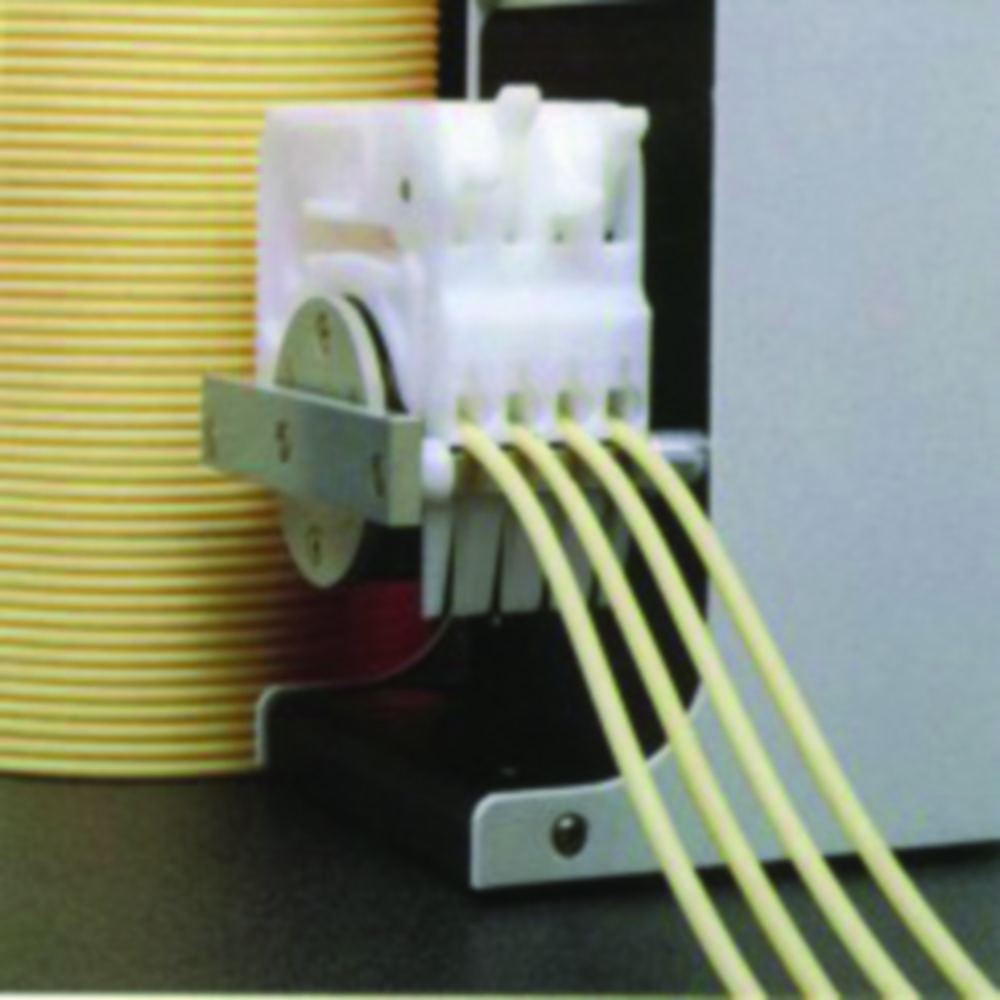

Tubing PharMed® BPT with three colour-coded bridges
Shore A 64. The tubings have been formulated to withstand the rigors of peristaltic pumping action while providing the biocompatible fluid surface required in sensitive bioprocess applications. Resistant to repeated CIP and SIP cleaning and sterilization. Complies with USP Class VI and FDA and the documented biocompatibility according to standard 10993. Autoclavable.

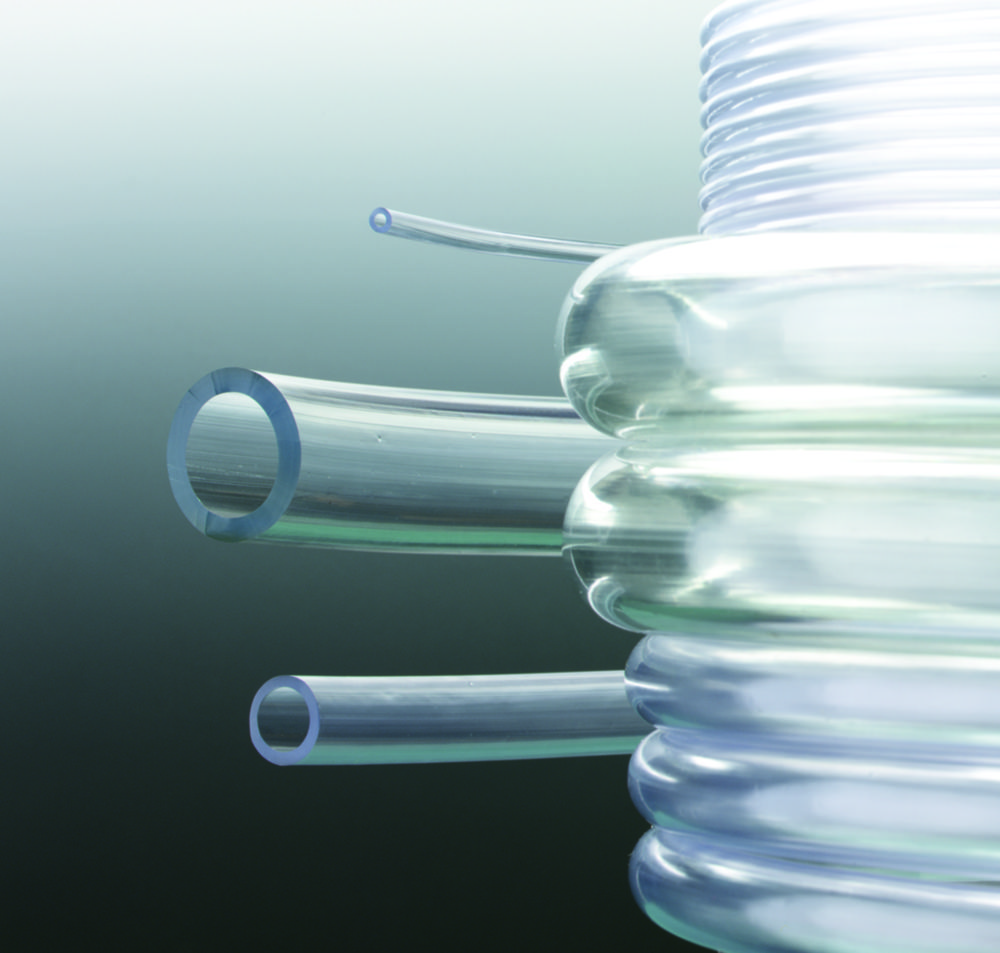

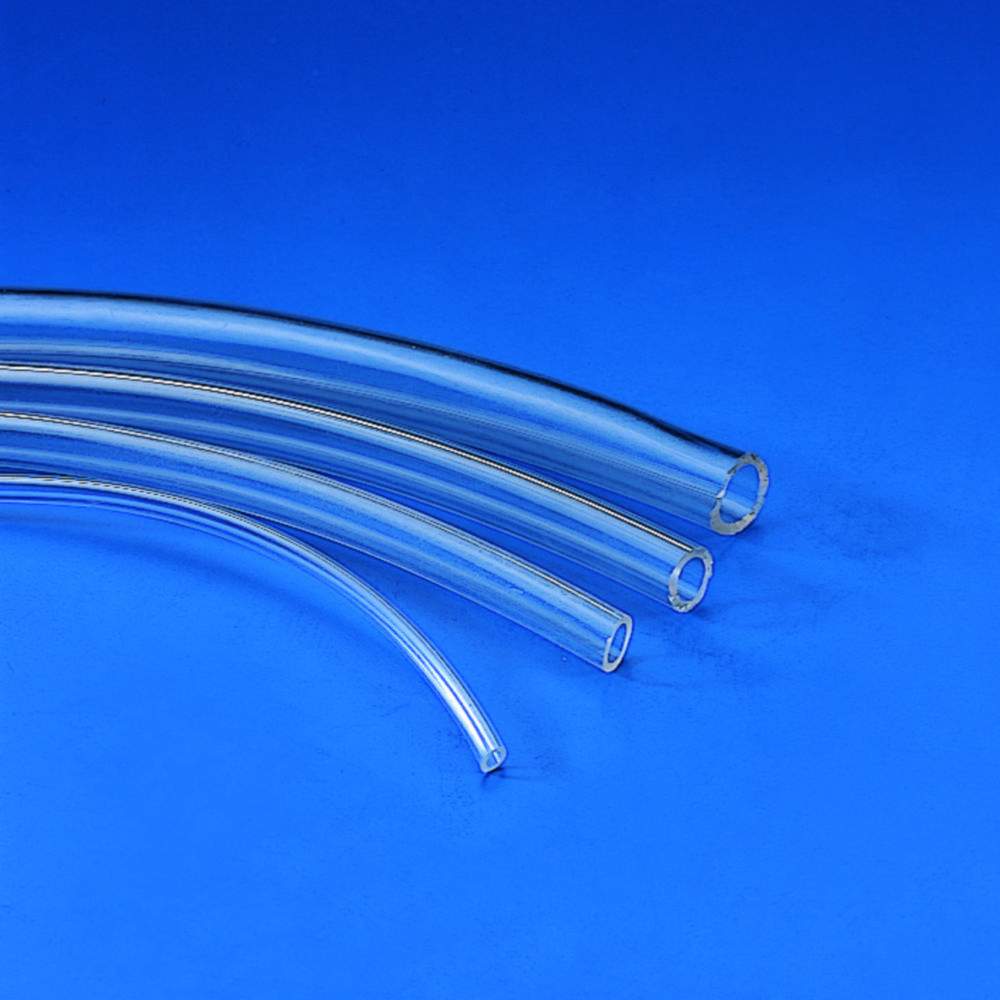

Tubing, PVC
Transparent. Conform to PhEur 3.1.1.1 / USP XXXII 2009. Supplied per meter.FlexibleDEHP freeTemperature restistance from -15°C to 60°CShore hardness 65

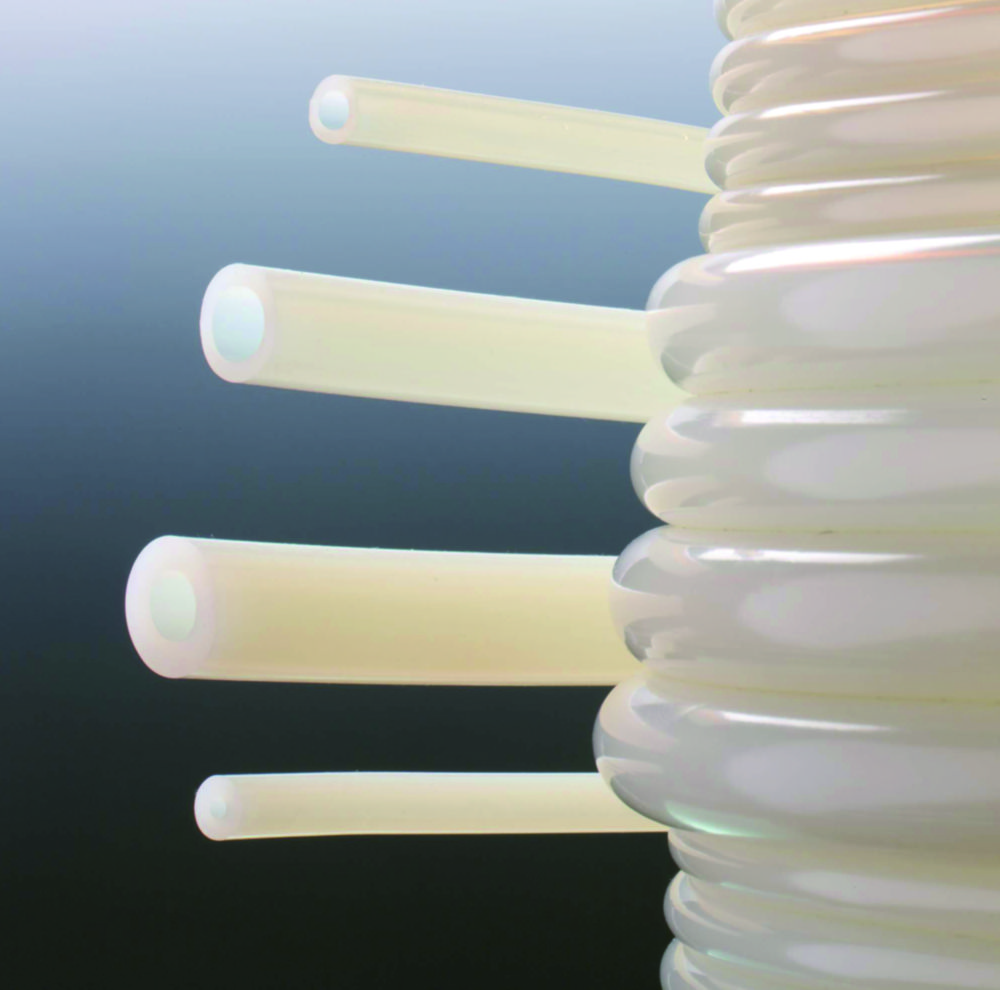

Vacuum Tubing, Silicone
Silicone rubber (VMQ), transparent, hardness 60 Shore A, food grade, temperature-resistant from -60 to +200 °C (short term up to +260 °C), suitable for peristaltic pumps. BFR XV, FDA CFR 21 õ 177.2600, EP-Europ. Pharmacopoeia / DAB, biocompatibility: Cytotoxicity (USP Class 1-6), Hemolysis, Pyrogenicity, Sensitization, Dermatological Irritation, Implantation (90 days) according to ISO 10993-1. Supplied per meter.

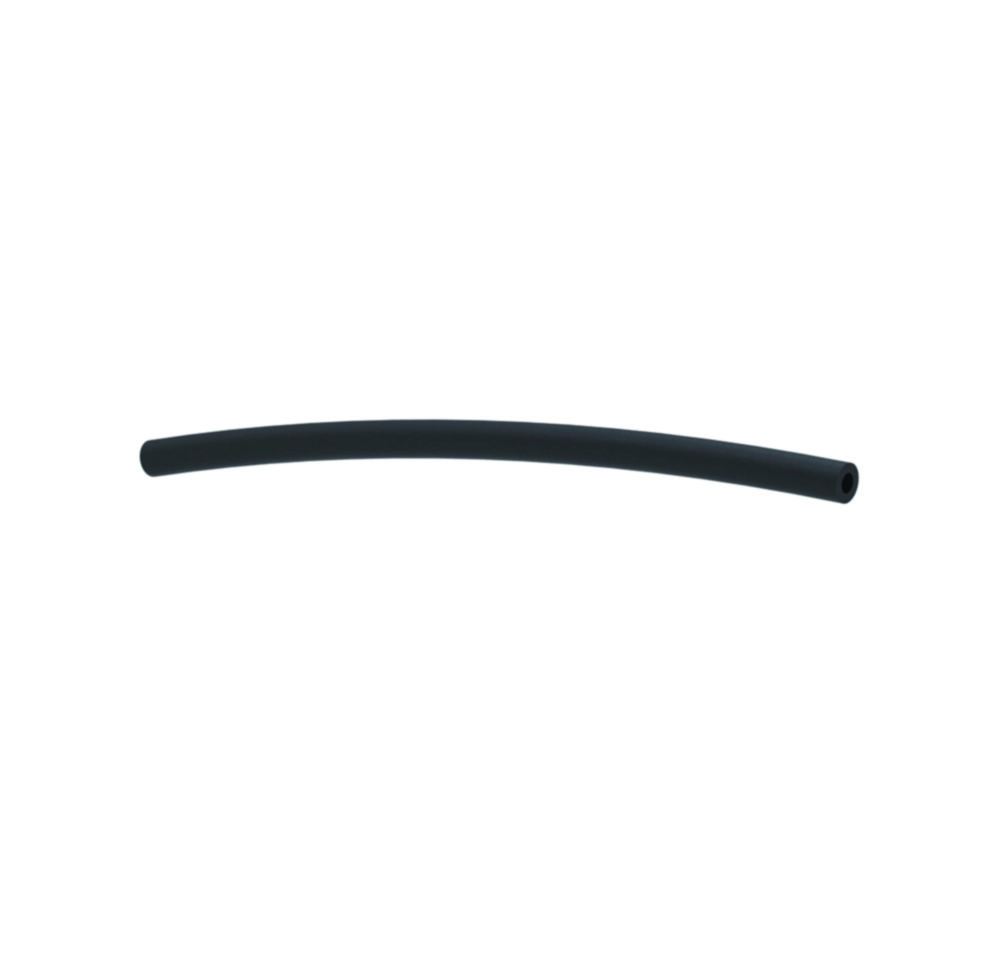

Explosion proof tubing, PTFE-EX
Explosion proof tubing, made of electric conductivity PTFE-EX, for solvents and easy flammable substances.

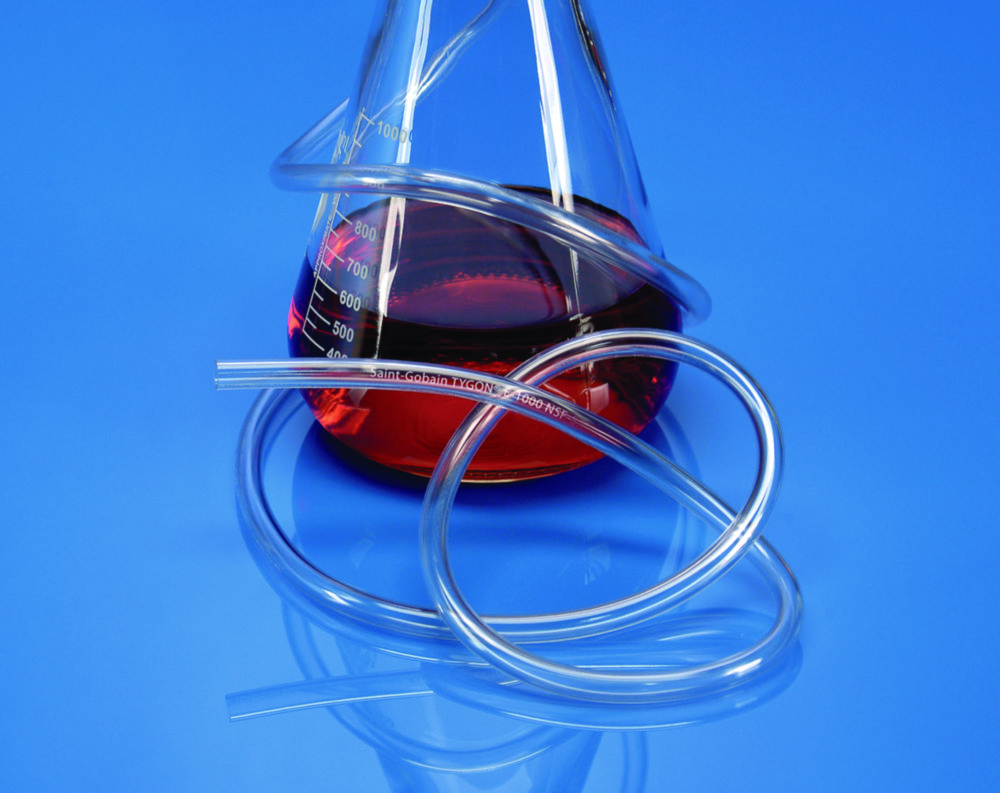

Tubings Tygon® E-1000
Clear. Shore A 40. For low-torque peristaltic pumps, Synthesis and research set ups and vent and drain lines. Meets FDA requirements for food contact.Soft and flexibleTemperature range -55 °C to 52 °CResistant to corrosive chemicals
Tubing TYGON® ND 100-80 Inventoried Sizes
Clear, with a glass-smooth inner surface. High rigidity for kink resistance. Meets USP Class VI criteria and REACH compliant.
Tubing Versilic®, Silicone, 10 m
Versilic® 60 shore tubing is biologically inert and does not inhibit cell culture. It stays flexible down to -50 °C and maintains its chemical, mechanical and electrical performance up to 200 °C. Versilic® meets the European Pharmacopoeia requirements for silicone elastomer for closures and tubing, USP Class VI biological tests and ISO 10993 biocompatibility (systemic toxicity, irritation, sensitization, citotoxicity, hemocompatibility and Ames test).Versilic® 60 shore tubing is biologically inert and does not inhibit cell culture. It stays flexible down to -50 °C and maintains its chemical, mechanical and electrical performance up to 200 °C. Versilic® meets the European Pharmacopoeia requirements for silicone elastomer for closures and tubing, USP Class VI biological tests and ISO 10993 biocompatibility (systemic toxicity, irritation, sensitization, citotoxicity, hemocompatibility and Ames test).
Tubing Versilic®, Silicone, 25 m
Versilic® 60 shore tubing is biologically inert and does not inhibit cell culture. It stays flexible down to -50 °C and maintains its chemical, mechanical and electrical performance up to 200 °C. Versilic® meets the European Pharmacopoeia requirements for silicone elastomer for closures and tubing, USP Class VI biological tests and ISO 10993 biocompatibility (systemic toxicity, irritation, sensitization, citotoxicity, hemocompatibility and Ames test).Versilic® 60 shore tubing is biologically inert and does not inhibit cell culture. It stays flexible down to -50 °C and maintains its chemical, mechanical and electrical performance up to 200 °C. Versilic® meets the European Pharmacopoeia requirements for silicone elastomer for closures and tubing, USP Class VI biological tests and ISO 10993 biocompatibility (systemic toxicity, irritation, sensitization, citotoxicity, hemocompatibility and Ames test).

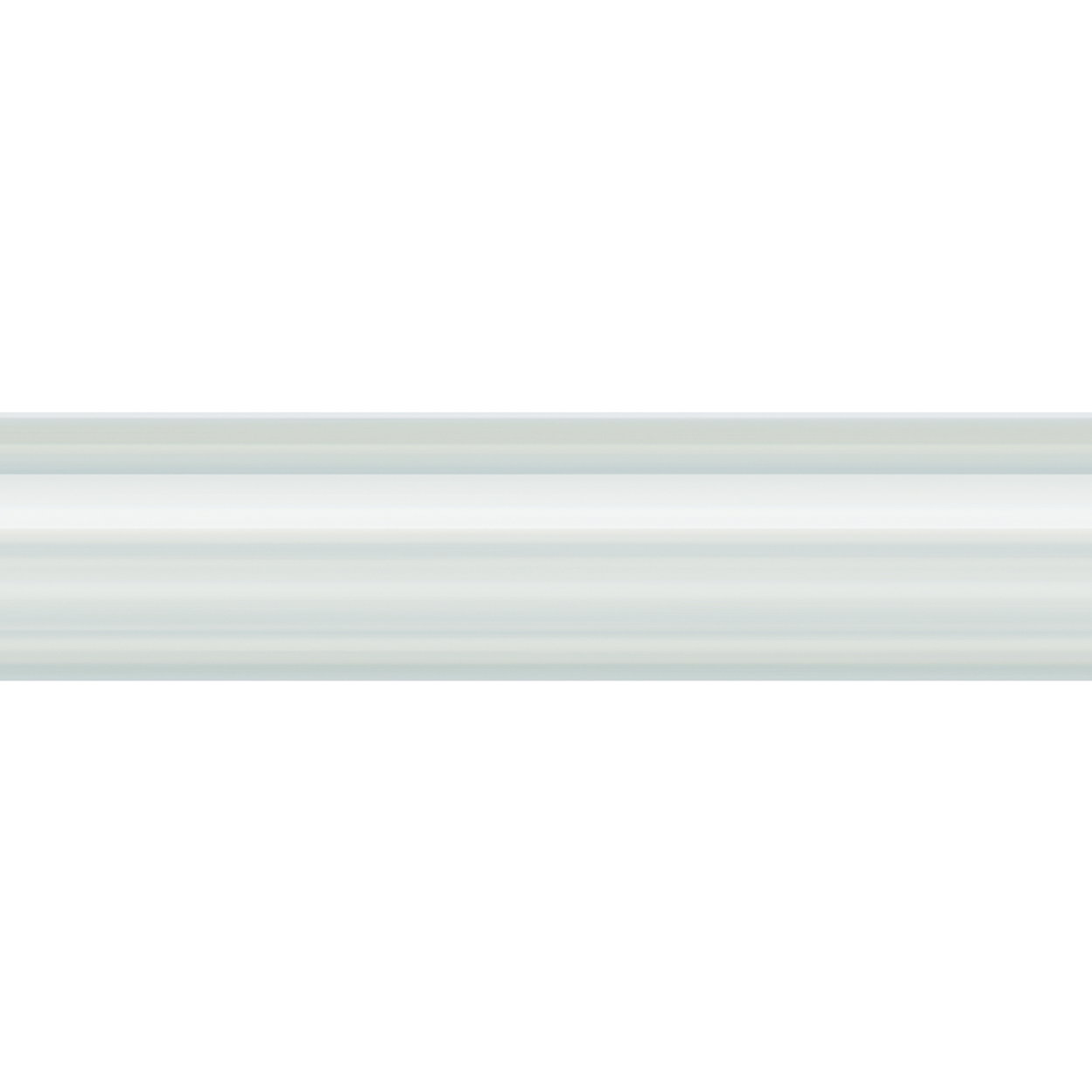

Tubing, Silicone
Silicone rubber (VMQ), transparent, hardness 60 Shore A, food safe, temperature-resistant from -60 to 200 °C (short term up to 260 °C), suitable for peristaltic pumps. BFR XV, FDA CFR 21 õ 177.2600, EP-Europ. Pharmacopoeia / DAB, biocompatibility: Cytotoxicity (USP Class 1-6), Hemolysis, Pyrogenicity, Sensitization, Dermatological Irritation, Implantation (90 days) according to ISO 10993-1. Supplied per meter.
Peristaltic pump tubing E-LFL with 3 colour-coded bridges
Long flex life, high-precision tubing with 3 colour-coded bridges. Suitable for peristaltic pumps and for food and beverage dispensing. Contains no BPA or phthalates. Broad resistance to acids and alkalis. Meets USP Klasse VI and ISO 10993.

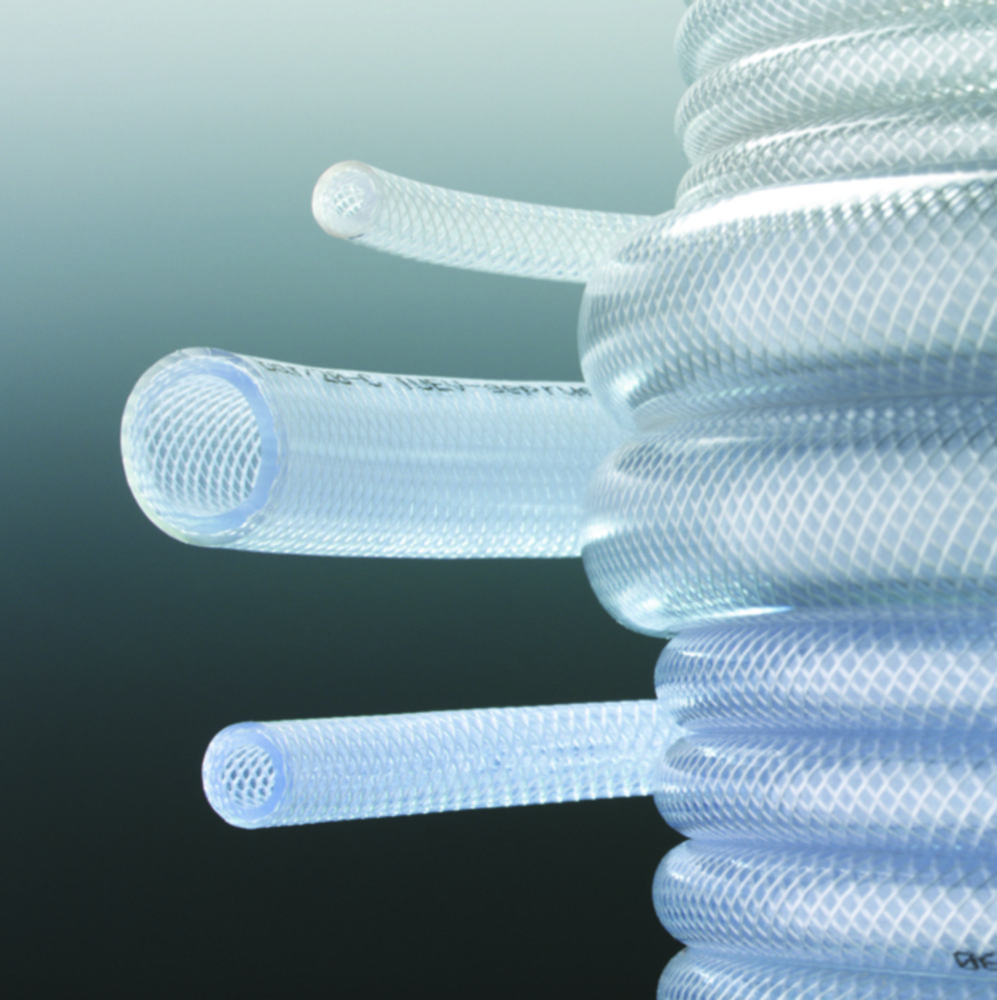

Fabric-reinforced tubing, PVC
Transparent. PVC with terylene mesh reinforcement. Certificated by German TÜV with due regard to regulatory of DIN EN ISO 5774:2008. Proofed by BGVO directive 2002/72/EC bis 2008/39/EC for food contact. Durometer 77 Shore A. Supplied per meter.

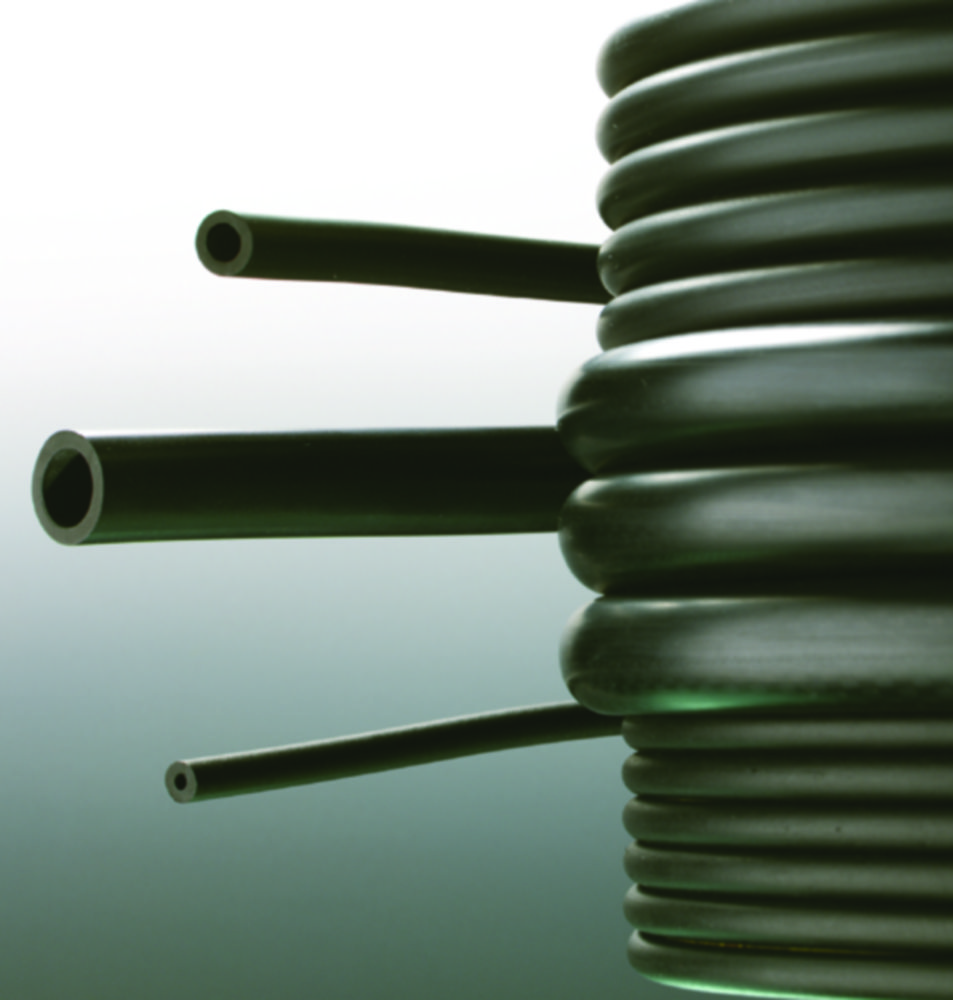

Rubber Tubing, Viton®
Fluoroelastomer Rubber (FPM), blackTemperature range -10 to over 200 °CGood resistance to ozone and weathering, as well as benzine and mineral oilDurometer 75 Shore ASupplied per meter.
Tubing Versilic®, Silicone, 1 m
Versilic® 60 shore tubing is biologically inert and does not inhibit cell culture. It stays flexible down to -50 °C and maintains its chemical, mechanical and electrical performance up to 200 °C. Versilic® meets the European Pharmacopoeia requirements for silicone elastomer for closures and tubing, USP Class VI biological tests and ISO 10993 biocompatibility (systemic toxicity, irritation, sensitization, citotoxicity, hemocompatibility and Ames test).Versilic® 60 shore tubing is biologically inert and does not inhibit cell culture. It stays flexible down to -50 °C and maintains its chemical, mechanical and electrical performance up to 200 °C. Versilic® meets the European Pharmacopoeia requirements for silicone elastomer for closures and tubing, USP Class VI biological tests and ISO 10993 biocompatibility (systemic toxicity, irritation, sensitization, citotoxicity, hemocompatibility and Ames test).

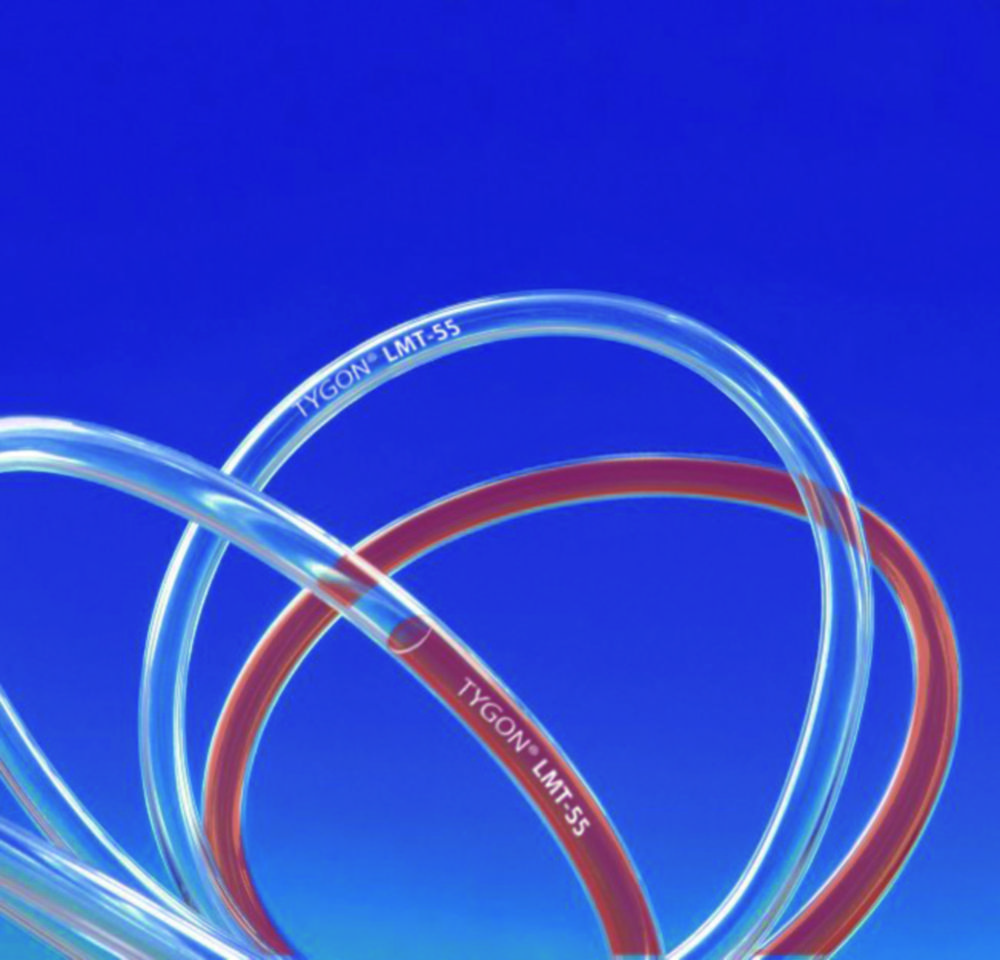

Nominal tubing for pumps, Tygon® LMT-55 without collars
Transparent. Shore: 55. Fits most common peristaltic pump models, e.g. Verder, Ismatec, Watson-Marlow, IKA and Heidolph. Long working lifespan. Good resistance to acids and alkalis. Food-safe.

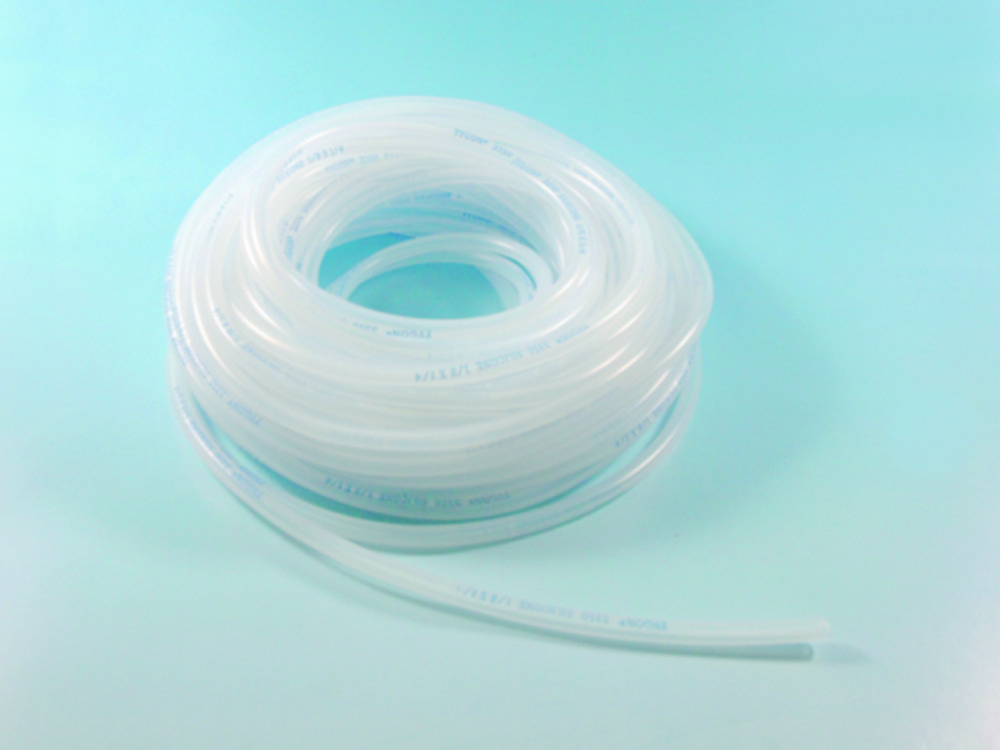

Tubing Tygon® 3350
Silicone-platinum tubing, Shore A 50. For sterile filling systems, chemistry and blood analyzers and liquid chromatography. Biocompatibility for sensitive applications. To FDA and USP Class VI, in accordance with ISO 10993.Temperature range -81 to 200°CSmooth inner surfaceHigh flexibilityOzone and UV resistant
Tubing PharMed® BPT with two colour-coded bridges
Shore A 64. The tubings have been formulated to withstand the rigors of peristaltic pumping action while providing the biocompatible fluid surface required in sensitive bioprocess applications. Resistant to repeated CIP and SIP cleaning and sterilization. Complies with USP Class VI and FDA and the documented biocompatibility according to standard 10993. Autoclavable.
Tubing Versilon™ 2001
Clear, flexible, Shore A 69. Peristaltic pump tubing for condensers, incubators, desiccators, gas and drain lines, chemical transfer and for food and beverage dispensing.Temperature range -78 °C to 57 °CChemical resistancePlasticizer and oil free

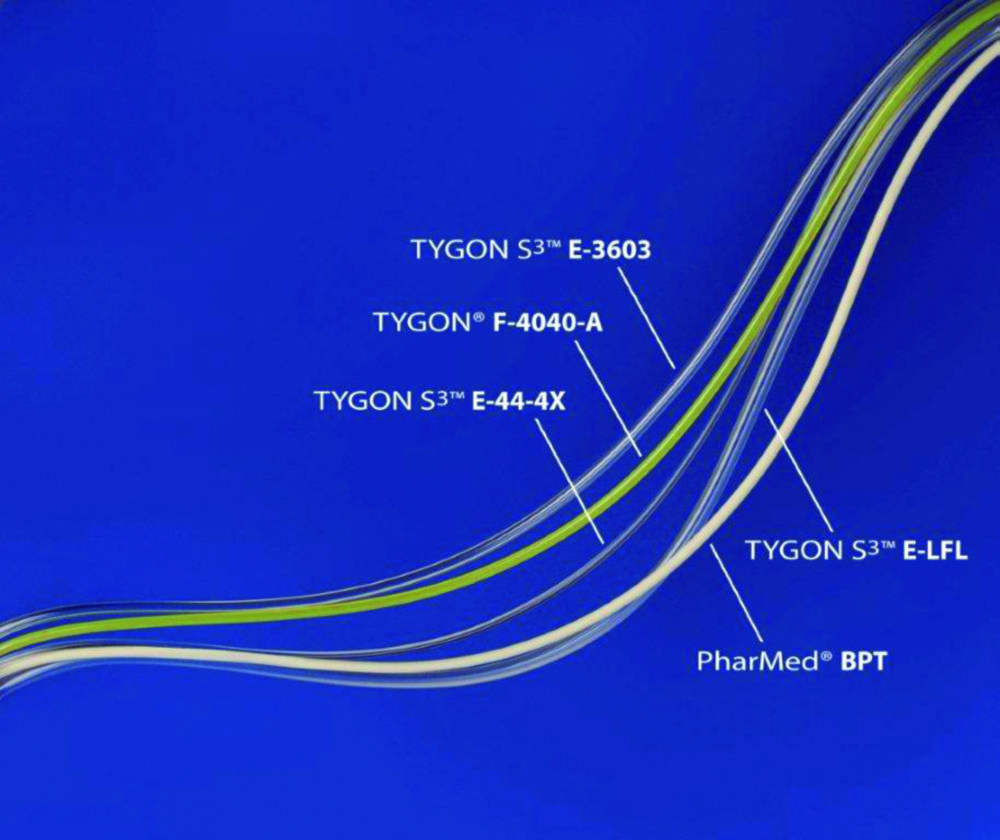

Tubing Tygon® F-4040-A
Transparent, yellow, very flexible. For most fuels and industrial lubricants, fuel oils and glycol-based coolants.Resists swelling and crackingOzone and UV light resistant

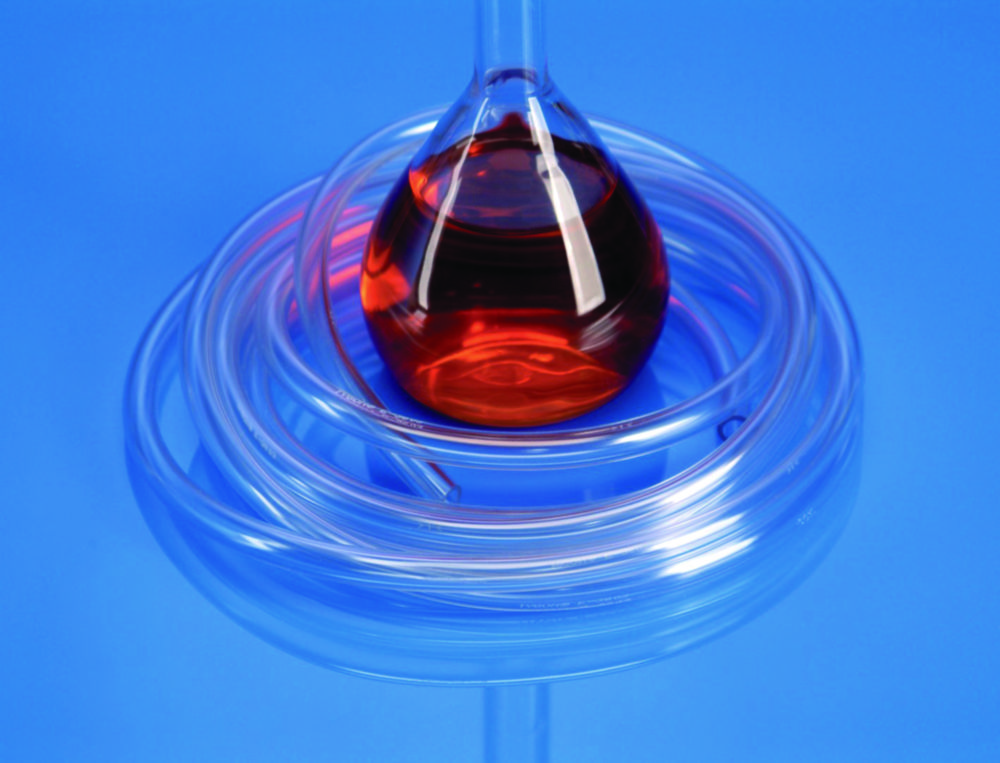

Tubing Tygon® E-3603, 15 m
Transparent. Shore A 55. Universal laboratory tubing with very good gripping properties on glass or plastic fittings. Very low gas permeability level similar to rubber. Resistant to most laboratory chemicals. Suitable for peristaltic pumps and for food and beverage dispensing. Meets FDA and USP class VI.Temperature range -50 to 74°CSmooth inner surfaceContains no BPA or phthalates

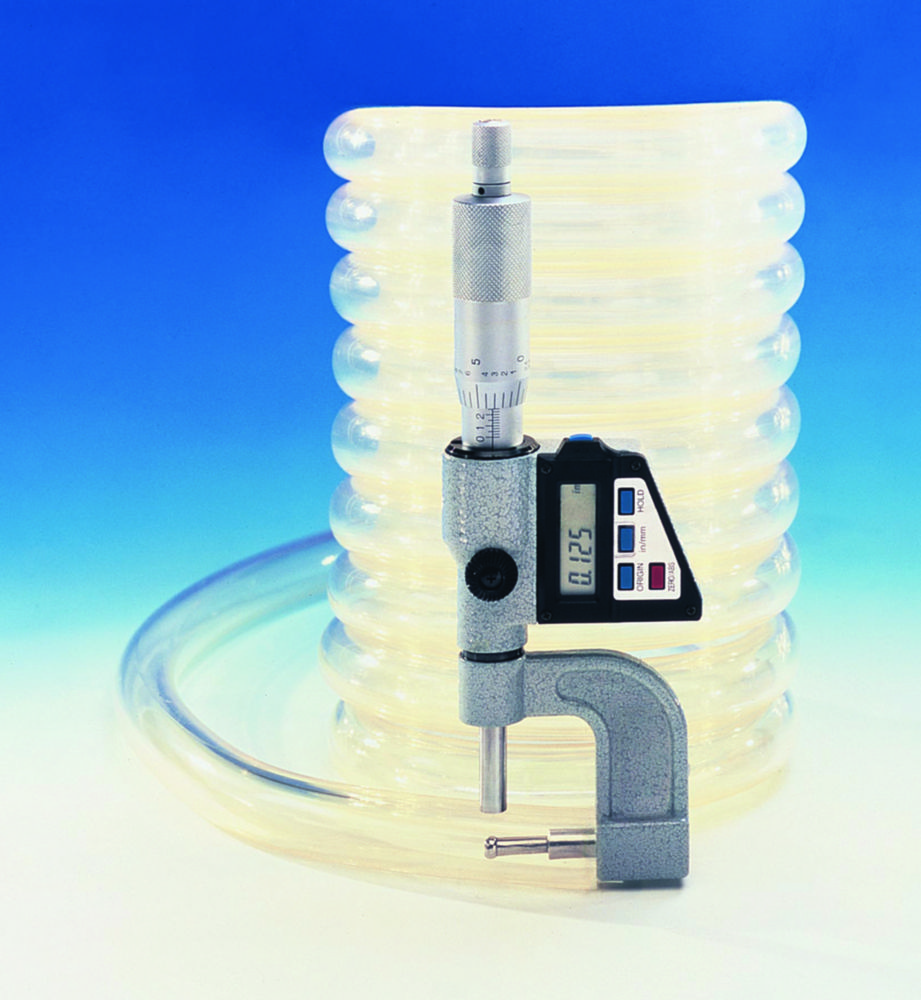

Tubing Versilon™ C-210-A
For slurry transfer, pellet and powder transfer, control lines and coolant recovery systems. Resistant to oils, greases and fuels. High tear and abrasion resistance.

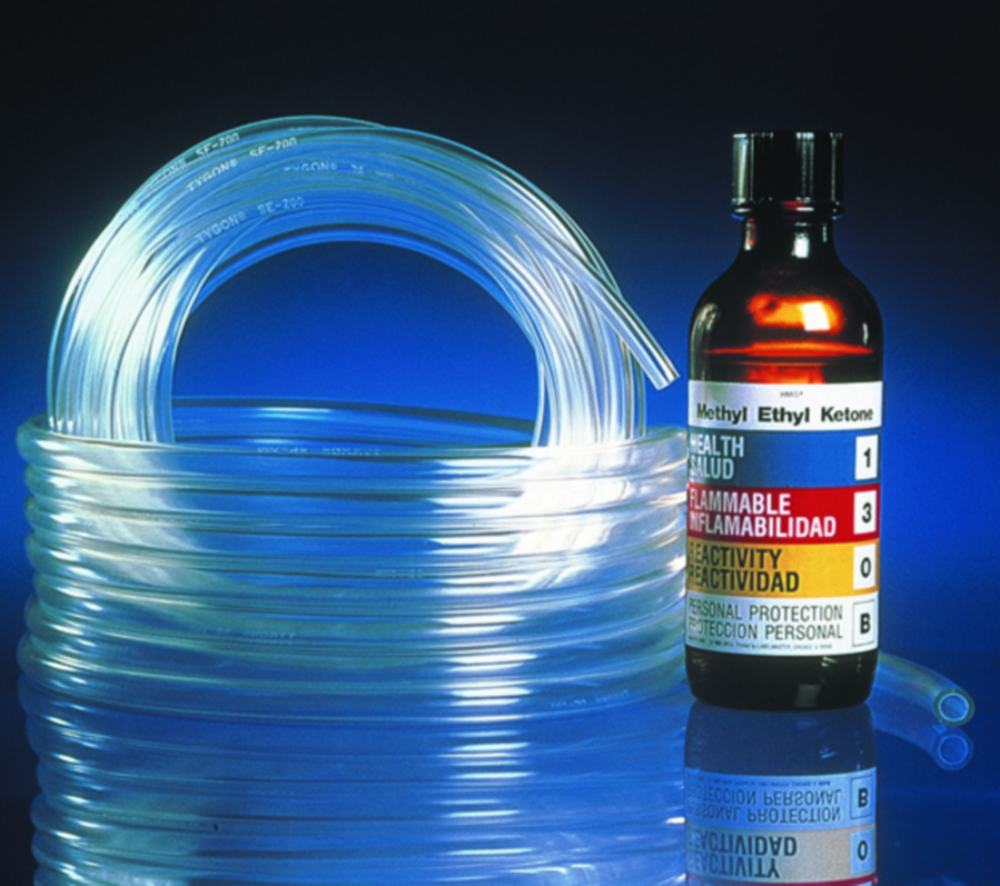

Tubing Tygon® SE 200
Transparent. Shore A 67 (casing). Resistant to the most aggresive liquids (acids, alkali solutions, solvents of all types) and gases. The only Tygon tubing which comprises of two layers: an FEP lining internally and transparent Tygon tubing externally. This combination combines the flexibility (can be bent to narrow angles) and transparency of Tygon R 3603 with the chemical resistance of fluorine polymers (FEP). Totally odourless and tasteless. Meets FDA and USP Class Vl specifications.Temperature range -40 to 77°CContains no BPA or phthalates

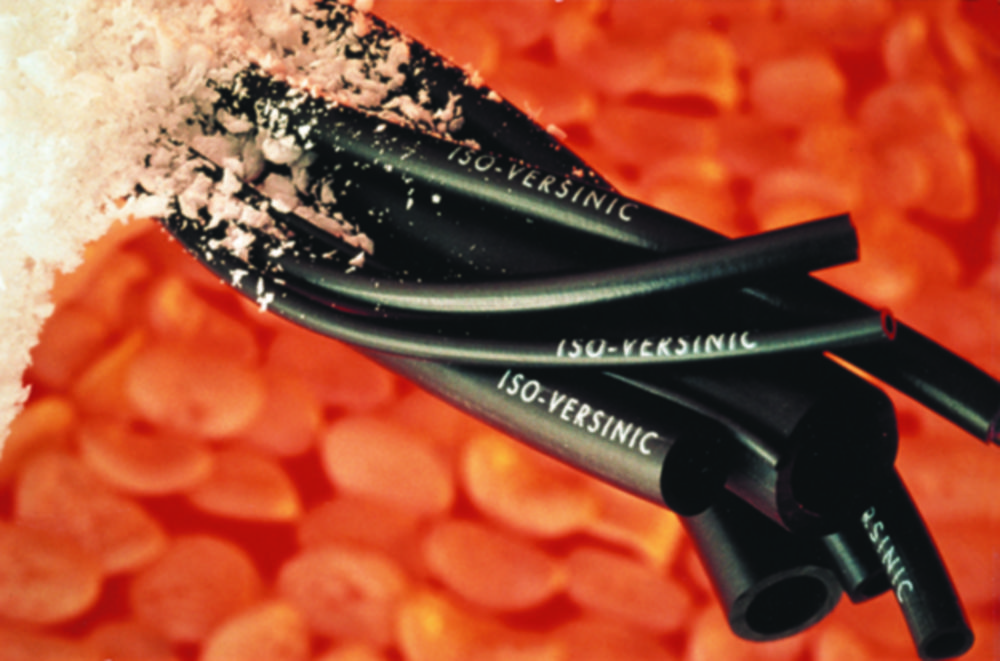

Tubing Iso-Versinic
Synthetic fluoroelastomer. Chemically resistant to hydrocarbons (aromatic and aliphatic), oils, strong acids, oxidizing agents and chlorous solvents. Excellent resistance to abrasion and flexing. Good ozone and radiation protection. Impermeable to gas and steam. Shore A, Density 1.9. Temperature range -20 °C to 200 °C (up to 300°C for short periods). Elongation at tear >250%. Suitable for transporting corrosive liquids.

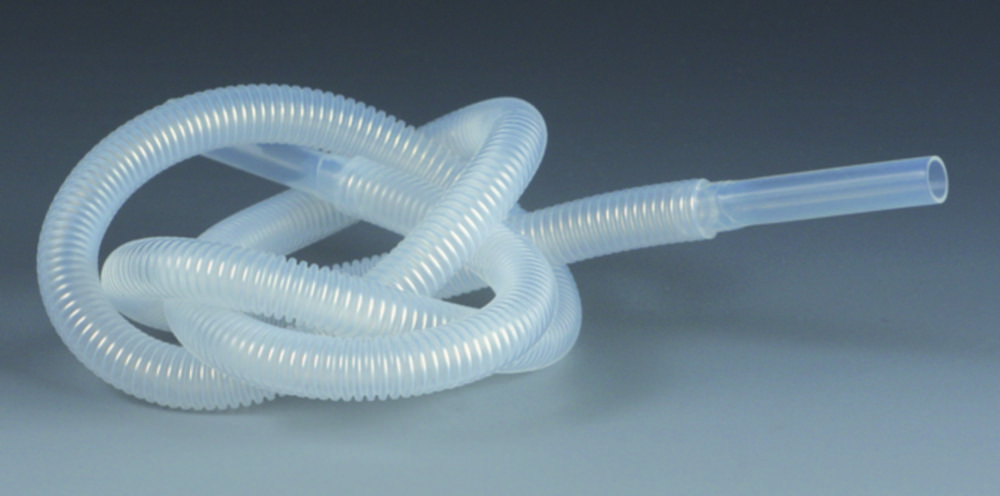

Flex tubing, PFA
Corrugated tubing with circular corrugations around the longitudinal axis and cylindrical tubing ends with a length of 40mm which can for example be connected directly to fittings, stopcocks or hose connectors. Together with BOLA Laboratory Screw Joints, the connection is tight and suitable for vacuum.Highly flexibleTight bending radius only causes little cross-section reductionNon-porousTransparentIdeal for connections under vibrationsUsable with a small bending radiusFor compensation of thermal expansionsFor easy handling of liquidsSpecial lengths available on request
Tubing Tygon® B-44-4X
Clear, transparent. Chemically resistant to aggressive cleaning fluids and sanitizers. Suitable for many foods and beverages. Contains no BPA or phthalates.
Tubing TYGON® HC F-4040-A with 3 colour-coded bridges
Especially for hydrocarbons and for petrochemistry.Resists swelling and crackingOzone and UV resistant
