Gel documentation system gelONE-E
Content:
1
Product number:
4670736
Product information "Gel documentation system gelONE-E"

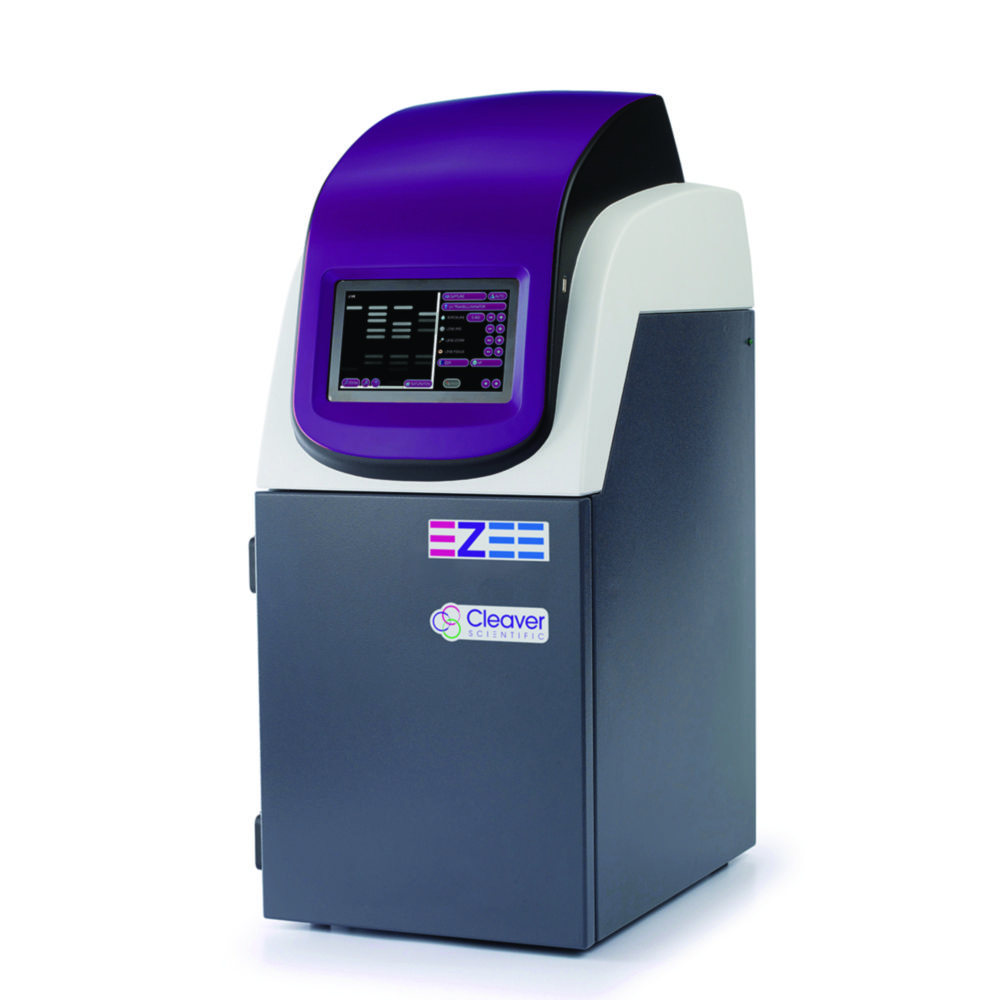

Gel documentation system with in built touch screen. The 20 x 24 cm imaging area means even large gels can be imaged with ease. Suitable for documentation of DNA-gels stained with EtBr and SYBR stains, AutoRads und Coomassie stained gels, tissues, slides and films. Images are captured using the built in software and saved direct to USB memory sticks for transfer to PC. The geneQUANT advanced image analysis package is included in the system license free.
Scope of supply:
Darkroom, camera, UV transilluminator, imaging filter, license free geneQUANT advanced image analysis package
- 5 megapixel camera with low light sensitivity
- In built 7" touch screen
- Motor driven zoom lens
- White LED lighting for sample positioning
- Safety switch prevents accidental UV exposure
Scope of supply:
Darkroom, camera, UV transilluminator, imaging filter, license free geneQUANT advanced image analysis package
| Specifications | |
| Resolution: | 5 megapixels |
| Lens: | 8 - 48 MM F/1.2 |
| Sensor bit-depth: | 12/16 bit |
| Greyscales: | 65536 |
| Dynamic range: | 3.6/4.8 (extended) |
| Transilluminator wavelength: | 302 nm |
| Transilluminator size: | 200 x 240 mm |
| Dimensions (W x D x H): | 450 x 310 x 750 mm |
| Weight: | 20 kg |
| Power supply: | 230 V/50 Hz |
| Manufacturer Article Number: | GELONE-E |
|---|---|
| Type: | gelONE-E |
