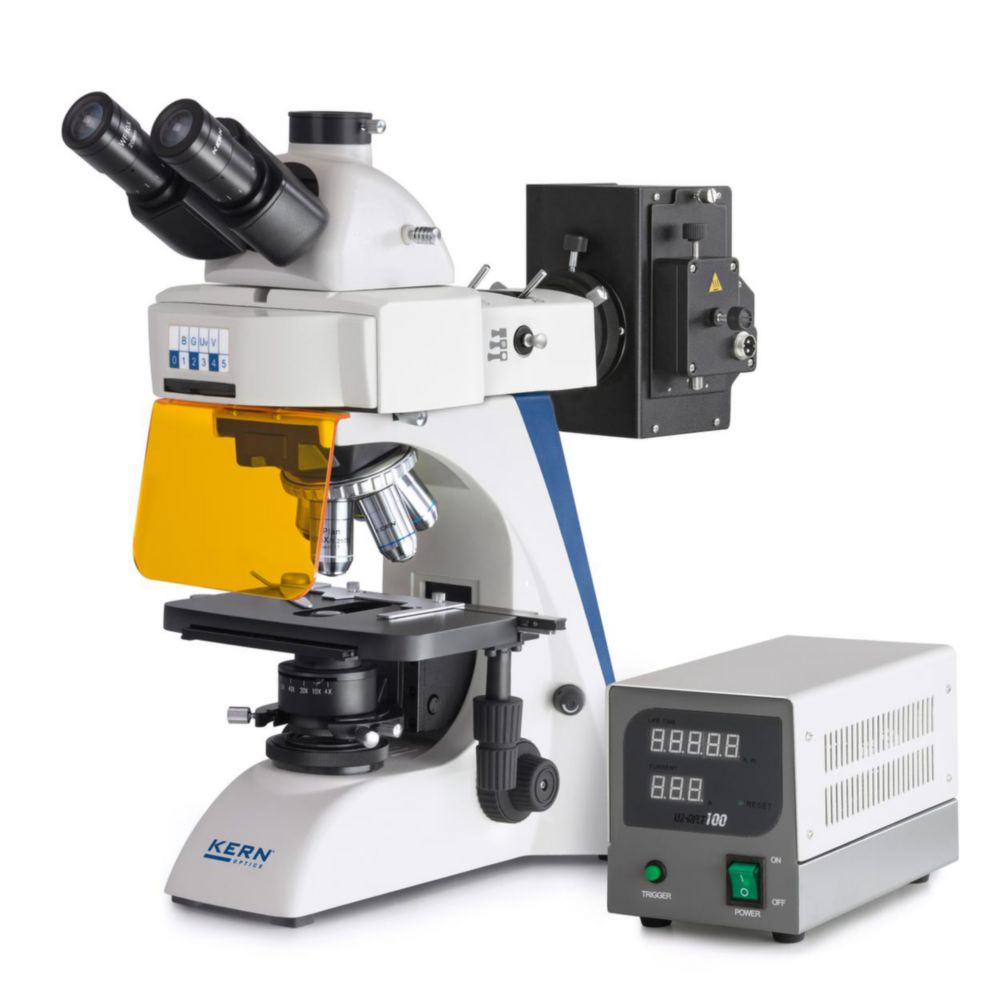

Fluorescence microscopes Professional Line OBN 14
Product information "Fluorescence microscopes Professional Line OBN 14"
This series has a professional Koehler illumination unit with an adjustable field diaphragm, with infinity optical system. A variety of modular systems, such as a swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a dark field condenser, a simple polarising unit, butterfly tube, through to complete fluorescence units are optionally available. A C-mount adapter is required to connect a camera (optional).
OBN 141:
OBN 147 / OBN 148:
Scope of supply: microscope, centring objective, dust Cover, eyepiece rubber caps, manual instruction
- Tube 30° inclined, 360° rotatable
- Diopter adjustment: both-sided
- Objective quality: Infinity Plan
- Coaxial pre-and fine focussing
- For translucent, thin, low-contrast, challenging samples (e.g. immunofluorescence, FISH, DAPI staining, etc.)
- Centering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragm
- Incl. centering objective for fluorescence adjustment
OBN 141:
- 3W LED transmitted illumination unit and 3W LED epi-fluorescence incident illumination unit
- With B/G fluorescence filter with changeover slider
OBN 147 / OBN 148:
- 20 W halogen transmitted illumination unit and 100 W epi-fluorescent incident illumination unit
- 6-position filter wheel with B/G or B/G/UV/V fluorescence filter
Scope of supply: microscope, centring objective, dust Cover, eyepiece rubber caps, manual instruction
| Condenser: | Abbe 1,25 |
|---|---|
| Depth: | 220 mm |
| Dimensions (WxDxH): | 530 x 220 x 490 mm |
| Height: | 490 mm |
| Inclination angle tube: | 30° |
| Light type: | Halogen |
| Magnification eyepieces: | WF 10x/20 mm |
| Magnification objectives: | 4x, 10x, 20x, 40x, 100x |
| Manufacturer Article Number: | OBN 147 |
| Revolving nosepiece: | 5-fold |
| Tube: | Trinocular |
| Type: | OBN 147 |
| Type of auxiliary energy: | Mains connection |
| Type of illumination (Microscopy): | Transmitted light |
| Weight: | 16 kg |
| Width: | 530 mm |
