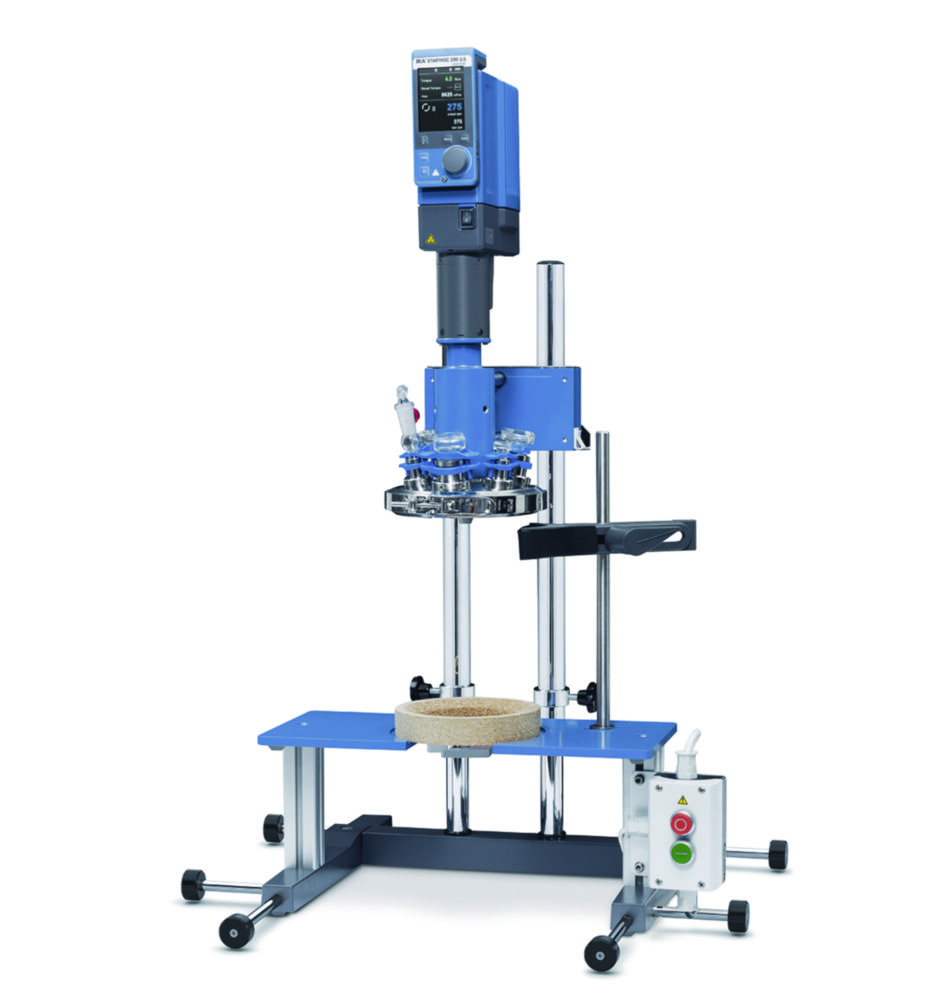

Laboratory reactor LR-2.ST STARVISC 200
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.Suitable for vacuum operationSolvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sampleInfinitely variable speedTorque trend display for measuring changes in viscosityMicroprocessor-controlled speed regulation, enables steady speed, also under loadRemovable WiCo (wiresless controller) for remote and safe use in a fume hoodScope of supply: Stand system, laboratory stirrer STARVISC 200-2.5 control, safety stop, reactor cover

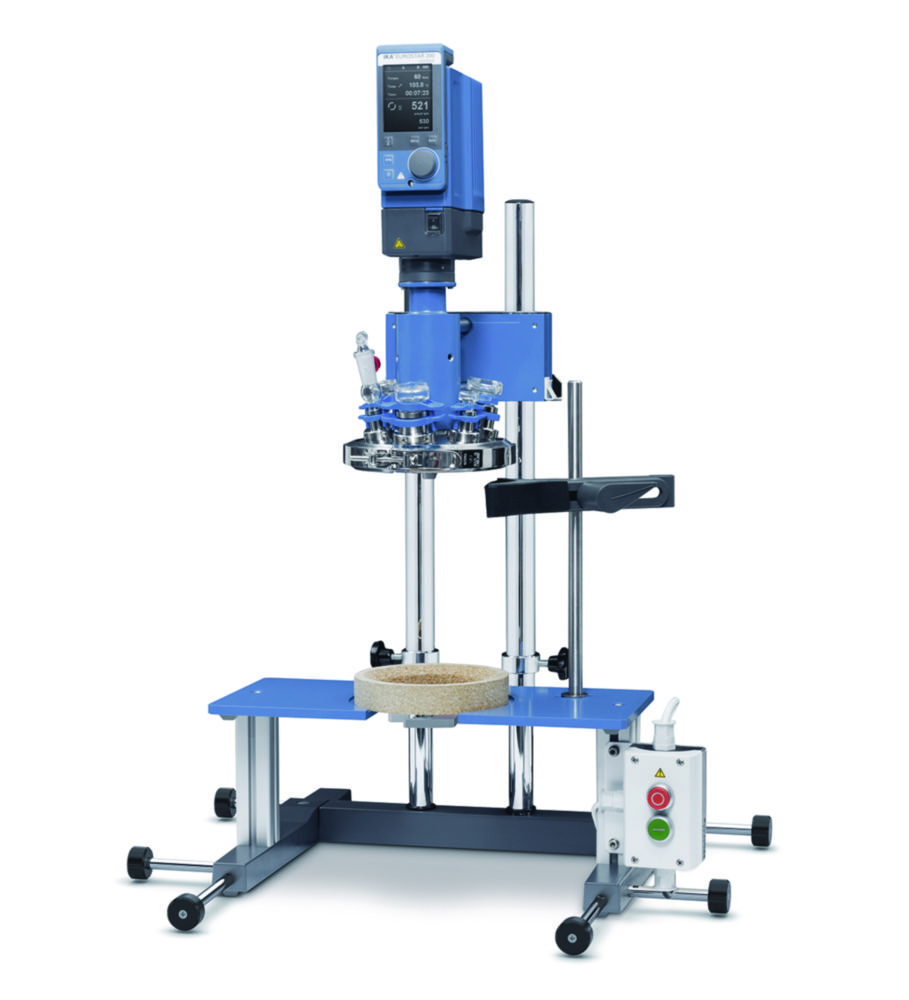

Laboratory reactor LR-2.ST the Allrounder
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.Suitable for vacuum operationSolvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sampleInfinitely variable speedTorque trend display for measuring changes in viscosityMicroprocessor-controlled speed regulation, enables steady speed, also under loadRemovable WiCo (wiresless controller) for remote and safe use in a fume hoodScope of supply: Stand system, laboratory stirrer EUROSTAR 200 control, safety stop, reactor cover

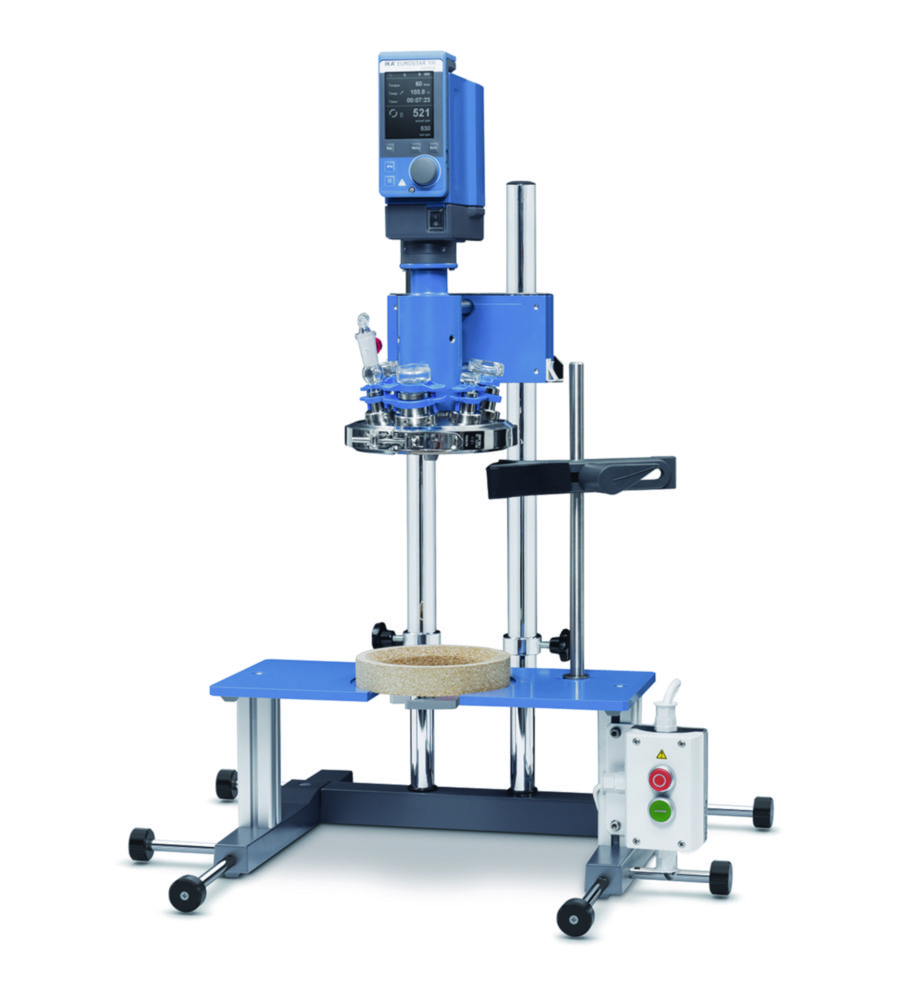

Laboratory reactor LR-2.ST the Versatile
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.Suitable for vacuum operationSolvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sampleInfinitely variable speedTorque trend display for measuring changes in viscosityMicroprocessor-controlled speed regulation, enables steady speed, also under loadRemovable WiCo (wiresless controller) for remote and safe use in a fume hoodScope of supply: Stand system, laboratory stirrer EUROSTAR 100 control, safety stop, reactor cover

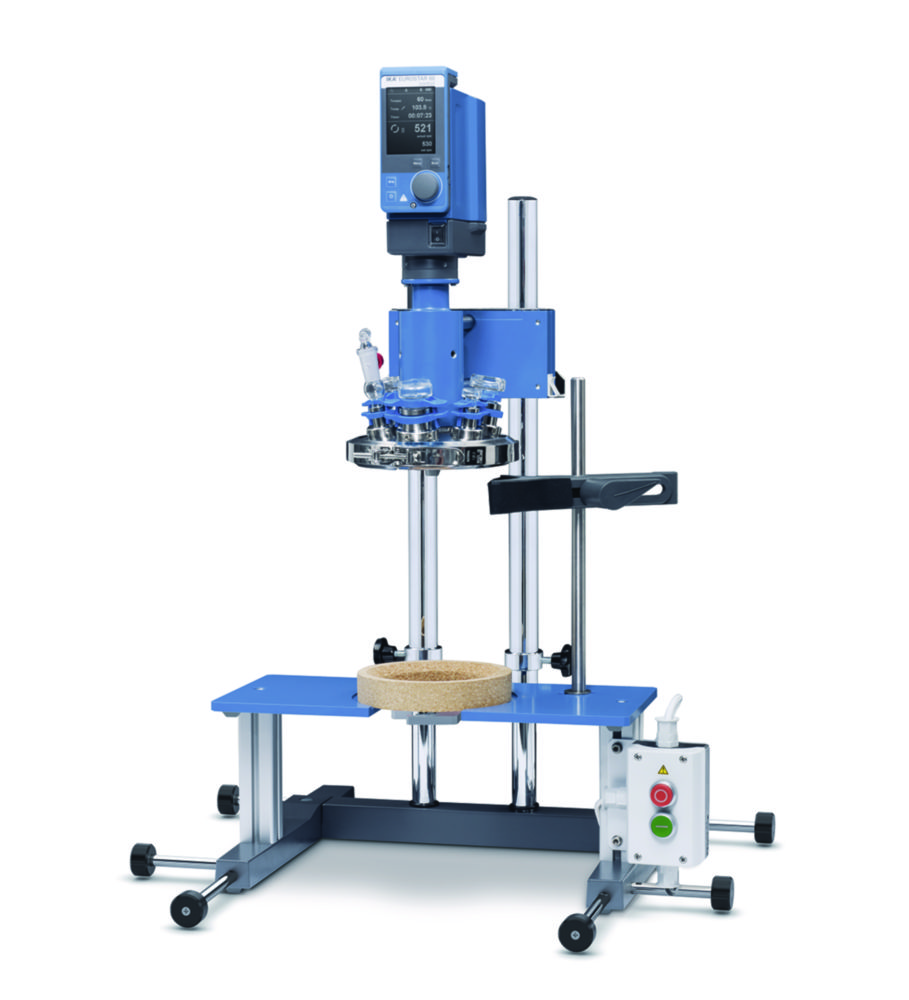

Laboratory reactor LR-2.ST the Compact Power
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.Suitable for vacuum operationSolvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sampleInfinitely variable speedTorque trend display for measuring changes in viscosityMicroprocessor-controlled speed regulation, enables steady speed, also under loadRemovable WiCo (wiresless controller) for remote and safe use in a fume hoodScope of supply: Stand system, laboratory stirrer EUROSTAR 60 control, safety stop, reactor cover

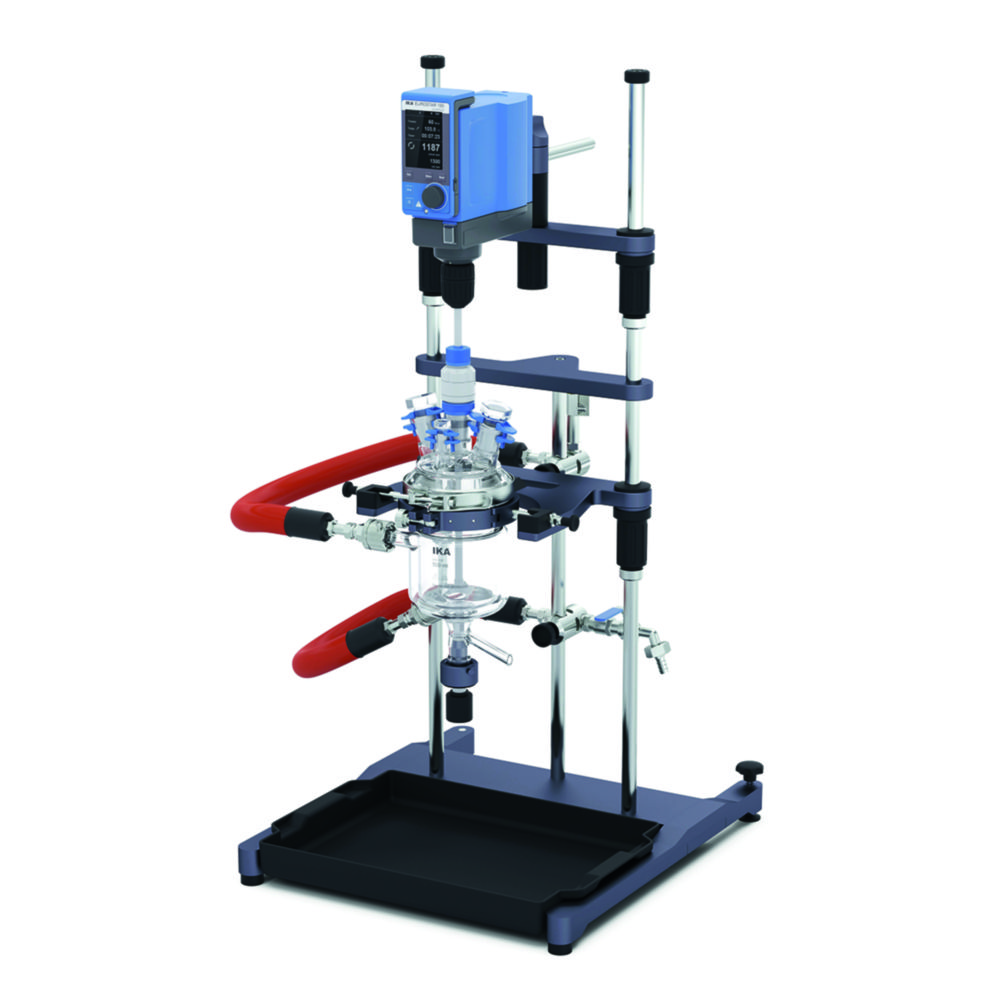

Synthesis reactor EasySyn 500 Advanced
Complete reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Ergonomically designed stand system for quick and easy replacement of the reactor vesselsDouble-walled reactor vessel made of borosilicate glass 3.3 with bottom discharge valveSpring-loaded valve spindle of the drain valve to prevent glass breakageReactor lid with various openings for flexible adaptation to the desired applicationOverhead stirrer EUROSTAR 100 controlDrainage set with valves and temperature control hoses facilitates draining of the reactor vesselWith timer, overload protection and temperature measurement (integrated in the overhead stirrer)PTFE-coated propeller stirrer for optimum mixingRS232 and USB interfaceScope of supply: SY stand, reactor vessel SY 500 D, SY clamp 100, SY clamp ring 100, SY O-ring 100, reactor lid SY 100.1, propeller stirrer R 4011 SY, overhead stirrer EUROSTAR 100 control, keyless chuck R 60, draining set LT 5.40, stirrer guideMax. capacity:500 mlWorking temperature range:-30 ... 200 °CAttainable vacuum:25 mbarMax. torque:100 NcmFlange size:DN100Reactor vessel openings:1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23Dimensions (W x D x H):500 x 580 x 1050 mm

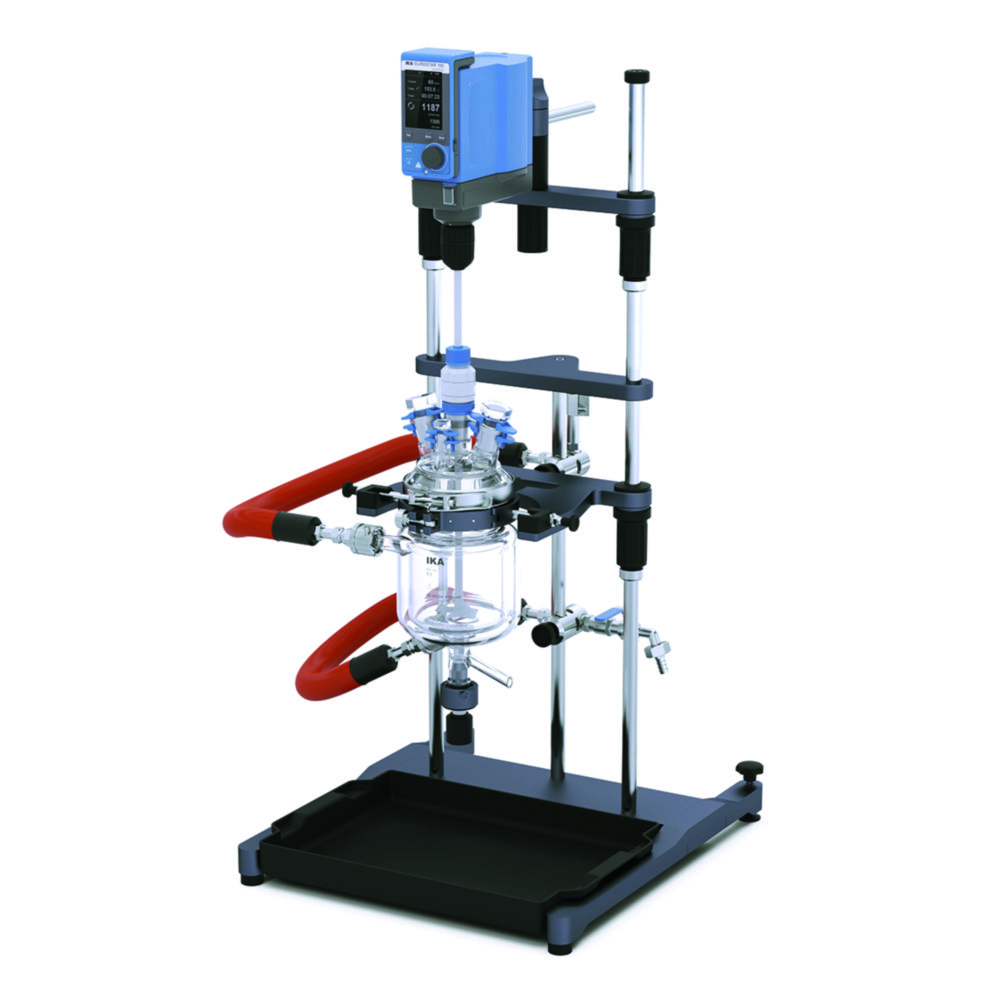

Synthesis reactor EasySyn 1000 Advanced
Complete reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Ergonomically designed stand system for quick and easy replacement of the reactor vesselsDouble-walled reactor vessel made of borosilicate glass 3.3 with bottom discharge valveSpring-loaded valve spindle of the drain valve to prevent glass breakageReactor lid with various openings for flexible adaptation to the desired applicationOverhead stirrer EUROSTAR 100 controlDrainage set with valves and temperature control hoses facilitates draining of the reactor vesselWith timer, overload protection and temperature measurement (integrated in the overhead stirrer)PTFE-coated propeller stirrer for optimum mixingRS232 and USB interfaceScope of supply: SY stand, reactor vessel SY 1000 D, SY clamp 100, SY clamp ring 100, SY O-ring 100, reactor lid SY 100.1, propeller stirrer R 4011 SY, overhead stirrer EUROSTAR 100 control, keyless chuck R 60, draining set LT 5.40, stirrer guideMax. capacity:1000 mlWorking temperature range:-30 ... 200 °CAttainable vacuum:25 mbarMax. torque:100 NcmFlange size:DN100Reactor vessel openings:1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23Dimensions (W x D x H):500 x 580 x 1050 mm

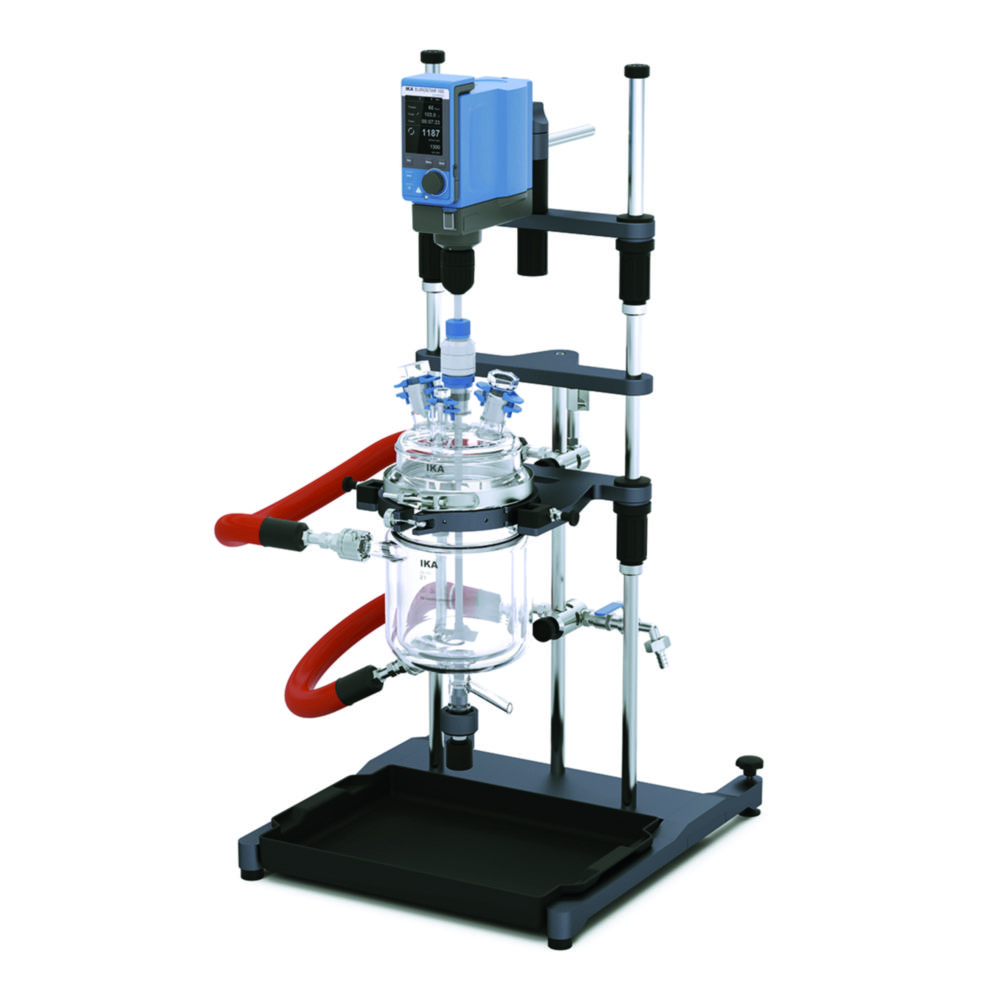

Synthesis reactor EasySyn 2000 Advanced
Complete reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Ergonomically designed stand system for quick and easy replacement of the reactor vesselsDouble-walled reactor vessel made of borosilicate glass 3.3 with bottom discharge valveSpring-loaded valve spindle of the drain valve to prevent glass breakageReactor lid with various openings for flexible adaptation to the desired applicationOverhead stirrer EUROSTAR 100 controlDrainage set with valves and temperature control hoses facilitates draining of the reactor vesselWith timer, overload protection and temperature measurement (integrated in the overhead stirrer)PTFE-coated propeller stirrer for optimum mixingRS232 and USB interfaceScope of supply: SY stand, reactor vessel SY 2000 D, SY clamp 150, SY clamp ring 150, SY O-ring 150, reactor lid SY 150.1, propeller stirrer R 4012 SY, overhead stirrer EUROSTAR 100 control, keyless chuck R 60, draining set LT 5.40, stirrer guideMax. capacity:2000 mlWorking temperature range:-30 ... 200 °CAttainable vacuum:25 mbarMax. torque:100 NcmFlange size:DN150Reactor vessel openings:1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23Dimensions (W x D x H):500 x 580 x 1050 mm

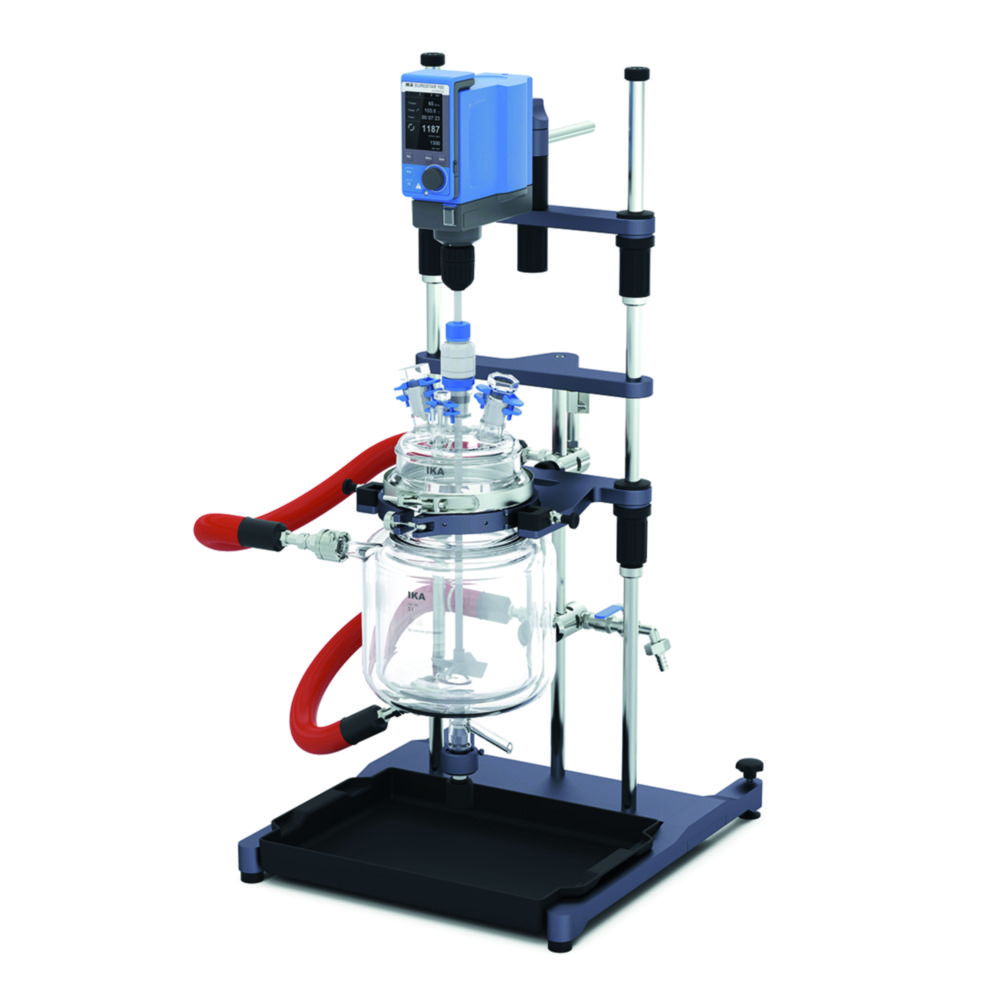

Synthesis reactor EasySyn 5000 Advanced
Complete reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Ergonomically designed stand system for quick and easy replacement of the reactor vesselsDouble-walled reactor vessel made of borosilicate glass 3.3 with bottom discharge valveSpring-loaded valve spindle of the drain valve to prevent glass breakageReactor lid with various openings for flexible adaptation to the desired applicationOverhead stirrer EUROSTAR 100 controlDrainage set with valves and temperature control hoses facilitates draining of the reactor vesselWith timer, overload protection and temperature measurement (integrated in the overhead stirrer)PTFE-coated propeller stirrer for optimum mixingRS232 and USB interfaceScope of supply: SY stand, reactor vessel SY 5000 D, SY clamp 150, SY clamp ring 150, SY O-ring 150, reactor lid SY 150.1, propeller stirrer R 4013 SY, overhead stirrer EUROSTAR 100 control, keyless chuck R 60, draining set LT 5.40, stirrer guideMax. capacity:5000 mlWorking temperature range:-30 ... 200 °CAttainable vacuum:25 mbarMax. torque:100 NcmFlange size:DN150Reactor vessel openings:1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23Dimensions (W x D x H):500 x 580 x 1050 mm

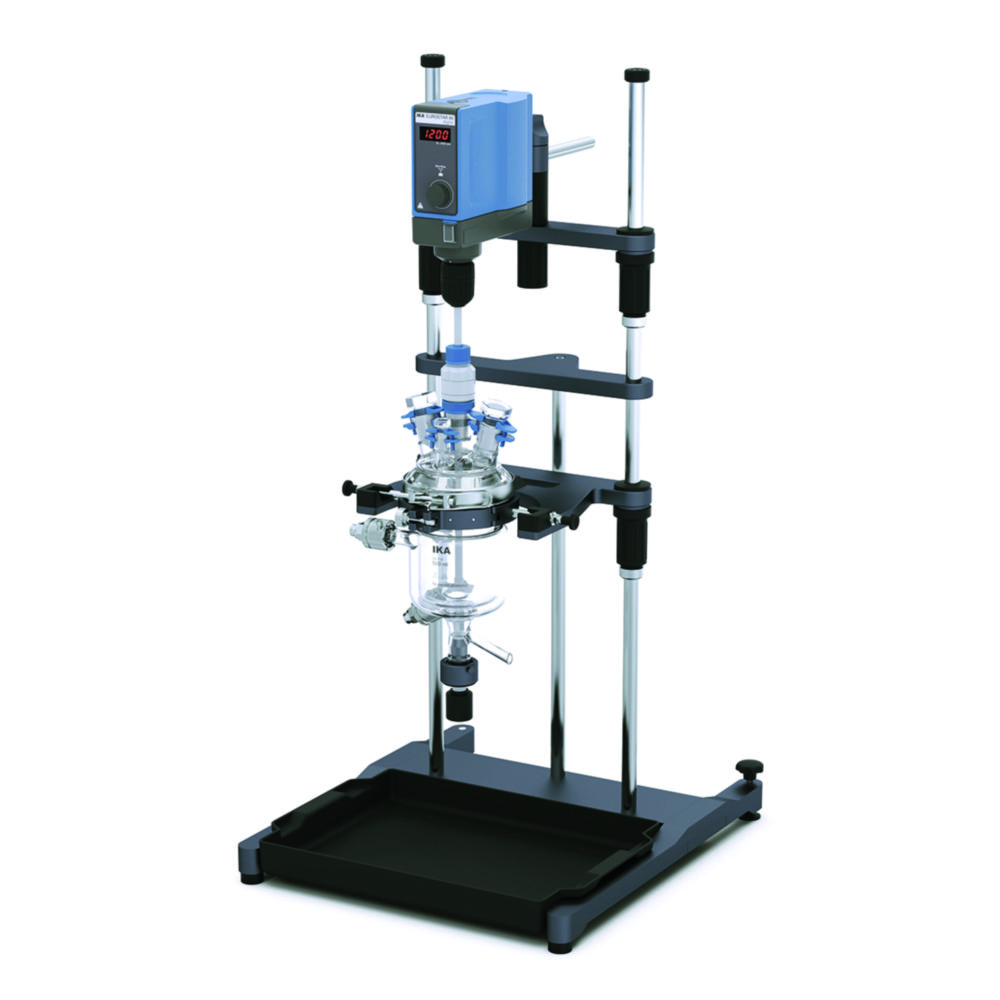

Synthesis reactor EasySyn 500 Starter
Complete reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Ergonomically designed stand system for quick and easy replacement of the reactor vesselsDouble-walled reactor vessel made of borosilicate glass 3.3 with bottom discharge valveSpring-loaded valve spindle of the drain valve to prevent glass breakageReactor lid with various openings for flexible adaptation to the desired applicationOverhead stirrer EUROSTAR 60 digitalPTFE-coated propeller stirrer for optimum mixingScope of supply: SY stand, reactor vessel SY 500 D, SY clamp 100, SY clamp ring 100, SY O-ring 100, reactor lid SY 100.1, propeller stirrer R 4011 SY, overhead stirrer EUROSTAR 60 digital, keyless chuck R 60, stirrer guideMax. capacity:500 mlWorking temperature range:-30 ... 200 °CAttainable vacuum:25 mbarMax. torque:60 NcmFlange size:DN100Reactor vessel openings:1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23Dimensions (W x D x H):500 x 580 x 1050 mm

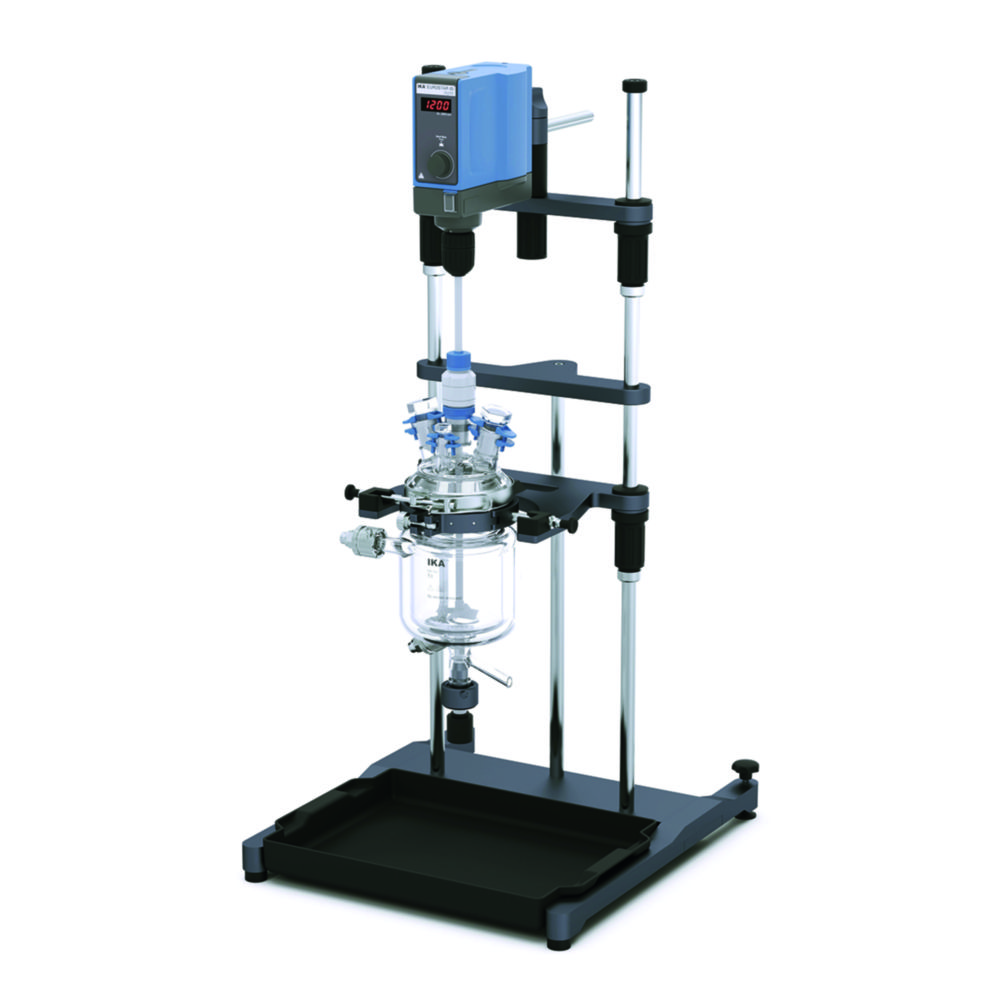

Synthesis reactor EasySyn 1000 Starter
Complete reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Ergonomically designed stand system for quick and easy replacement of the reactor vesselsDouble-walled reactor vessel made of borosilicate glass 3.3 with bottom discharge valveSpring-loaded valve spindle of the drain valve to prevent glass breakageReactor lid with various openings for flexible adaptation to the desired applicationOverhead stirrer EUROSTAR 60 digitalPTFE-coated propeller stirrer for optimum mixingScope of supply: SY stand, reactor vessel SY 1000 D, SY clamp 100, SY clamp ring 100, SY O-ring 100, reactor lid SY 100.1, propeller stirrer R 4011 SY, overhead stirrer EUROSTAR 60 digital, keyless chuck R 60, stirrer guideMax. capacity:1000 mlWorking temperature range:-30 ... 200 °CAttainable vacuum:25 mbarMax. torque:60 NcmFlange size:DN100Reactor vessel openings:1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23Dimensions (W x D x H):500 x 580 x 1050 mm

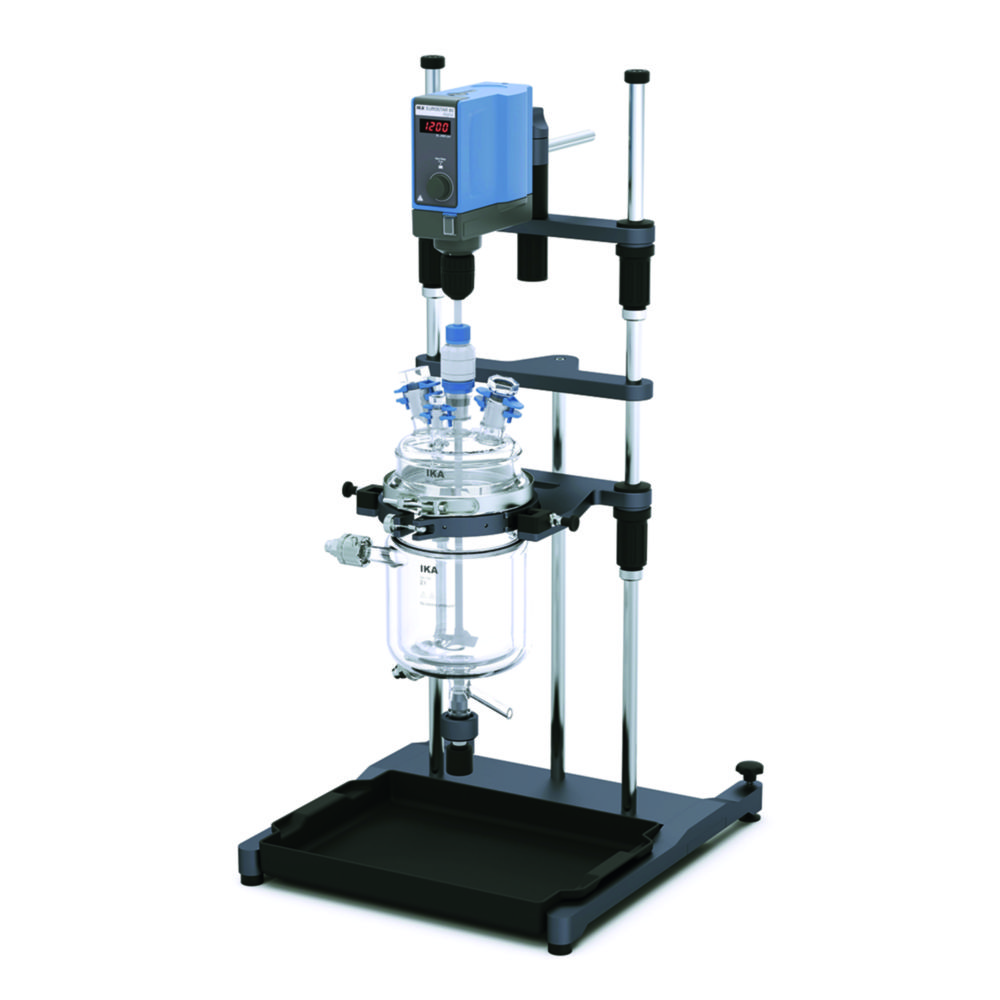

Synthesis reactor EasySyn 2000 Starter
Complete reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Ergonomically designed stand system for quick and easy replacement of the reactor vesselsDouble-walled reactor vessel made of borosilicate glass 3.3 with bottom discharge valveSpring-loaded valve spindle of the drain valve to prevent glass breakageReactor lid with various openings for flexible adaptation to the desired applicationOverhead stirrer EUROSTAR 60 digitalPTFE-coated propeller stirrer for optimum mixingScope of supply: SY stand, reactor vessel SY 2000 D, SY clamp 150, SY clamp ring 150, SY O-ring 150, reactor lid SY 150.1, propeller stirrer R 4012 SY, overhead stirrer EUROSTAR 60 digital, keyless chuck R 60, stirrer guideMax. capacity:2000 mlWorking temperature range:-30 ... 200 °CAttainable vacuum:25 mbarMax. torque:60 NcmFlange size:DN150Reactor vessel openings:1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23Dimensions (W x D x H):500 x 580 x 1050 mm

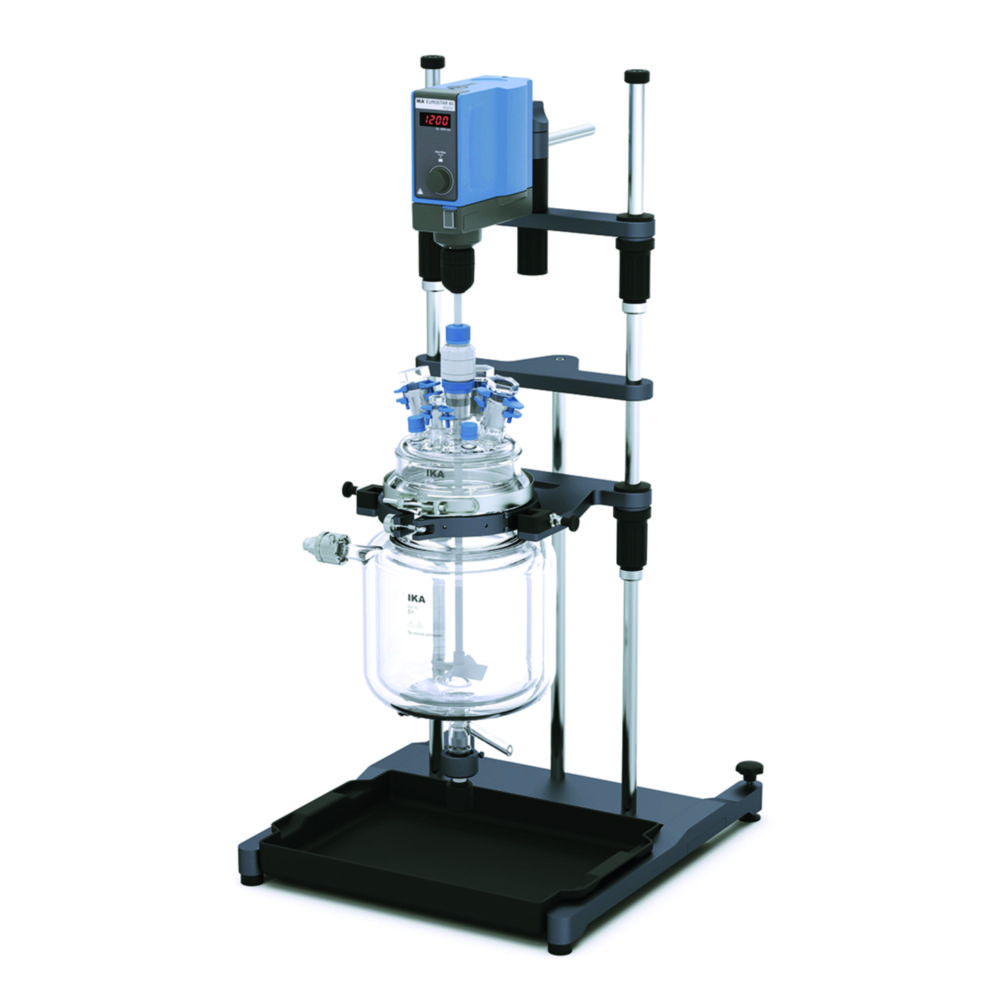

Synthesis reactor EasySyn 5000 Starter
Complete reactor system for organic or aqueous syntheses. It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale.Ergonomically designed stand system for quick and easy replacement of the reactor vesselsDouble-walled reactor vessel made of borosilicate glass 3.3 with bottom discharge valveSpring-loaded valve spindle of the drain valve to prevent glass breakageReactor lid with various openings for flexible adaptation to the desired applicationOverhead stirrer EUROSTAR 60 digitalPTFE-coated propeller stirrer for optimum mixingScope of supply: SY stand, reactor vessel SY 5000 D, SY clamp 150, SY clamp ring 150, SY O-ring 150, reactor lid SY 150.1, propeller stirrer R 4013 SY, overhead stirrer EUROSTAR 60 digital, keyless chuck R 60, stirrer guideMax. capacity:5000 mlWorking temperature range:-30 ... 200 °CAttainable vacuum:25 mbarMax. torque:60 NcmFlange size:DN150Reactor vessel openings:1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23Dimensions (W x D x H):500 x 580 x 1050 mm

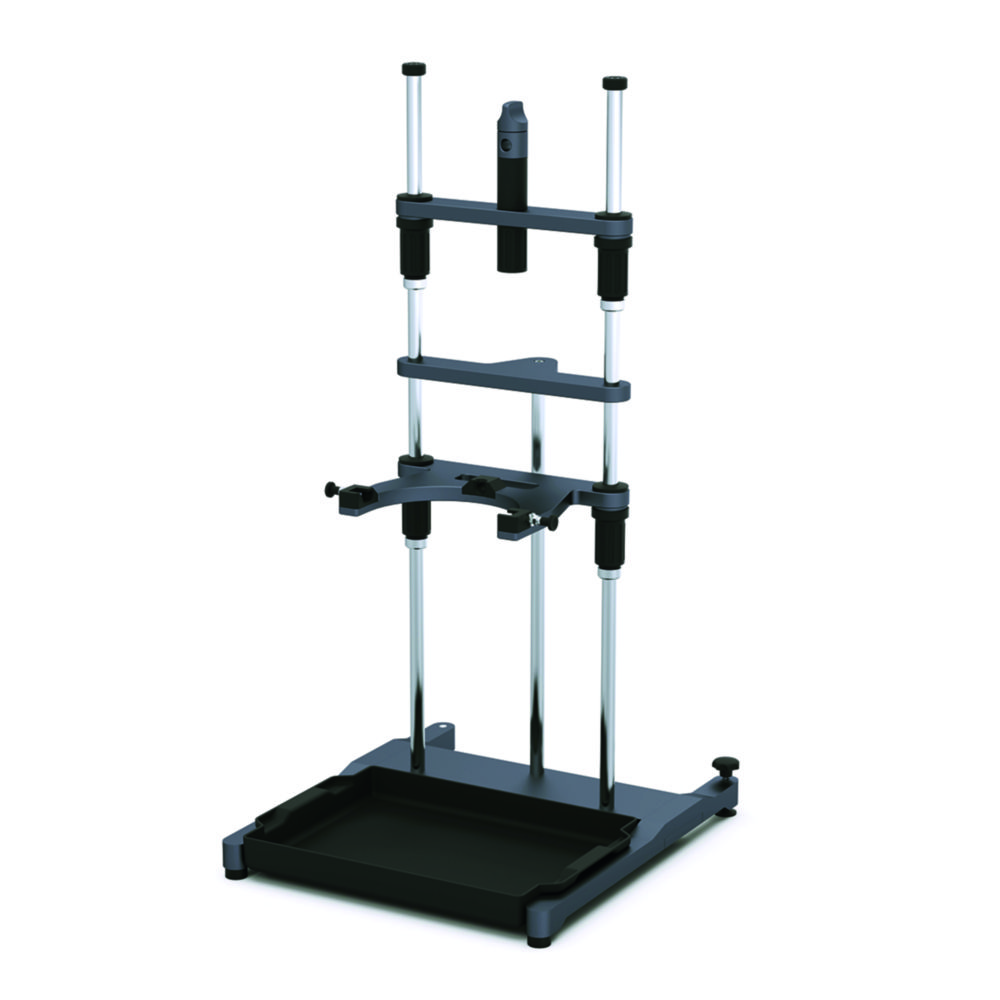

Stand for Synthesis reactors EasySyn Advanced and Starter
Specially designed stand system for use with reactor systems EasySyn.Quick, easy exchange of reactor vesselsSimple alignment of the overhead stirrerAdjustment of the working height
Vessel clamp for Synthesis reactors EasySyn Advanced and Starter
For attaching the reactor vessel to the stand of the reactor systems EasySyn.

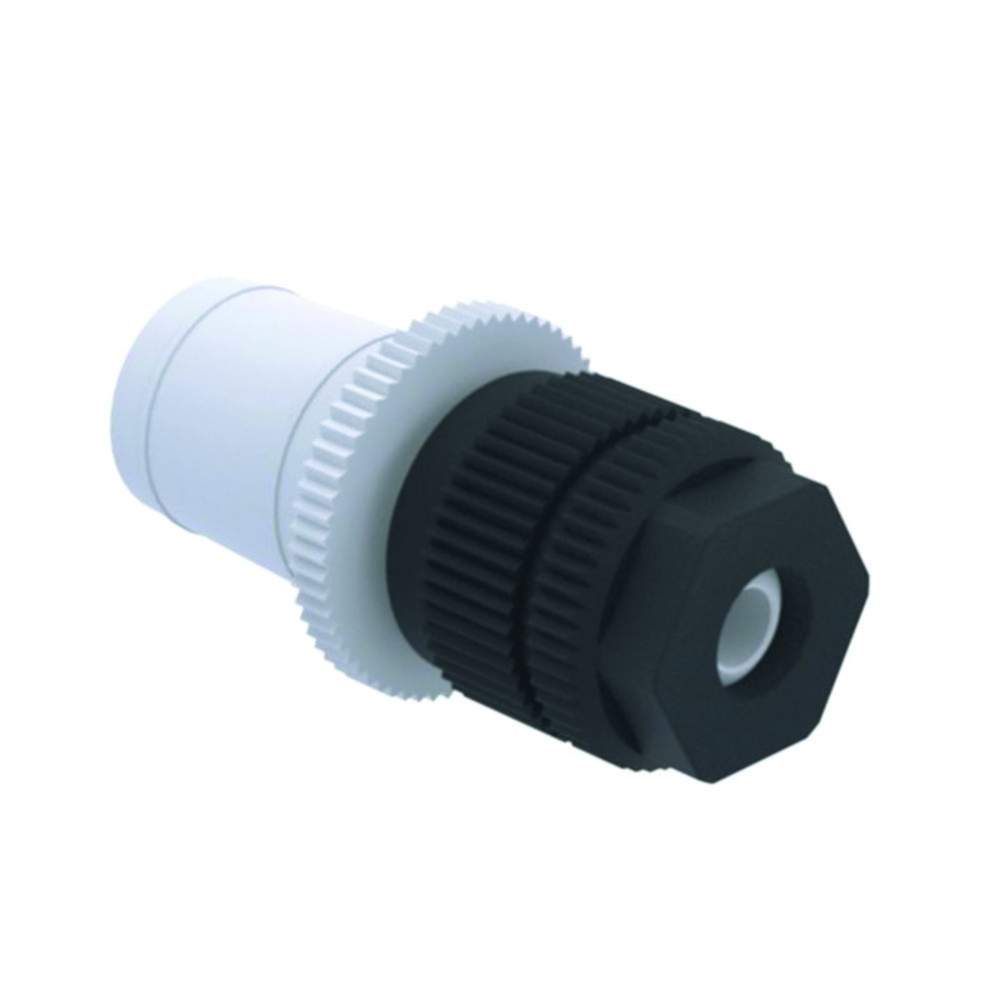

Swivelling screw fitting for Synthesis reactors EasySyn Advanced and Starter
Attachment for holding probes, hoses or tubes with different outer diameters.Made of PTFE and PPSFits in NS 29/32 ground jointsSuitable for vacuum applicationsTemperature resistant from -20 to 200 °C

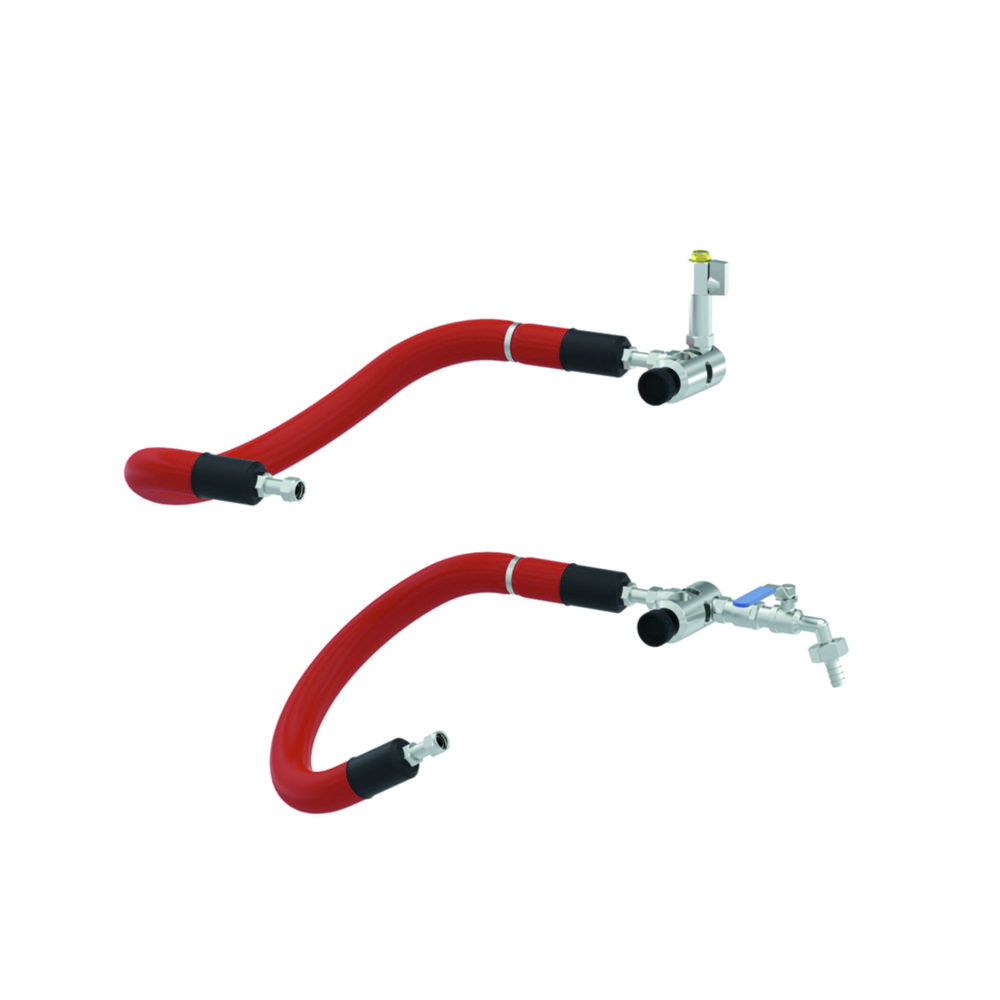

Draining set for Synthesis reactors EasySyn Advanced and Starter
For tension-free installation of temperature hoses on reactor vessels. The venting and draining valves are attached directly on the stand and allow clean and easy draining of the thermal fluid.Scope of supply: Venting valve, draining valve, 2 x temperature hoses to connect the reactor vessel with the valves

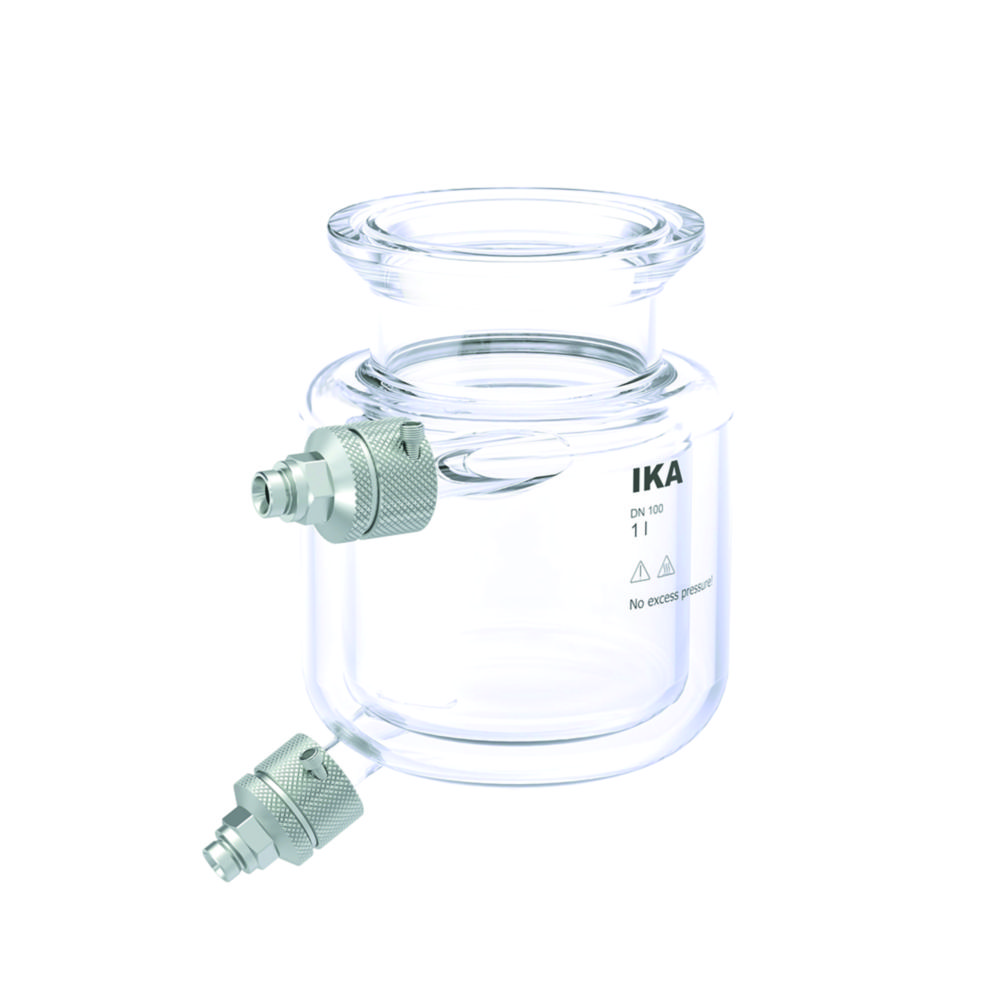

Reactor vessels for Synthesis reactors EasySyn Advanced and Starter, borosilicate glass 3.3, without bottom discharge valve
Double-walled reactor vessels made of borosilicate glass 3.3. Incl. stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.Double-walled reactor vessels made of borosilicate glass 3.3. Incl. stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.

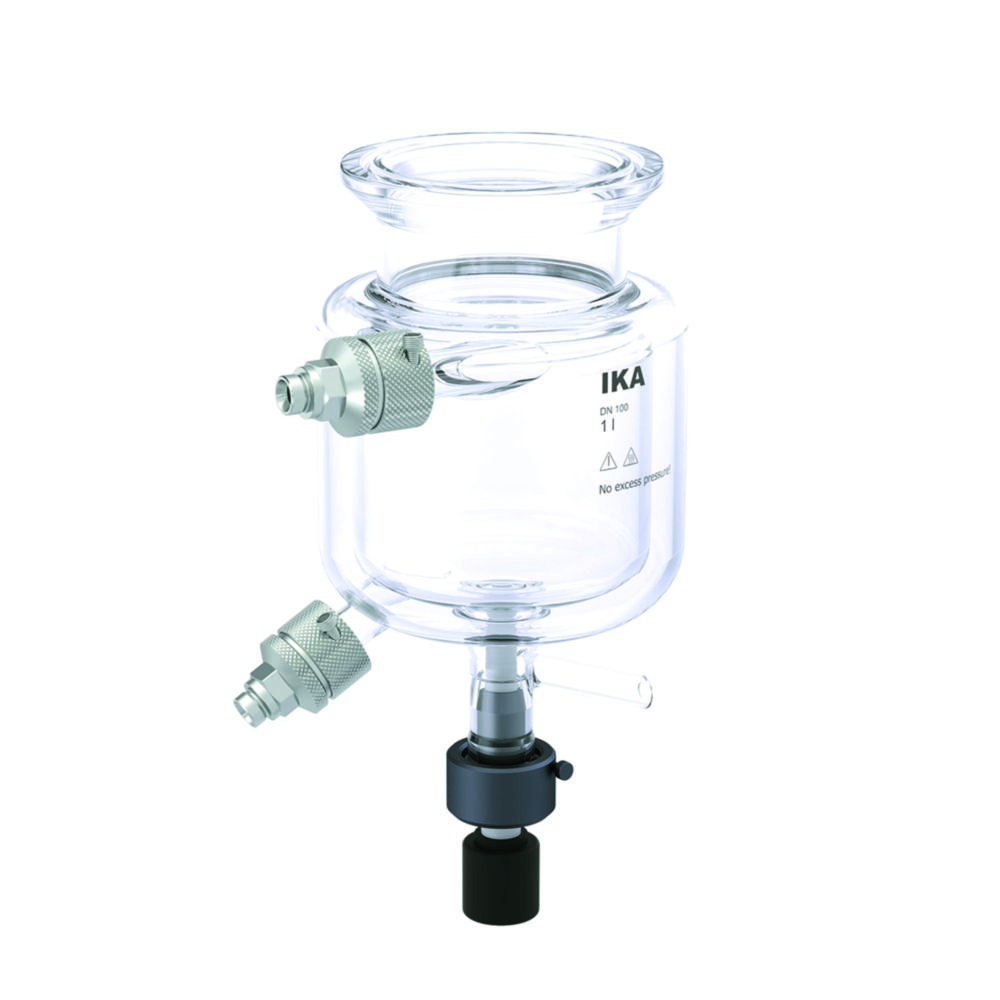

Reactor vessels for Synthesis reactors EasySyn Advanced and Starter, borosilicate glass 3.3, with bottom discharge valve
Double-walled reactor vessels made of borosilicate glass 3.3. Incl. stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.Double-walled reactor vessels made of borosilicate glass 3.3. Incl. stainless steel metal adapter M 16x1 (Male) to connect temperature hoses.
Clamp ring for Synthesis reactors EasySyn Advanced and Starter
For fastening the reactor lid to the reactor vessel.

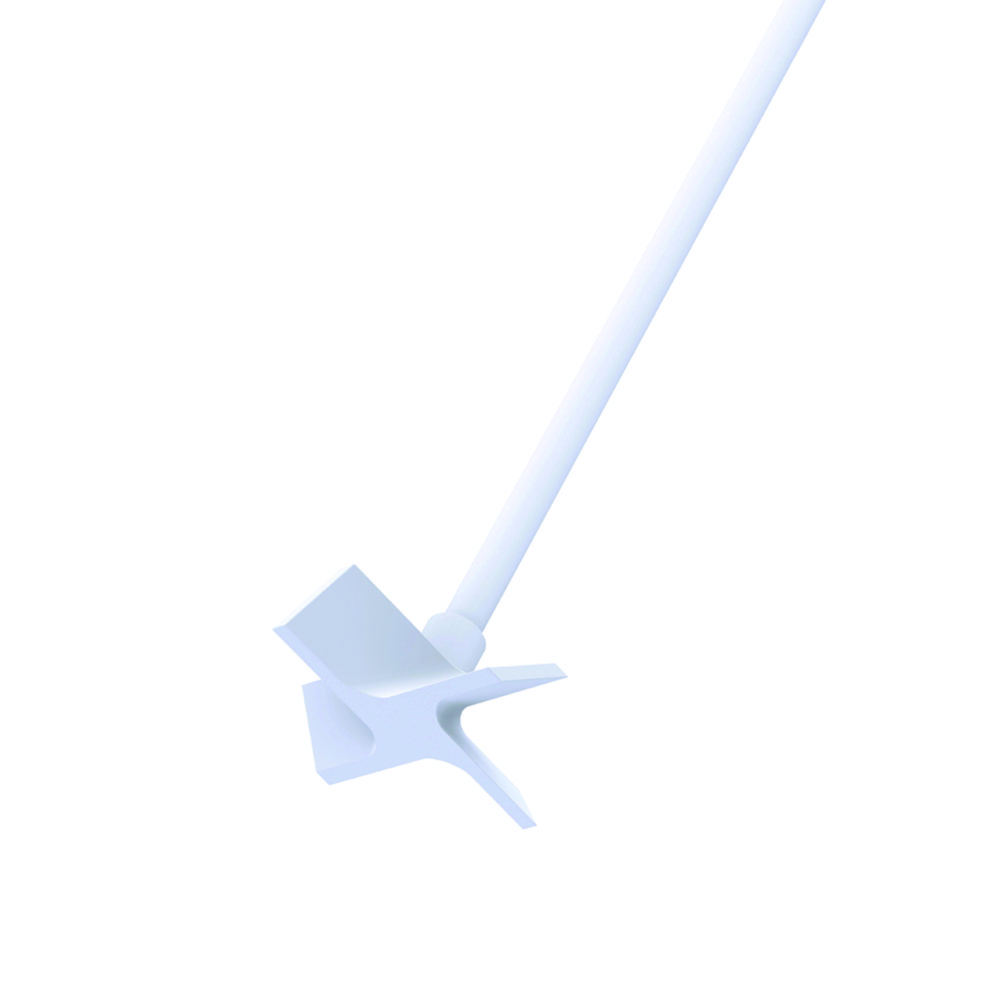

Propeller stirrer for Synthesis reactors EasySyn Advanced and Starter, PTFE
PTFE-coated propeller stirrer for use with reactor systems EasySyn.
Anchor stirrer for Synthesis reactors EasySyn Advanced and Starter, PTFE
PTFE-coated anchor stirrer for use with reactor systems EasySyn.

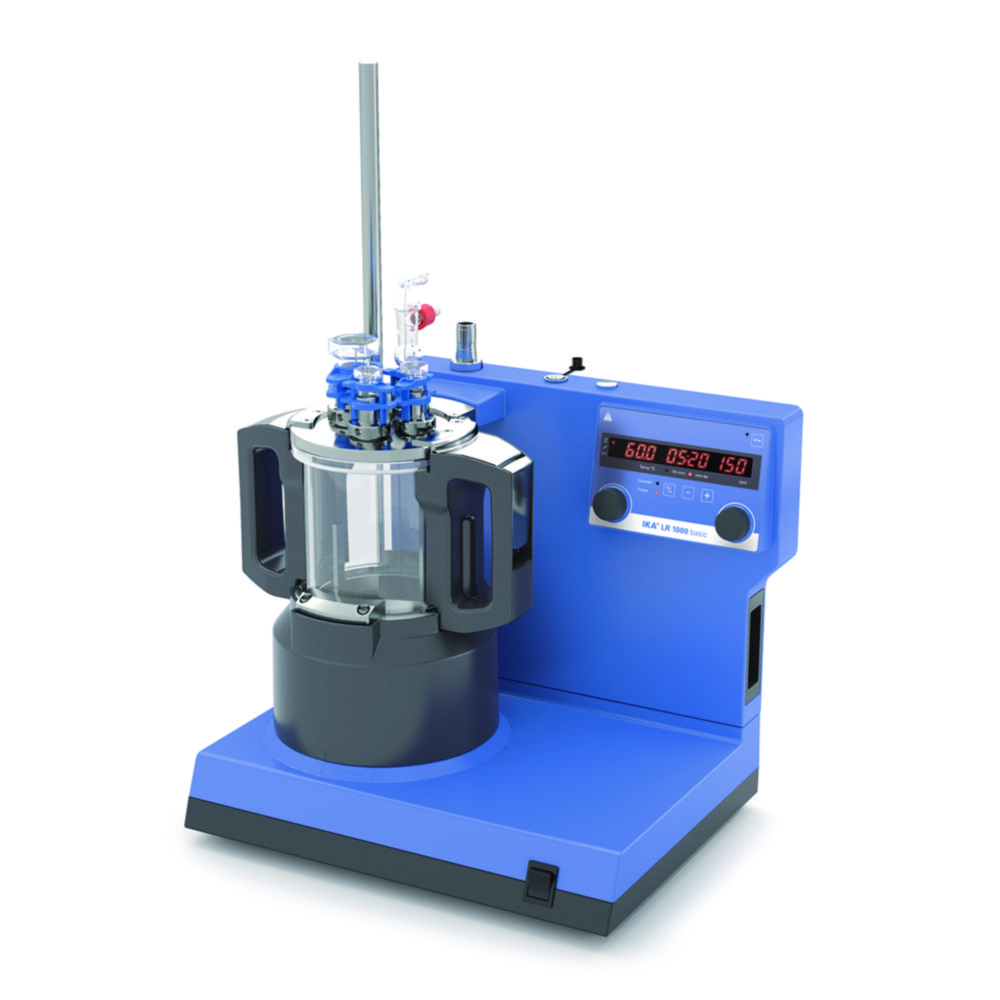

Laboratory reactor LR 1000 basic System
Modular laboratory reactors designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The reactors are especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 °C. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. Scope of supply: Basic device, laboratory reactor vessel LR 1000.1, sensor receptacle LR 1000.61, temperature sensor PT 100.30, support rod, 2 hose connectors for cooling hosesSpecificationsUsable volume:
Max. working temperature:
Nominal torque:300 - 1000ml
120°C
3NmAttainable vacuum:
Max. viscosity:
Speed range:25mbar
100,000mPas
10 - 150rpmDisplay:
Material in contact with medium:
Heat output:LED
AISI 316L, borosilicate glass 3.3, PTFE, FKM
1000WHeat control accuracy:
Connection for ext. temperature sensor:
Temperature measurement resolution:± 1K
yes
0.1KTemperature control accuracy with PT 100:
Min. cooling medium temperature:
pH sensor interface:± 0.2K
3°C
noTimer / counter function:
Support rod diameter:
Dimensions (W x D x H):yes
16mm
443 x 295 x 360mmWeight:
Permissible ambient temperature:
Permissible relative moisture:16kg
5 - 40°C
80%Protection class according to DIN EN 60529:
USB and RS 232 interface:
Voltage:IP 21
no
230VFrequency:
Power input:50/60Hz
1200W

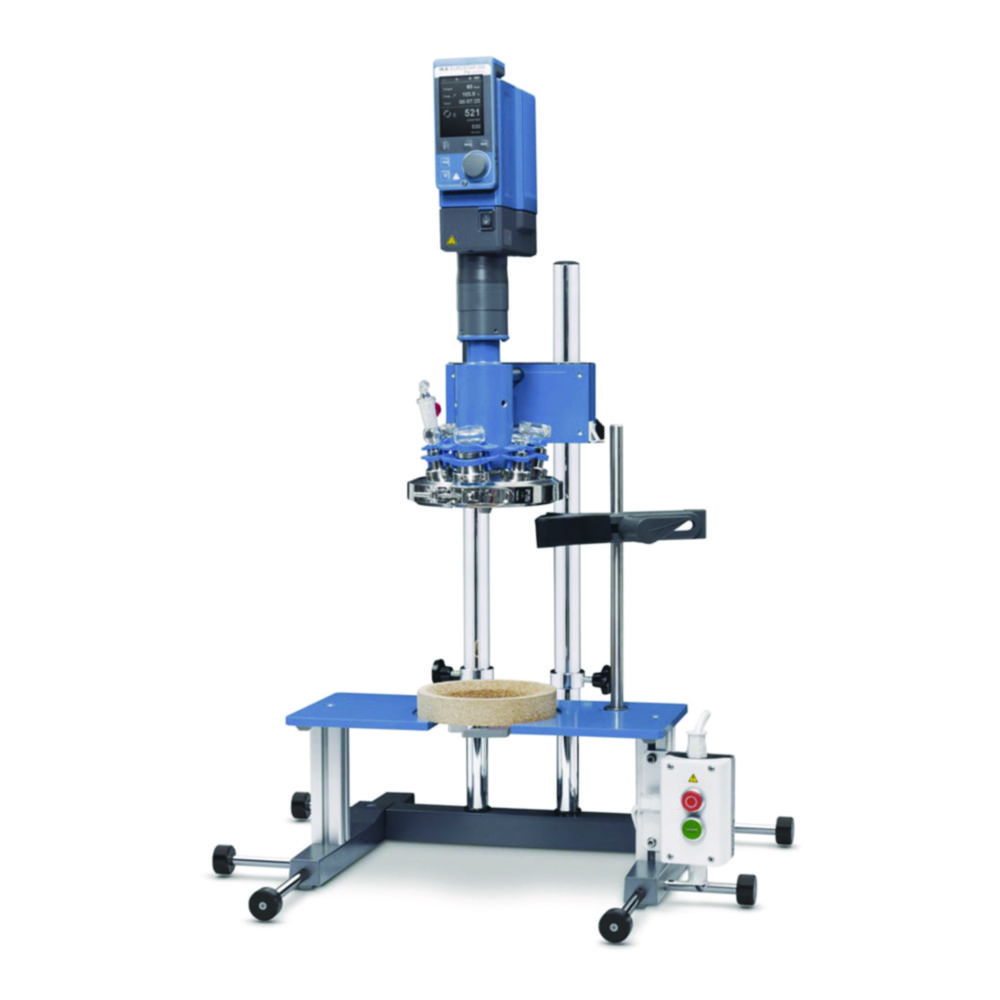

Laboratory reactor LR-2.ST the High-Performer
Modularly configured laboratory reactors for the optimisation and reproduction of various chemical reactions, mixing and homogenisation processes on a lab scale. The system is particularly characterised by the agitator mounting, which allows for a safe transfer of the higher motor torque. ULTRA-TURRAX® dispersers, temperature sensors, flow breakers and other accessories can be attached to the open ports of the reactor cover.Suitable for vacuum operationSolvent- and temperature-resistant perfluoroelastomer (FFPM) seals come into contact with sampleInfinitely variable speedTorque trend display for measuring changes in viscosityMicroprocessor-controlled speed regulation, enables steady speed, also under loadRemovable WiCo (wiresless controller) for remote and safe use in a fume hoodScope of supply: Stand system, EUROSTAR 200 control P4 laboratory stirrer with higher torque, safety stop, reactor cover

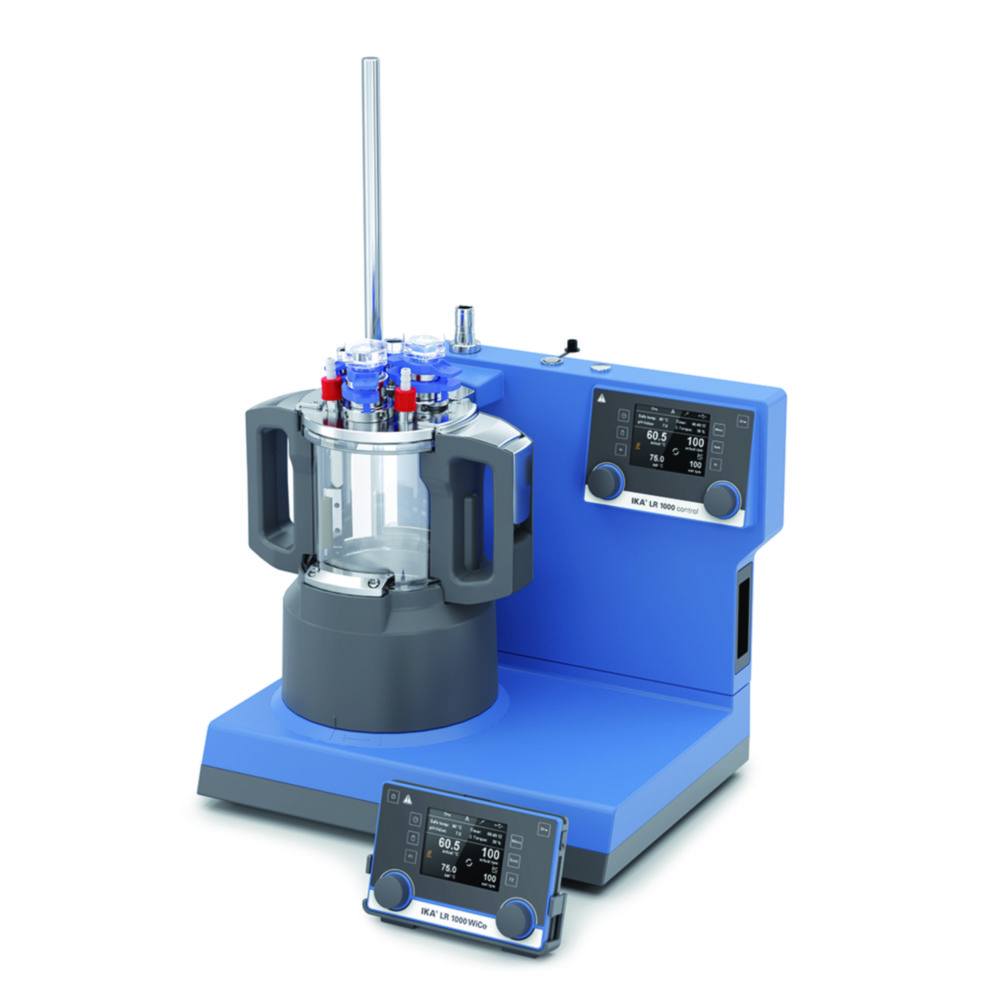

Laboratory reactor LR 1000 control System
Modular laboratory reactors designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The reactors are especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 °C. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. Prominent features are its intuitive menu navigation, integrated pH and temperature sensor connection as well as several interfaces that allow display and storage of process-relevant data on a PC. By using the optional laboratory software labworldsoft® it is possible to even control the reactor via PC and make further settings. In addition, a control valve connection to attach an optional magnetic valve for program-based cooling water control is integrated.Scope of supply: Basic device, laboratory reactor vessel LR 1000.3, anchor stirrer LR 1000.10, sensor receptacle LR 1000.62, temperature sensor PT 100.30, flow breaker, support rod, 2 hose connectors, USB cableSpecificationsUsable volume:
Max. working temperature:
Nominal torque:300 - 1000ml
120°C
3NmAttainable vacuum:
Max. viscosity:
Speed range:25mbar
100,000mPas
10 - 150rpmDisplay:
Material in contact with medium:
Heat output:TFT
AISI 316L, borosilicate glass 3.3, PTFE, FKM
1000WHeat control accuracy:
Connection for ext. temperature sensor:
Temperature measurement resolution:± 1K
yes
0.1KTemperature control accuracy with PT 100:
Min. cooling medium temperature:
pH sensor interface:± 0.2K
3°C
yesTimer / counter function:
Support rod diameter:
Dimensions (W x D x H):yes
16mm
443 x 295 x 360mmWeight:
Permissible ambient temperature:
Permissible relative moisture:16kg
5 - 40°C
80%Protection class according to DIN EN 60529:
USB and RS 232 interface:
Voltage:IP 21
yes
230VFrequency:
Power input:50/60Hz
1200W
