Diaphragm vacuum pumps LABOPORT®, ATEX-compliant
Content:
1
Product number:
9880613
Product information "Diaphragm vacuum pumps LABOPORT®, ATEX-compliant"
- Application: Fluid aspiration, Degassing, Gel drying, Rotary evaporation, Centrifugal concentration, Distillation
- High level of vapor and condensate compatibility
- PTFE pump head combined with PTFE-coated diaphragm are ideal for extremely aggressive/corrosive gases and vapors
- In accordance with ATEX II 2/-G IIB+H2 T3 Gb internal atmosphere only
| Connection pressure side: | ID 10 mm |
|---|---|
| Connection suction side: | ID 10 mm |
| Depth: | 312 mm |
| Dimensions (WxDxH): | 154 x 312 x 207 mm |
| Flow rate: | 20 l/min |
| Height: | 207 mm |
| Manufacturer Article Number: | 309577/026366 |
| Material media contact: | PTFE/FFPM |
| Max. overpressure: | 1 bar |
| Max. permitted ambient temperature: | 40 °C |
| Min. permitted ambient temperature: | 5 °C |
| Type: | N 820.3 FT.18 |
| Type of auxiliary energy: | Mains connection |
| Ultimate vacuum: | 8 mbar |
| Width: | 154 mm |
Skip product gallery
Other customers also bought

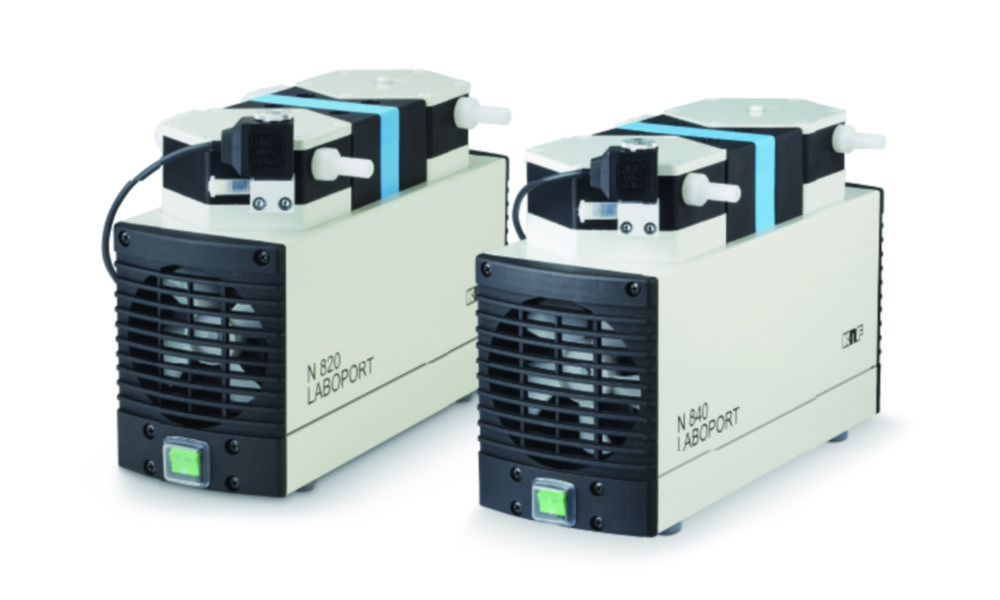

Diaphragm vacuum pumps LABOPORT® SD, chemically-resistant
