Diaphragm pumps, Aluminium
Product information "Diaphragm pumps, Aluminium"
- Improved performance, increased pumping speed (up to 16 m³/h) and better ultimate vacuum (up to 0.3 mbar). Extend applications with non-aggressive gases whether used in the laboratory or for industrial processes
- Very low leak rate due to enhanced leak-tight tubing connections, resulting in consistent performance characteristics - even after many years of operation. Ideal for analytical applications
- Long diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stability
- Very quiet and ultra low vibration due to compact drive with patented motor drive system. Ideal as a built-in component for sensitive analytical equipment
- Easy to clean due to smooth surfaces. A robust solution for numerous applications in industrial environments
The VARIO® design provides vacuum control by precise and continuous adaption of the diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.
Country-specific power cord versions available on request.
| Connection pressure side: | G1/4" |
|---|---|
| Connection suction side: | DN 8-10 mm |
| Depth: | 243 mm |
| Dimensions (WxDxH): | 239 x 243 x 198 mm |
| Flow rate: | 2 m³/h |
| Height: | 198 mm |
| Manufacturer Article Number: | 20731002 |
| No. of stages: | 1 |
| Plug type: | UK |
| Type: | ME 4 NT |
| Type of auxiliary energy: | Mains connection |
| Ultimate vacuum: | 70 mbar |
| Width: | 239 mm |
Skip product gallery
Other customers also bought

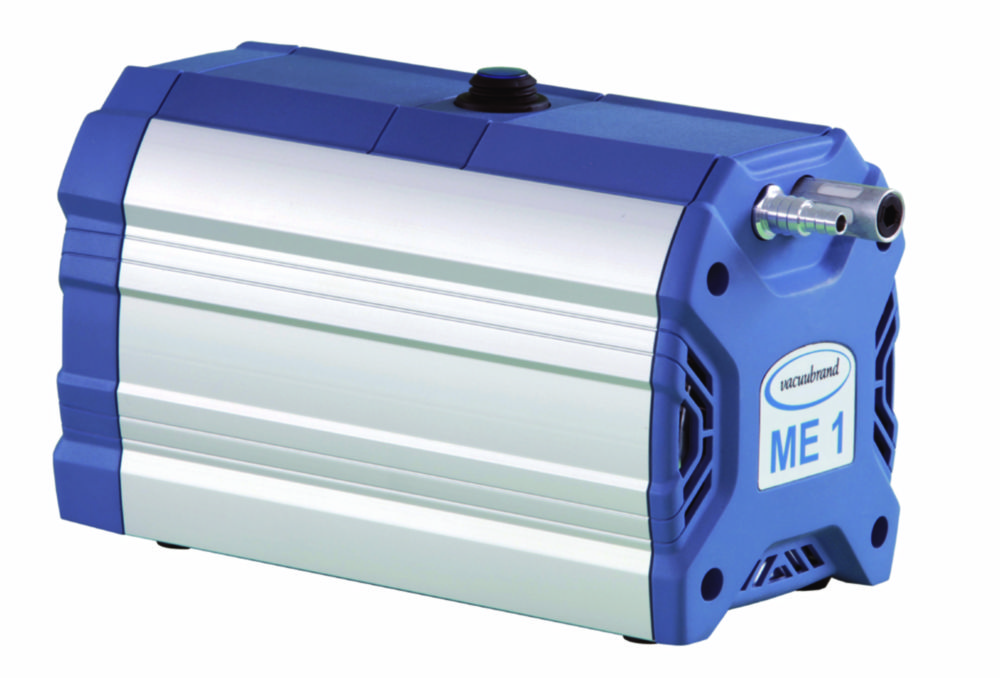

Diaphragm pumps, Aluminium PTFE design, ME 1
€0.00*
The diaphragm pumps ME 1 offer a compact and high performance solution. With their easy-to-use functionality, they are a perfect partner for both single and multiple filtrations.One-stage diaphragm pumps are an excellent solution for continuous, oil-free pumping of gases and vapors for modest vacuum requirements. In contrast to water-jet pumps, they do not consume water and therefore do not produce any contaminated waste water in daily use.Vacuum filtration is frequently used for sample preparation in chemistry, microbiology, waste water control and analysis.Typical applications for the ME 1 are aqueous filtrations. The PTFE diaphragm and valves are rugged and provide high chemical resistance. If aluminium has the required specific resistance, solvent-containing samples can also be filtrated.Country-specific power cord versions available on request.
