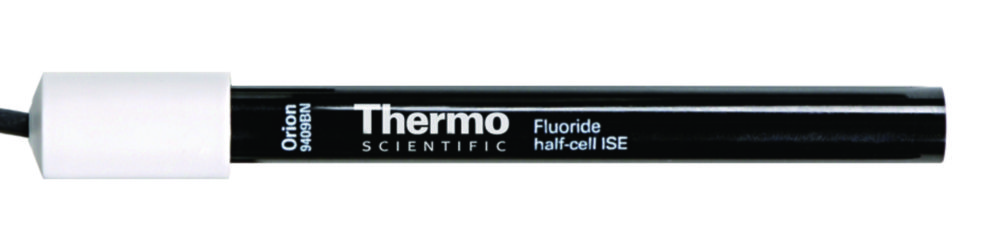

Fluoride electrodes
For quick and easy measurement of fluoride ions in aqueous solutions. When using the half cell electrodes 9409BN and 9409SC, a separately available reference electrode is needed.

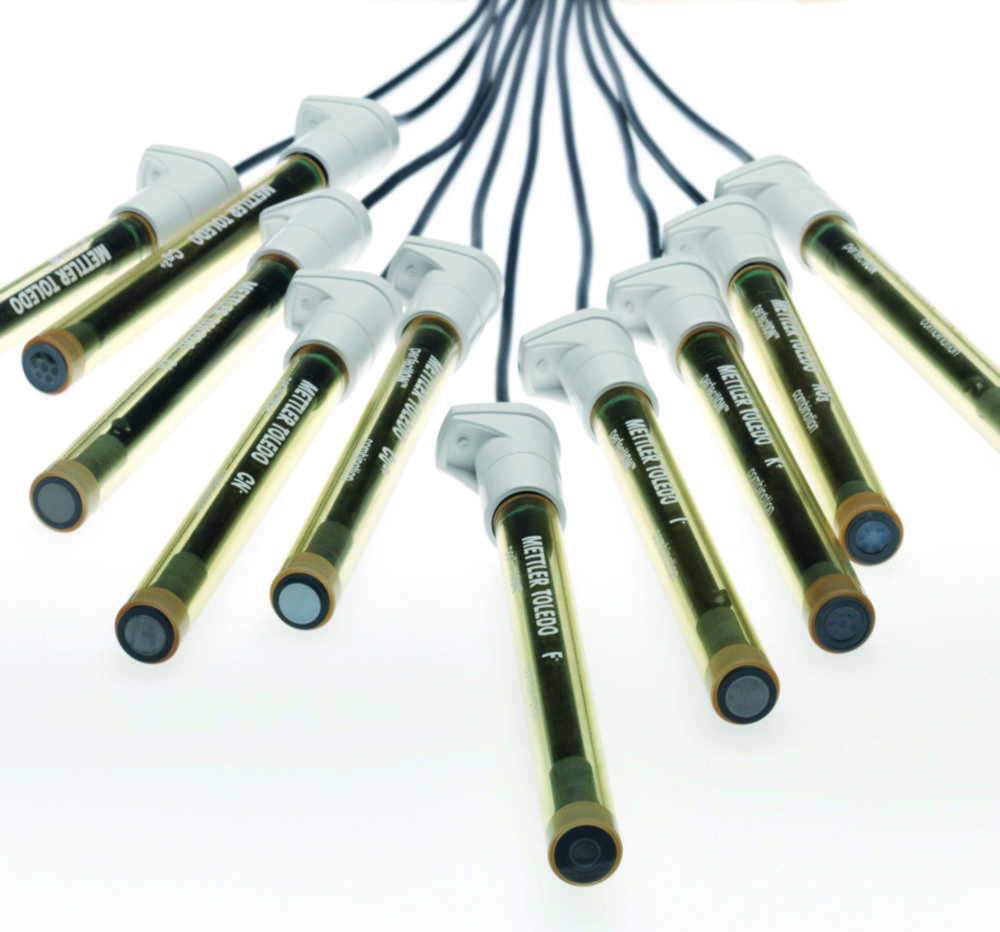

Ion selective combination electrodes perfectION™
With integrated reference electrode. Easy cleaning of the diaphragm between measurements with Click & Clear™ (except Na electrode): by pressing the electrode head, the electrolyte solution flows through the diaphragm. The electrolyte can be easily emptied and refilled. Optimum contact between sample and electrolyte solution is always guaranteed.Scope of supply: Sensor with permanently connected 1.2 m cable with BNC connection, 60 ml reference electrolyte, operating instructionsScope of supply Na-electrode: Sensor with S7 plug head, diaphragm made of glass with higher sensitivity to sodium, 25 ml reference electrolyte, operating instructions
Ammonia gas sensing ISE Electrode
Gas and ion selective electrode for determination of ammonia content in aqueous solutions. For rapid and precise measurement of ammonia.Scope of supply: Waterproof BNC connector, 1 m cable, 20 loose membranes, preassembled outer body and membrane cap, 2 x 60 ml bottles of electrode filling solution, spout cap, tweezers

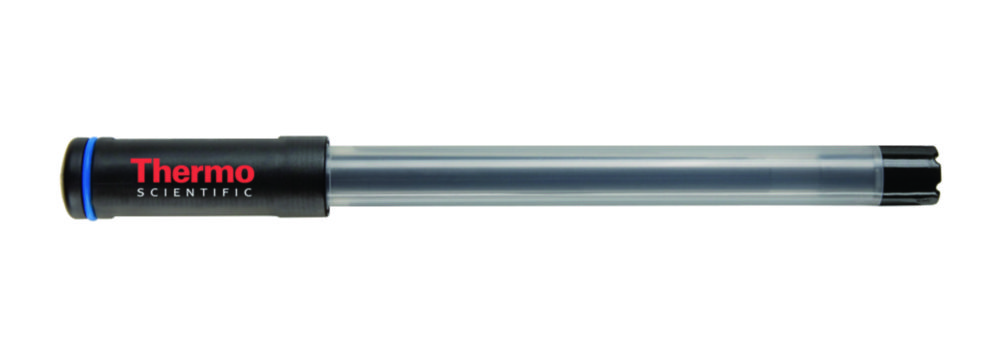

High performance ammonia gas sensing ISE Electrodes
For high performance applications. Rapid results within one minute at concentrations from 1 ppm. Very good linear response.Scope of supply: Waterproof BNC connector, 1 m cable, 20 loose membranes, preassembled outer body and membrane cap, 2 x 60 ml bottles of electrode filling solution, spout cap, tweezersSpecificationsConcentration range:0.01…17000 ppm ammonia (NH3)
0.01…14000 ppm nitrogen (N)Temperature range:0 ... 50 °CElectrode resistance:1500 MΩLength / Ø:115 mm / 16 mm
Membrane module set NH 995 for ammonia electrodes
Set for replacing the membrane module of the ammonia electrode consisting of 3 membrane modules and 3 caps.

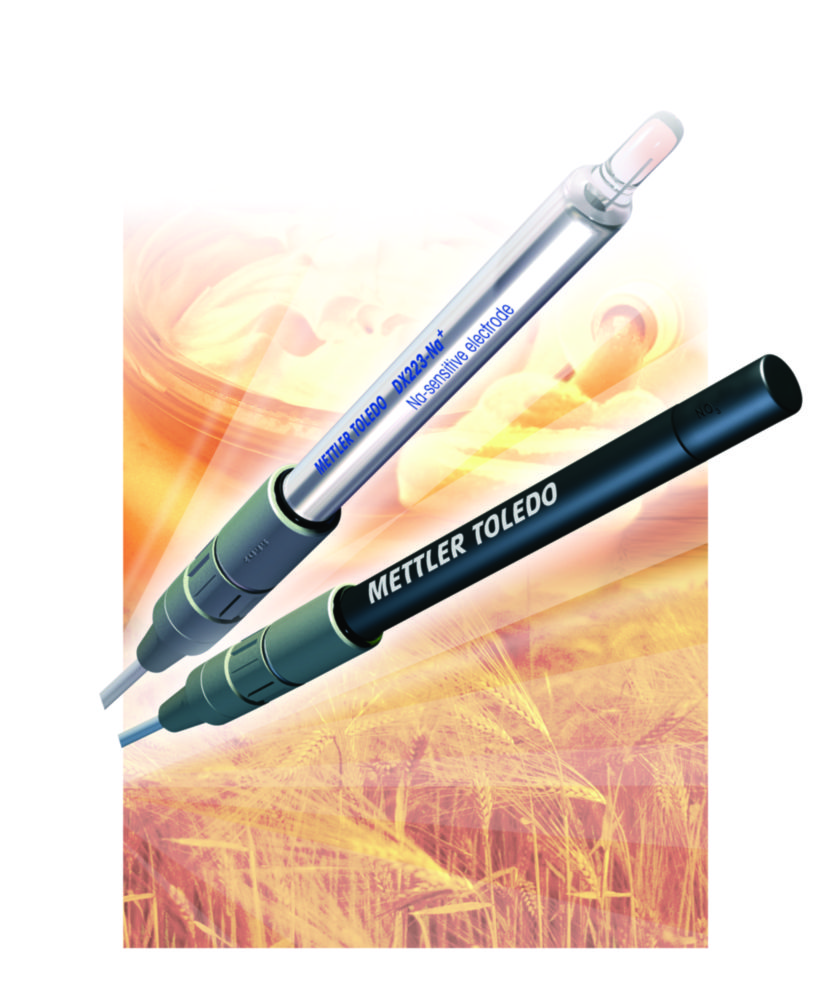

Ion selective, gas-sensitive electrodes
Modular half cell with exchangeable diaphragm and S-7 plug head for determining the concentration of individual ions in aqueous solutions. Easy to use and require comparatively low expenditure on apparatus thereby offering advantages over wet chemistry and instrument analysis methods. Ion selective electrodes must be used in conjunction with a suitable reference electrode (InLab® Reference, cat no. 9.041 590 or InLab® Reference Plus, cat no. 9.041 591).
